GEPRC SPAN F722-BT-HD V2 Stack - Flight Controller Stack F7 BL32 50A 96K 4IN1 ESC SUPPORT BLUETOOTH PARAMETER TUNING

GEPRC SPAN F722-BT-HD V2 Stack - Flight Controller Stack F7 BL32 50A 96K 4IN1 ESC SUPPORT BLUETOOTH PARAMETER TUNING

GEPRC

$226.92 USD
$317.69 USD $226.92 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

11 orders in last 90 days

Color
Ships From
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

GEPRC SPAN F722-BT-HD V2 Stack  SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Adapter

Tool Supplies: Assembled class

Size: 1 inch

Remote Control Peripherals/Devices: Accessories

Recommend Age: 12+y

RC Parts & Accs: Servo Accessories

Quantity: 1 pcs

Origin: Mainland China

Model Number: SPAN F722-BT-HD v2 Stack

Material: Composite Material

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Helicopters

Brand Name: GEPRC

Summary

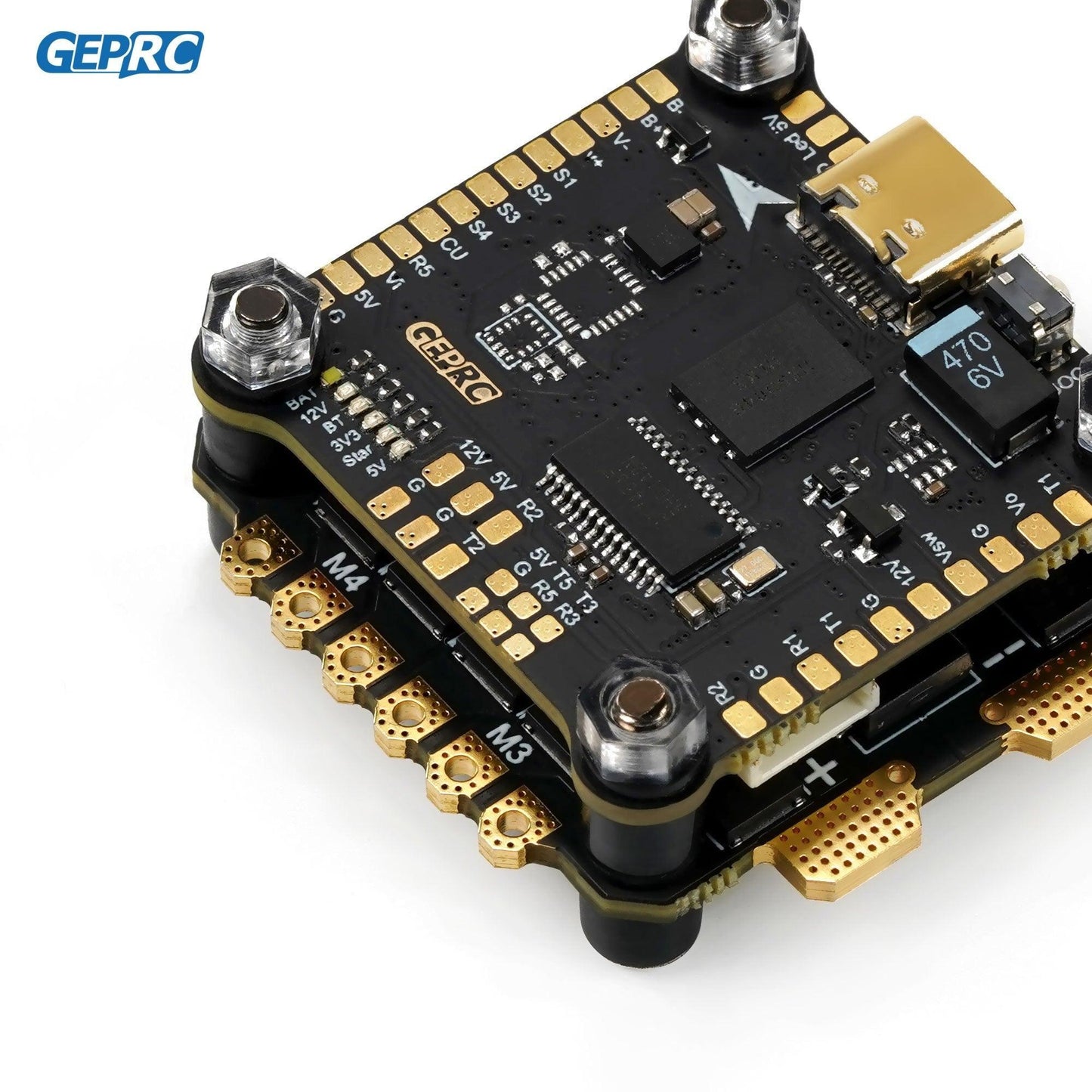

The SPAN F722-BT-HD v2 stack is specially designed for DJI Air Unit, plug and play, is a flight tower system with F722 chip flight controller and BLheli_32 50A 96K 4 in 1 32-bit ESC, equipped with 42688 -P gyroscope, integrated 512MB on-board SD card and on-board Bluetooth parameter tuning. So as to have a more delicate flying experience.

The SPAN F722-BT-HD v2 flight controller supports direct plug-in the DJI Air Unit, which can save the trouble of soldering. The upgrade of the type-C USB connector greatly improves the life of the socket and reduces the risk of poor contact.

F722-BT-HD v2 flight controller can be well matched with BLheli_32 50A 96K 4-in-1 32-bit ESC.

It can be used together to achieve perfect flight effect.

The flight controller supports various receivers, including Sbus, PPM, CRSF, DSMX, iBus, DUMD and other protocols, so don't worry that the remote controller in your hand cannot be used.

Features

1. Using mainstream STM32F722RET6 main control

2. Equipped with the latest 42688-P gyroscope

3. Support Bluetooth parameter tuning

4. 512MB on-board SD card

5. Integrated LC filtering

6. Upgraded type-C USB connector

7. Direct plugging into DJI Air Unit

8. Combined with BLHeli_32 50A 96K 4IN1 ESC to achieve silky smooth flight experience

9. Simple and reasonable installation method, shock absorption ring can make the gyroscope work stably

10. Support major receivers: Sbus, PPM, CRSF, DSMX, iBus

Specification

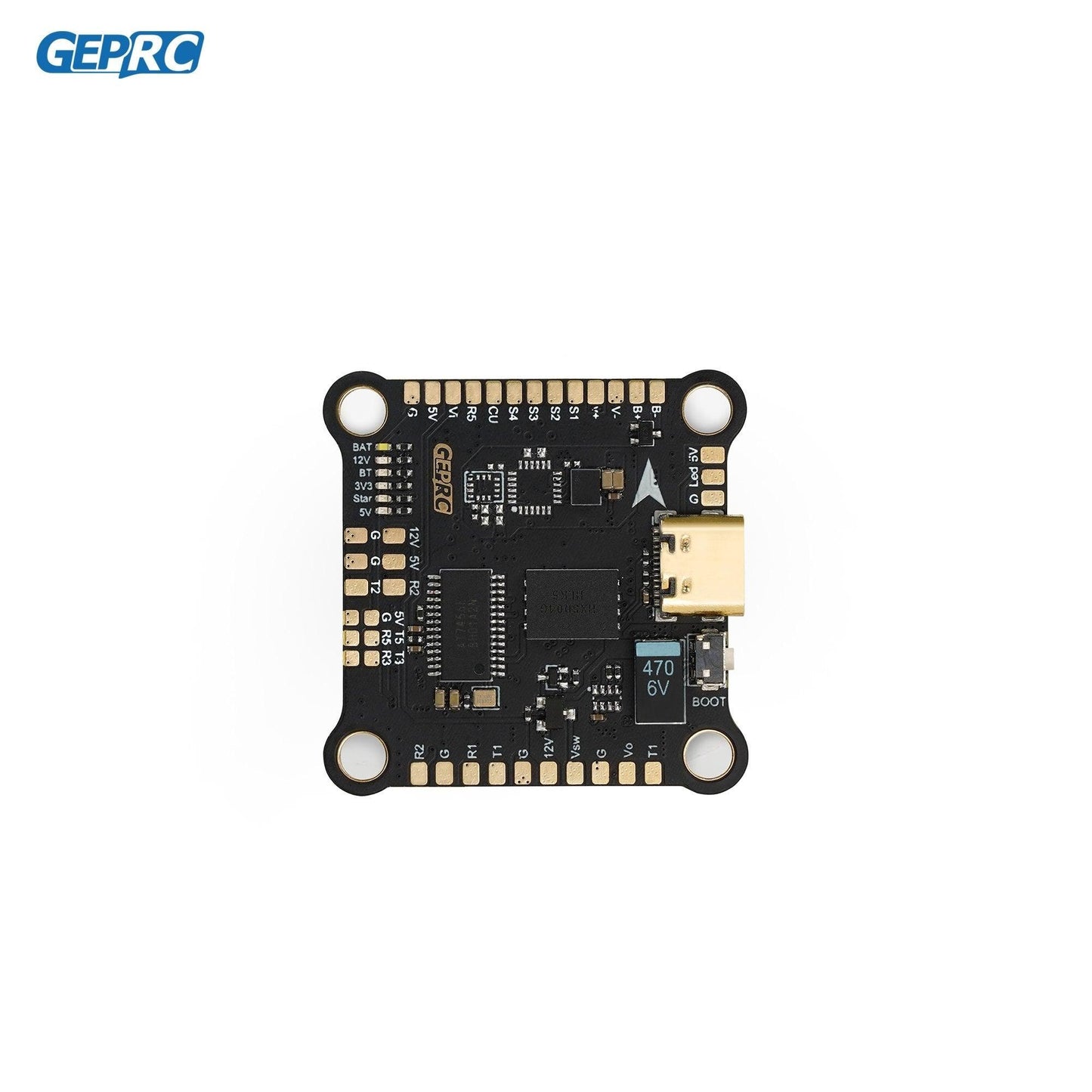

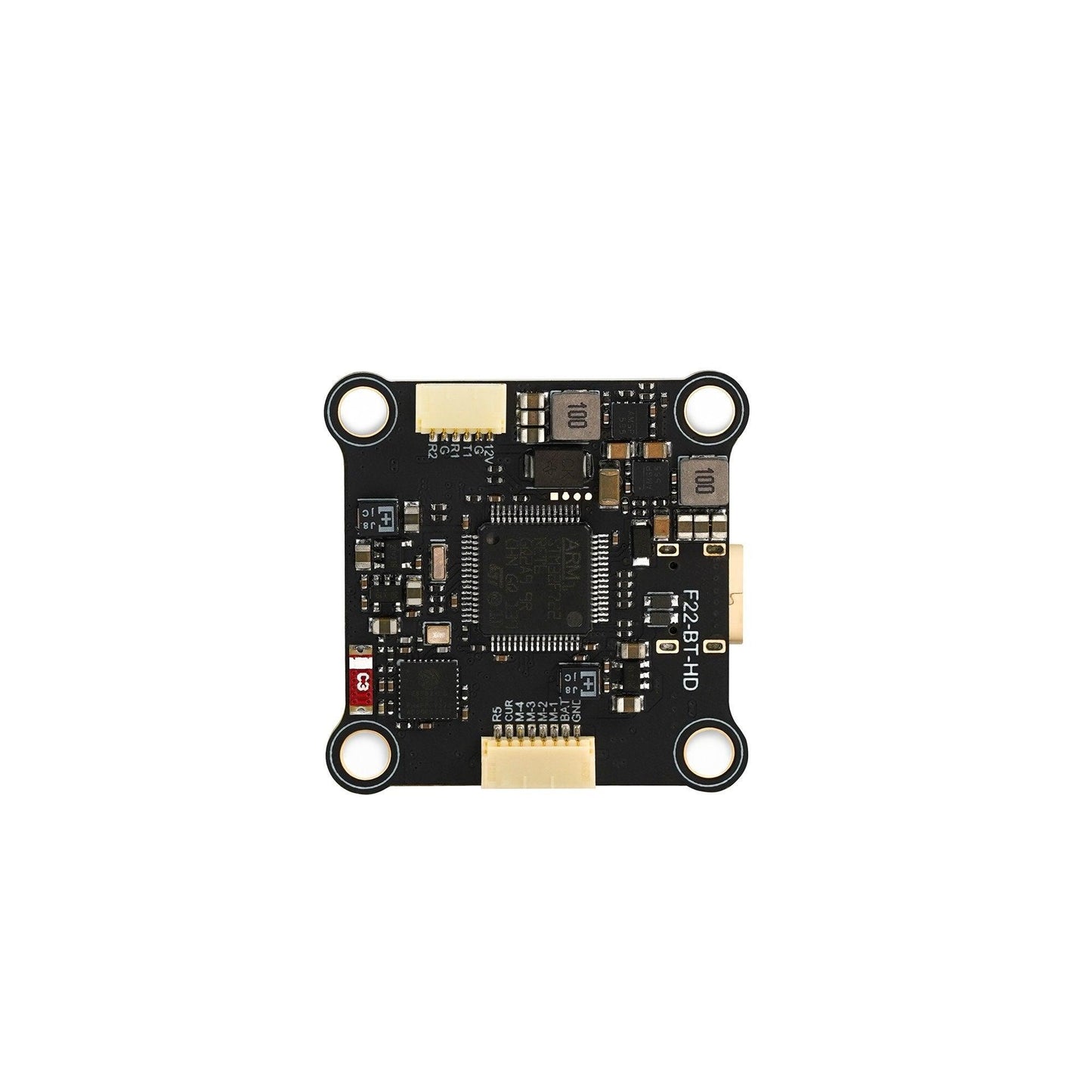

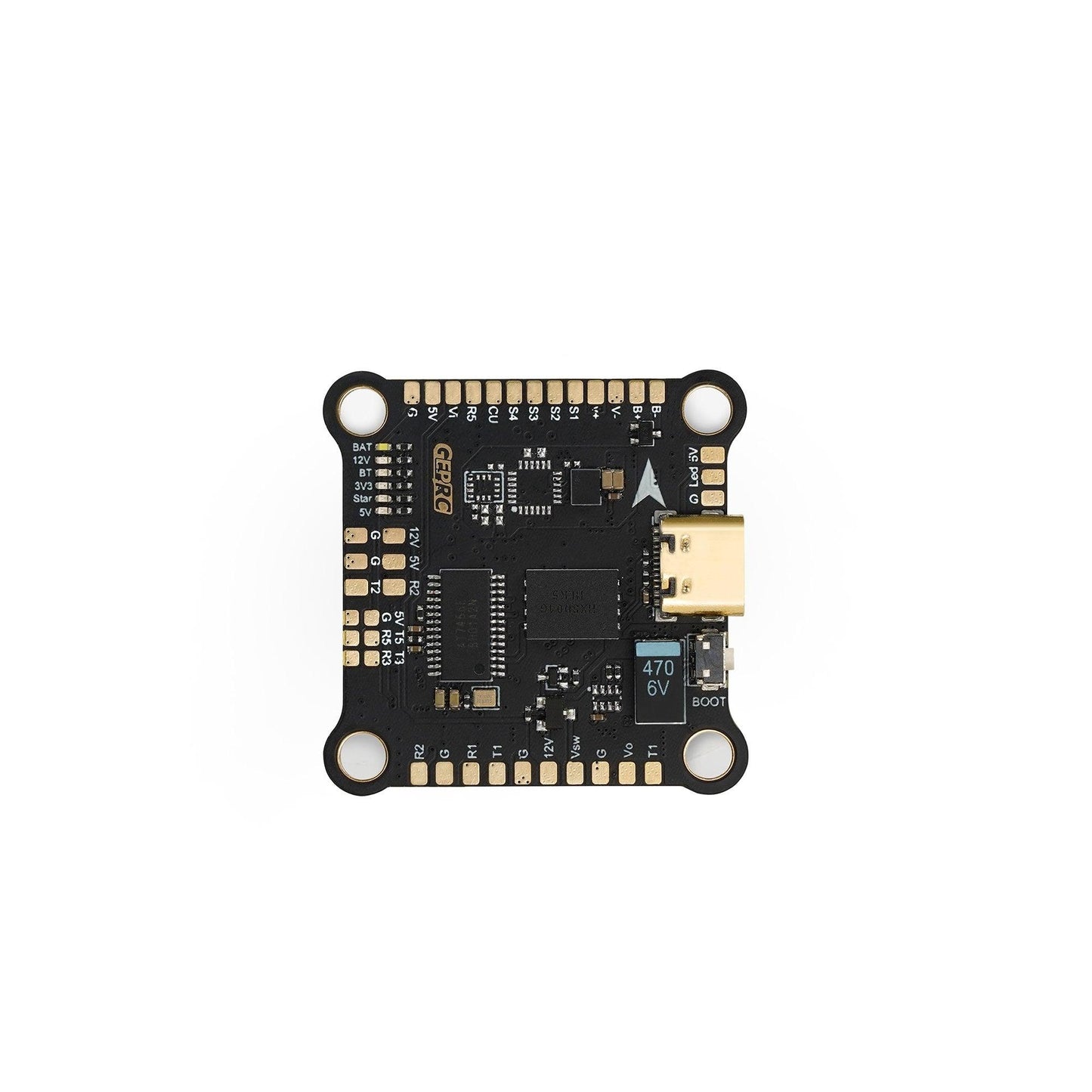

Model: SPAN F722-BT-HD v2 flight controller

  • MCU: STM32F722RET6

  • IMU: 42688-P(SPI)

  • Black Box: 512MB onboard SD card

  • USB Connector: Type-C

  • OSD: BetaFlight OSD w/ AT7456E chip

  • BEC Output: 5V 3A / 12V 3A

  • Integrated LC filtering

  • Firmware: GEPRCF722-BT-HD

  • Size: 36x36mm, φ4mm hole becomes φ3mm after using silicone grommets

  • Input Voltage: LiPo 3-6S

  • UARTS: 5

Model: BL32 50A 96K 4IN1 ESC

  • MCU: SMT32G071 (32bit 96K Hz)

  • Continuous Current: 50A

  • Peak Current: 55A (5 seconds)

  • Galvanometer: Support

  • Telemetry: Support

  • Supported Protocols: DSHOT600, PWM, Multishot, OneShot

  • Firmware: GEPRC_G071_4IN1_96K

  • Input Voltage: 3-6S Lipo

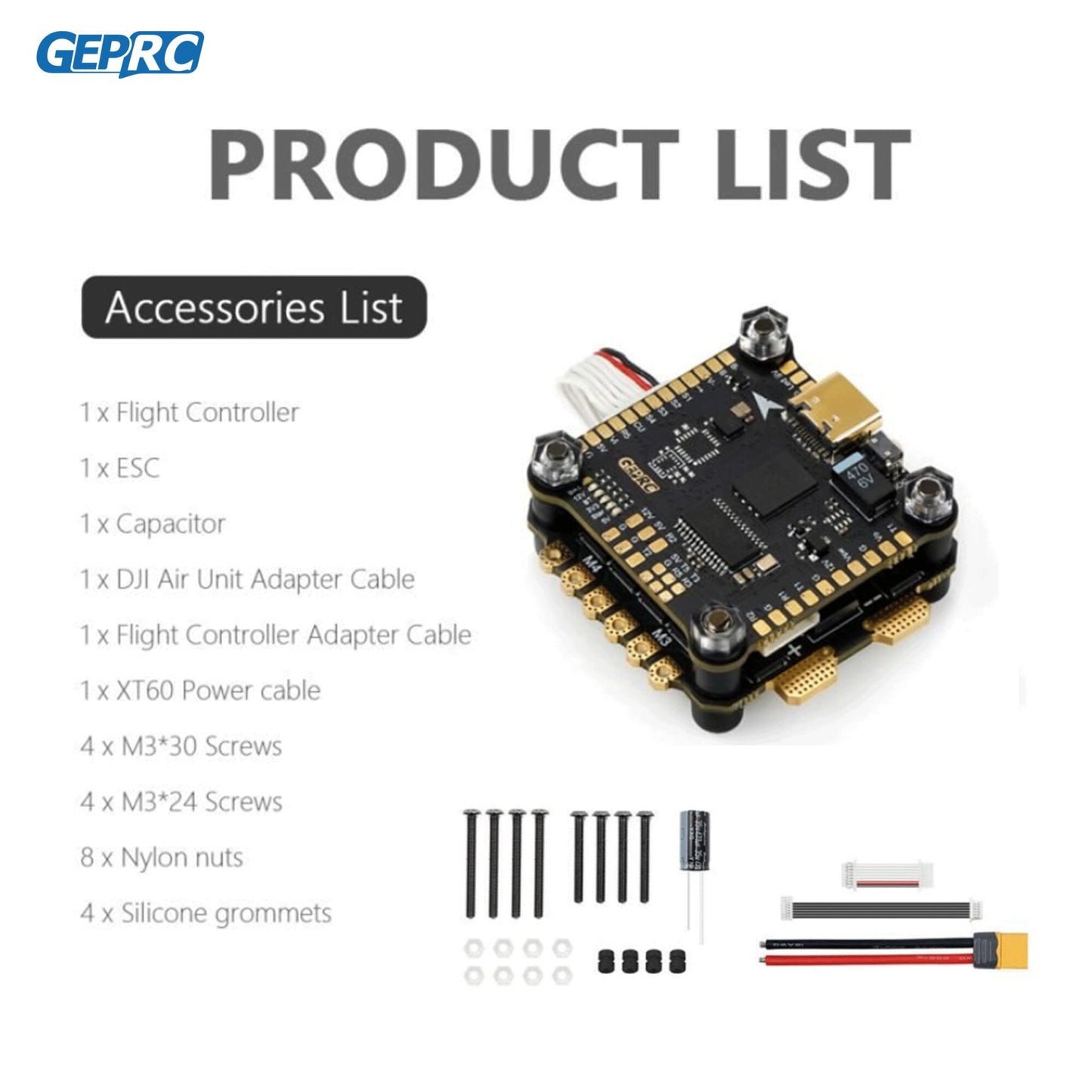

Includes

1 x Flight Controller

1 x ESC

1 x Capacitor

1 x DJI Air Unit Adapter Cable

1 x Flight Controller Adapter Cable

1 x XT60 Power cable

4 x M3*30 Screws

4 x M3*24 Screws

8 x Nylon nuts

4 x Silicone grommets

GEPRC SPAN F722-BT-HD V2 Stack, Using mainstream STM32F722RET6 main controlGEPRC SPAN F722-BT-HD V2 Stack, Superior Hardware Model: SPAN F722-BT-HD V2 Flight Controller MCU:

Superior Hardware Model: SPAN F722-BT-HD V2 Flight Controller MCU: STM32F722RET6 IMU: 42688-P(SPI) Black Box: 512MB onboard SD card g & ? USB Connector: Type-C BAT 12v 83 8 3 OSD: BetaFlight OSDw/ AT7456E Sur BEC Output: SV 3A 12V 3A VE 0J Integrated LC filtering 8

GEPRC SPAN F722-BT-HD V2 Stack - Flight ControllerGEPRC SPAN F722-BT-HD V2 Stack, So as to have a more delicate flying experienceGEPRC SPAN F722-BT-HD V2 Stack, SUPPORT BLUETOOTH PARAMETER TUNING 1 Support Android, IOS

Supports Bluetooth connectivity for parameter tuning on both Android and iOS systems.

GEPRC SPAN F722-BT-HD V2 Stack, Using mainstream STM32F722RET6 main controlGEPRC SPAN F722-BT-HD V2 Stack - Flight ControllerGEPRC SPAN F722-BT-HD V2 Stack, UNIQUE SHOCK ABSORPTION STRUCTURE Unique soft cable connection and

Features a unique shock absorption structure, including soft cable connections and shock-absorbing mechanisms in the mounting holes, which helps to effectively dampen the impact of external vibrations on high-efficiency components.

GEPRC SPAN F722-BT-HD V2 Stack, X Flight Controller Ix ESC 1x Capacitor 1x DJI Air

DJI air unit compatibility: No welding required. Included accessories: Flight controller, ESC, capacitor, DJI air unit adapter cable, XT60 power cable, and additional items such as 8 nylon nuts, silicone grommets, and plug-and-play components.
