Summary

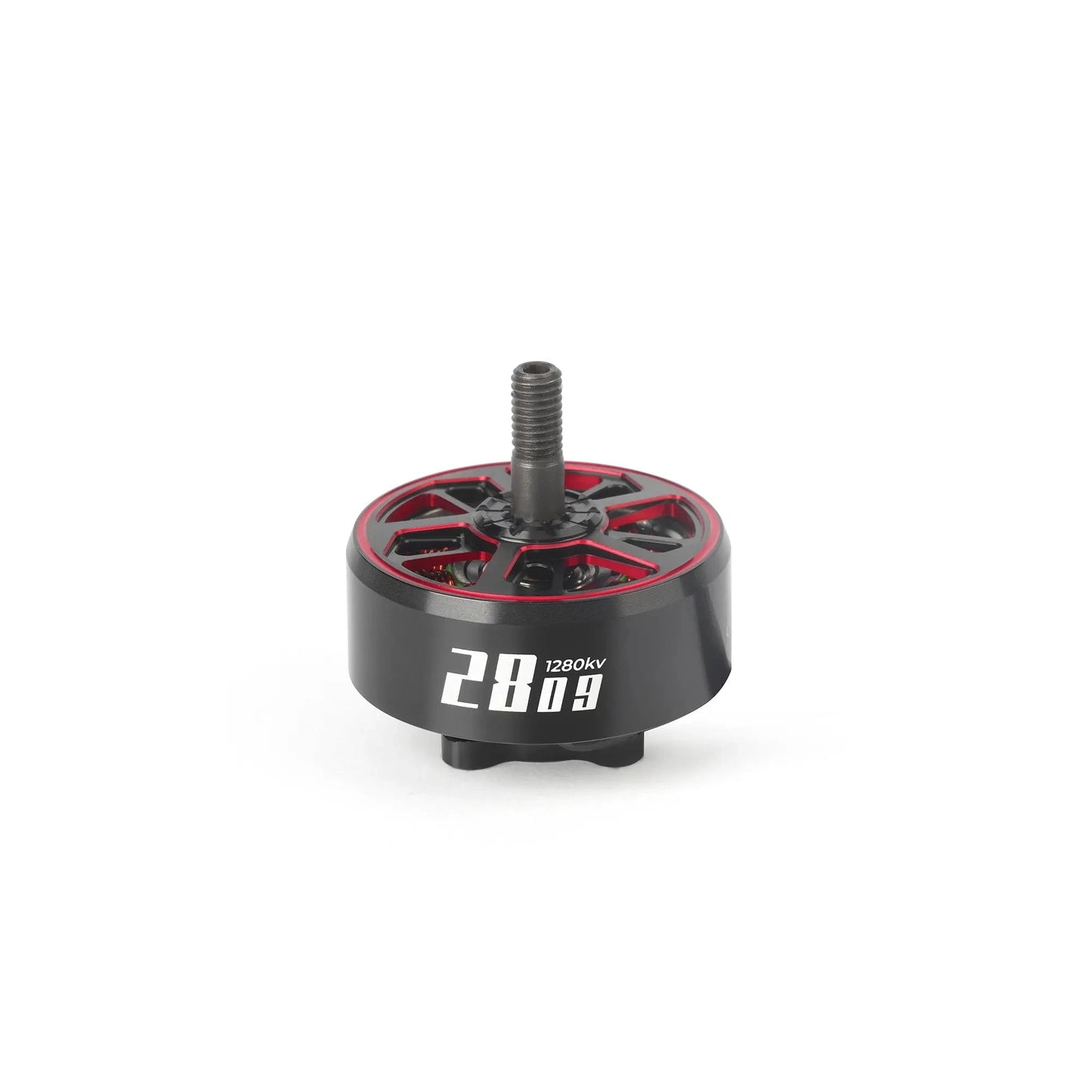

The SPEEDX2 2809 motor is developed for a 7-8 inch large FPV drone. The stator is made of 0.2MM silicon steel sheets from Kawasaki. The magnetic steel uses N52SH, which improves the high temperature resistance by 30%. In terms of appearance, the overall design is dark and red, with a delicate texture.The motor mounting hole is 19mm*19mm.

Feature

1. Using 7075 aviation aluminum alloy, high-precision CNC integrated
2. Dark appearance with red side strips
3. The rotor edge structure conforms to the load-bearing mechanical design and has strong impact resistance.
4. Adopt high-quality N52SH magnetic steel to prevent high temperature demagnetization

Specifications

• Model: SPEEDX2 2809 Motor

• KV:1280KV

• Configuration:12N14P

• Magnet: N52SH ARC

• Rotor material: 7075-T6 aviation aluminum alloy

• Stator diameter: 28mm

• Stator height: 9mm

• Output shaft diameter: Φ5mm

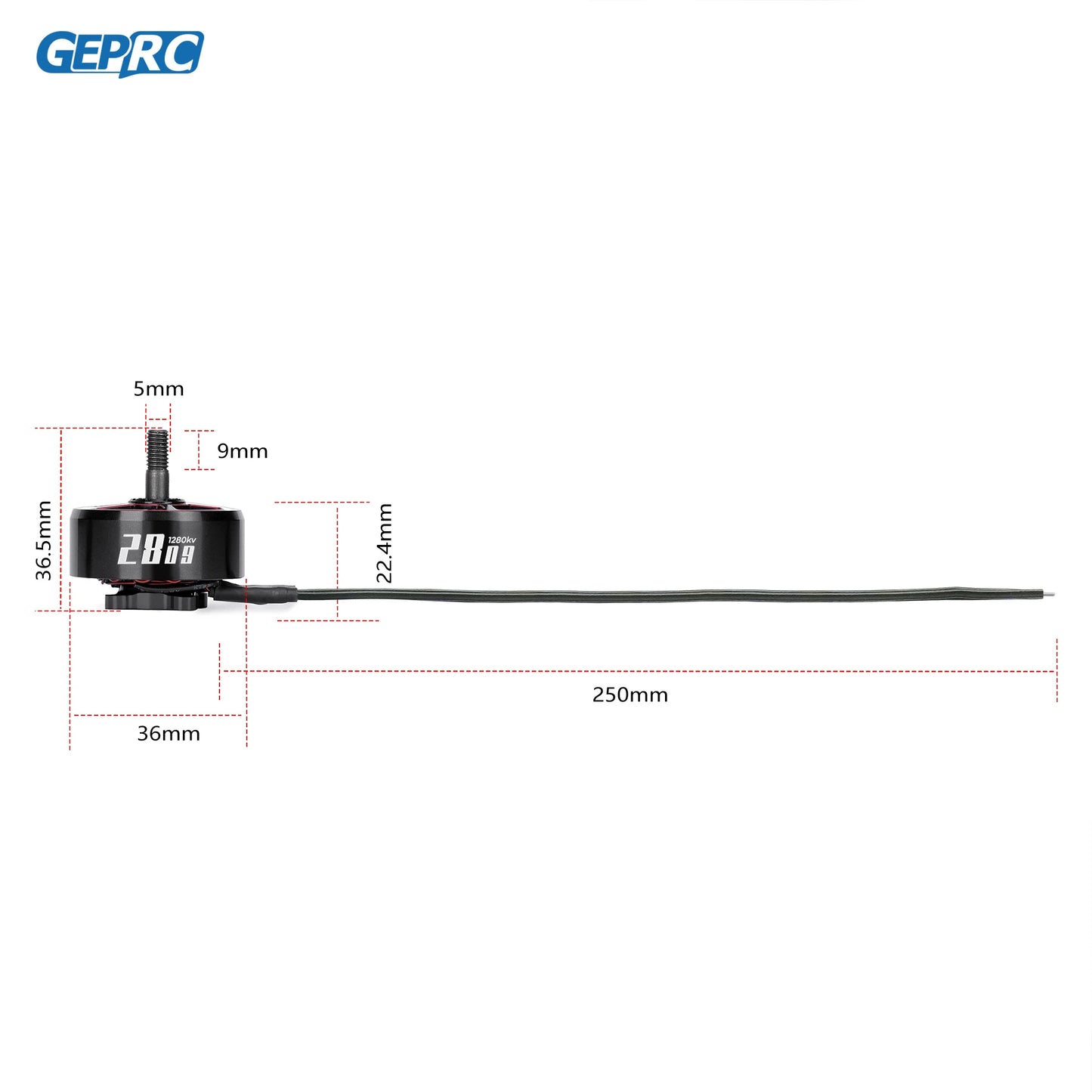

• Dimensions: Φ36.04mm * 36.53mm

• Outlet specification: 18AWG 250mm

• Rated voltage: 25.2V 6S(LiPo)

• Maximum power (W): 1148.9

• Maximum current (A): 49.35A

• Mounting hole: 19x19mm (M3)

• Color: red and black

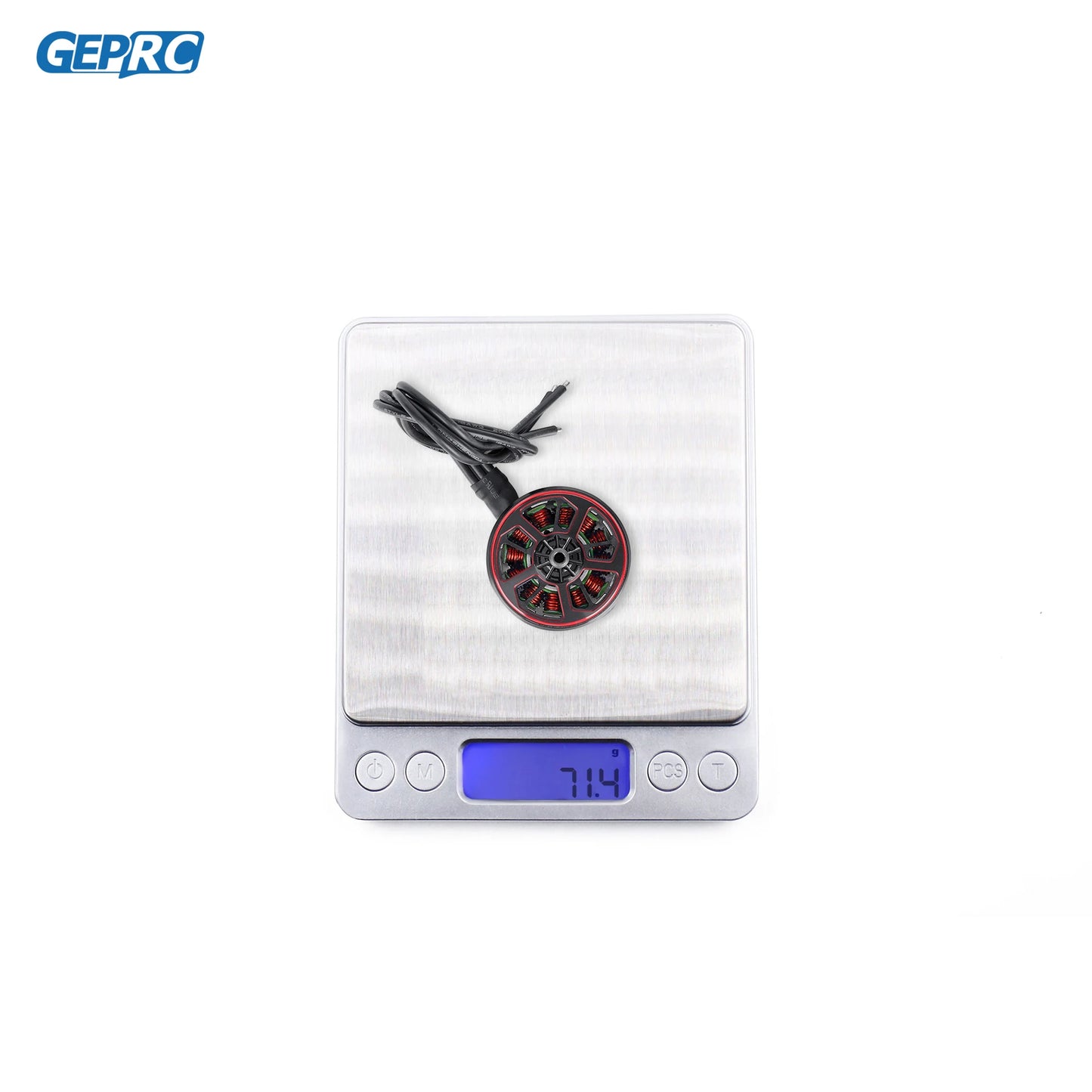

• Weight: 71.4g

• Applicable models: 7-8 inch long range FPV/7-8 inch X8 models

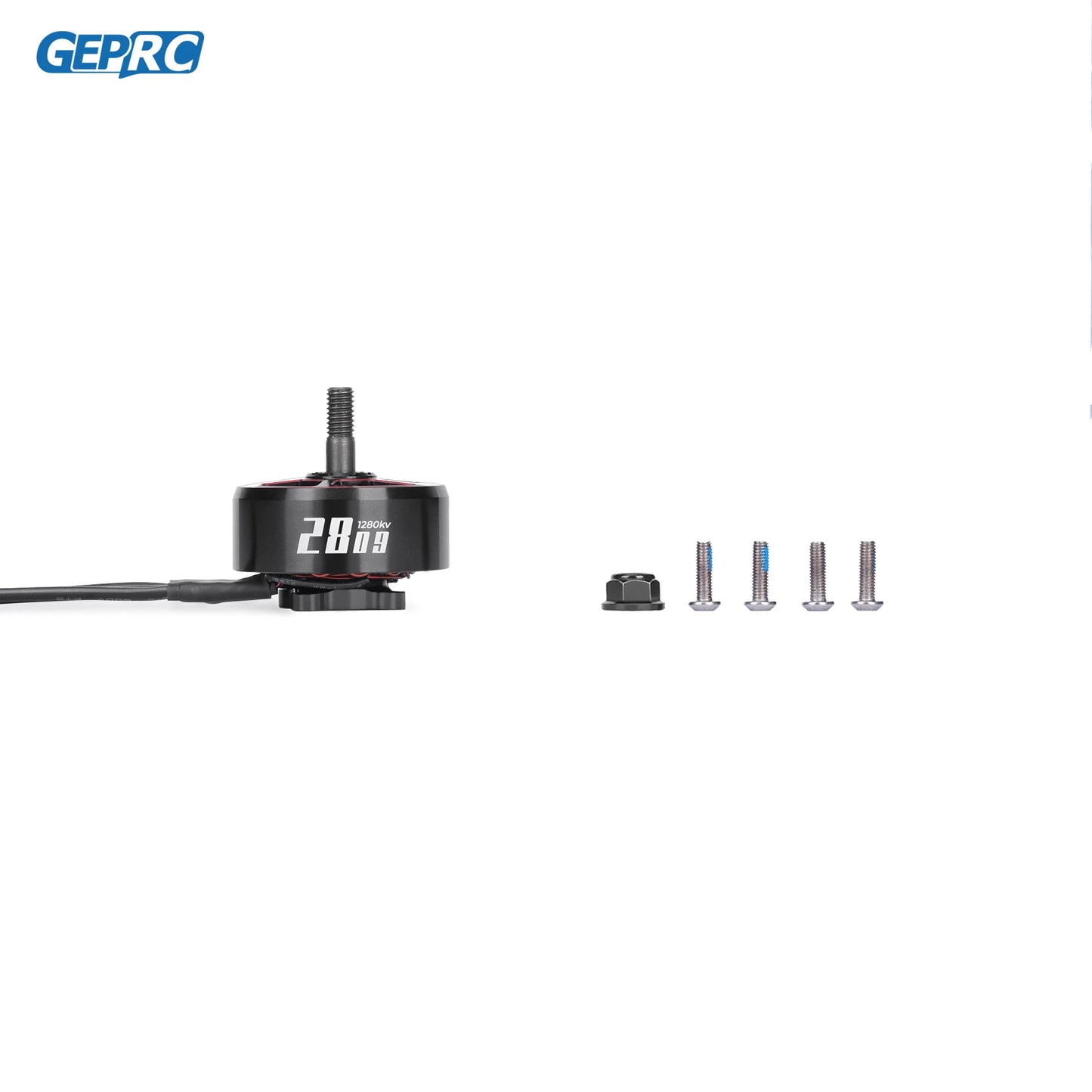

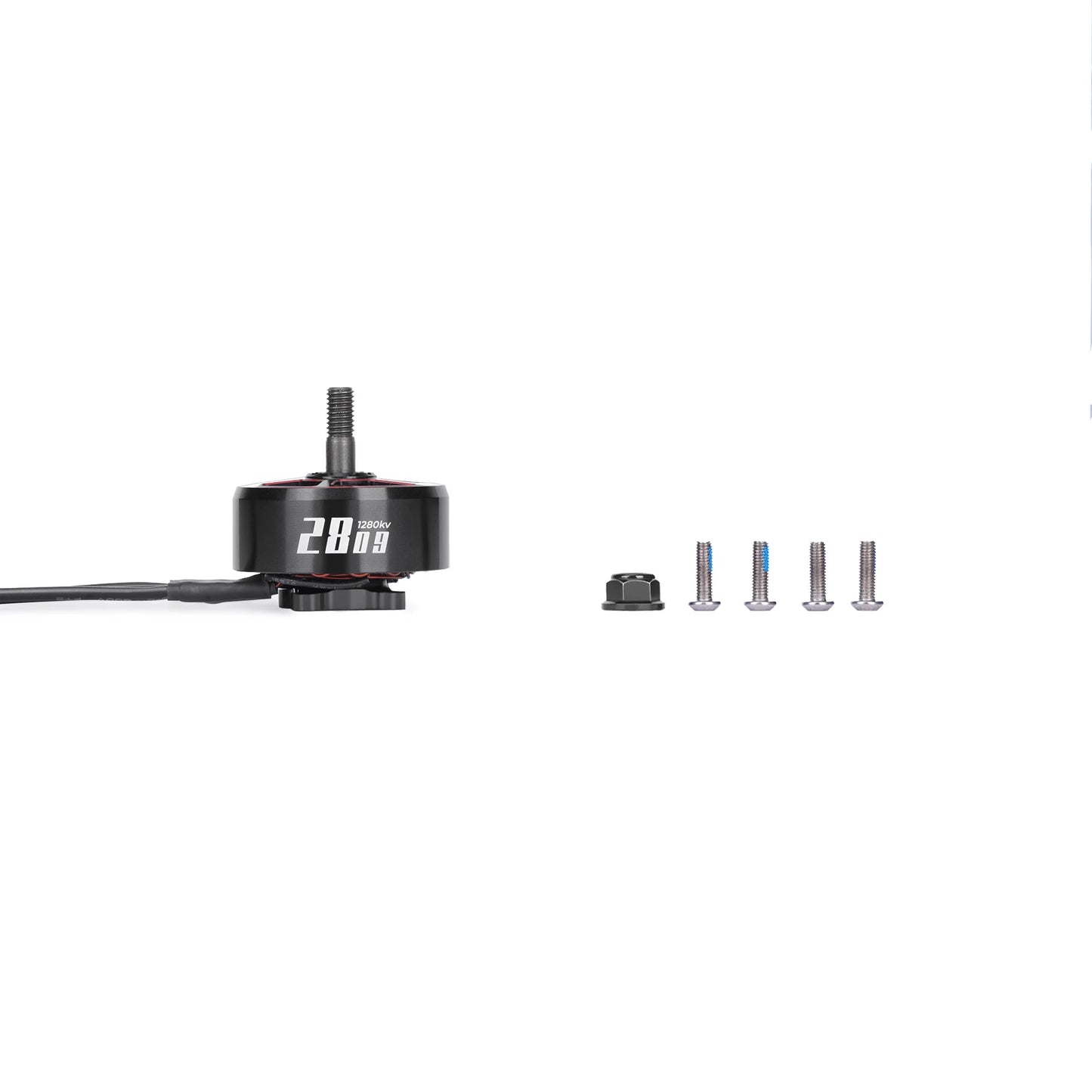

Includes

1 x SPEEDX2 2809 1280KV motor
4 x M3*9 round head screws
1 x M5 anti-slip nut

GEPRC 1280kv 2Xua pawcn GSPEEDXA SATITYEFFICIENT MOTOR High power High torque Suitable for 7-8 inch long range FPV/7-8 inch X8 models .

SPEEDX2 Series features a unique, futuristic design with a simple yet distinctive appearance.

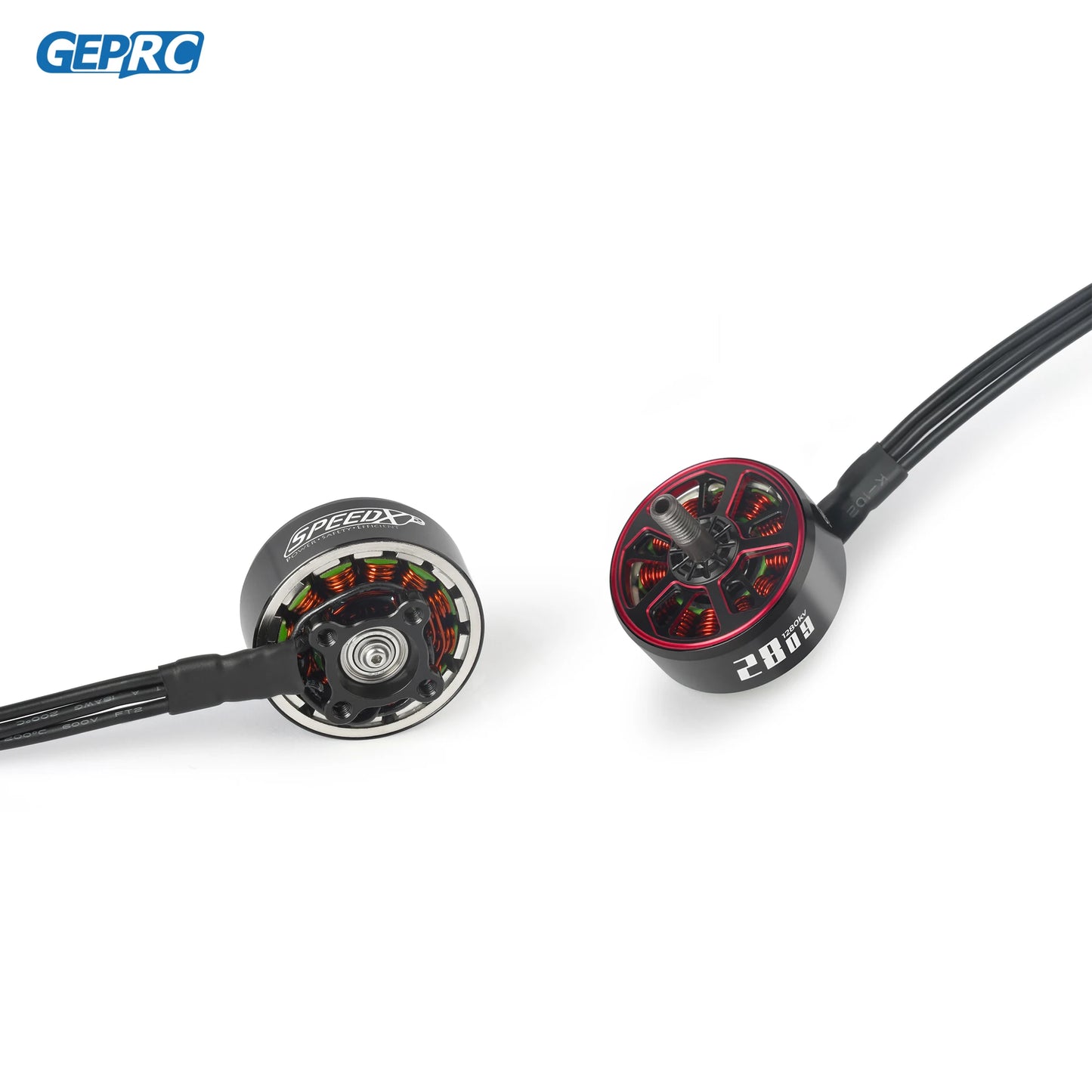

The SPEEDX2 motor features an integrated outer rotor design crafted from high-precision 7075 aviation-grade aluminum using CNC manufacturing processes.

The SPEEDX2 motor's rotor edge structure is designed with a load-bearing mechanical configuration, providing strong impact resistance and capable of handling high-torque applications up to 280KV.

The SPEEDX2 motor features an efficient magnetic circuit scheme that utilizes NSZSH magnetic steel, effectively preventing high-temperature demagnetization and ensuring reliable performance.

The SPEEDX2 motor boasts an improved design, material selection, and production process, resulting in a compact body with reduced weight, increased power, and enhanced efficiency. The motor's unique features include NSZSH Arc-Shaped Ep technology, which enables strong magnetism, stable power output, and high efficiency. Additionally, one of the key benefits of this motor is its low energy consumption, while the A Damping O-ring effectively reduces motor vibration and improves bearing lifetime.

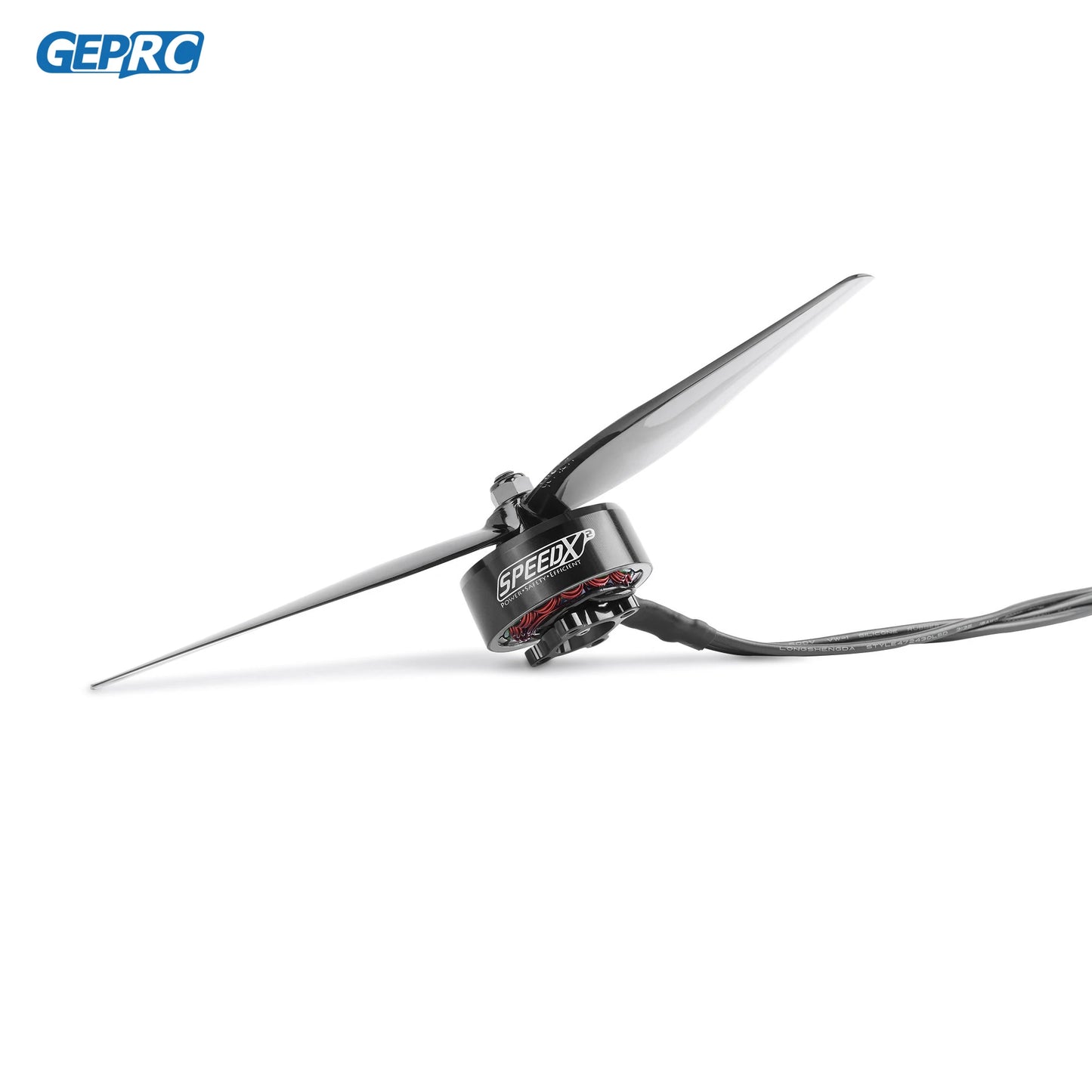

The SPEEDX2 motor features a reinforced base with high structural strength, providing increased collision resistance. This motor is compatible with the Gemfan 7040-3 propeller and boasts impressive specifications: throttle capacity of 100%, current draw of 49.35A, power output of 1148.9W, voltage rating of 23.28V, and thrust force of 2944g. Additionally, the motor achieves an efficiency rate of 3.08 g/W. When operating at full throttle for 10 seconds, the motor temperature reaches a maximum of 608°C.

The GEPRC SPEEDX2 2809 motor features the following specifications: * KV rating: 1280KV * Magnet type: NSZSH * Rotor material: 7075 aluminum * Bearing type: NSK/NMB * Configuration: 12N14P * Dimensions: + Length: 36.04mm + Width: 36.53mm * Shaft diameter: Smm (smaller than millimeter) * Propeller compatibility: 7-8 inch * Mounting holes: 19mm x 19mm * Wire lead: 18AWG, 250mm long * ESC compatibility: 50A-70A, input voltage: 25.2V (compatible with 6S Lipo batteries)
