Summary

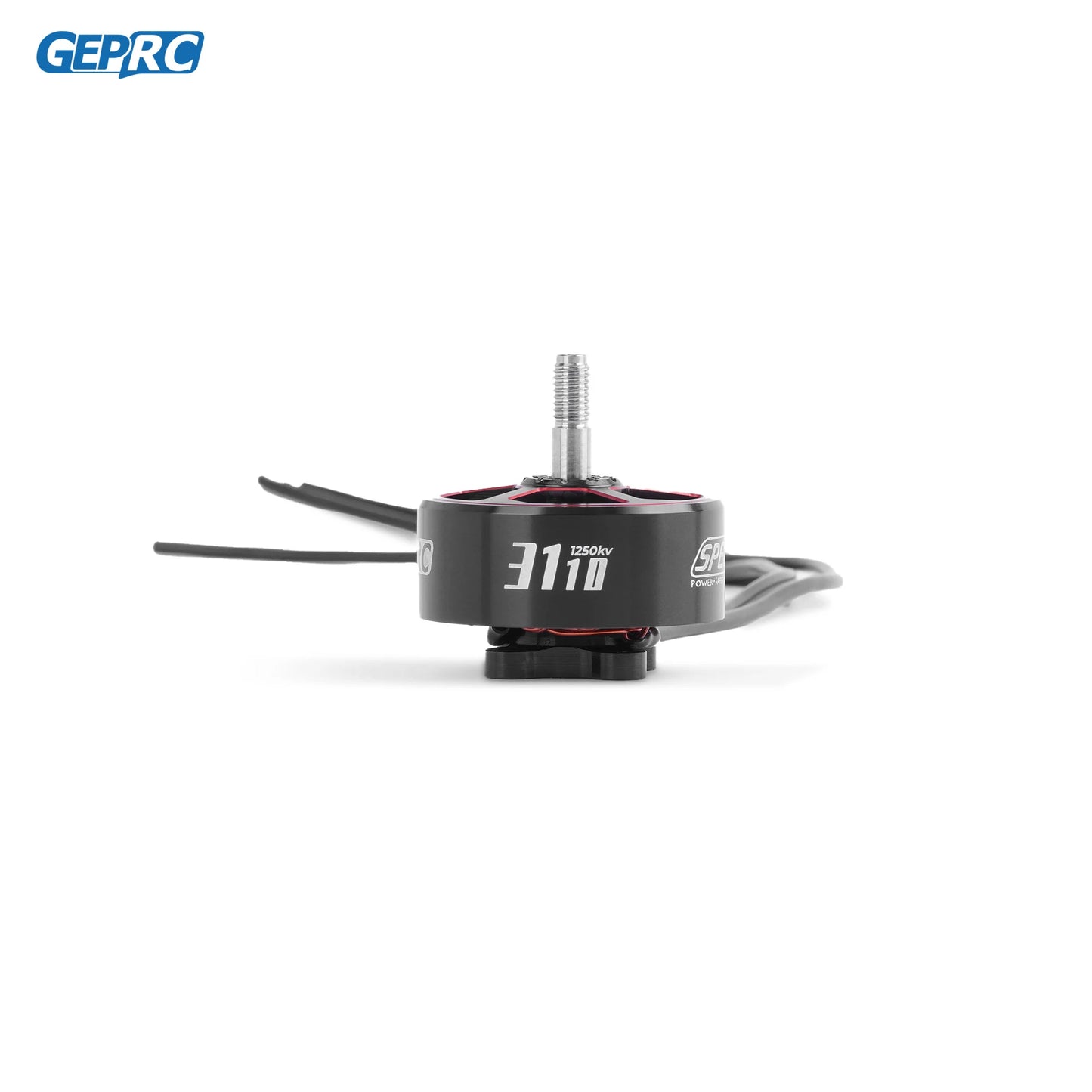

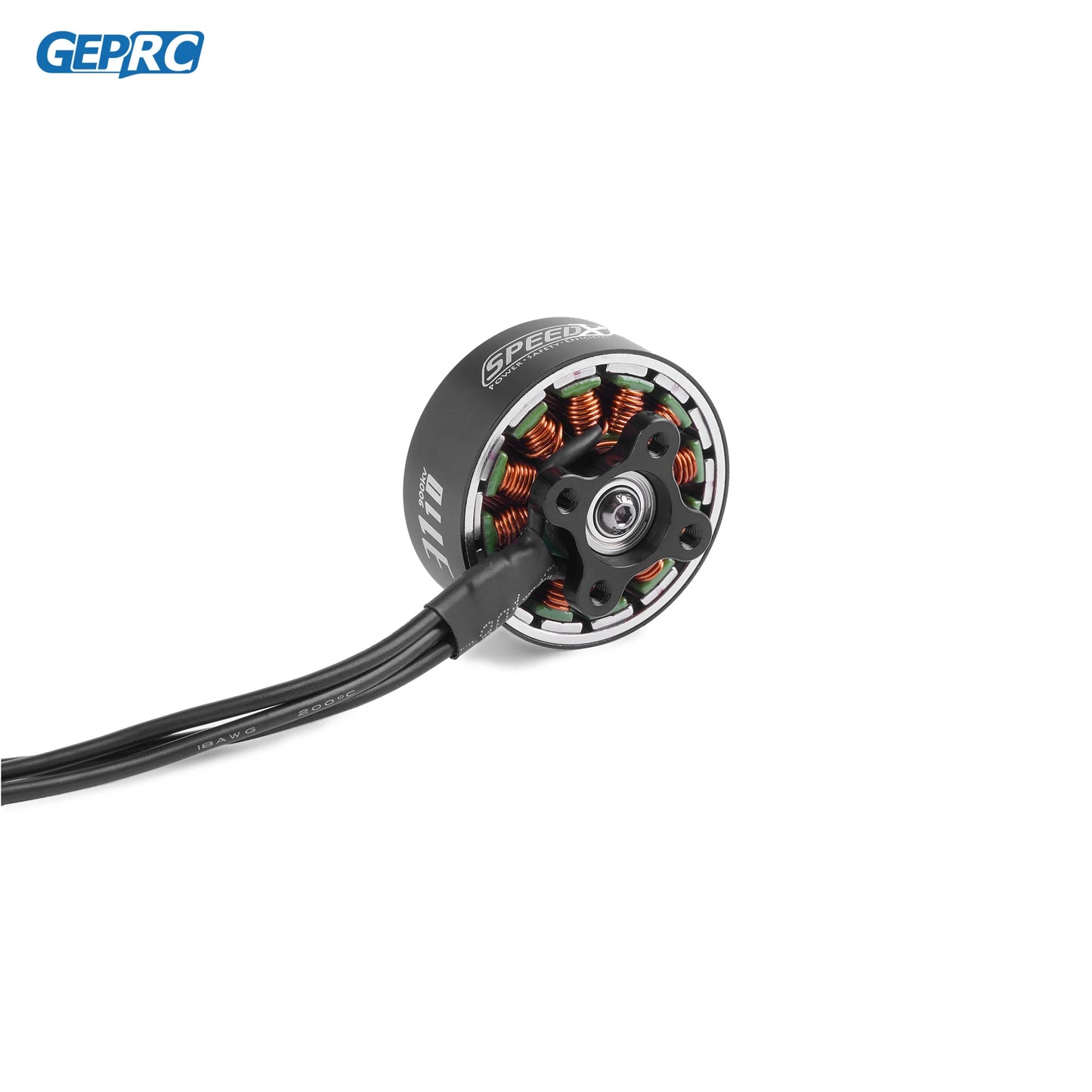

The SPEEDX2 series motors have an innovative appearance and are designed with cutting-edge elements. This 3110 motor has two KV values of 900KV and 1250KV.

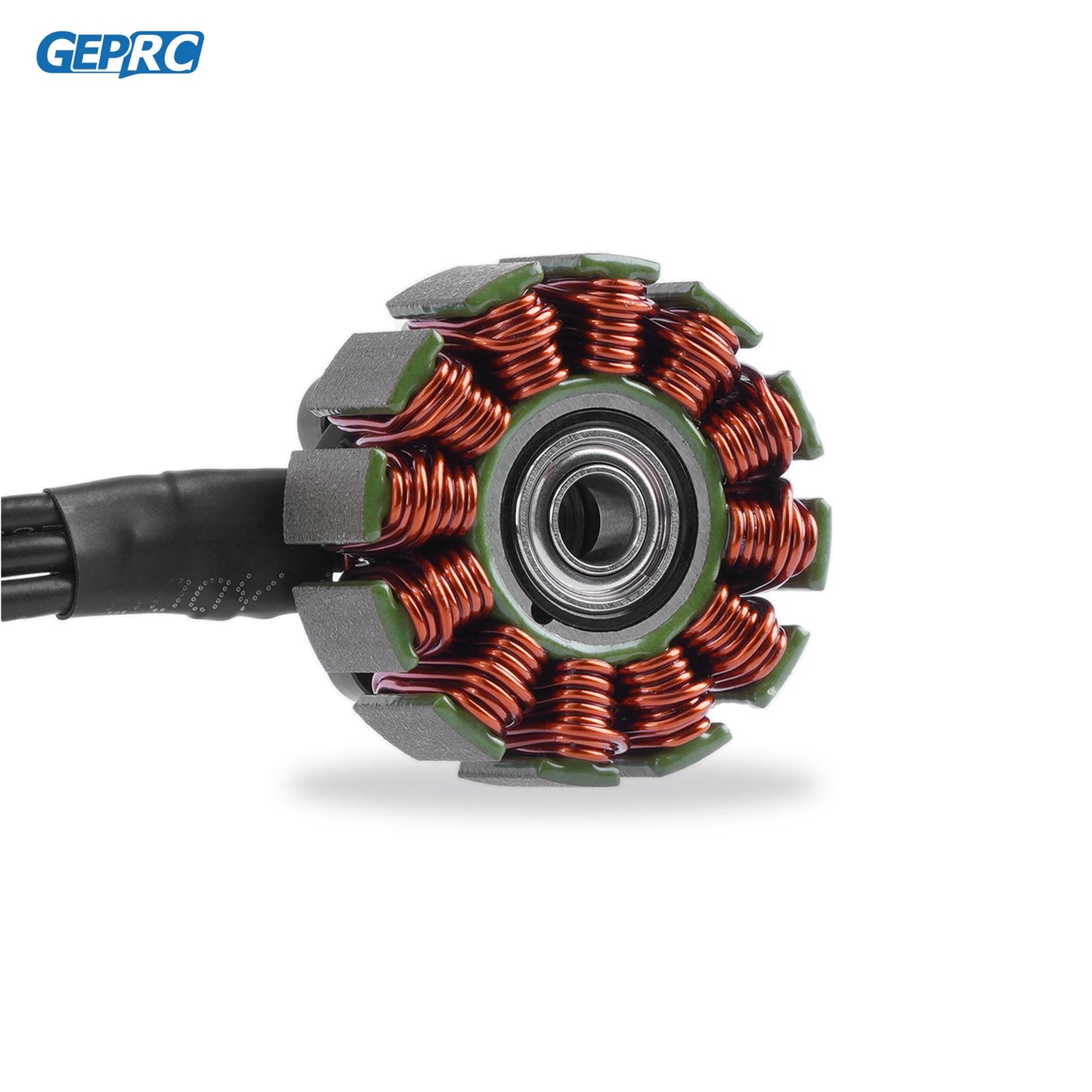

The performance of the SPEEDX2 3110 motor focuses on high efficiency and power saving. Its stator uses imported Kawasaki silicon steel sheet iron core, and the magnetic steel uses high-quality N52H. After rigorous testing, it saves 10% of power compared with conventional motors of the same level.

Feature

1. New appearance of the SPEEDX2 series motor.
2. The overall black system is matched with red secondary oxidation borders, which is full of sci-fi feeling.
3. In terms of energy consumption of the magnetic circuit of the motor, the design is highly efficient, which saves 10% of the power compared with conventional motors of the same level.
4. The surface technology of the motor is treated with fine CD texture, which can effectively prevent scratches from affecting the appearance.
5. Using 7075 aviation aluminum alloy, high-precision CNC integral molding, lighter in weight.

Specifications

SPEEDX2 3110 900KV Motor

• KV: 900KV
• Configuration: 12N14P
• Magnet: N52H ARC
• Rotor material: 7075-T6 aviation aluminum alloy
• Stator diameter: 31mm
• Stator height: 10mm
• Output shaft diameter: Φ5mm

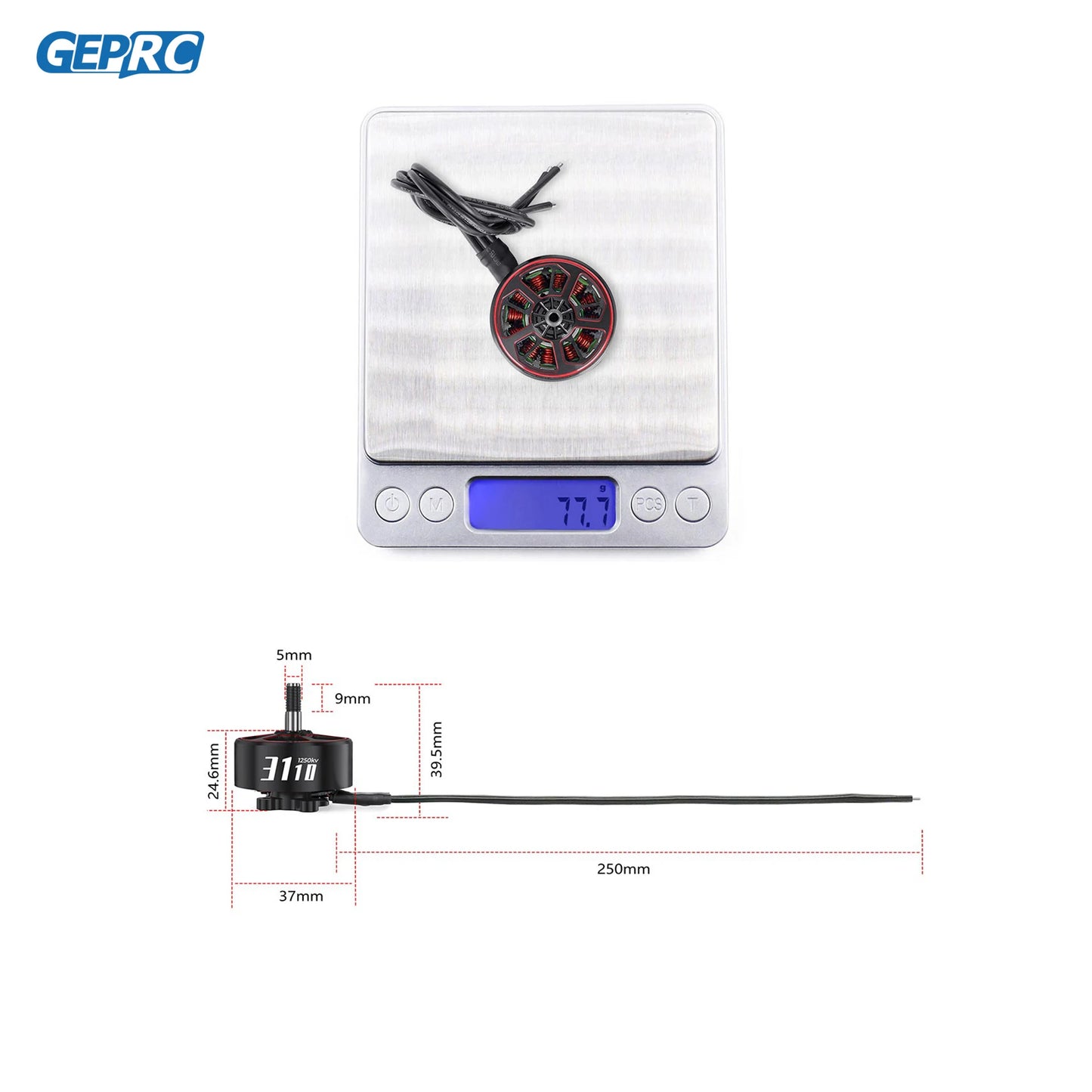

• Dimensions: Φ39.58mm *37.85mm
• Outlet specification: 18AWG 265mm
• Rated voltage: 25.2V LiPo 6S
• Maximum power: 1863.68W
• Maximum current: 58.52A
• Mounting hole: 19x19mm (M3)
• Color: black with red
• Weight: 79.3g (including wire)
• Applicable models: suitable for 7-10 inch long range FPV drones / 7 inch X8 models

SPEEDX2 3110-1250KV Motor

• KV:1250KV
• Configuration: 12N14P
• Magnet: N52H ARC
• Rotor material: 7075-T6 aviation aluminum alloy
• Stator diameter: 31mm
• Stator height: 10mm
• Output shaft diameter: Φ5mm
• Dimensions: Φ39.58mm *37.85mm
• Outlet specification: 18AWG 270mm
• Rated voltage: 25.2V Lipo 6S
• Maximum power: 1697.87W
• Maximum current: 75.26A
• Mounting hole: 19x19mm(M3)
• Color: black with red
• Weight: 79.3g (including wire)
• Applicable models: suitable for 7-10 inch long range FPV drones / 7 inch X8 models

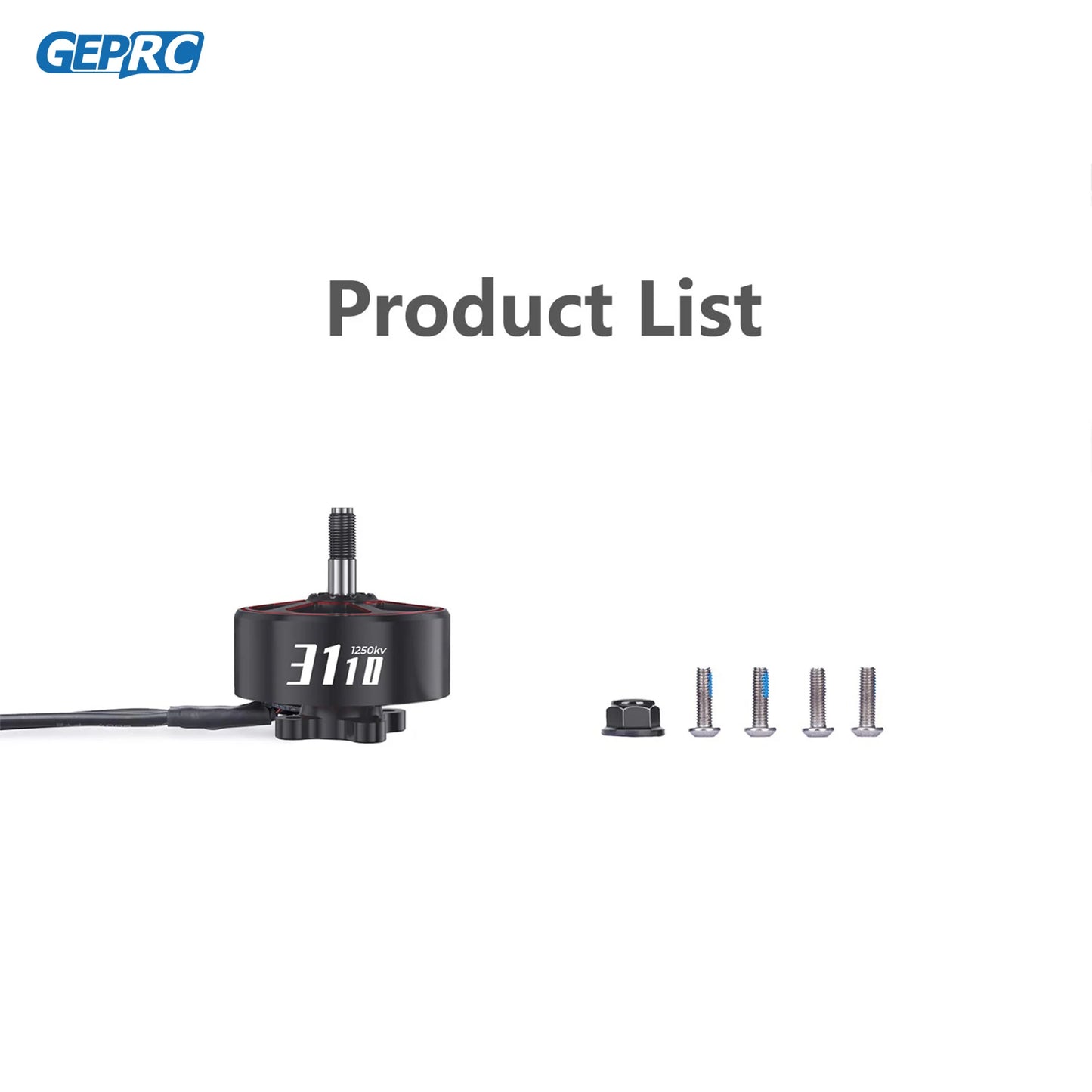

Includes

1 x SPEEDX2 3110 motor
4 x M3*9 round head screws
1 x M5 anti-slip nut

GEPRC 125Okv 311m Power SPEEDXP 'SAeeTY' Escorts heavy-duty flight Suitable for 8-10inch long range FPV/7-9 inch X8 models .

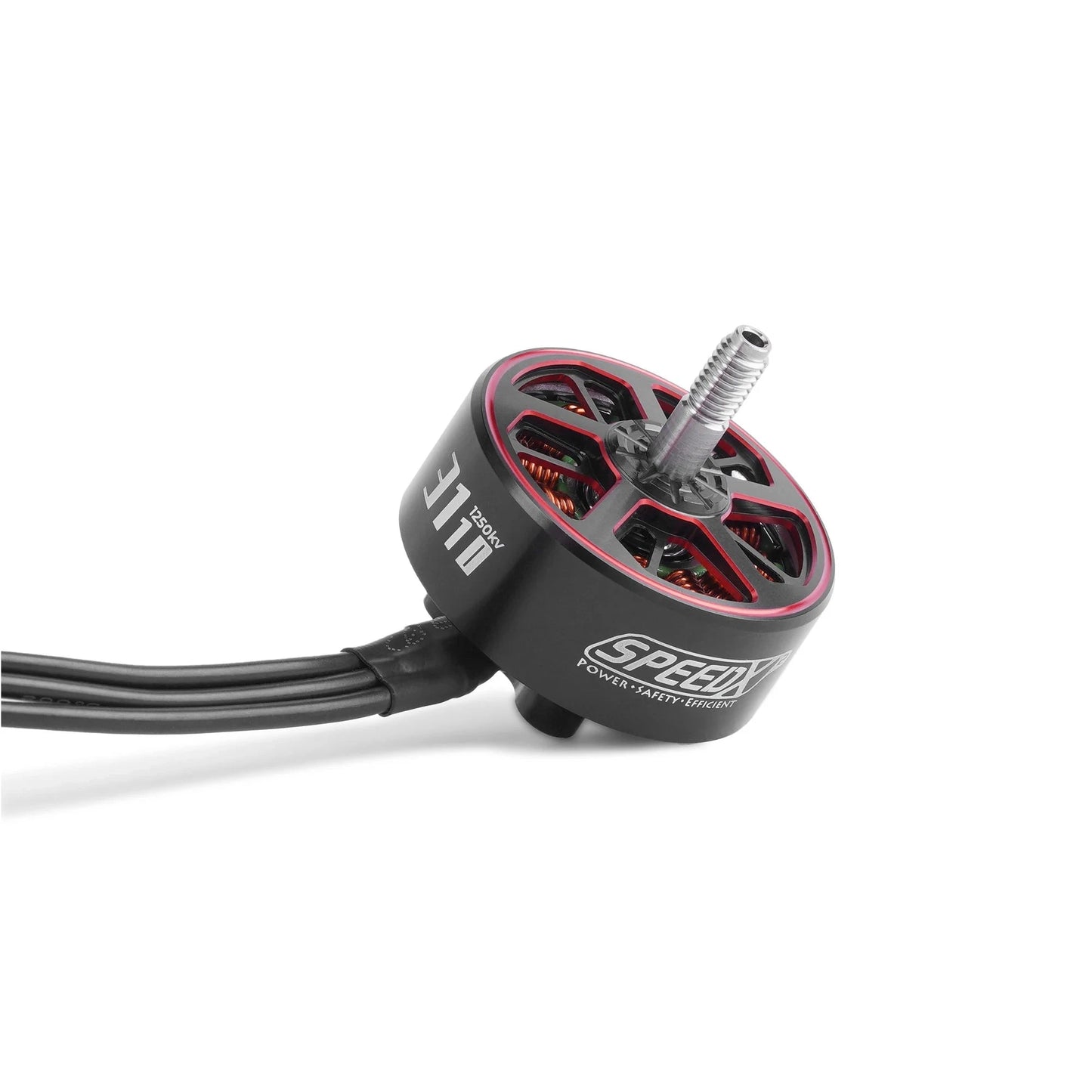

The SPEEDX2 series features an innovative and unique design, boasting a delicate CD pattern that combines both strength and aesthetic appeal.

Featuring an integrated outer rotor design crafted from high-strength 7075 aviation-grade aluminum alloy through precision CNC processing.

The motor features an eye-catching design, with a sleek black finish complemented by vibrant red accents that evoke a futuristic 'sci-fi' aesthetic.

The high-strength rotor edge features a mechanical structure design that provides exceptional impact resistance, ensuring durability and reliability.

The motor features an efficient magnetic circuit scheme, utilizing a single-strand winding method to enhance heat dissipation and boost overall efficiency.

Specifications for the Gemfan 9045-3 propeller include: • Current: 58.52A • Power: 1863.68W • Throttle: 75.26A • Voltage: 31.85V • Thrust: 4211.40g • Efficiency: 2.26 g/W

Specifications for the GEPRC SPEEDX2 3110 motor: • KV: 900KV and 1250KV • Magnet type: NSZH • Rotor material: 7075 aluminum alloy • Bearing type: NSK/NMB • Configuration: 12N14P • Dimensions: 39.58mm x 37.85mm • Shaft diameter: 6mm • Shaft protruding length: 15mm • Compatible propellers: 7-10 inch or 7-9 inch • Mounting holes: 19mm x 19mm • Lead wire gauge: 18AWG (265)

MISI 1250KV motor features a high-power output, with a maximum power rating of 250KV and effective safety measures in place to ensure efficient performance.
