GEPRC SPEEDX2 2107.5 1960KV / 2450KV Brushless Motor for 5-Inch Freestyle & Racing FPV Drones – 6S LiPo Compatible

Overview

The GEPRC SPEEDX2 2107.5 FPV Motor is a second-generation, high-performance brushless motor designed from the ground up for freestyle and racing FPV pilots. Available in 1960KV for balanced control and 2450KV for explosive speed, it’s tailored for 5-inch FPV frames and optimized for 6S 1050mAh–1550mAh LiPo batteries.

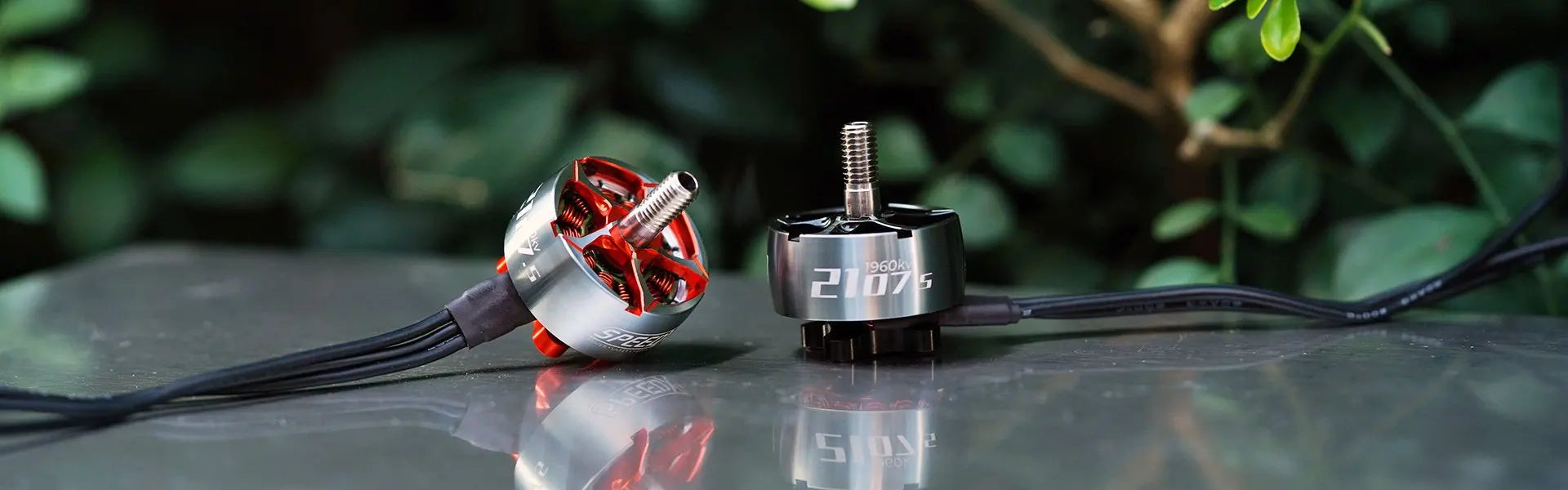

Built with premium N52H arc magnets, a 12N14P stator, and lightweight yet durable materials, this motor delivers precise throttle control, excellent heat dissipation, and exceptional crash resistance. Its smooth response curve and powerful output make it ideal for both technical freestyle and competitive track racing.

Key Features

• Available in 1960KV (smooth power delivery) and 2450KV (high-RPM punch)

• Designed for 5-inch freestyle and racing drones

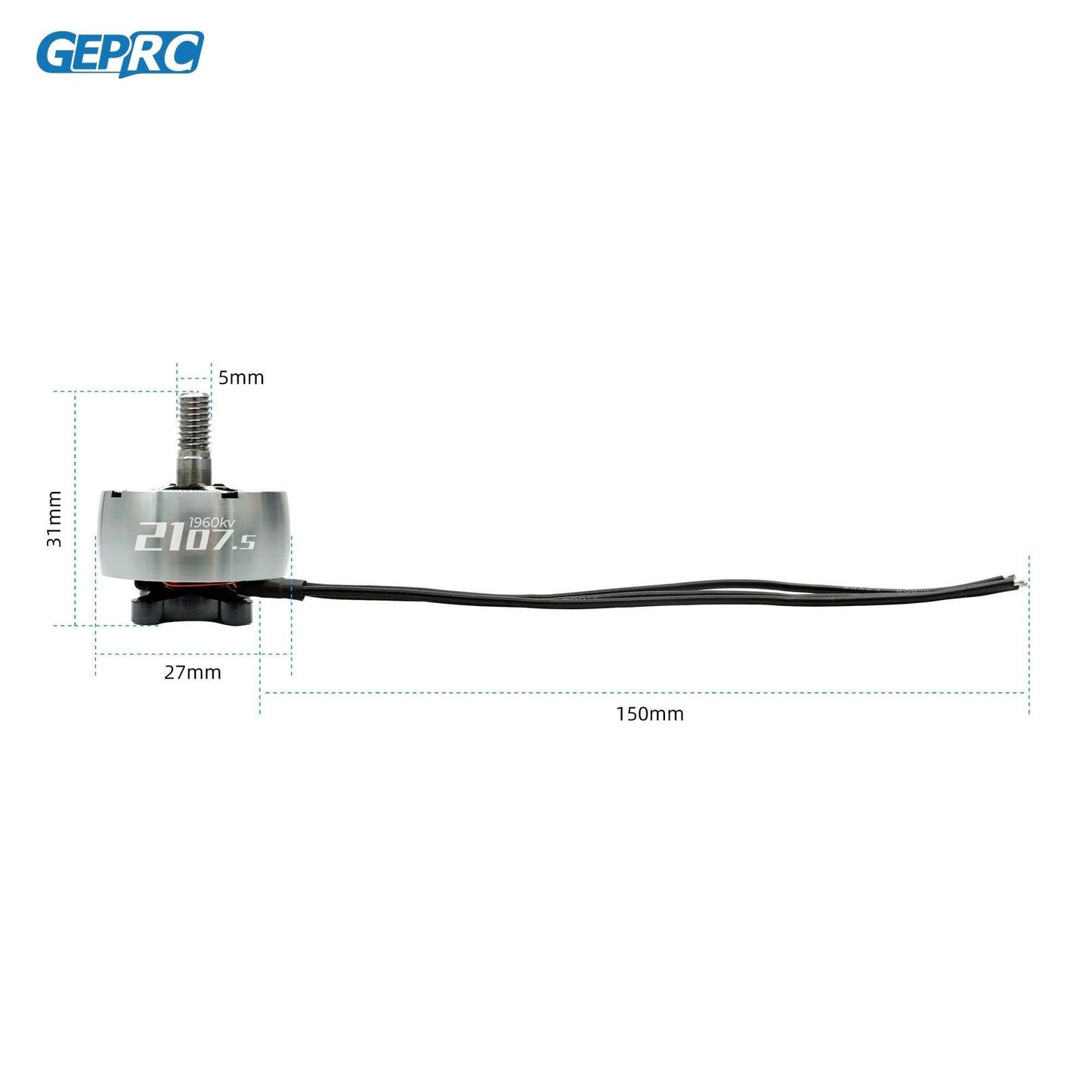

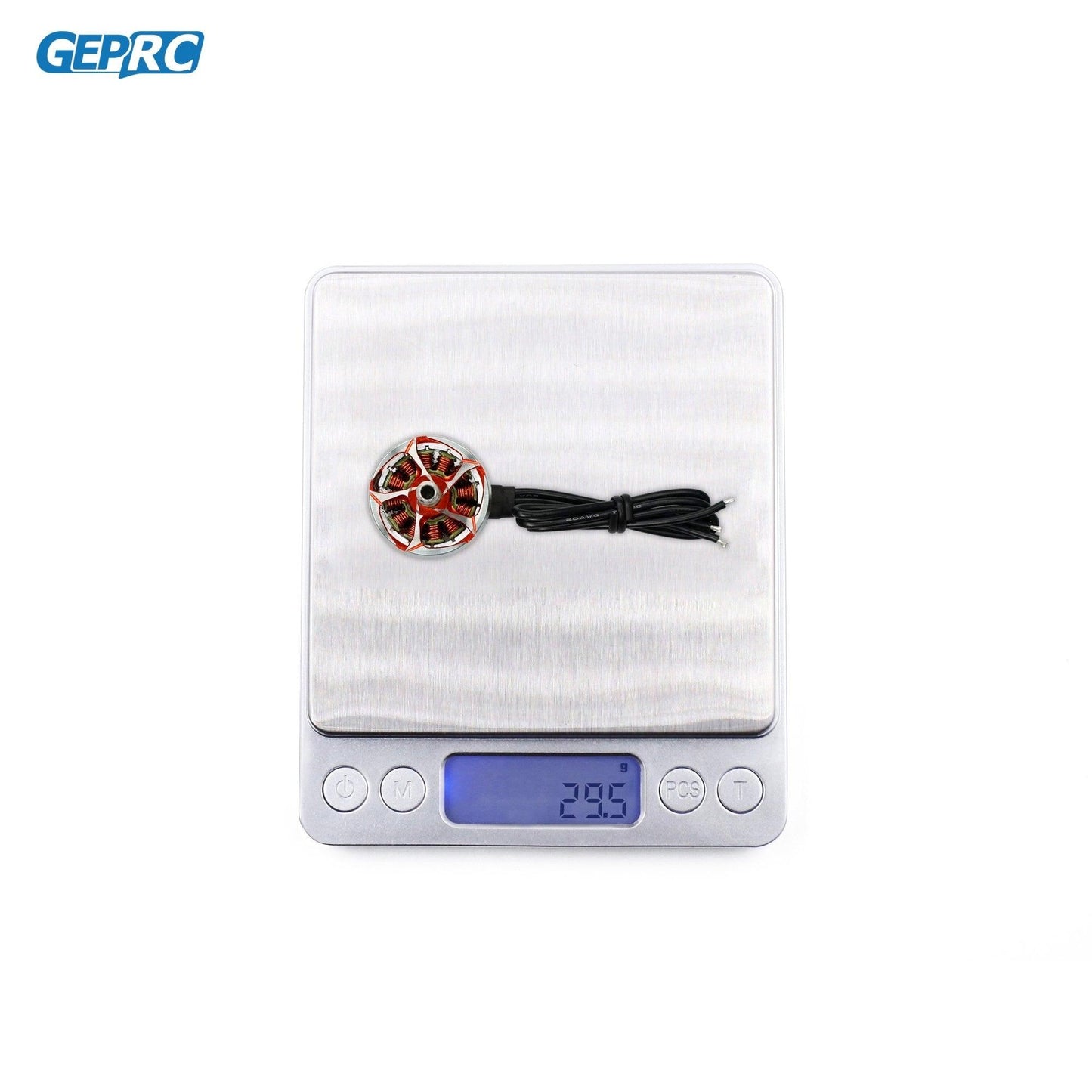

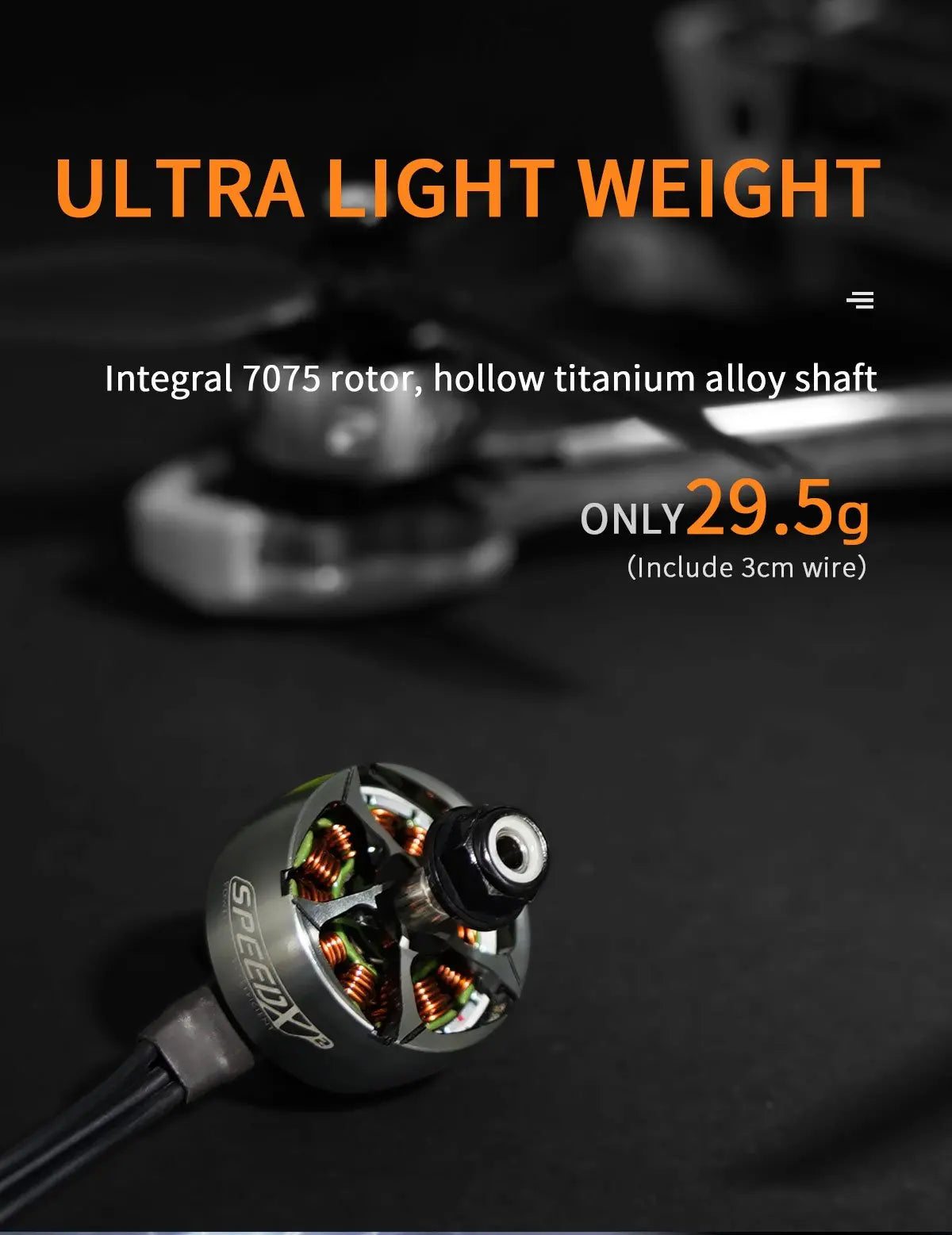

• Lightweight (only 29.5g) with compact Φ26.83 × 30.85 mm dimensions

• 12N14P stator configuration with high-quality N52H arc magnets

• 4mm shaft diameter, durable and responsive

• Dynamic balancing ensures low-vibration performance

• Excellent heat dissipation and crash resistance

• Compatible with 6S LiPo (1050–1550mAh) power setups

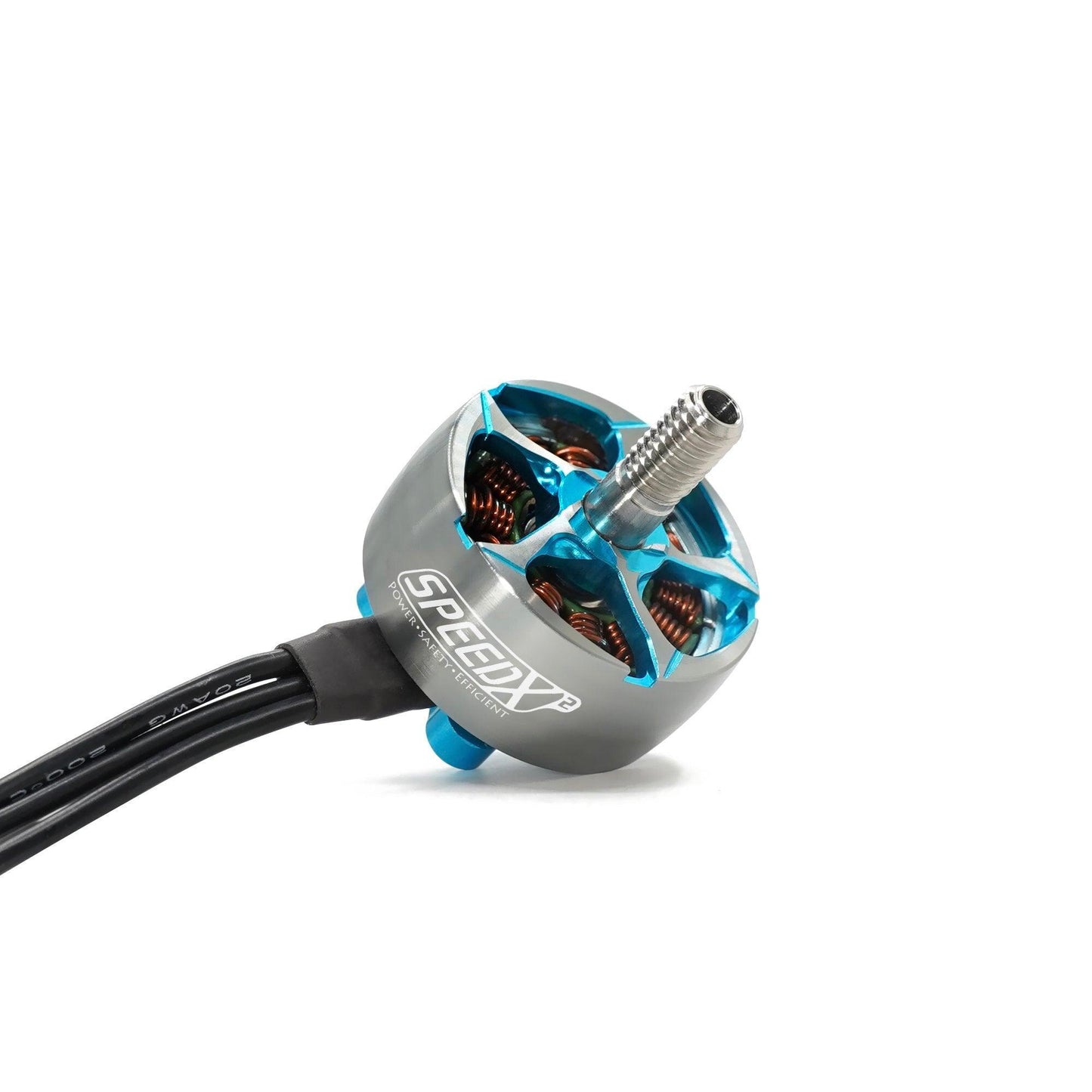

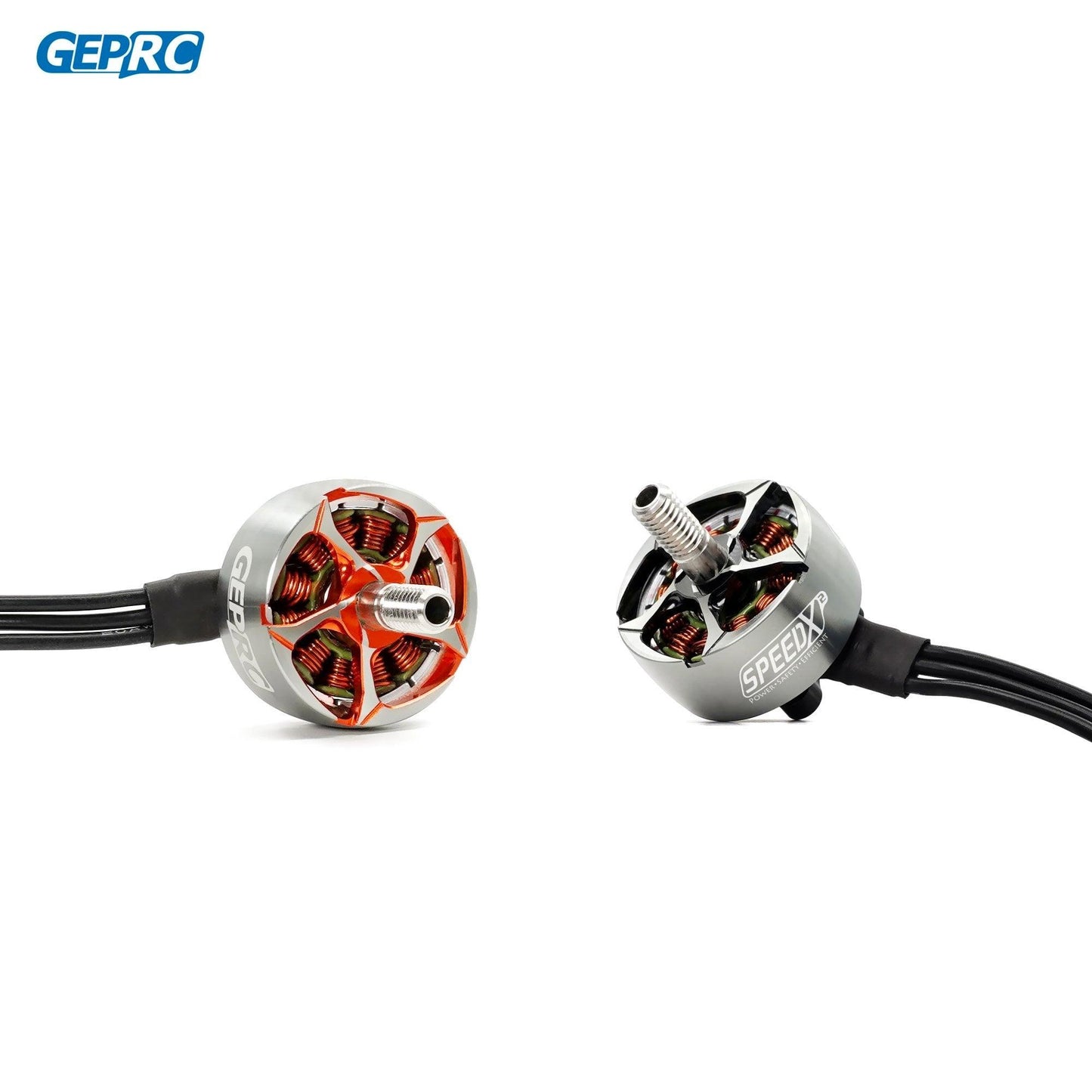

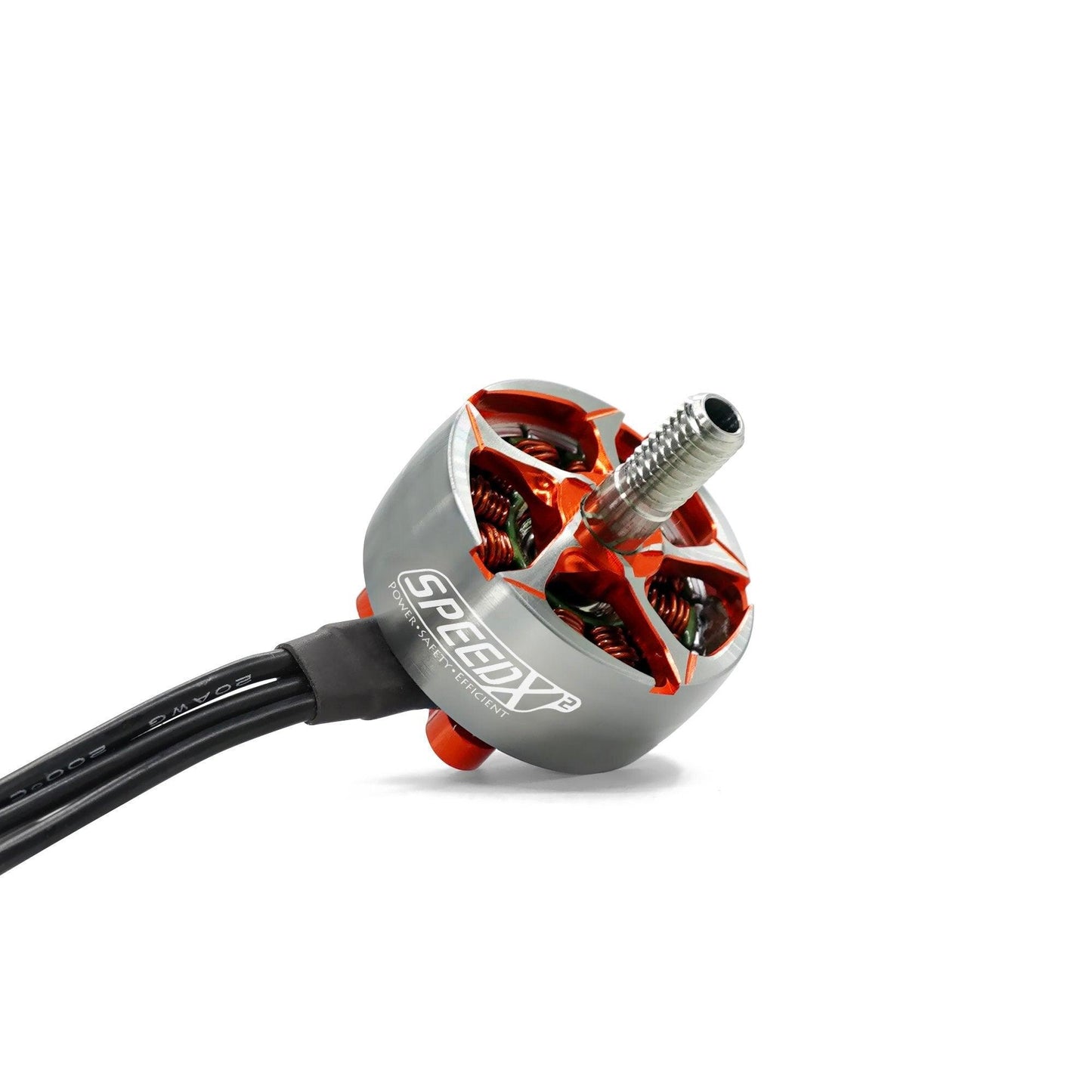

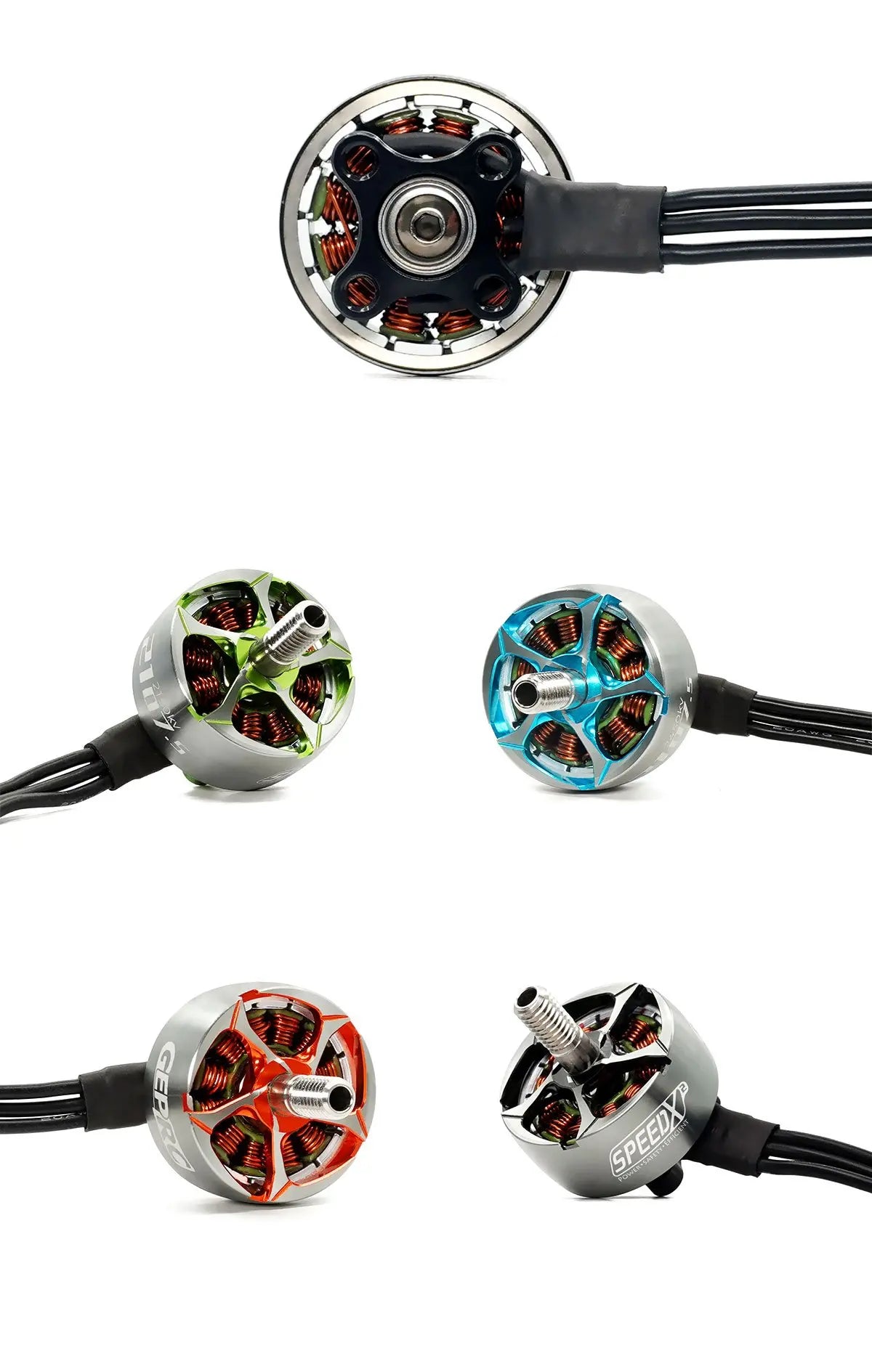

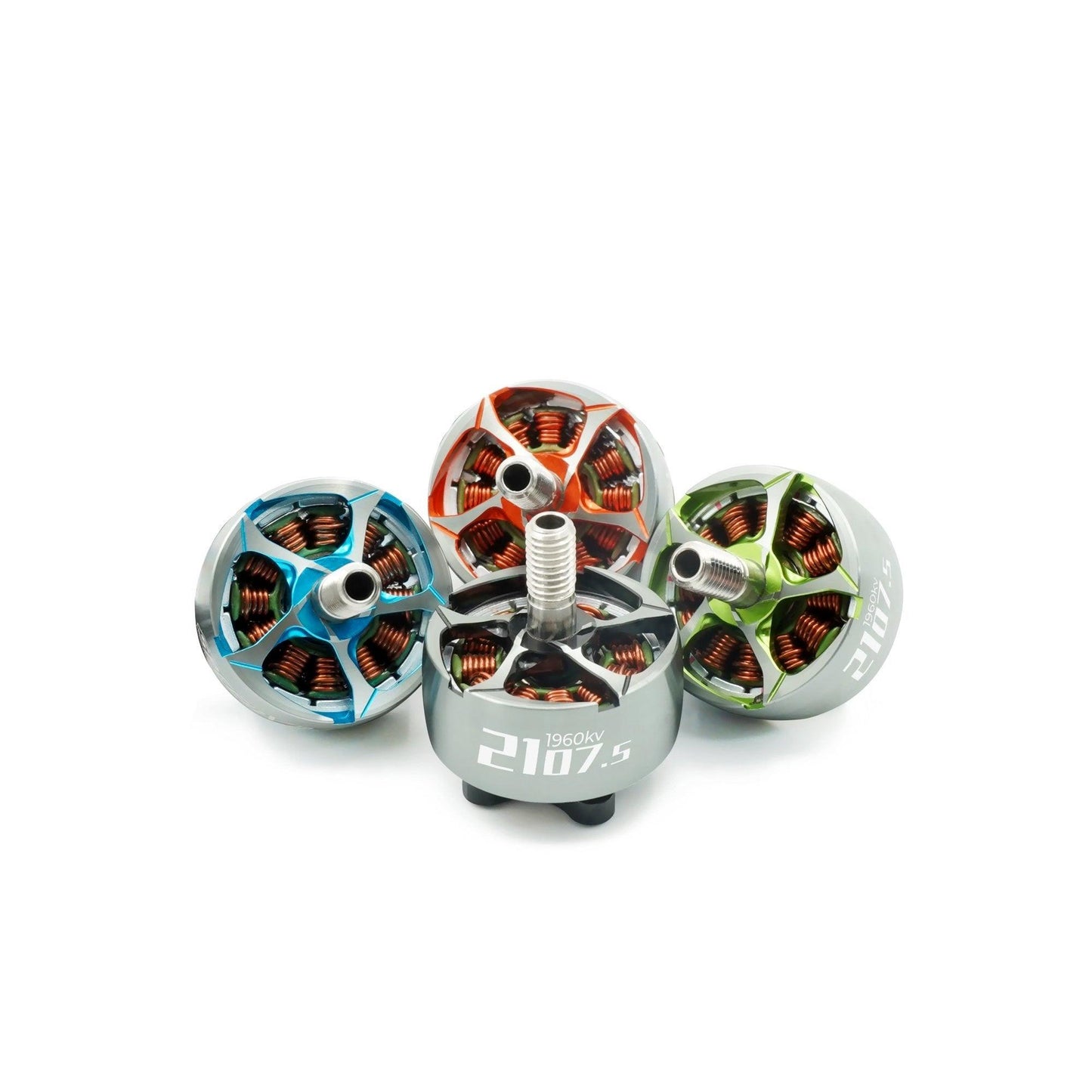

• Color options: Orange / Green / Titanium / Blue

Specifications

Package Includes

• 1 × SPEEDX2 2107.5 Brushless Motor (KV as selected)

• 1 × M5 Prop Nut

• 5 × M3×8 Mounting Screws

• 5 × M3×10 Mounting Screws

Applications

Perfect for 5” FPV frames like GEPRC Mark4 HD5 or Mark4 Freestyle, the SPEEDX2 2107.5 motor is ideal for pilots who want responsive handling, consistent torque, and durable construction — whether on freestyle lines or tight racing circuits.

The HQ EthiX S4 blade F4SA ESC has a throttle point of 100%, drawing 33.1A current, with a maximum temperature of 75°C when running at full throttle on a 5S setup.

The GEPRC SPEEDX2 Motor features a design that prioritizes efficiency, power, and safety through the selection of high-quality materials and a refined production process. Additionally, the motor's throttle adjustment capabilities ensure optimal performance.

The GEPRC SPEEDX2 Motor features several design enhancements, including an efficient O-ring system that minimizes motor vibration and extends bearing lifespan. Additionally, custom nuts provide added protection for the shaft threads, while a thickened base offers improved collision resistance.

Specifications for the GEPRC SPEEDX2 Motor include: • Model: SPEEDX2 2107.5 1960KV • Weight: 29.5g (including a 3cm wire) • Dimensions: 26.83mm x 30.85mm (motor diameter and length) • Internal Resistance: 55mΩ • Lead Wire Size: 20AWG, 150mm in length • Configuration: 12N14P (number of turns and pole count) • Shaft Diameter: 4.0mm • Recommended Number of Cells (Lipo): 5-6 cells • Idle Current (10V): 0.9A • Maximum Continuous Power (5S): [insert value] • Maximum Current (60S): 39.6A
