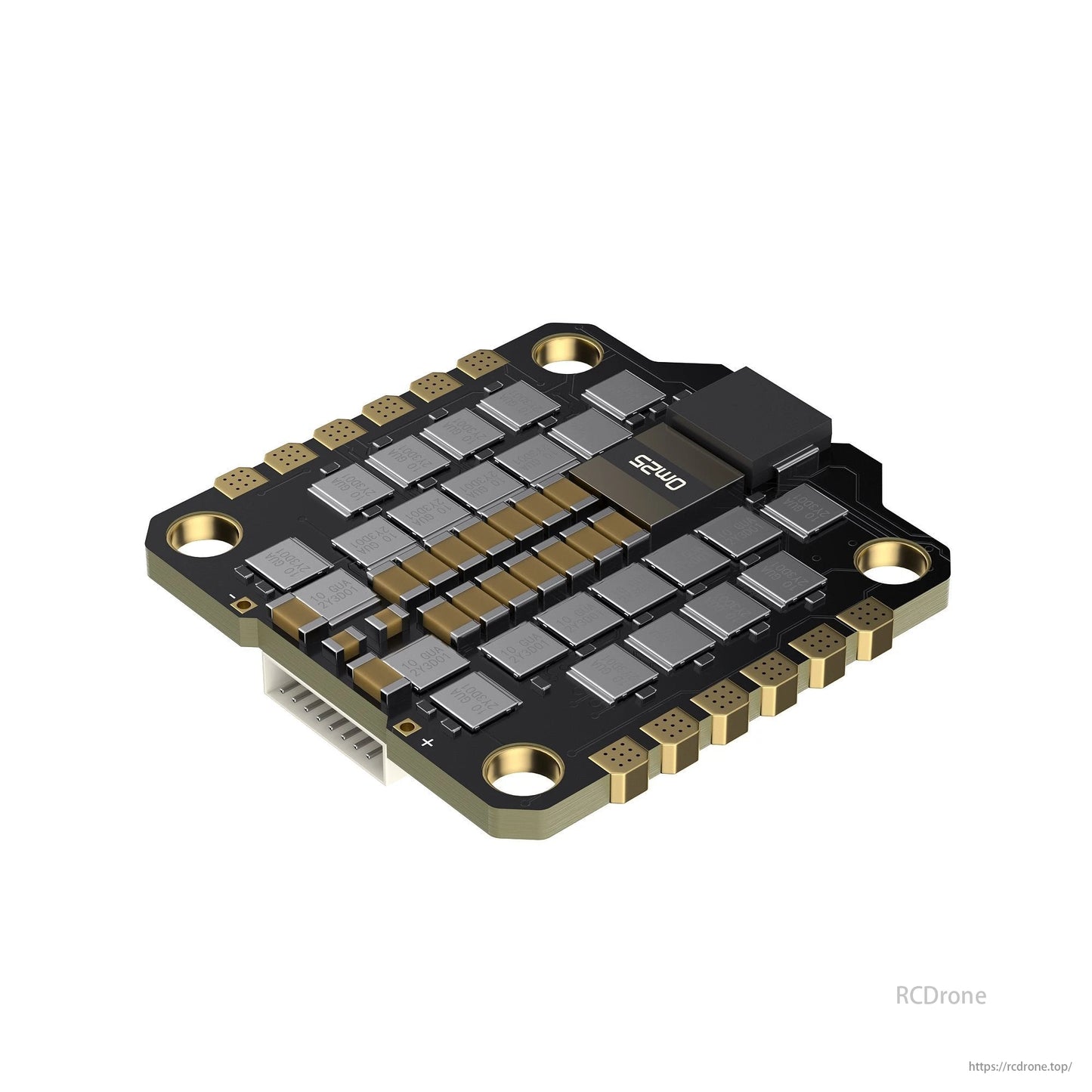

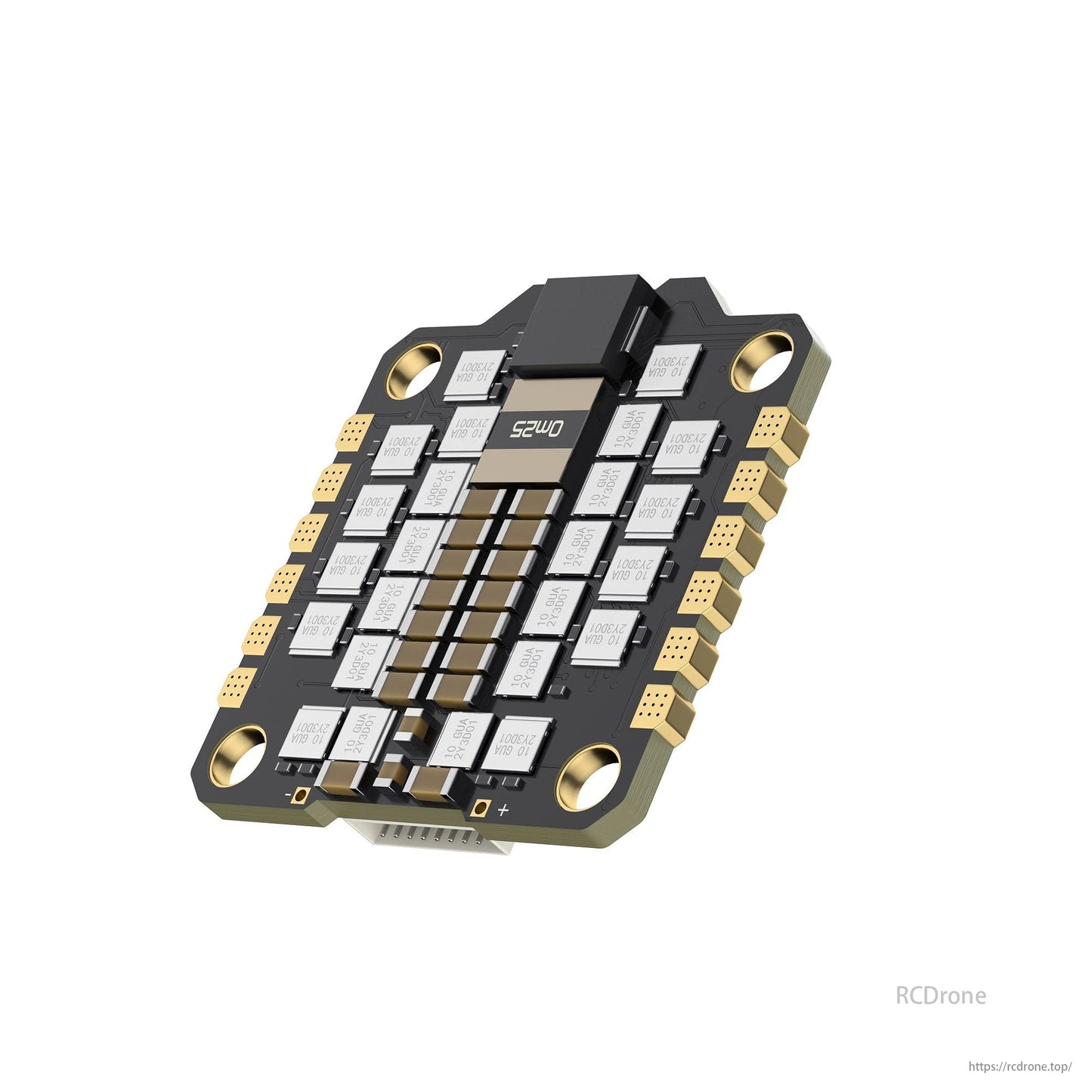

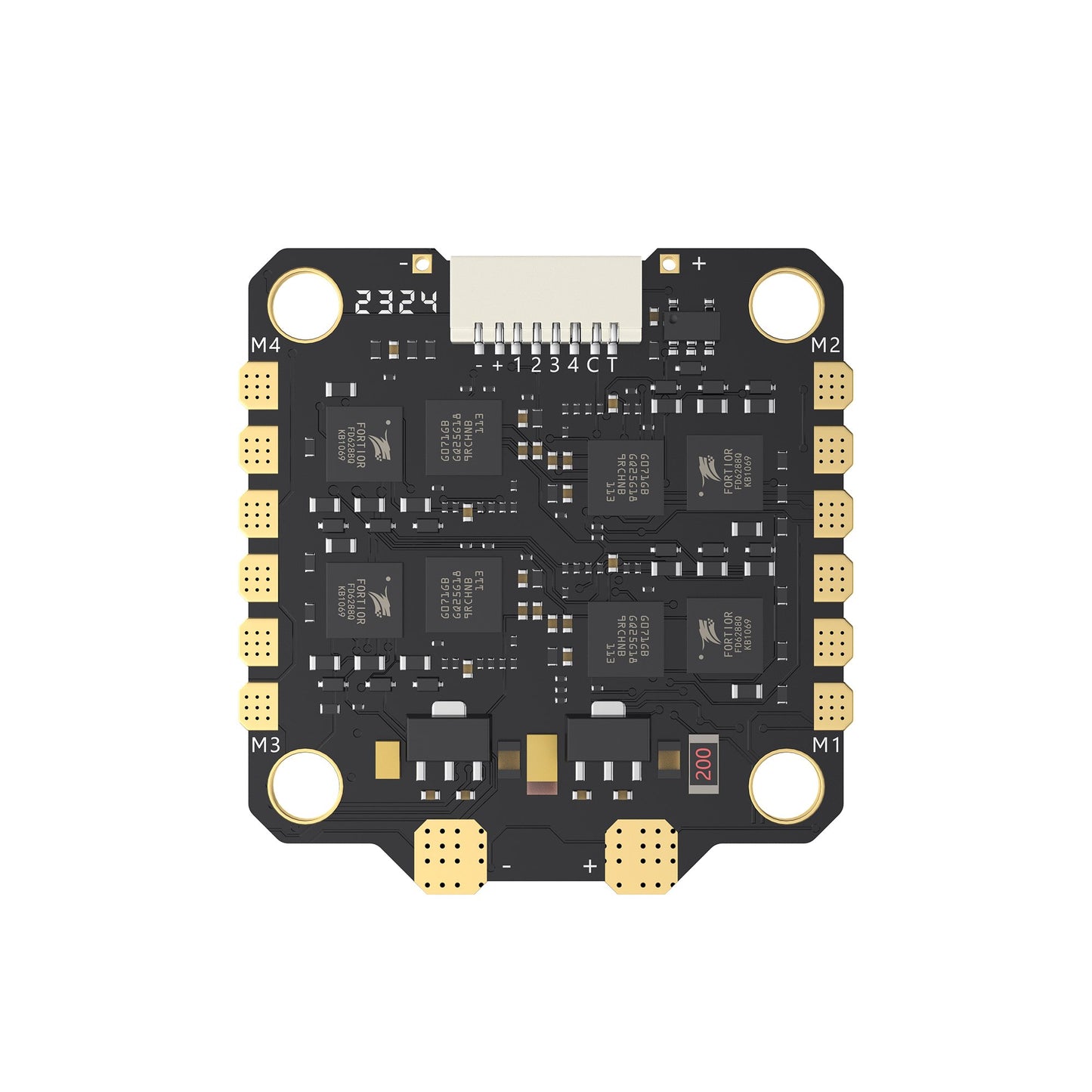

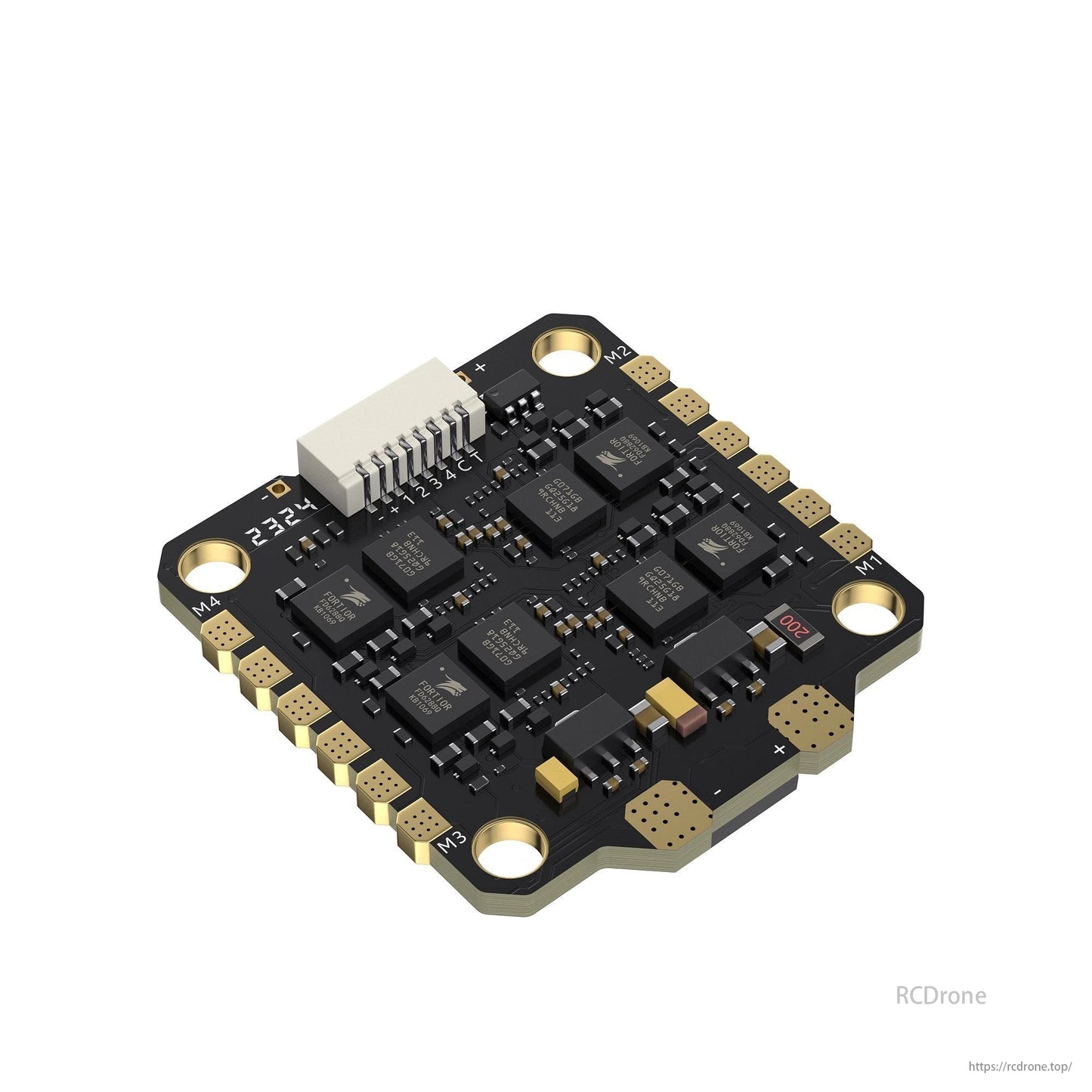

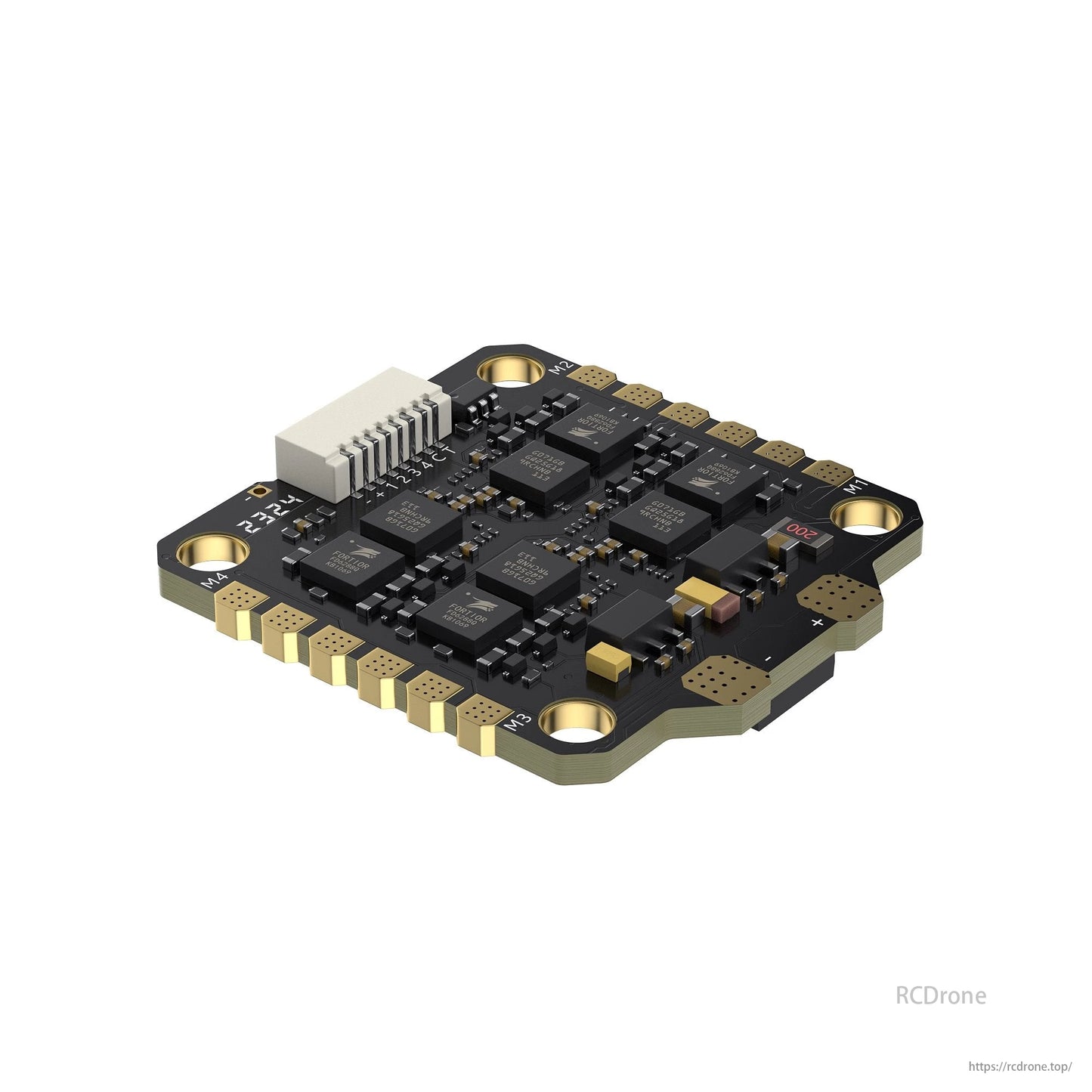

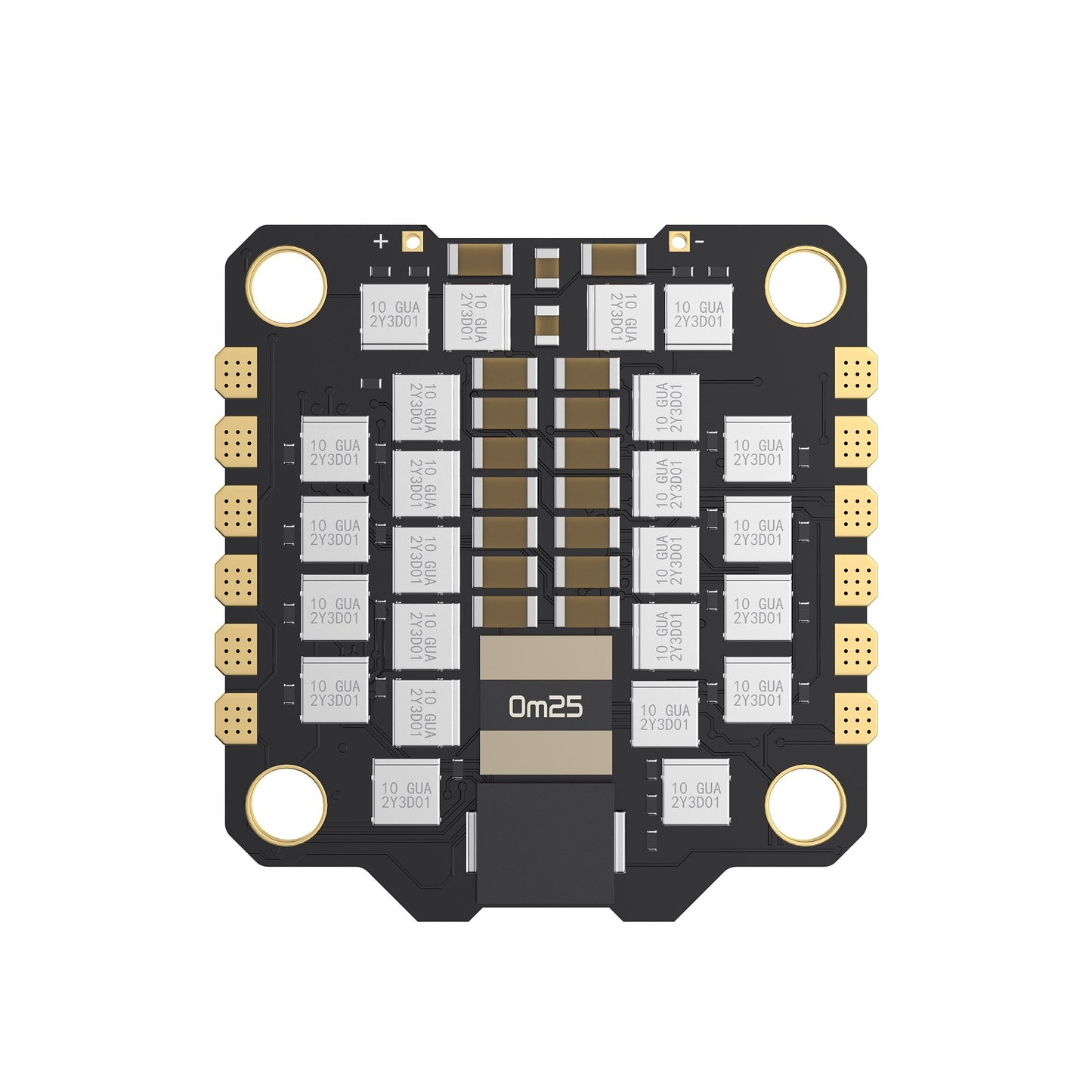

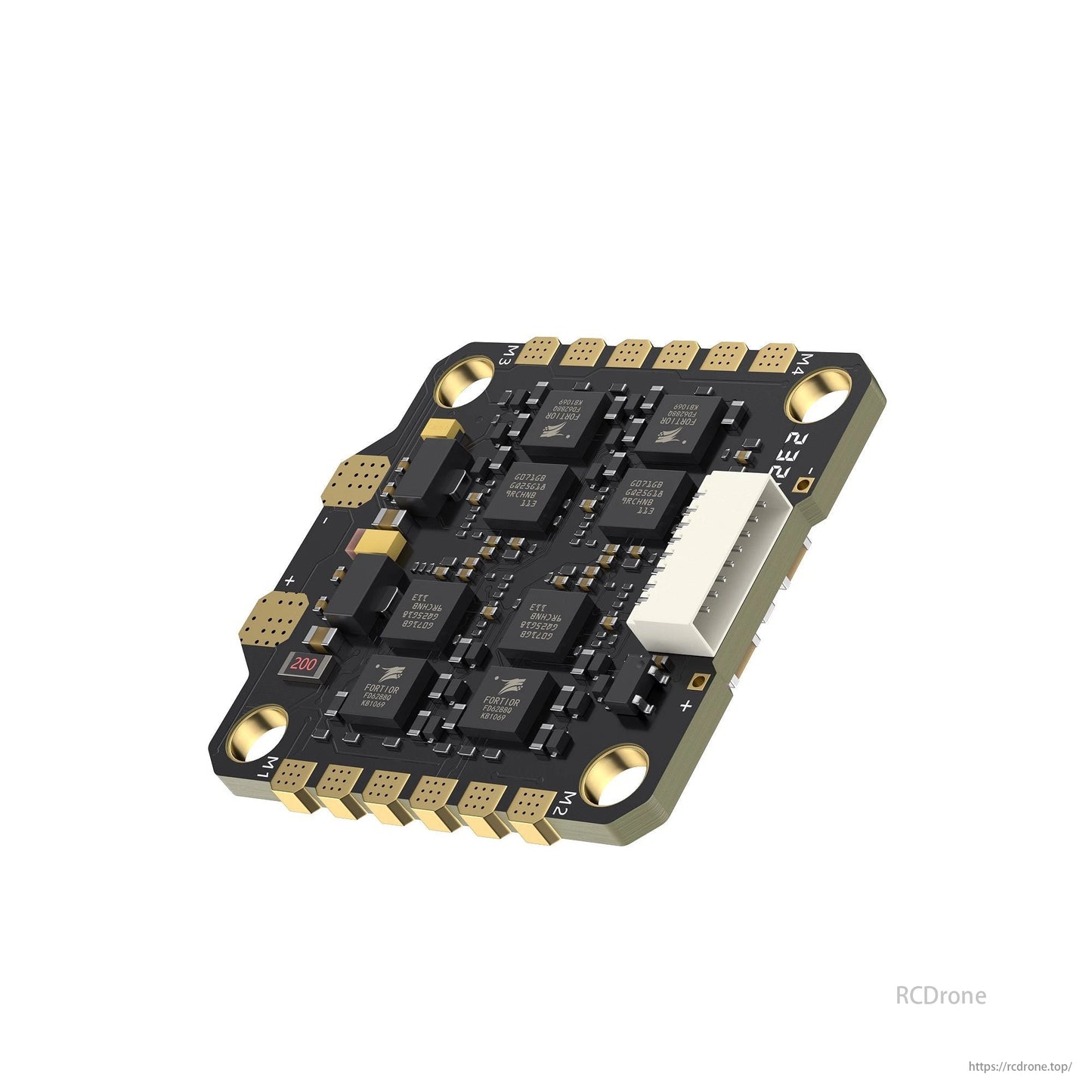

GEPRC TAKER E55_96K 4-in-1 ESC – 55A BLHeli_32, 2–6S, 96K PWM, Telemetry, DShot600 Support for FPV Drones

Overview

The GEPRC TAKER E55_96K BL32 4-in-1 ESC is a high-efficiency power system for demanding FPV drone builds, offering up to 55A continuous current and 60A burst (5s). Designed for 2–6S LiPo batteries, it supports advanced BLHeli_32 firmware with 24K–96K PWM refresh rate, delivering smoother throttle response and reduced motor noise. This 9.6g ESC also features telemetry support, built-in current sensing, and wide protocol compatibility, including DShot150/300/600, Oneshot125, Oneshot42, and Multishot.

Specifications

Key Features

• High-performance 4-in-1 ESC rated at 55A continuous / 60A burst

• BLHeli_32 firmware with 24K–96K PWM frequency, providing smooth and quiet motor control

• Supports 2–6S LiPo input voltage for wide compatibility across drone classes

• Telemetry and current sensing built-in for real-time flight data monitoring

• Compatible with popular digital and analog ESC protocols

• Compact and lightweight, just 9.6g for easy integration into racing or freestyle builds

What’s Included

• 1 × GEPRC TAKER E55_96K 4-in-1 ESC (55A)
