GEPRC TAKER F405 BLS 100A 8S Flight Controller Stack – F405 FC + 4in1 100A ESC, DJI Plug, 8S Ready

Overview

The GEPRC TAKER F405 BLS 100A Stack is a robust and efficient power system designed for high-voltage FPV drone applications. With an STM32F405-based flight controller and a 100A 4-in-1 ESC that supports up to 8S LiPo, this stack delivers stability and current-handling capacity for heavy-duty freestyle or long-range digital builds. It features a 16MB blackbox, integrated LC filter, direct DJI Air Unit compatibility, and shock-absorbing mounting to ensure clean signals and smooth flight dynamics.

Flight Controller Specifications – GEP-F405-8S

ESC Specifications – TAKER H100_8S_BLS 4IN1 100A ESC

What's Included

• 1 × F405 Flight Controller

• 1 × 100A 4-in-1 ESC

• 1 × Capacitor

• 1 × O3 3-in-1 Connection Cable

• 2 × FC Adapter Cables

• 1 × SH1.0 4-Pin Silicone Cable

• 1 × Camera Connection Cable

• 1 × VTX Connection Cable

• 1 × XT90 Power Cable

• 4 × M3×30 Screws

• 4 × M3×25 Screws

• 8 × Nylon Nuts

• 12 × Silicone Anti-Vibration Pads

Details

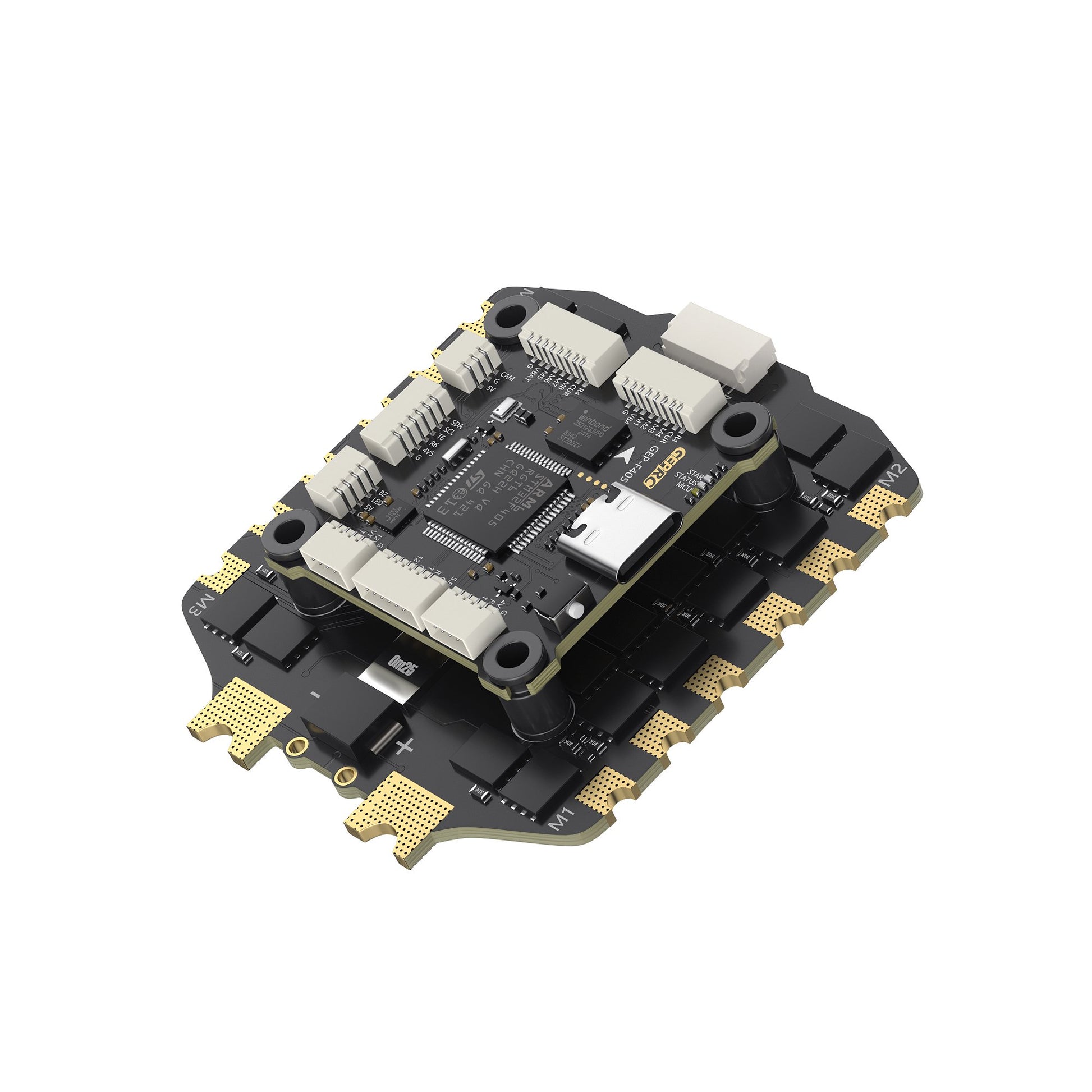

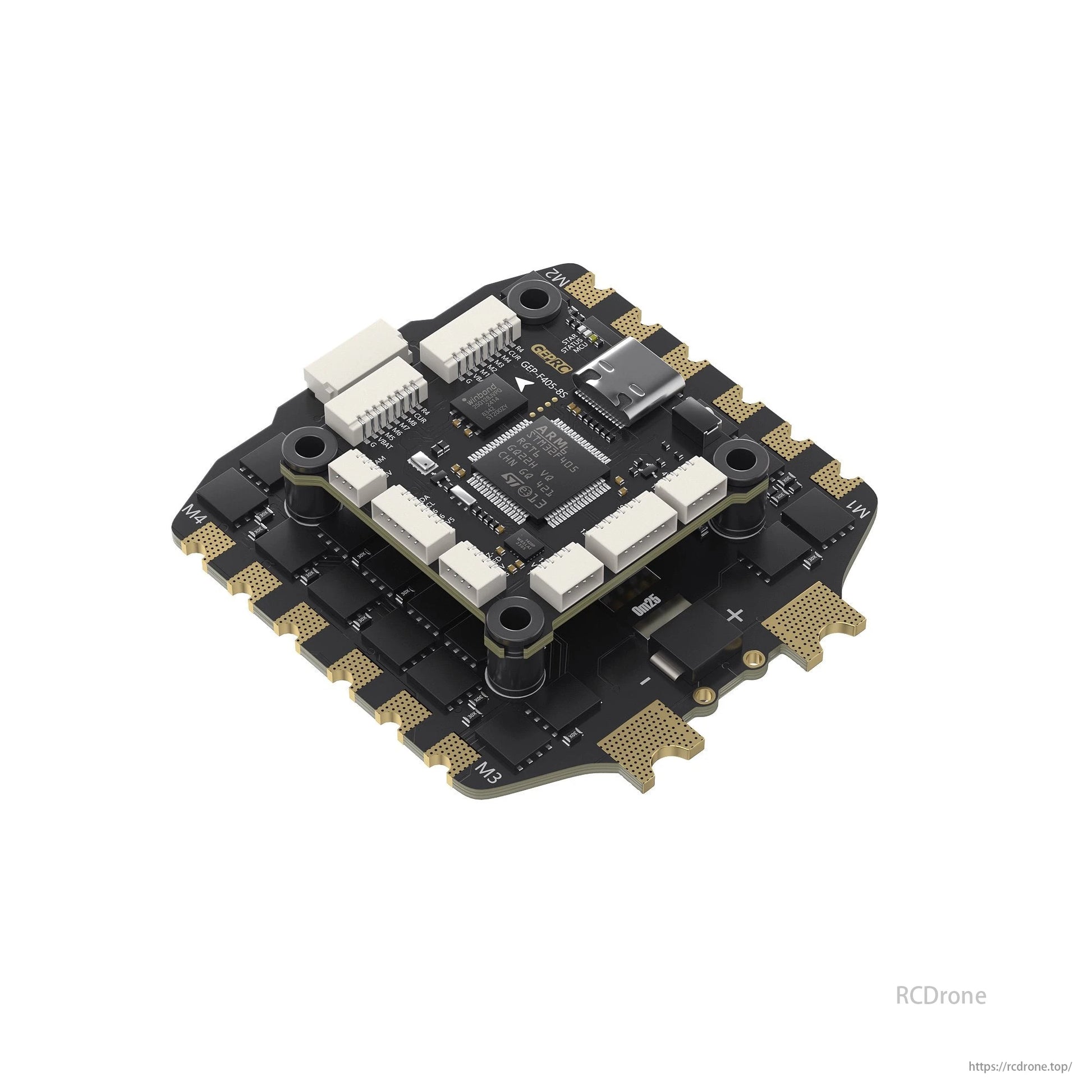

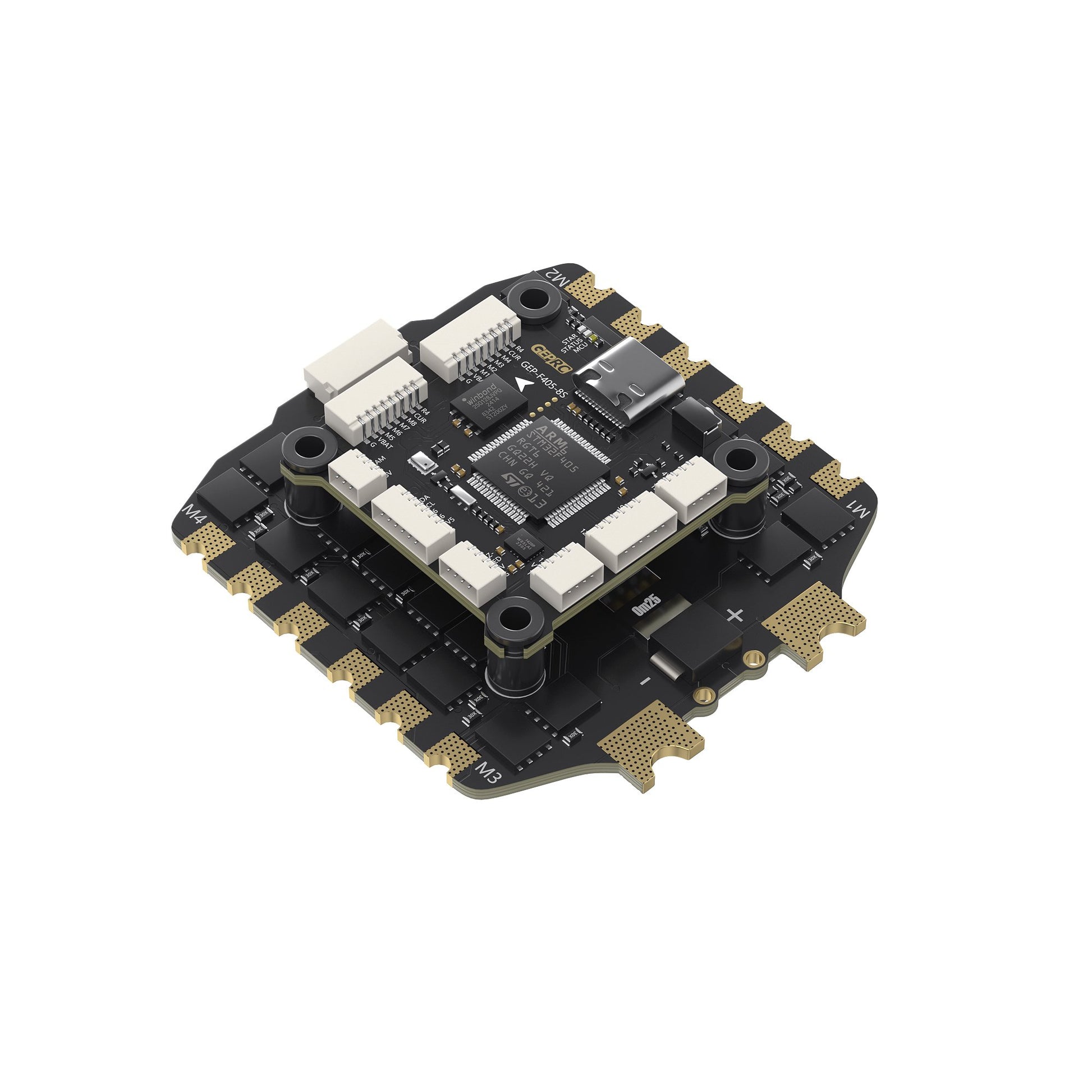

GEPRC TAKER F405 BLS 100A 8S Stack flight controller with black and gold design, featuring multiple connectors.

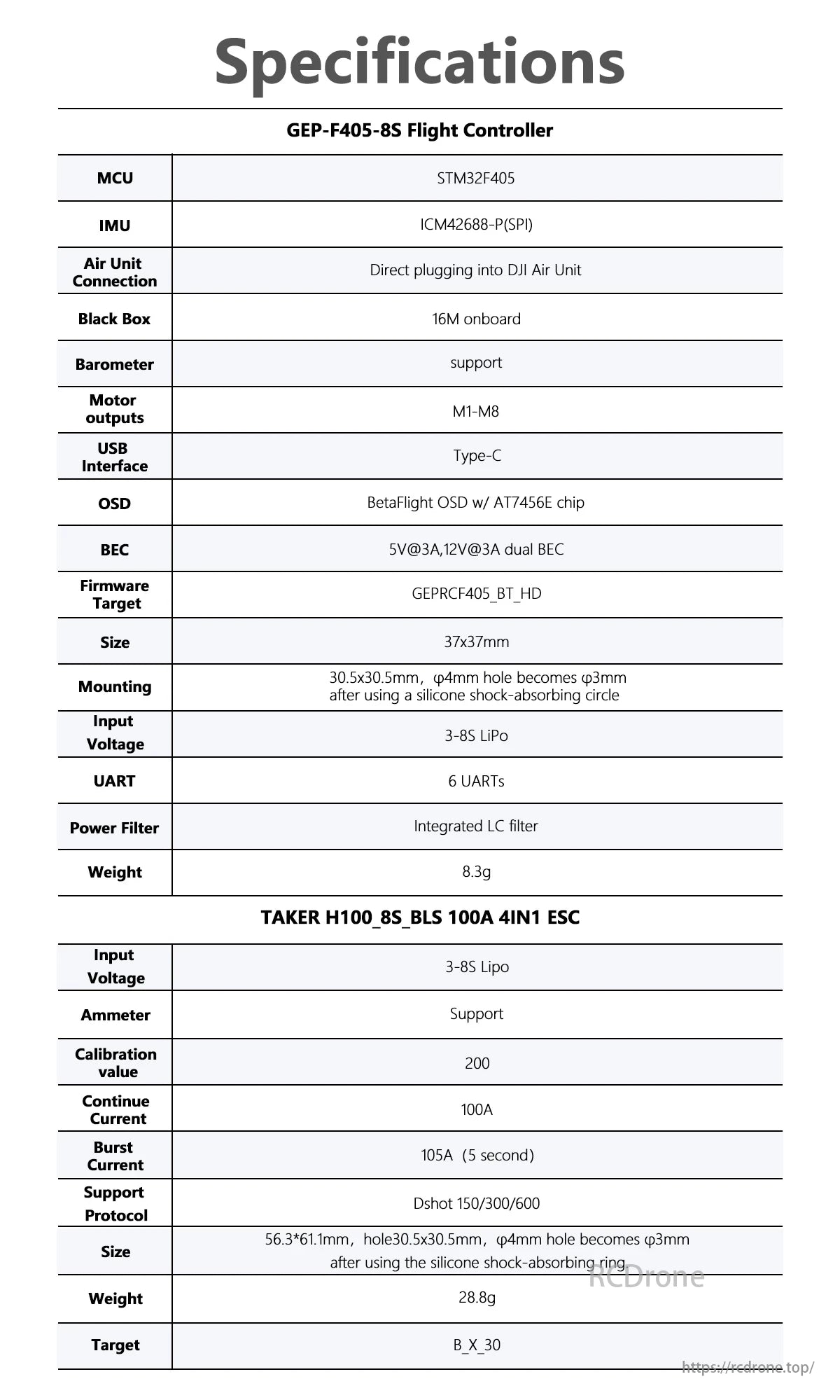

GEPRC TAKER F405 BLS 100A 8S Flight Controller specs: STM32F405 MCU, ICM42688-P IMU, 16M black box, BetaFlight OSD, 5V/12V BEC, 37x37mm size, 8.3g weight. ESC supports 100A continuous, 105A burst current, Dshot protocols.

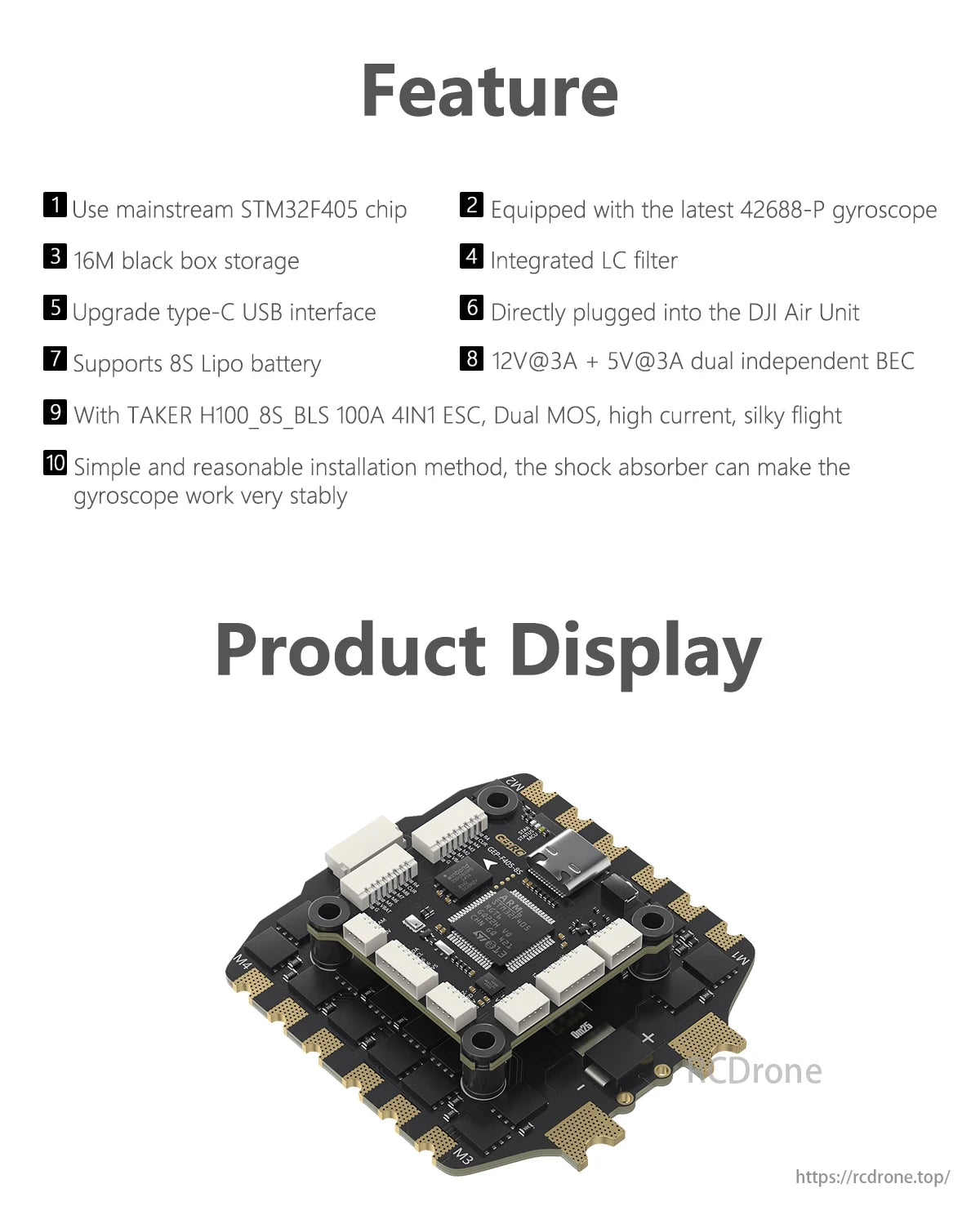

GEPRC TAKER F405 BLS 100A 8S Flight Controller includes STM32F405 chip, 42688-P gyroscope, 16M storage, Type-C USB, 8S Lipo support, DJI Air Unit compatibility, dual BEC, and shock-absorbing gyro for stability.

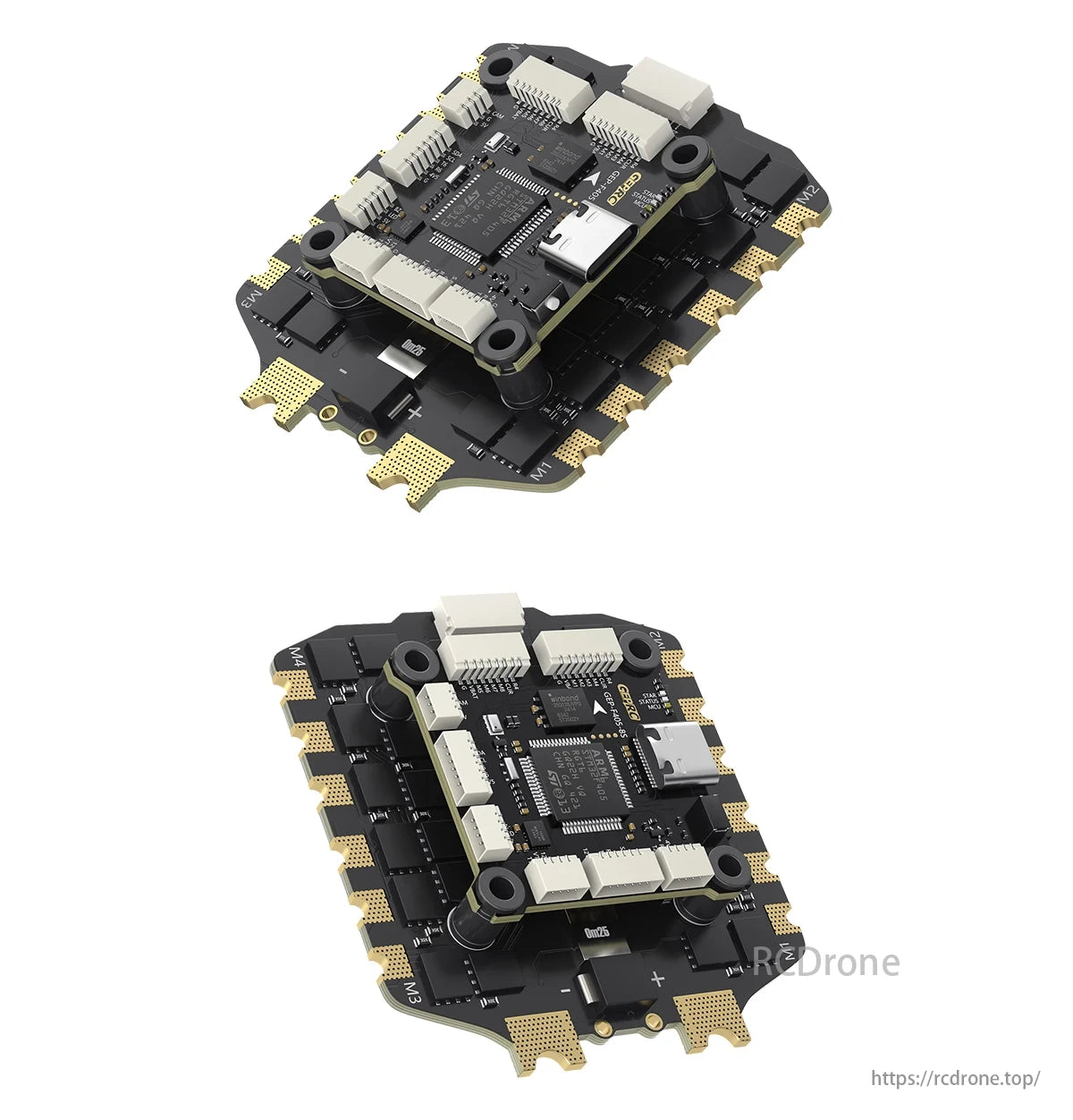

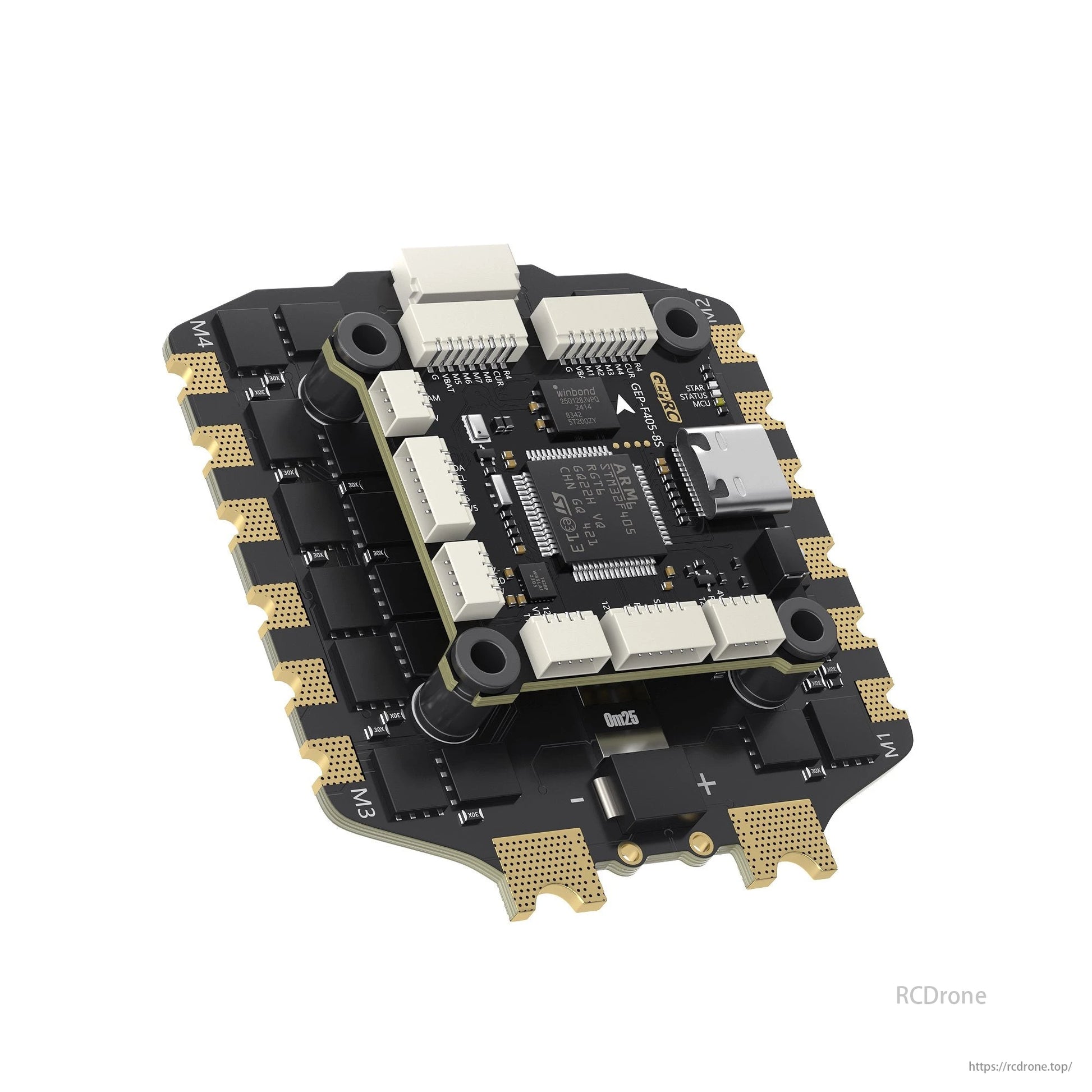

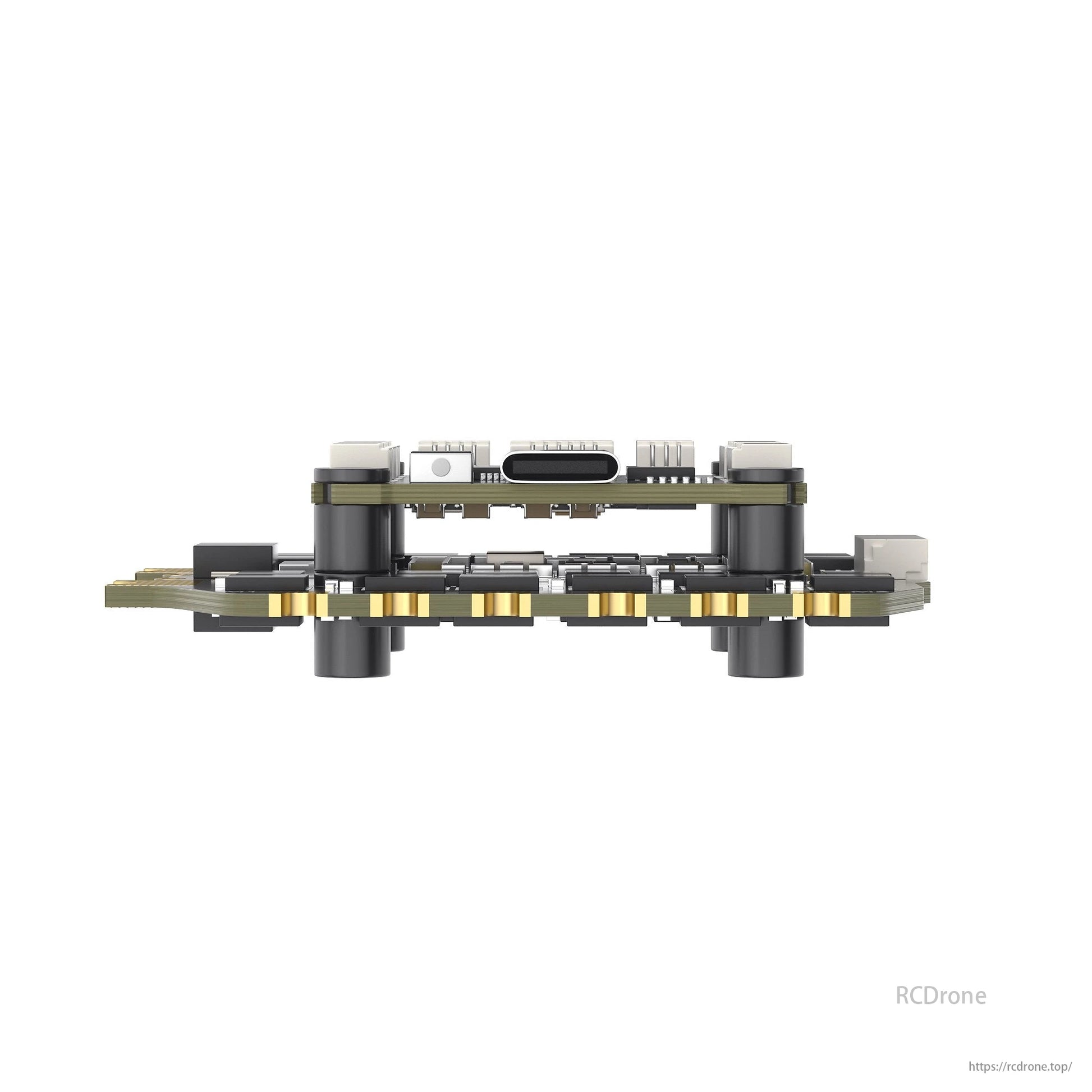

GEPRC TAKER F405 BLS 100A 8S Flight Controller with multiple connectors and ports.

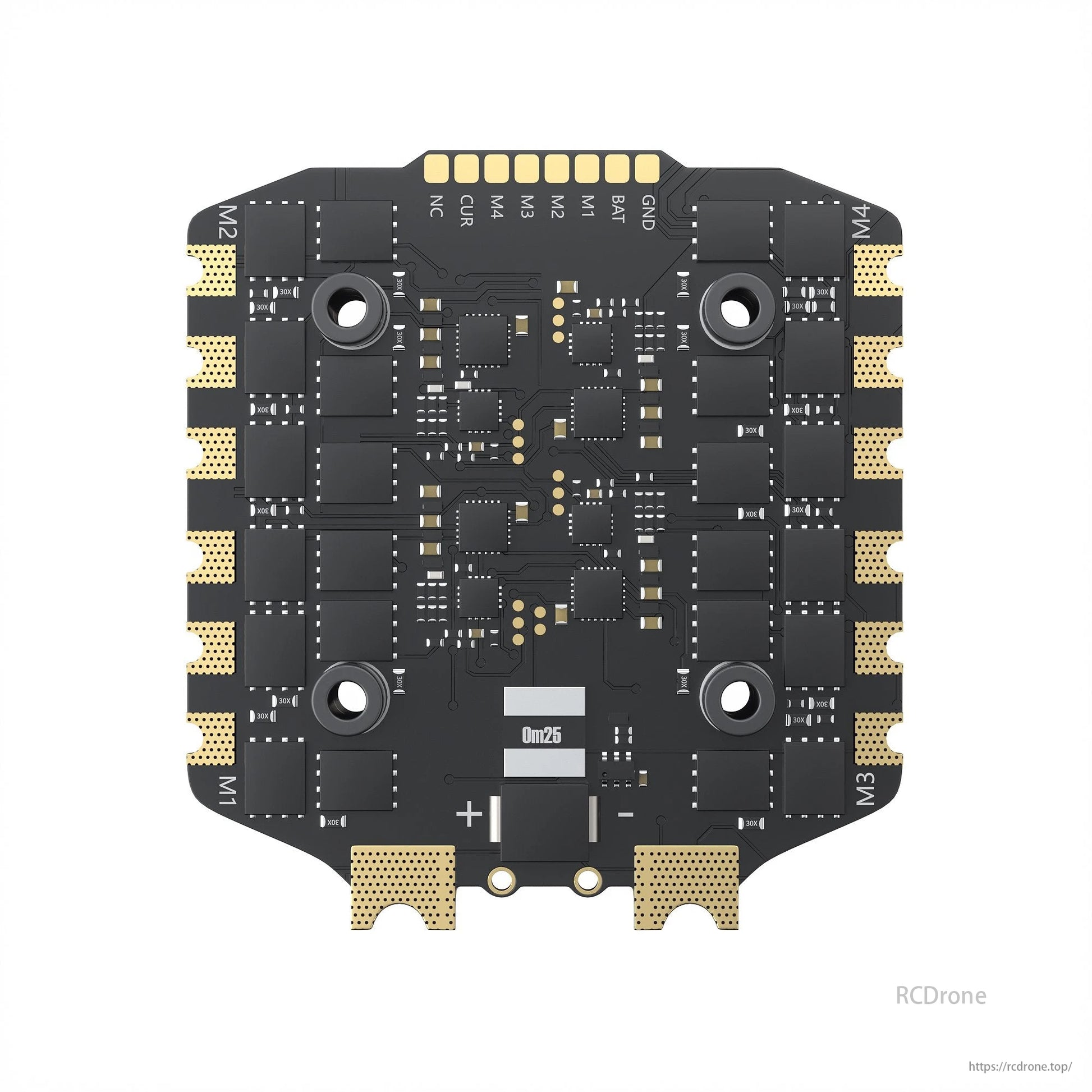

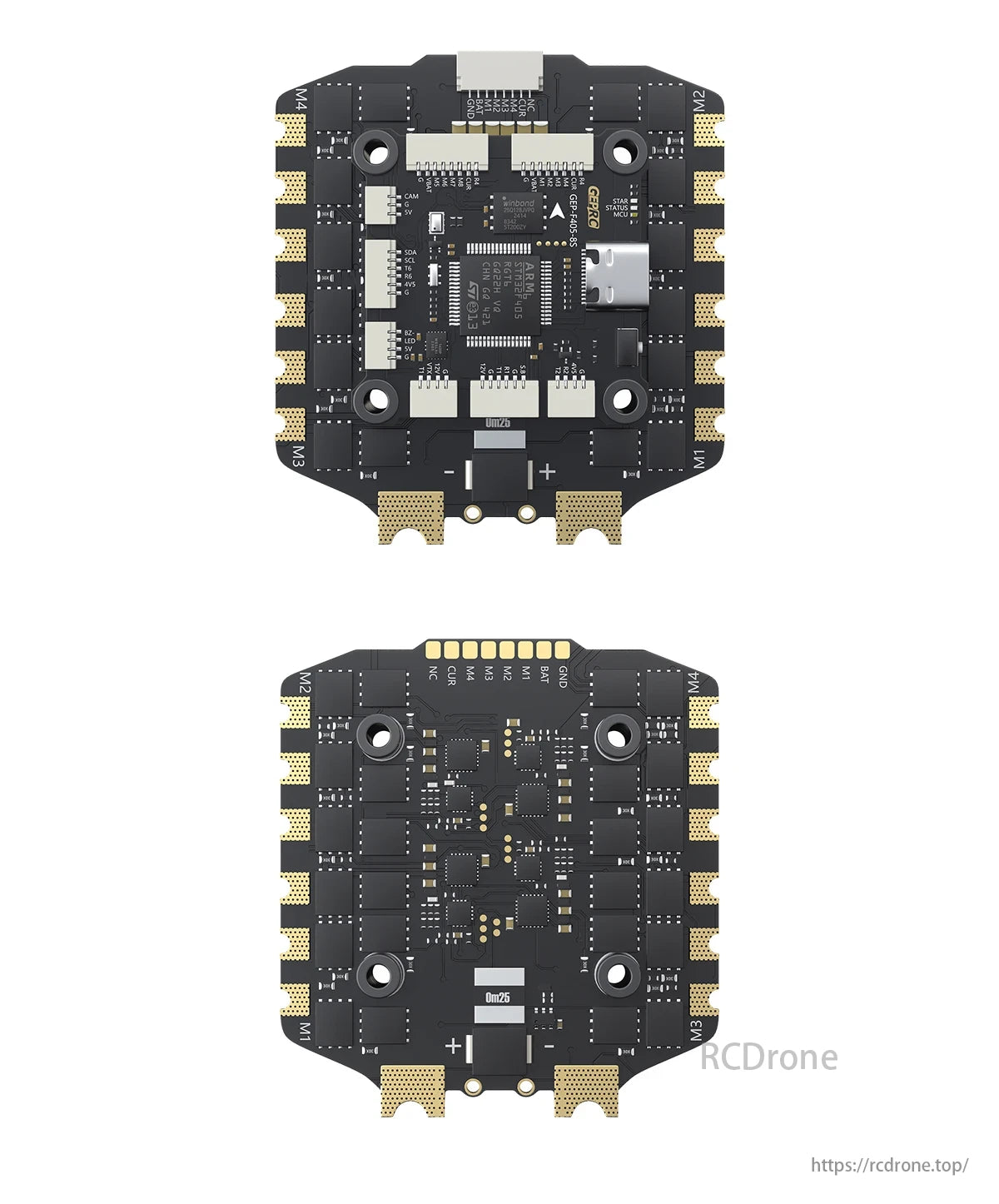

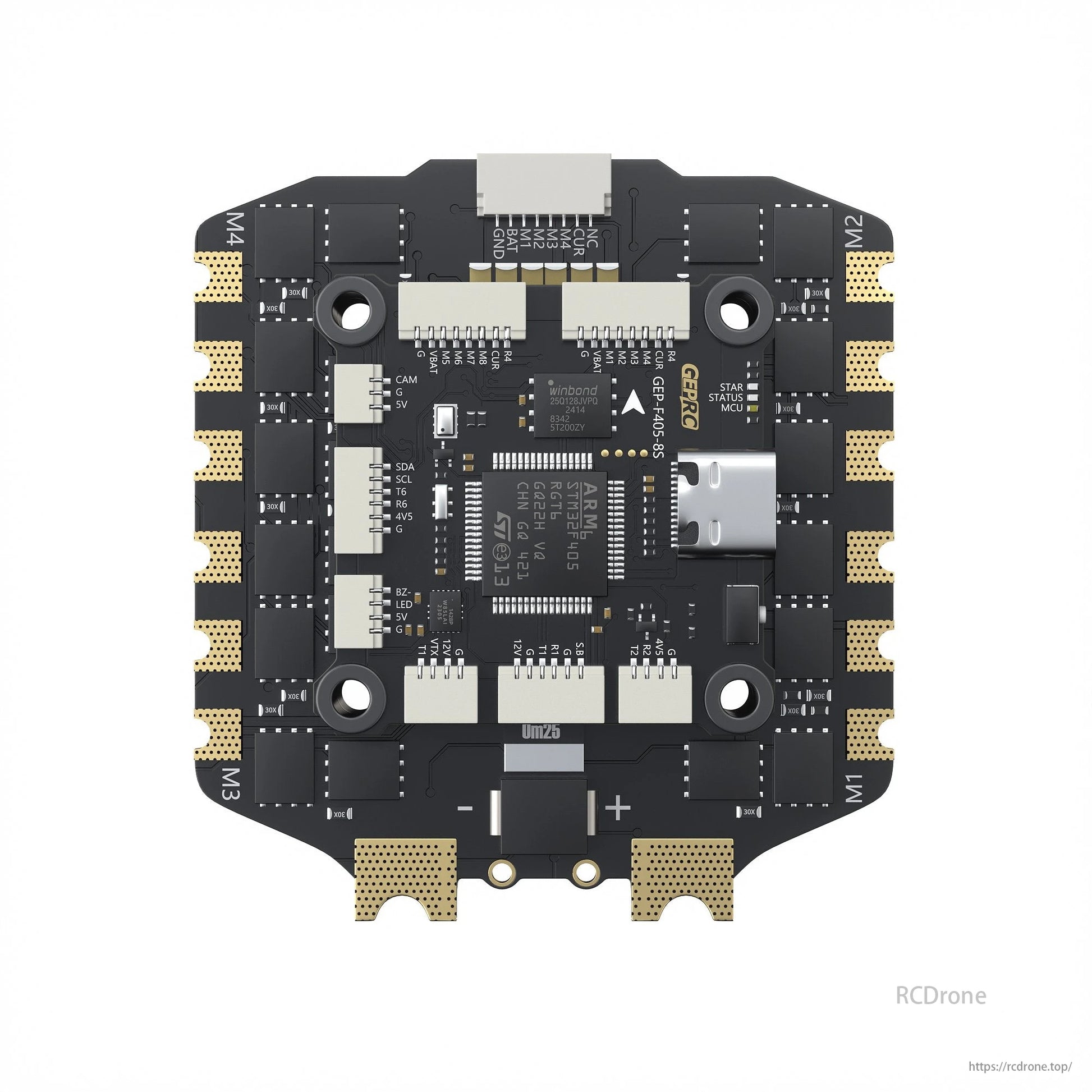

GEPRC TAKER F405 BLS 100A 8S Flight Controller with M1, M2, M3, M4 labels and various connectors.

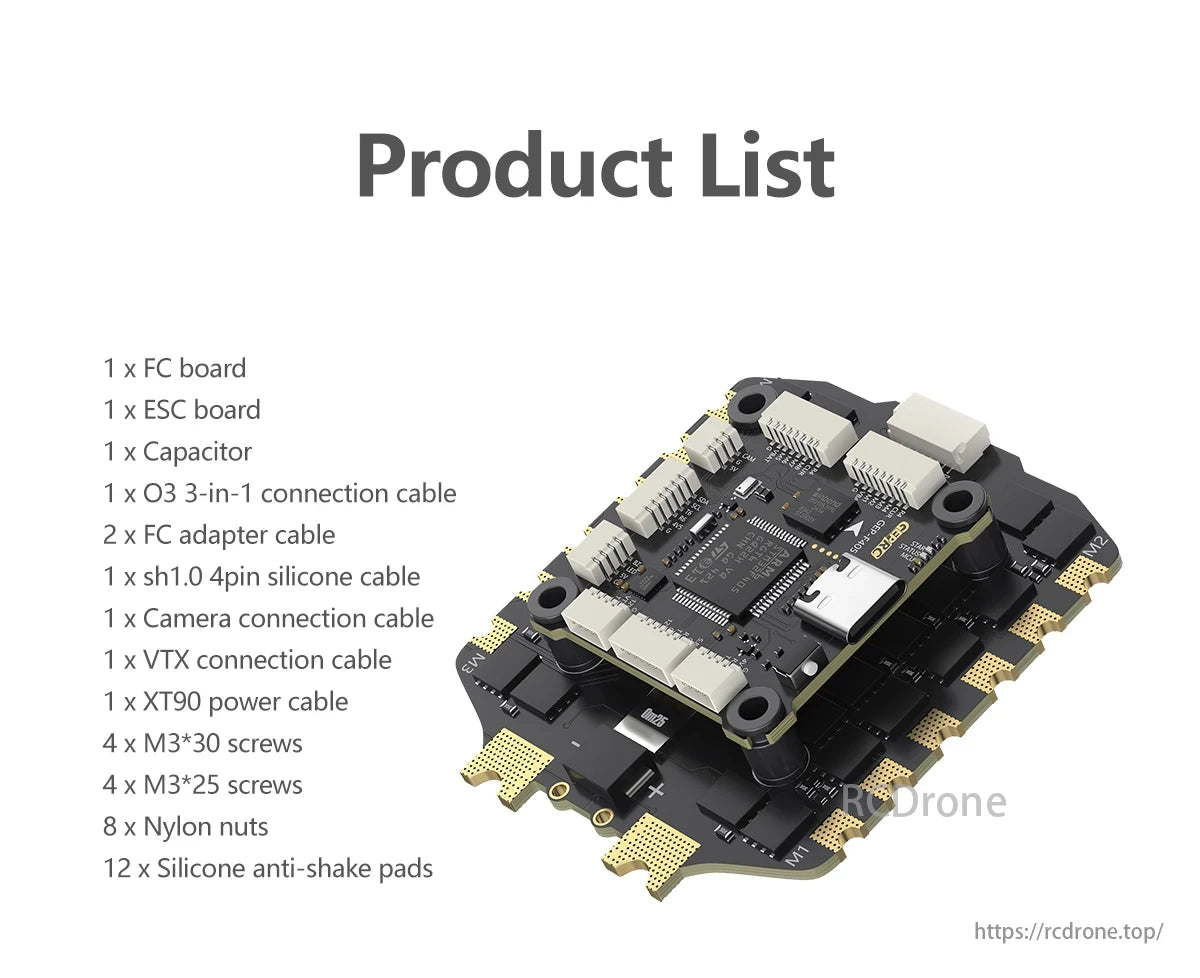

Product List: 1 FC board, 1 ESC board, 1 capacitor, 1 O3 3-in-1 connection cable, 2 FC adapter cables, 1 sh1.0 4pin silicone cable, 1 camera connection cable, 1 VTX connection cable, 1 XT90 power cable, 4 M3*30 screws, 4 M3*25 screws, 8 nylon nuts, 12 silicone anti-shake pads. This comprehensive kit includes essential components for assembling and operating a GEPRC TAKER F405 BLS 100A 8S Flight Controller efficiently.
