Summary

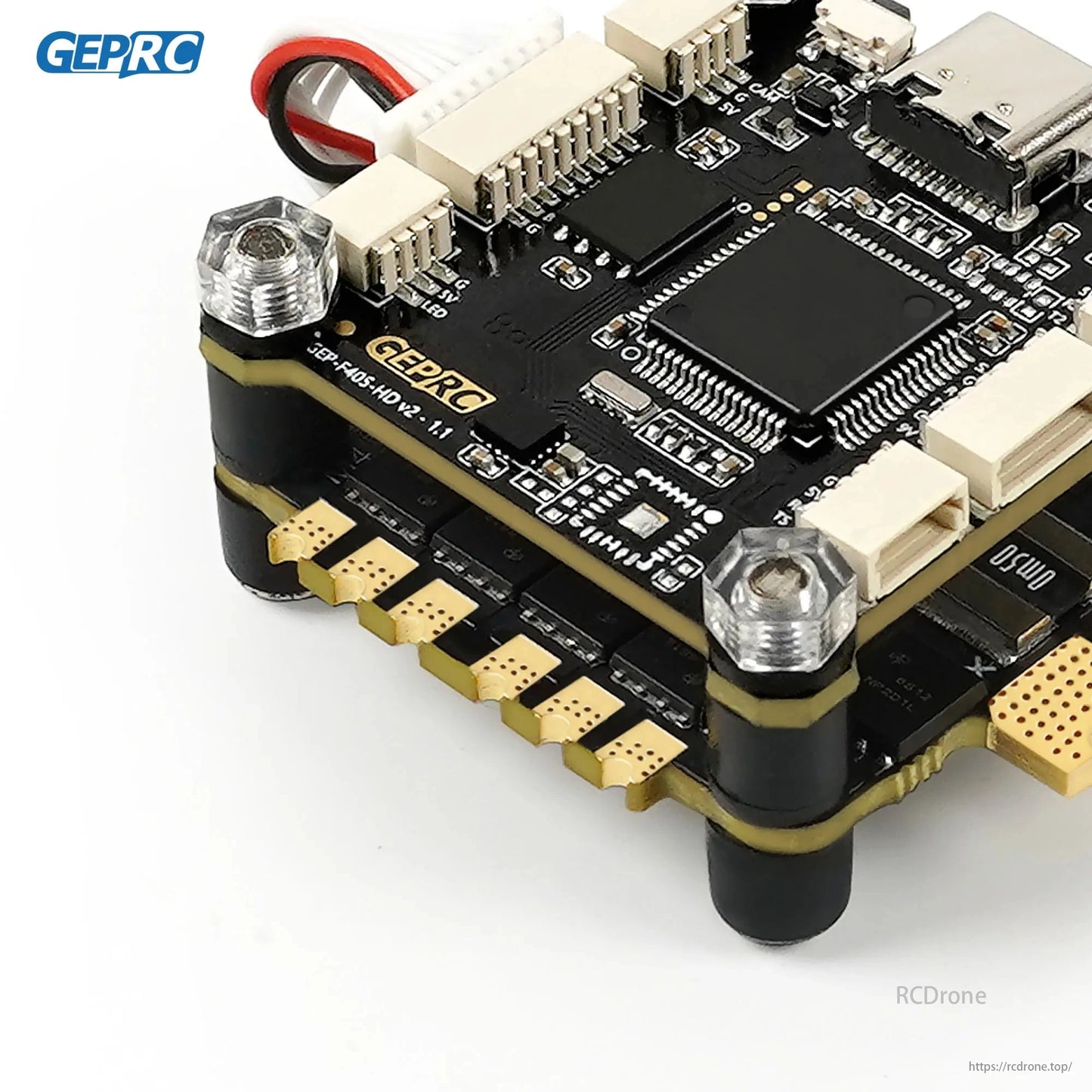

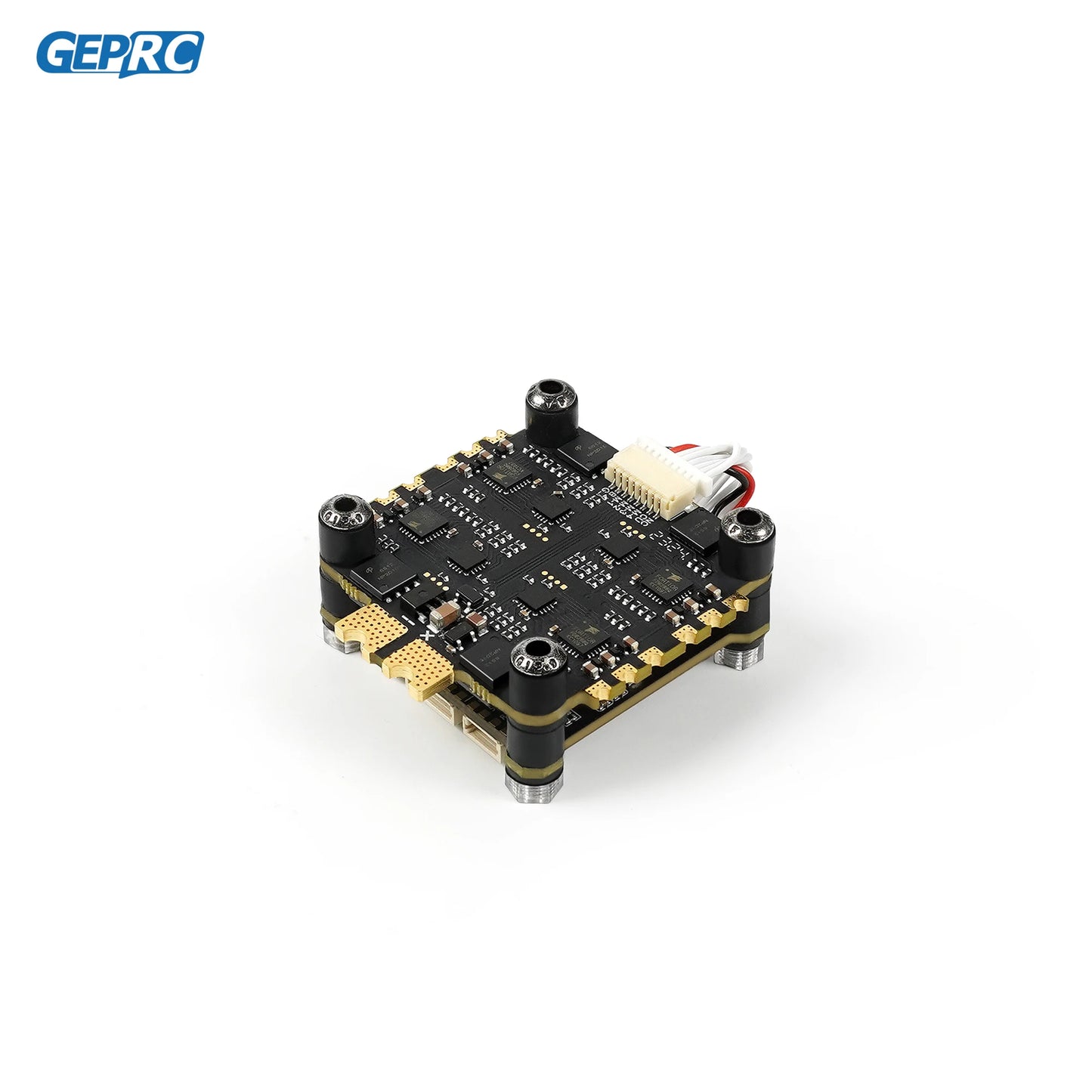

GEPRC TAKER F405 BLS 50A STACK is a plug-and-play stack system specially designed for D JI Air Unit. Use STM32F405 chip, ICM42688-P gyroscope, integrated 16M black box, and GEP-BLS50A-4IN1 ESC to have a more delicate hand feeling experience.

The GEPRC TAKER F405 BLS 50A STACK can be directly plugged into the D JI Air Unit, which can save the trouble of soldering. Upgrade the type-C USB connector, which greatly improves the service life of the socket and reduces the risk of poor contact. 9V 2.5A + 5V 3A dual independent BEC, more stable power supply for external devices.

Features

1. Use mainstream STM32F405 chip

2. Equipped with the latest 42688-P gyroscope

3. 16M black box storage

4. Integrated LC filter

5. Upgrade type-C USB interface

6. Directly plugged into the D JI Air Unit

7. With GEP-BLS50A-4IN1 ESC, the flying feel is silky

8. Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably

9. 9V 2.5A + 5V 3A dual independent BEC

Specifications

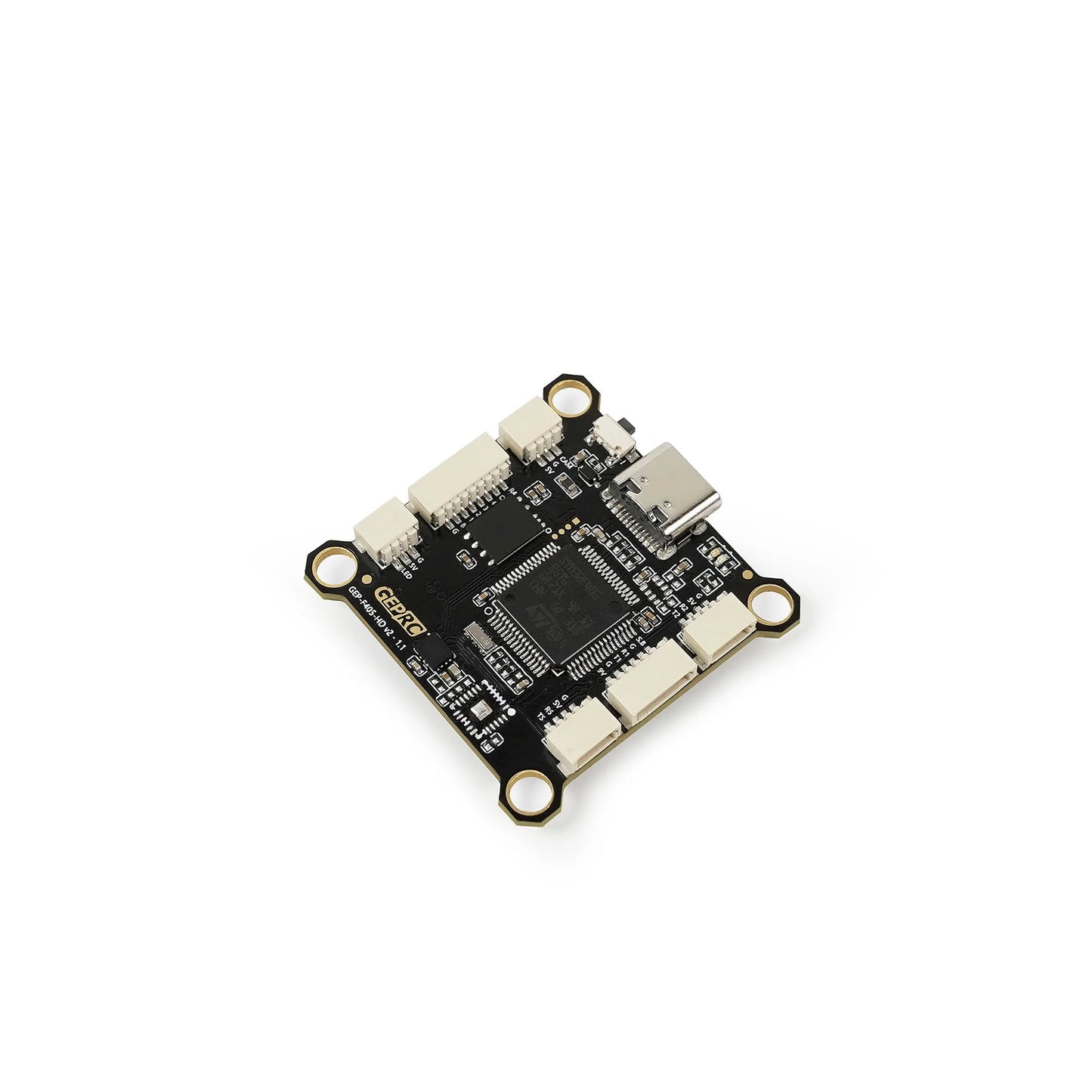

GEP-F405-HD v2 Flight Controller

• MCU: STM32F405

• IMU: ICM42688-P(SPI)

• Air Unit Connection: Direct plugging into D JI Air Unit

• Black Box: 16M onboard

• USB Connector: Type-C

• OSD: BetaFlight OSD w/ AT7456E chip

• BEC: 5V,9V dual BEC

• Firmware Target: GEPRCF405

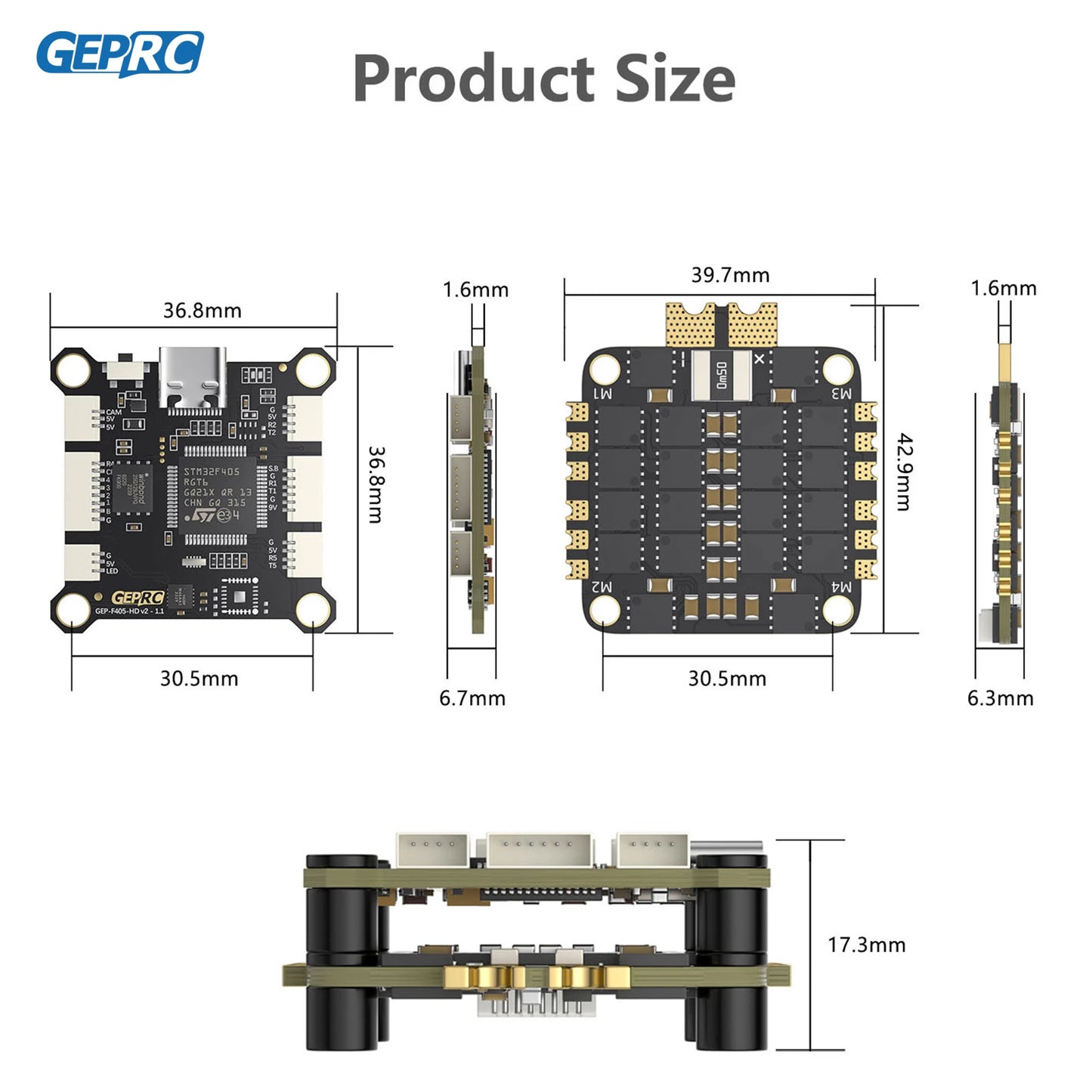

• Size: 36.8×36.8mm, hole 30.5×30.5mm,φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle.

• Input Voltage: 3-6S LiPo

• UART: 6

• Power Filter: Integrated LC filter

• Weight: 7.7g

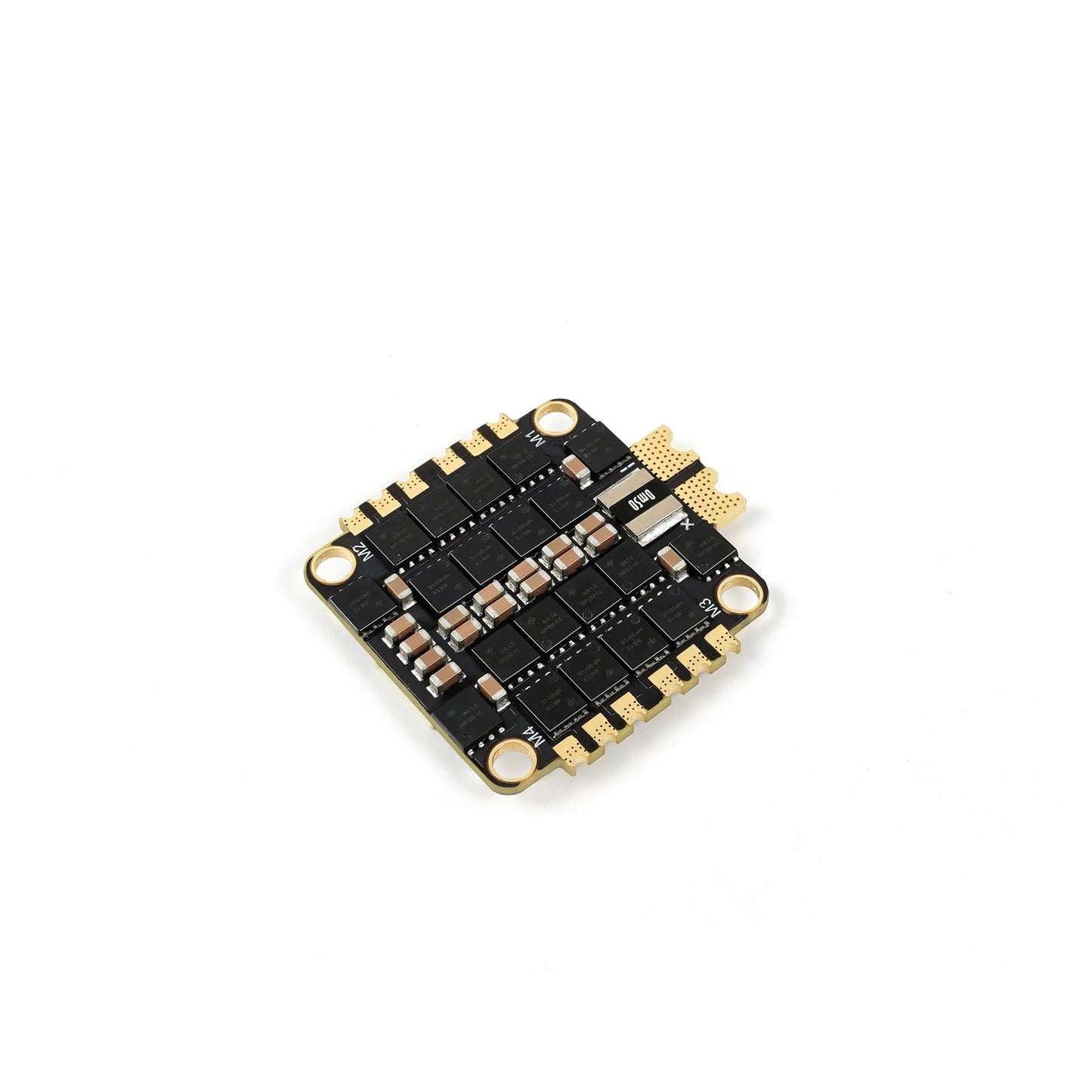

GEP-BLS50A-4IN1 ESC

• Input Voltage: 3-6S Lipo

• Galvanometer: Support

• Continuous Current: 50A

• Burst Current: 55A(5s)

• Support Protocol: Oneshot125/Oneshot42/Mulishot modes/Dshot 150/300/600

• Size: 42.9×39.7mm, hole30.5×30.5mm,φ4mm hole becomes φ3mm after using the silicone shock-absorbing circle.

• Weight:13.7g

• Target: G_H_30

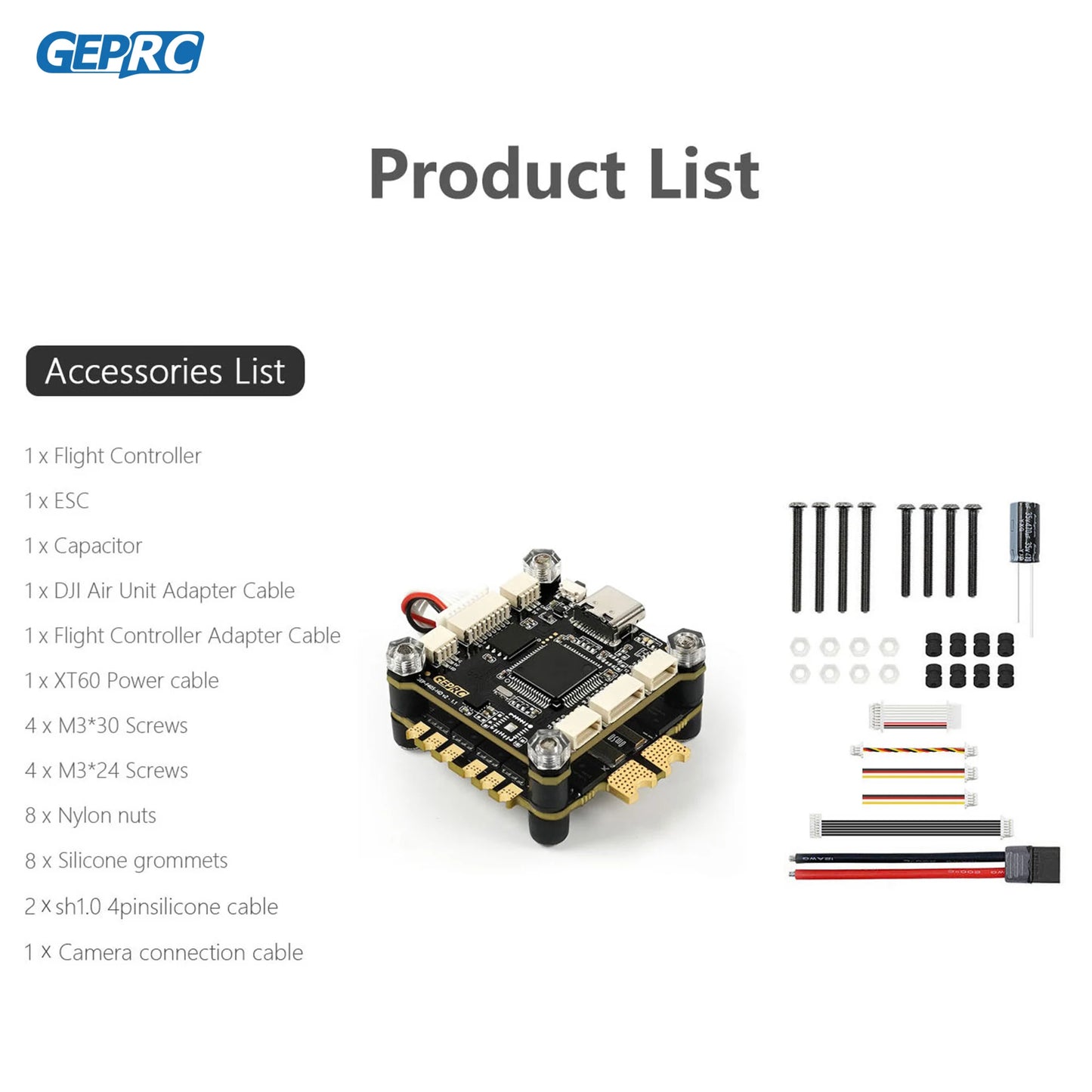

Includes

1 x Flight Controller
1 x ESC
1 x Capacitor
1 x D JI Air Unit Adapter Cable
1 x Flight Controller Adapter Cable
1 x XT60 Power cable
4 x M3*30 Screws
4 x M3*24 Screws
8 x Nylon nuts
8 x Silicone grommets
2 x sh1.0 4pinsilicone cable
1 x Camera connection cable

16MB Onboard Black Box Record flight data to facilitate debugging parameters 0 5s5 Stnarf408 OR RGTe Gazlx G0 3 CHN winbond 250128JVPQ 6220 2239 FK90

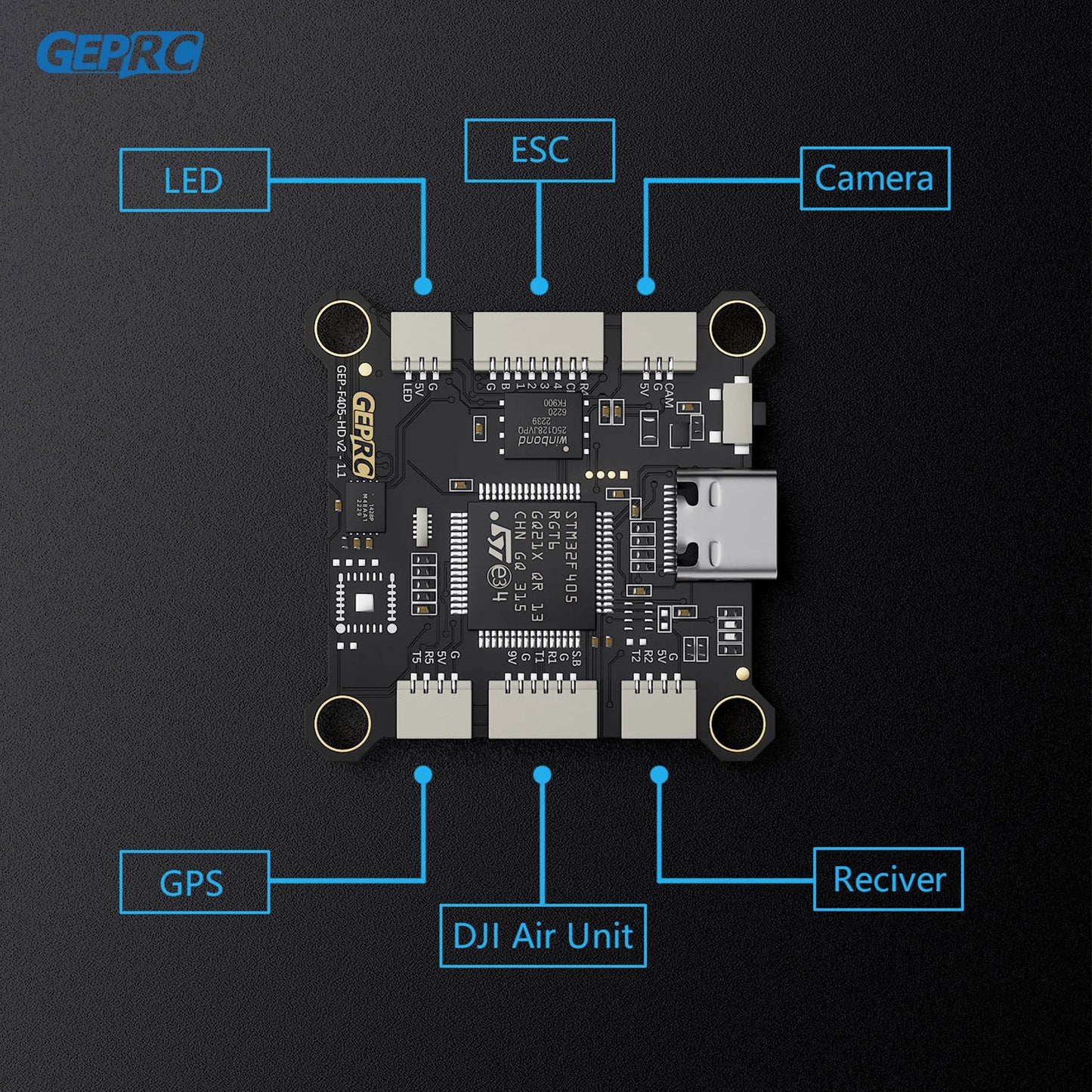

Features direct connectivity to external devices through multiple in-line connectors, eliminating the need for soldering.

This flight controller features a STM32F405 MCU and ICM42688-16M Gyroscope (SPI). It provides direct connectivity to DJI Air Unit via USB interface, with a Type-C port. The onboard OSD uses BetaFlight software with an AT7456E chip, and includes a dual BEC (5V, 9V) for power regulation.

The package includes one flight controller, one ESC (Ix), one capacitor, one transmitter adapter cable for DJI Air Unit, and one power cable (XT60). Additionally, it comes with four M3 x 30mm screws.
