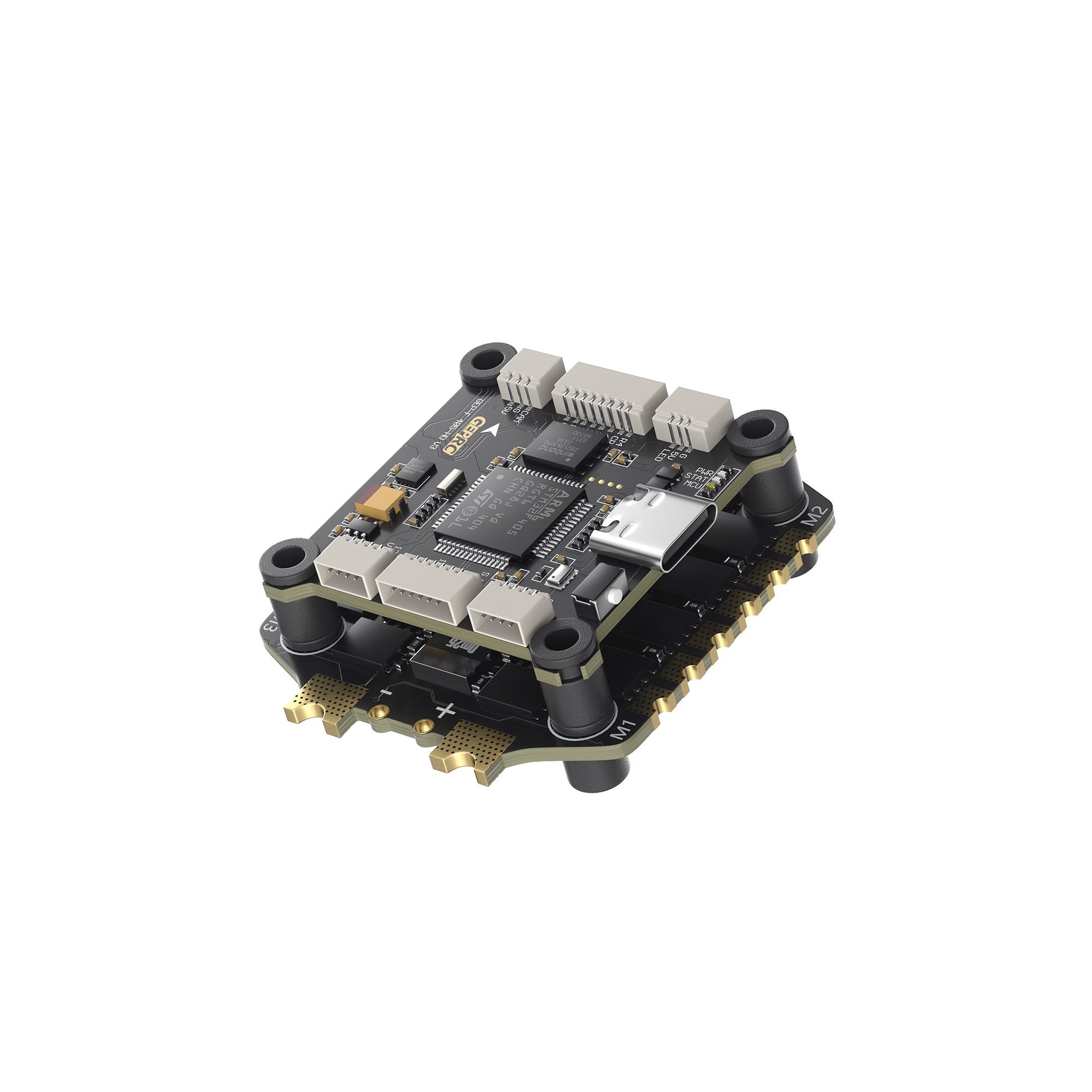

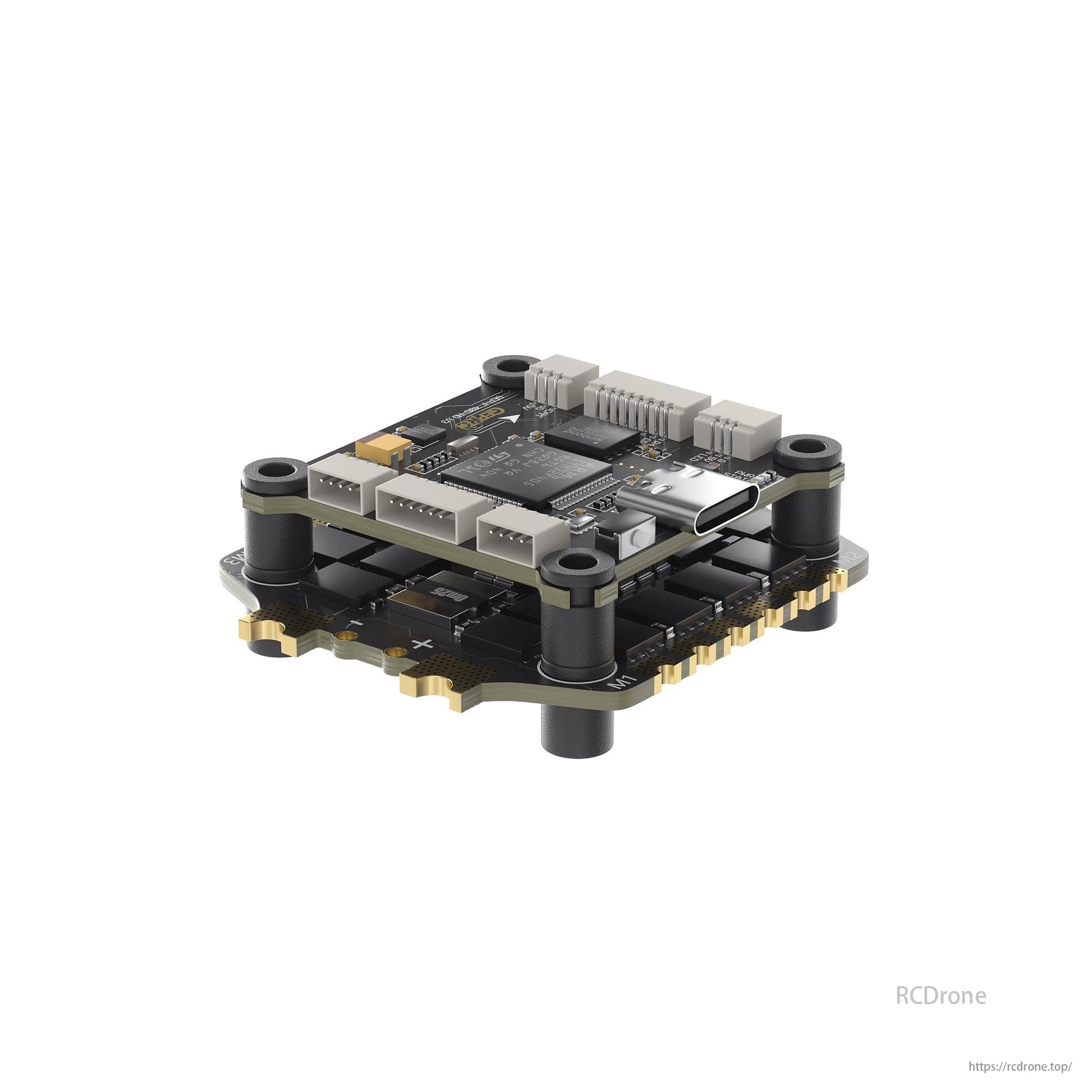

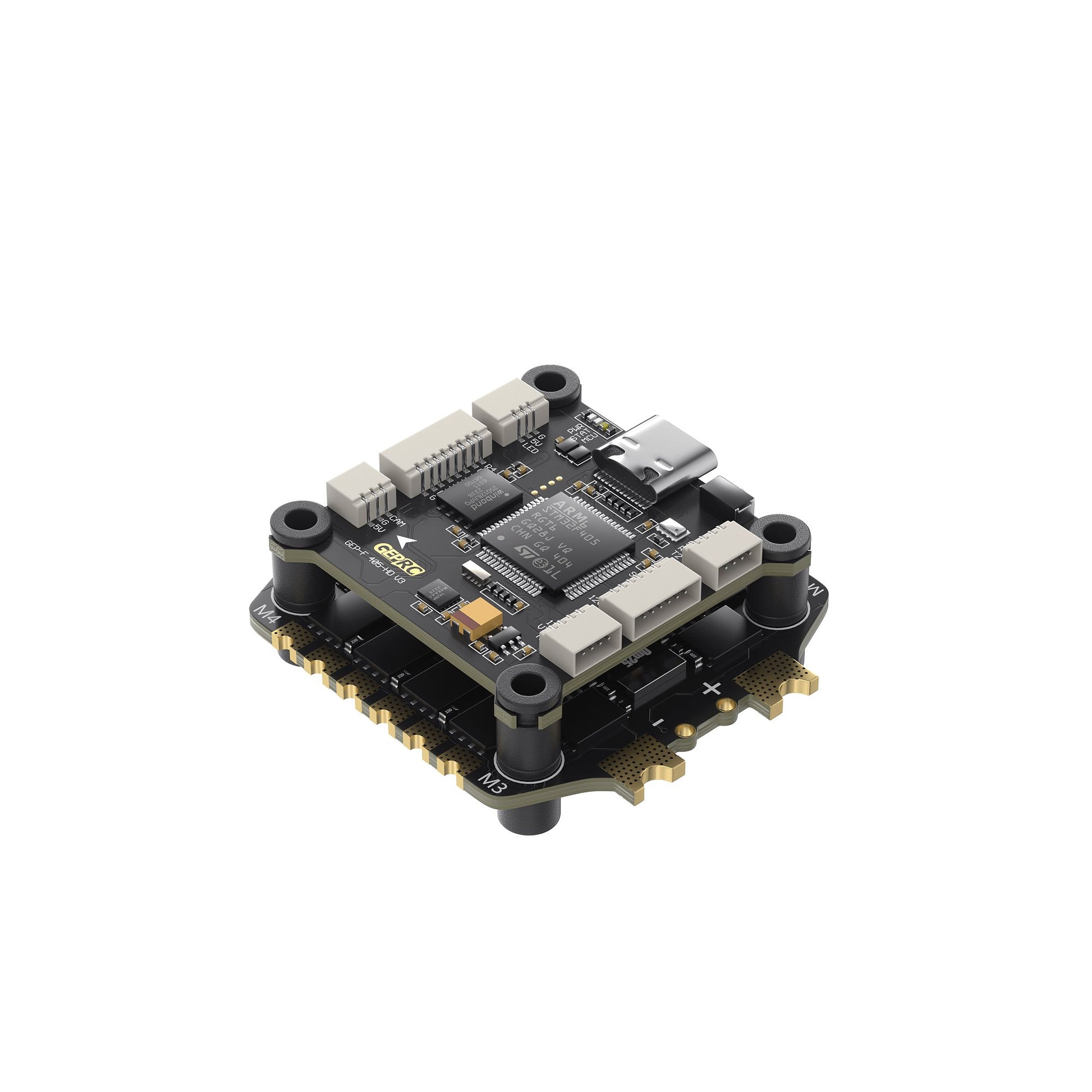

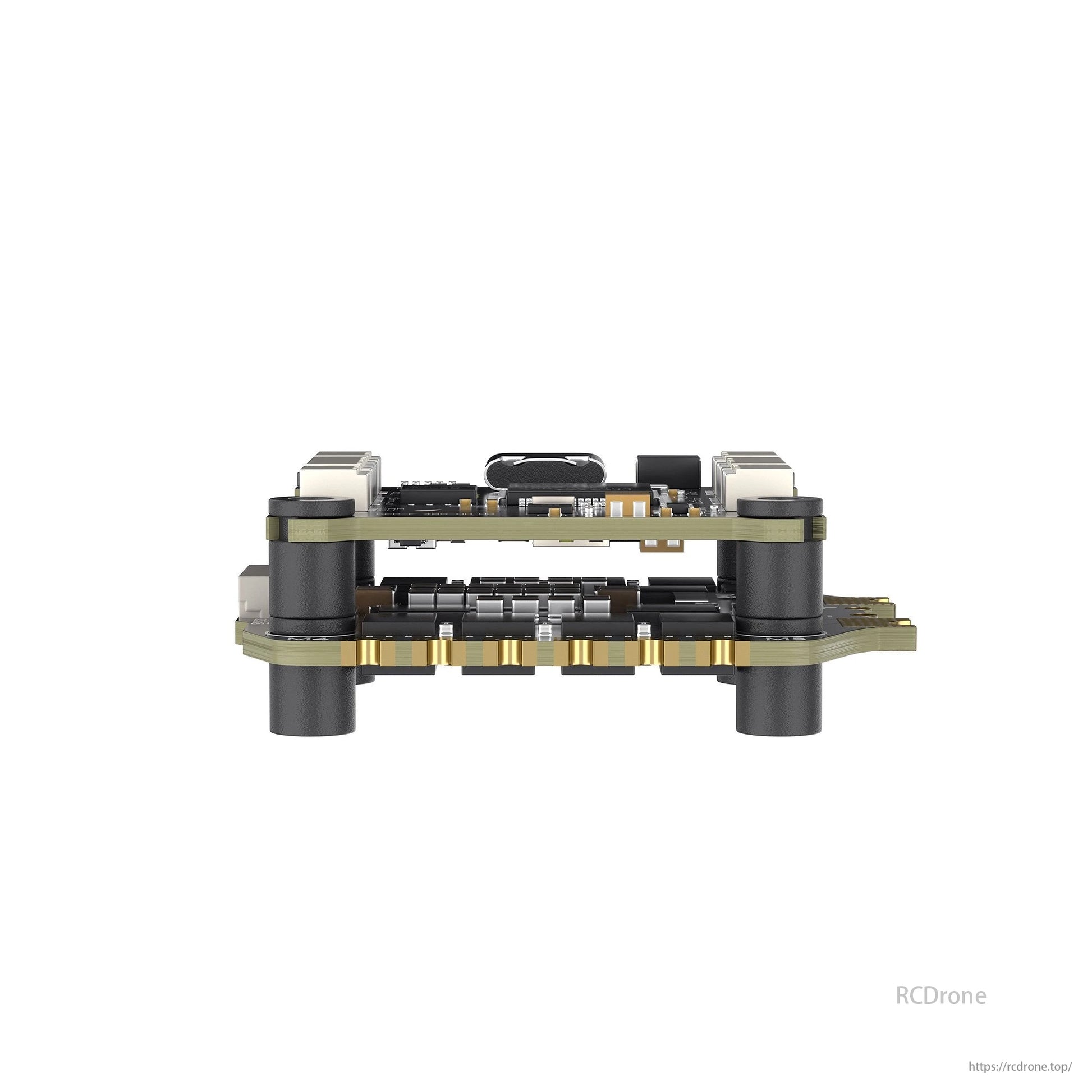

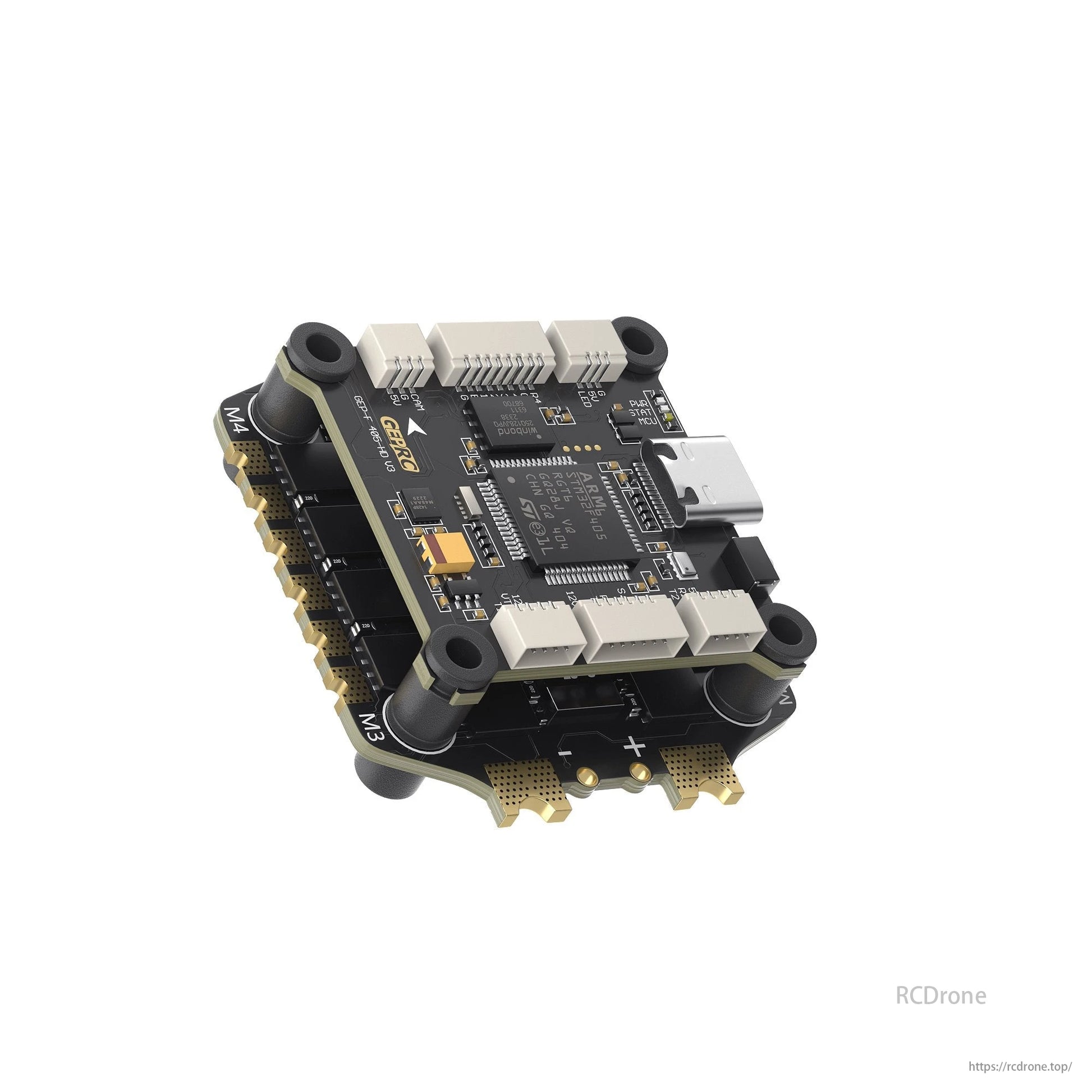

GEPRC TAKER F405 BLS 60A V2 Stack – STM32F405 Flight Controller + 60A 4in1 ESC for 3–6S FPV Drones

Overview

The GEPRC TAKER F405 BLS 60A V2 Stack is a high-efficiency flight controller system built for smooth, reliable FPV performance. It integrates the GEP-F405-HD V3 flight controller, featuring the powerful STM32F405 MCU and ICM42688-P gyroscope, with the TAKER H60_BLS 60A 4in1 ESC, supporting up to 60A continuous current on 3–6S LiPo. Designed for freestyle and long-range builds, this stack delivers excellent flight feel, clean power, and broad compatibility — including direct DJI Air Unit integration.

Features

Flight Controller (GEP-F405-HD V3)

• Powered by the STM32F405 MCU for fast data processing

• ICM42688-P (SPI) gyroscope for accurate attitude sensing

• 16MB onboard black box for flight data recording

• Integrated LC power filter reduces electrical noise

• Type-C USB port for modern connectivity

• Direct plug support for DJI Air Unit (no soldering)

• Dual BEC outputs: 12V@2.5A and 5V@3A

• BetaFlight OSD with AT7456E chip

• BMP280 barometer included

• Shock-absorbing silicone grommets for gyro stability

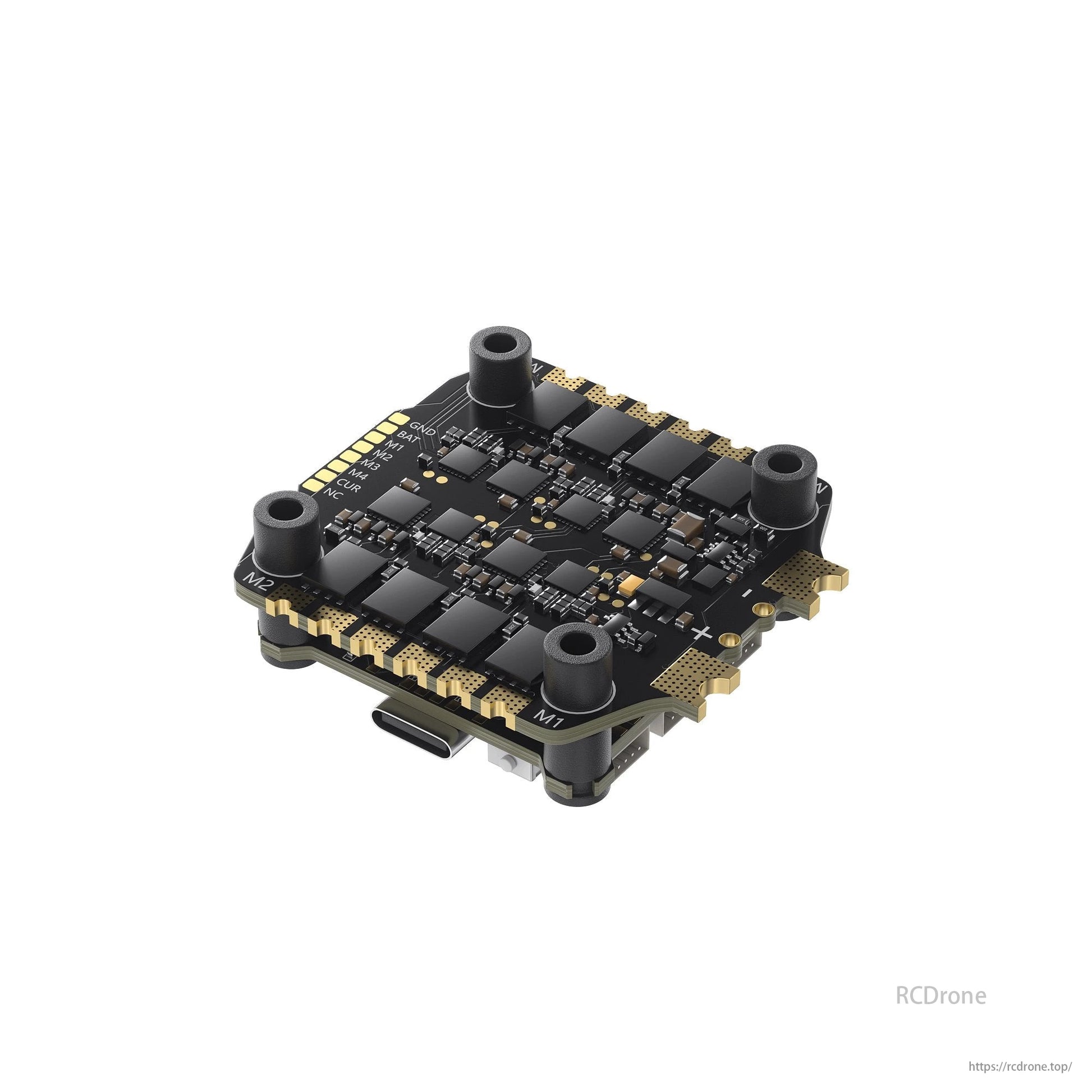

ESC (TAKER H60_BLS 60A 4in1)

• Input voltage: 3–6S LiPo

• Continuous current: 60A, burst: 65A (5 seconds)

• Dual MOS architecture for strong current output

• Supports DShot150/300/600 ESC protocols

• Built-in current sensor (Ammeter)

• Compact size with clean layout for easy mounting

Specifications

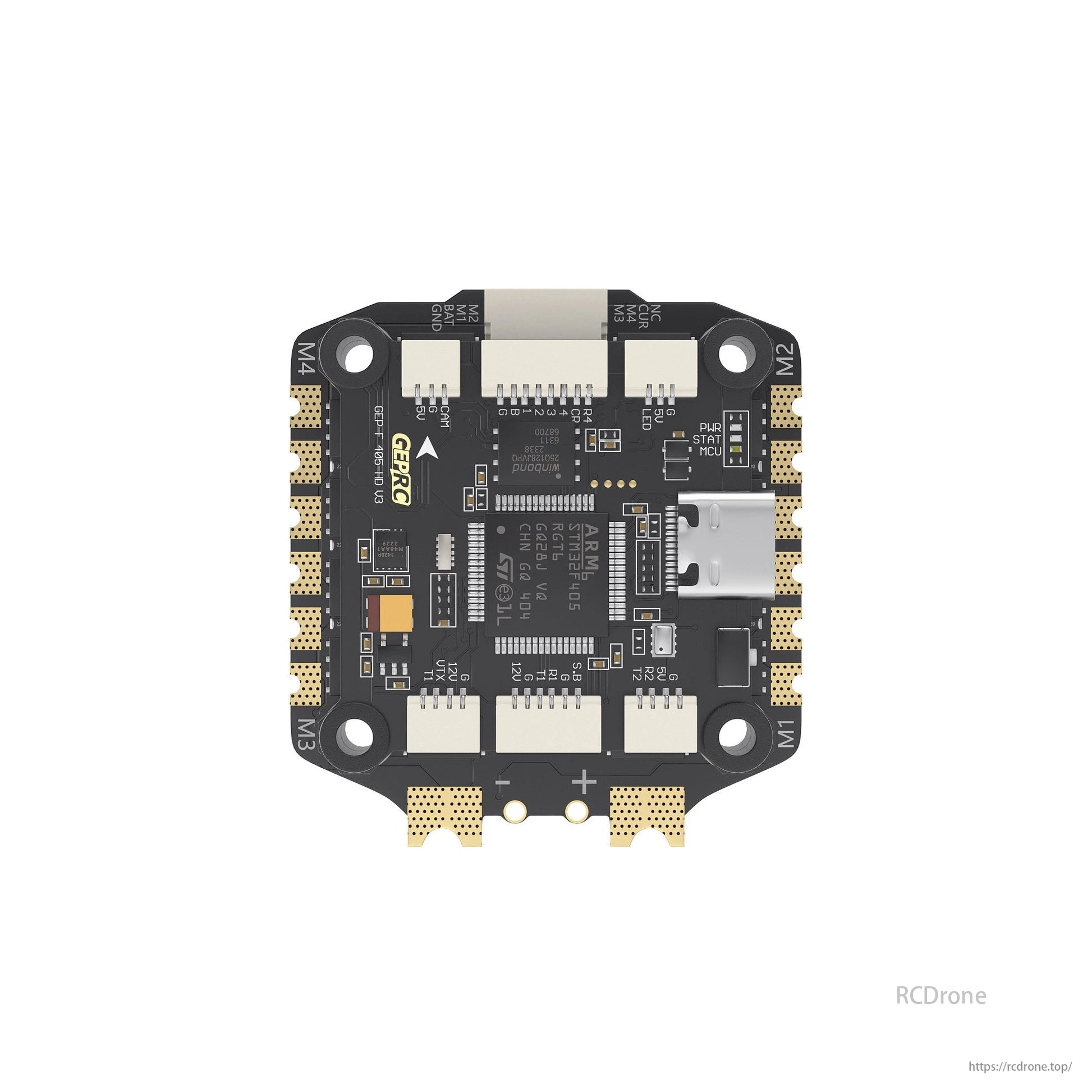

GEP-F405-HD V3 Flight Controller

• MCU: STM32F405

• IMU: ICM42688-P (SPI)

• Black Box: 16MB onboard

• USB: Type-C

• Barometer: BMP280

• OSD: BetaFlight OSD with AT7456E

• BEC Output: 5V@3A + 12V@2.5A

• Firmware Target: GEPRCF405

• Motor Outputs: M1–M6

• UART Ports: 6

• Input Voltage: 3–6S LiPo

• Mounting: 30.5×30.5mm (φ4mm or φ3mm with grommets)

• Weight: 7.3g

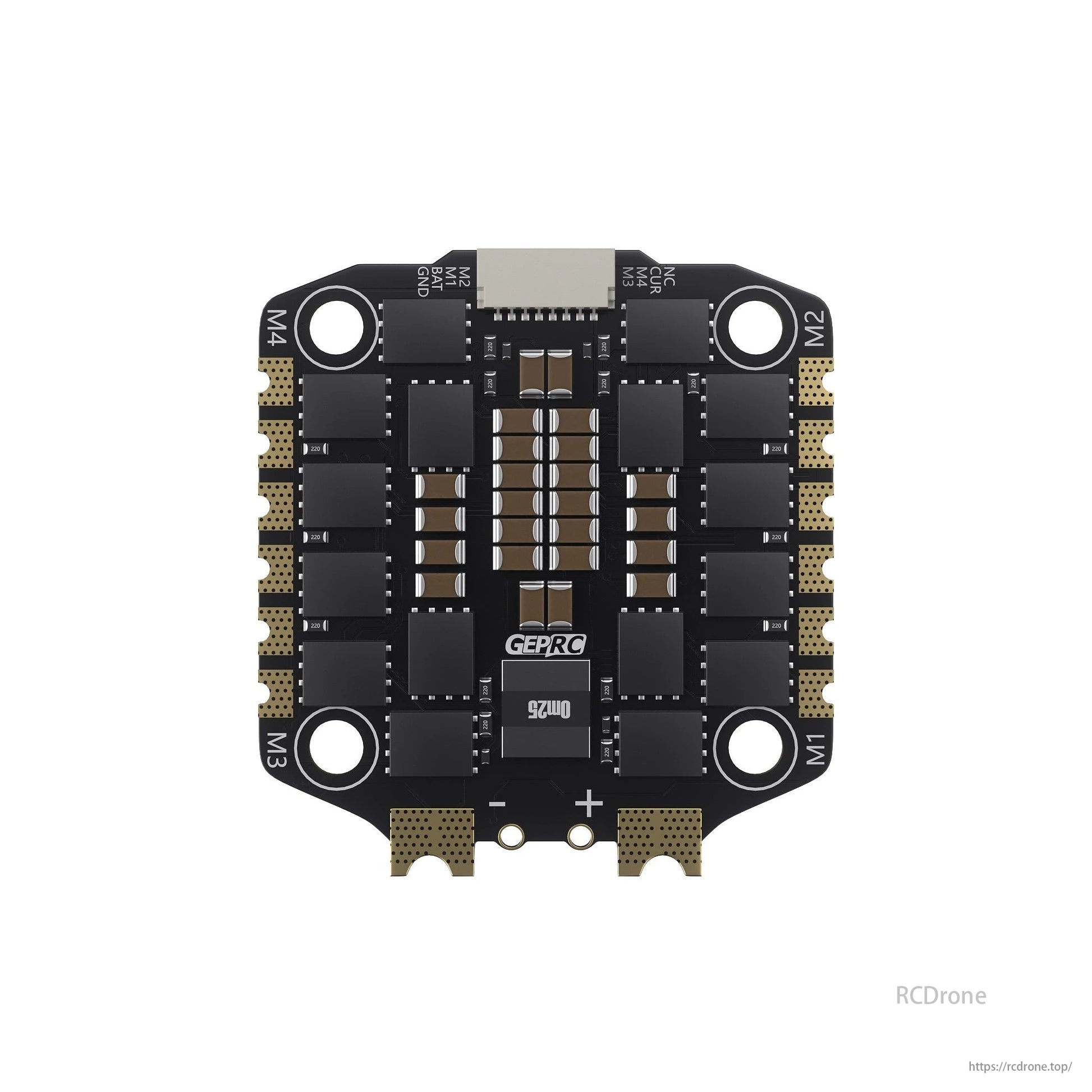

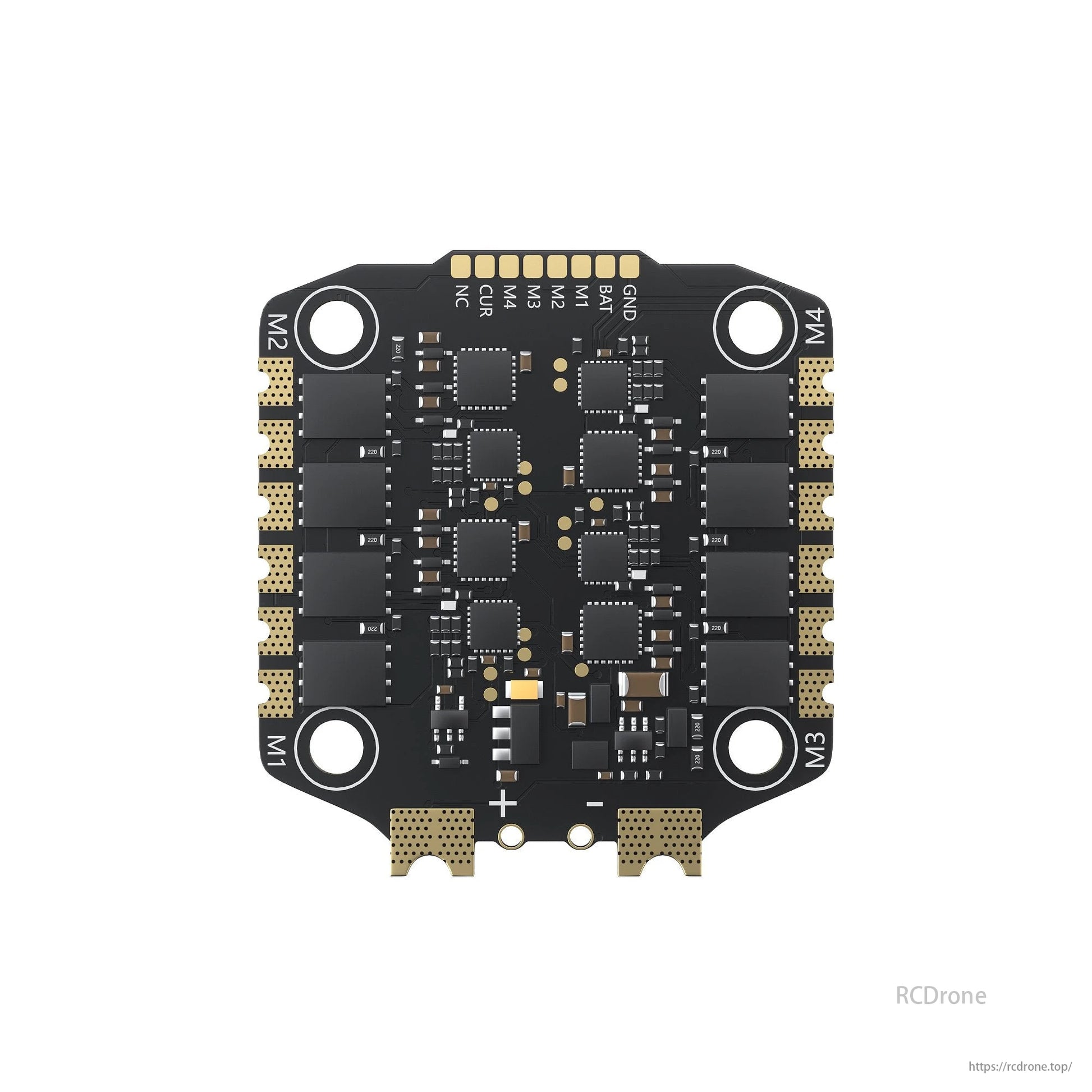

TAKER H60_BLS 60A 4IN1 ESC

• Input Voltage: 3–6S LiPo

• Continuous Current: 60A

• Burst Current: 65A (5 seconds)

• ESC Protocols: DShot150 / 300 / 600

• Current Sensor: Supported

• Firmware Target: B_X_30

• Size: 42 × 45.7mm

• Mounting: 30.5 × 30.5mm (φ4mm or φ3mm with grommets)

• Weight: 14.9g

What's Included

• 1 × GEP-F405-HD V3 Flight Controller

• 1 × TAKER H60_BLS 60A 4in1 ESC

• 1 × Capacitor

• 1 × DJI Air Unit Adapter Cable

• 1 × Flight Controller Adapter Cable

• 1 × XT60 Power Cable

• 4 × M3×30 Screws

• 4 × M3×25 Screws

• 8 × Nylon Nuts

• 8 × Silicone Grommets

• 2 × SH1.0 4-Pin Silicone Cables

• 1 × Camera Connection Cable
