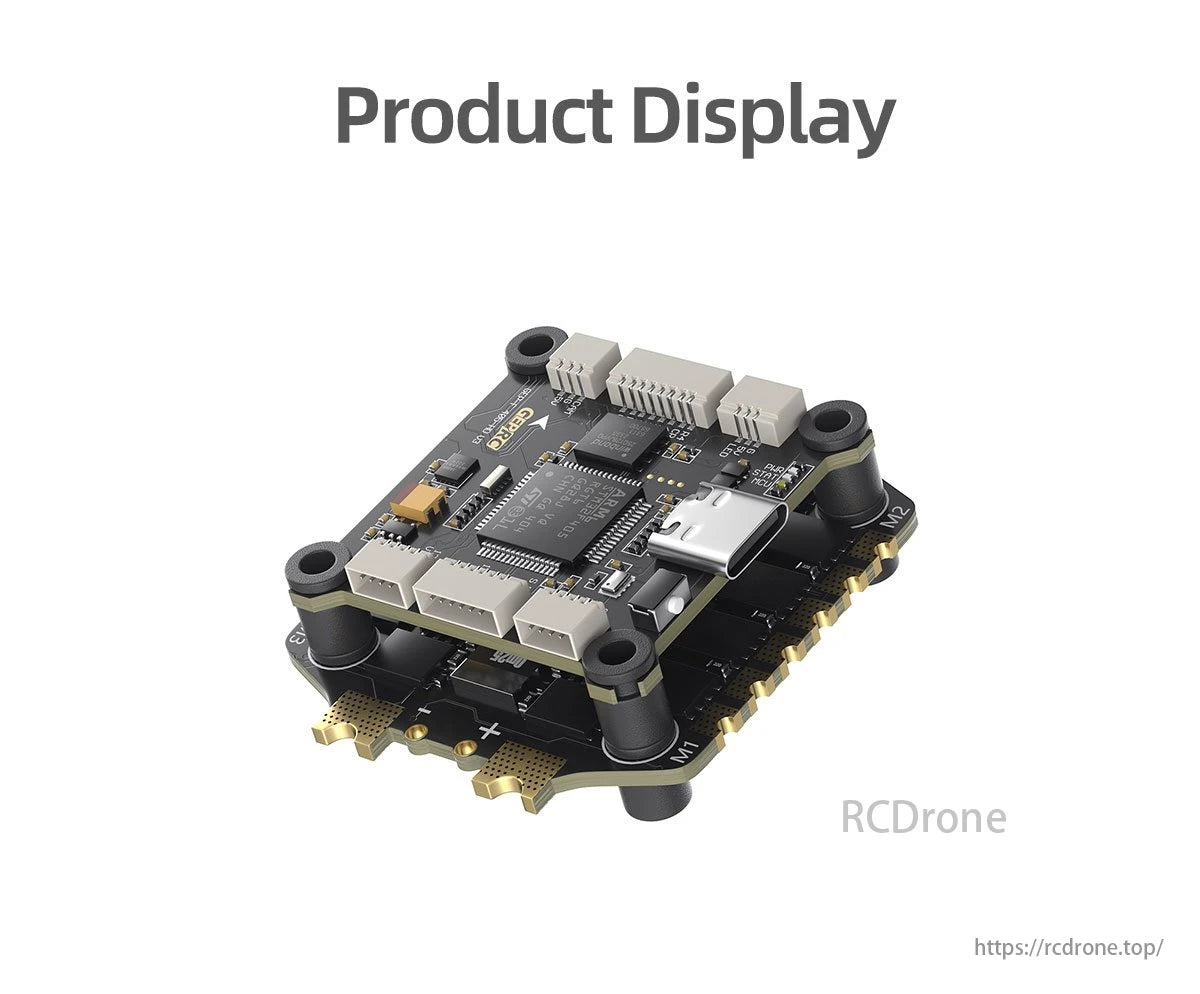

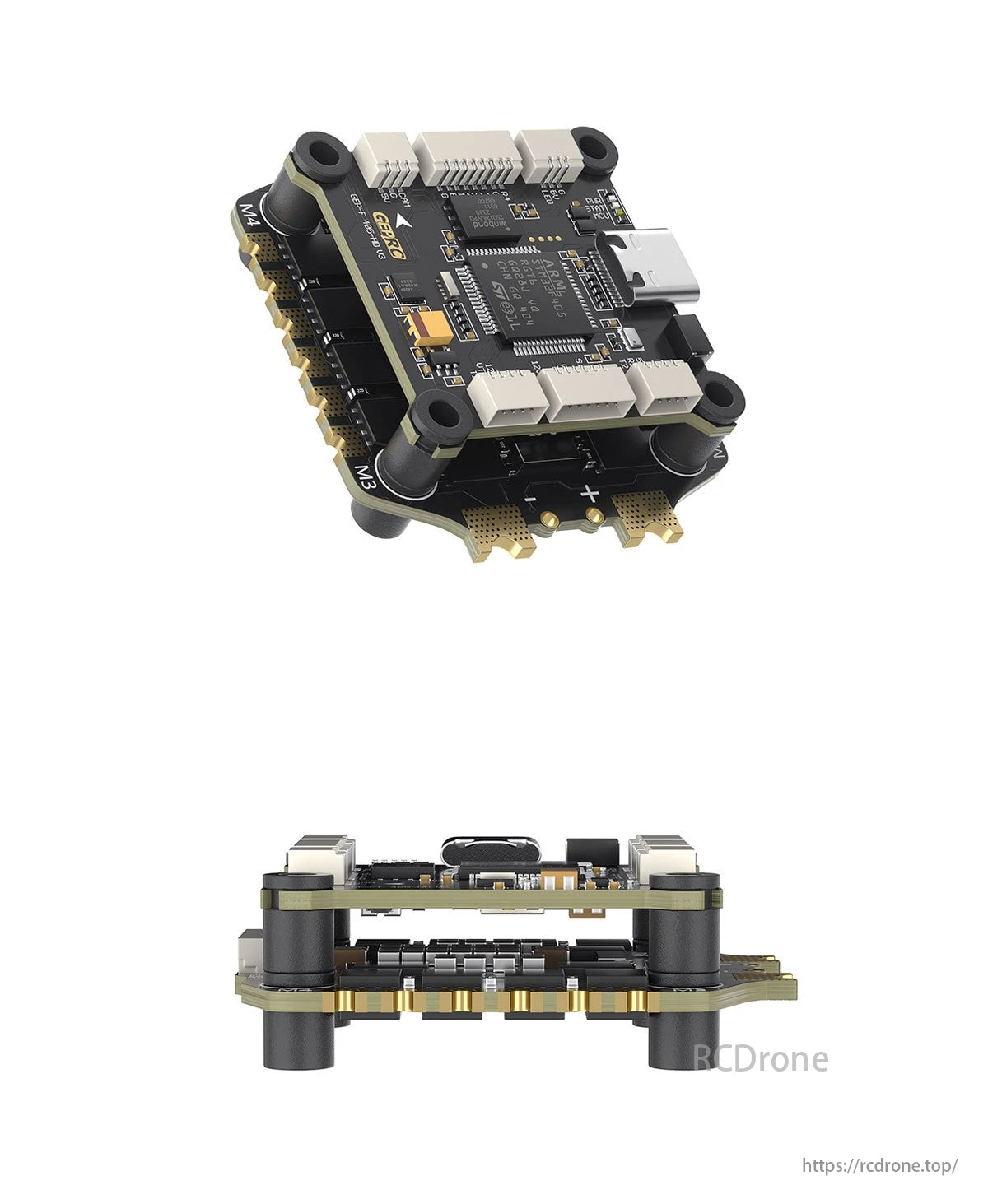

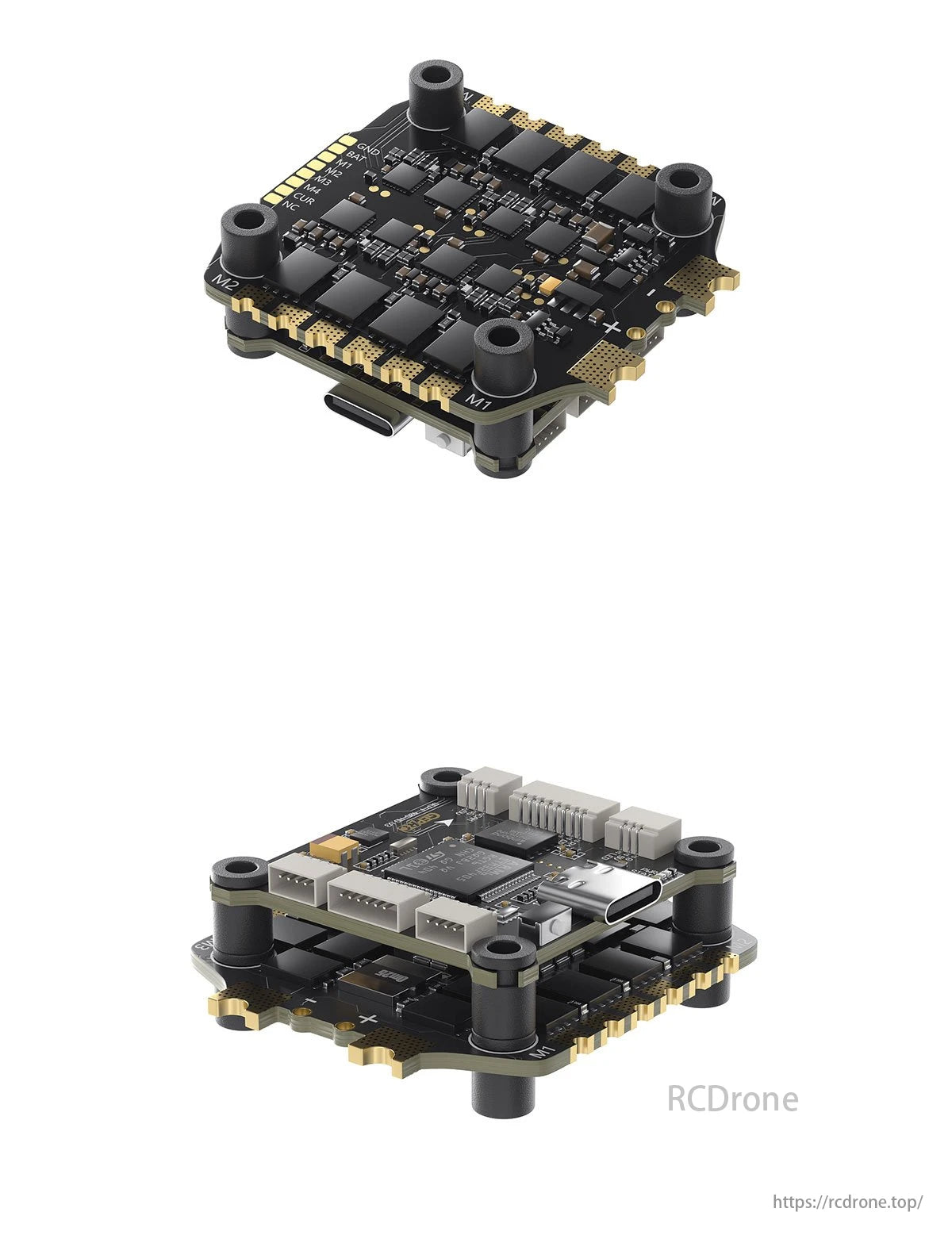

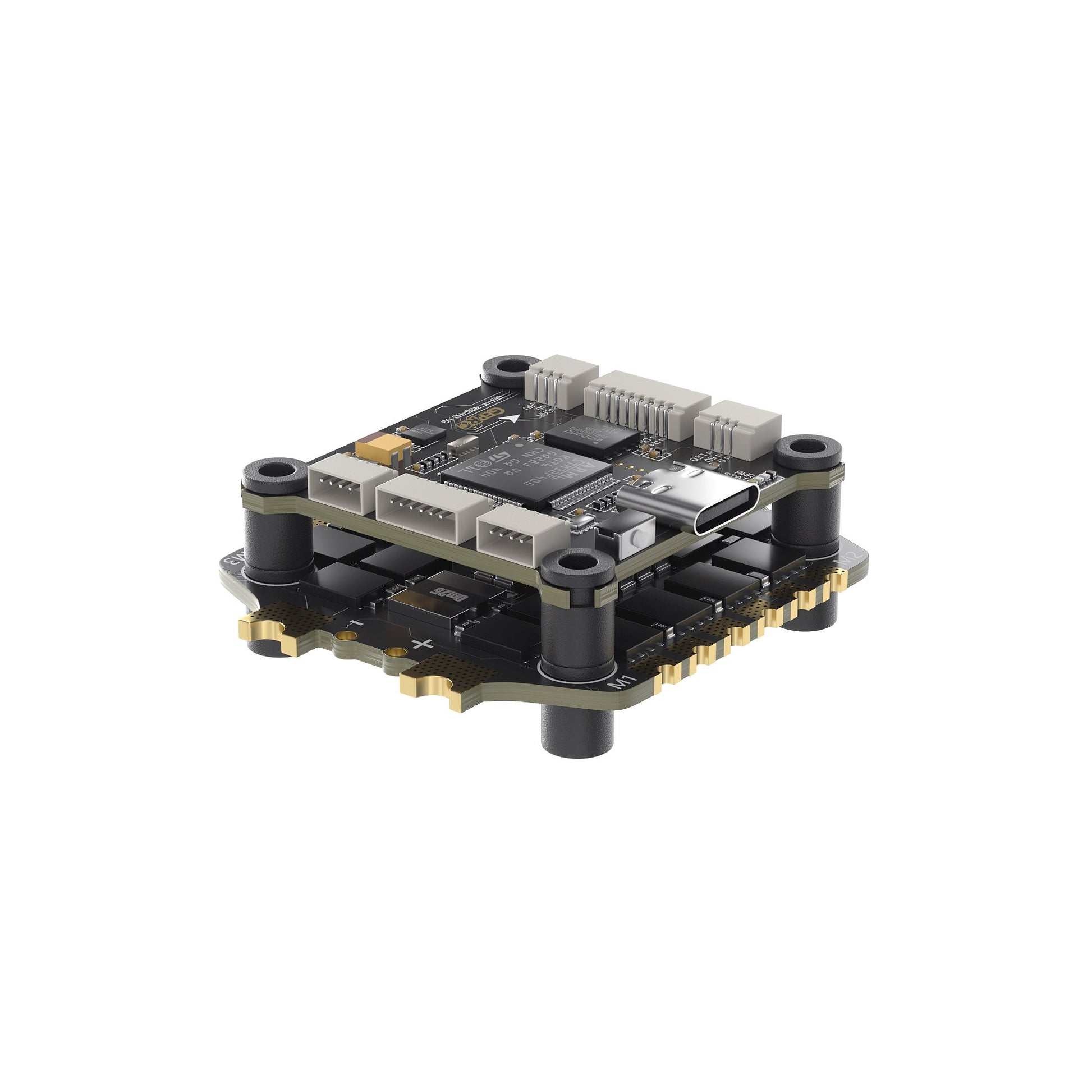

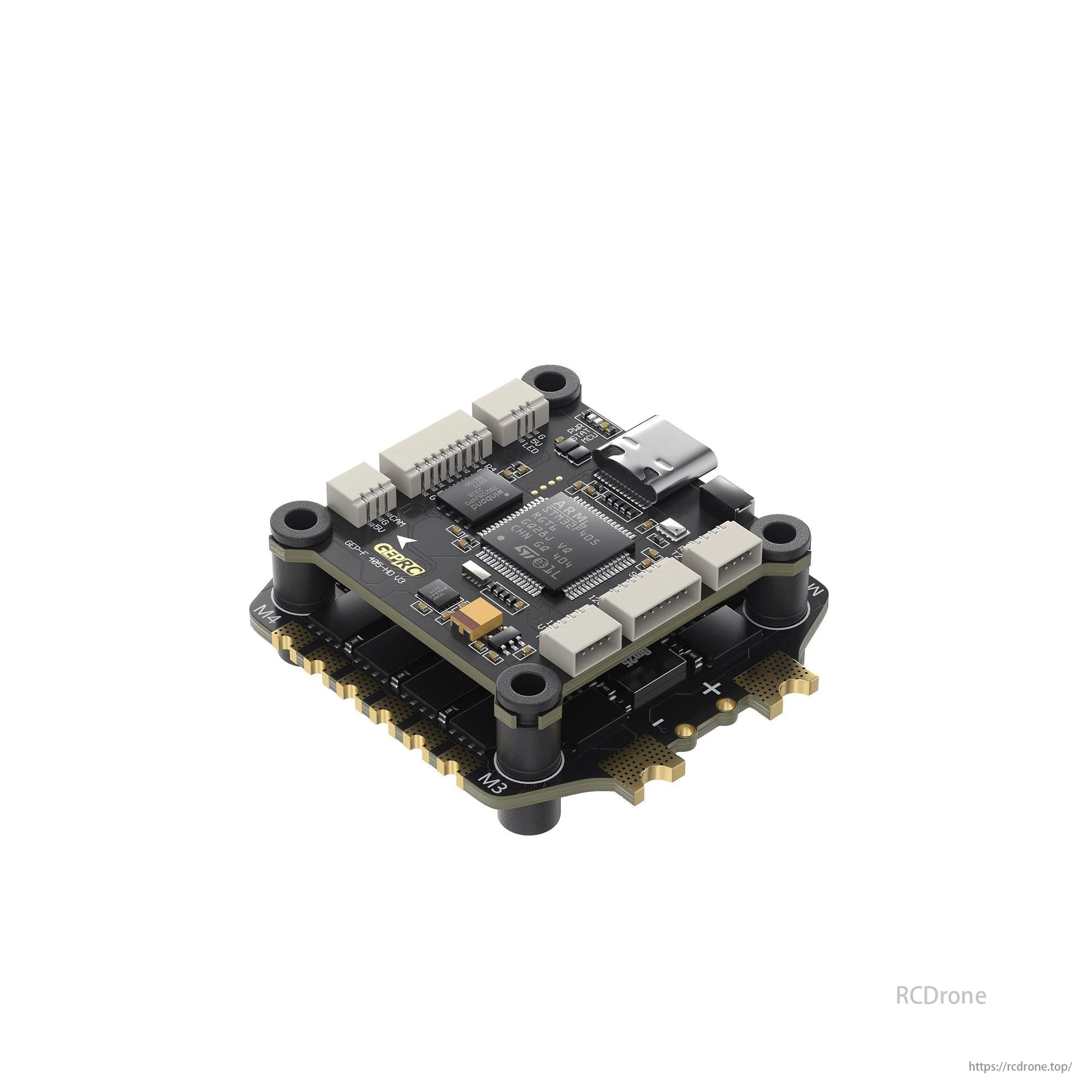

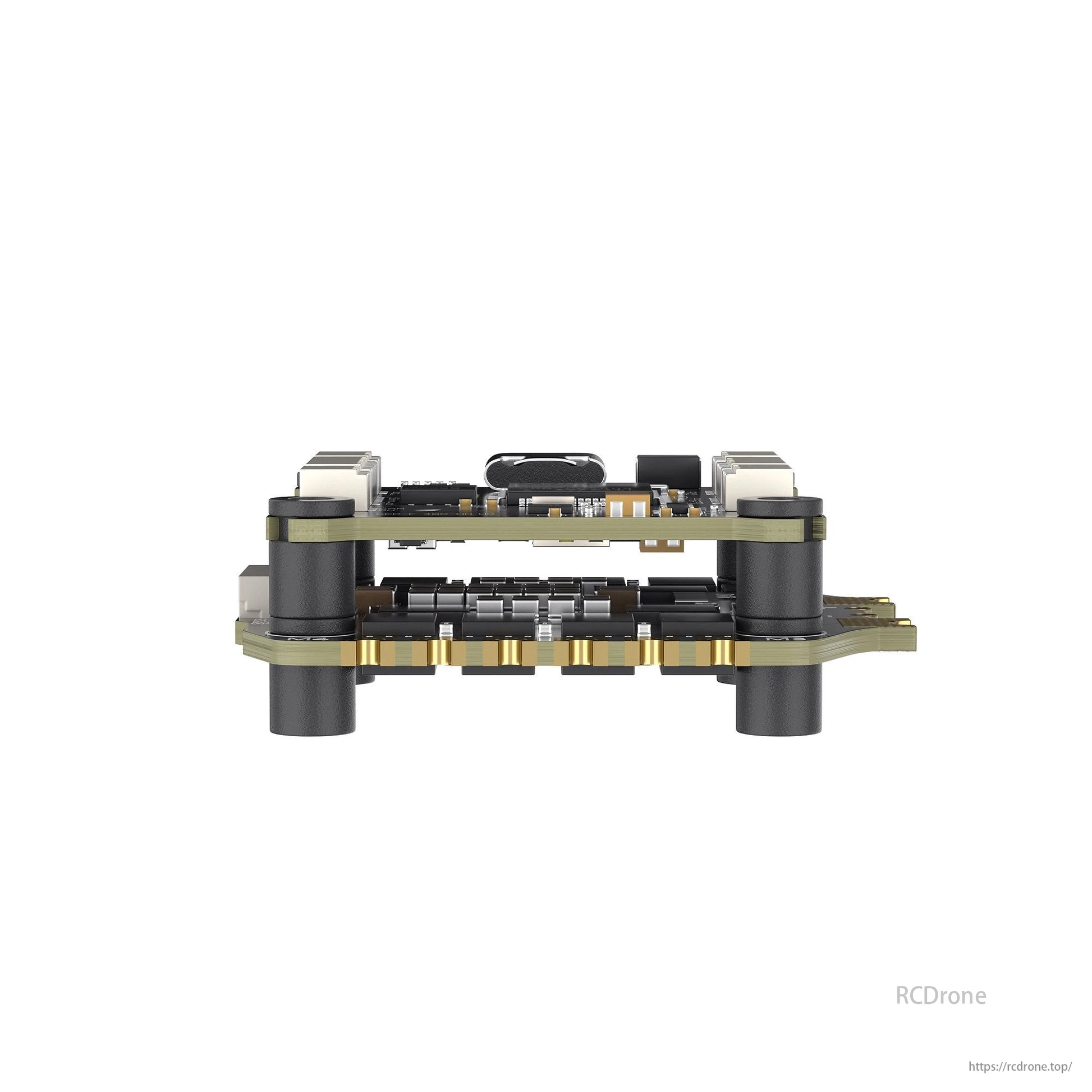

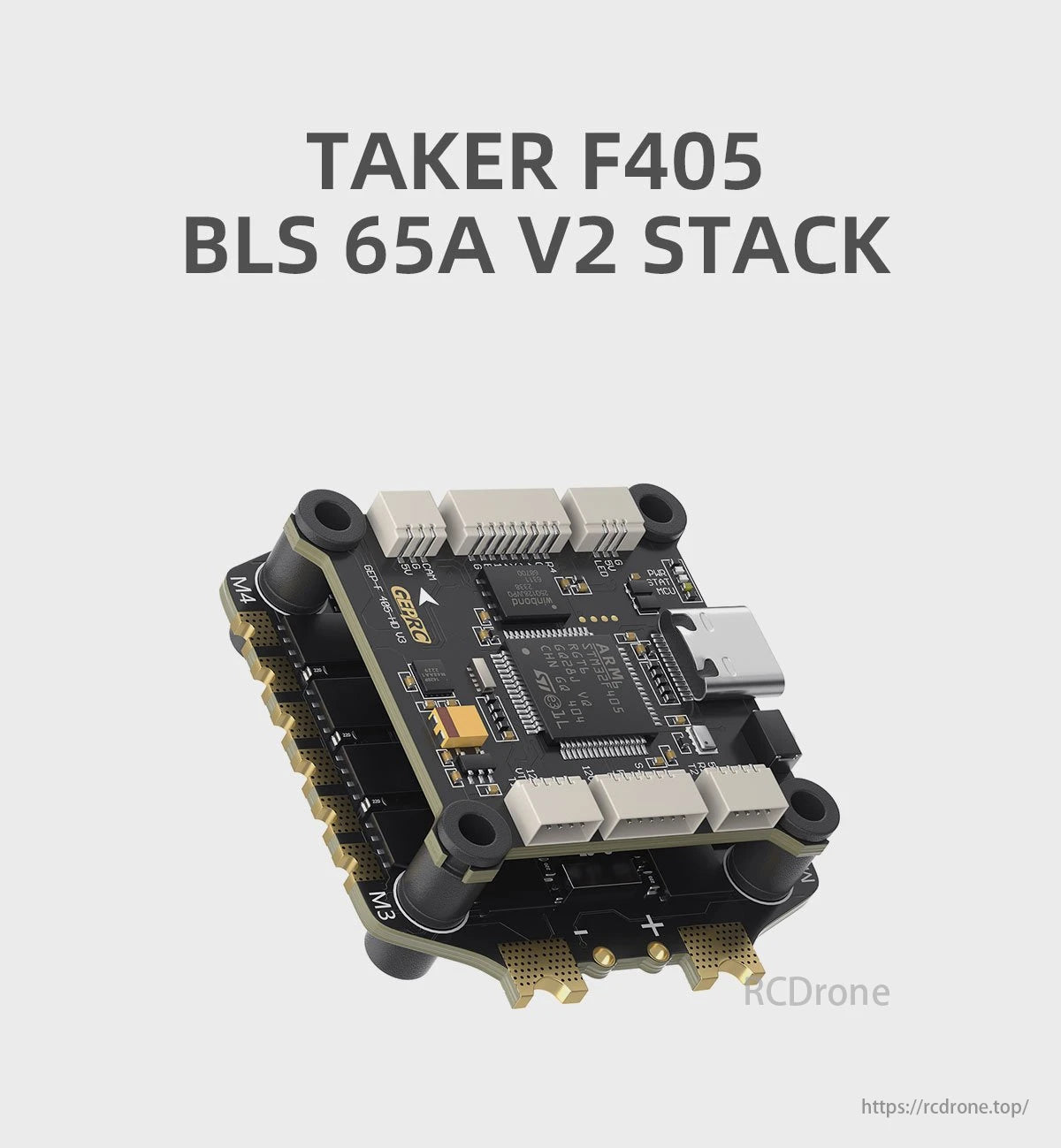

GEPRC TAKER F405 BLS 65A V2 Stack – STM32F405 FC + 8S 65A 4in1 ESC for Freestyle & Long-Range FPV

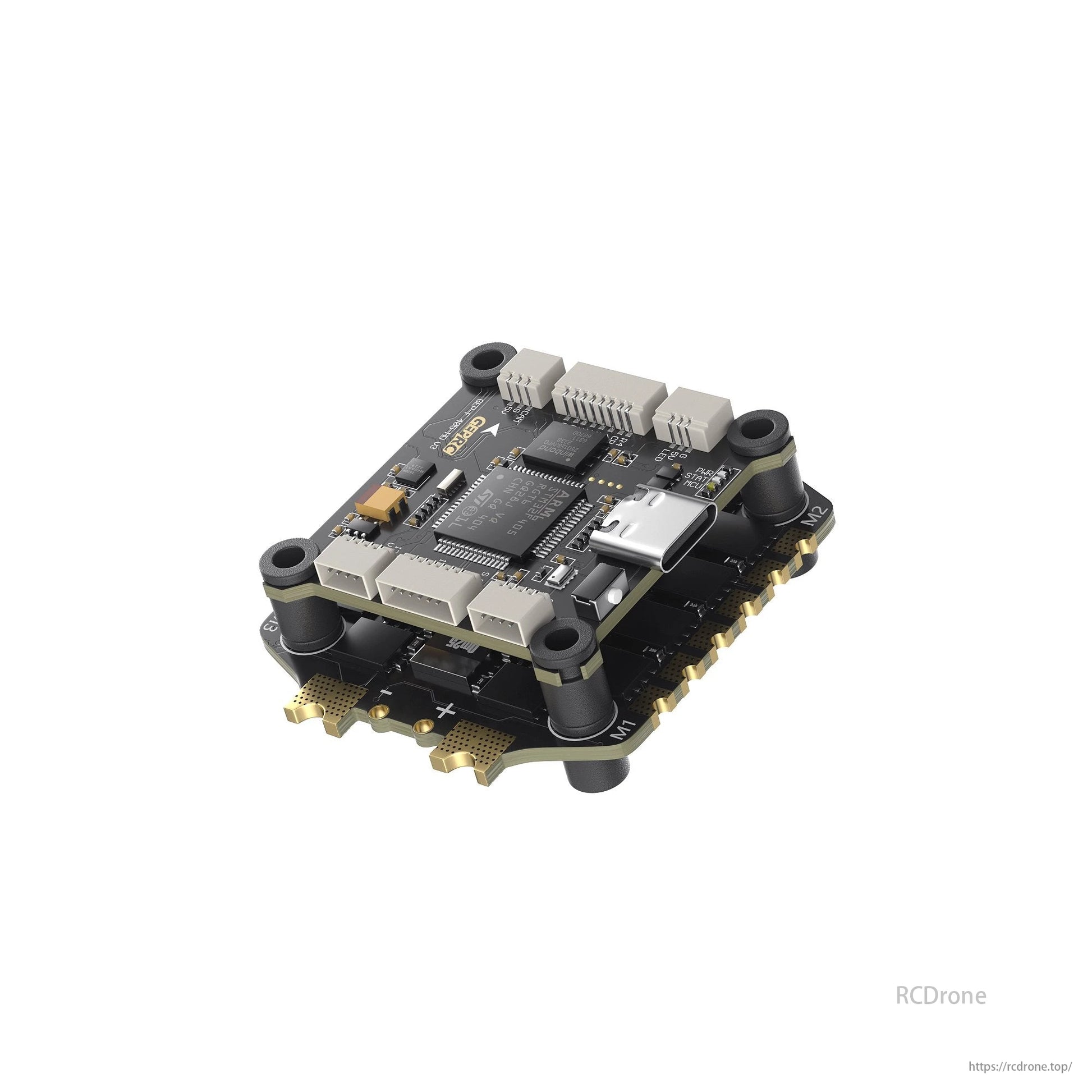

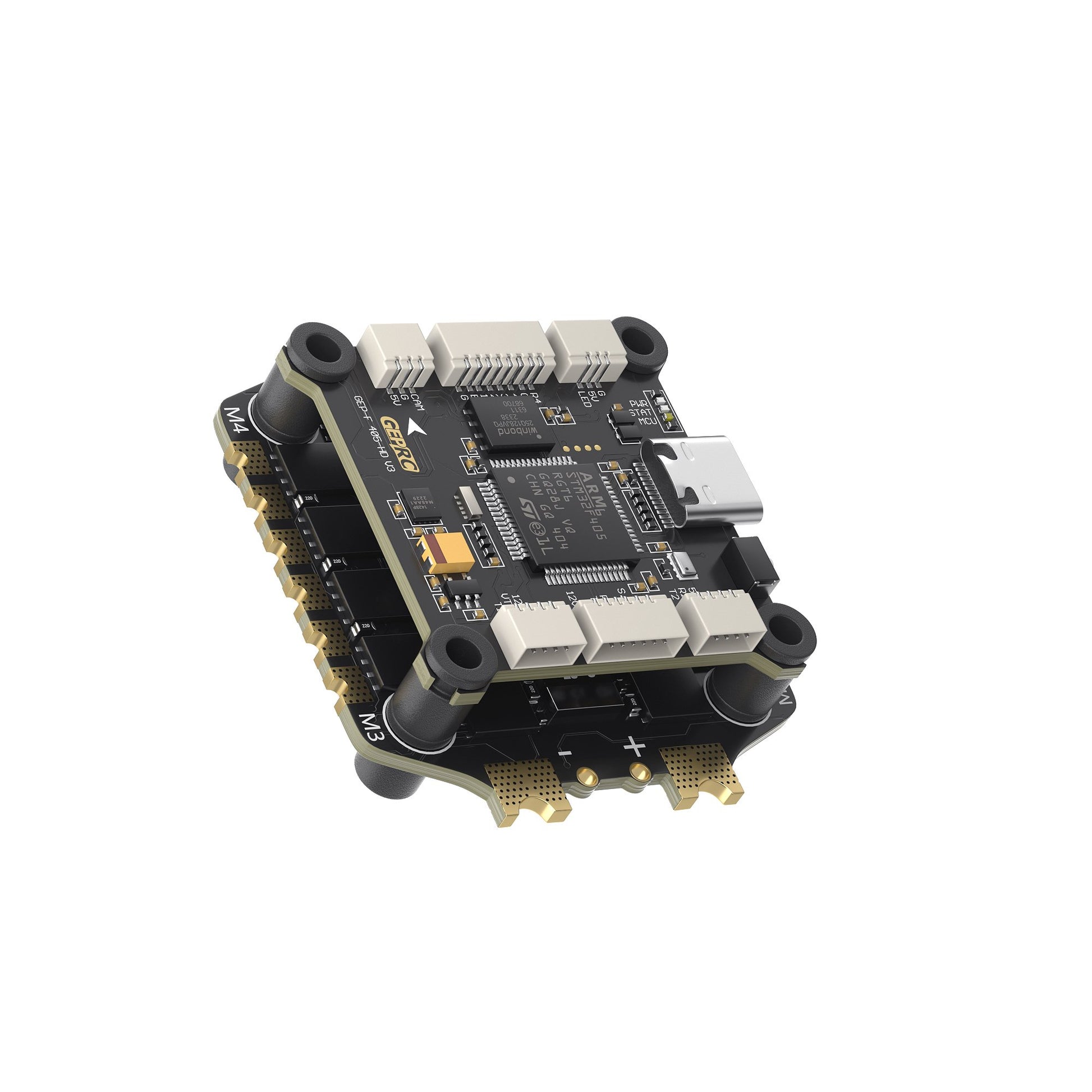

The GEPRC TAKER F405 BLS 65A V2 Stack integrates a high-performance STM32F405 flight controller with a 65A 8S BLHeli_S 4in1 ESC. Featuring a 42688-P gyro, 16MB black box, dual BECs, and 6 UARTs, this 30.5x30.5mm stack delivers reliable power and stability for freestyle, cinematic, and long-range FPV drones.

Key Features

• Flight Controller:

  • MCU: STM32F405

  • IMU: ICM42688-P (SPI)

  • Direct plug-in for DJI Air Unit

  • 16M onboard black box for flight logging

  • Integrated LC power filter

  • Dual BEC output: 5V@3A + 12V@2.5A

  • Barometer supported

  • 6 UARTs, M1–M6 motor outputs

  • Type-C USB interface

  • BetaFlight OSD with AT7456E chip

  • Firmware target: GEPRCF405

  • Size: 37.15×37.15mm; mounting: 30.5×30.5mm (φ4mm to φ3mm with silicone grommets)

  • Weight: 7.3g

  • Input Voltage: 3-6S LiPo

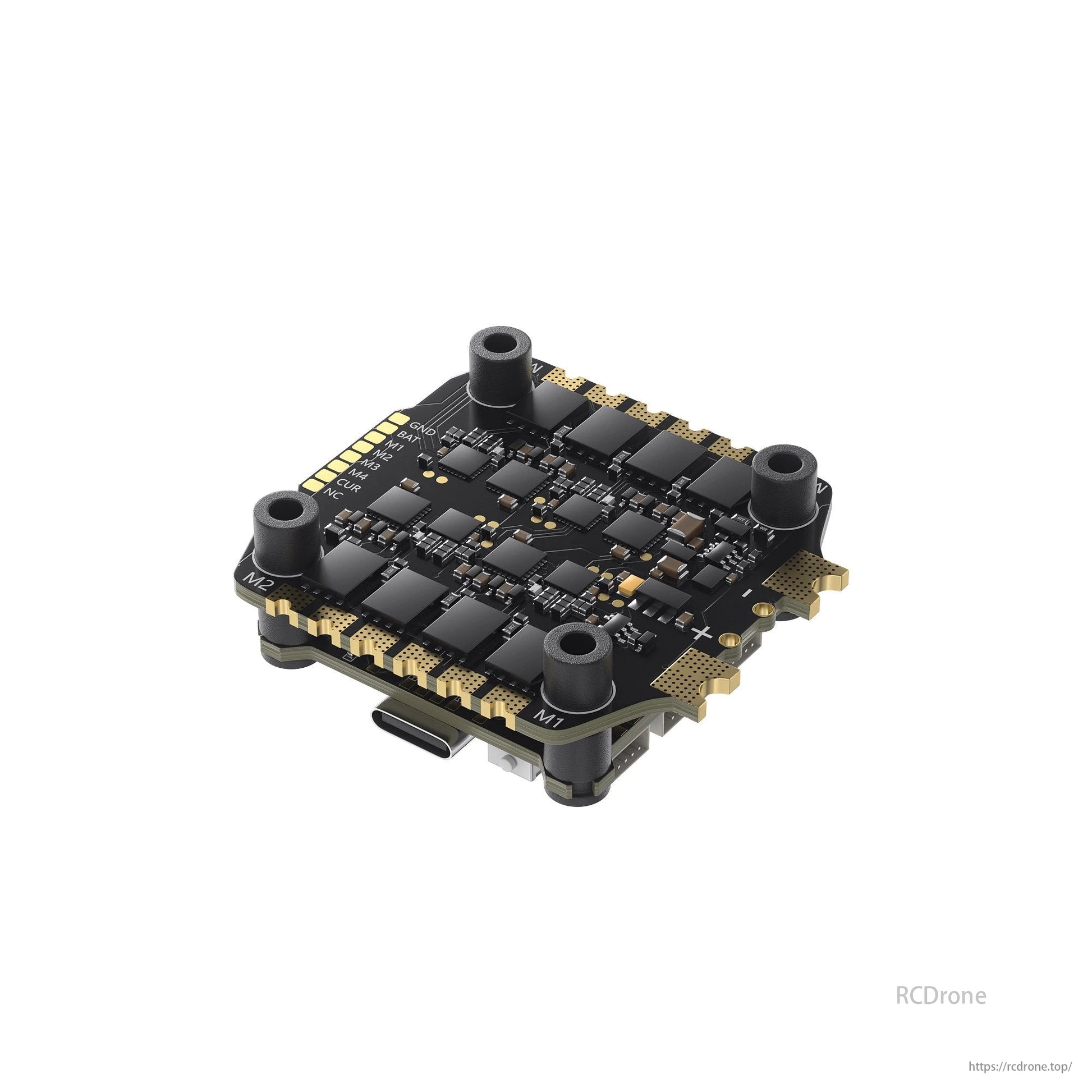

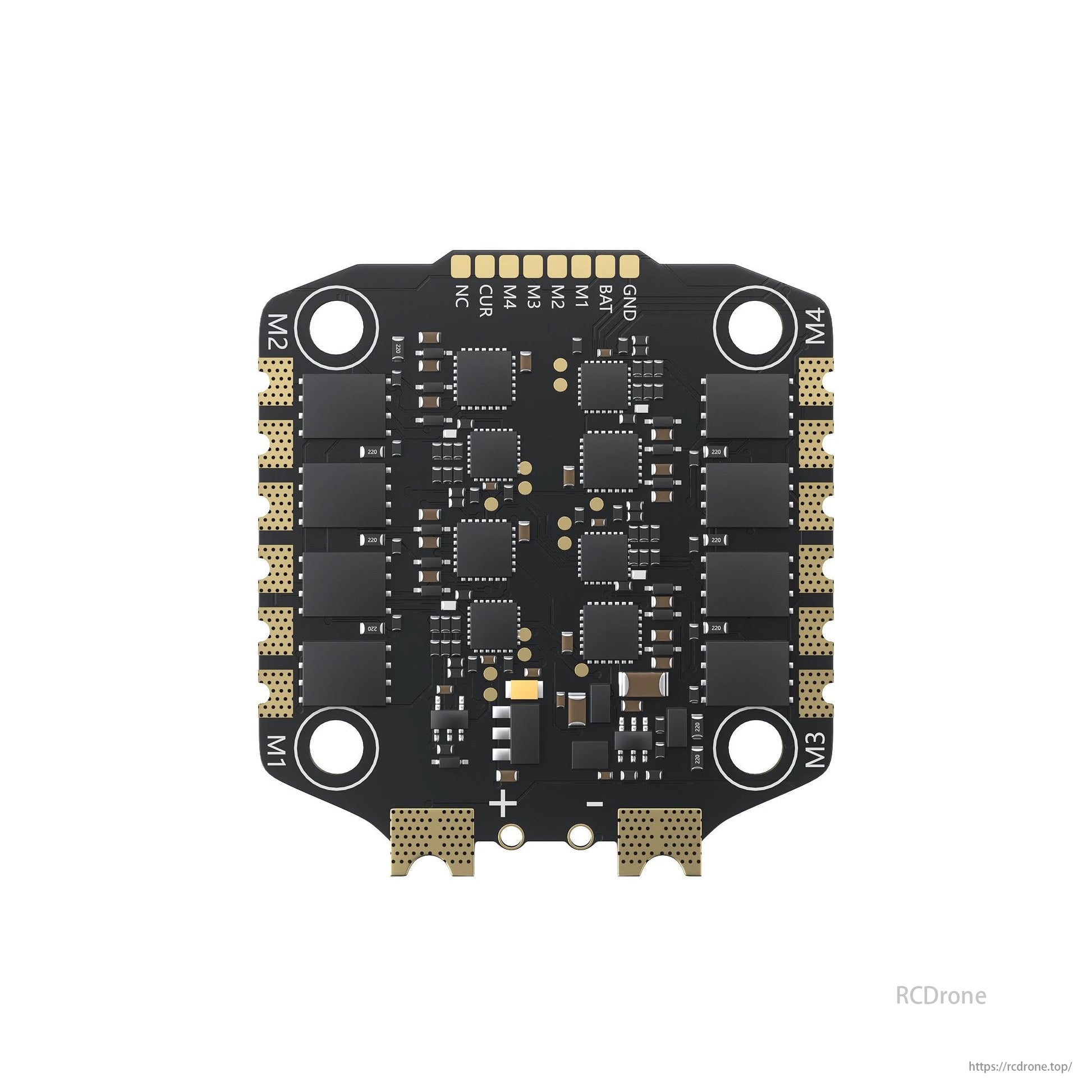

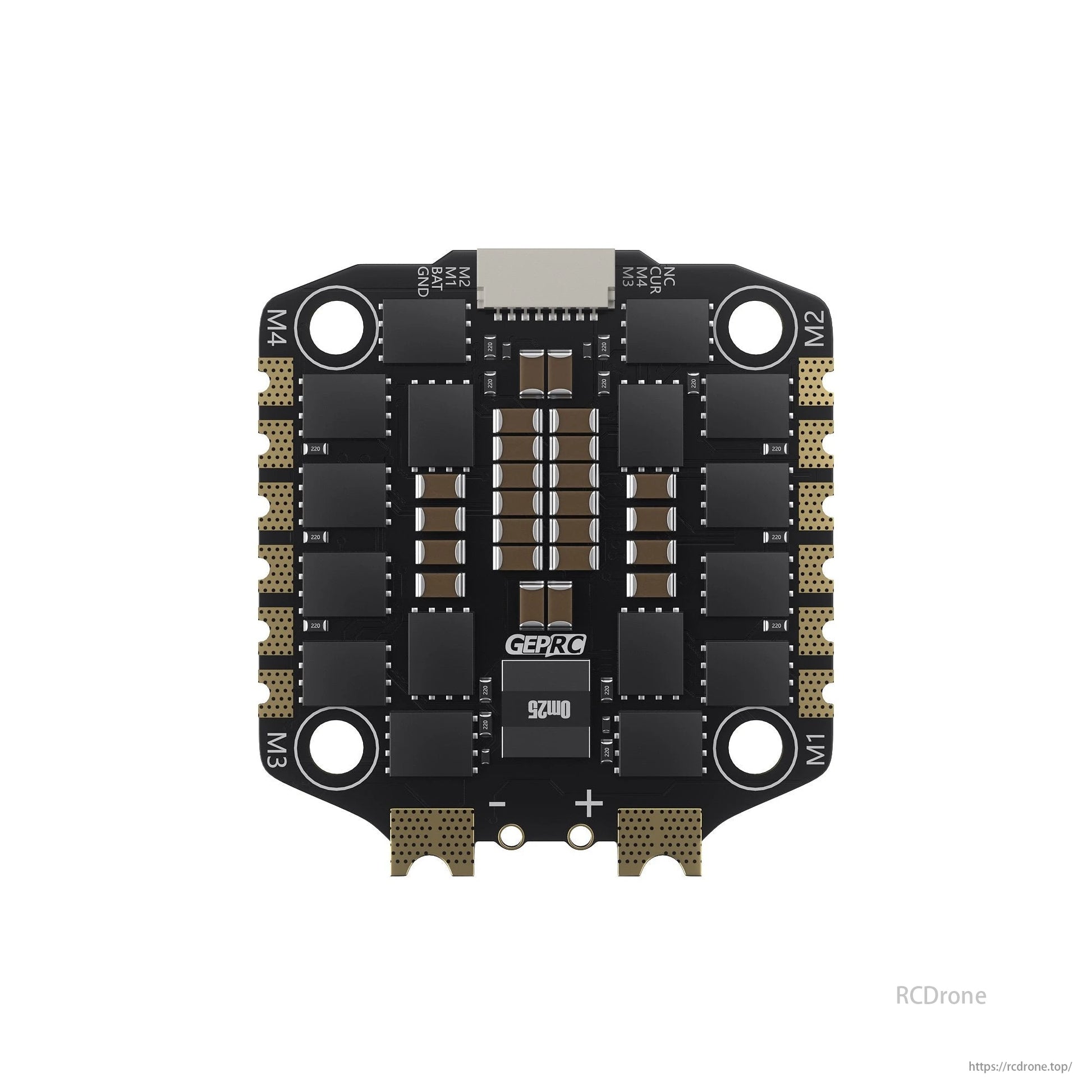

• 4IN1 ESC:

  • Model: TAKER H65_8S_BLS

  • Input Voltage: 3-8S LiPo

  • Continuous Current: 65A / Burst: 70A (5s)

  • Supported Protocols: DShot150 / DShot300 / DShot600

  • Integrated current sensor

  • Size: 42×45.7mm; mounting: 30.5×30.5mm (φ4mm to φ3mm)

  • Weight: 14.9g

  • Target: B_X_30

Package Includes

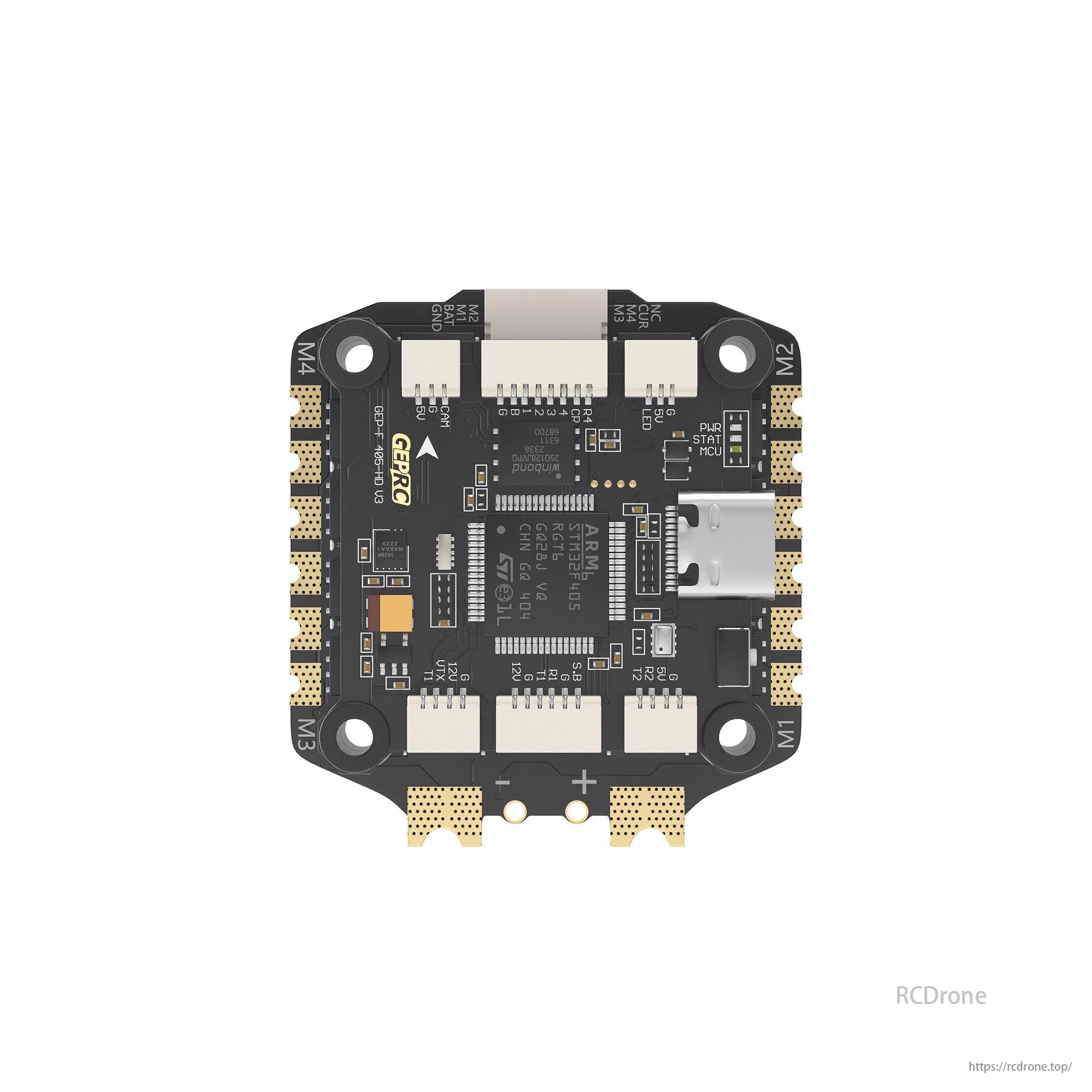

• 1 × GEP-F405-HD V3 Flight Controller

• 1 × TAKER H65_8S_BLS 65A 4in1 ESC

• 1 × 1000μF Capacitor

• 1 × DJI Air Unit Adapter Cable

• 1 × Flight Controller Adapter Cable

• 1 × XT60 Power Cable

• 4 × M3×30 Screws

• 4 × M3×25 Screws

• 8 × Nylon Nuts

• 8 × Silicone Grommets

• 2 × SH1.0 4-Pin Silicone Cable

• 1 × Camera Connection Cable

Details

Product: Taker F4O5 BLS 65A V2 Stack. Description: A 30-inch poly-satane puquin material stack from manufacturer Taker.

Specifications GEP-F4O5-HD V3 Flight Controller features STM32F405 MCU, ICM42688-P IMU, and a black box with 16M onboard BEC providing 5V@3A and 12V@2.5A dual outputs. The firmware targets CE-PRCF405.

The product features a mainstream STM32F4O5 chip, equipped with a latest-generation 42688-P gyroscope and 16M black box storage. It has an integrated LC filter and a 5V upgrade type-C USB interface, allowing it to be directly plugged into the DJI Air Unit. The TAKER H65_8S_BLS ESC provides a silky flying feel. The installation method is simple and reasonable, with a shock absorber that ensures the gyroscope works very stably. Additionally, it features dual independent BECs for 12V@2.5A and SV@3A.

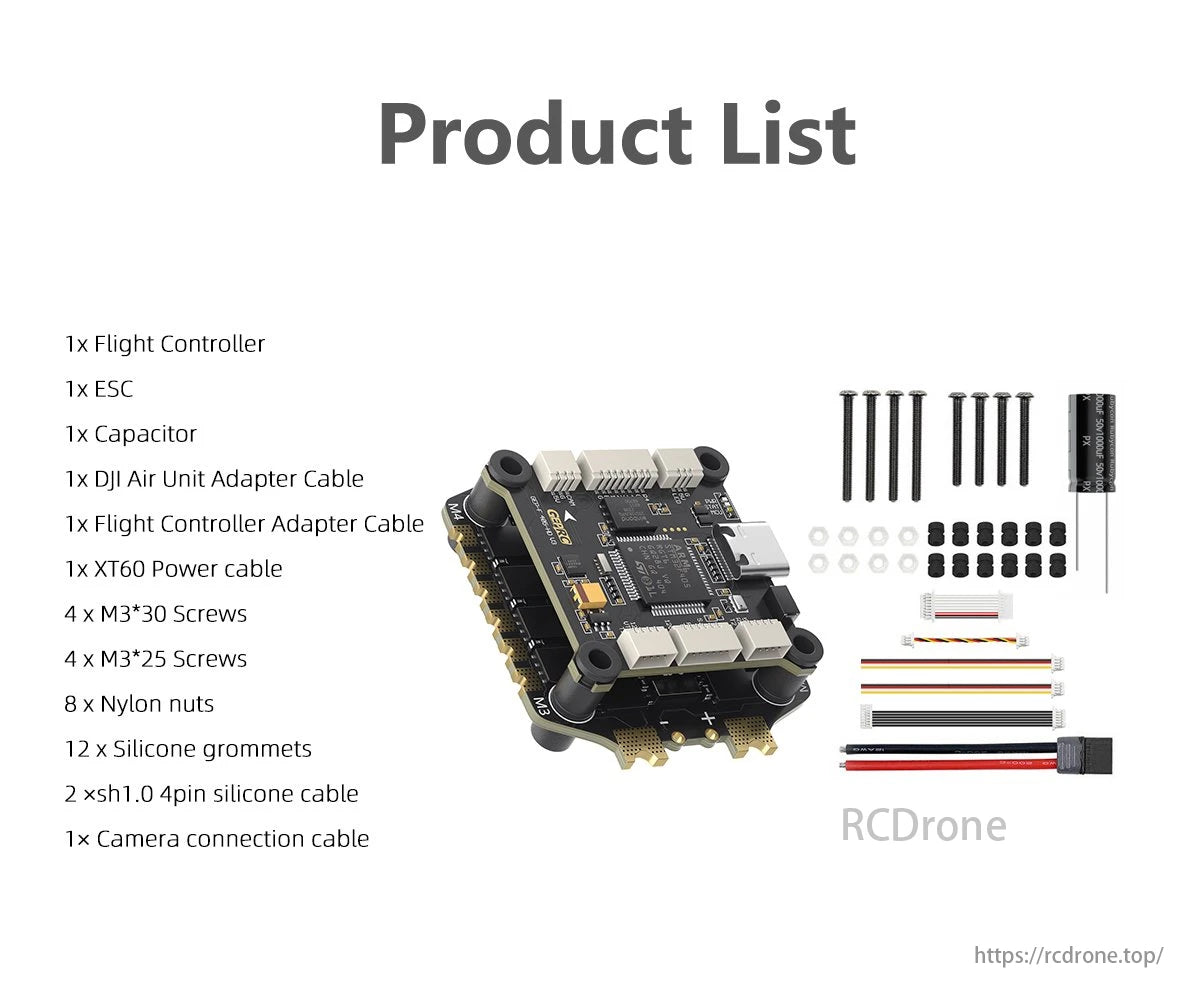

Product List: IX Flight Controller, IX ESC, Capacitor 1, DJI Air Unit Adapter Cable, Flight Controller Adapter Cable, XT60 Power Cable, M3*30 Screws (4), M3*25 Screws (4), Nylon Nuts (8), Silicone Grommets (12), SHI-0 4pin Silicone Cable (2), Camera Connection Cable (1)
