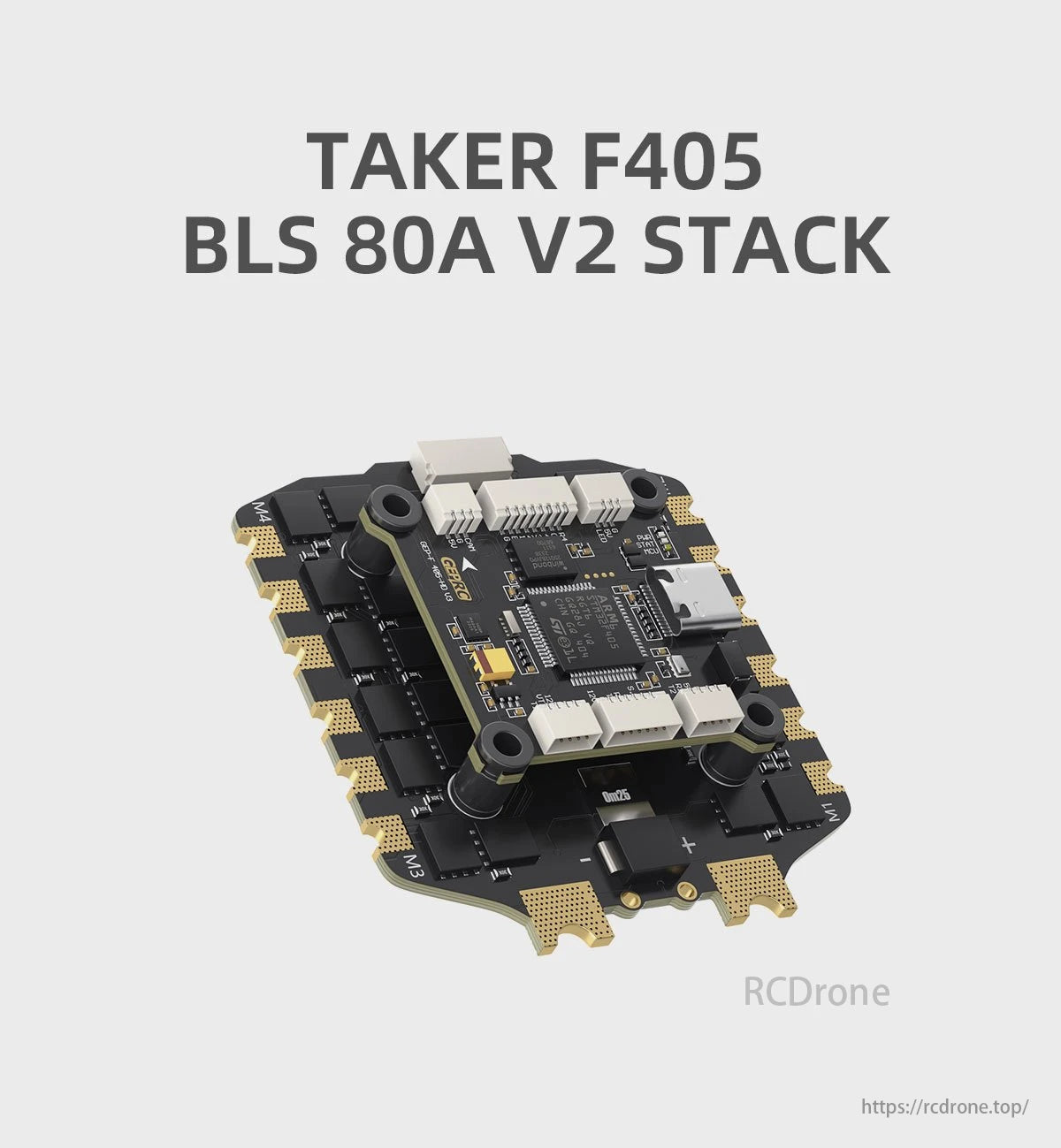

GEPRC TAKER F405 BLS 80A V2 Flight Controller Stack – STM32F405 FC + 80A 3–6S 4in1 ESC for High-Power FPV Builds

Overview

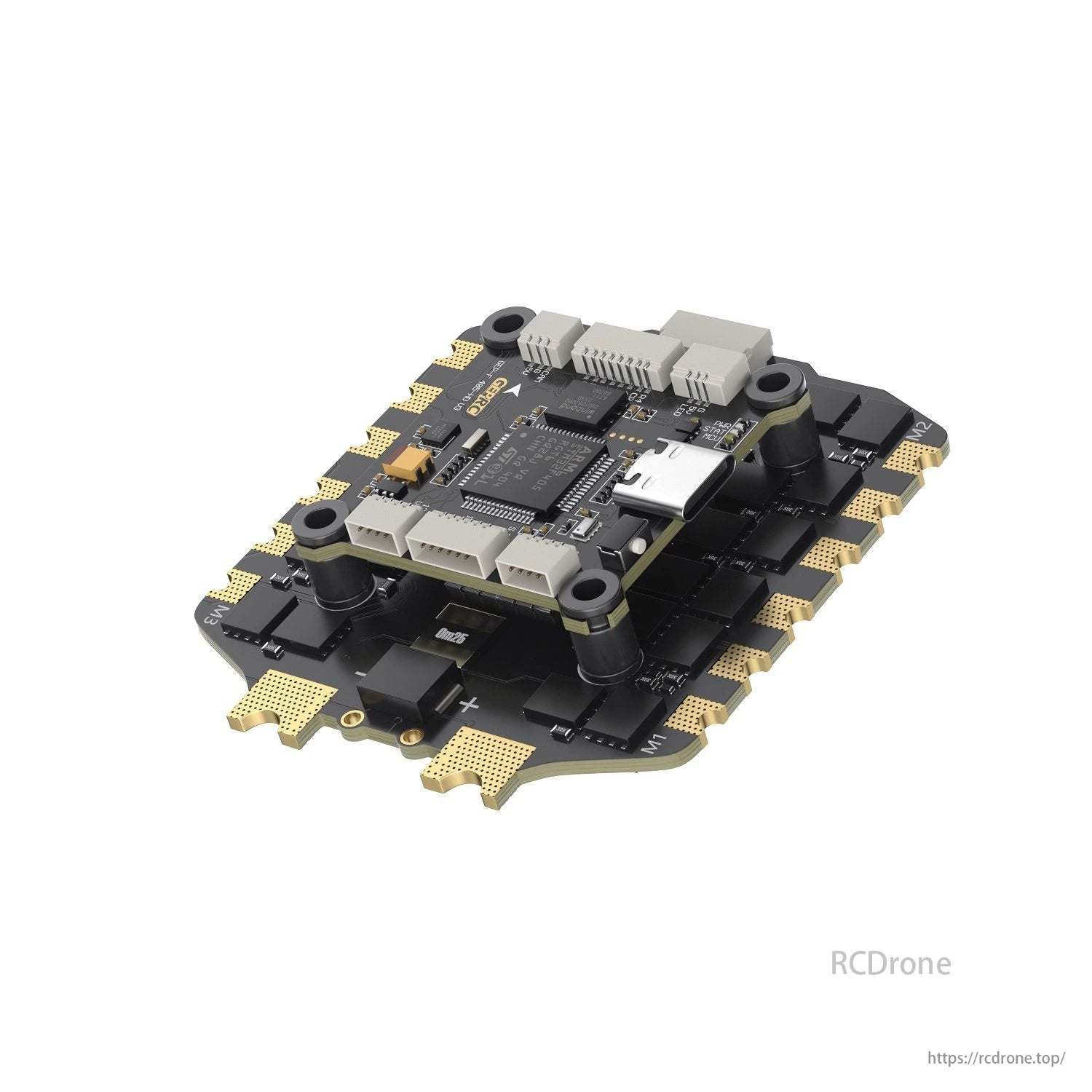

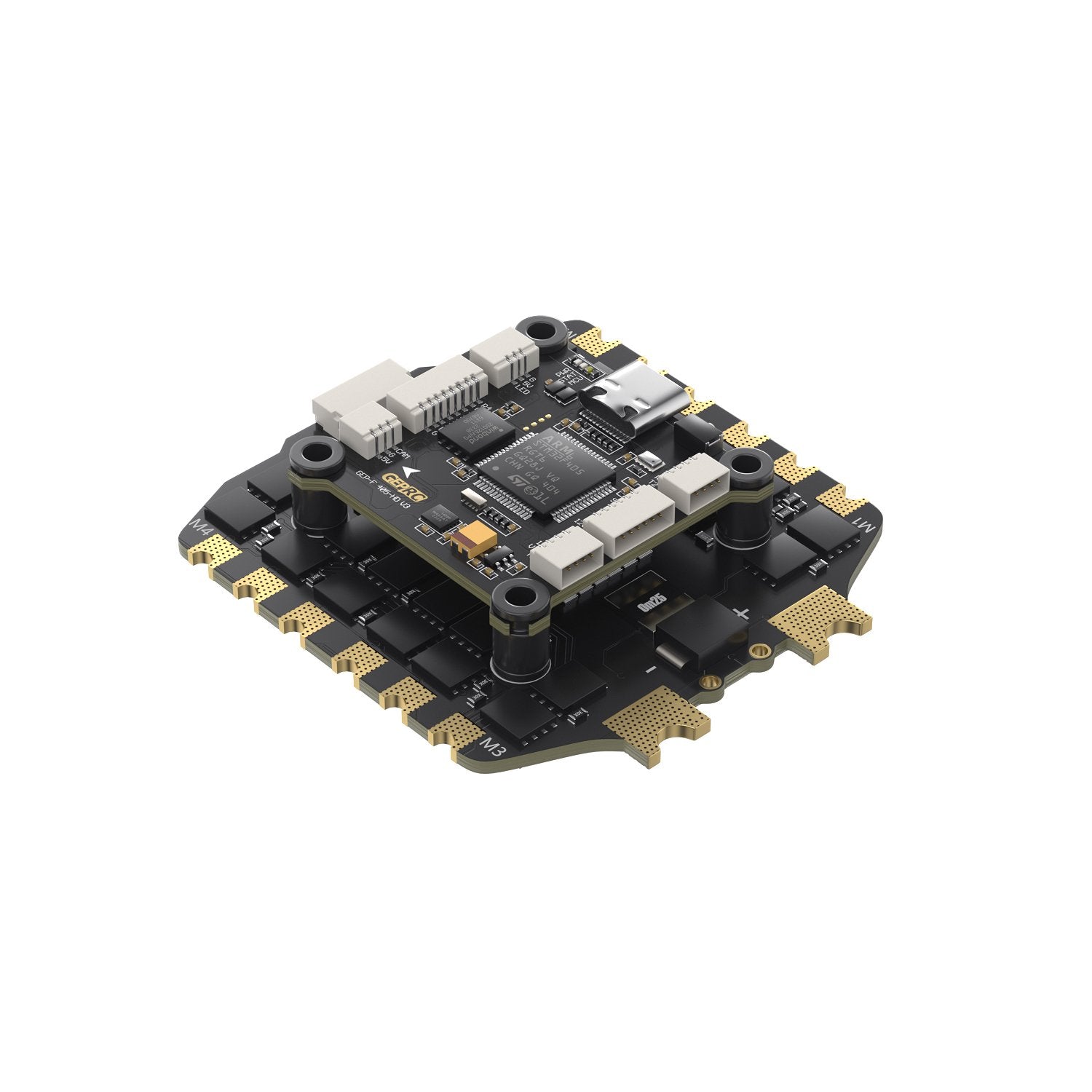

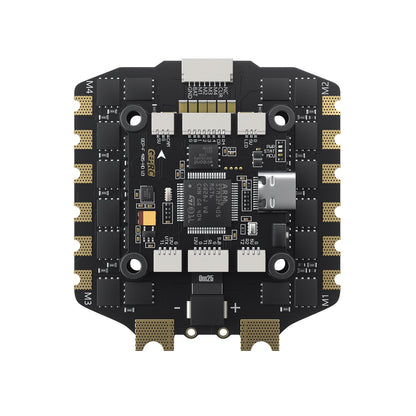

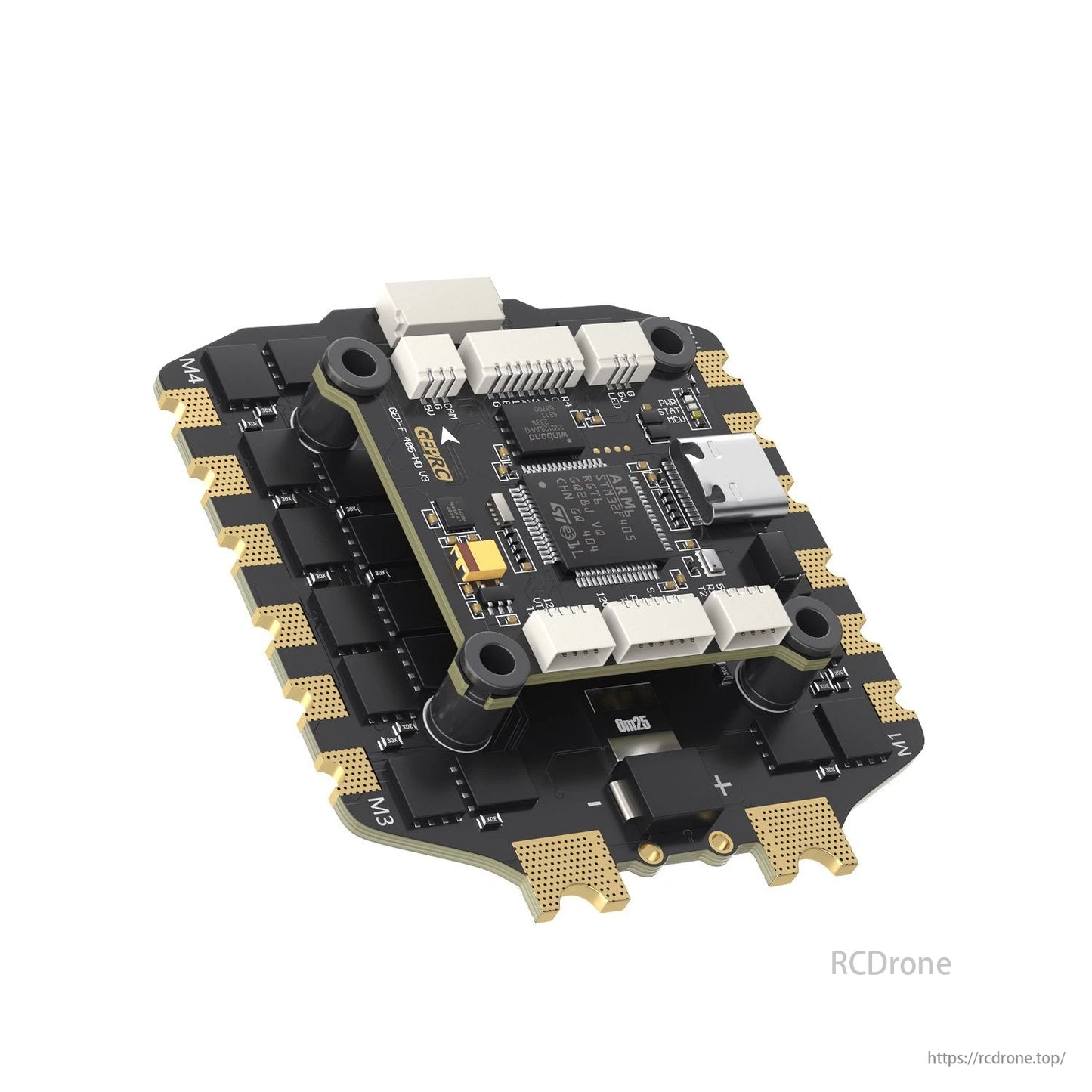

The GEPRC TAKER F405 BLS 80A V2 Stack is a high-performance flight controller stack built for power-hungry FPV drones. It combines a GEP-F405-HD V3 flight controller featuring a STM32F405 chip, ICM42688-P gyro, and 16MB black box, with the TAKER H80_BLS 80A 4IN1 ESC supporting 3–6S LiPo, 80A continuous current, and dual MOSFETs for reliable current output. Designed for serious freestyle, long-range, and cinematic builds.

Features

Flight Controller

• Uses mainstream STM32F405 processor with strong computing capability

• Equipped with high-precision ICM42688-P gyroscope (SPI)

• 16MB black box for flight log storage

• Integrated LC power filter for clean signal and stable performance

• Type-C USB port for easy connectivity

• Direct plug support for DJI Air Unit (no soldering needed)

• Built-in barometer, 6 UART ports, and BetaFlight OSD with AT7456E

• Dual independent BEC outputs: 5V@3A and 12V@2.5A

• Silicone shock absorbers for vibration reduction and stable gyro performance

ESC

• TAKER H80_BLS 4IN1 ESC with dual MOS design for high-current efficiency

• Supports 3–6S LiPo input

• 80A continuous current, 85A burst current (5 seconds)

• Compatible with DShot150/300/600 protocols

• Integrated current sensor (Ammeter)

• Optimized for smooth throttle response and heat dissipation

Specifications

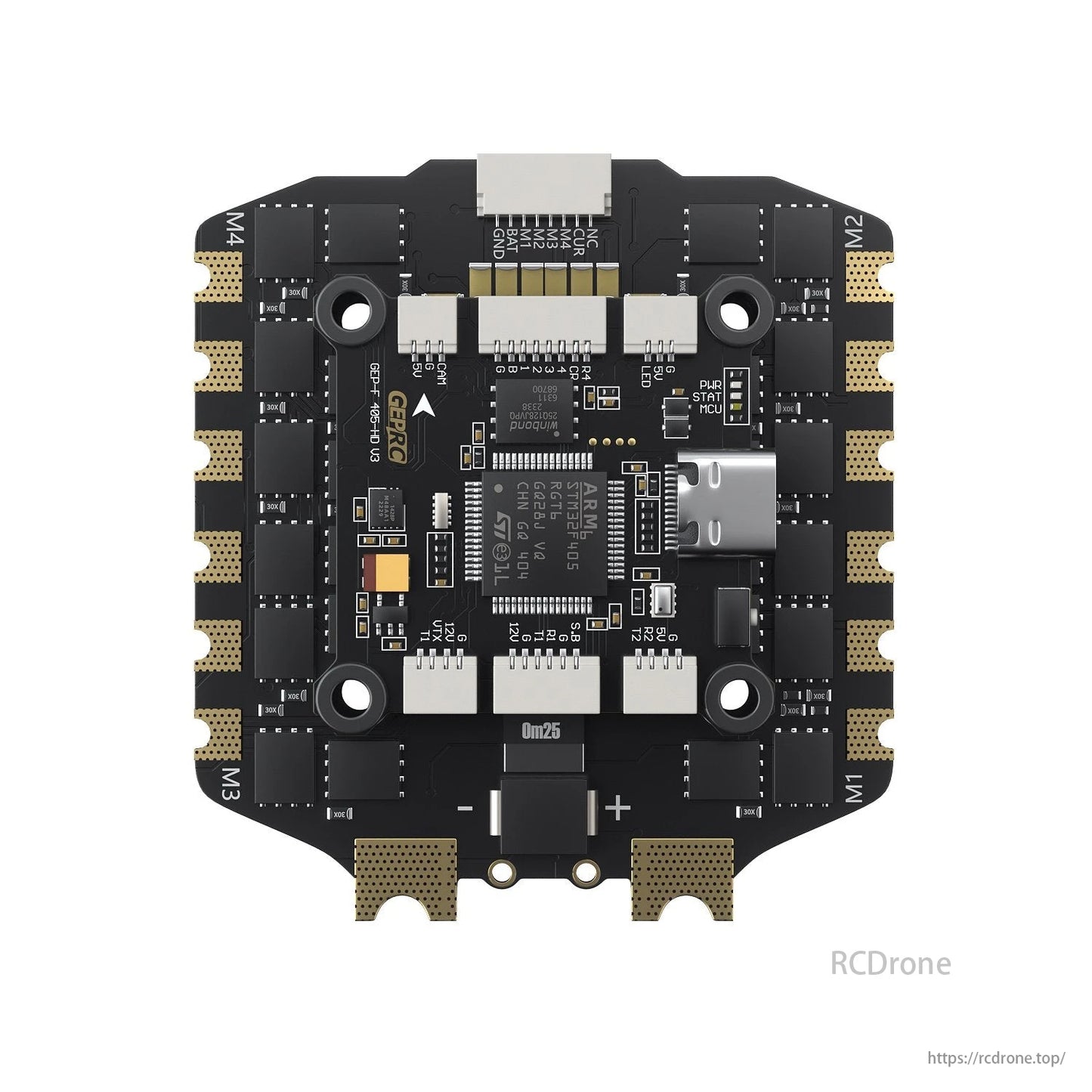

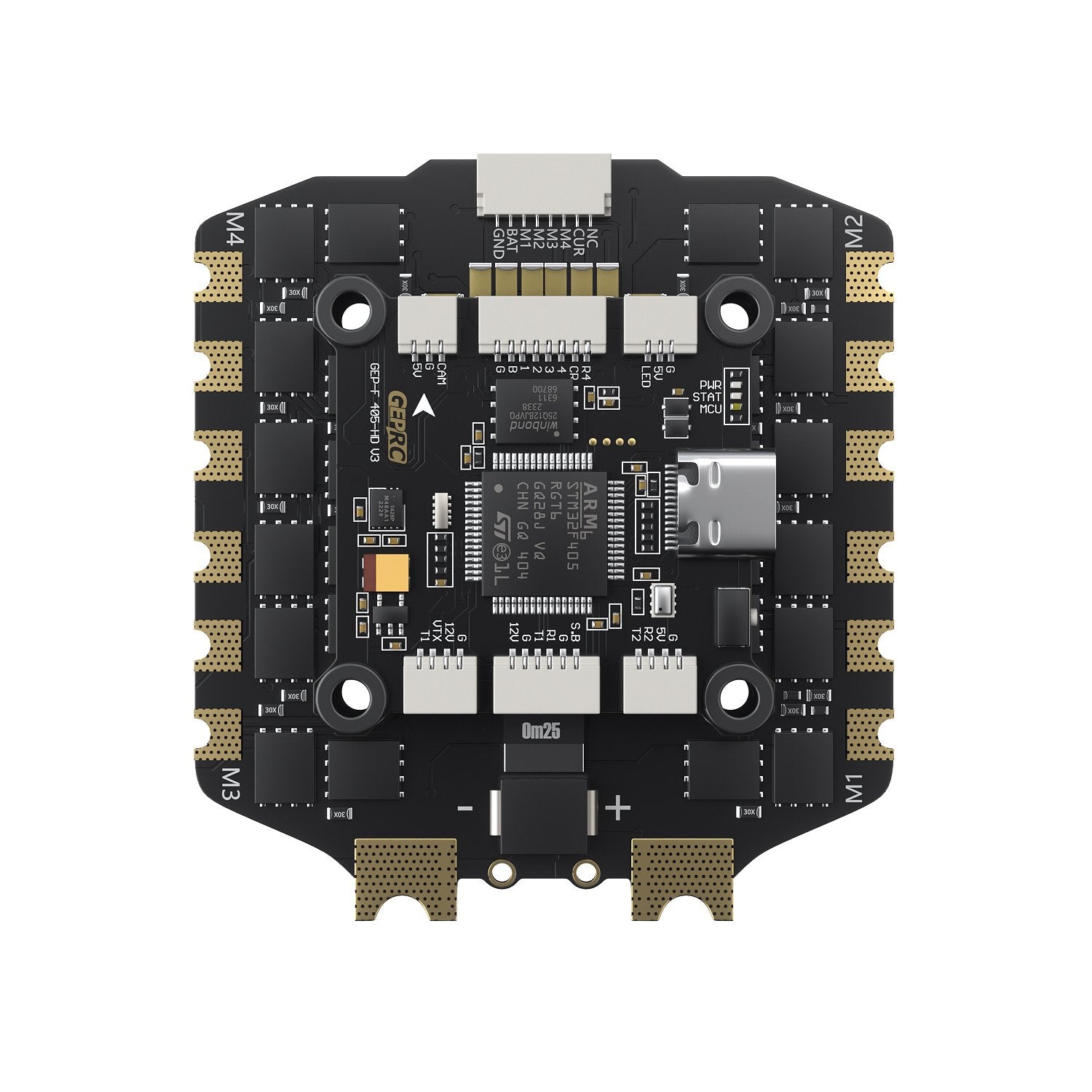

GEP-F405-HD V3 Flight Controller

• MCU: STM32F405

• IMU: ICM42688-P (SPI)

• Black Box: 16MB

• USB: Type-C

• OSD: BetaFlight OSD w/ AT7456E

• Barometer: Supported

• BEC Output: 5V@3A + 12V@2.5A

• Firmware Target: GEPRCF405

• Motor Outputs: M1–M6

• UART Ports: 6

• Input Voltage: 3–6S LiPo

• Mounting Dimensions: 30.5×30.5mm (φ4mm / φ3mm with grommets)

• Size: 37.15 × 37.15mm

• Weight: 7.3g

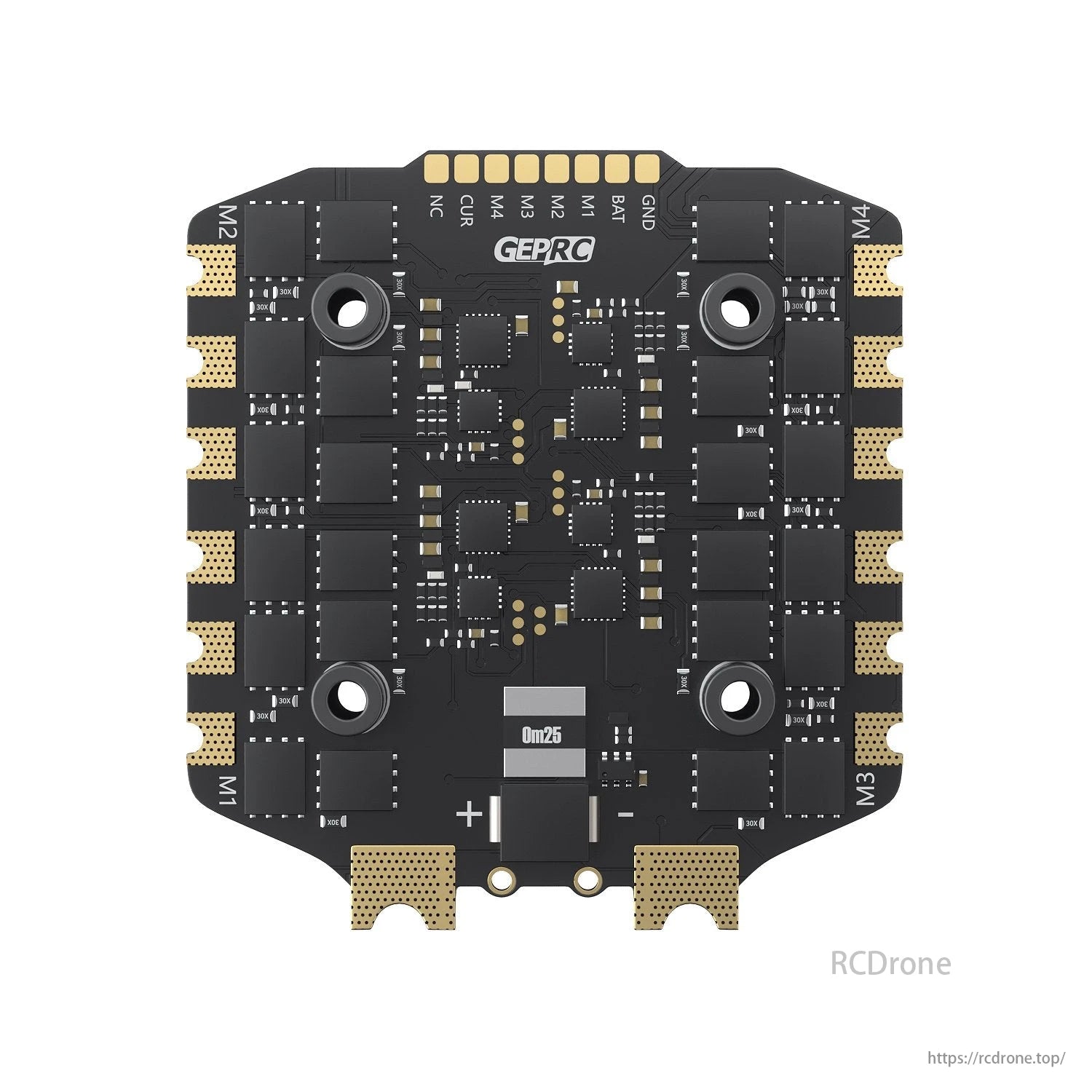

TAKER H80_BLS 80A 4IN1 ESC

• Input Voltage: 3–6S LiPo

• Continuous Current: 80A

• Burst Current: 85A (5 sec)

• ESC Protocols: DShot150 / DShot300 / DShot600

• Current Sensor: Supported

• Firmware Target: B_X_30

• Mounting Dimensions: 30.5 × 30.5mm (φ4mm / φ3mm with grommets)

• Size: 56.3 × 61.1mm

• Weight: 28.1g

Application Scenarios

Perfect for 5-inch to 7-inch FPV drones, this stack is ideal for freestyle, cinematic flying, and long-range cruising. Its robust ESC with 80A continuous current ensures it can handle high-thrust motors, heavy payloads, or demanding power loops with ease.

Details

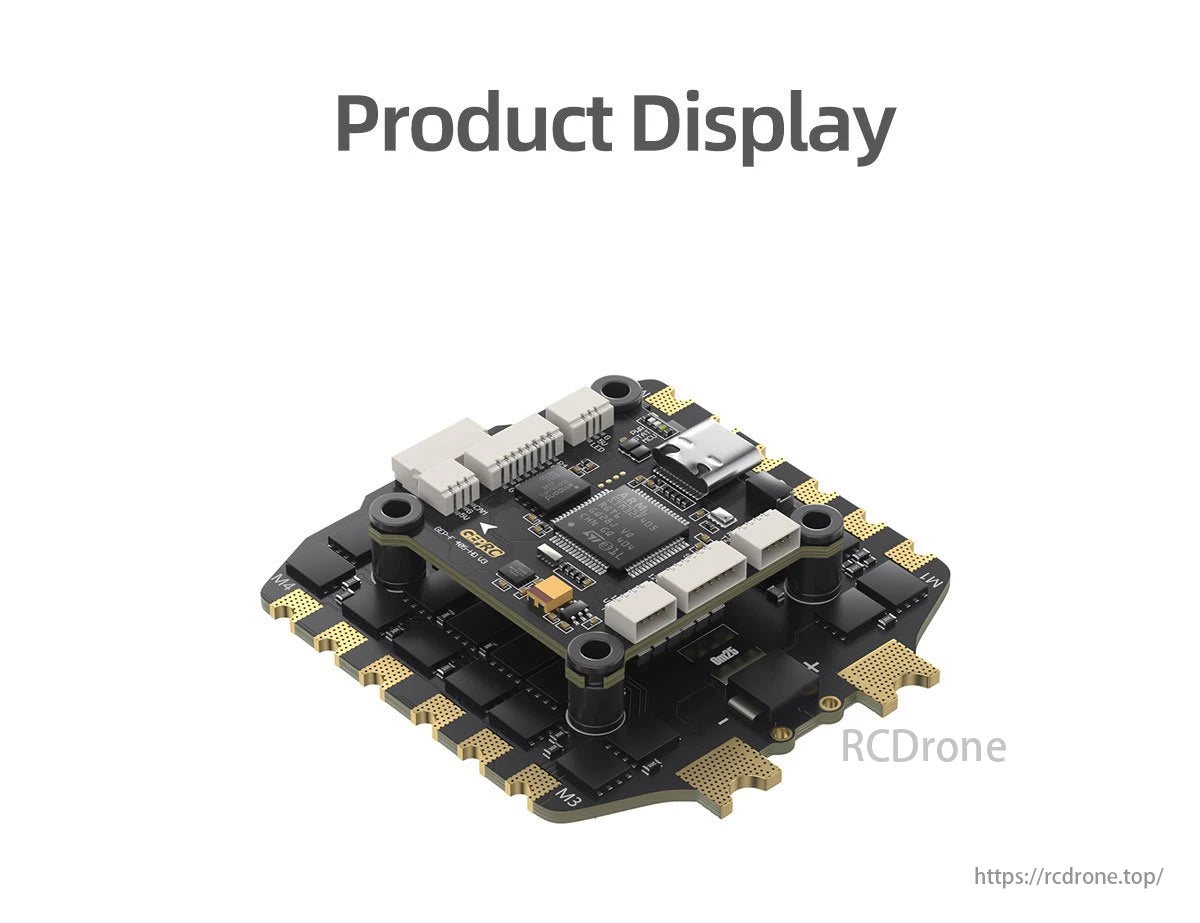

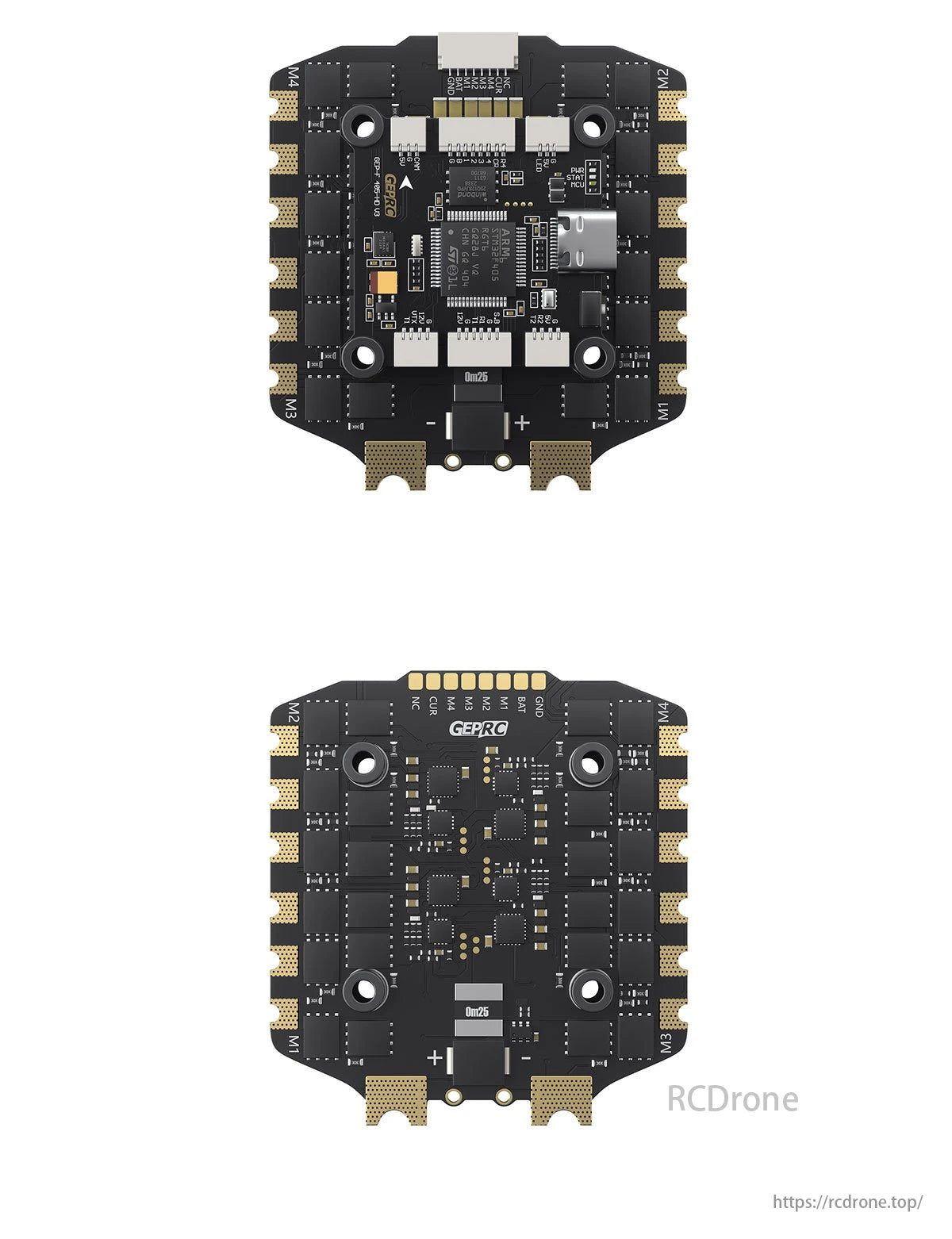

Taker F405 BLV stack features 4/3 layout, with 62.9mm lens and Quoquor design.

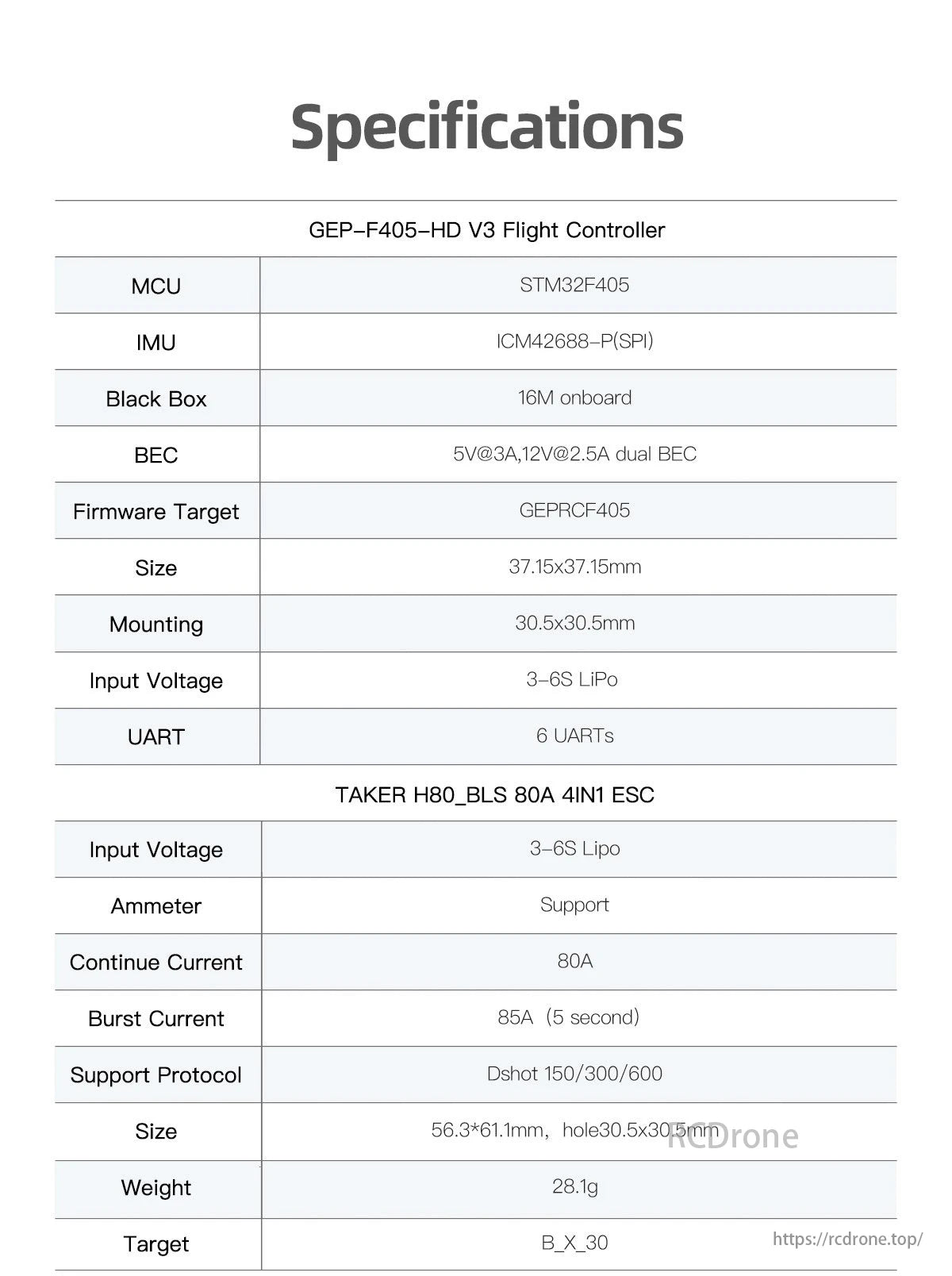

Specifications GEP-F4O5-HD V3 Flight Controller features an MCU STM32F405, ICM42688-P IMU, and a black box with 16M onboard memory. It has dual BECs that provide 5V at 3A and 12V at 2.5A. The firmware target is CEPRCF405, and the size is 37.15x37.15mm. The mounting holes are 30.5x30.5mm in diameter.

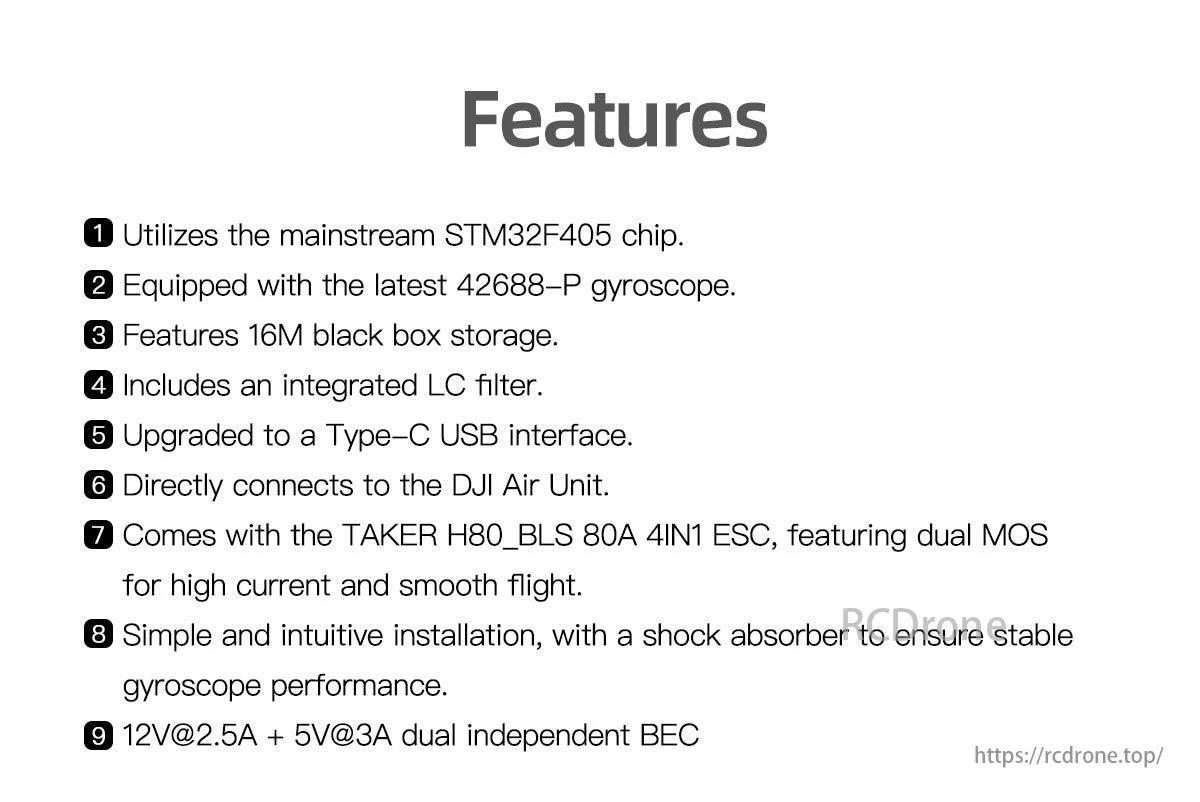

The product features the mainstream STM32F405 chip, equipped with a latest 42688-P gyroscope. It also has 16M black box storage and an integrated LC filter. The device includes a Type-C USB interface and directly connects to the DJI Air Unit. Additionally, it comes with the TAKER H80_BLS 8OA 4INI ESC, which features dual MOS for high current and smooth flight.

High-performance processor with 2.82 GHz speed and 4 cores. Equipped with 18 PUOQUR and 283 MHz clock rate. Features 2 x 16GB RAM for efficient multitasking.
