GEPRC TAKER F722 BL32 E55A SE Flight Controller Stack – 25.5x25.5mm F722 FC + 55A 32Bit ESC for 2–6S Racing FPV Drones

Overview

The GEPRC TAKER F722 BL32 E55A SE Stack is a lightweight, high-performance stack designed specifically for FPV racing drones. It features the STM32F722 flight controller with a MPU6000 gyroscope, 32MB black box, and flexible wiring options including solder pads and SH1.0 plug-and-play connectors. With a compact 25.5x25.5mm mounting pattern, it fits most AIO-compatible racing frames.

Paired with the TAKER E55_96K BL32 4IN1 ESC, capable of handling 55A continuous current and supporting PWM up to 96KHz, this stack provides responsive throttle control, low heat buildup, and reliable power for competitive FPV builds.

Features

• STM32F722RET6 MCU with 6 UARTs for external modules

• MPU6000 gyroscope with low latency and excellent noise resistance

• 32MB onboard flash for black box flight data logging

• Type-C USB interface for fast, modern connectivity

• BetaFlight OSD with AT7456E chip

• Dual BEC outputs: 5V@2.5A and 10V@2A, independently regulated

• Plug-and-play compatibility with DJI Air Unit

• Supports analog video input and external receiver

• Custom 25.5×25.5mm mounting hole pattern, compatible with most racing and AIO frames

• Includes vibration-reducing silicone grommets to convert mounting holes from 4mm to 3mm or 2mm

• E55A ESC uses metal-encapsulated MOSFETs for improved heat dissipation and durability

• Supports multiple PWM and DShot protocols, including DShot600 and Oneshot

Specifications

TAKER F722 SE Flight Controller

• MCU: STM32F722RET6

• IMU: MPU6000

• Black Box: 32MB Flash

• USB Port: Type-C

• OSD: BetaFlight OSD w/ AT7456E

• BEC Output: 5V@2.5A, 10V@2A

• Firmware Target: TAKERF722SE

• Size: 31.7 × 31.5mm

• Mounting Hole: 25.5 × 25.5mm (φ4mm, convertible to φ3mm/2mm)

• Input Voltage: 7.4V–25.2V (2–6S LiPo)

• UART Ports: 6 UARTs (Uart6 for ESC telemetry)

• Power Filter: Integrated LC filter

• Weight: 6.0g

TAKER E55_96K BL32 4IN1 ESC

• Input Voltage: 7.4V–25.2V (2–6S LiPo)

• Continuous Current: 55A

• Burst Current: 60A (5 seconds)

• PWM Frequency: 24K–96KHz

• Telemetry: Supported

• Galvanometer (Current Sensor): Supported

• ESC Protocols: DShot150/300/600, Oneshot125, Oneshot42, Multishot

• Firmware Target: ST_G0_05

• Weight: 9.6g

What’s Included

• 1 × TAKER F722 SE Flight Controller

• 1 × TAKER E55_96K BL32 4IN1 ESC

• 1 × 35V 470μF Capacitor

• 1 × XT60 Power Cable

• 1 × 8-Pin FC-to-ESC Signal Cable

• 4 × M3×22 Screws

• 6 × M3 Anti-Slip Nuts

• 12 × Silicone Grommets (4mm to 3mm)

• 12 × Silicone Grommets (4mm to 2mm)

• 1 × 65mm Camera Lens Cable

• 1 × 25mm Camera Lens Cable

• 1 × Receiver Cable

• 1 × DJI Air Unit Cable Connector

Details

GEPRC TAKER F722 BL32 55A SE STACK offers powerful performance for racing. Features include F722 main control, MPU6000 gyroscope, 25.5mm mounting holes, metal MOS tube E series ESC, dual-channel BEC design, ideal for racing competitions.

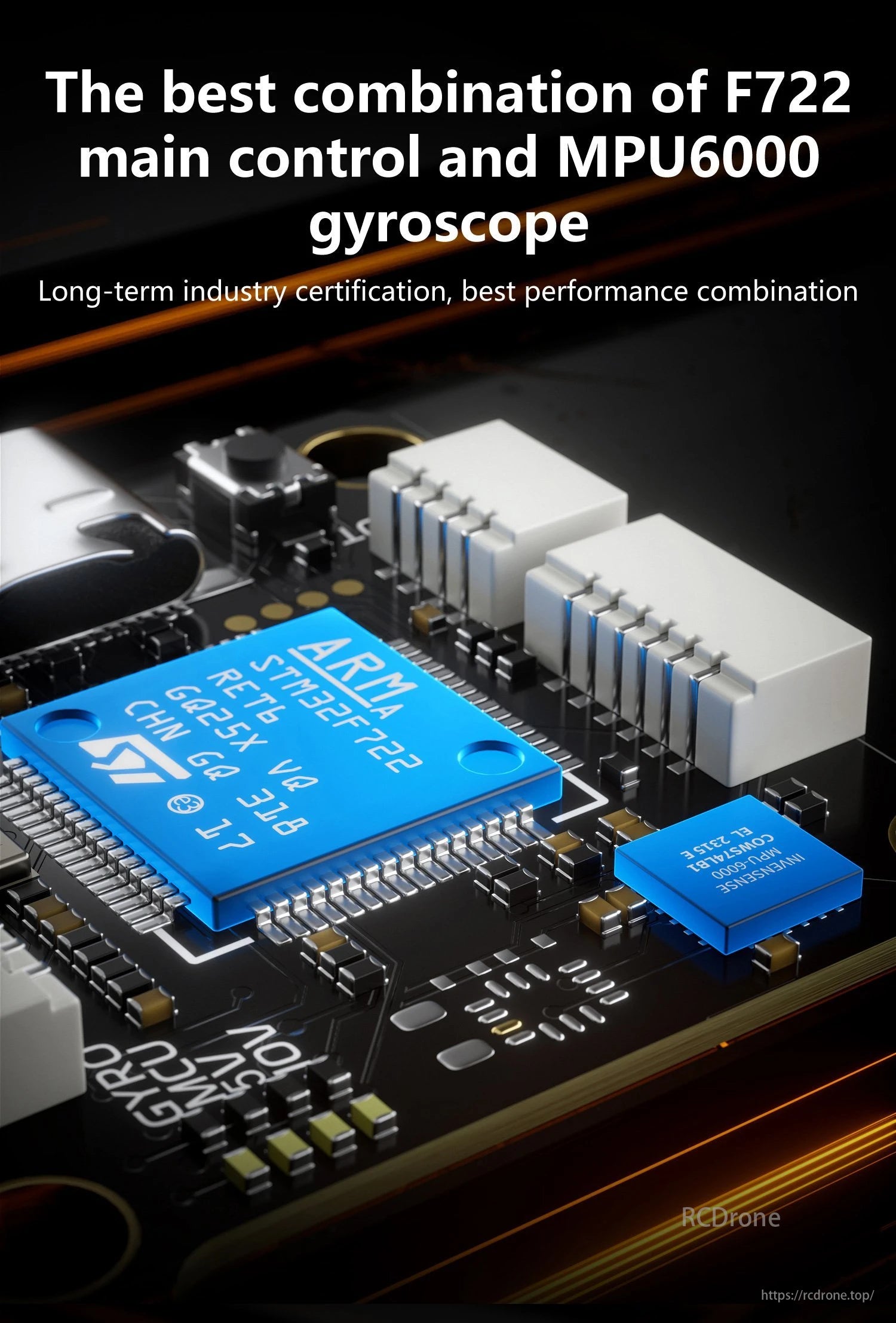

Best F722 main control and MPU6000 gyroscope combo. Long-term industry certification ensures optimal performance. ARM STM32F722 chip integrates seamlessly for advanced flight control capabilities.

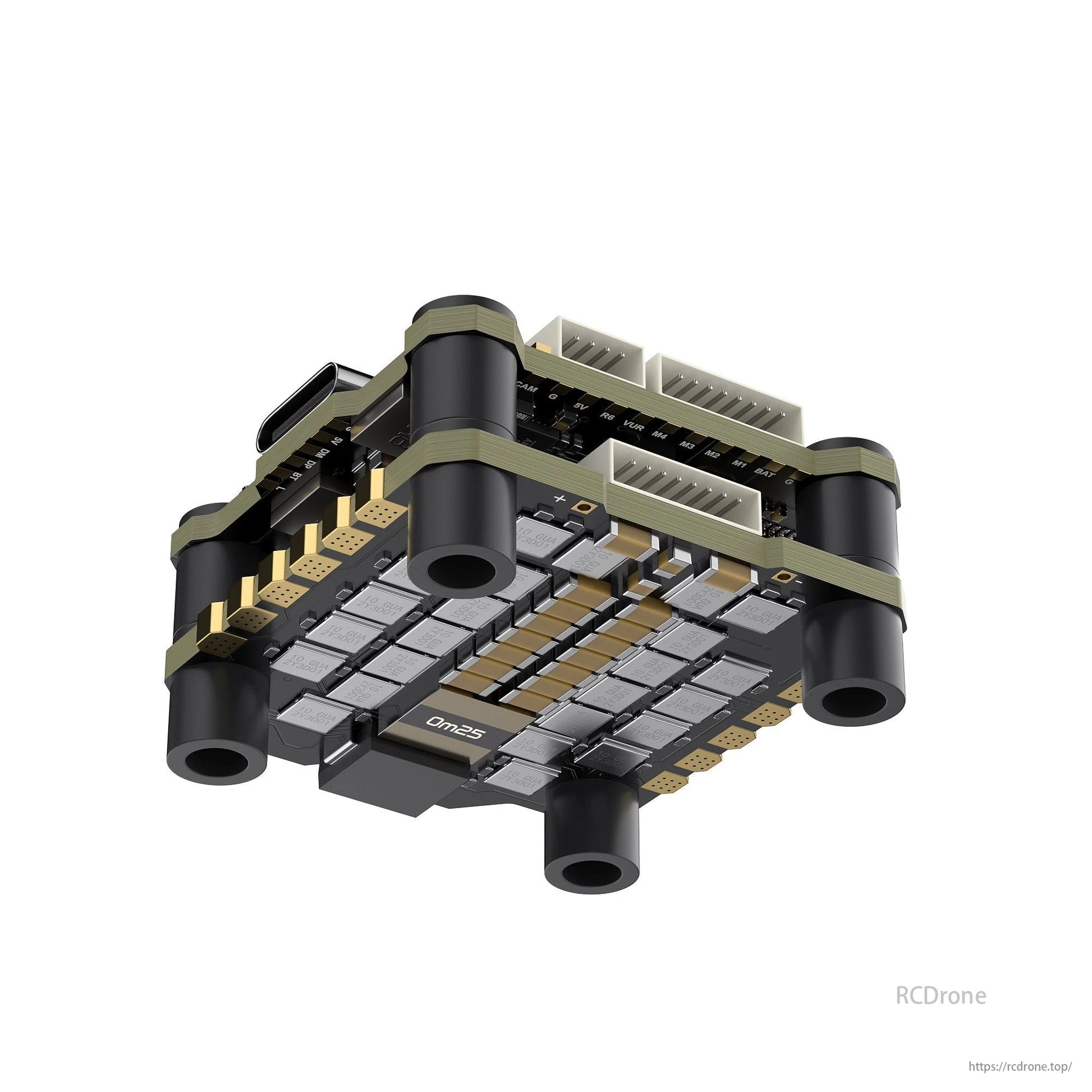

E series 55A ESC with metal-encapsulated MOS tubes enhances heat dissipation on the GEPRC TAKER F722 BL32 E55A SE Flight Controller. This design ensures strong thermal management and stability. Silver and gold components are meticulously arranged on a black circuit board, with "Om25" inscribed on a key component. Tailored for high-performance applications, this advanced flight controller combines robust construction and efficient thermal performance, making it ideal for demanding tasks. Its integrated features support superior functionality and reliability in various conditions.

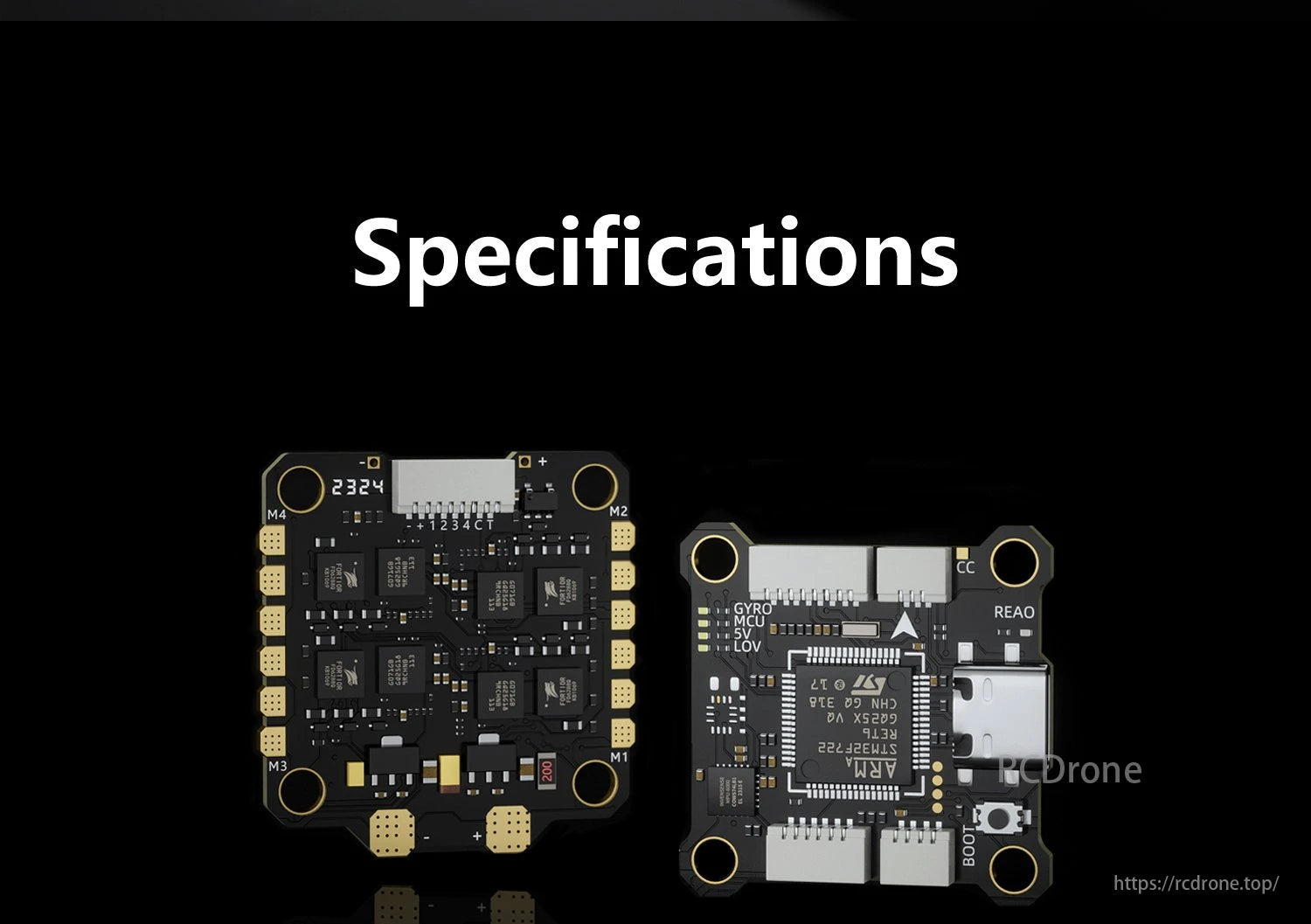

Gyro-based product with specifications 2324, featuring M4 and M2 compatibility, CC processing, and a MCU clock speed of 1 with SoV version 2T at 0.61.

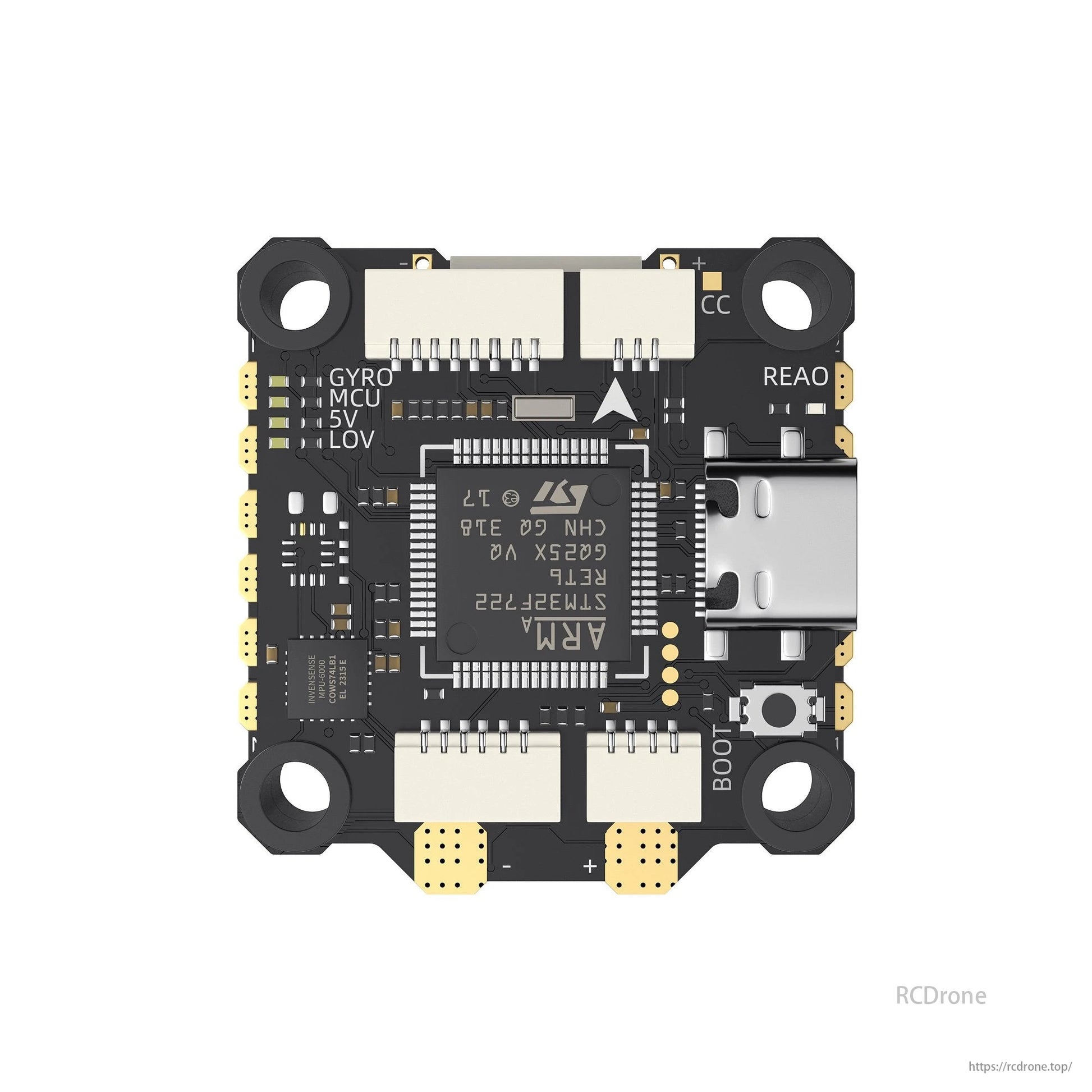

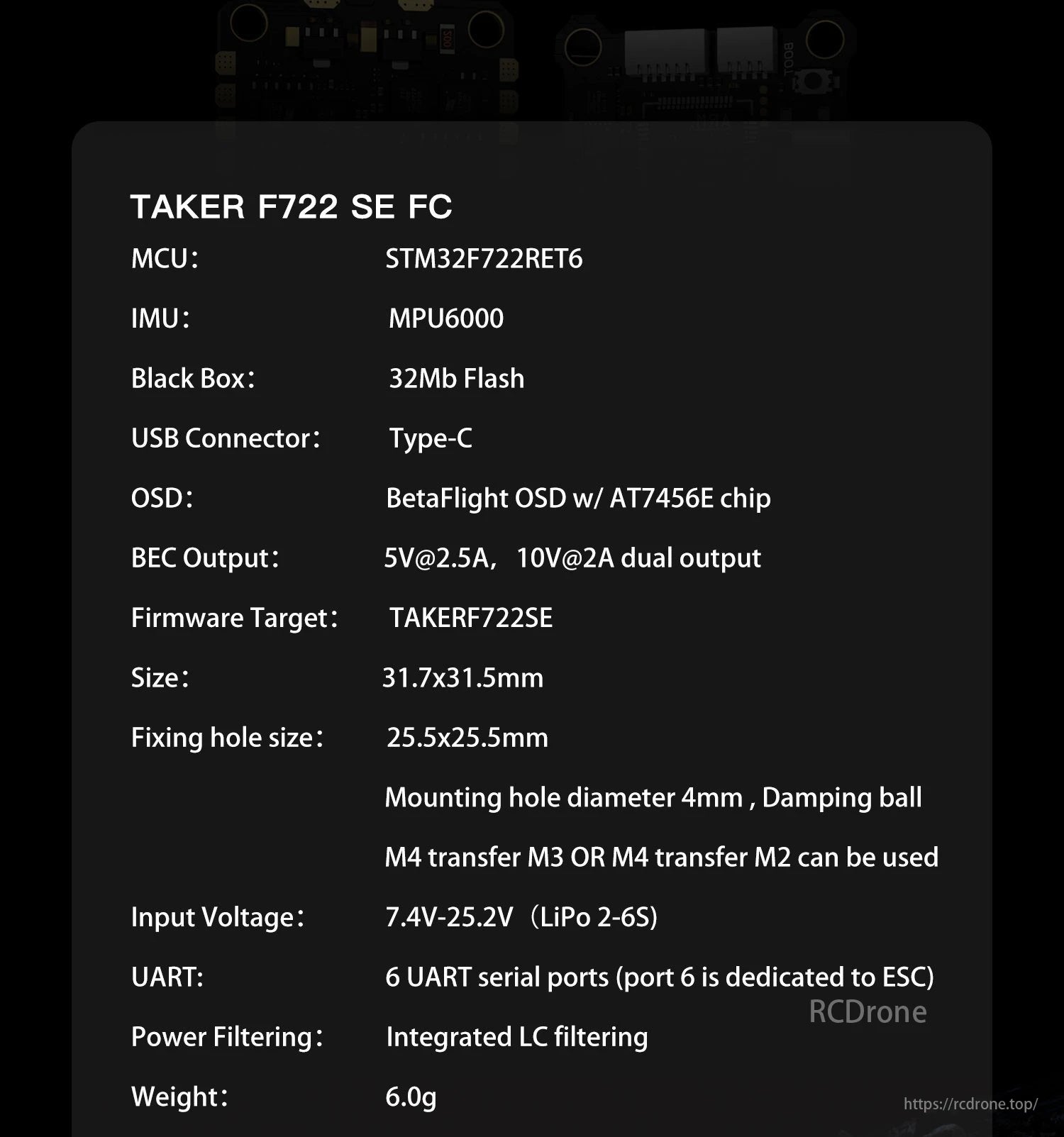

The Taker F722 SE is a flight controller with an STM32F722RET6 MCU, MPU6000 IMU, and BetaFlight OSD with AT7456E chip. It features BEC output for SV@2.SA and IOV@2A dual outputs. The firmware target is TAKERFZ22SE. The device measures 31.7x31.5mm in size, has a fixing hole size of 25.5x25.5mm, and mounting hole diameter of 4mm. Damping ball transfers can be used with M3 or M4 screws. Input voltage is 7.4V-25.2V (LiPo 2-6S) and it has 6 UART serial ports, with port 6 dedicated to ESC. Power filtering is integrated LC type and the device weighs 6.0g.

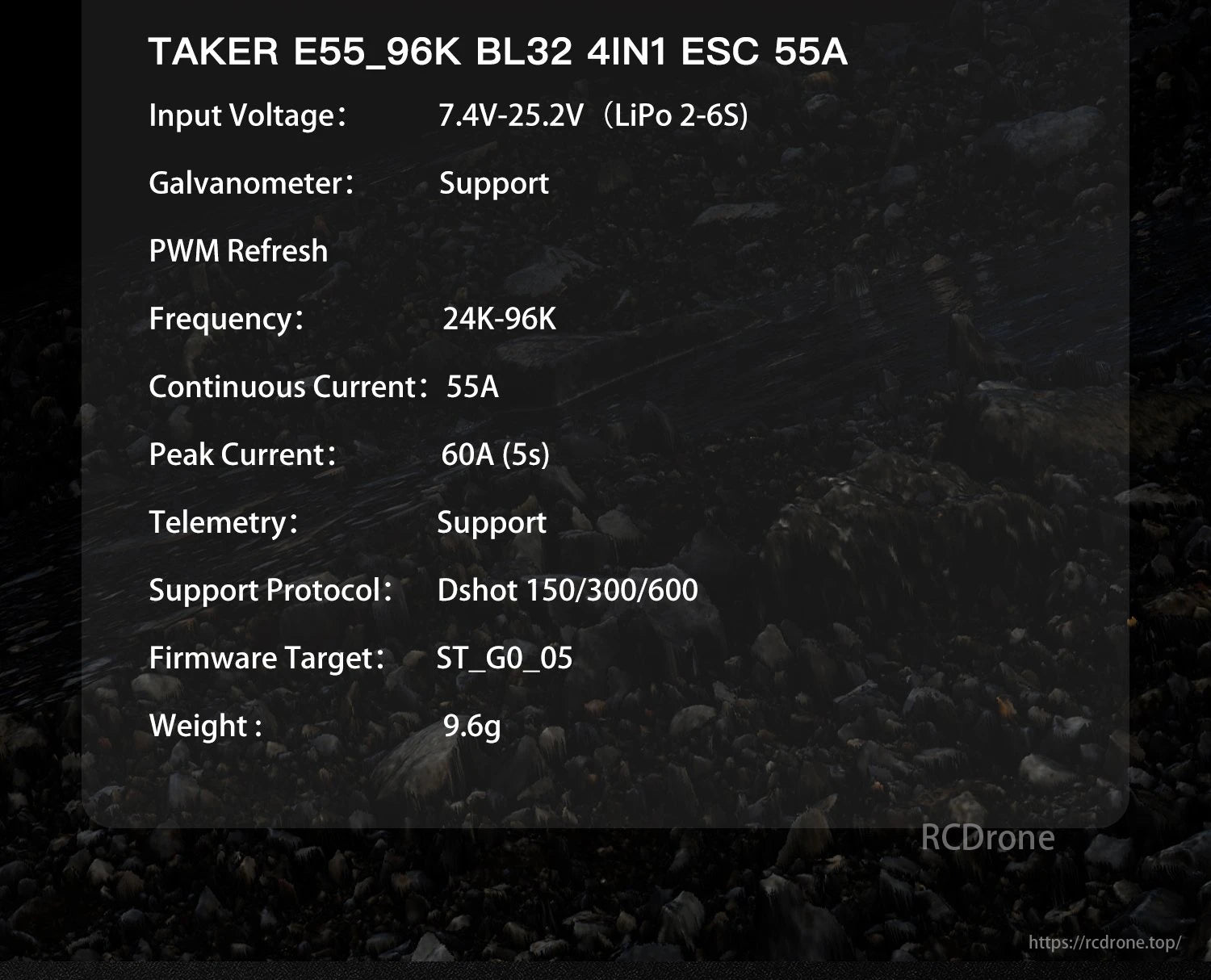

Product Name: TAKER E5s, Model: 96K BL32, 4INI ESC, Input Voltage: 74V-25.2V (LiPo 2-6S), Galvanometer: Supports PWM refresh frequency up to 96K, Continuous Current: 55A, Peak Current: 60A, Telemetry: Supported protocol Dshot 150/300/600, Firmware Target: ST_GO_05, Weight: 9.6g

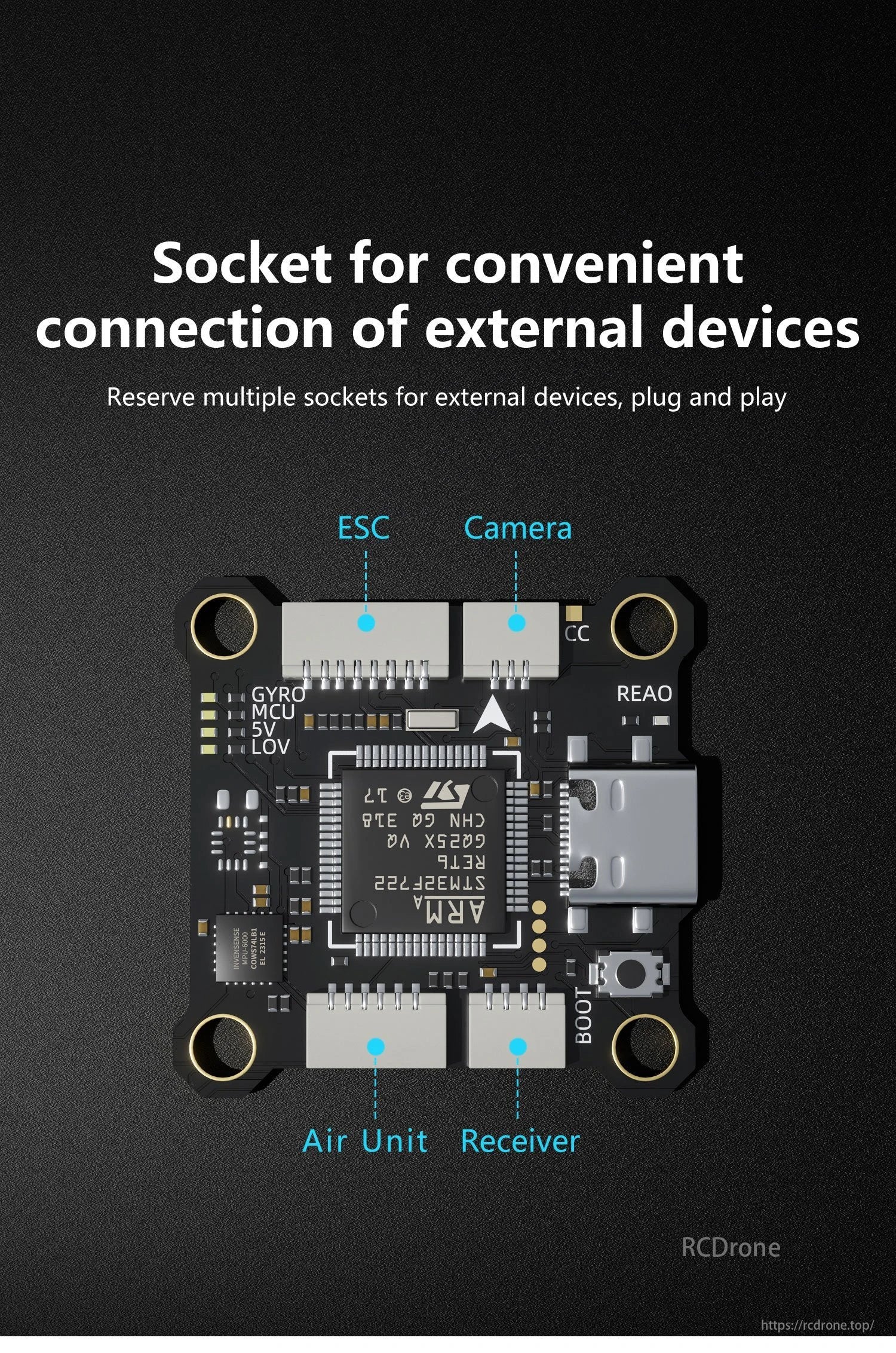

Convenient socket for connecting external devices. Plug and play compatibility with ESC, camera, gyro, and more. Reserve multiple sockets for easy expansion.

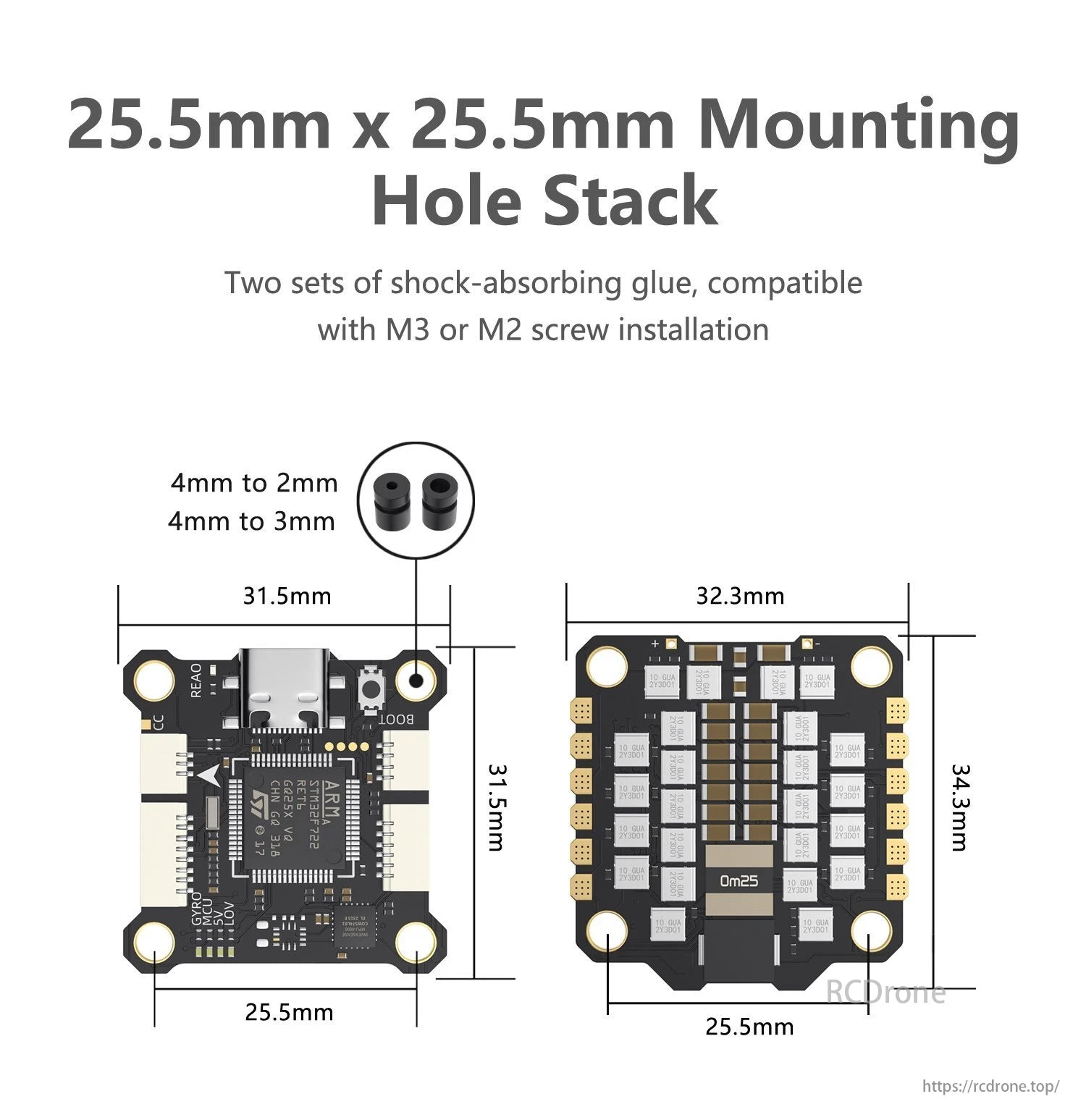

GEPRC TAKER F722 BL32 E55A SE Flight Controller has 25.5mm mounting holes, shock-absorbing glue for M3/M2 screws, with dimensions 31.5mm x 31.5mm and 32.3mm x 34.3mm.

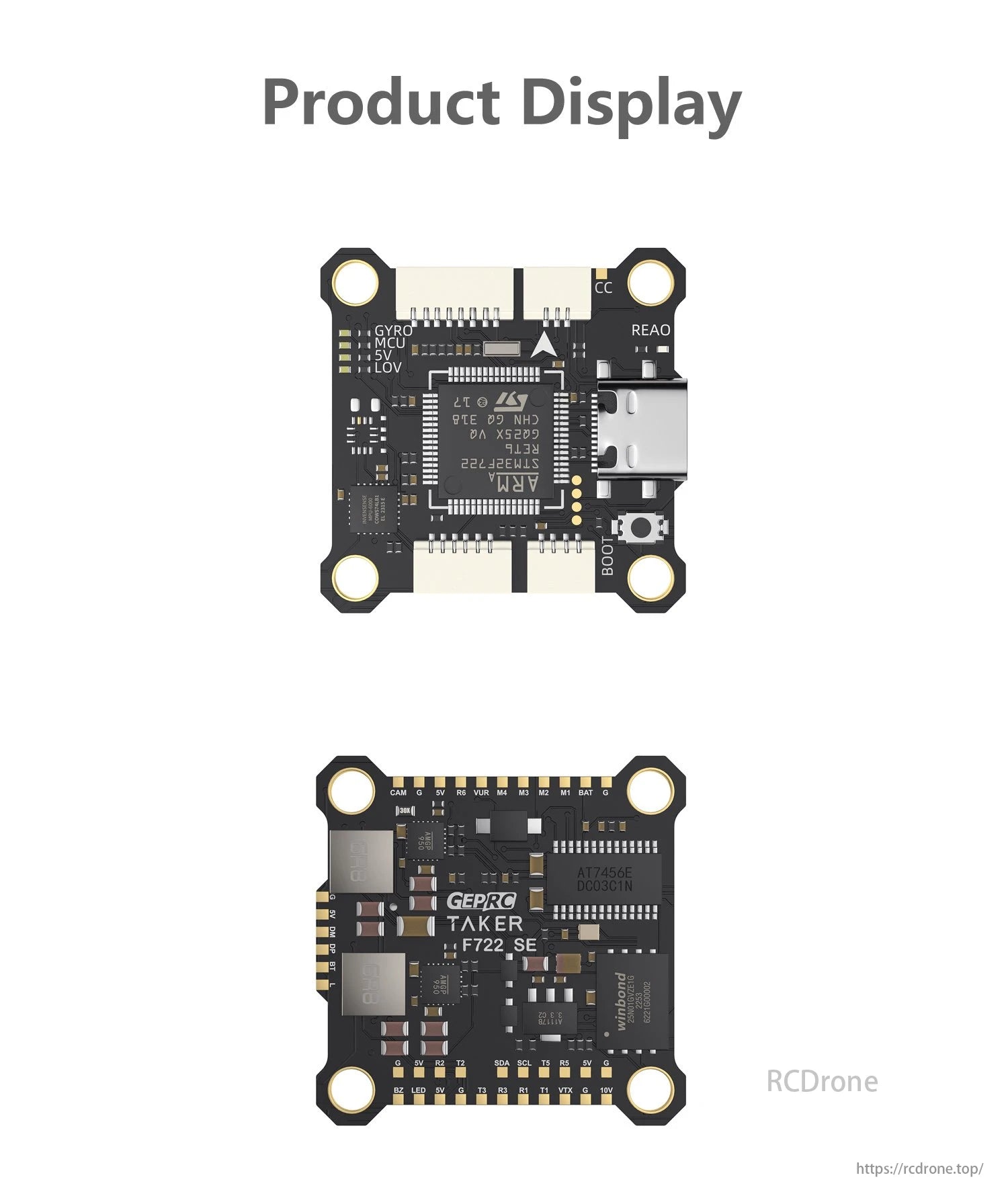

Product Display Gyro MCU SV LOV, Quantity 20, NH. Includes X520s, 9134, Z2LJ2Ew1S, wJV Ii 8 CAM VUR Ma M3 BAT, AT7456E DCO3CTN, GEPRC TAKER F722 SE #26f4, J SDA SCL LED V 10V.

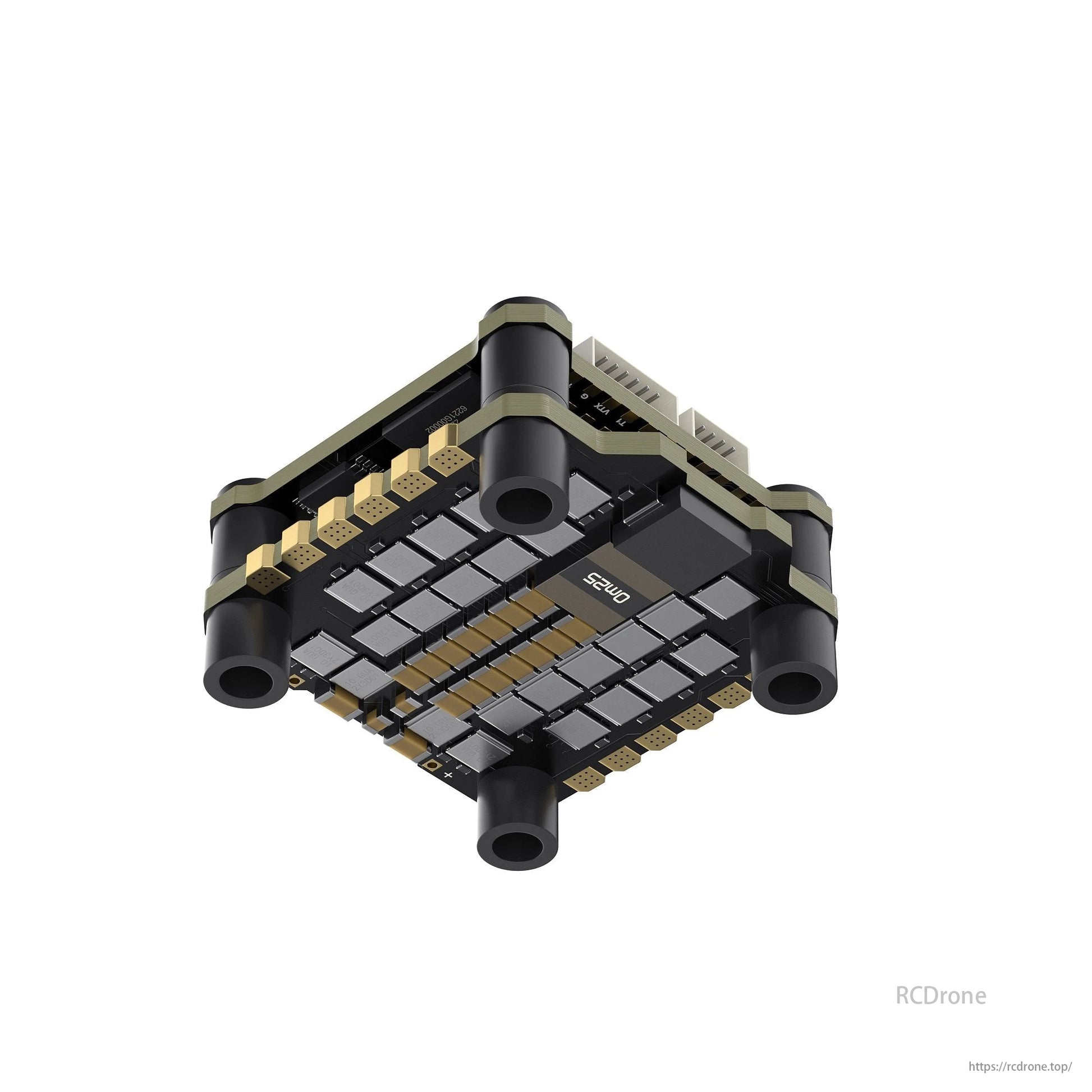

M1-M4 labels, 2324 and 0m25 markings, along with electronic components and connectors, are featured on the GEPRC TAKER F722 BL32 E55A SE Flight Controller for drone control systems.

NI-825X Series. 24-pin, 25 MHz, Ni5% X52US. Compatible with EZ-Vi and W-YV root systems.

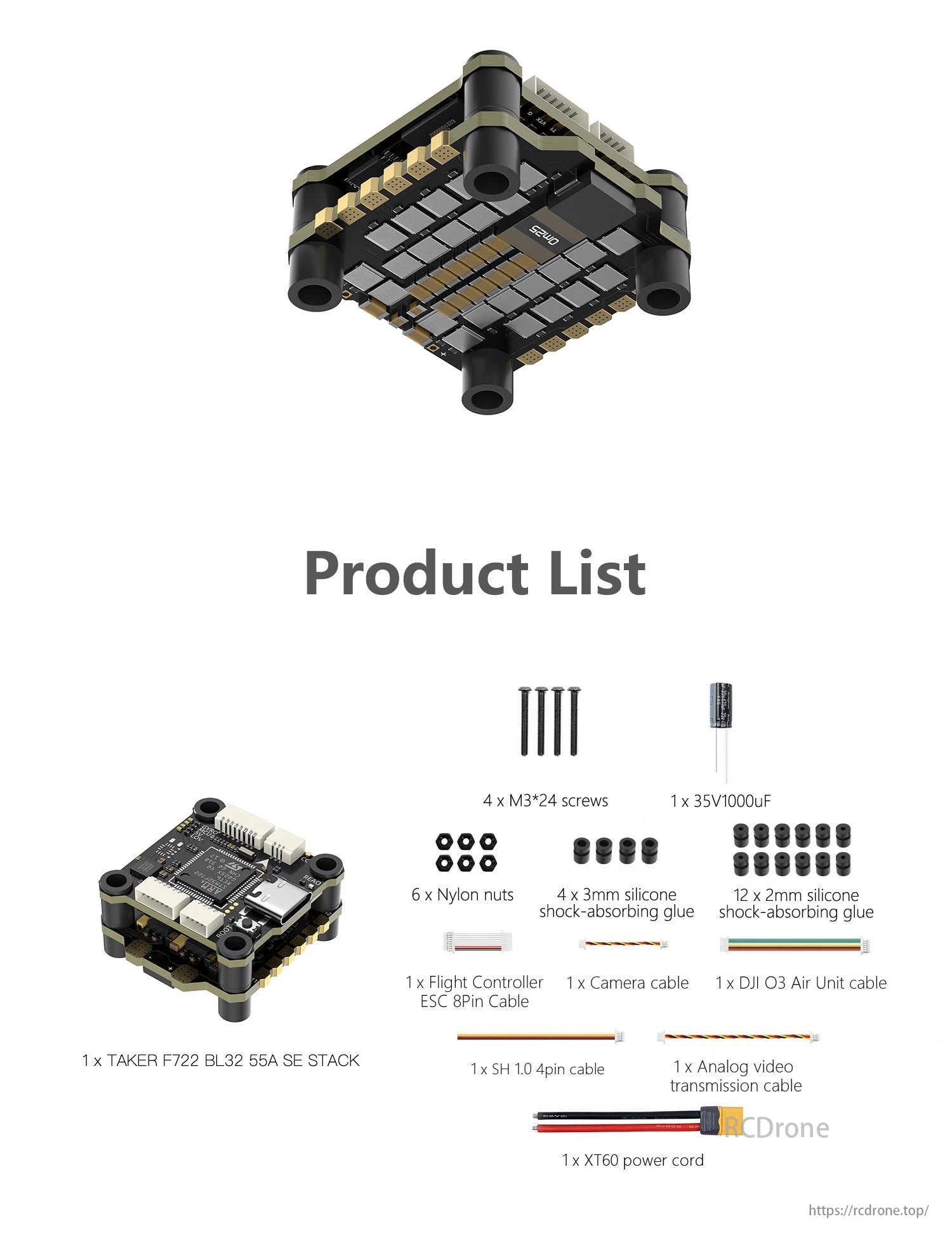

This product list includes screws, capacitors, bearings, nuts, washers, and glue. There a Flight Controller, Camera cable (DJI), ESC 8Pin Cable, TAKER F722 BL32 55A SE STACK I, Analog video transmission cable, and XT60 power cord.
