GEPRC TAKER F722 BLS 65A V2 Flight Controller Stack – F722 FC + 65A 8S 4in1 ESC for DJI Air Unit & 3-8S FPV Drones

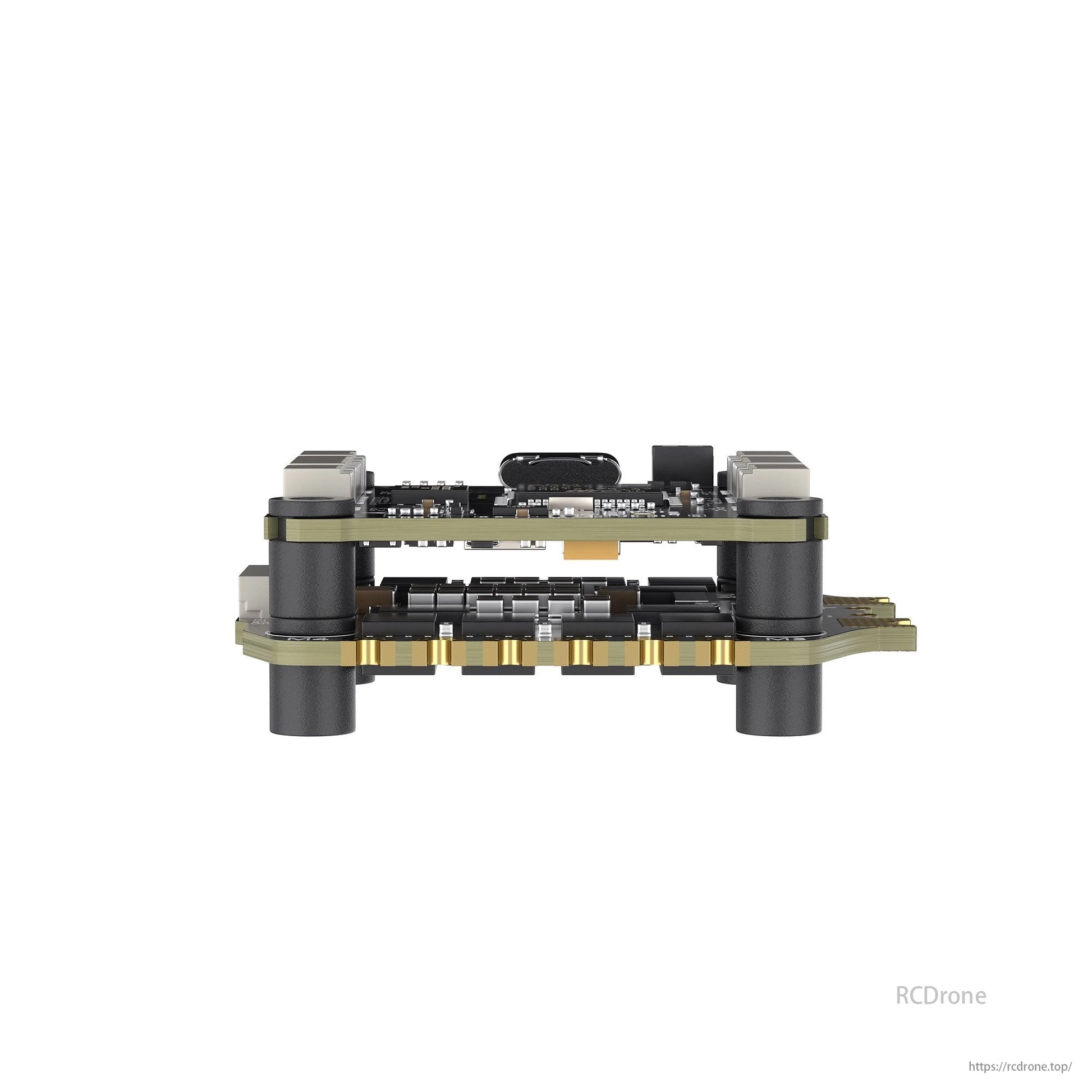

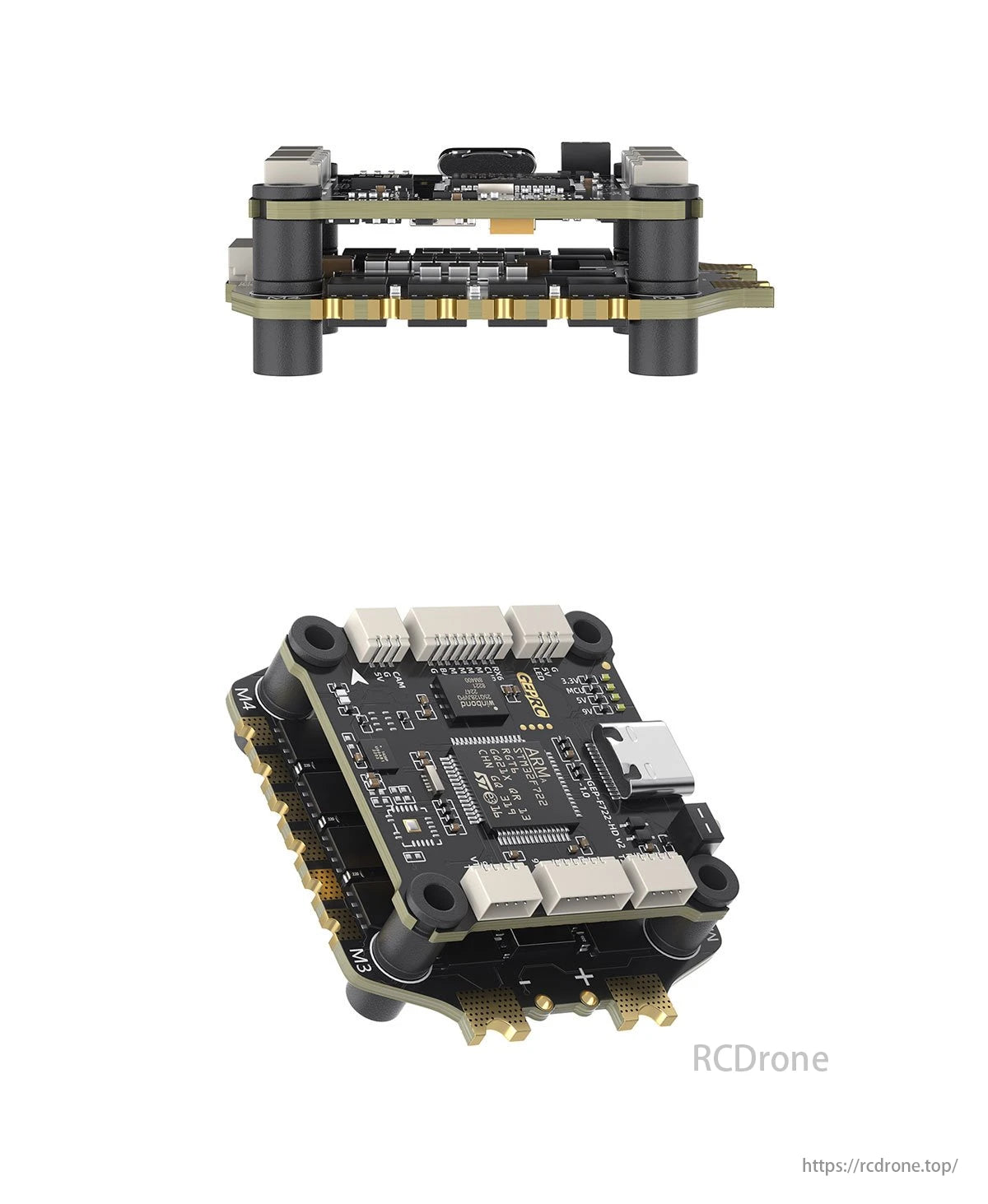

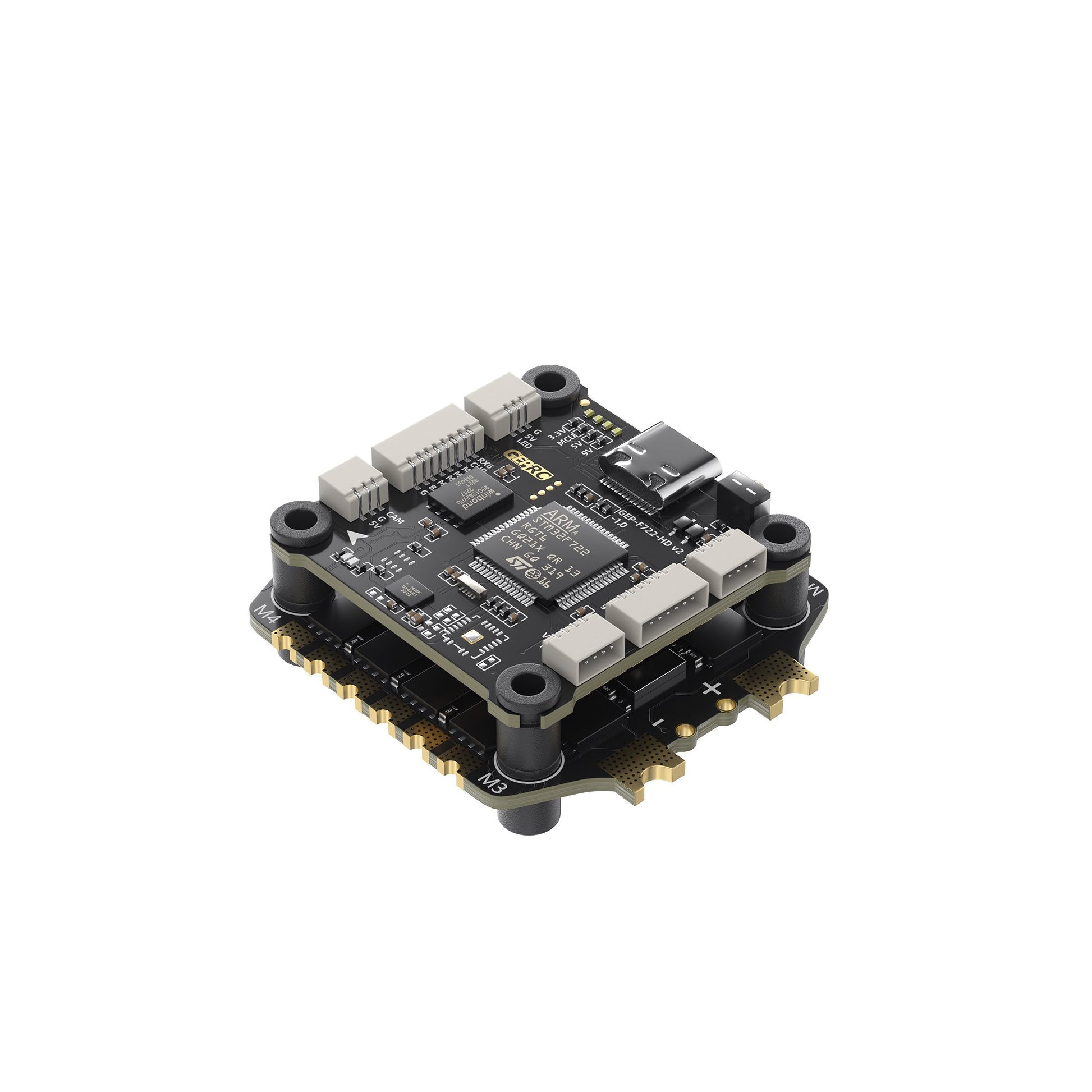

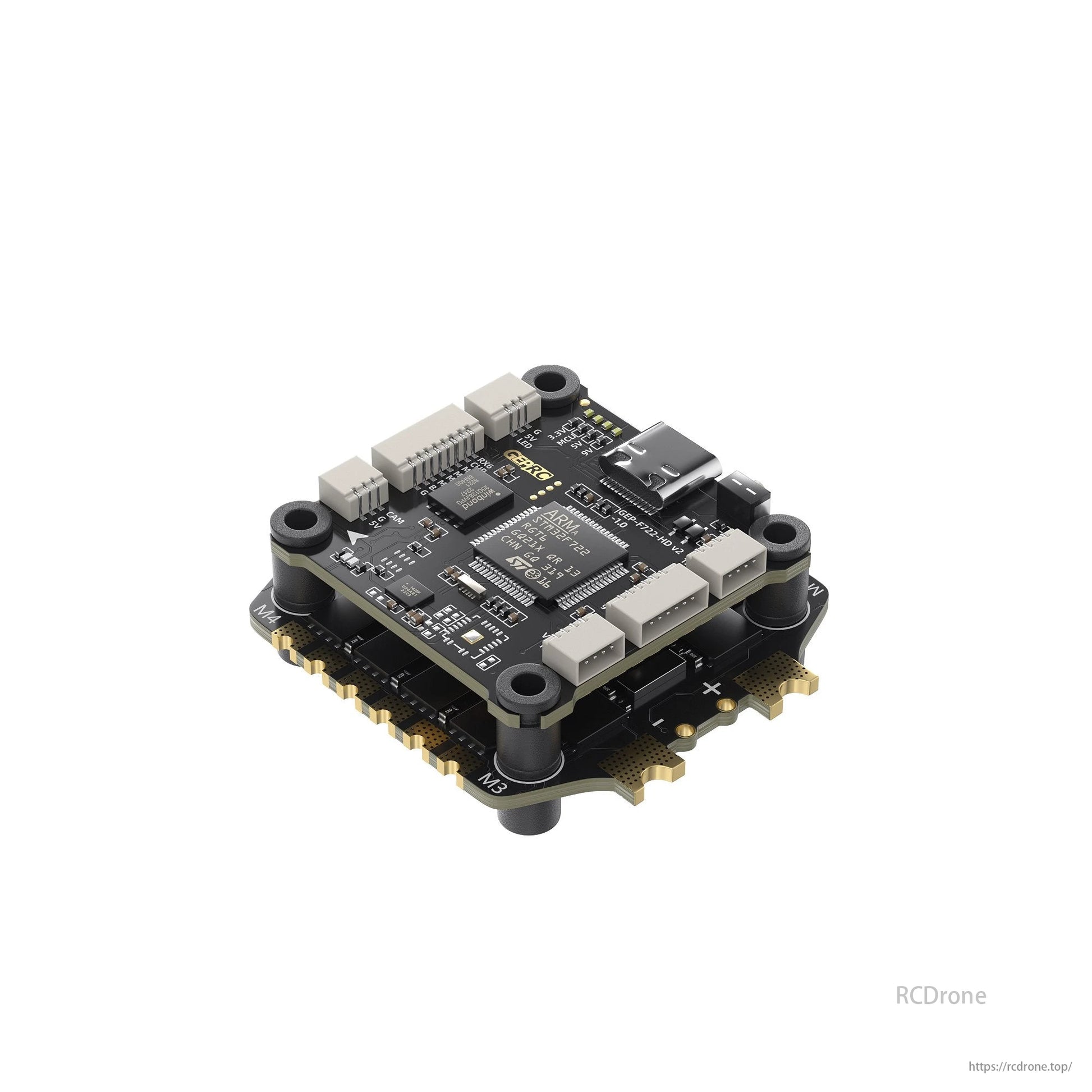

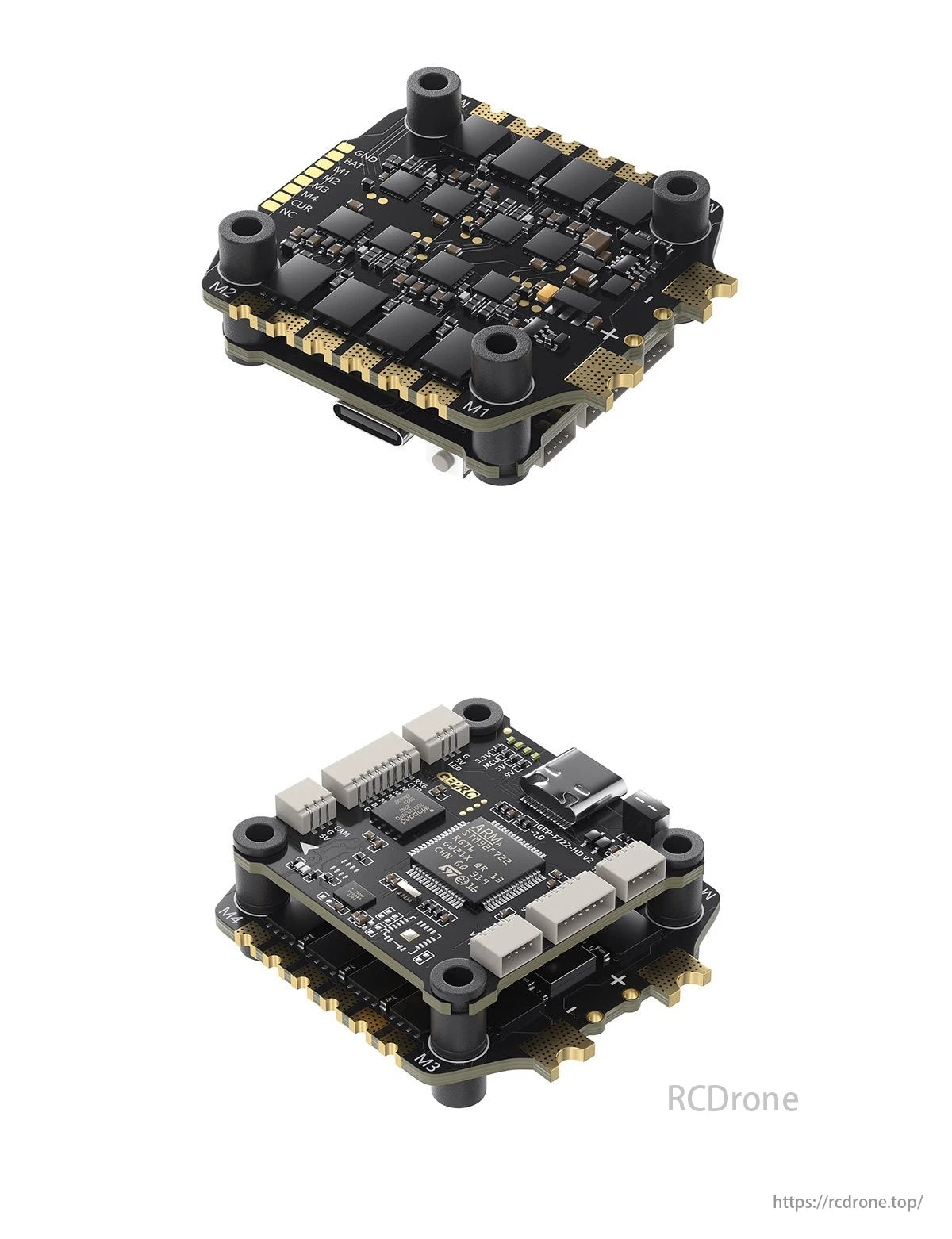

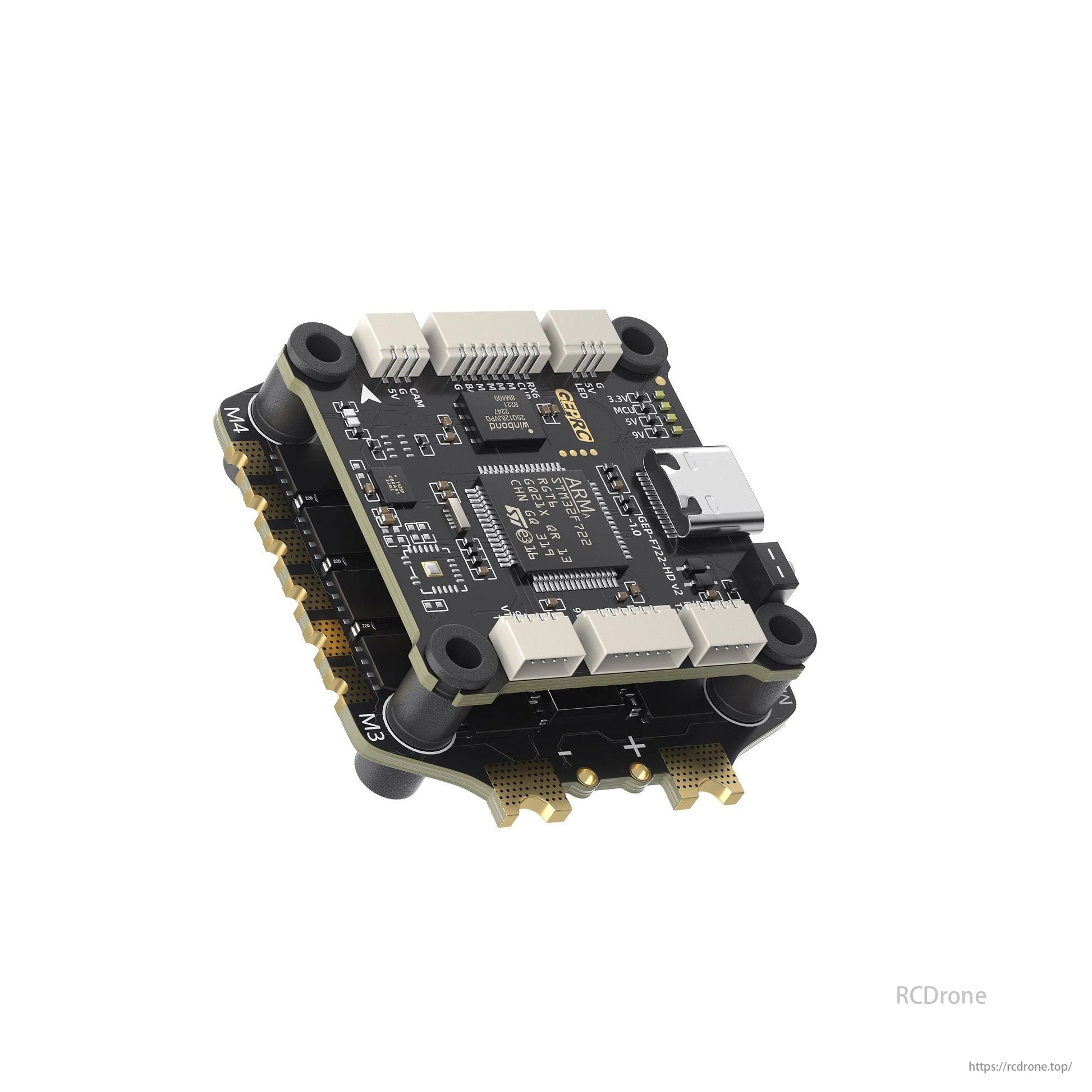

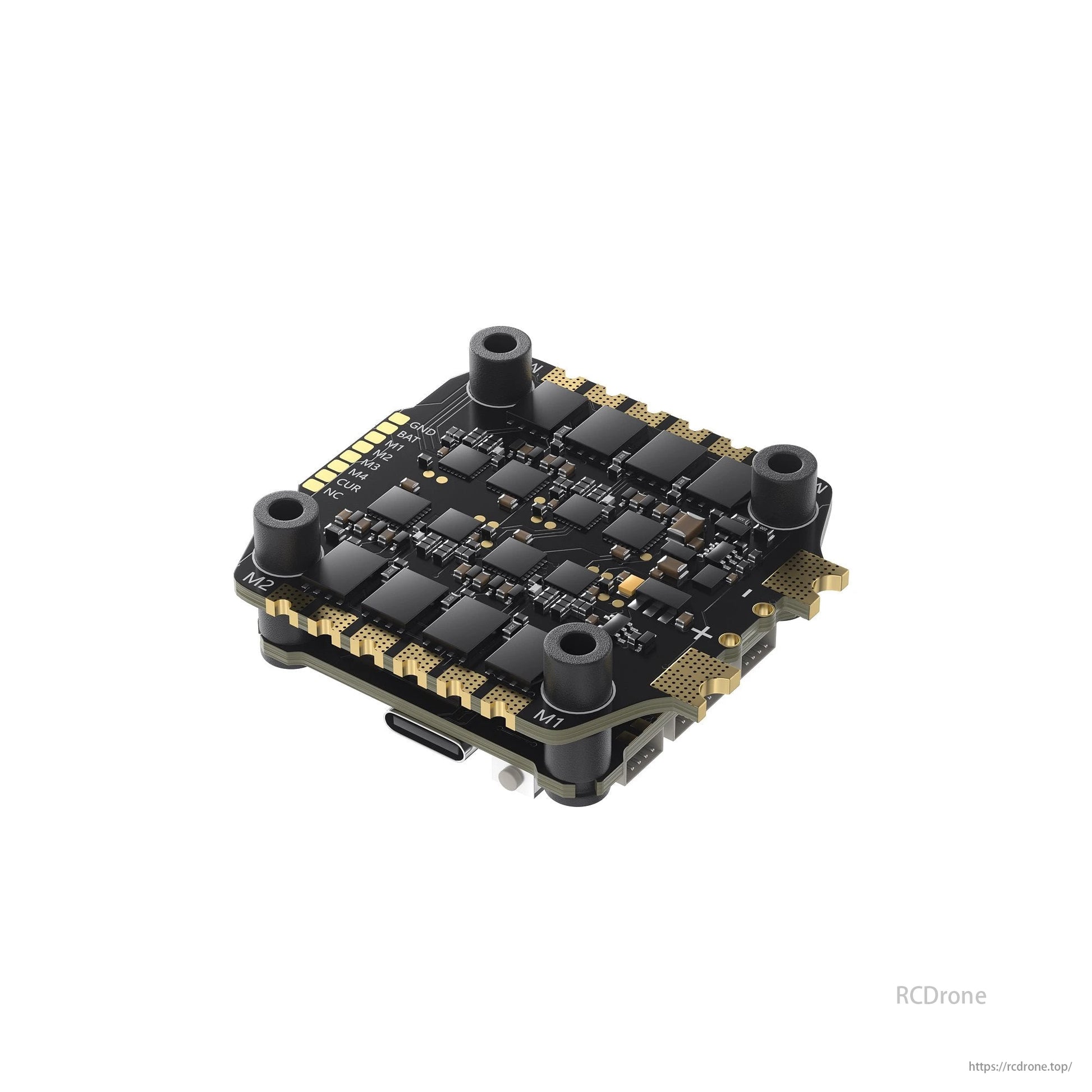

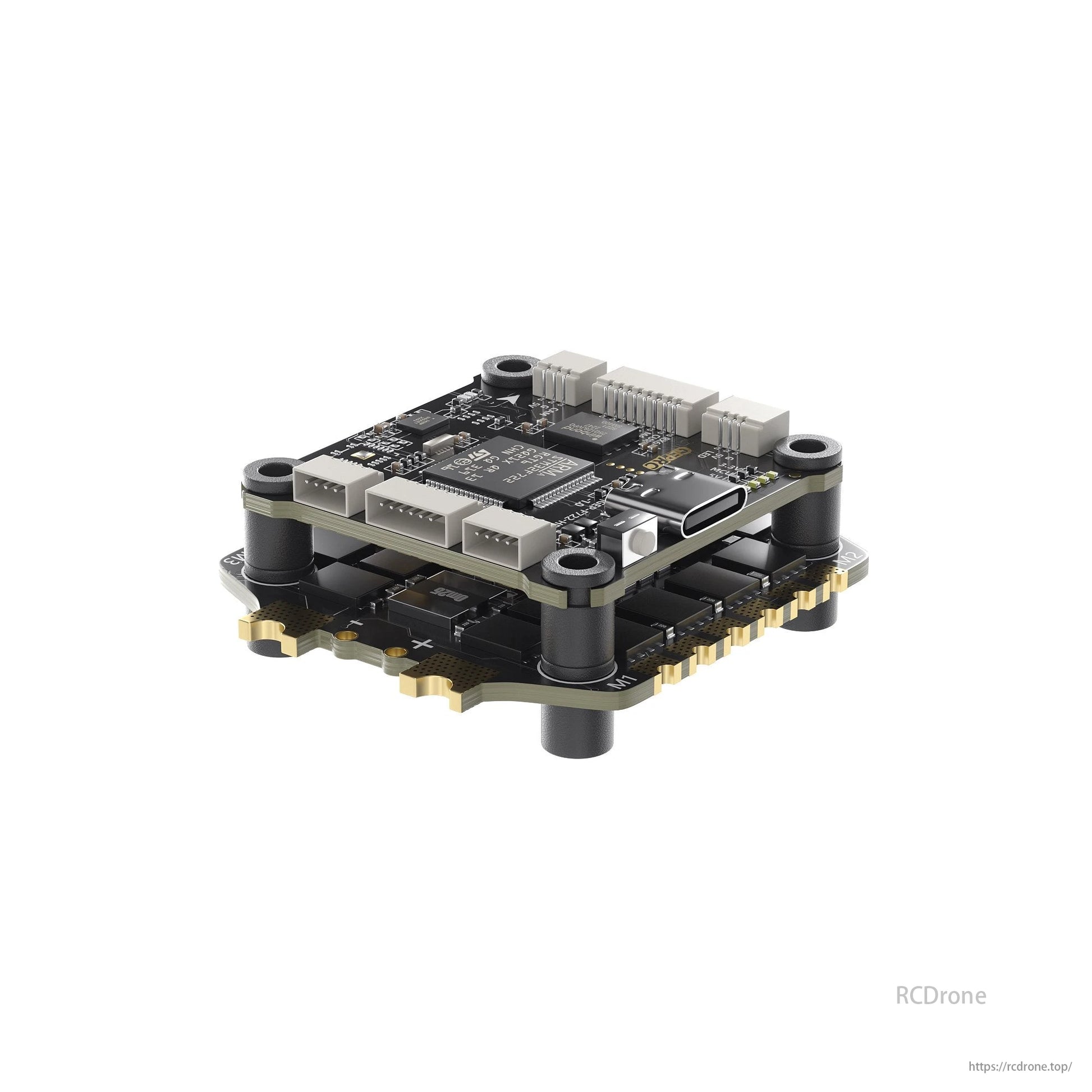

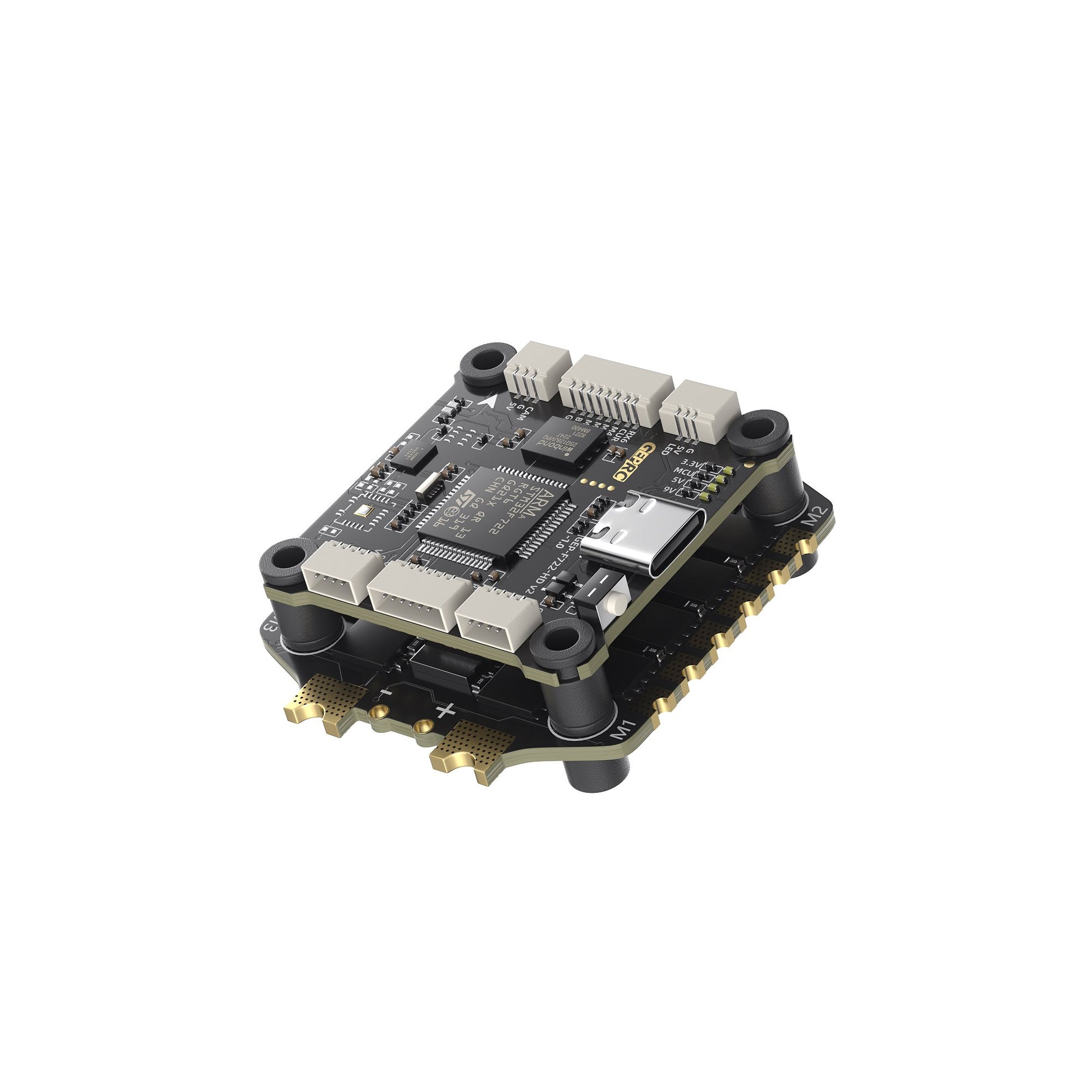

GEPRC TAKER F722 BLS 65A V2 Stack Overview

The GEPRC TAKER F722 BLS 65A V2 Stack combines a high-performance STM32F722 flight controller with a 65A 8S 4-in-1 ESC, engineered for stable and responsive flight. The FC features a 42688-P gyroscope, 16MB black box, barometer, and Type-C USB, while offering direct DJI Air Unit plug-and-play support. The dual BECs (9V@2.5A, 5V@3A) and integrated LC filter ensure clean, reliable power. The ESC handles up to 8S LiPo, delivering 65A continuous and 70A burst current, ideal for powerful freestyle and long-range builds.

Key Specifications

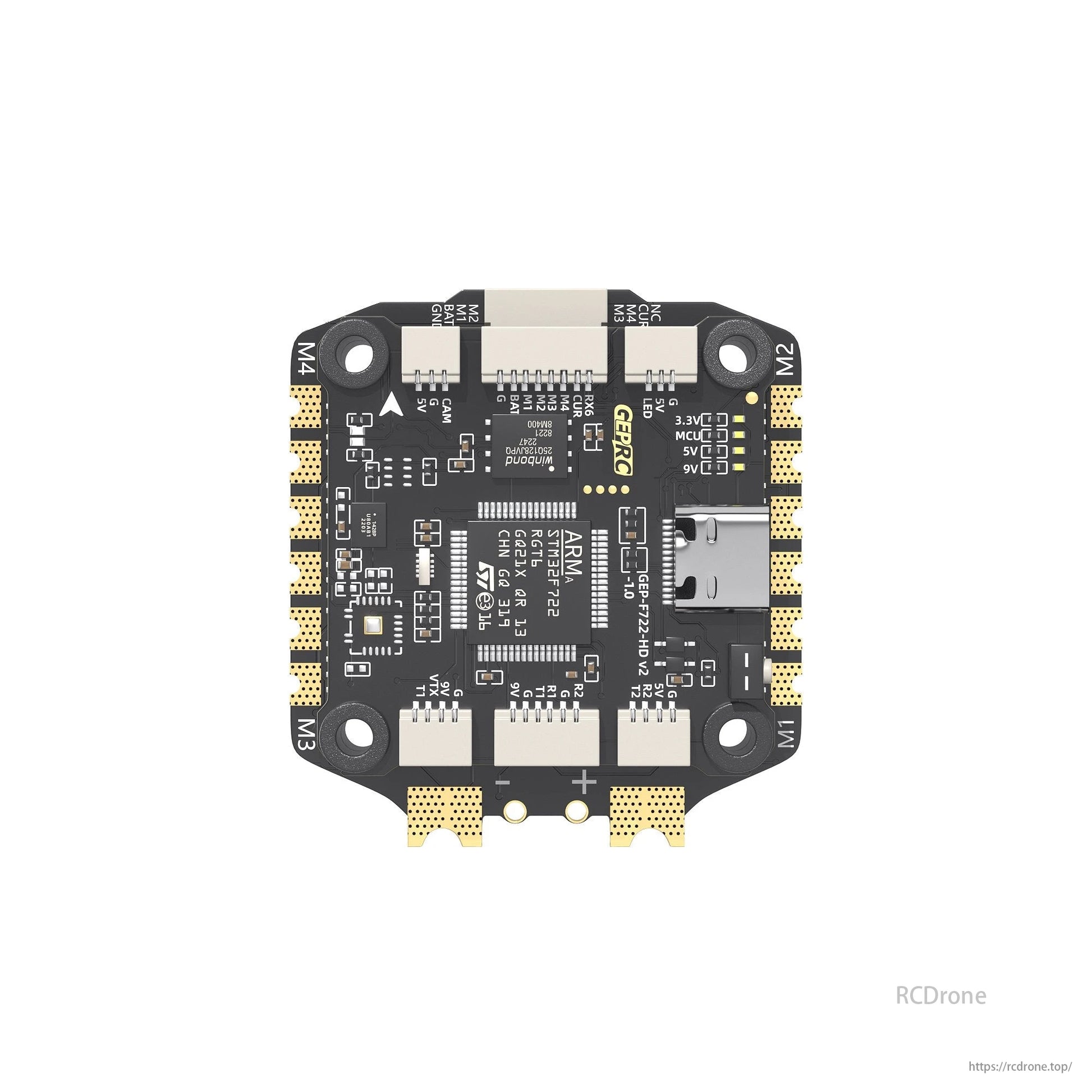

GEP-F722-HD V2 Flight Controller

• MCU: STM32F722

• IMU: ICM42688-P (SPI)

• USB Port: Type-C

• OSD: BetaFlight OSD (AT7456E)

• Barometer: Supported

• Black Box: 16MB onboard

• BEC Outputs: 5V@3A, 9V@2.5A (dual)

• UART Ports: 5

• Mounting: 30.5×30.5mm, φ4mm (φ3mm with silicone)

• Input Voltage: 3-6S LiPo

• Weight: 8.1g

• Firmware Target: GEPRCF722

• Power Filter: Integrated LC

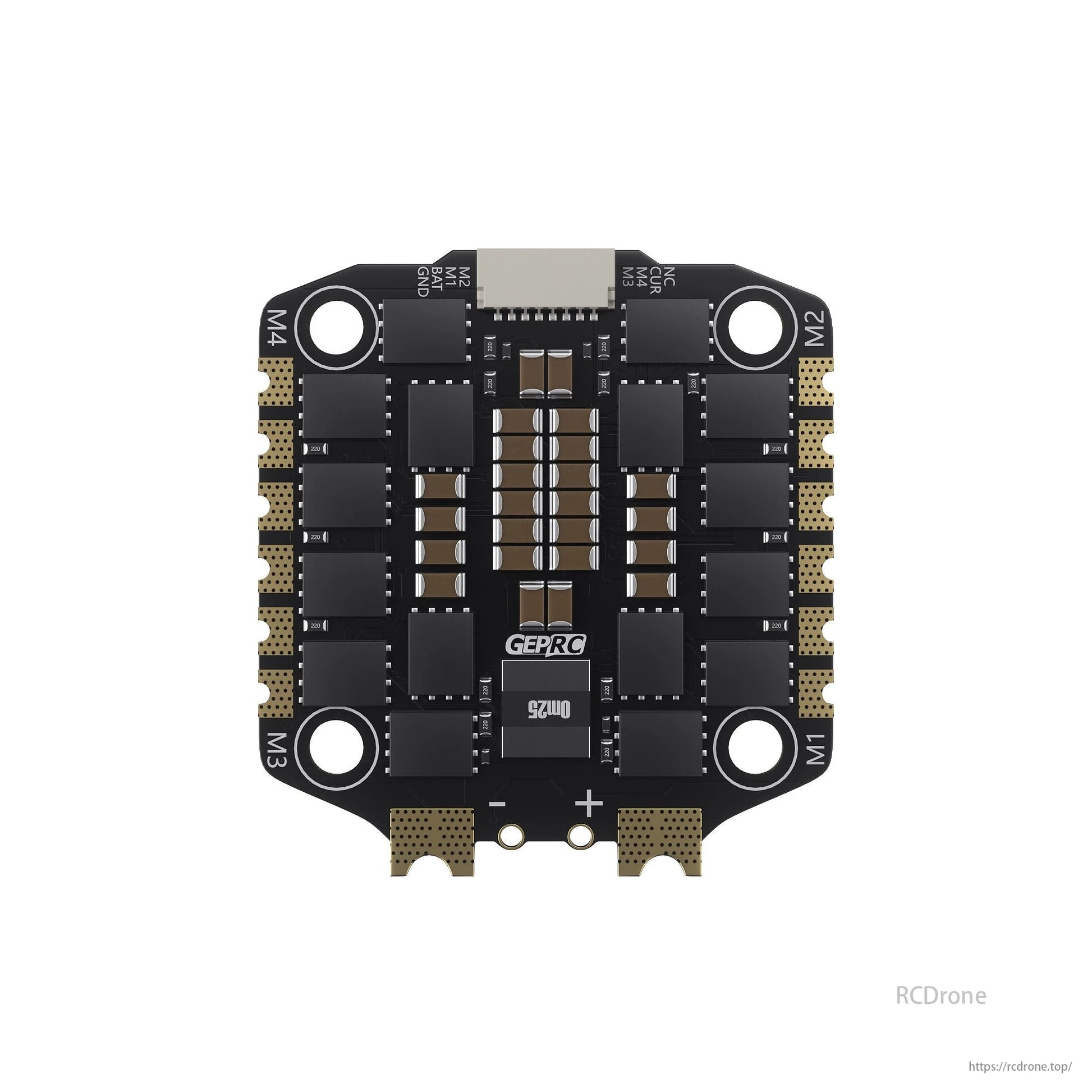

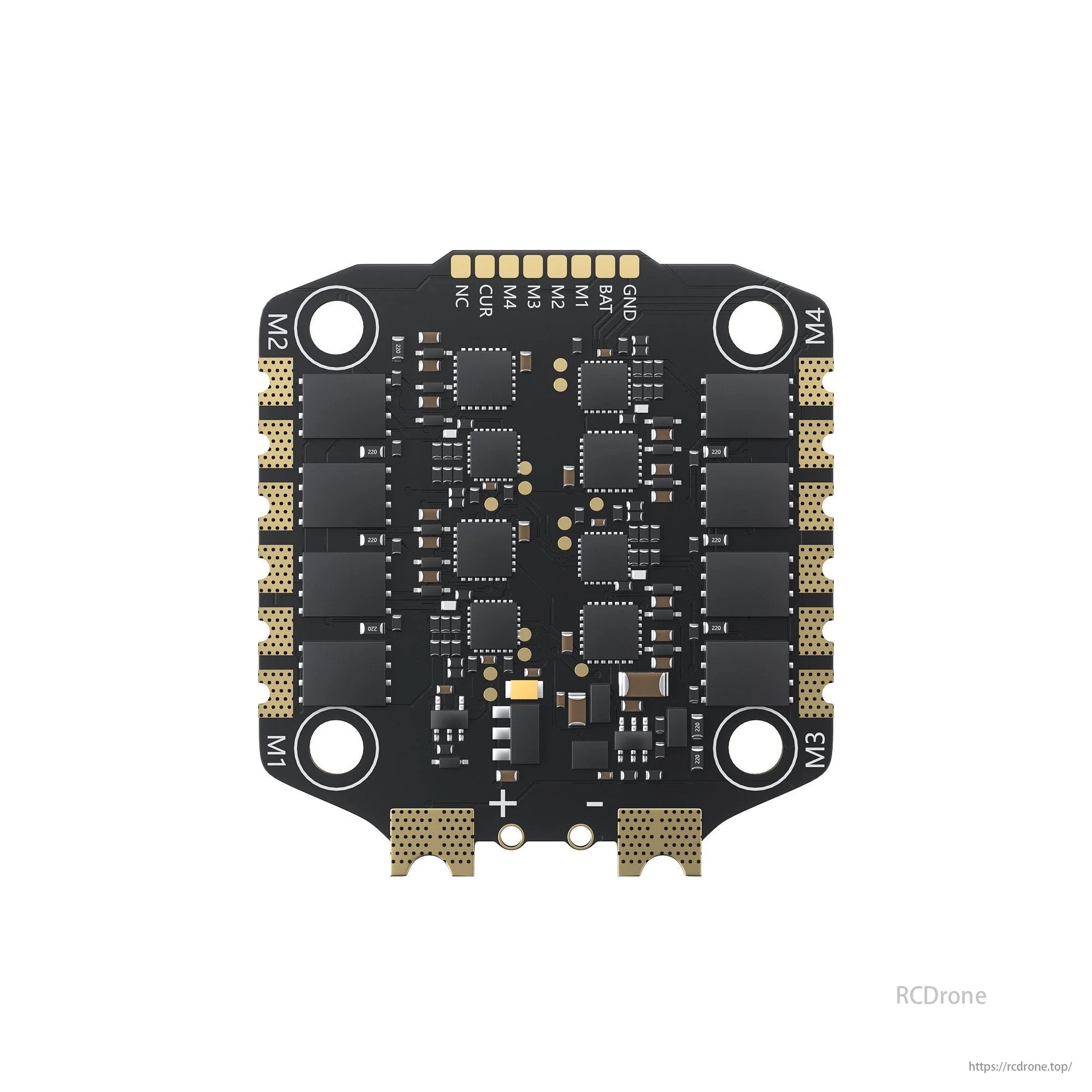

TAKER H65_8S_BLS 65A 4IN1 ESC

• Input Voltage: 3-8S LiPo

• Continuous Current: 65A

• Burst Current: 70A (5 sec)

• Supported Protocols: DShot150/300/600

• Mounting: 30.5×30.5mm, φ4mm (φ3mm with silicone)

• Weight: 14.9g

• Firmware Target: B_X_30

• Ammeter: Supported

What’s Included

• 1 × Flight Controller Board

• 1 × 4-in-1 ESC Board

• 1 × XT60 Power Cable

• 1 × DJI Air Unit Adapter Cable

• 1 × FC Adapter Cable

• 1 × Capacitor

• 2 × SH1.0 4-Pin Silicone Cable

• 1 × Camera Connection Cable

• 4 × M3×30 Screws

• 4 × M3×25 Screws

• 8 × Nylon Nuts

• 8 × Silicone Anti-Shake Pads

Details

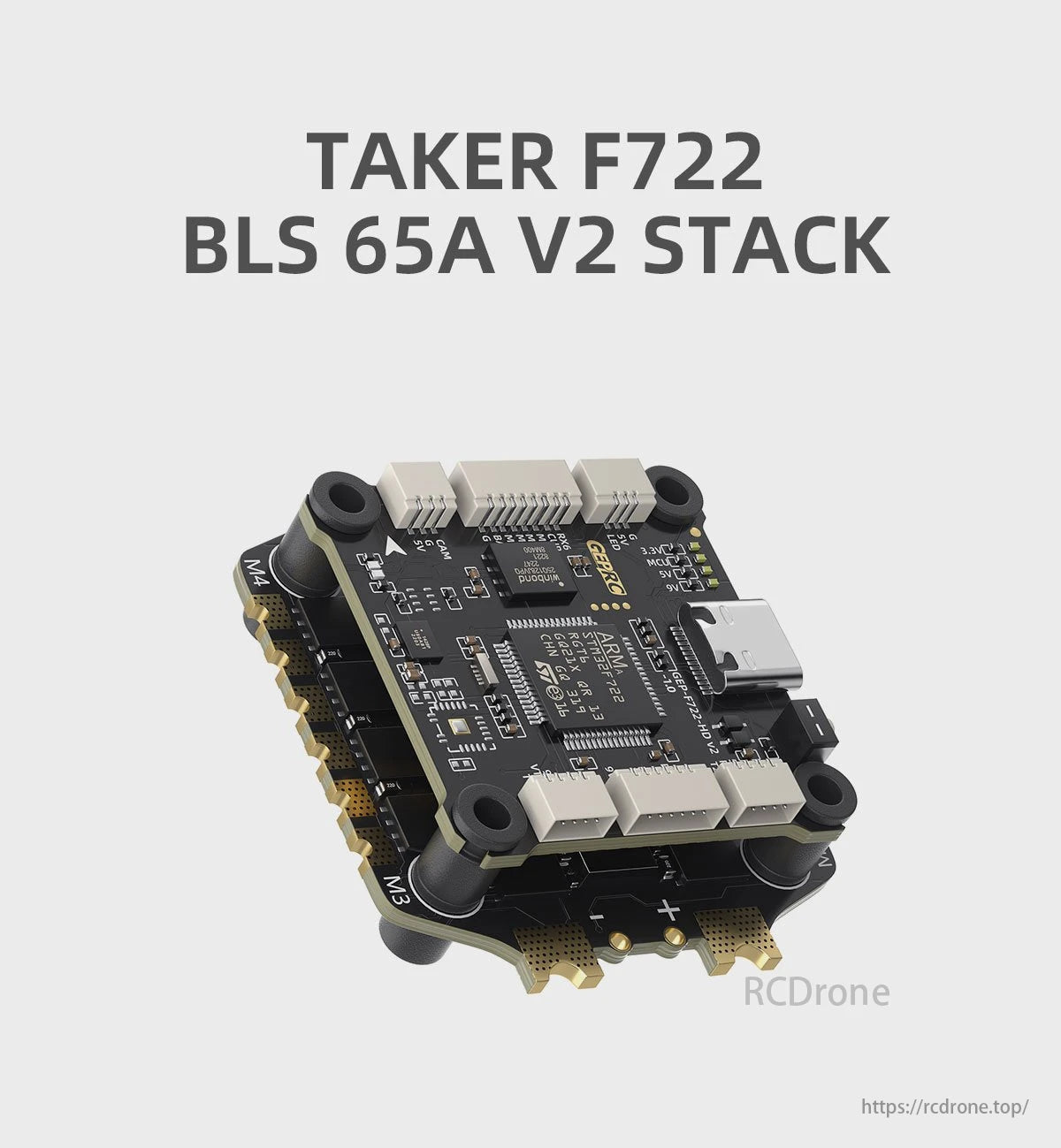

Taker F722 BLS 65A V2 Stack with part number 0282, 3 pieces, serial number 01330.

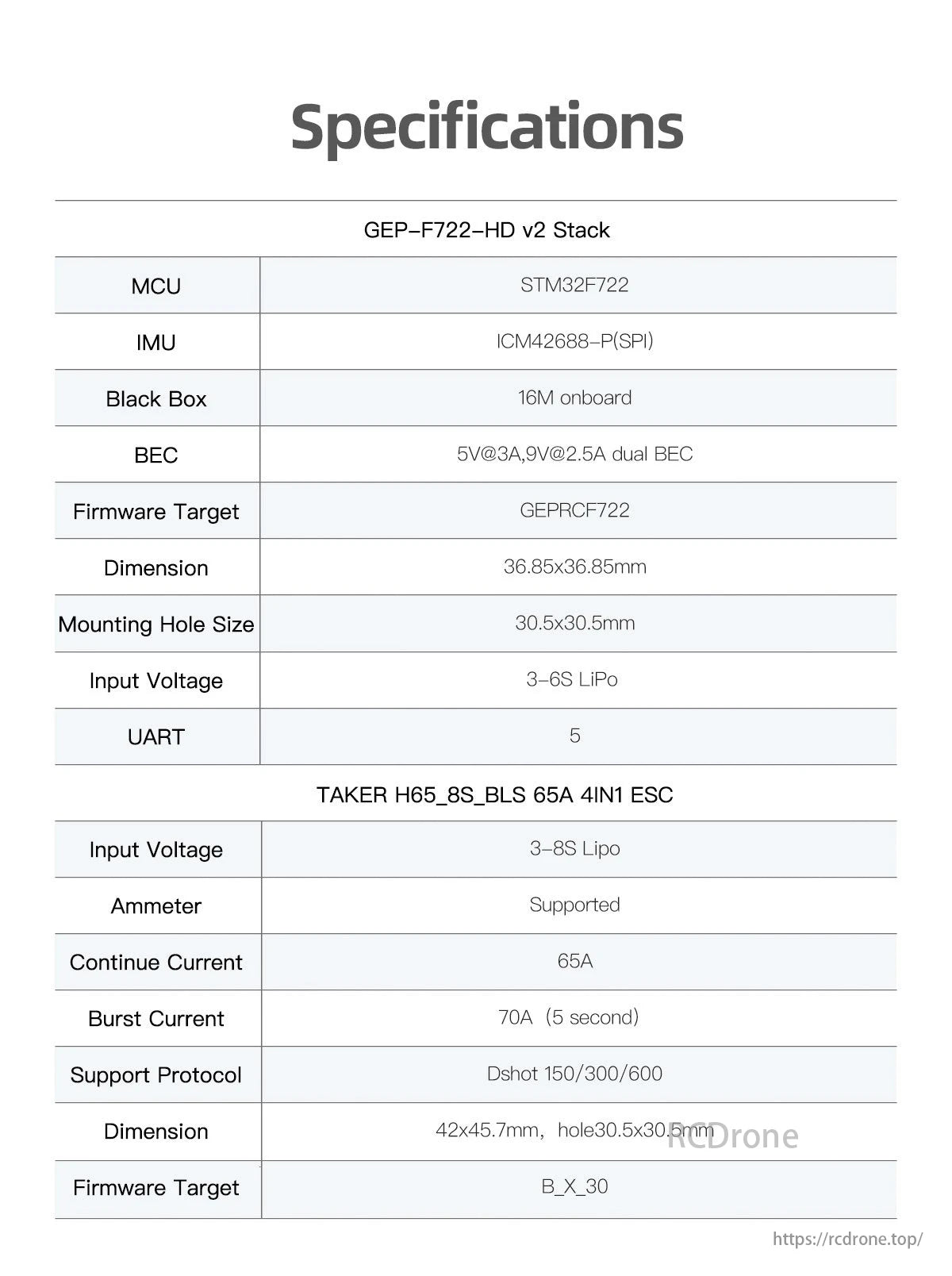

The Specifications GEP-F722-HD v2 includes a Stack MCU STM32F722, IMU ICM42688-P(SPI), and Black Box with 16M onboard BEC providing 5V at 3A and 9V at 2.5A dual BEC. The firmware target is GEPRCF722. The module has dimensions of 36.85x36.85mm with mounting holes of 30.5x30.5mm. It supports input voltage of 3-6S LiPo and UART TAKER H65_8S_BLS for up to 65A. The ESC input voltage range is 3-8S Lipo, and the ammeter supports continuous current of 65A with burst current of 70A (5 seconds). The protocol supported is Dshot 150/300/600.

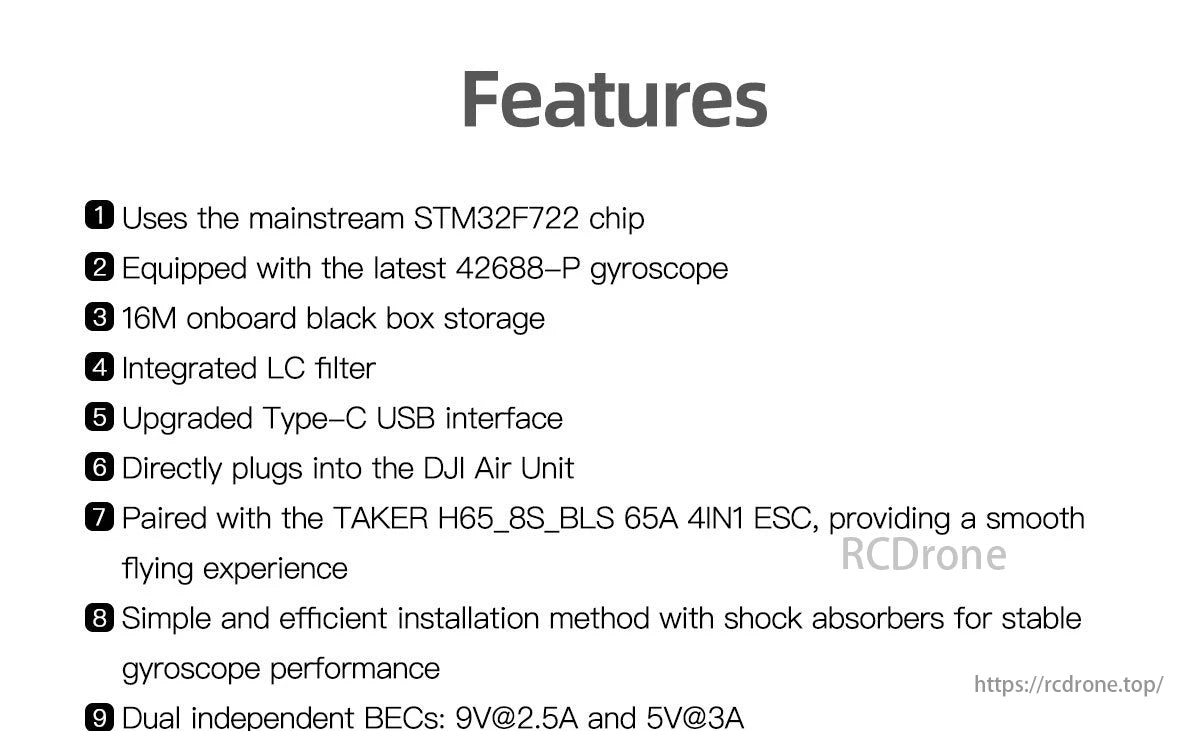

The features use the mainstream STM32F722 chip, equipped with the latest 42688-P gyroscope and 16M onboard black box storage. It has an integrated LC filter and upgraded Type-C USB interface, directly plugging into the DJI Air Unit. The product is paired with a TAKER H65_8S_BLS 65A 4INI ESC for a smooth flying experience.

The product display features an 8-volt output with 0.3 volts voltage and 7.35 watts power, suitable for P14-32 applications.

High-voltage power supply device with a model number and specifications for 98.29 kilovolts direct current

Curved cable for 8/3 and 4/8 applications, GND connection, and 888 units with 2923765 serial number. RGTS 4722-HD device features a 39-inch length and suitable for various uses.

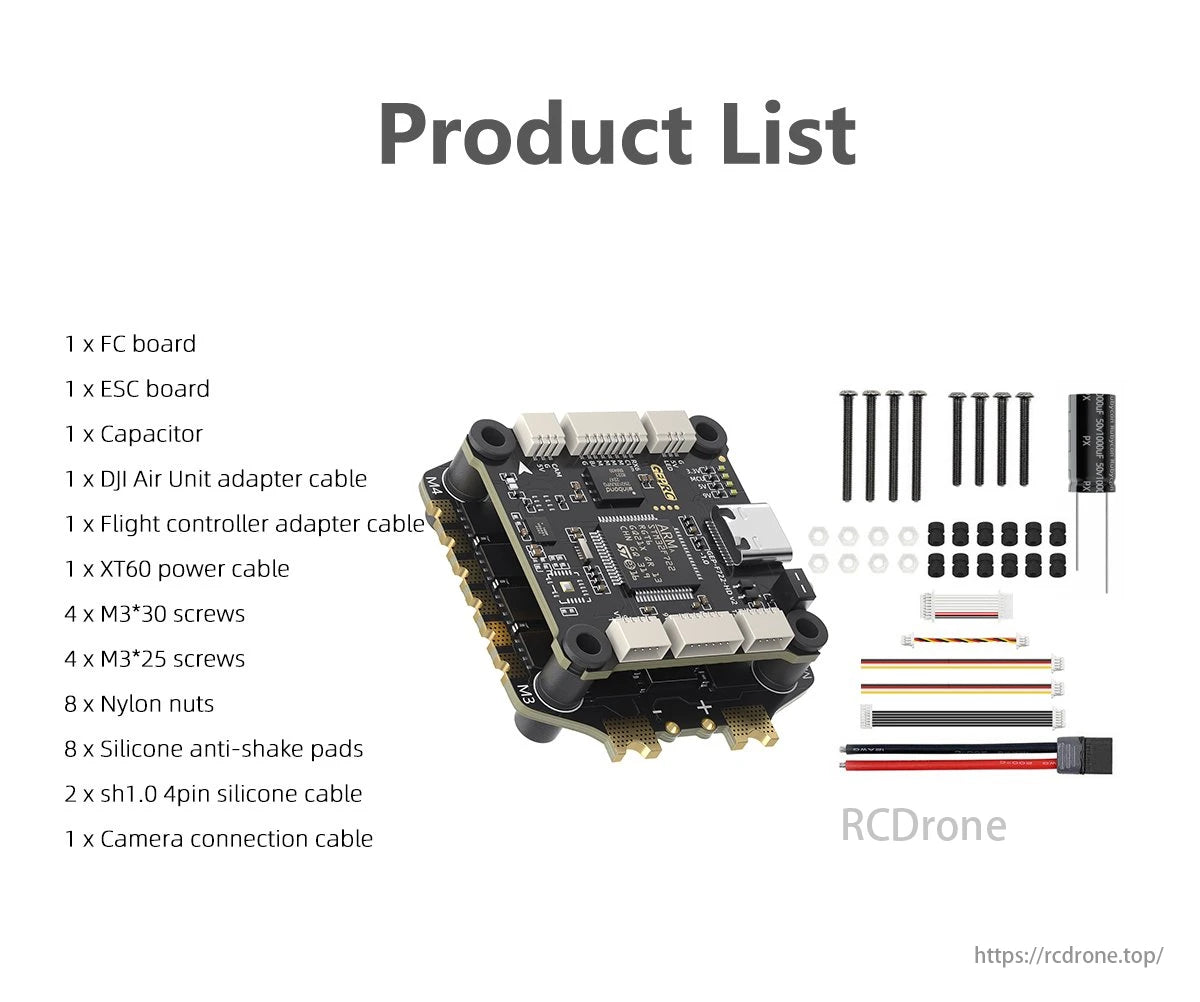

Product list includes FC board, ESC board, capacitor, adapter cables, XT60 power cable, screws, nylon nuts, silicone pads, and camera connection cable.
