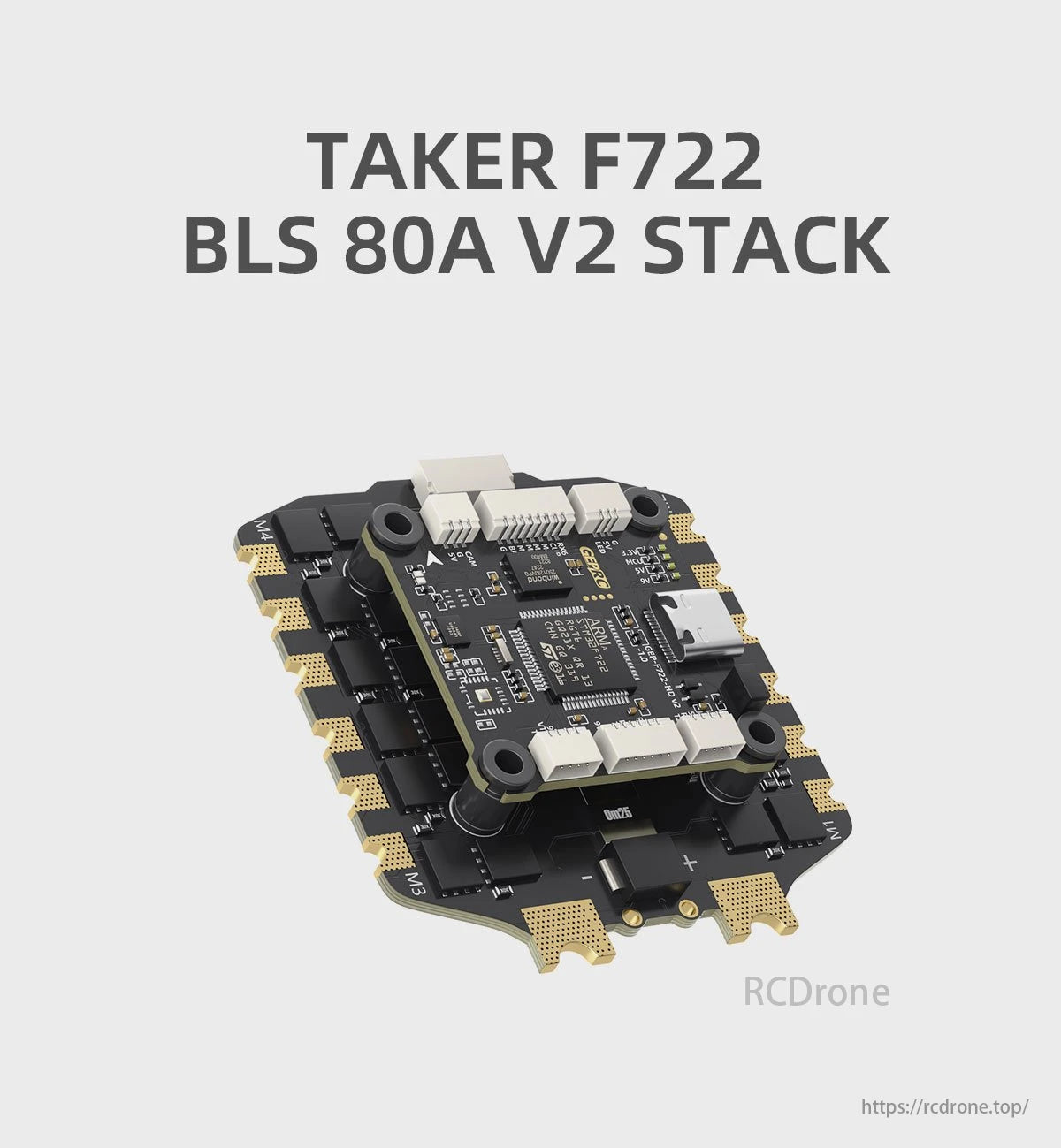

GEPRC TAKER F722 BLS 80A V2 Stack – STM32F722 FC + 80A 4in1 ESC for 3–6S High-Performance FPV Drones

Overview

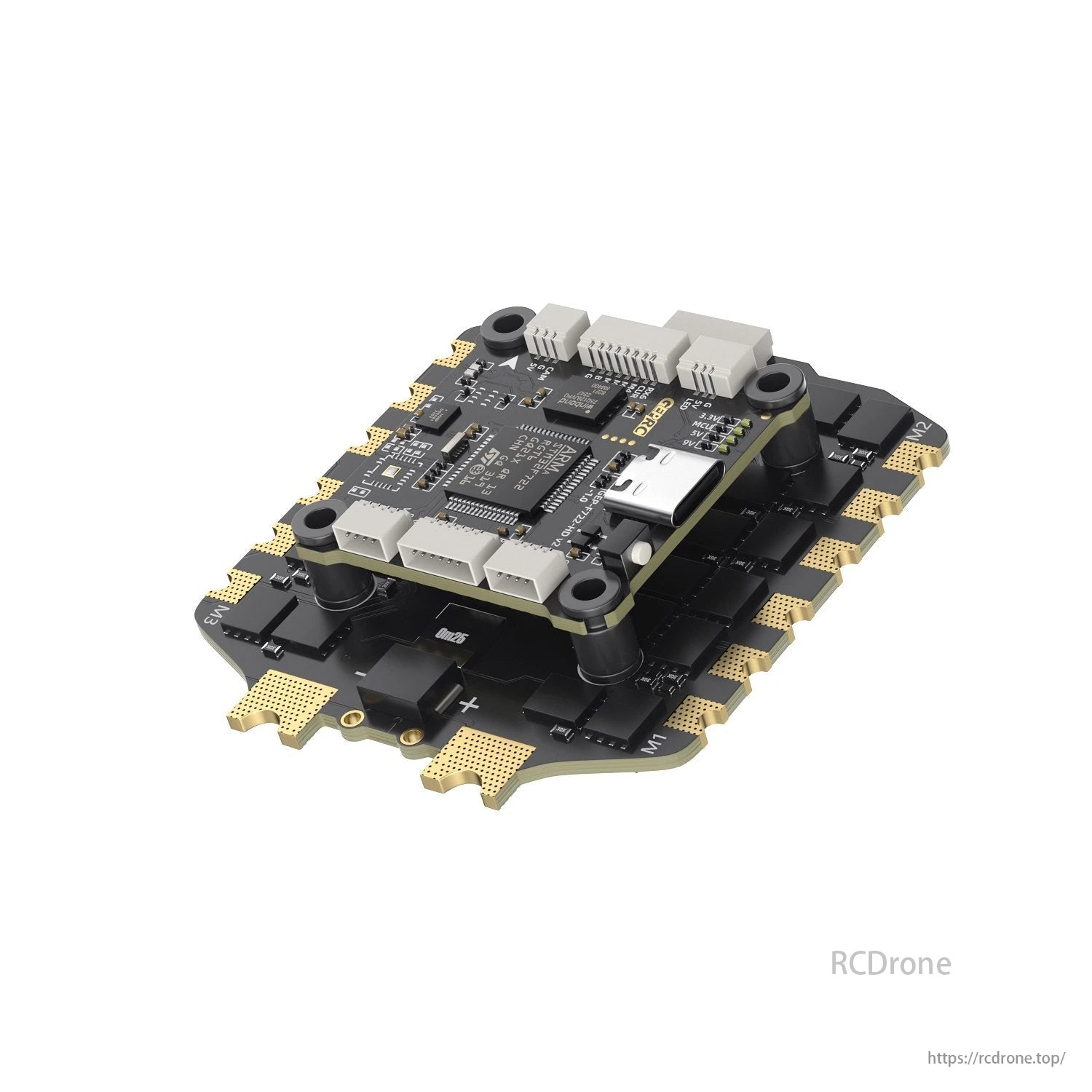

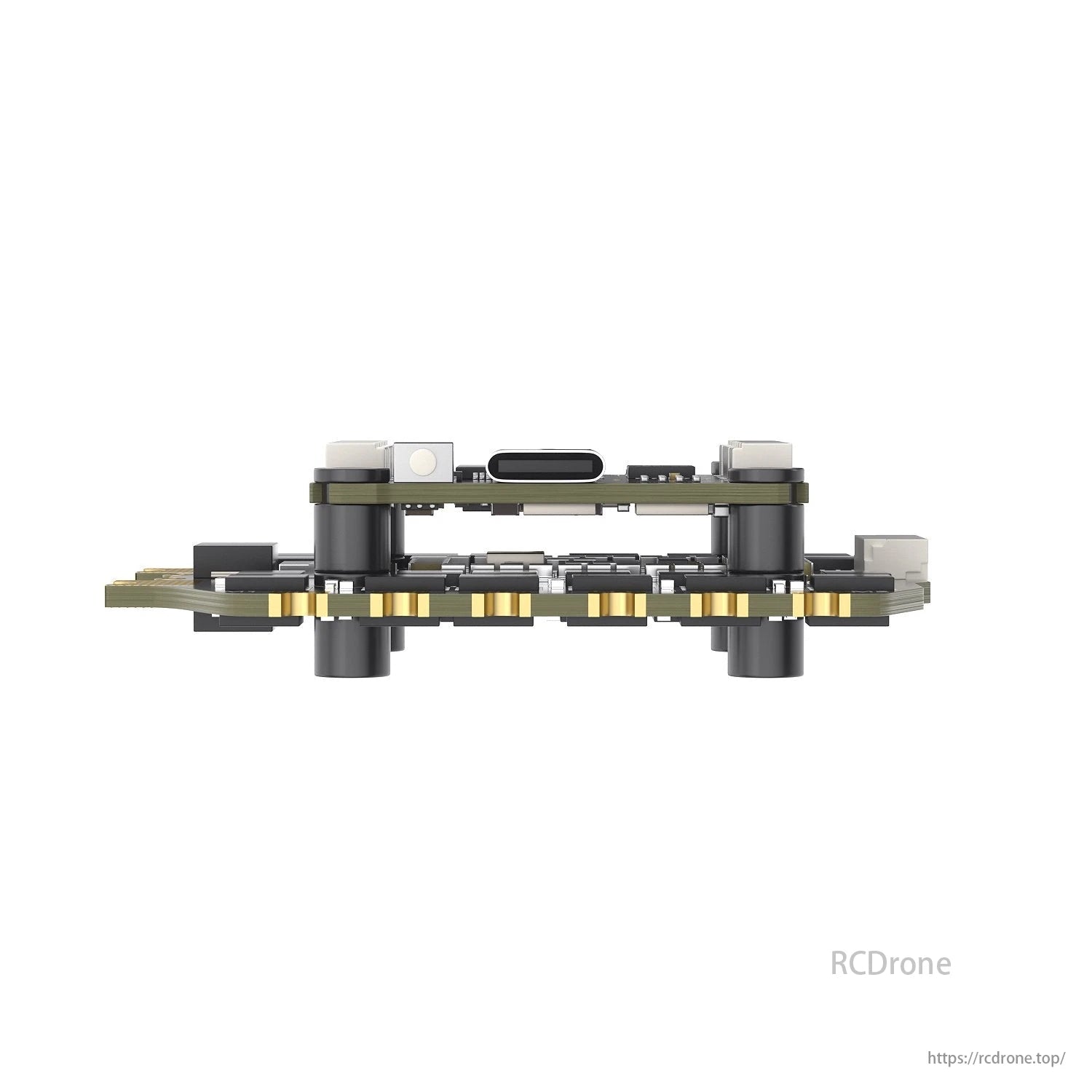

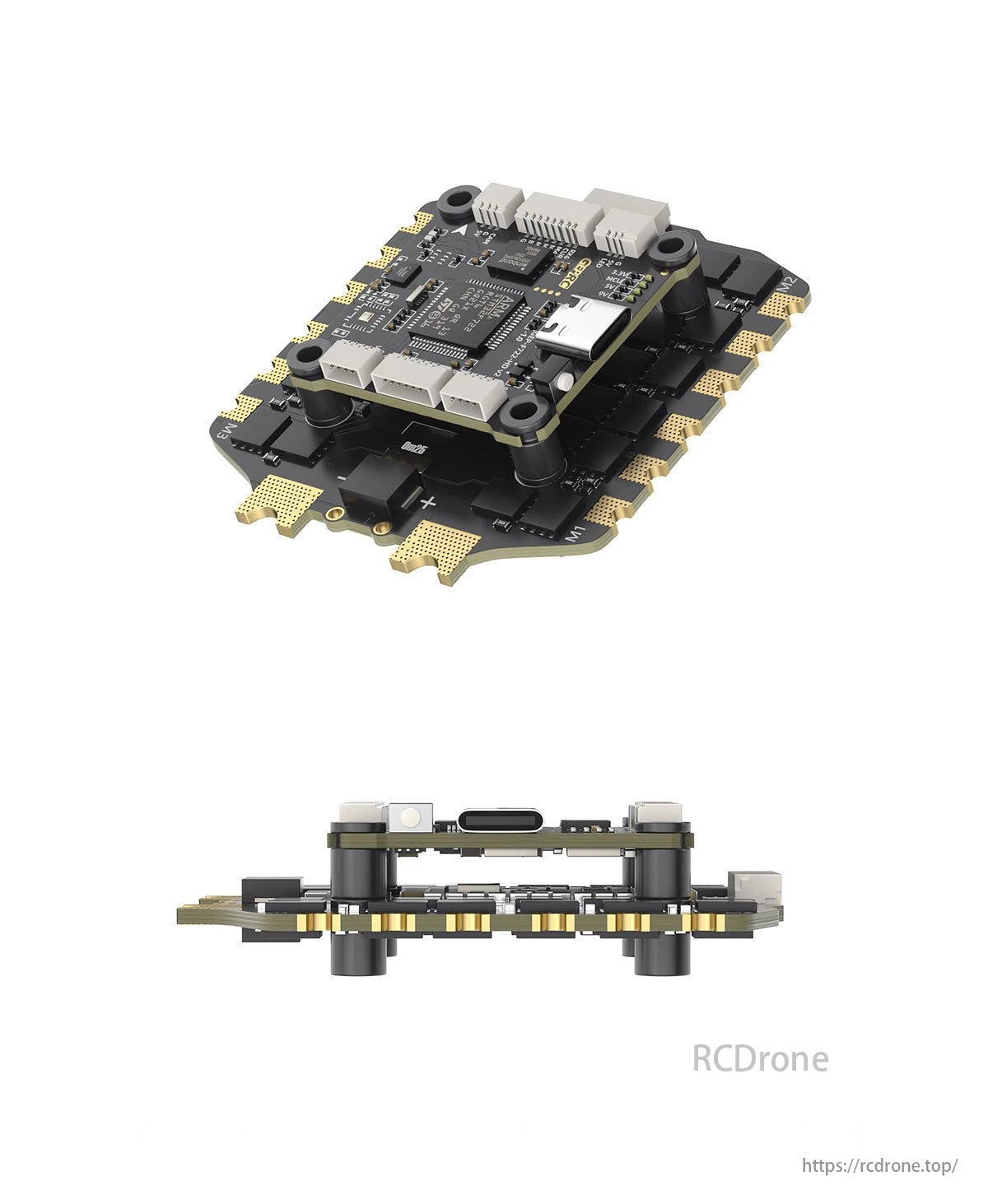

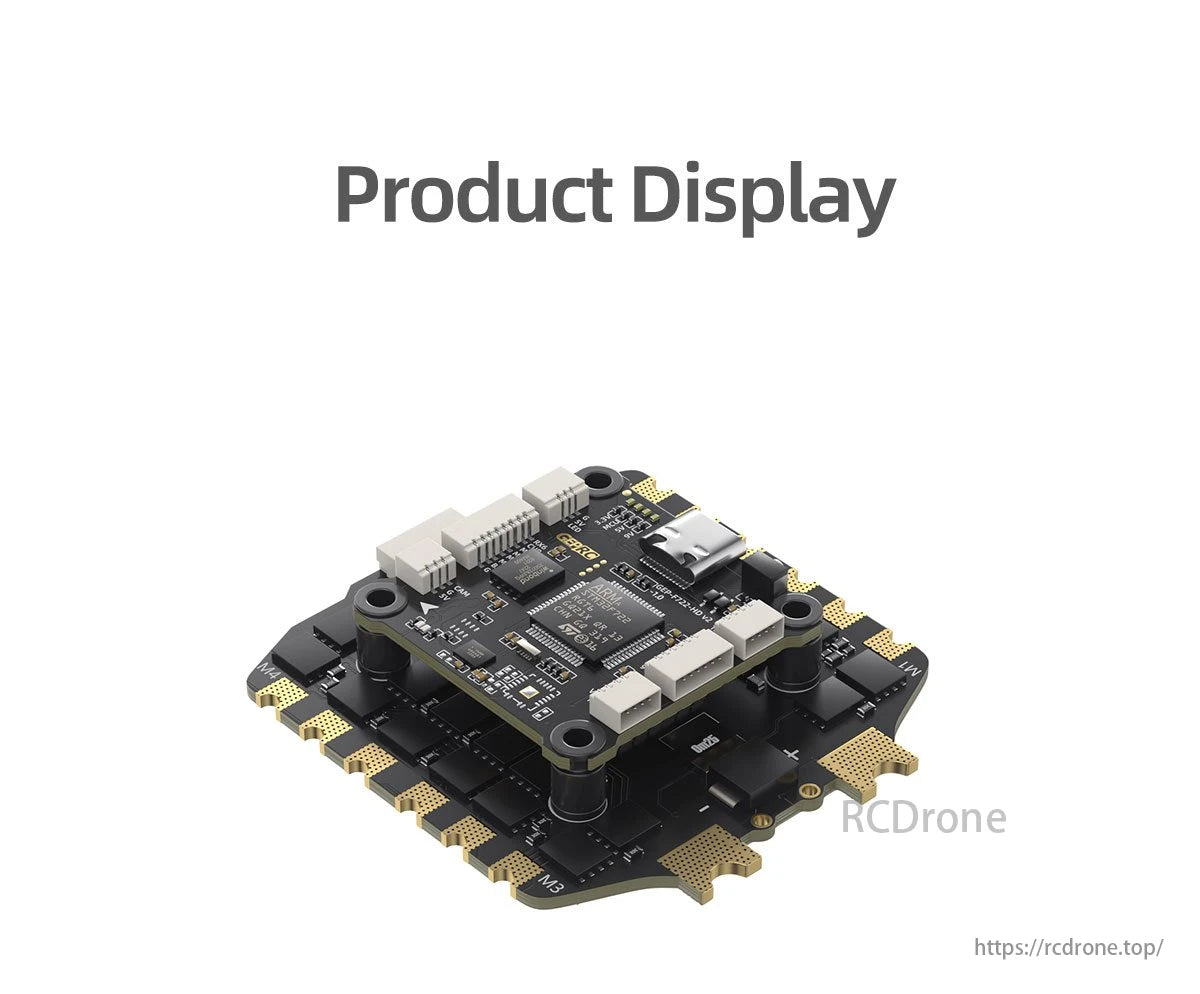

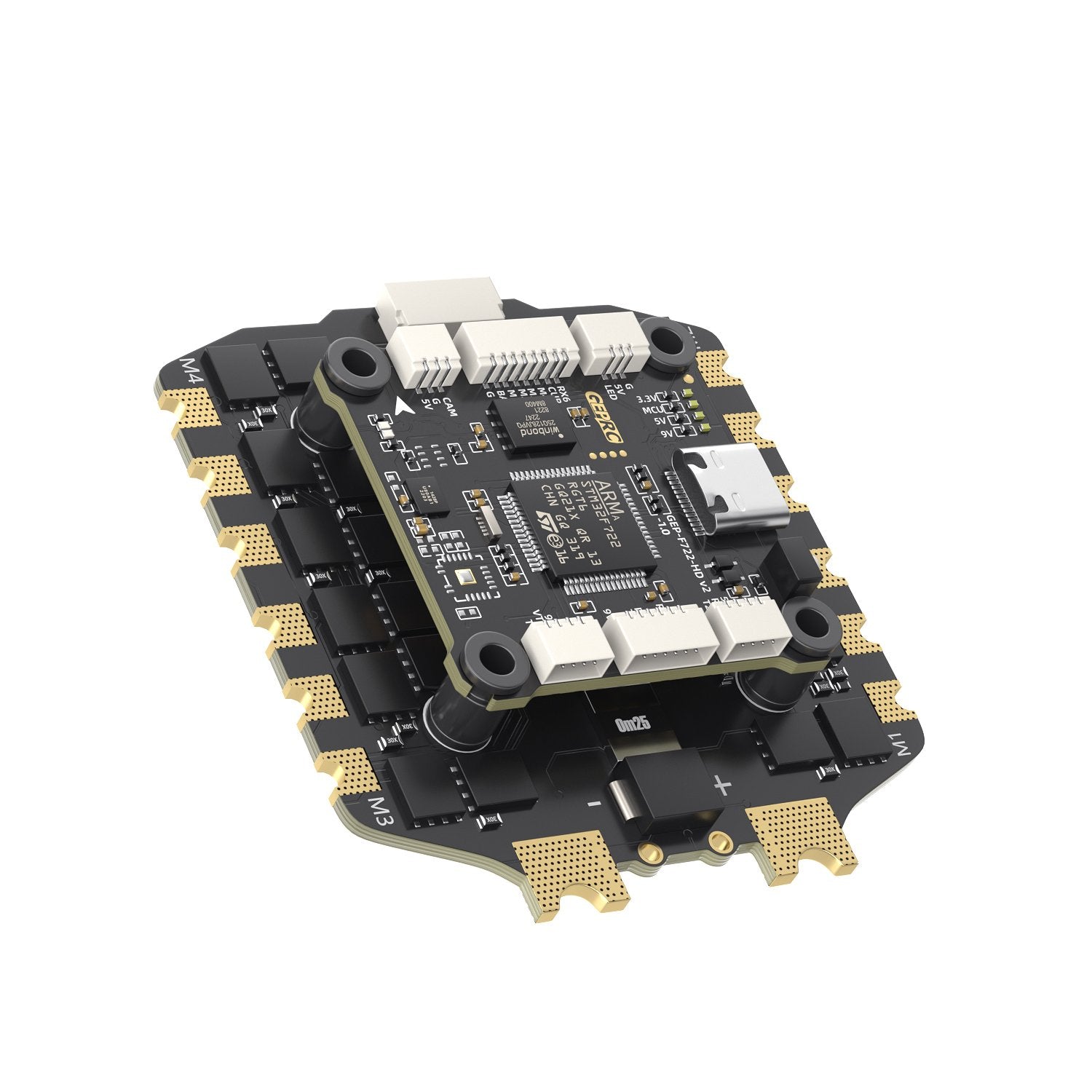

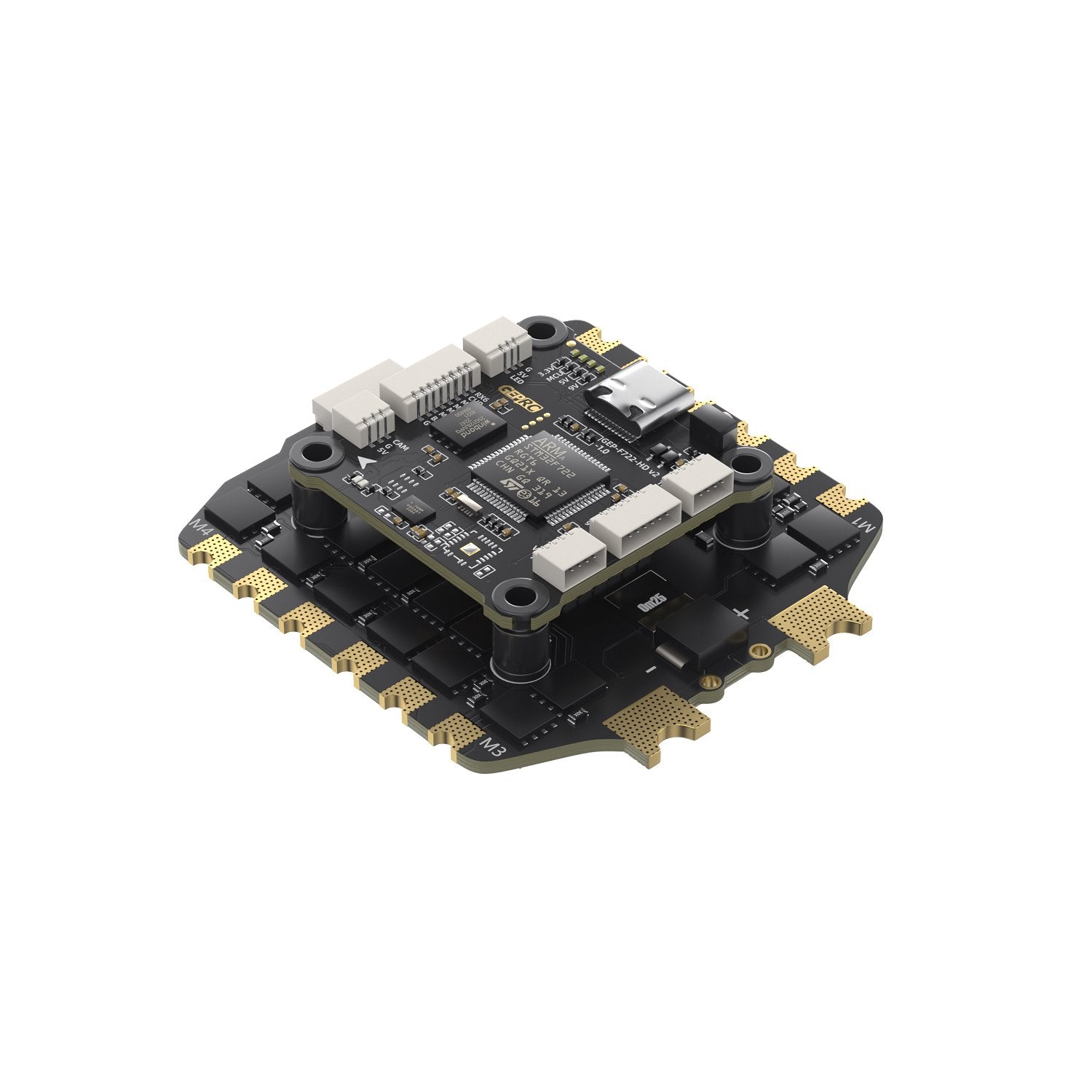

The GEPRC TAKER F722 BLS 80A V2 Stack is a premium flight controller stack designed for high-power FPV drones demanding exceptional performance and reliability. It integrates the advanced GEP-F722-HD V2 flight controller, powered by the STM32F722 MCU and high-precision ICM42688-P gyroscope, with the robust TAKER H80_BLS 80A 4IN1 ESC, capable of handling up to 80A continuous current on 3–6S LiPo.

Whether you're building a freestyle powerhouse, long-range explorer, or cinematic rig, this stack delivers the processing capability, clean power, and durable construction to elevate your FPV experience.

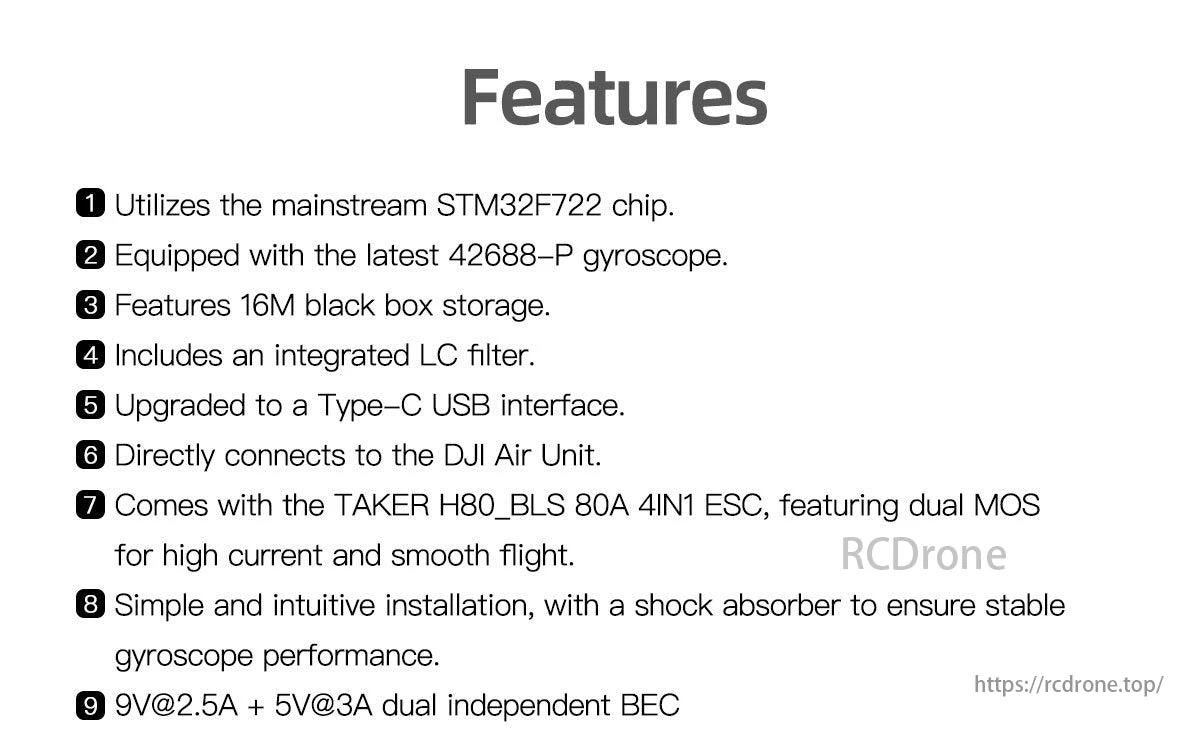

Features

Flight Controller (GEP-F722-HD V2)

• STM32F722 chip offers high-speed processing and expanded UART support

• ICM42688-P SPI gyro ensures low-noise, stable sensor data

• 16MB onboard black box for precise flight logging

• Integrated LC filter for clean power and reduced video noise

• Type-C USB for modern, reliable connections

• Direct plug support for DJI Air Unit – no soldering required

• Dual independent BECs: 5V@3A and 9V@2.5A

• BetaFlight OSD with AT7456E chip

• Barometer supported for altitude hold and telemetry

• Shock-absorbing grommets improve flight stability by isolating gyro vibrations

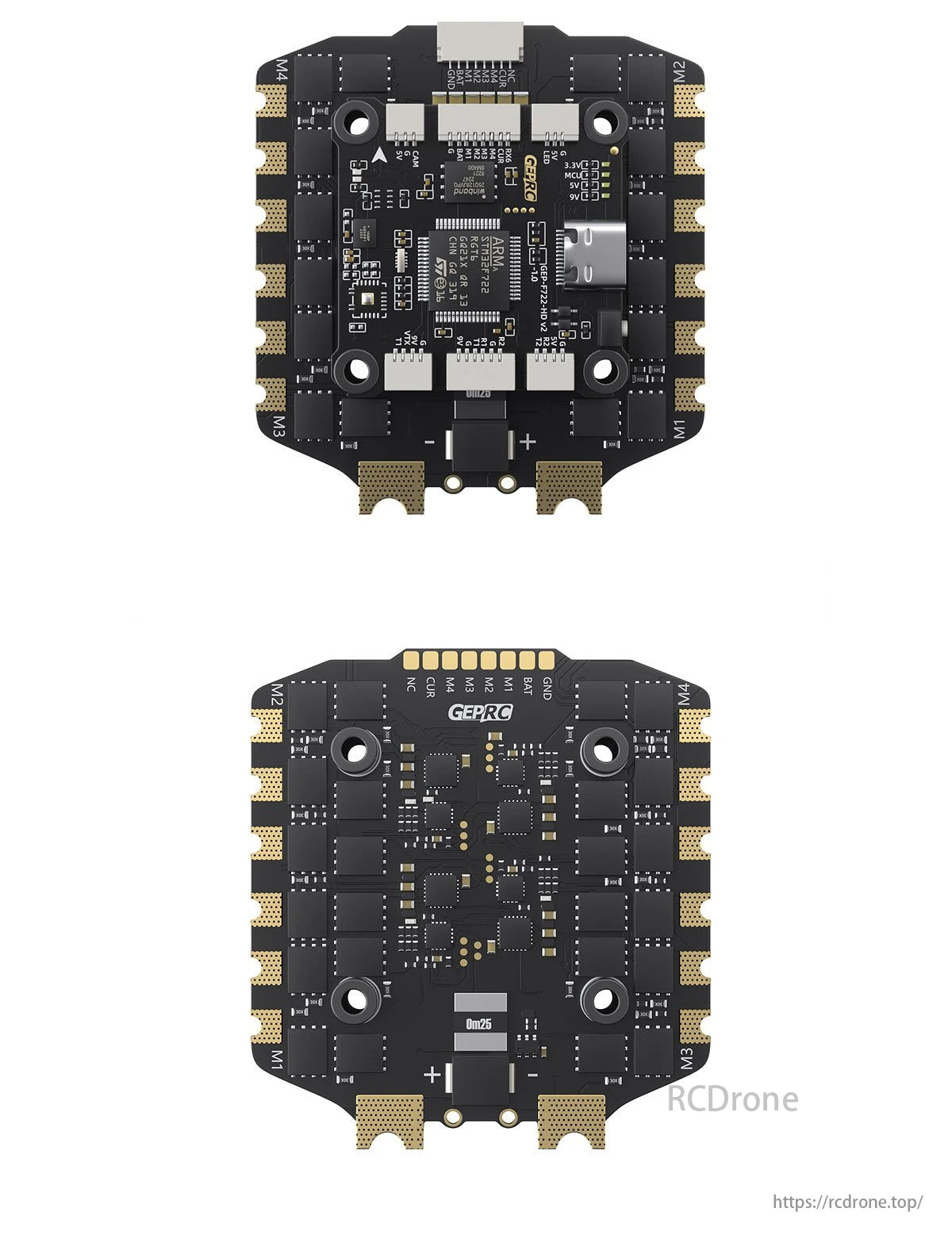

• Compact and clean layout with easy installation

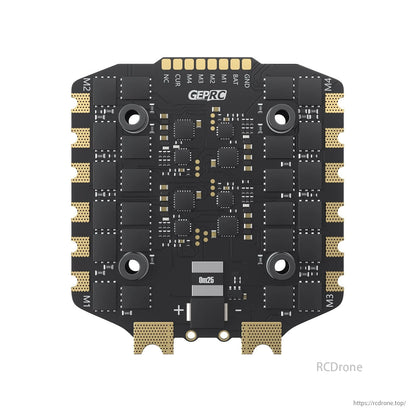

ESC (TAKER H80_BLS 80A 4in1)

• Supports 3–6S LiPo voltage input

• Delivers up to 80A continuous, 85A burst current (5s)

• Dual MOS design for improved current capacity and thermal performance

• Compatible with DShot150 / DShot300 / DShot600 protocols

• Integrated current sensor (ammeter) for accurate power telemetry

• Rugged construction for reliable power delivery in extreme flight conditions

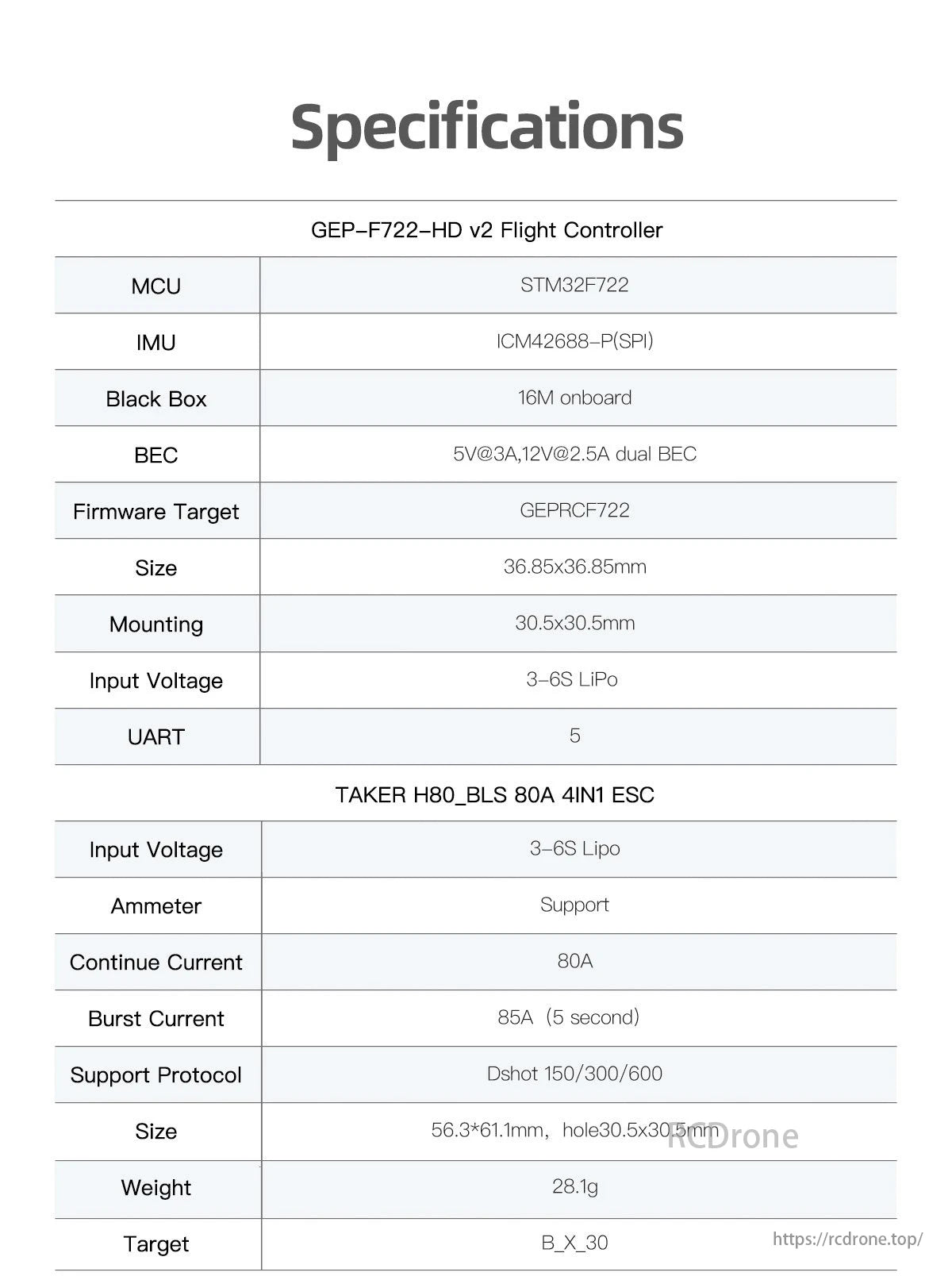

Specifications

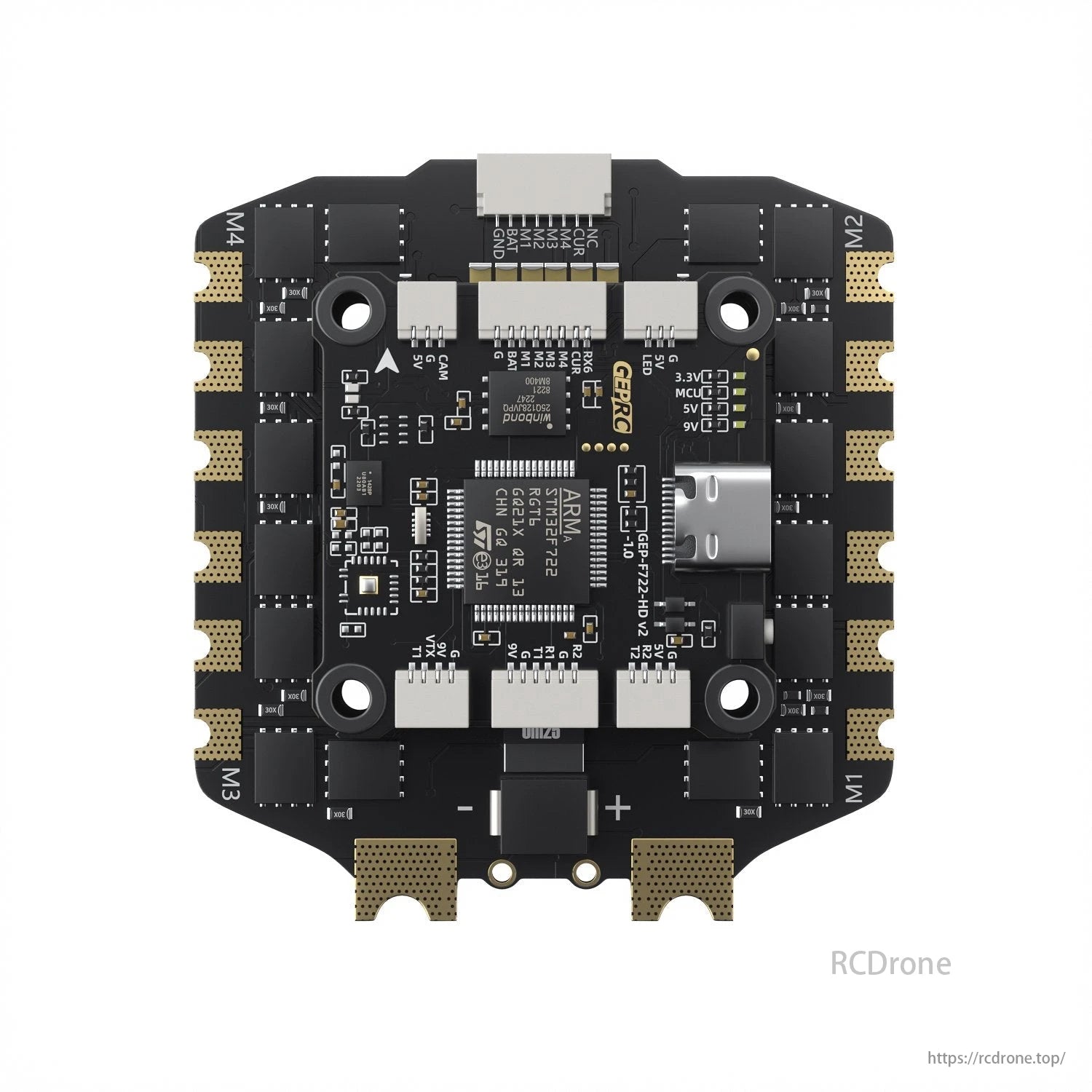

Flight Controller – GEP-F722-HD V2

• MCU: STM32F722

• Gyro: ICM42688-P (SPI)

• Black Box: 16MB onboard

• USB: Type-C

• Barometer: Supported

• OSD: BetaFlight OSD w/ AT7456E

• BEC Output: 5V@3A + 9V@2.5A

• Firmware Target: GEPRCF722

• UART Ports: 5

• Input Voltage: 3–6S LiPo

• Mounting: 30.5×30.5mm (φ4mm / φ3mm with silicone grommets)

• Size: 36.85 × 36.85mm

• Weight: 8.1g

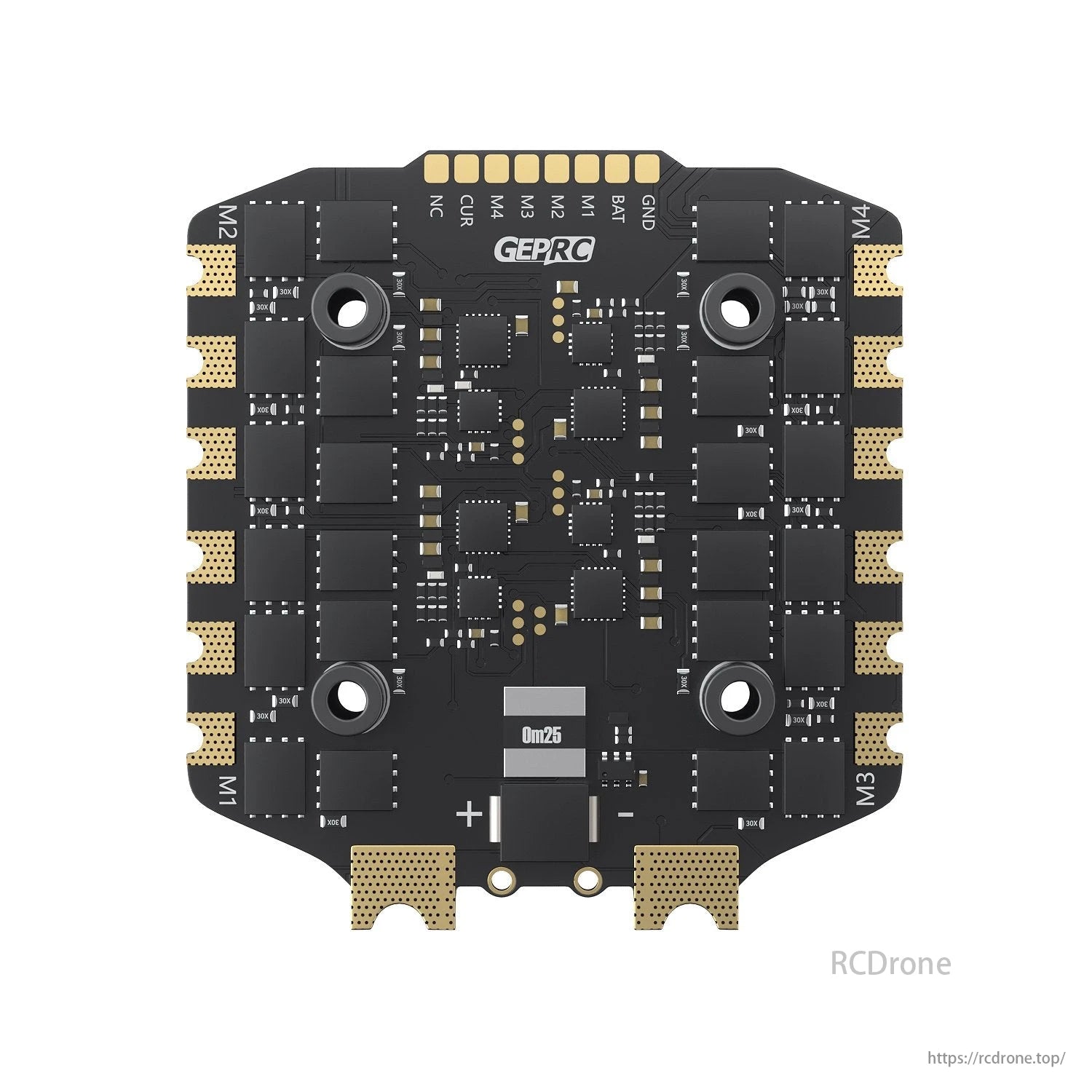

ESC – TAKER H80_BLS 80A 4in1

• Input Voltage: 3–6S LiPo

• Continuous Current: 80A

• Burst Current: 85A (5s)

• ESC Protocols: DShot150 / 300 / 600

• Current Sensor: Supported

• Firmware Target: B_X_30

• Mounting: 30.5×30.5mm (φ4mm / φ3mm with grommets)

• Size: 56.3 × 61.1mm

• Weight: 28.1g

Application Scenarios

This stack is engineered for 6S freestyle quads, cinematic rigs with heavy payloads, and long-range platforms that require reliable high-current handling and responsive control. Ideal for advanced FPV pilots seeking top-tier performance with full BetaFlight compatibility and DJI Air Unit integration.

Details

Taker F722 Bls 8OA V2 is a water filter system designed for home use. It has a capacity of 4440e and comes with Goea 793 instructions. The product is suitable for 33, 48, or 05 gallons per minute.

Specifications GEP-F722-HD v2 Flight Controller features an STM32F722 MCU, ICM42688-P IMU, and a Black Box with 16M of onboard storage. It has dual BECs providing 5V at 3A and 12V at 2.5A. The firmware target is GEPRCF722.

The product features the popular STM32F722 chip. It comes with a recent 42688-P gyroscope, 16M black box storage, and an integrated LC filter. A Type-C USB interface has been added for improved connectivity. The DJI Air Unit can be directly connected to this device. It includes a TAKER H8O_BLS 8OA 4INI ESC with dual MOSFETs for high current and smooth flight.

38-03223 2.78V@puoqum 8MVG; 9vC 2 63 8 8232 84@48 4F _5 1 32o2 Haf '333 2 2R 8 8 ? 8 3 = % 3 2 GEPRC
