GEPRC TAKER F722 BT 65A FPV Drone Stack – F722 FC, 512MB Blackbox, Bluetooth, 8S 4in1 ESC

Overview

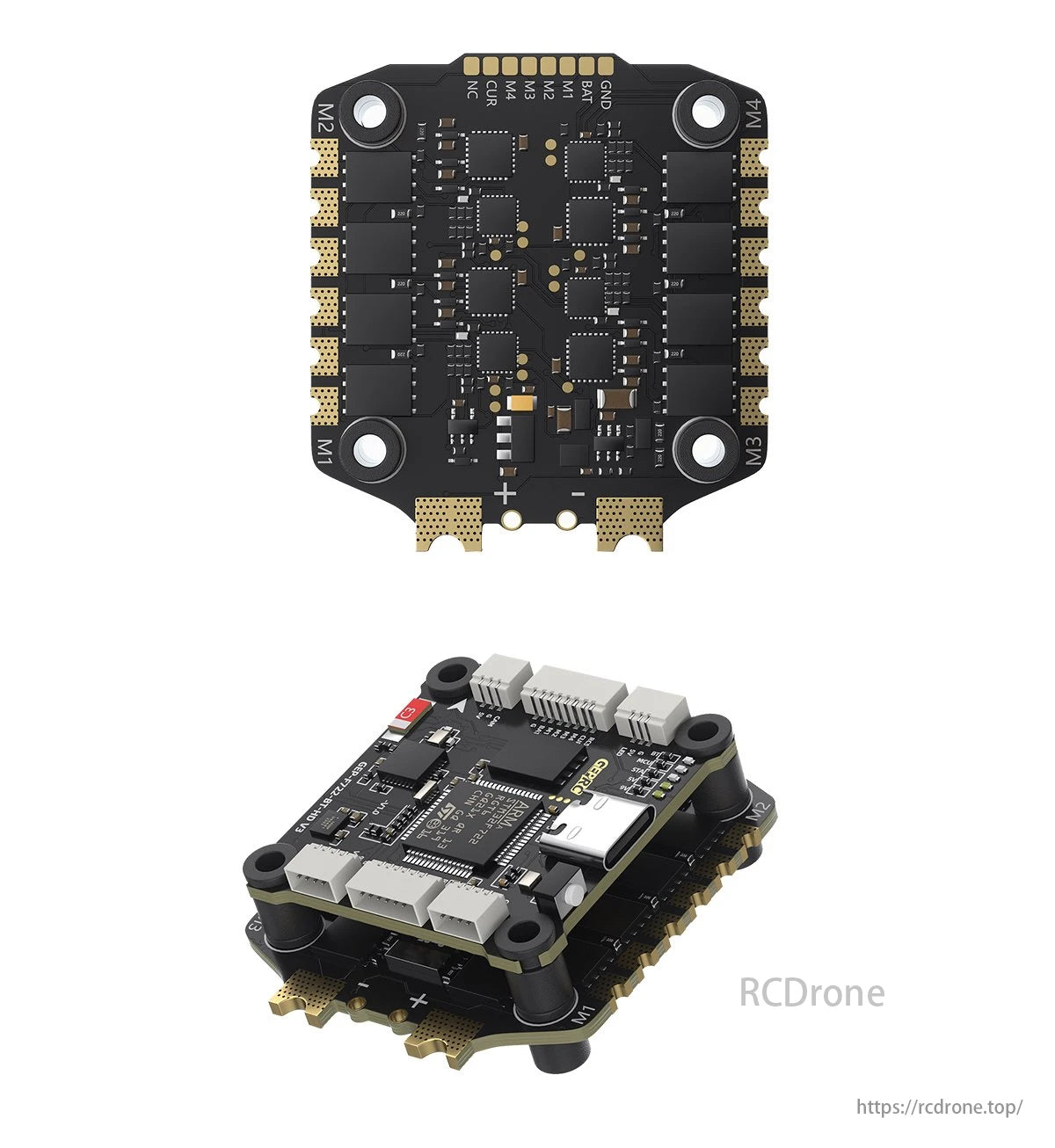

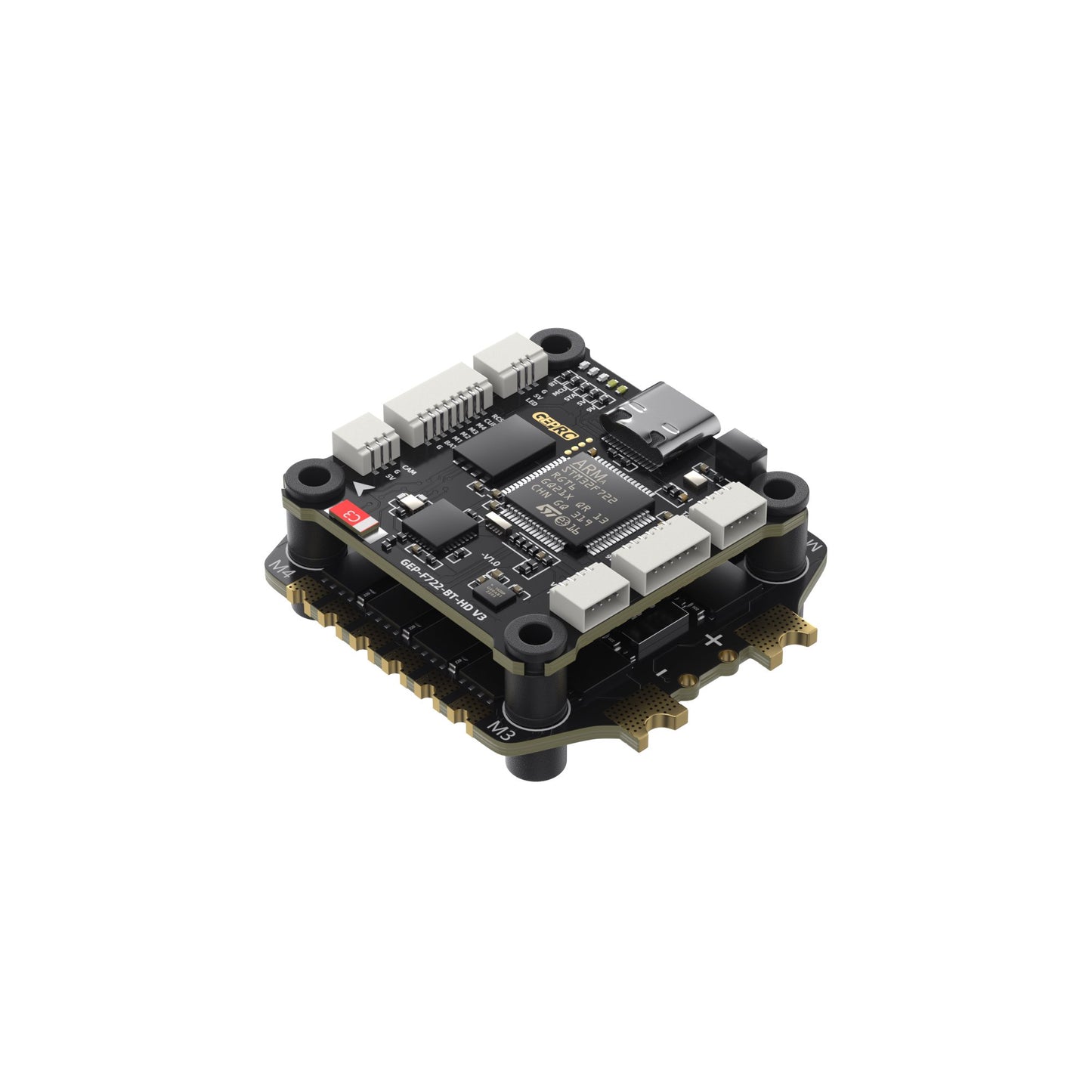

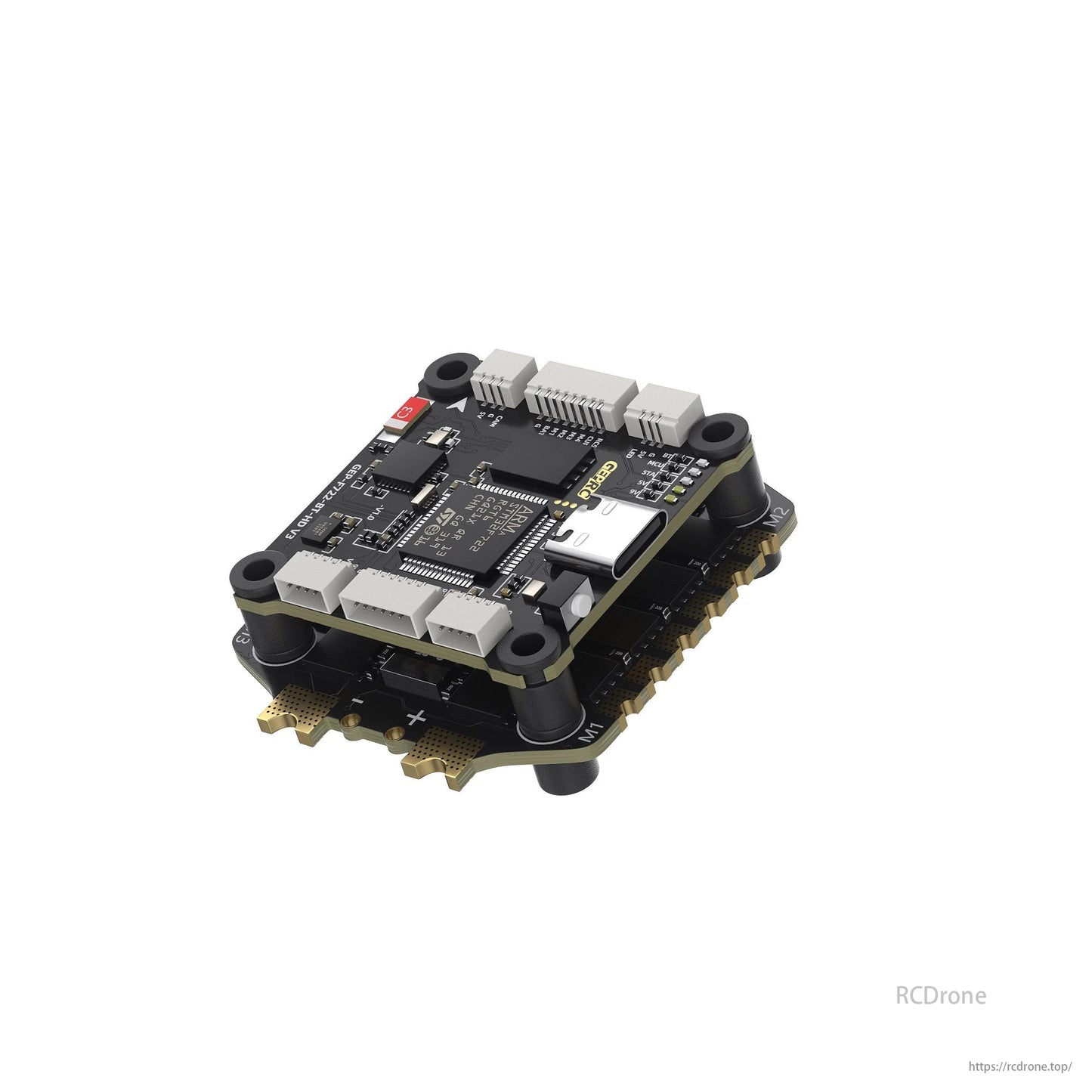

The GEPRC TAKER F722 BT 65A Stack is a high-performance solution for building powerful FPV drones, supporting up to 8S LiPo configurations. This stack integrates the F722 flight controller with Bluetooth tuning and a 512MB blackbox, offering precise control and easy configuration. Paired with the H65 65A 4-in-1 ESC, it delivers reliable power for freestyle, racing, or long-range FPV drones. Designed for seamless DJI Air Unit integration and clean power delivery, it’s ideal for advanced digital FPV setups.

Flight Controller Specifications – GEP-F722-BT-HD V3

ESC Specifications – TAKER H65_8S_BLS 4in1 ESC

What's Included

• 1 × F722-BT Flight Controller

• 1 × H65 4in1 65A ESC

• 1 × Capacitor

• 1 × O3 3-in-1 Connection Cable

• 1 × FC Adapter Cable

• 1 × SH1.0 4-Pin Silicone Cable

• 1 × Camera Connection Cable

• 1 × VTX Connection Cable

• 1 × XT60 Power Cable

• 4 × M3×30 Screws

• 4 × M3×25 Screws

• 8 × Nylon Nuts

• 12 × Silicone Anti-Vibration Pads

This stack is ideal for advanced FPV drone builds, especially for 5-inch to 7-inch digital quads requiring clean power, high current capacity, and onboard tuning convenience.

Details

High-performance 8-bit brushless motor for F722 GT series quadcopters with a powerful 65A current rating and excellent temperature control.

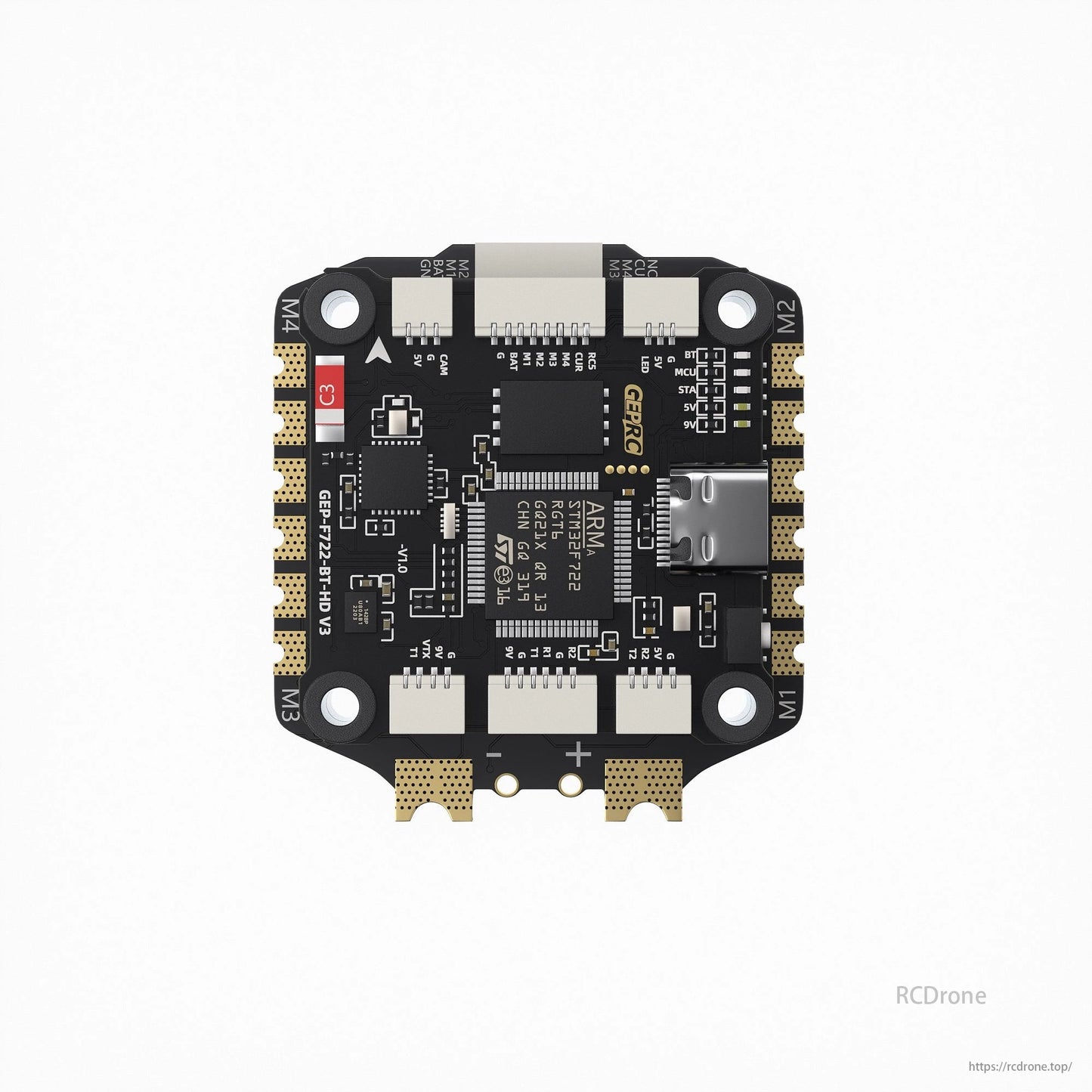

Specifications GEP-F722-BT-HD V3 Flight Controller features an STM32F722 MCU, ICM42688-P IMU, and directly plugs into the DJI Air Unit Black Box. It has a 512M onboard Bluetooth module, barometer, and USB interface Type-C. The OSD uses a BetaFlight chip with AT74S6E and dual BEC for power output.

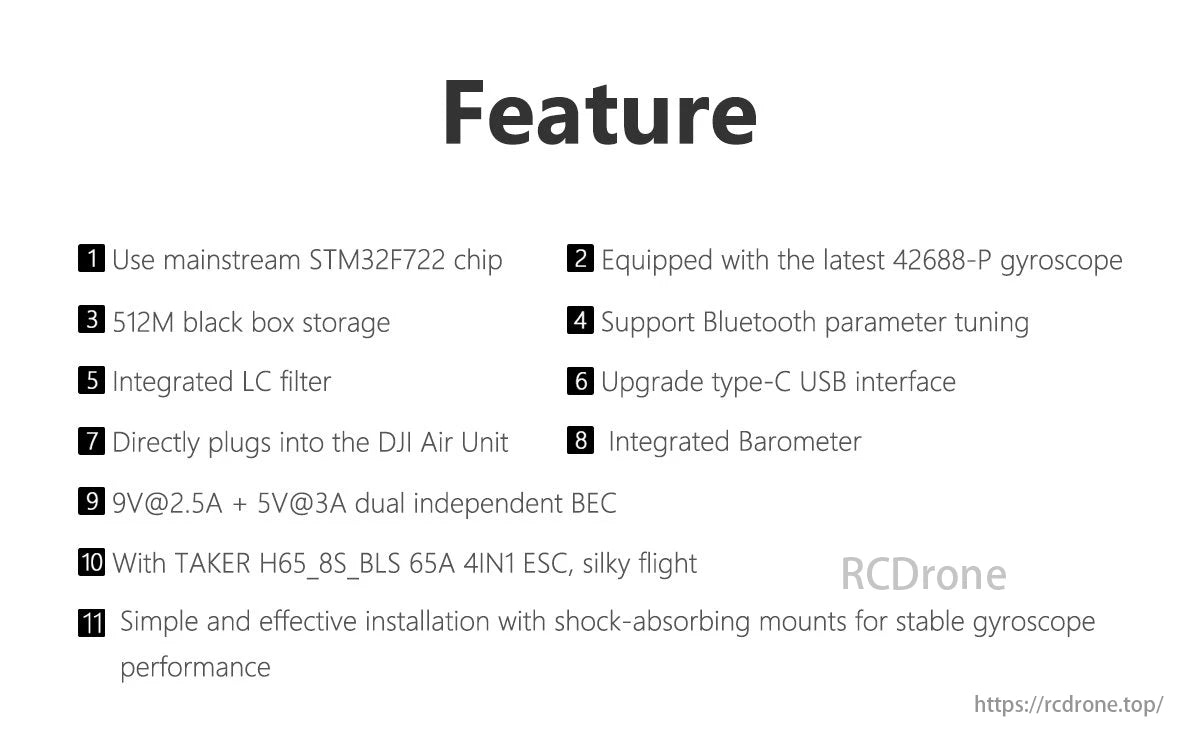

The product features a mainstream STM32F722 microcontroller chip. It has two integrated components: a latest-generation 42688-P gyroscope and 512M black box storage. The device supports Bluetooth parameter tuning and has an integrated LC filter. It also features an upgradeable Type-C USB interface that directly connects to the DJI Air Unit. Additionally, it includes a barometer and a dual independent BEC (9V@2.5A, 5V@3A) for stable power supply.

Product Display with a resolution of 42 inches, suitable for office use.

Product Name: NC4L EAJT84. Dimensions: 2 x 2 inches, 8cm. Weight: 0 ounces. Material: Plastic. Color: White. Part Number: 82288253.

Product list includes FC board, ESC board, capacitor, and various cables. It also features screws, nylon nuts, and silicone anti-shake pads.
