GEPRC TAKER F745 BT 60A Flight Controller Stack – Dual Gyros, 512MB Blackbox, Bluetooth, 8-Motor Output

Overview

The GEPRC TAKER F745 BT 60A Flight Controller Stack is engineered for demanding applications such as racing, freestyle, and long-range FPV drone builds. It features a STM32F745VGH6 MCU with a Cortex-M7 core running at 216MHz, delivering fast and accurate flight control performance.

With dual gyros (MPU6000 + ICM42688-P), Bluetooth tuning, and a 512MB onboard blackbox, this stack provides both precision and flexibility. The controller supports up to eight motor outputs, making it compatible with X8 drones. Paired with the TAKER H60_BLS 60A 4-in-1 ESC, this system delivers smooth and powerful output for 3–6S LiPo setups, and is fully compatible with Betaflight, INAV, and Ardupilot.

Flight Controller Specifications – TAKER F745 BT

ESC Specifications – TAKER H60_BLS 4IN1 60A ESC

Key Features

• STM32F745VGH6 MCU with high-speed Cortex-M7 architecture

• Dual gyroscope design (MPU6000 + ICM42688-P) for stable flight data

• 512MB onboard blackbox for detailed flight logs

• Bluetooth support for wireless tuning

• 8 motor output ports – ideal for X8 or high-thrust FPV drone builds

• Wide compatibility with Betaflight, INAV, Ardupilot

• Clean power delivery with integrated LC filter and dual BECs

• Plug-and-play DJI Air Unit integration

Whether you're flying a 5" freestyle quad or an advanced X8 FPV drone, the GEPRC TAKER F745 BT 60A flight controller stack offers the power, flexibility, and performance required by serious builders and pilots.

Details

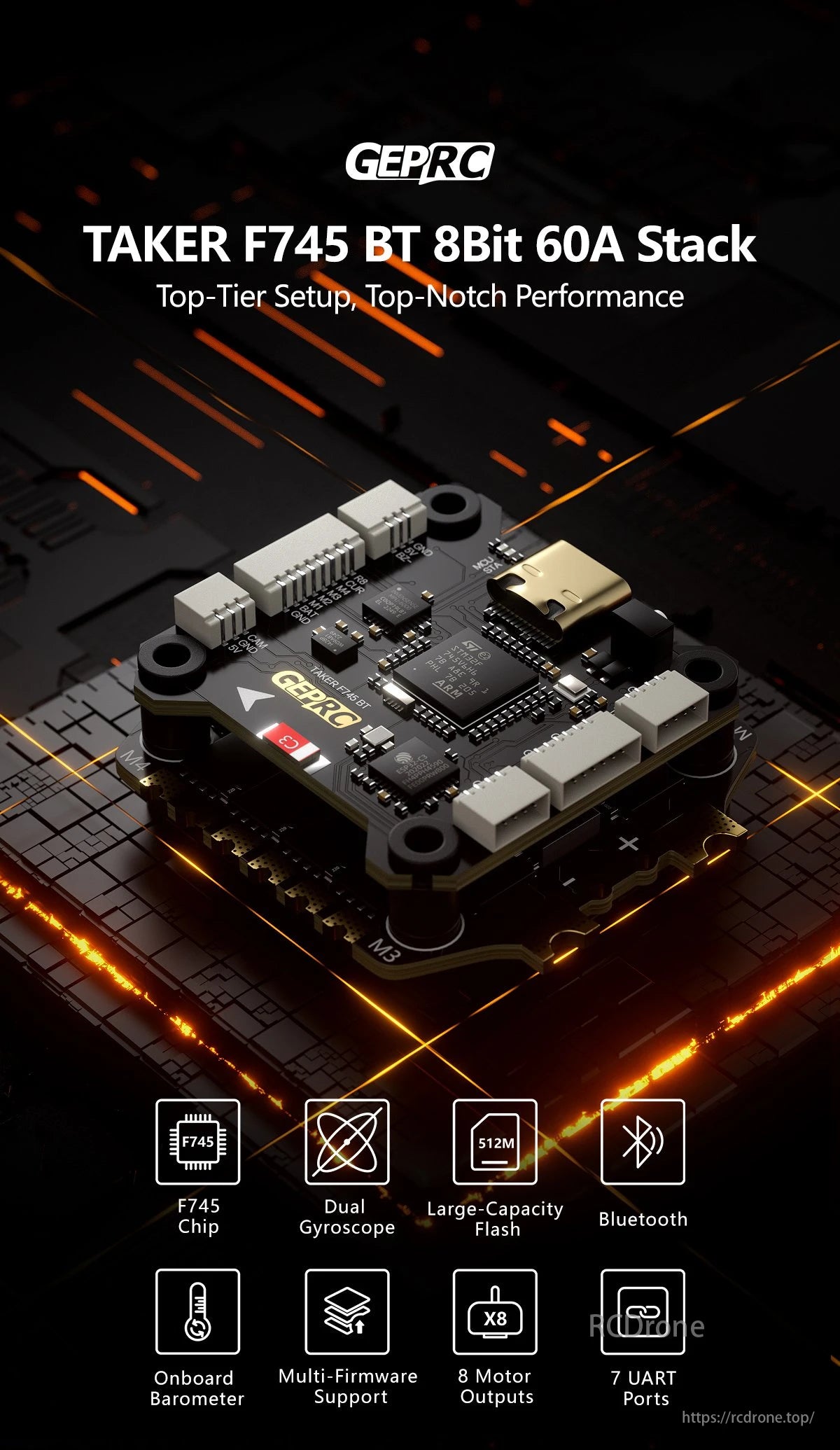

GEPRC TAKER F745 BT 8Bit 60A Stack provides top-tier performance. It includes an F745 chip, dual gyroscope, 512M flash, and Bluetooth. With an onboard barometer, it supports multi-firmware, offering 8 motor outputs and 7 UART ports. Designed for advanced drone applications, this flight controller ensures reliable operation through robust specifications and versatile connectivity. It’s perfect for enthusiasts and professionals needing high-performance flight control solutions. This setup combines efficiency and functionality, making it ideal for demanding aerial tasks and innovative projects.

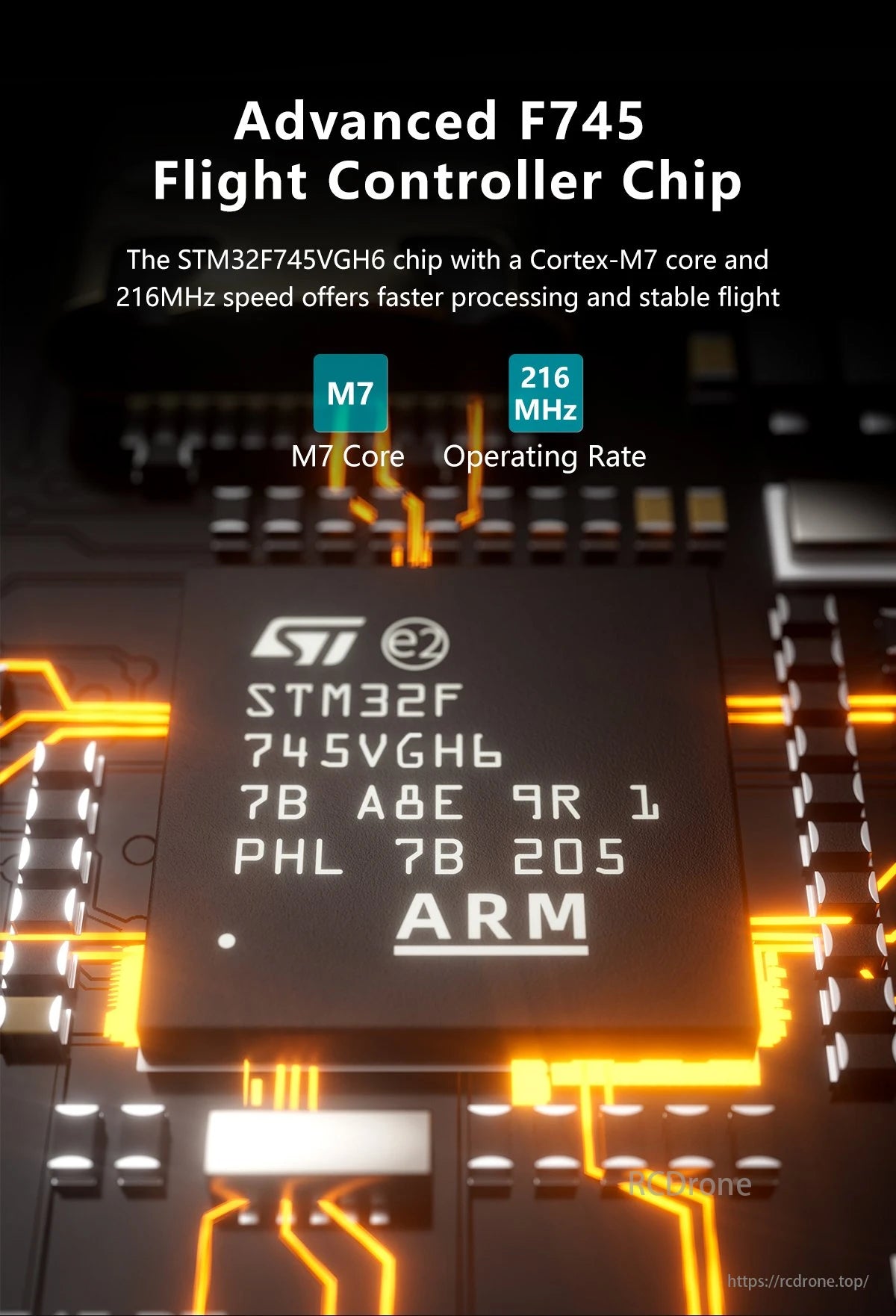

The Advanced F745 Flight Controller features an STM32F745 chip with a Cortex-M7 core, operating at 216MHz for faster processing and stable flight.

The product integrates dual gyroscopes, exceling in racing and freestyle flight with the MPU6000+ICM42688-P sensors.

Bluetooth wireless tuning adjust settings easily with Speedybee app on smartphone.

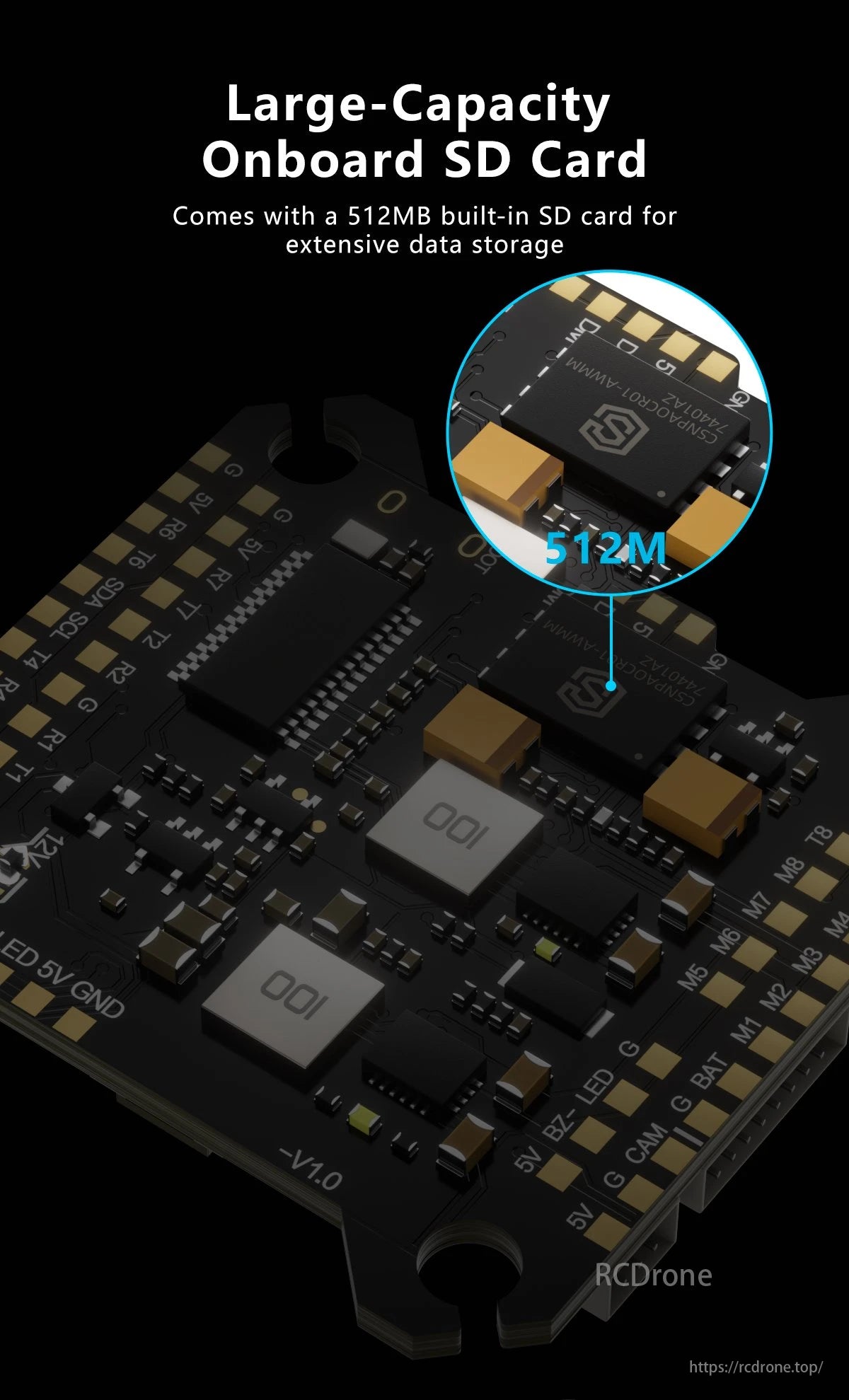

This product features a large-capacity onboard SD card with a built-in 512MB storage capacity, ideal for storing and organizing various types of digital data.

Multiple ports simplify installation, efficiently accommodating most peripherals. A convenient plug-and-play solution for direct-connect devices.

The Fatshark Taranis Q X7 is a versatile transmitter that supports various open-source firmware options, including Betaflight, INAV, and Ardupilot. Its built-in LCD screen provides clear feedback, while its 10-channel capability allows for precise control. With a long-lasting battery, this transmitter is perfect for pilots who demand reliability and performance.

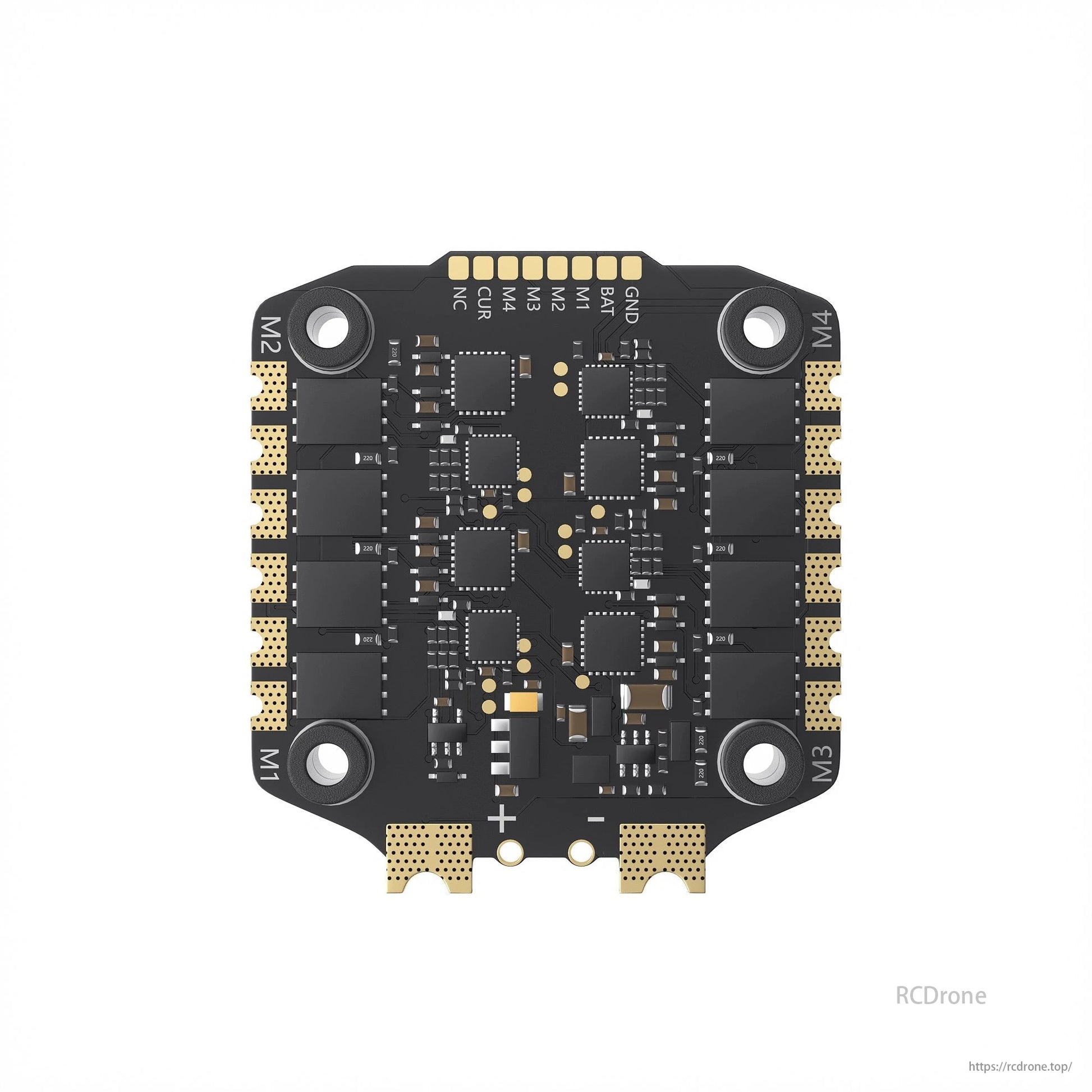

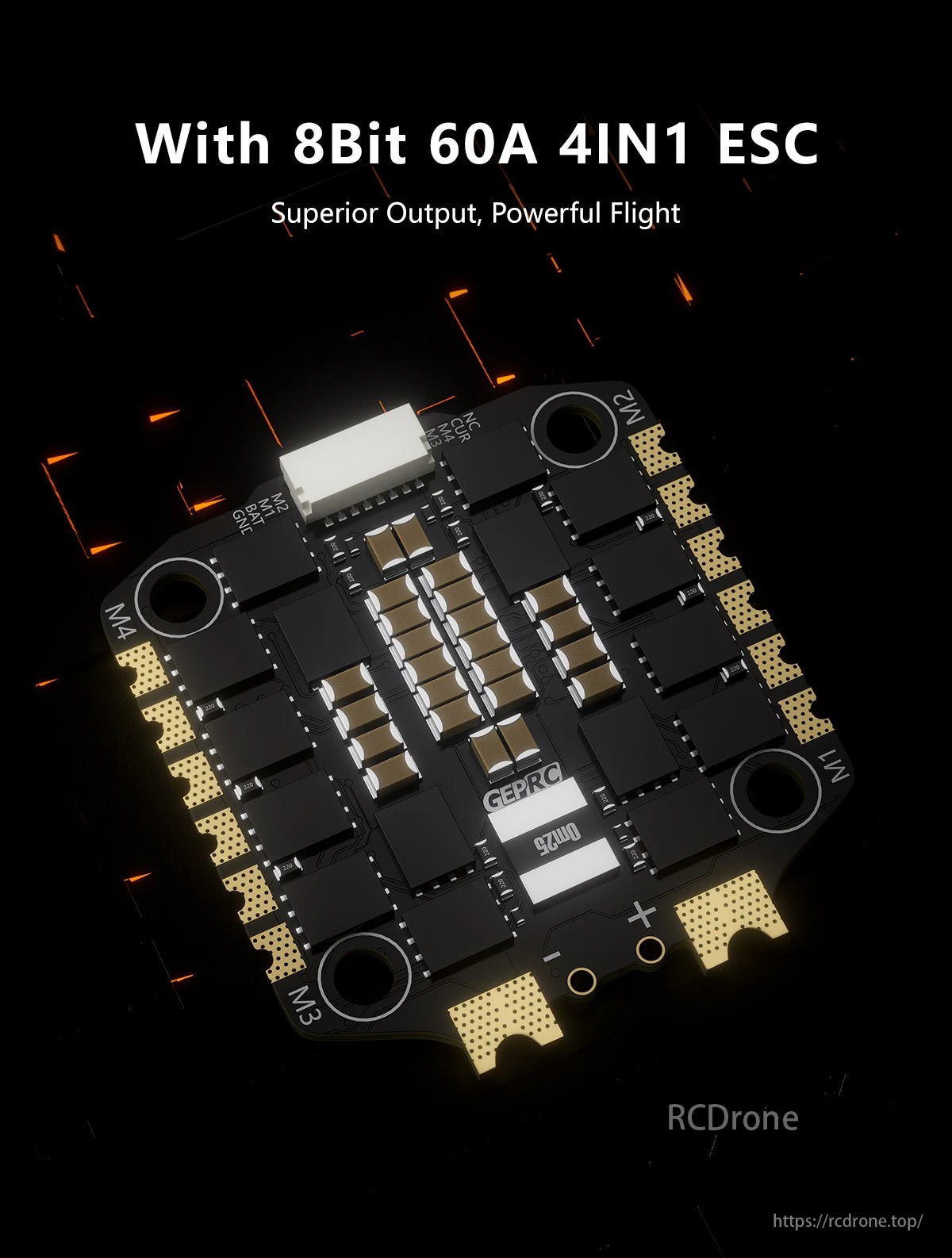

Geprc Gzwo Bit60A 4in1 ESC offers superior output and powerful flight performance for a thrilling flying experience.

GNG 5v R2 T2 features an integrated barometer. The dual BEC configuration includes G V10 and a 12V battery. Motor ports M1-M8 and temperature sensor T8 are also included, along with a current sensor. X8 mode is supported with a 12V voltage switch.

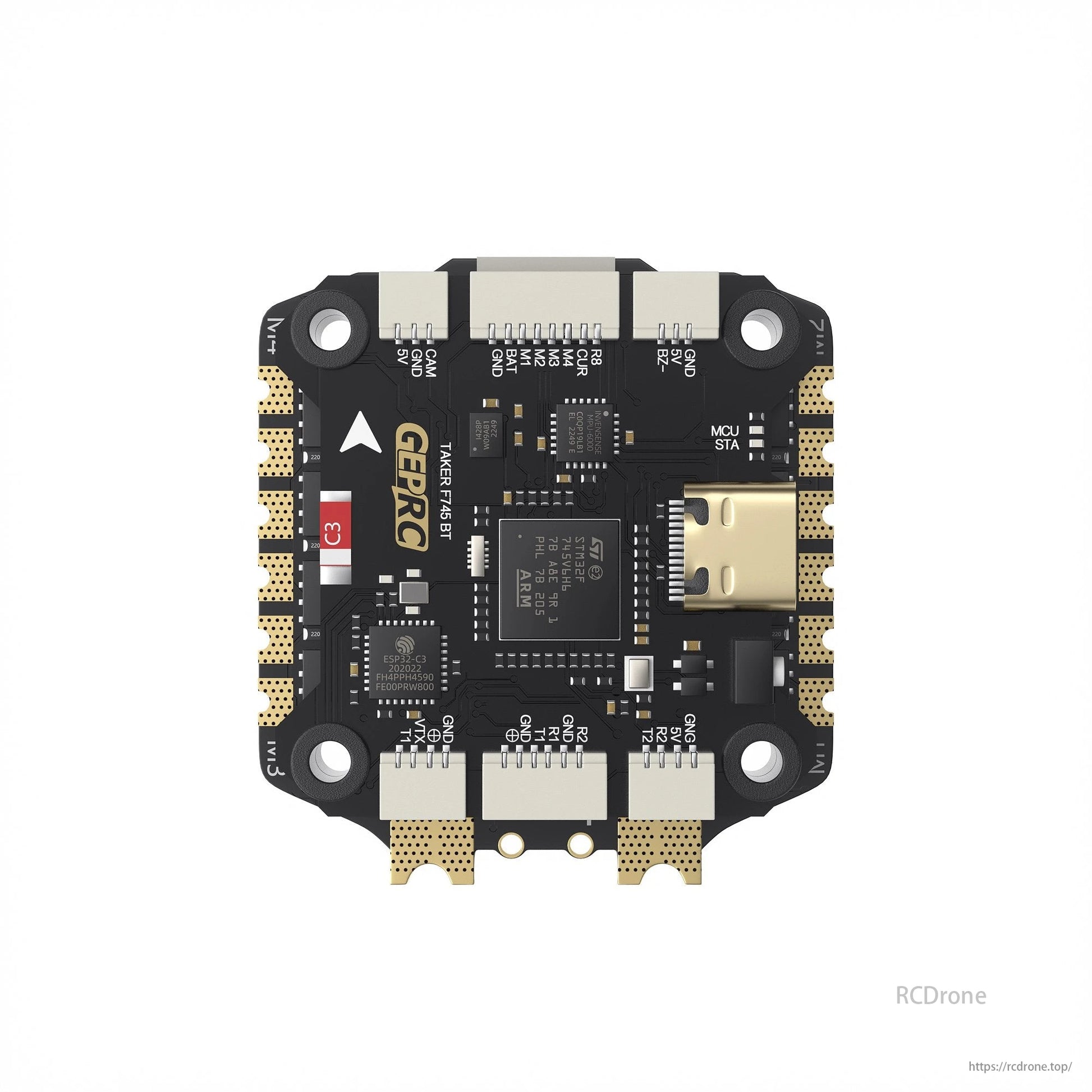

The FC model MCU Taker F745 BT features a STM32F745 processor, IMU, and Black Box MPU6000 with ICM42688-P (dual gyro). It has 512M onboard Bluetooth and supports barometer. The dual BEC outputs target 5V@3.4A and 12V@2.5A. Dimensions are 42x45.7mm with mounting holes of 30.5x30.5mm.

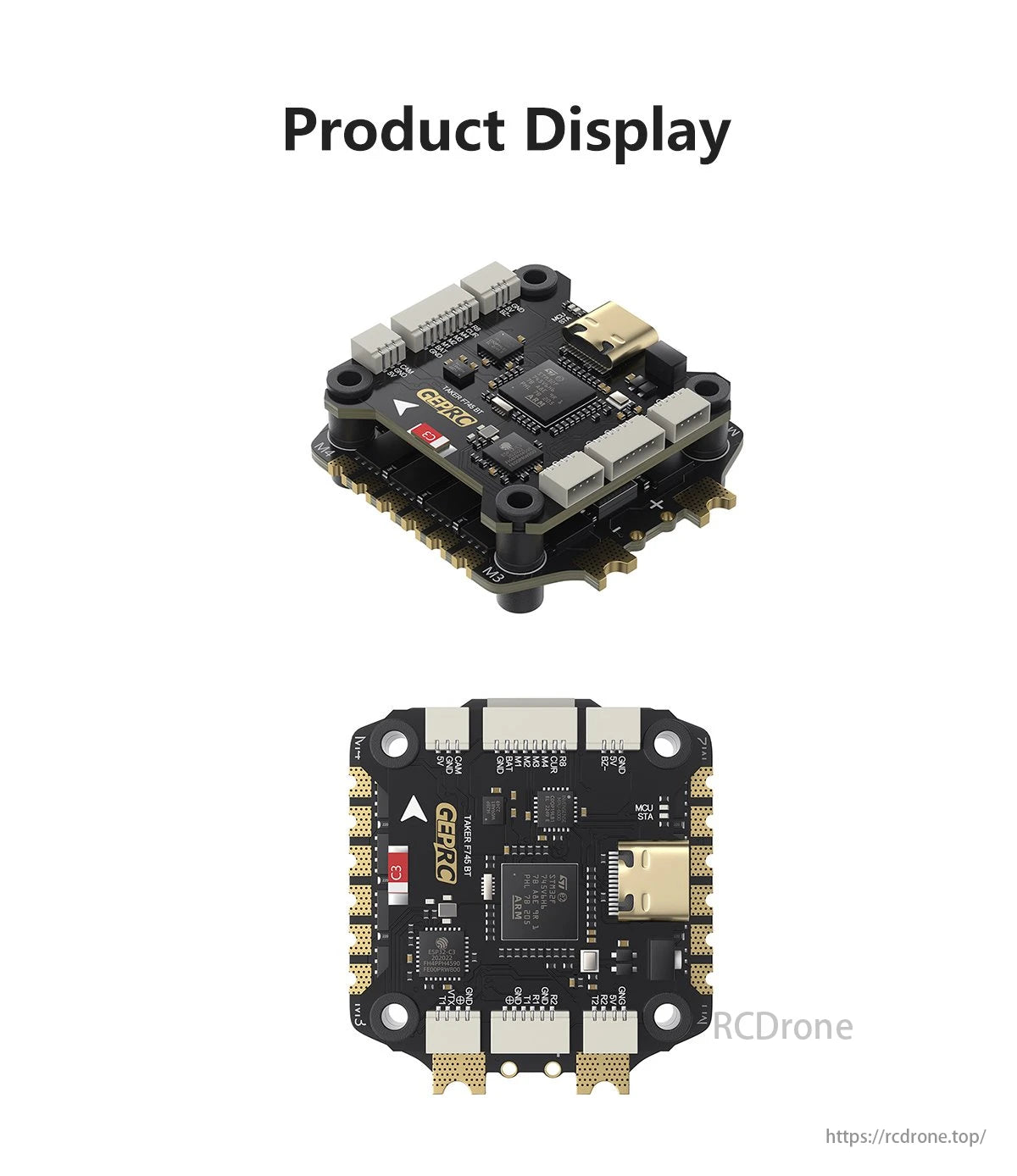

Product display with microcontroller unit STA, featuring 3303 units of part number 03-288 and 38g8, along with 09u GEPRG component.

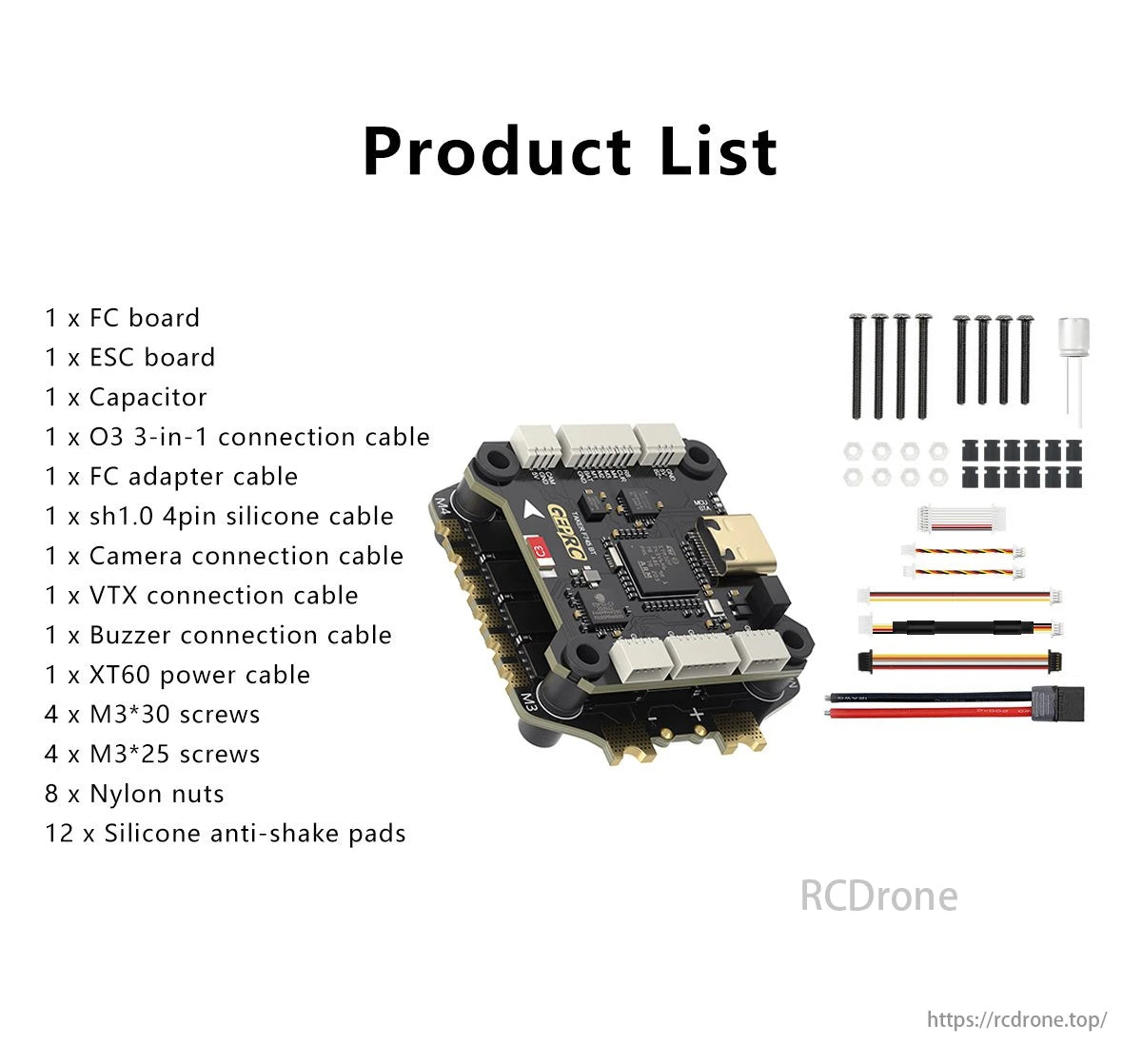

Product List includes: FC board, ESC board, Capacitor, 03 3-in-1 connection cable, FC adapter cable, SH1.0 4pin silicone cable, Camera connection cable, VTX connection cable, Buzzer connection cable, XT60 power cable, and various screws and fasteners.
