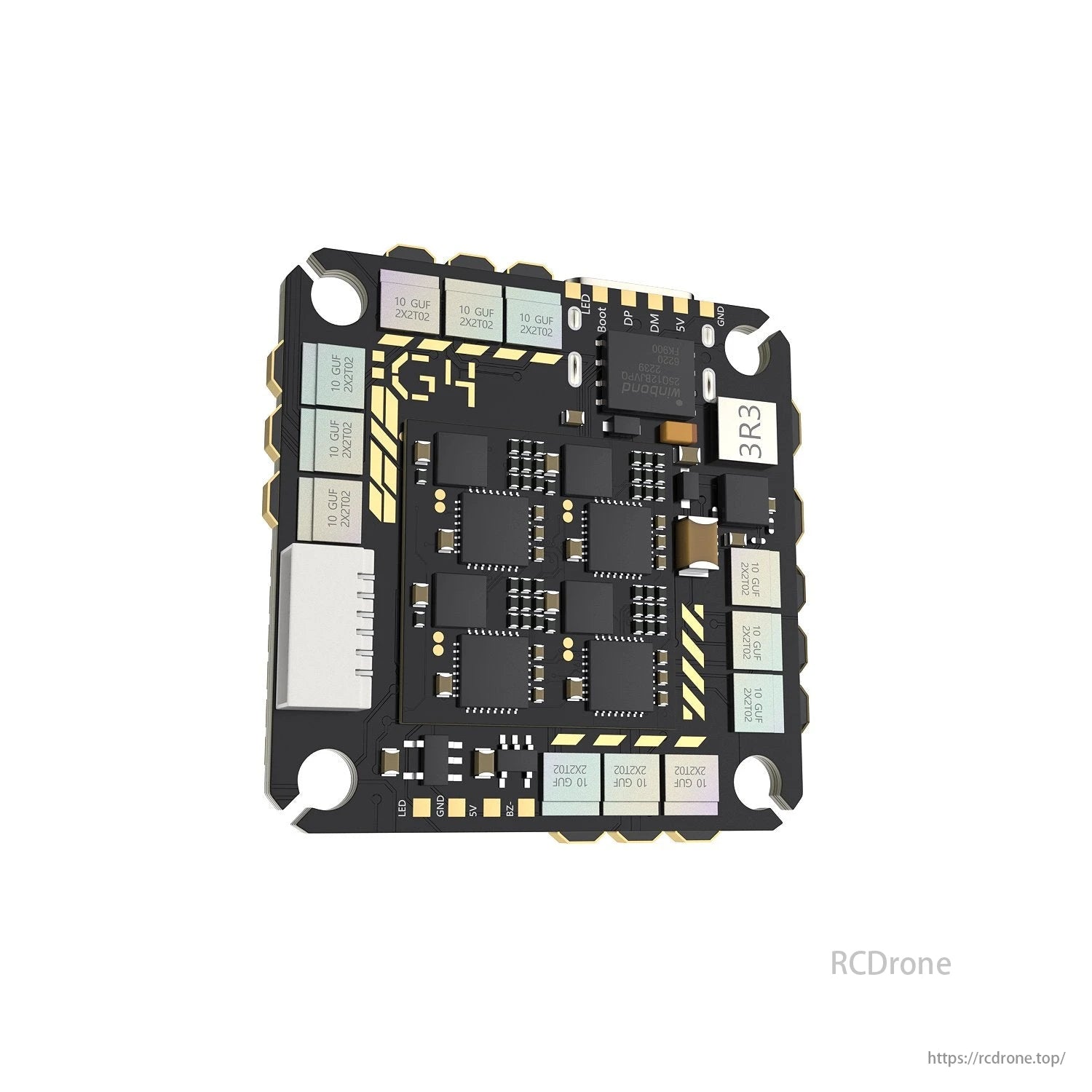

GEPRC TAKER G4 45A 8Bit AIO Flight Controller for FPV Drones - 2–6S, STM32G473, DShot600, 25.5x25.5mm, Betaflight OSD

Overview

The GEPRC TAKER G4 45A 8Bit AIO is a high-performance flight controller + ESC combo tailored for 3–5 inch FPV drones. Engineered with a 170MHz STM32G473 MCU, this board provides exceptional computational power and fast response in high-speed freestyle and racing environments. Integrated QF32MT ESC MCU and direct FET drive enable compact layout and stable 45A current output. With support for 2–6S LiPo, DShot600/Oneshot/Multishot, and full Betaflight OSD capabilities, it's ideal for serious FPV builds prioritizing both power and size efficiency.

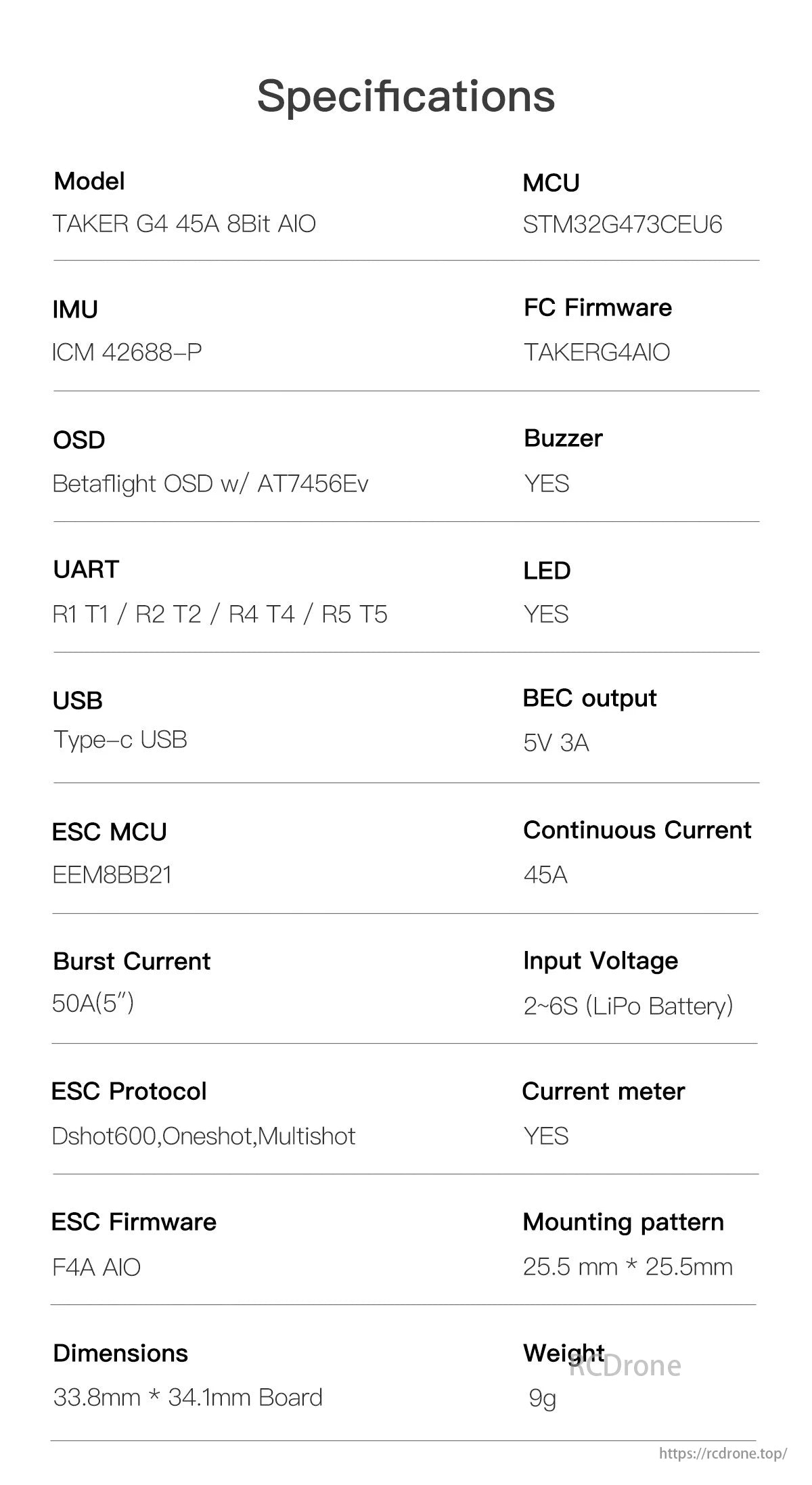

Specifications

Key Features

• Designed for freestyle and racing FPV drones with 3"–5" frame compatibility

• High-speed 170MHz STM32G473 MCU delivers precise control and smooth performance

• Integrated ESU + MCU architecture for direct FET drive—lighter and more compact

• 45A continuous / 50A burst ESC output, reliable for high-thrust 5" builds

• Type-C USB port ensures durable and convenient firmware connection

• Compatible with Betaflight, supports full OSD overlay and telemetry

• Mounting pattern 25.5×25.5mm, ideal for toothpick or whoop-to-mid-size drones

Recommended Setup

• Drone Type: 3"–5" FPV freestyle or racing drones

• Battery: 2S to 6S LiPo

• Prop Size: Up to 5"

• ESC Protocols: DShot600, Oneshot, Multishot

• Flight Firmware: Betaflight (Target: TAKERG4AIO)

• Accessories: Supports buzzer, LEDs, external receivers via UART

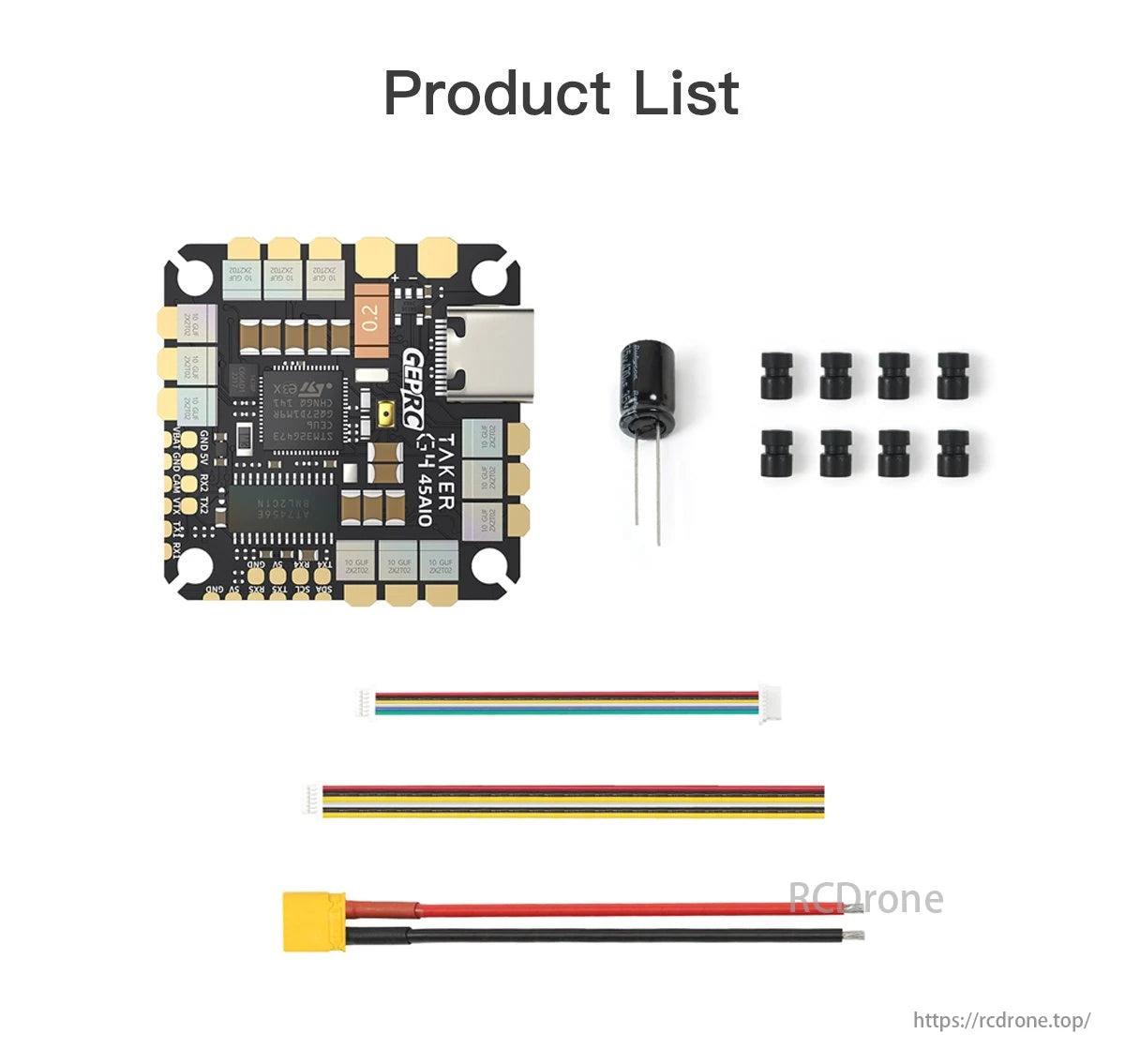

What’s Included

• 1 × GEPRC TAKER G4 45A 8Bit AIO Flight Controller

• 1 × Cable Set

Details

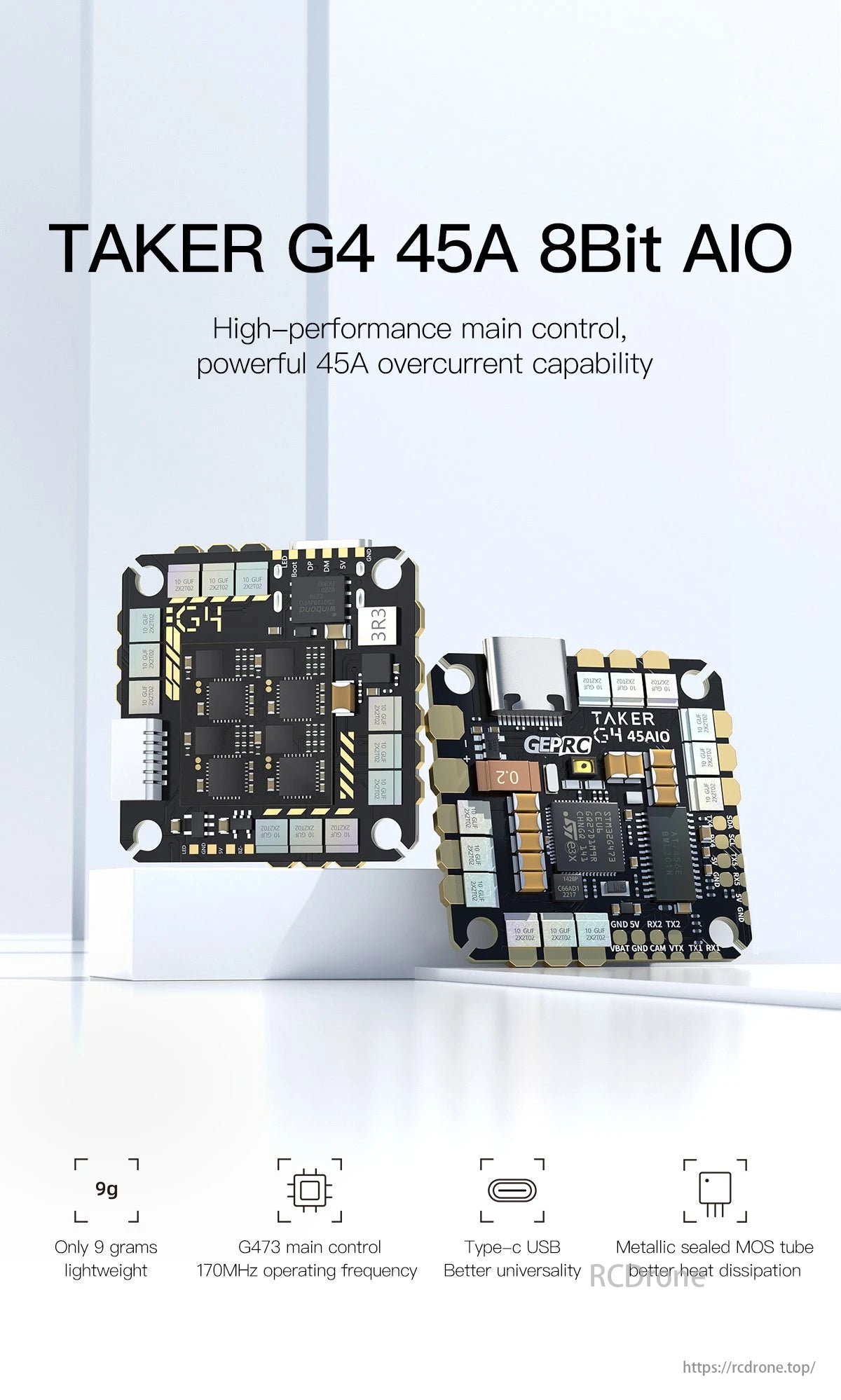

Taker G4 45A 8Bit AIO High-Performance Main Control, Powerful 45A Overcurrent Capability. Features 10GUF, 2X2102, 2720 Buoqum, 38mm, and 18cm. Compatible with UIO 45, 0L, and 38T. Includes Type-C USB, Metallic Sealed MOS Tube, Lightweight (17g) Operating Frequency of 6GHz.

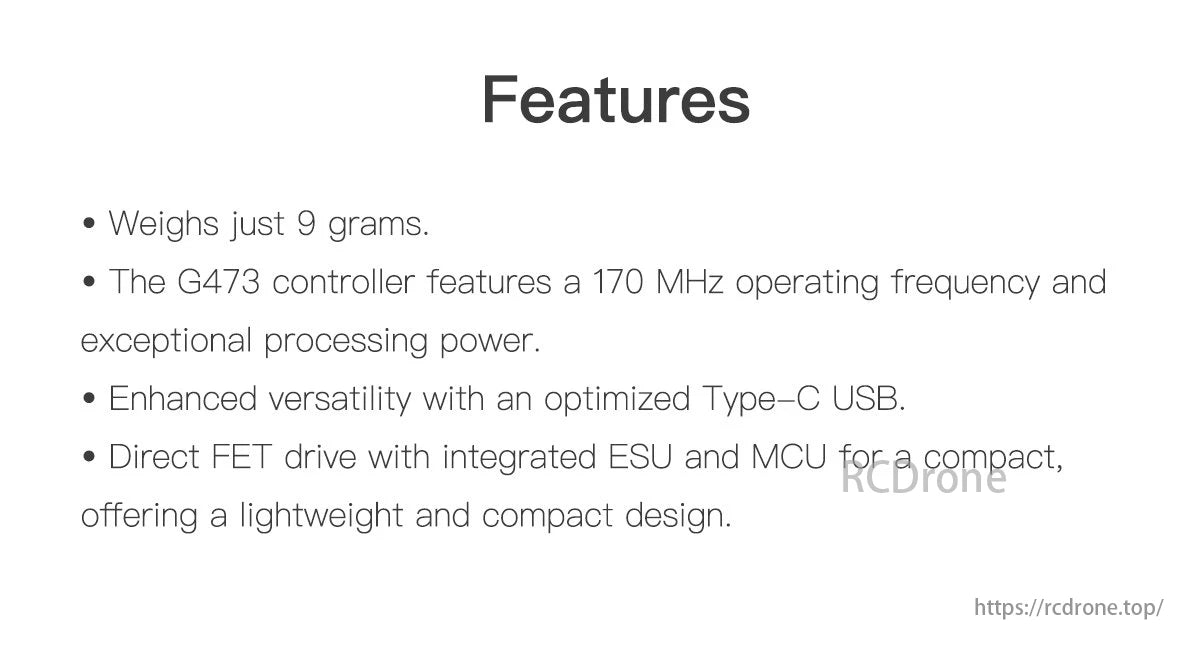

The G473 controller weighs just 9 grams, featuring a 170 MHz operating frequency and powerful processing. It also has enhanced versatility with optimized Type-C USB, direct FET drive, and integrated ESU and MCU.

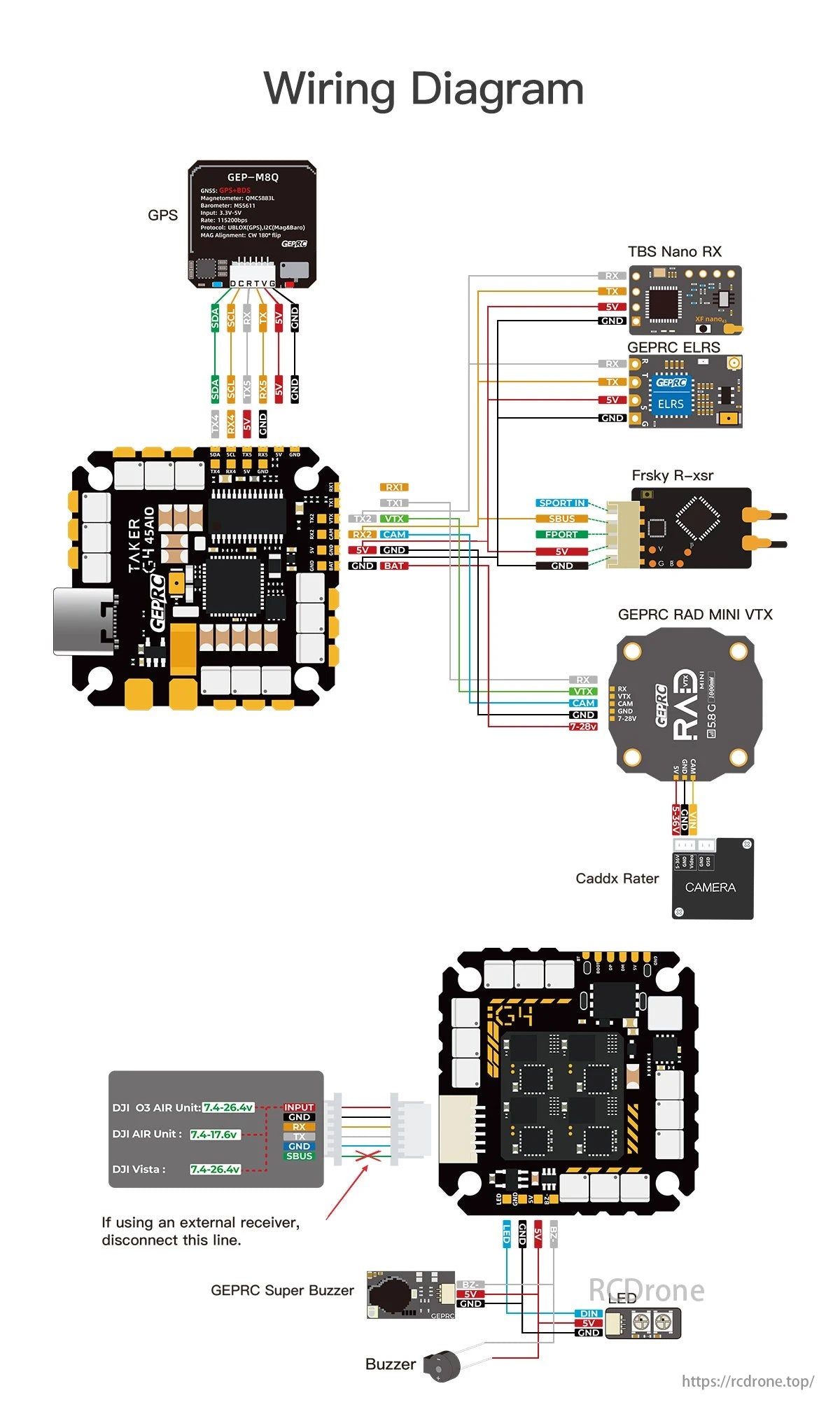

Wiring Diagram for GPS+BDS GNSS Module with GEPRC TBS Nano RX and ELRS System. Components include Ublox (M8Q Duro) MAG Aligner, 155611 GPS Input, Antenna Cable, Power Supply, GND XF nano, GEPRC ELRS I, GEPRC Super Buzzer, LED GeeRY DIN CND Buzzer.

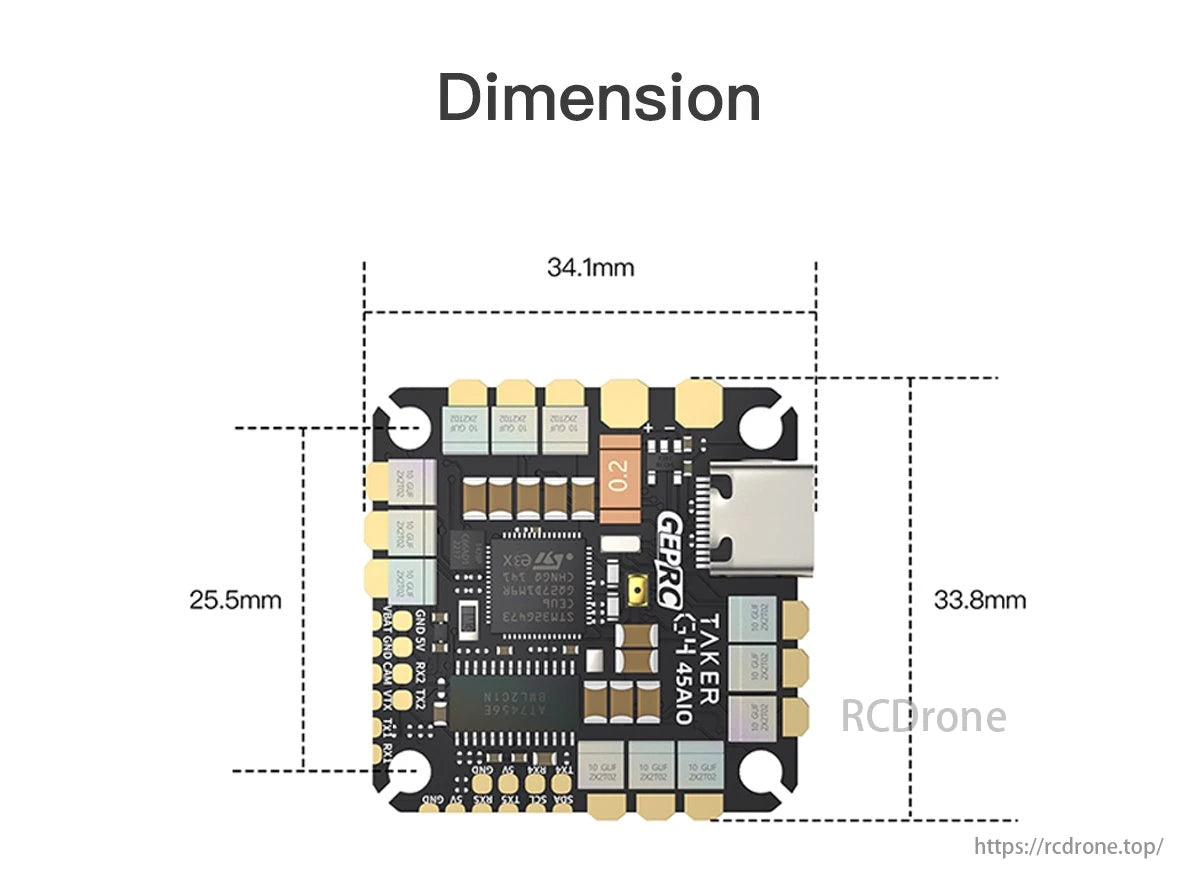

Dimension: 34mm x 38mm. Contains three Xaes and part number 4td2209 with a diameter of 25.5mm and thickness 9mm.

Product list featuring Lafe Xeo model #03573-8II, along with But4Zeus Anna and Jon, with a total value of $34,220.01.

This product display features a colorful LED light with a remote control, offering 3 adjustable brightness levels and a color-changing option. The unit measures 8Lht44n3) and has a sleek design.

Product Name: GUF. Description: A set of 2x2102, 3ns OL, and pueguin labels with 38 201zxz Zouzxe features. Size: 8 inches. Material: PU. Color: White. Quantity: 6 pieces. Ideal for organization and labeling.
