Summary

The GEPRC team has redesigned the Vapor series for optimal compatibility with the O4 Air Unit Pro VTX.

New aluminum lens components and shock-absorbing silicone reduce vibrations, while the sharp new side panels give it a bold, mech-inspired look. The O4 Air Unit Pro's larger CMOS sensor enhances image detail and sensitivity, and the GEPRC-tuned PID settings ensure a smooth and immersive flight experience.

Available in two models, Wide X and DC, to suit different flight needs.

Feature--X5 Version

1. O4 Air Unit Pro features a larger CMOS sensor for improved image clarity and enhanced light sensitivity.

2. CNC aluminum lens housing for a durable, bold design.

3. GEPRC SPEEDX2 E-series motors for smooth, powerful performance.

4. Front lip design provides extra lens protection for confident flying.

5. Wider 5mm carbon fiber arms for increased durability and a sleek build.

Feature--D5 Version

1. O4 Air Unit Pro features a powerful CMOS sensor for improved image clarity and enhanced light sensitivity.

2. CNC aluminum lens housing for a durable, bold design.

3. GEPRC SPEEDX2 E-series motors for smooth, powerful performance.

4. Front lip design provides extra lens protection for confident flying.

5. Wider 5mm carbon fiber arms for increased durability and a sleek build.

Specfication---Vapor-X5 O4 Pro

• Model: Vapor-X5 O4 Pro

• Frame: GEP-Vapor-X5 O4 Pro frame

• Wheelbase: 230 mm

• Top Plate: 2.0 mm

• Middle Plate: 2.0 mm

• Bottom Plate: 2.5 mm

• Arm Thickness: 5.0 mm

• FC: GEP-F722-HD v2

• MCU: STM32F722

• Gyro: ICM42688-P(SPI)

• Barometer: YES

• OSD: Betaflight OSD w/AT7456E

• ESC: TAKER H60_BLS 60A 4IN1 ESC

• VTX: O4 Air Unit Pro

• Camera: O4 Pro Camera

• Antenna: O4 Pro original antenna

• Connector: XT60

• Optional GPS: GEP-M10 GPS

• 5-inch Motor: GEPRC SPEEDX2 2207E 1960 KV

• 5-inch Propeller: GEMFAN 5136

• Vapor-X5 O4 PNP Version Weight: 409g±5g

• Receiver: PNP/GEPRC ELRS24/TBS Nano RX

• Recommended Battery: 6S LiPo1300mAh - 1800mAh

• Flight Time: 14-19min

Product List:

1 x Vapor-X5 O4 Pro
2 x GEMFAN 5136
2 x Battery anti-slip pads
1 x Spare screw pack
1 x Vapor side panel
2 x M20*250mm battery straps
1 x L-shaped screwdriver 1.5mm
1 x L-shaped screwdriver 2.0mm
1 x GoPro mount

The spare screws include:
6 x M3*10mm round head screws
6 x M3*8mm round head screws
2 x M3*6mm flat head screws
1 x M5*28mm thin head screw
1 x M5 flange nut
4 x M3 rivet nuts



Specfication---Vapor-D5 O4 Pro

• Model: Vapor-D5 O4 Pro

• Frame: GEP-Vapor-D5 O4 Pro frame

• Wheelbase: 230 mm

• Top Plate: 2.0 mm

• Middle Plate: 2.0 mm

• Bottom Plate: 2.5 mm

• Arm Thickness: 5.0 mm

• FC: GEP-F722-HD v2

• MCU: STM32F722

• Gyro: ICM42688-P(SPI)

• Barometer: YES

• OSD: Betaflight OSD w/AT7456E

• ESC: TAKER H60_BLS 60A 4IN1 ESC

• VTX: O4 Air Unit Por

• Camera: O4 Pro Camera

• Antenna: O4 Pro original antenna

• Connector: XT60

• Optional GPS: GEP-M10 GPS

• 5-inch Motor: GEPRC SPEEDX2 2207E 1960 KV

• 5-inch Propeller: GEMFAN 5136

• Vapor-X5 O4 Pro PNP Version Weight: 428 g±5g

• Receiver: PNP/GEPRC ELRS24/TBS Nano RX

• Recommended Battery: 6S LiPo1300mAh - 1800mAh

• Flight Time: 14-19 min

Product List

1 x Vapor-D5 O4 Pro
2 x GEMFAN 5136
2 x Battery anti-slip pads
1 x Spare screw pack
1 x Vapor side panel
2 x M20*250mm battery straps
1 x L-shaped screwdriver 1.5mm
1 x L-shaped screwdriver 2.0mm
1 x GoPro mount

The spare screws include:
6 x M3*10mm round head screws
6 x M3*8mm round head screws
2 x M3*6mm flat head screws
1 x M5*28mm thin head screw
1 x M5 flange nut
4 x M3 rivet nuts

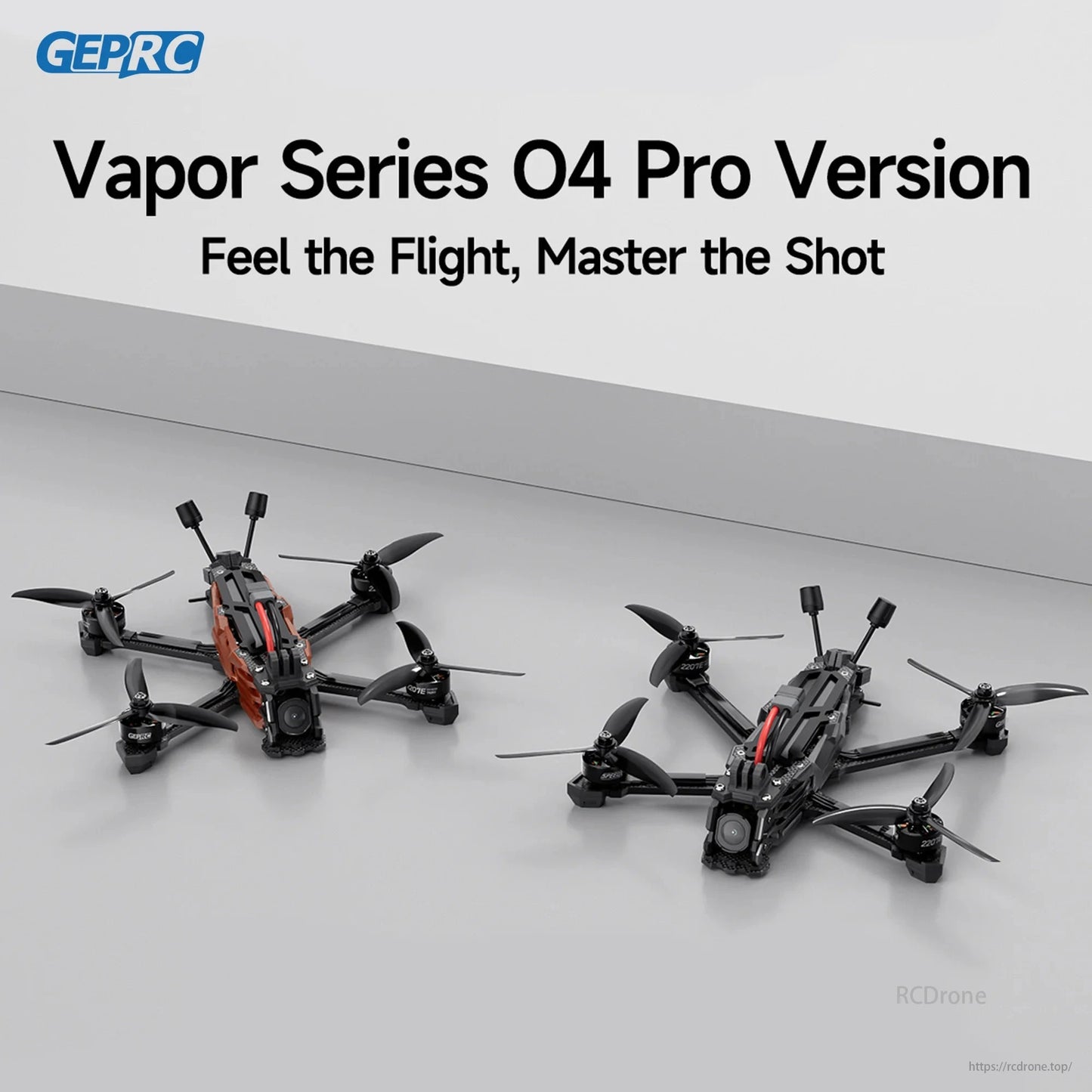

GEPRC Vapor Series O4 Pro Version. Feel the Flight, Master the Shot. 4K 120fps recording, fully compatible.

Innovative camera protection panels minimize vibration with mech-style design.

Robust and reliable, unafraid of crashes. 5mm thick arms with increased width for stability and aesthetics. Blue drone features durable design.

Latest DJI O4 Air Unit Pro VTX. Equipped with a 1/1.3-inch sensor, it supports 4K/120fps and D-Log M color mode, handling various shooting scenarios. 155° FOV captures stunning HD shots.

Quick-release design offers convenient arms for easy disassembly and maintenance, enhancing accessibility and simplifying upkeep of the device.

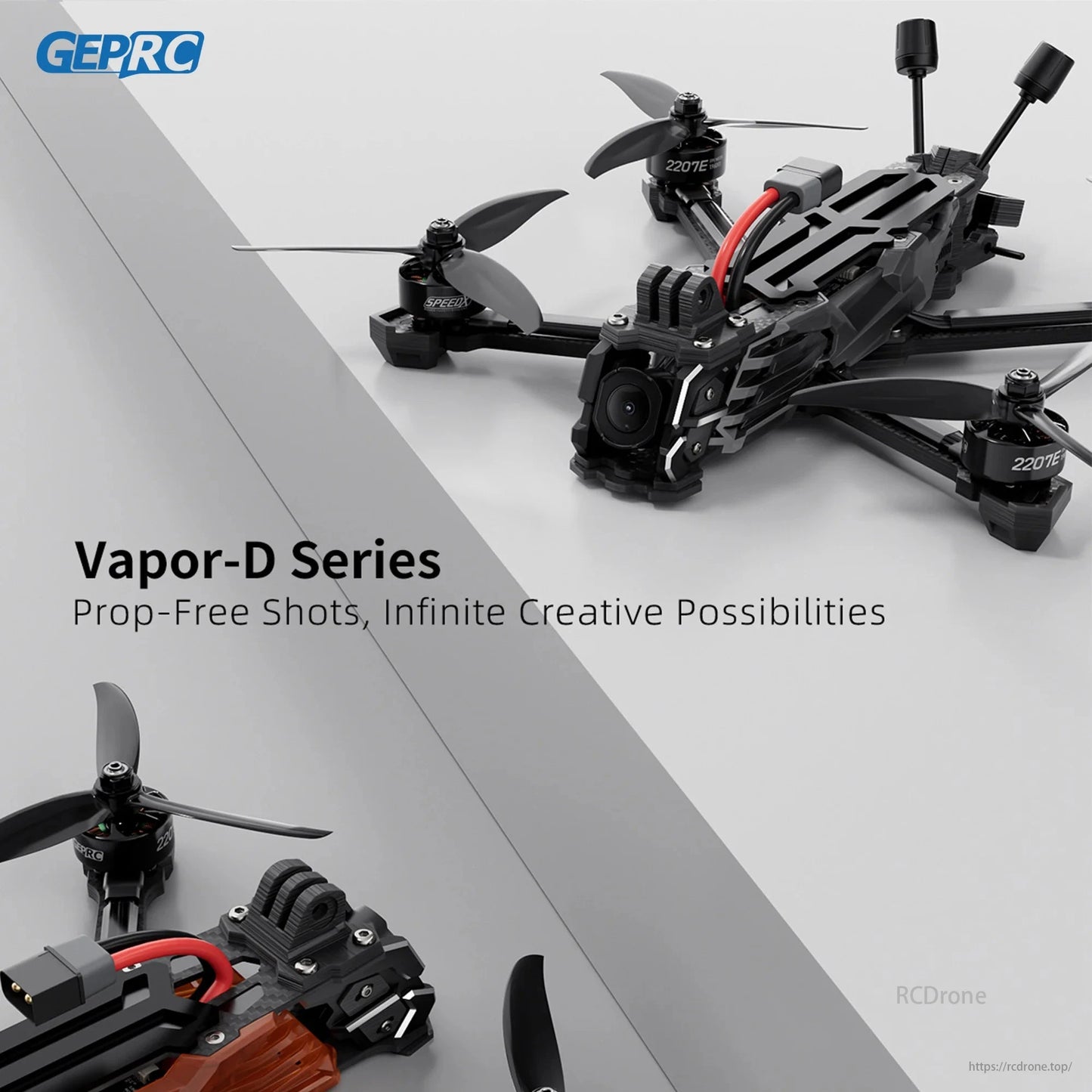

Vapor-D Series offers prop-free shots and infinite creative possibilities. Vapor-X Series provides maximum flexibility, unleashing the thrill of every dive.

Specifications for Vapor-D5 O4 Pro and Vapor-X5 O4 Pro include 238mm/230mm wheelbases, 2.0mm top/middle plates, 2.5mm bottom plate, 5.0mm arm thickness, GEP-F722-HD V2 FC, STM32F722 MCU, ICM42688-P(SPI) gyro, barometer, Betaflight OSD, TAKER H60_BLS ESC, DJI O4 Air Unit Pro VTX, O4 Pro camera, XT60 connector, and optional GEP-M10 GPS.

Motors: GEPRC SPEEDX2 2207E 1960 KV. Propellers: GEMFAN 5136. Weight: 428g±5g, 409g±5g. Receiver: PNP/GEPRC ELRS24/TBS Nano RX. Battery: 6S LiPo 1300mAh - 1800mAh. Flight Time: 14-19min. Product Display shown.

Vapor-X5/D5 product list includes drone, propellers, screws, tools, and accessories. Note mentions Vapor-D5 O4 Pro TBSNanoRX GPS.
