readytosky is a professional FPV RC Module accessories company . if you want to know more about trade for wholesale and bulk purchase, please contact us freely .

New BN-880 BN880 Flight Control GPS Module Dual Module Compass With Cable for APM 2.6 APM2.8 / Pixhawk 2.4.7 PIXHAWK 2.4.8

Features:

GPS Module,Dual Module Compass

With electronic compass IC HMC5883

1.25mm spacing between the 6pins patch seat

Model:BN-880

Power Supply:DC Voltage 2.8V~6.0V,Typical:3.3V or 5.0V

Consumption:Capture 50mA@5V

Receiving Format:GPS,GLONASS,BeiDou,QZSS and SBAS

Receiving Channel:72 Searching Channel

Receiving Sensitivity:Trace -167dBm

Capture-148dBm

Positioning Time:Cold Start:avg26s

Warm Start:avg25s

Hot Start:avg3s

Level Positioning Precison:2m At Open Wind

Output Frequency:1Hz-10Hz,Default 1Hz

Speed Precison:0.1 m/s (Without Aid)

Acceleration Precison:0.1 m/s (Without Aid)

Dynamic Characteristics:Max Height:18000m

Max Speed:5153m/s

Max Acceleration:4G

UART Interface:UART Port:TXDA and RXDA

Support Rate:4800bps to 115200bps,Default 38400dps

Working Temperature:-40-+85

Storage Temperature:-40-+85

Size:28mm x 28mm x 10mm

Weight:10g

The Module’s Pins:SDA,GND,TX,RX,VCC,SCL

We left a connector for APM extra,If you need used for APM, you can install the connector by yourself or leave us a message ,we will change for you . Original connector is for Pixhawk flight control board my friend!

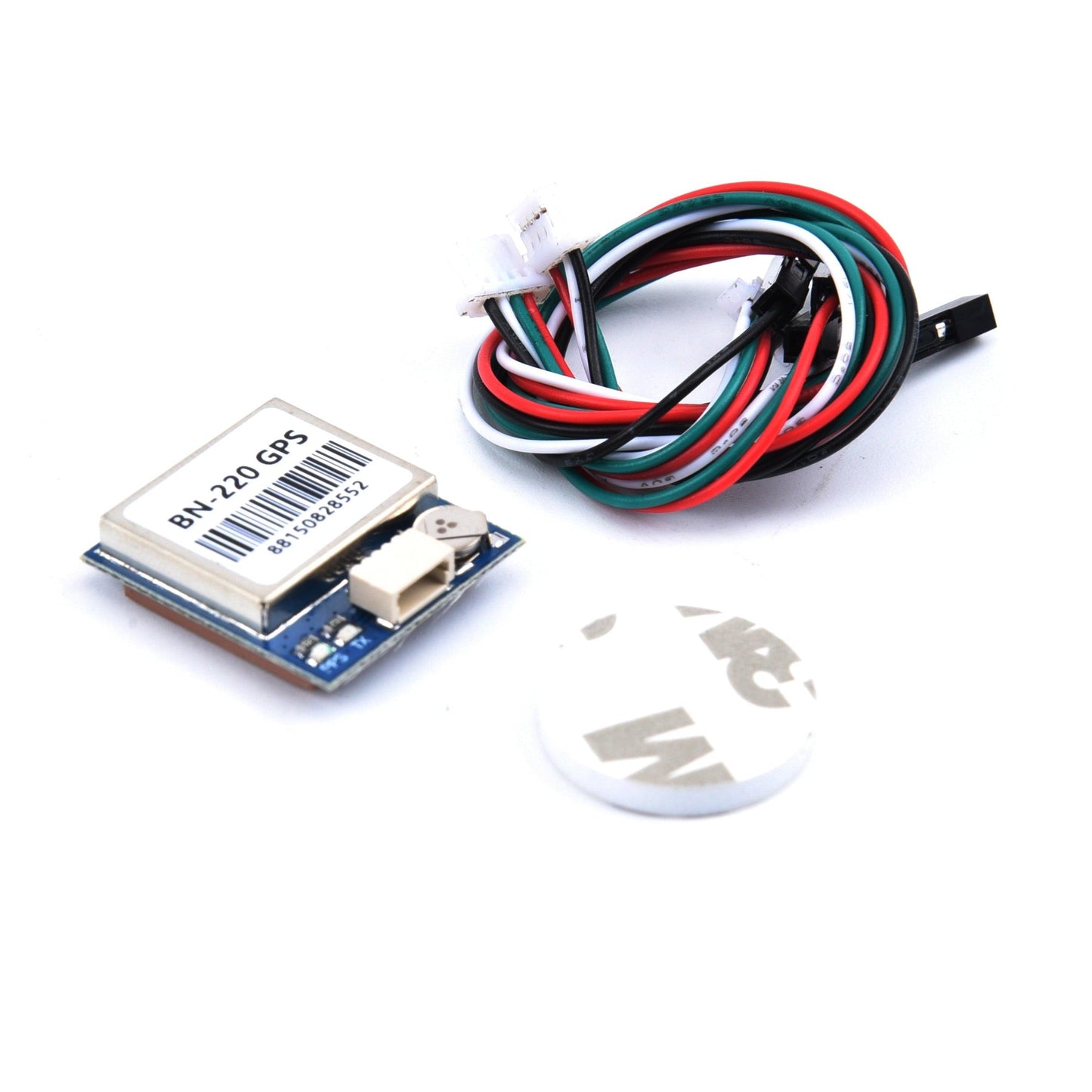

BN-220 3.6V-5.5V TTL level GNSS Module GPS GLONASS Dual GPS Module built in FLASH BN220 for  F3 / F4 / F7 Flight controller

Model:BN-220 GNSS module
