HAKRC F405 Lite Flight Controller – 2–6S, STM32F405, ICM42688, 8 PWM Outputs, OSD, Dual Camera Switch, 5V/12V BEC

HAKRC F405 Lite Flight Controller – 2–6S, STM32F405, ICM42688, 8 PWM Outputs, OSD, Dual Camera Switch, 5V/12V BEC

HAKRC

$75.00 USD
$75.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The HAKRC F405 Lite Flight Controller is a compact, high-performance FC designed for FPV drones requiring precision, reliability, and flexible I/O. Built with a 4-layer 1oz copper PCB and resin plug-hole technology, this board ensures strong anti-interference capability and durability under high temperatures with industrial-grade LDOs and Japanese Murata capacitors.

Powered by the STM32F405RGT6 processor and ICM42688 gyro, the controller includes 16MB blackbox storage, an integrated barometer, and AT7456E OSD for real-time flight data. It supports up to 8 motor outputs, dual camera switching (CAM1/CAM2 via USER1), and Bluetooth module expansion. Solder-free push-in connectors simplify installation for all levels of builders.

Key Features

  • STM32F405RGT6 MCU with high-performance ICM42688 gyro

  • 2S–6S LiPo input for flexible power setups

  • 8 PWM motor outputs, ideal for multirotors and wings

  • 5V/3A & 12V/2.5A dual BEC outputs

  • AT7456E OSD and integrated barometer for stable altitude hold

  • 16MB blackbox for detailed flight logs

  • Push-in connectors for solder-free installation

  • External programmable LED control with switchable effects

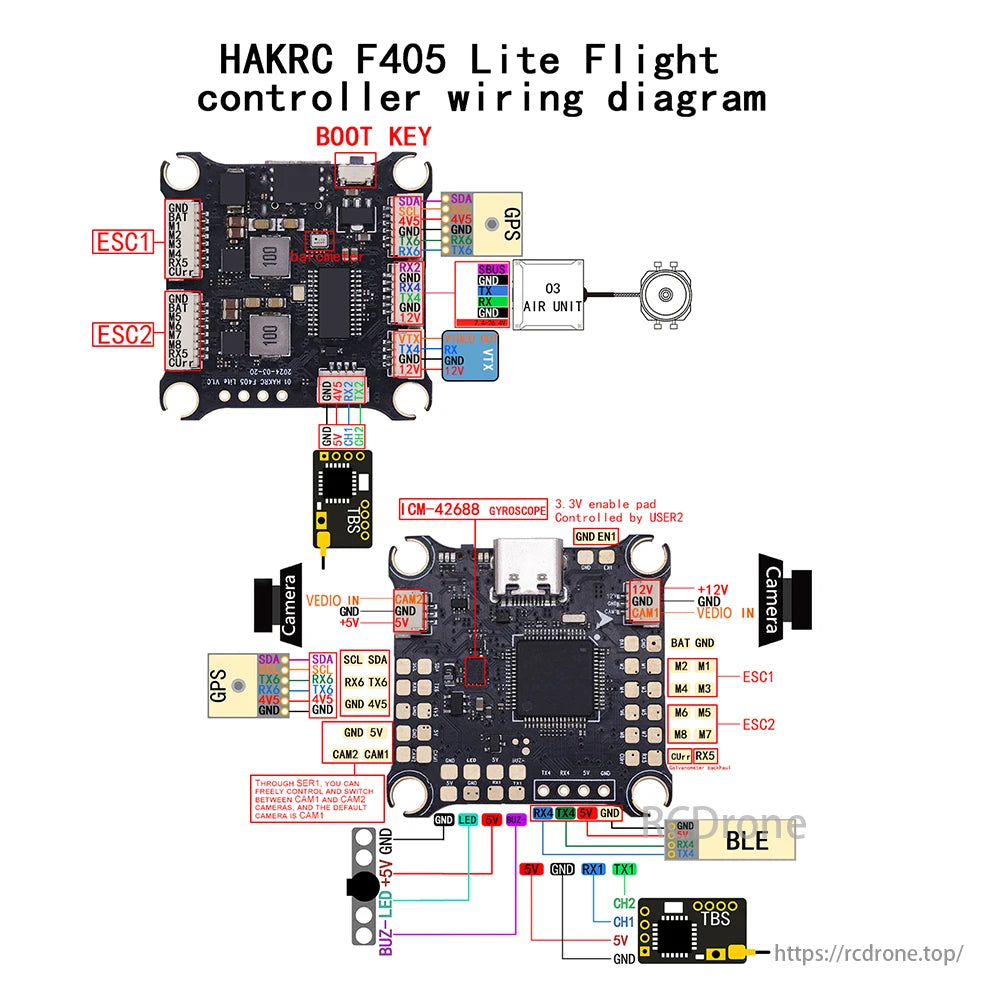

  • USER1 port for CAM1/CAM2 switching

  • Supports external Bluetooth modules

  • Compatible with major receiver protocols: FrSky, Flysky, Futaba, TBS Crossfire, DSMX/DSM2

Specifications

Parameter Details
Model HAKRC F405 Lite Flight Controller
MCU STM32F405RGT6
IMU ICM42688
OSD AT7456E
Barometer Integrated
Blackbox 16MB onboard
Input Voltage 2S–6S LiPo
BEC Output 5V/3A and 12V/2.5A
PWM Channels 8 Motor Outputs
Mounting Dimensions 30.5 x 30.5 mm (36 x 36 mm board size)
Net Weight 7.5g
Package Size 64 x 64 x 35 mm
Package Weight 45g
Firmware Target HAKRC F405V2
Receiver Support FrSky / Flysky / Futaba / TBS Crossfire / DSMX / DSM2

What's Included

The HAKRC F405 Lite FC kit includes:

  1. HAKRC F405 Lite Flight Controller ×1

  2. M3 Orange Shock Absorbing Dampers ×4

  3. 8P Connection Cable ×1

  4. CRSF Receiver Cable ×1

  5. 4P to 6P Video Transmission Cable ×1

  6. DJI 6P Interface Cable ×1

  7. GPS 6P Cable ×1

  8. Dual 3P Camera Cables ×2

Details

HAKRC F405 Lite Flight Controller offers 4-layer copper, resin-filled via PCB, and strong anti-interference for excellent performance.

HAKRC F405 Lite Flight Controller includes 4-layer copper, resin-filled via PCB, and strong anti-interference capabilities for superior performance.

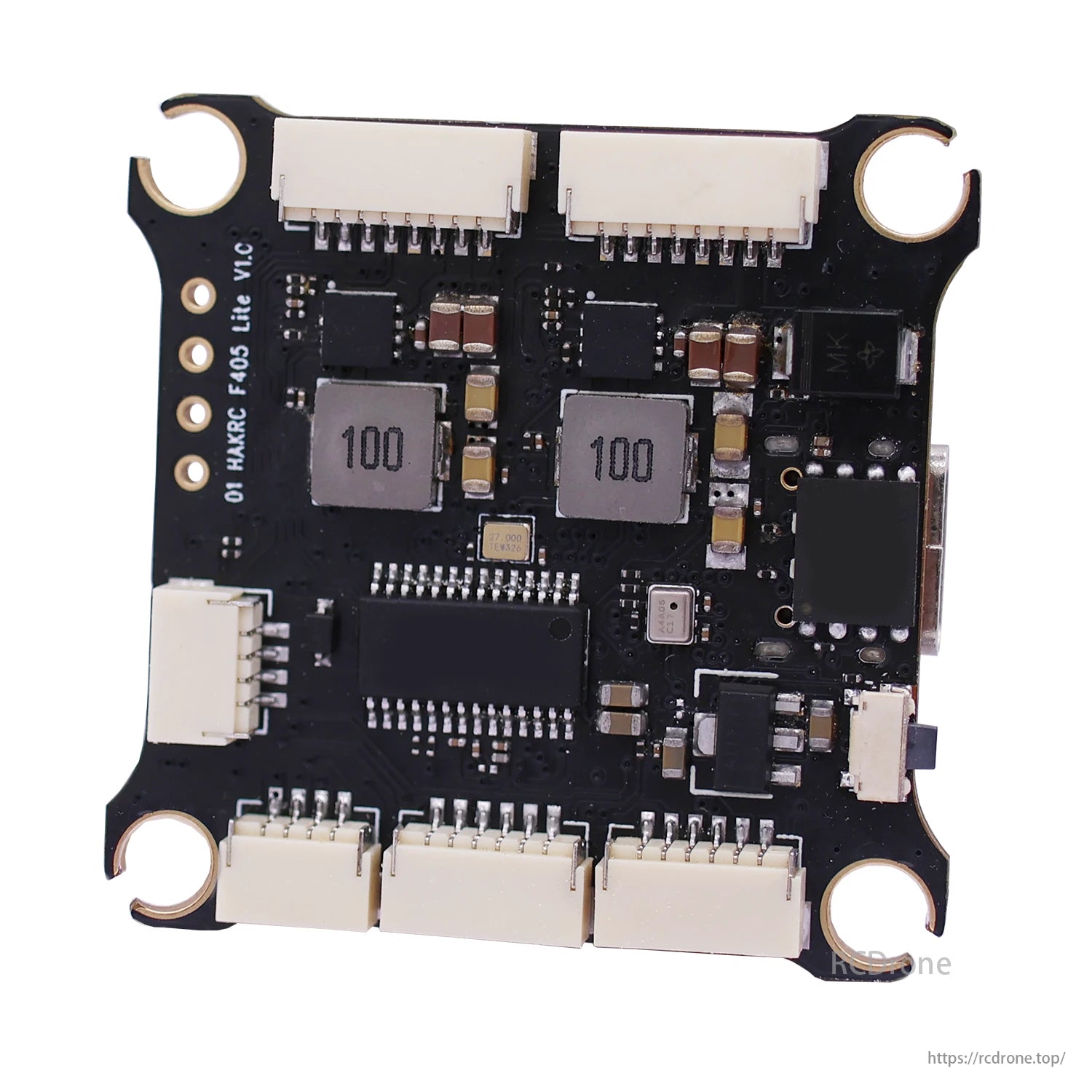

HAKRC F405 Lite Flight Controller, 4-layer 1oz copper for heat dissipation, STM32F405RGT6 CPU with plug-in connector, industrial LDO, Murata capacitors, and eight motor outputs ensure reliable, efficient flight control performance.

4-layer 1oz thick copper enhances current and heat dissipation. It uses a high-performance STM32F405RGT6 CPU with a plug-in connector for solder-free installation. Industrial-grade LDO ensures high-temperature resistance, while Murata capacitors provide strong filtering. The design supports eight motor control signal outputs, ensuring reliability and efficiency. These features make it ideal for flight control applications, offering ease of use and robust performance in various conditions. This combination of components guarantees superior functionality and durability.

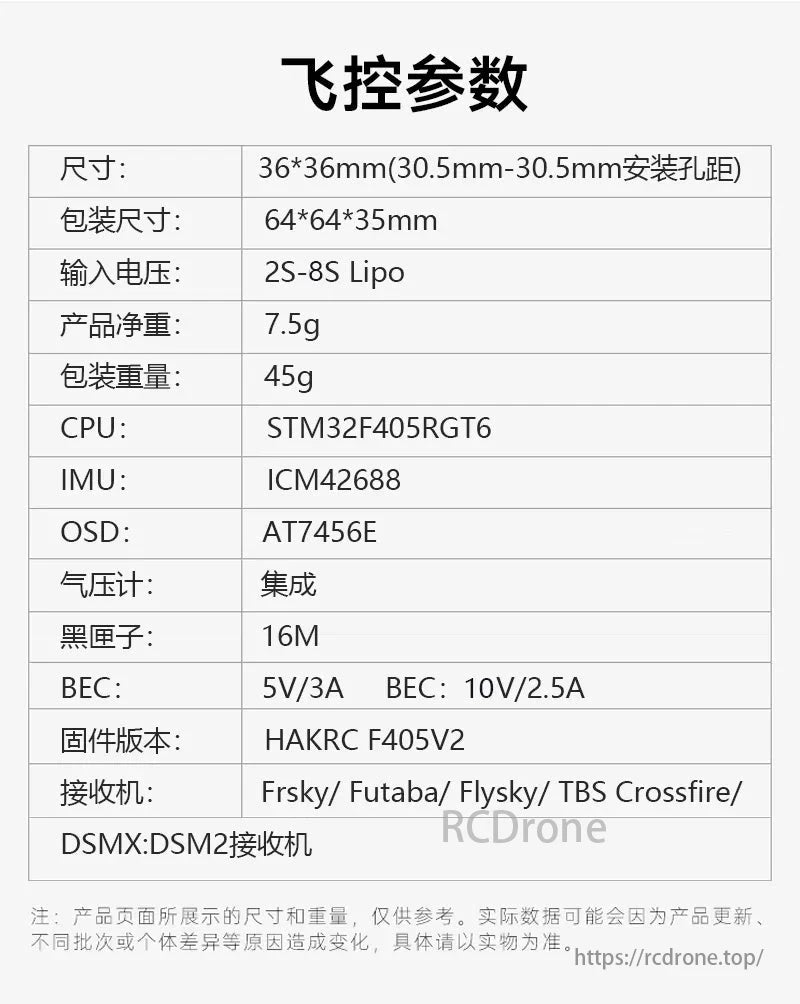

HAKRC F405 Lite Flight Controller, F405 Lite Flight Controller: Compact, lightweight, supports 2S-8S Lipo, with STM32F405RGT6 CPU, ICM42688 IMU, AT7456E OSD, barometer, black box, dual BEC, HAKRC firmware, and various receivers.

F405 Lite Flight Controller: 36x36mm, 7.5g, 2S-8S Lipo, STM32F405RGT6 CPU, ICM42688 IMU, AT7456E OSD, integrated barometer, 16M black box, 5V/3A & 10V/2.5A BEC, HAKRC F405V2 firmware, supports various receivers.

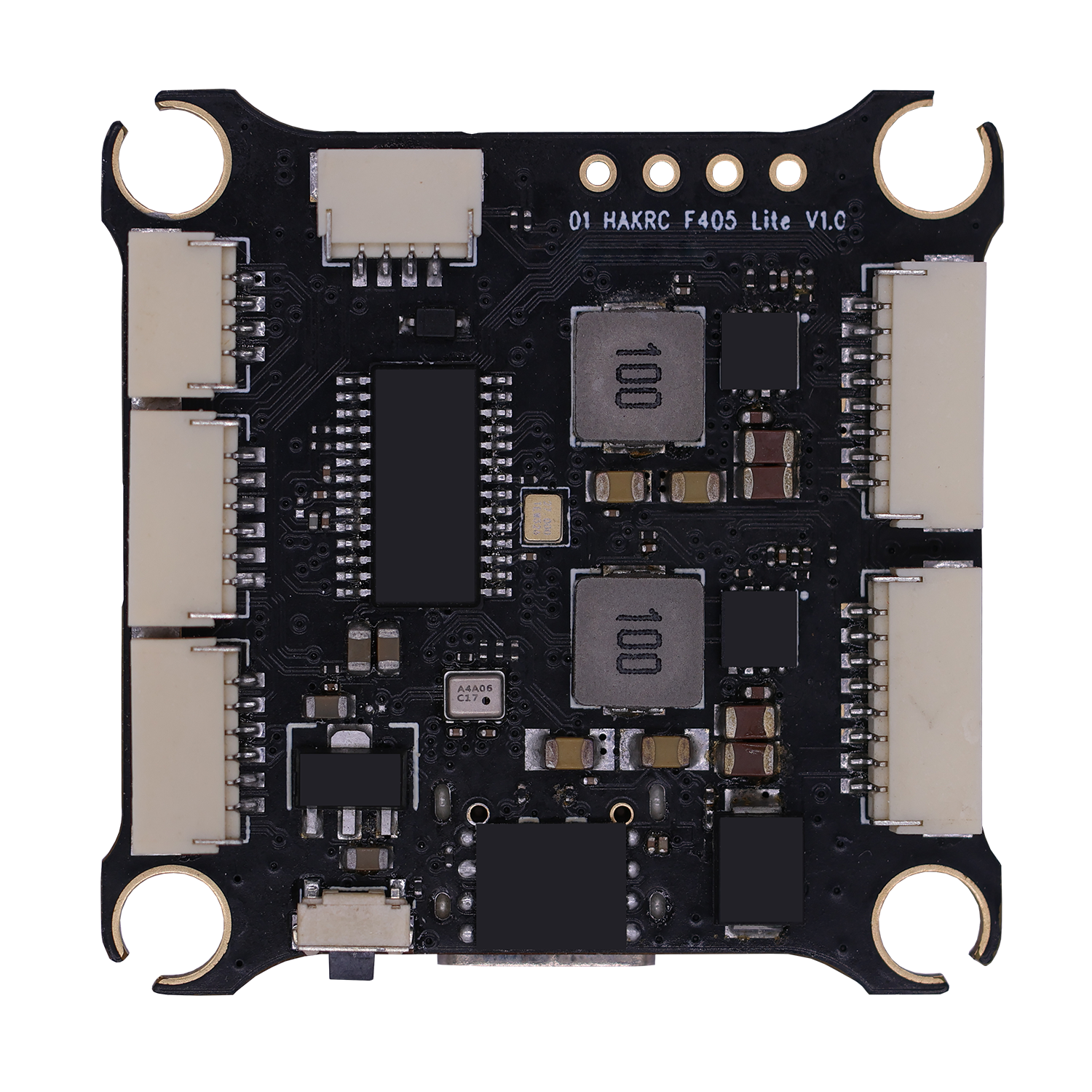

HAKRC F405 Lite Flight Controller offers direct plug-in sockets for quick, easy operation and multiple connections.

HAKRC F405 Lite Flight Controller has direct plug-in sockets for quick, easy operation with multiple connections.

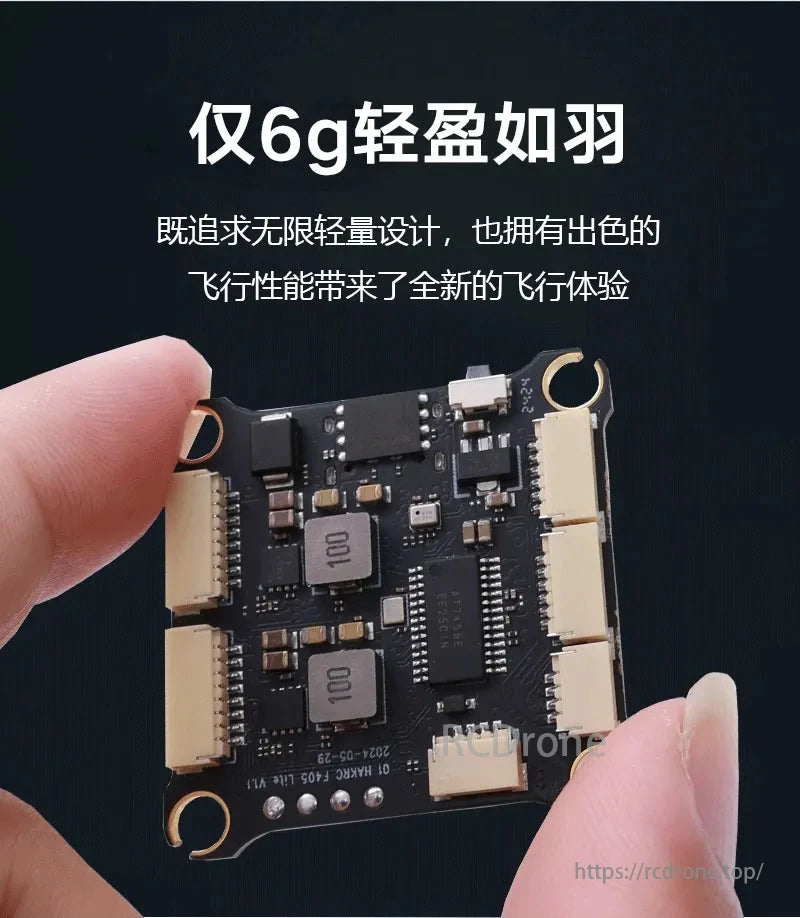

HAKRC F405 Lite Flight Controller is an ultra-lightweight (6g) device providing exceptional flight performance for an enhanced flying experience.

HAKRC F405 Lite Flight Controller weighs only 6g, offering ultra-lightweight design and exceptional flight performance for a new flying experience.

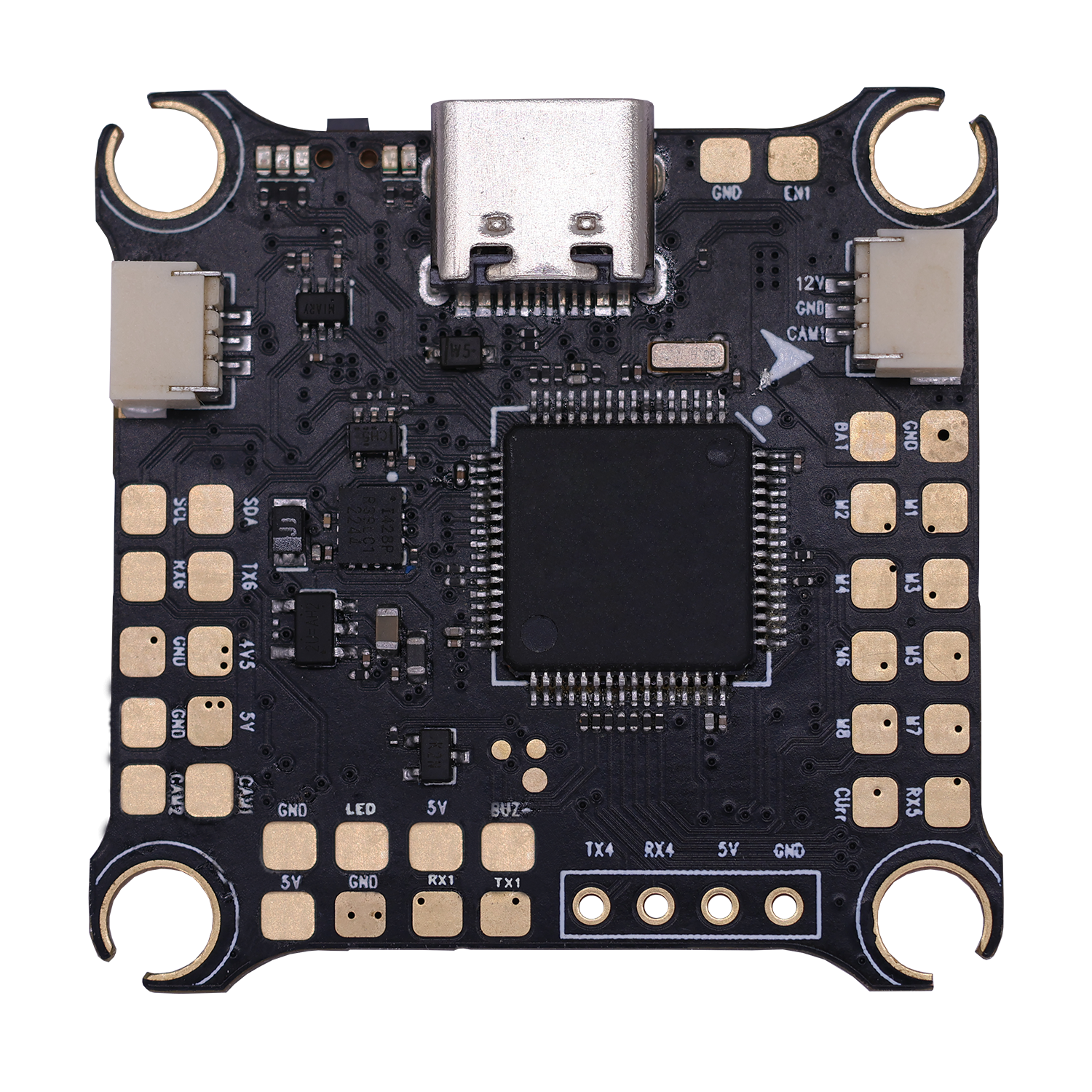

HAKRC F405 Lite Flight Controller supports multiple receivers and features a USB port for versatile use.

HAKRC F405 Lite Flight Controller supports multiple receivers: PFrsky, Futaba, Flysky, TBS Crossfire, DSMX, DSM2. Features USB port and various connection pins for versatile use.

HAKRC F405 Lite Flight Controller, Stable performance, versatile use in machines and model airplanes, ideal for various applications.

Stable performance, versatile use in traversing machines, industrial machinery, and model airplanes. Ideal for various applications.

The HAKRC F405 Lite Flight Controller package includes a controller, dampers, various cables for CRSF, video, DJI, GPS, and camera connections.

HAKRC F405 Lite Flight Controller package includes: 1 controller, 4 orange dampers, 1 8p cable, 1 CRSF receiver cable, 1 4P to 6P video cable, 1 DJI 6P cable, 1 GPS 6P cable, and 2 camera 3P cables.
