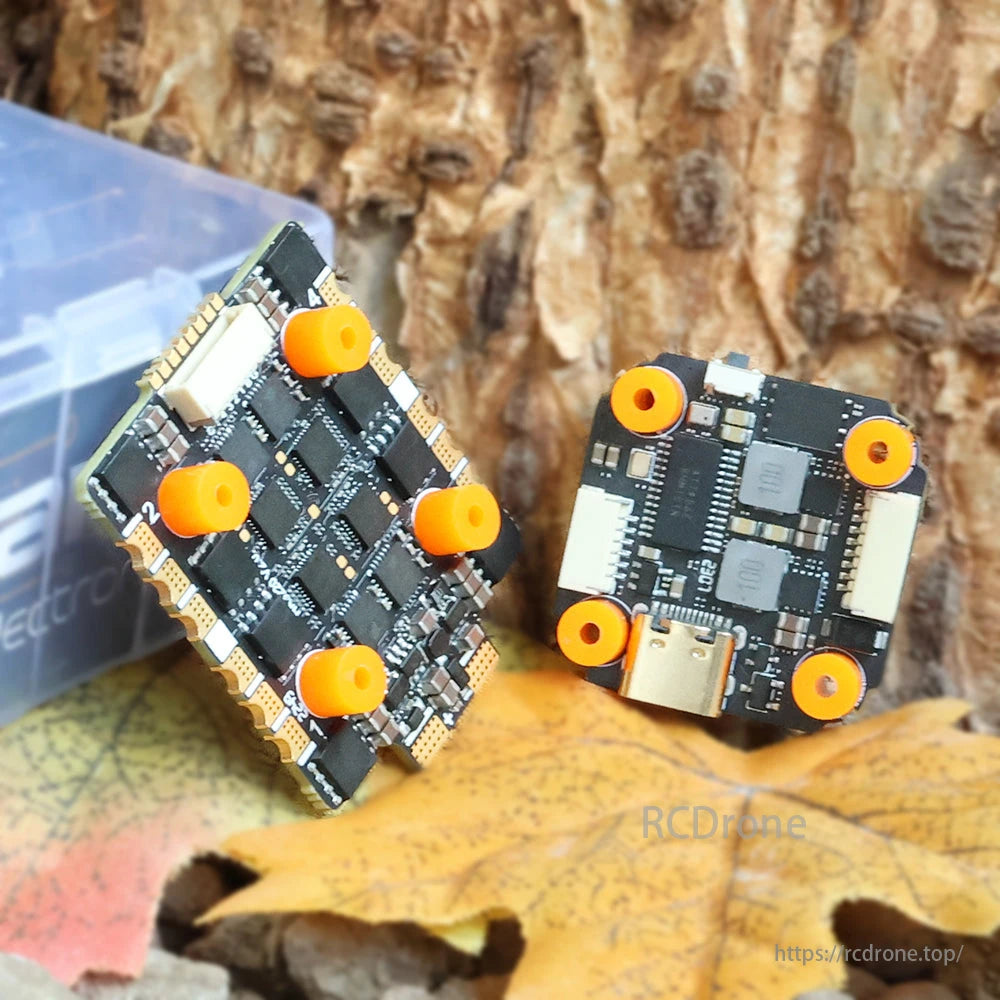

  • HAKRC F722 Mini stack for FPV drone features STM32F722, ICM42688, and supports 2-6S/8S batteries.
  • HAKRC F722 Mini 35A/40A/60A/65A V2 Stack for FPV Drone – STM32F722, ICM42688, 2–6S/8S Support
  • HAKRC F722 Mini 35A/40A/60A/65A V2 Stack for FPV Drone – STM32F722, ICM42688, 2–6S/8S Support

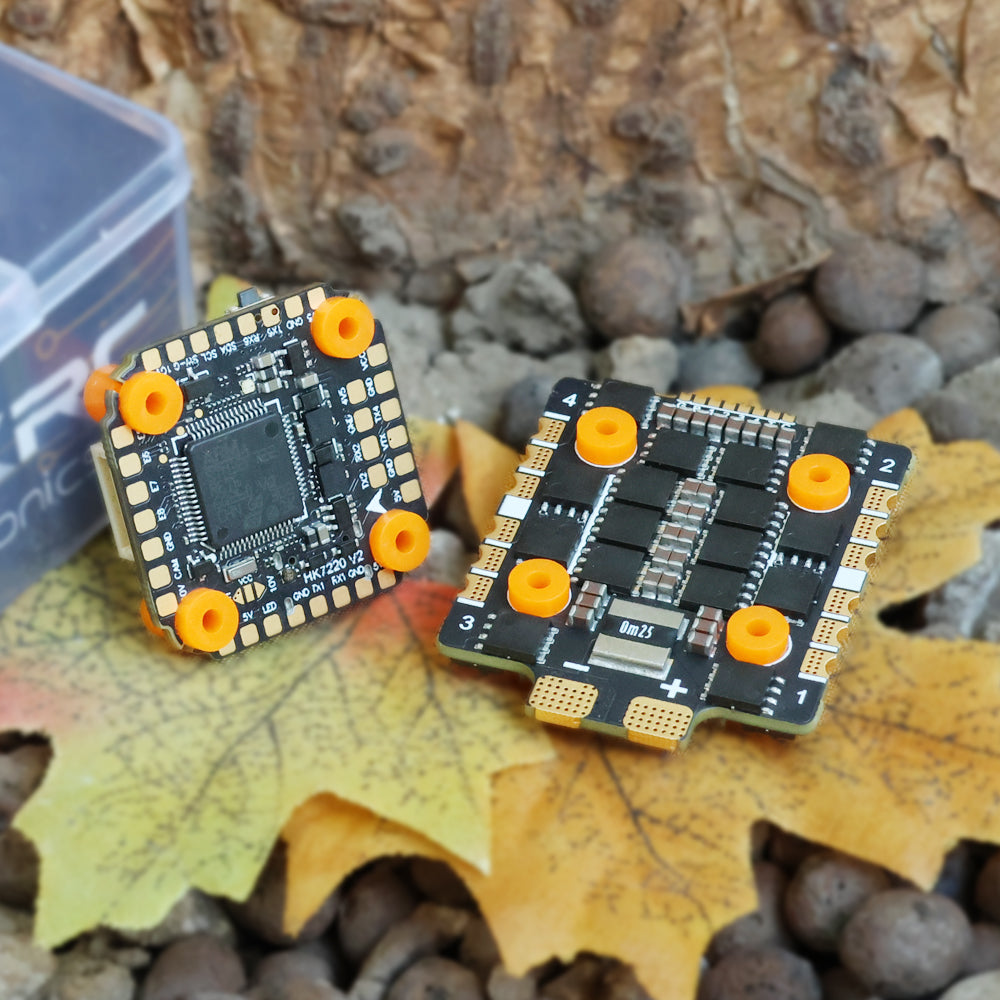

  • HAKRC F722 Mini stack for FPV drones features STM32F722, ICM42688, 2-6S/8S support, and compact design with orange connectors.
1 6

HAKRC F722 Mini 35A/40A/60A/65A V2 Stack for FPV Drone – STM32F722, ICM42688, 2–6S/8S Support

HAKRC F722 Mini 35A/40A/60A/65A V2 Stack for FPV Drone – STM32F722, ICM42688, 2–6S/8S Support

HAKRC

$109.00 USD
$109.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Version
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

The HAKRC F722 Mini V2 Stack series offers high-performance flight controller and ESC combinations designed for FPV racing and freestyle drones. Available in four configurations — 35A (8 Bit), 40A, 60A, and 65A (32 Bit) — this stack integrates an advanced STM32F722RET6 processor, ICM42688 dual gyroscope, and powerful BLHeli ESCs supporting up to 8S (60A/65A models). Ideal for 3-6 inch quads, the HAKRC F722 Mini V2 Stack delivers smooth, precise control with exceptional reliability and compatibility with DJI FPV and DJI O3 systems.

Key Features

  • Flight Controller (all versions):

    • MCU: STM32F722RET6

    • Gyro: ICM42688 dual gyroscope

    • BEC: 5V/2.5A and 10V/2A

    • UART Ports: 6

    • Firmware: HAKRCF722V2

    • Mounting: 20×20mm (29×29mm board)

    • Weight: 6g

    • Storage: 16MB

    • Input Voltage: 2–6S LiPo

ESC Options

Model ESC Size (mm) Weight Voltage Support Continuous Current Peak Current Firmware MCU Bit Current Scale ESC Software Version
35A V2 31 × 30 6g 2–6S 35A 40A G_H_20 - Rev.16.7 - Multi 8-Bit 300 BLHeliSuite16.7.14.9.0.3
40A V2 31 × 29.5 6g 2–6S 40A 45A HAKRC-40-K42_Multi_32.8.Hex 32-Bit 300 BLHeliSuite32.9.0.3
60A V2 34 × 42.5 11g 2–8S 60A 70A HAKRC_AT4G_Multi_32.9.Hex 32-Bit 160 BLHeliSuite32Activator_32.9.0.3
65A V2 34 × 42.5 11g 2–8S 65A 70A HAKRC_AT4G_Multi_32.9.Hex 32-Bit 90 BLHeliSuite32Activator_32.9.0.3

All ESCs support PWM, Oneshot125, Oneshot42, Multishot, DShot150, DShot300, DShot600.

Included in Package

  • 1× HAKRC F722 V2 Flight Controller

  • 1× 4-in-1 ESC (35A / 40A / 60A / 65A)

  • 1× DJI FPV Cable

  • 1× 35V 270uF Capacitor

  • 1× XT60 Power Lead

  • 1× DJI O3 Air Unit 3-in-1 Cable

  • 1× Red and Blue Power Cable

  • 1× 8p Signal Cable

  • 8× M2 Orange Dampers

  • 4× (M2×25mm) Screws

  • 4× Black M2 Nylon Nuts

  • 1× User Manual

Details

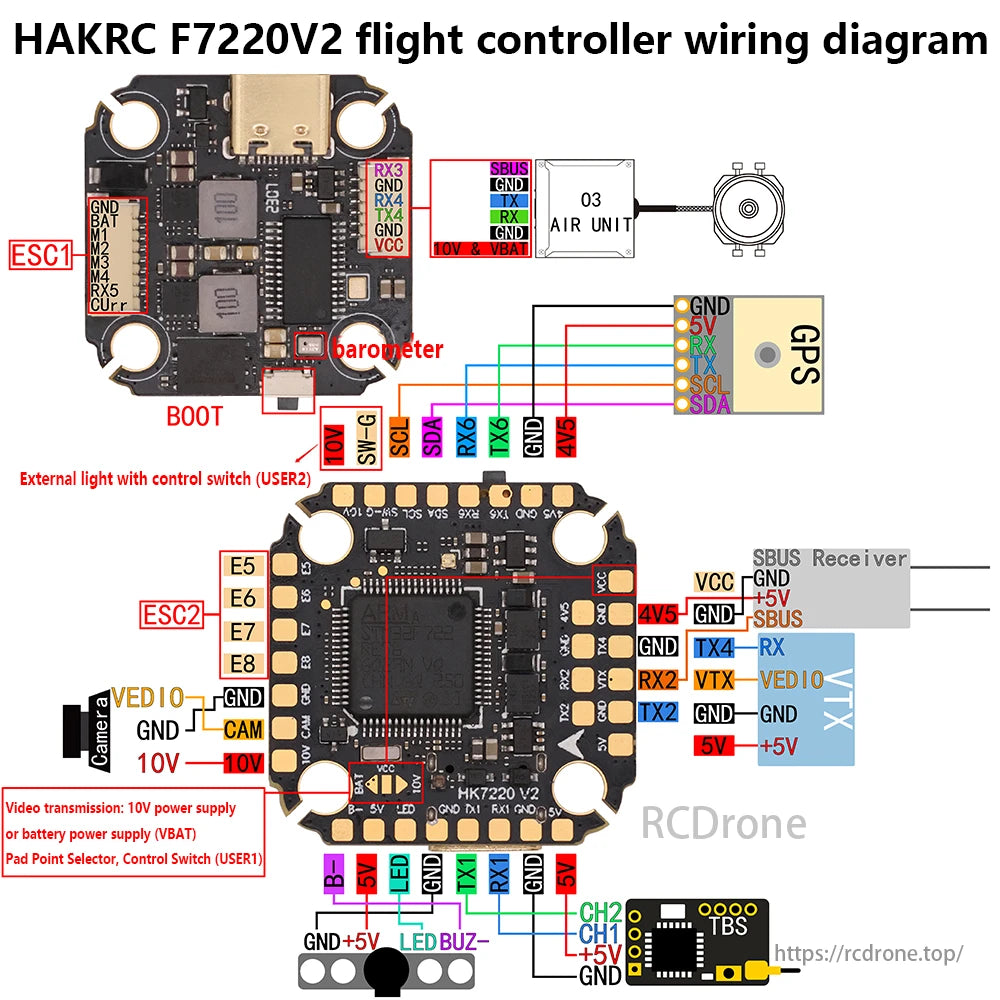

HAKRC F722 FPV Drone Stack, HAKRC F7220V2 flight controller wiring diagram with ESC, GPS, SBUS, VTX, camera, lights, and functionality highlights.

HAKRC F7220V2 flight controller wiring diagram. Includes ESC, GPS, SBUS receiver, VTX, camera, and external light connections. Highlights video transmission, barometer, and control switch functionalities.

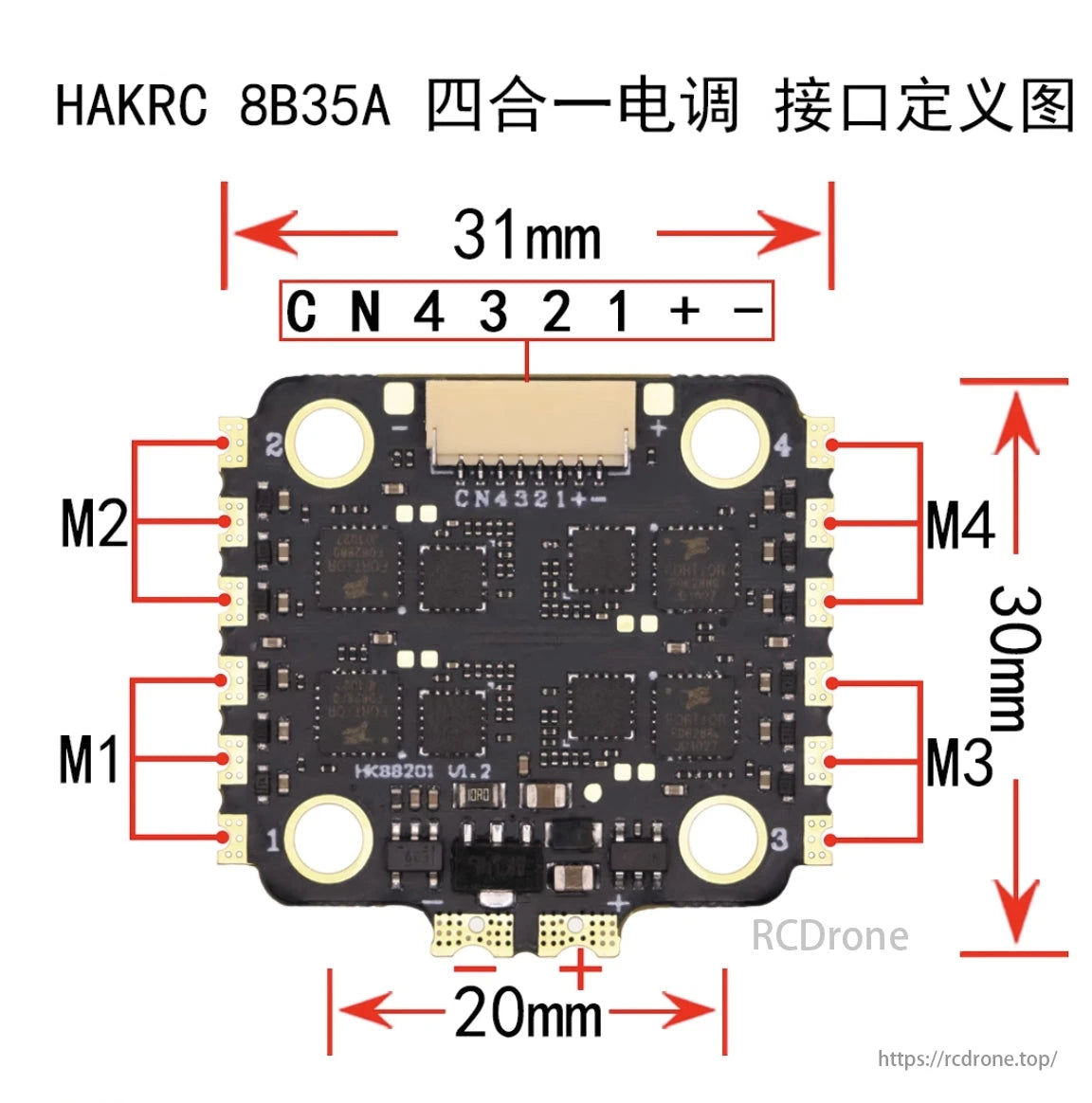

HAKRC F722 FPV Drone Stack, HAKRC 8B35A 4-in-1 ESC interface diagram with dimensions and motor labels M1-M4.

HAKRC 8B35A 4-in-1 ESC interface diagram. Dimensions: 31mm width, 30mm height, 20mm bottom width. M1, M2, M3, M4 labeled.

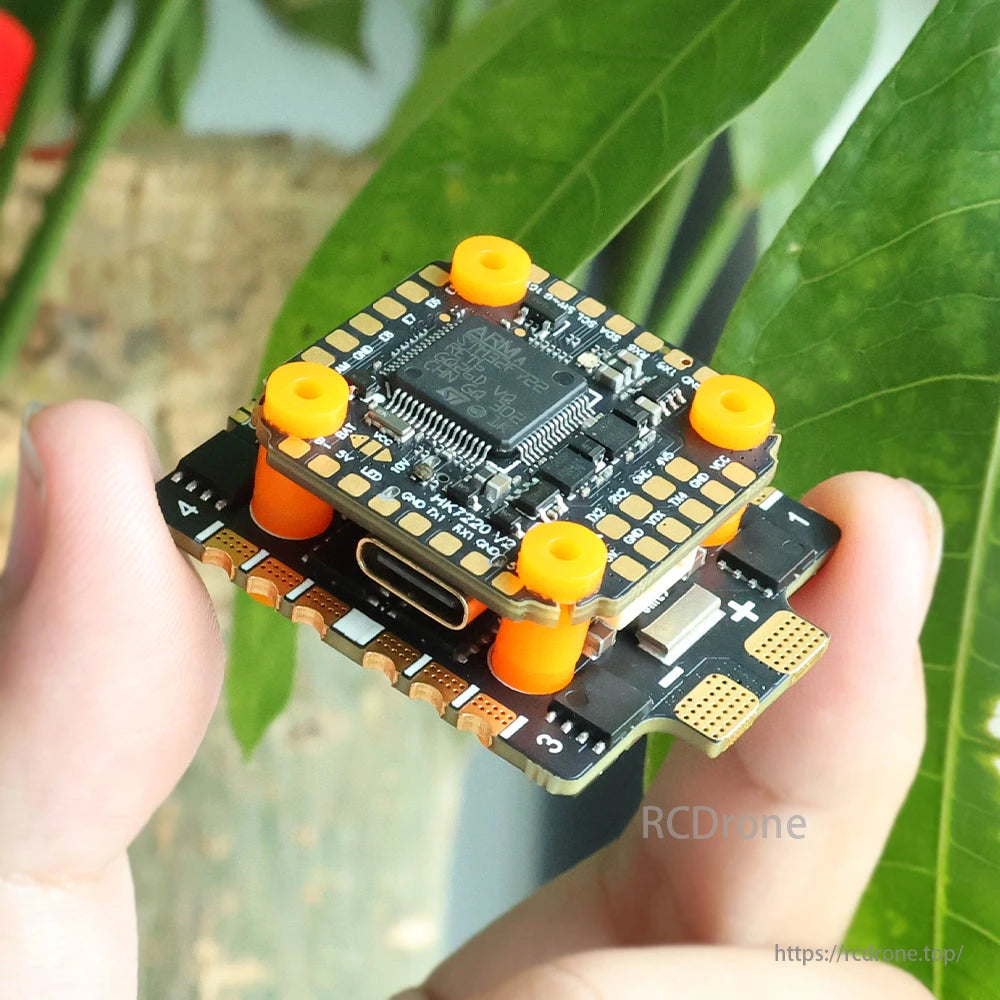

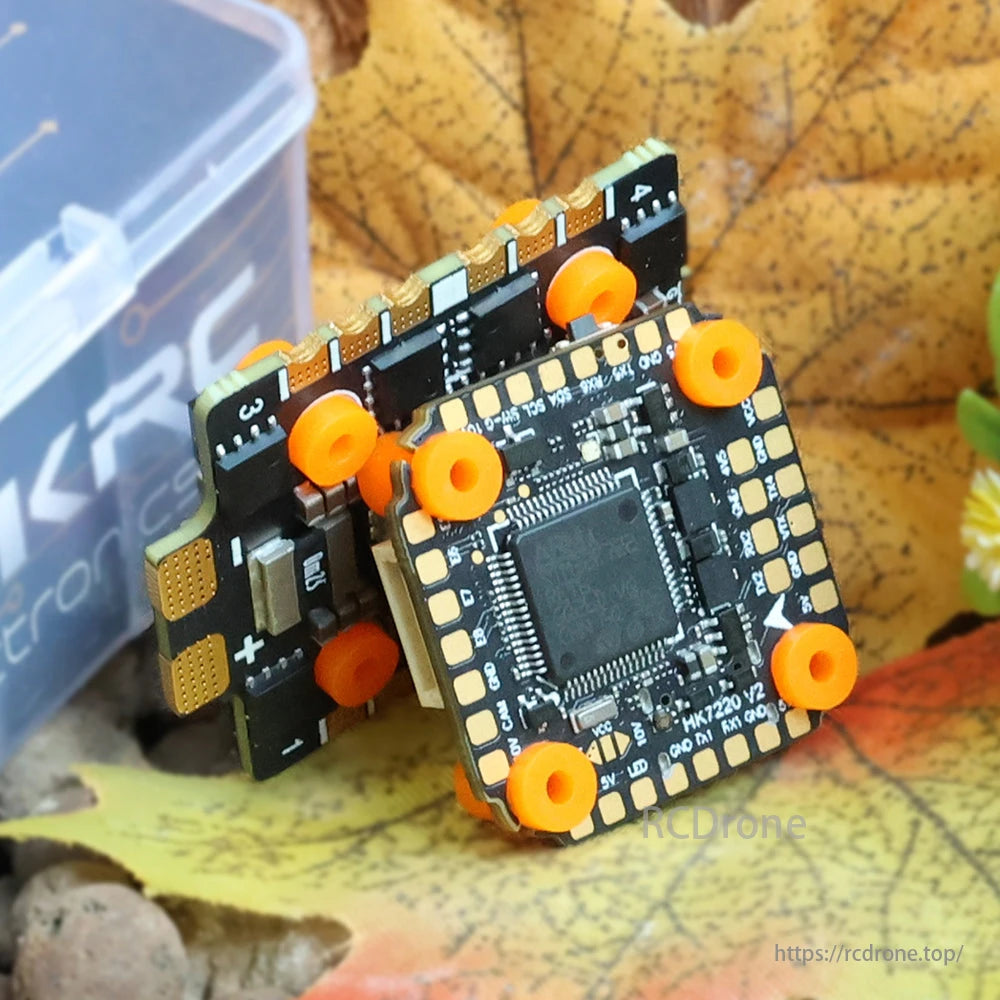

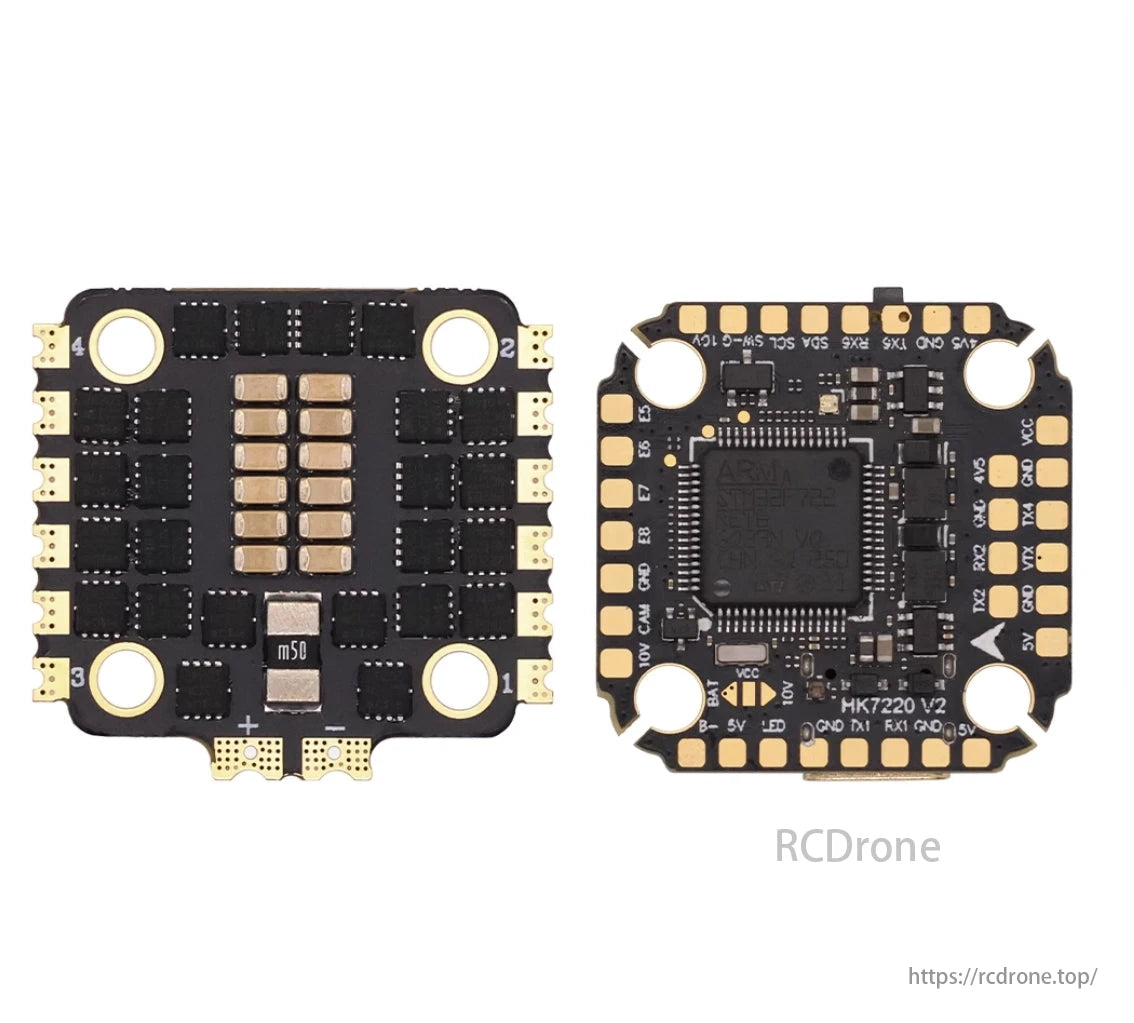

HAKRC F722 FPV Drone Stack features ARM STM32F722, m50 label, and versatile ports for diverse drone applications.

HAKRC F722 FPV Drone Stack includes ARM STM32F722, m50 label, and multiple ports for versatile drone use.

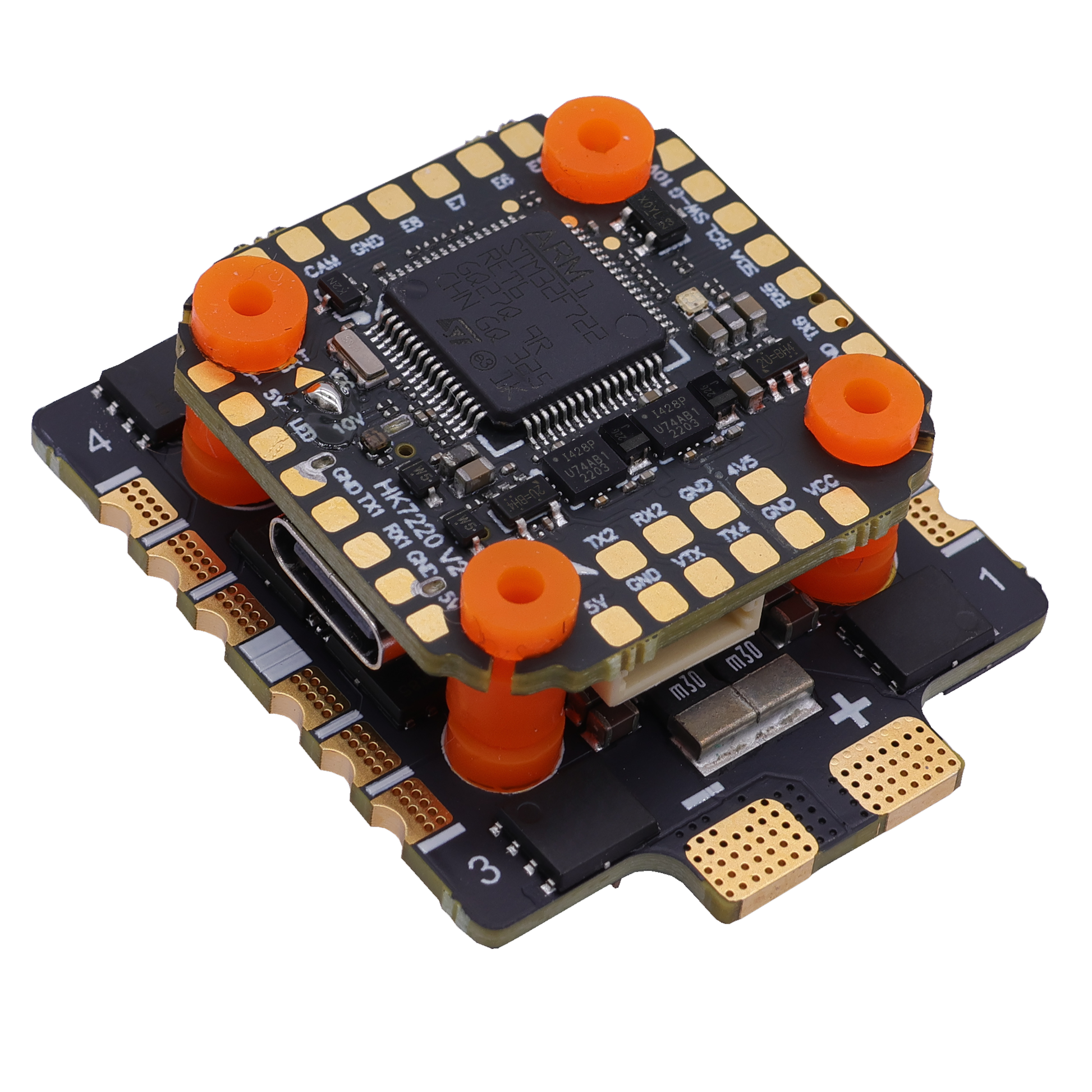

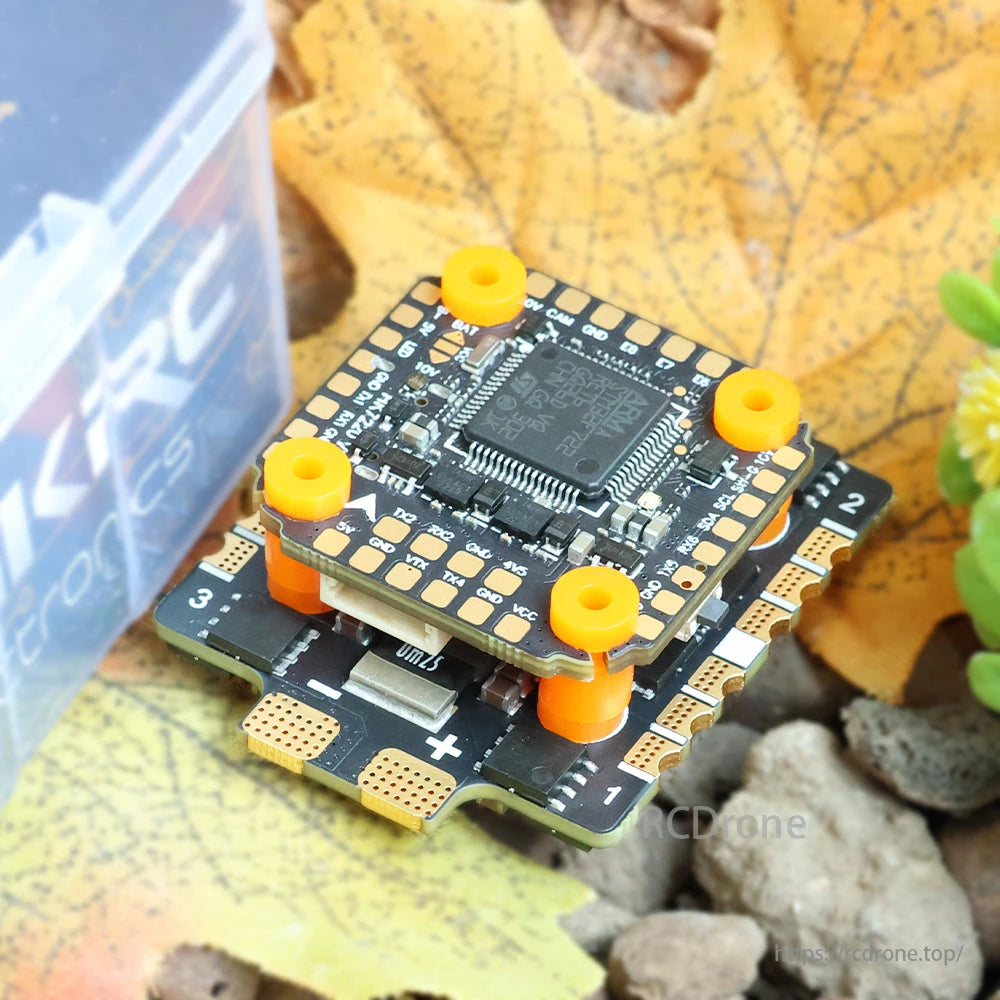

HAKRC F722 FPV Drone Stack, The HAKRC F722 Mini V2 Stack provides smooth, precise control for quads up to 6 inches.
