HAKRC F7226 40A AIO Flight Controller with BLHeli_S ESC – 2–6S, STM32F722, OSD, Barometer, 5V/3A BEC, CRSF & DSMX Receiver Support

The HAKRC F7226 AIO Flight Controller is a high-performance all-in-one FC+ESC solution for FPV racing drones and freestyle builds. Featuring an integrated 40A 4-in-1 ESC with BLHeli_S firmware, this compact 32×32mm stack supports 2S–6S LiPo input and delivers smooth, efficient performance with full protocol support including DShot600.

Built with a premium 8-layer PCB, 2oz copper thickness, and imported 40V high-current MOSFETs, this AIO board offers superior durability and heat dissipation under high load. The onboard STM32F722RET6 CPU, ICM42688 IMU, AT7456E OSD, and barometer provide high-precision flight data processing, while the 5V/3A BEC powers your peripherals.

🔧 Flight Controller Specifications

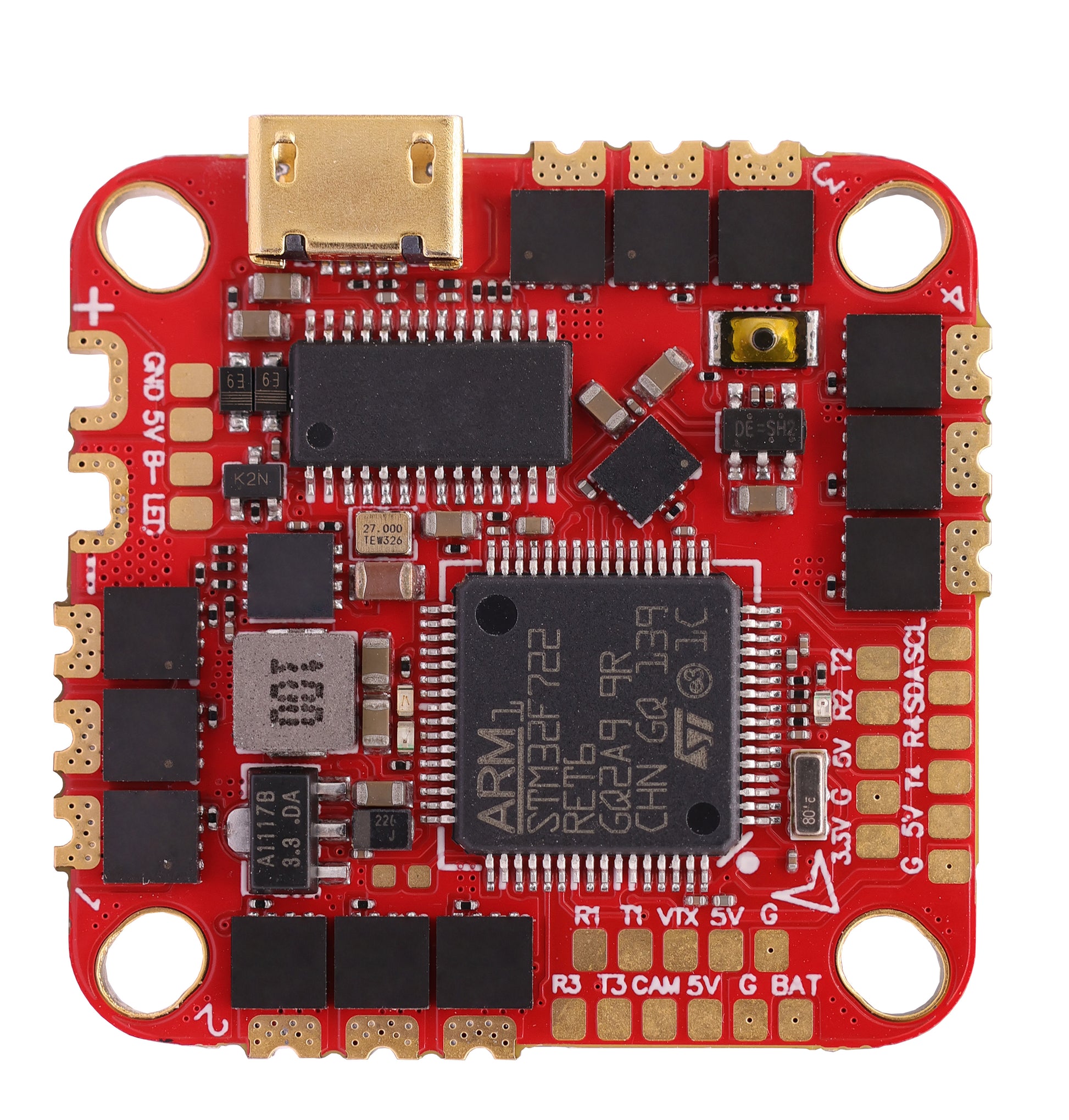

• CPU: STM32F722RET6

• IMU: ICM42688

• OSD: AT7456E

• Barometer: Integrated

• BEC Output: 5V / 3A

• UART Ports: 5

• LED: Supports WS2812 and programmable RGB LED

• Current Sensor: Built-in

• FC Firmware: HAKRC F722D

• Receiver Support: CRSF, FrSky, Futaba, FlySky, TBS Crossfire, DSMX/DSM2

• Mounting Hole: 25.5mm – 26.5mm (for 32×32mm board)

⚡ ESC Specifications

• ESC Firmware: BLHeli_S (G-H-30)

• Input Voltage: 2S–6S LiPo

• Continuous Current: 40A per channel

• Peak Current: 50A (instantaneous)

• Protocol Support: PWM, Oneshot125, Oneshot42, Multishot, DShot150 / DShot300 / DShot600

• Current Sensor Scale: 450

📦 Package Includes

• 1× HAKRC F7226 AIO FC & ESC

• 4× Yellow silicone shock-absorbing balls

• 1× XT30 power lead

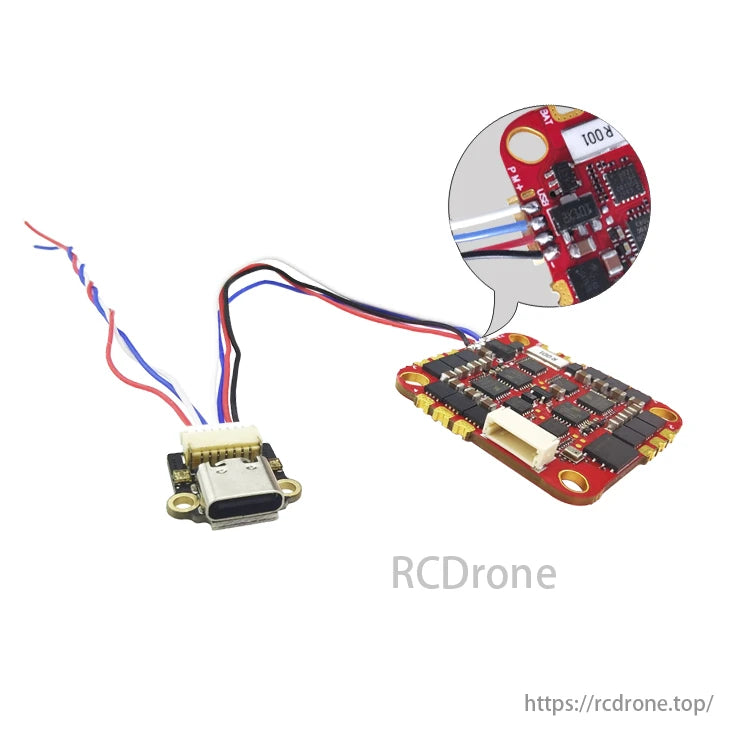

• 1× Type-C USB extension board

• 1× SH1.0/7P 180mm signal cable

• 1× 270μF 35V capacitor

🔍 Highlights

• True All-in-One Design: Combines a powerful F7 flight controller and 40A BLHeli_S ESC in one board.

• Advanced Hardware Build: 8-layer 2oz copper PCB with Japanese Murata capacitors and imported high-current MOSFETs.

• Ready for 2–6S Power Systems: Built to handle high voltage input with reliable current regulation.

• Wide Compatibility: Supports a range of radio receivers and digital ESC protocols.

HAKRC 7226 AIO Wiring Diagram illustrates connections for motors, GPS, SBUS receiver, camera, air unit, and barometer. It includes power supply, signal lines, and ground connections for flight control setup.
