HAKRC F7230 V2 Flight Controller for FPV Drone – STM32F722, Dual Gyro, 30.5×30.5mm, 2S-6S, DJI Ready

The HAKRC F7230 V2 Flight Controller is a powerful and professional-grade FC built for advanced FPV drone applications. With a standard 30.5×30.5mm mounting pattern, this board is based on the STM32F722RET6 MCU and features a dual ICM42688 gyroscope setup to enhance flight accuracy and stability.

Designed with a 6-layer 1oz thickened copper PCB using resin plug-hole technology, it offers superior anti-interference performance, durability, and heat resistance. Installation is quick and clean thanks to solder-free inline connectors, making it ideal for builders of all levels.

This flight controller also includes four programmable RGB LED outputs, external 10V LED support, and a switchable VTX power output (VBAT/10V) controlled via remote channel—enabling full customization of lighting and video power for analog or digital builds.

Equipped with a 16MB blackbox, integrated barometer, AT7456E OSD, and current sensor, the F7230 V2 supports DJI FPV Air Unit and multiple receiver protocols including FrSky, Futaba, Flysky, Crossfire, ELRS, DSMX, and more.

🔧 Key Features

• High-End PCB Design

  • 6-layer 1oz thick copper with resin plug holes

  • Industrial-grade LDOs for high temperature resistance

  • Japanese Murata capacitors for stable power filtering

• Flight Performance & Expandability

  • STM32F722RET6 MCU

  • Dual ICM42688 Gyroscopes for enhanced precision

  • Integrated Barometer, 16MB Blackbox, and OSD (AT7456E)

  • Built-in current sensor

• Power System

  • Dual BEC outputs: 5V/3A and 10V/2.5A

  • 2S–6S LiPo input support

• Customization & Compatibility

  • 4 Programmable LED Illusion Lights

  • External 10V LED strip output with RC-controlled switch

  • VTX power selection between VBAT and 10V, switchable via USER1

  • DJI plug-and-play port (6P Air Unit connector)

• Receiver Support

  • Compatible with SBUS, CRSF, ELRS, DSMX, iBus, Flysky, Futaba, FrSky, and others

  • 5 UART ports for full peripheral connectivity

📐 Specifications

📦 Packing List

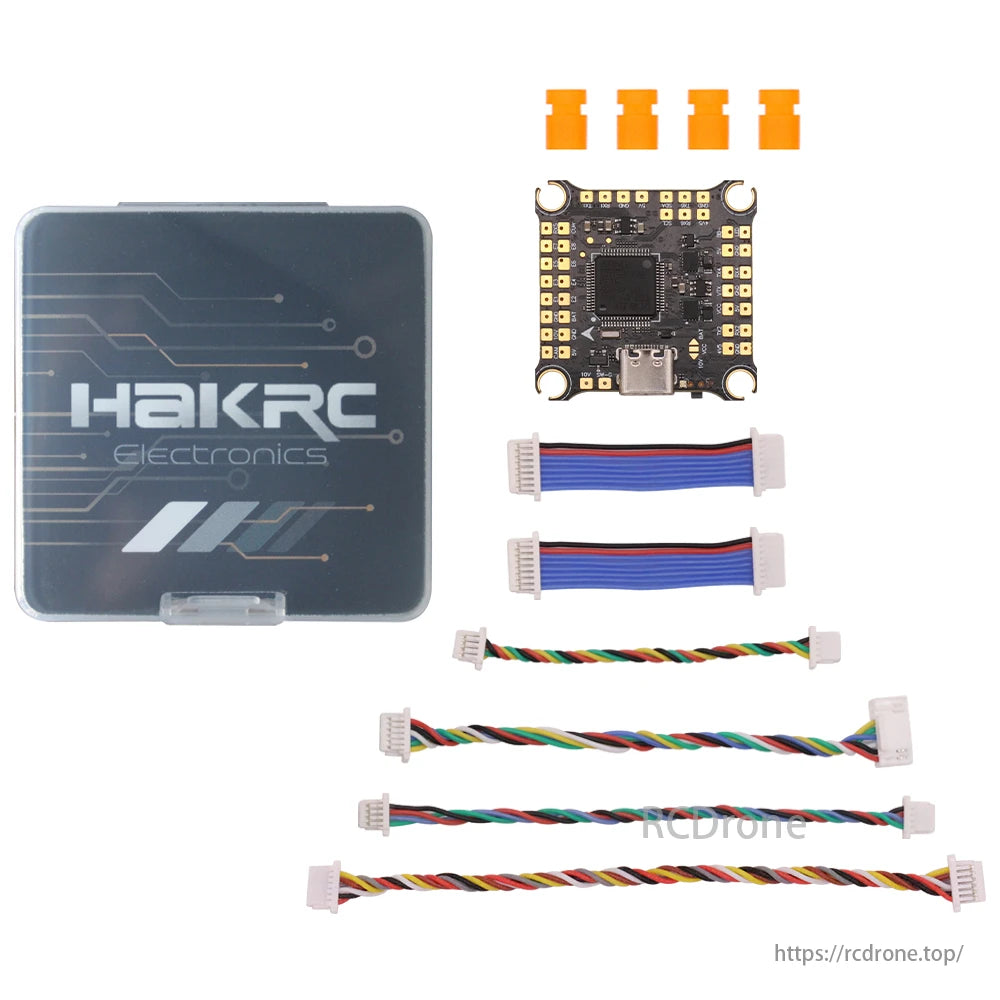

• 1 × HAKRC F7230 V2 Flight Controller

• 4 × M3 Shock Absorbers

• 1 × 8P ESC Cable

• 1 × DJI FPV Cable

• 1 × 4P LED Cable

• 1 × 4P Receiver Cable

• 1 × DJI O3 3-in-1 Cable

• 1 × Instruction Manual

Details

HAKRC F7230V2 flight controller wiring diagram. Includes ESCs, barometer, ICM-42688 dual gyroscope, SBUS receiver, VTX, GPS, TBS module, air unit, external light, camera, and return galvanometer connections.
