HAKRC F7230S STM32F722 Flight Controller – 30.5x30.5mm, Dual Gyroscope, 2.4G Receiver, 2–6S, 10V/5V Dual BEC, LED Control

Overview

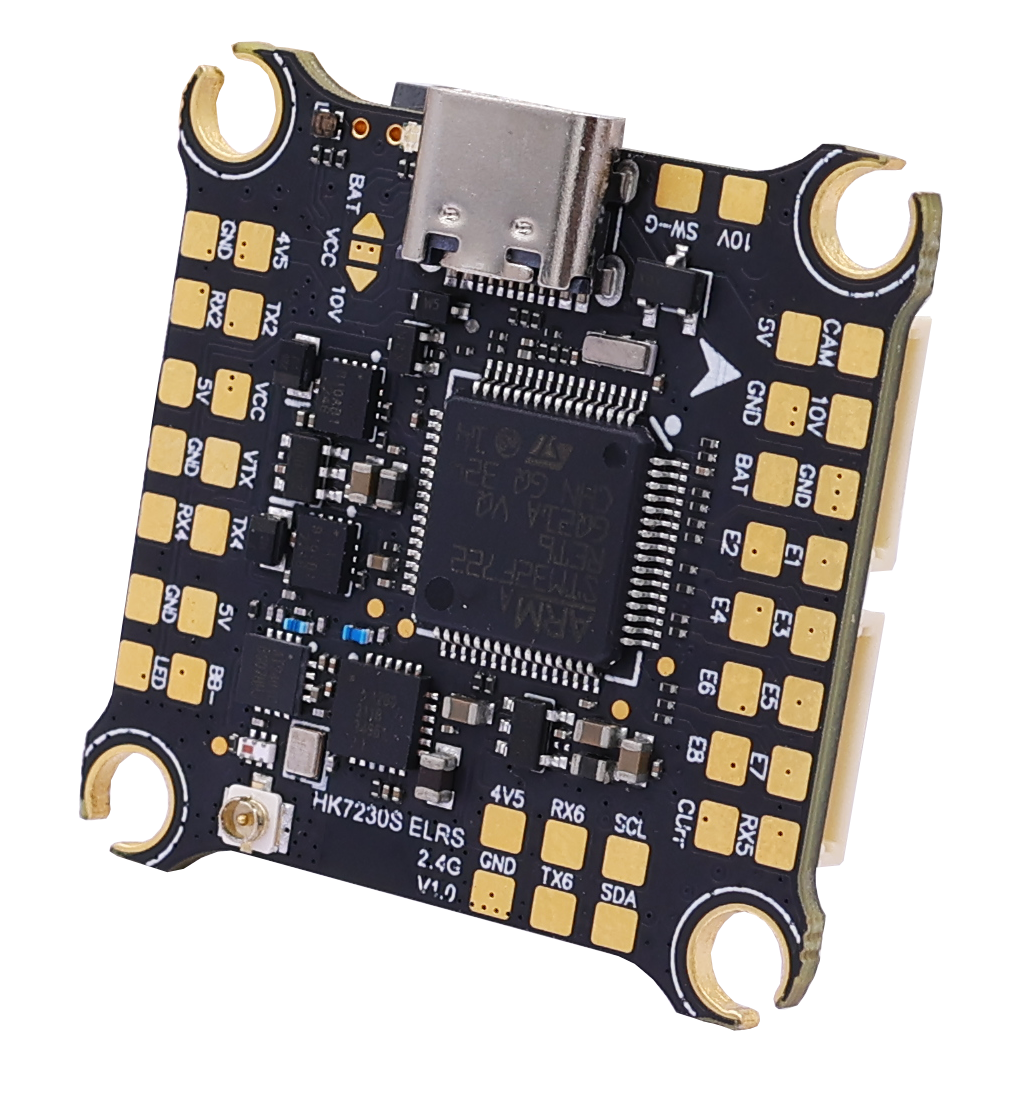

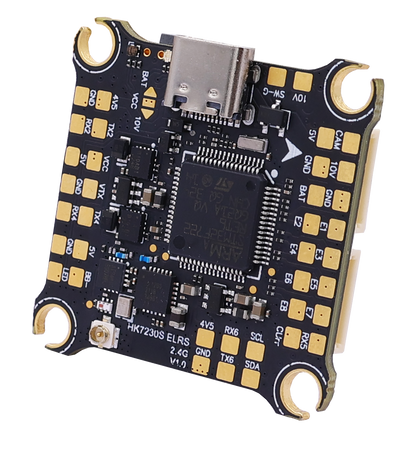

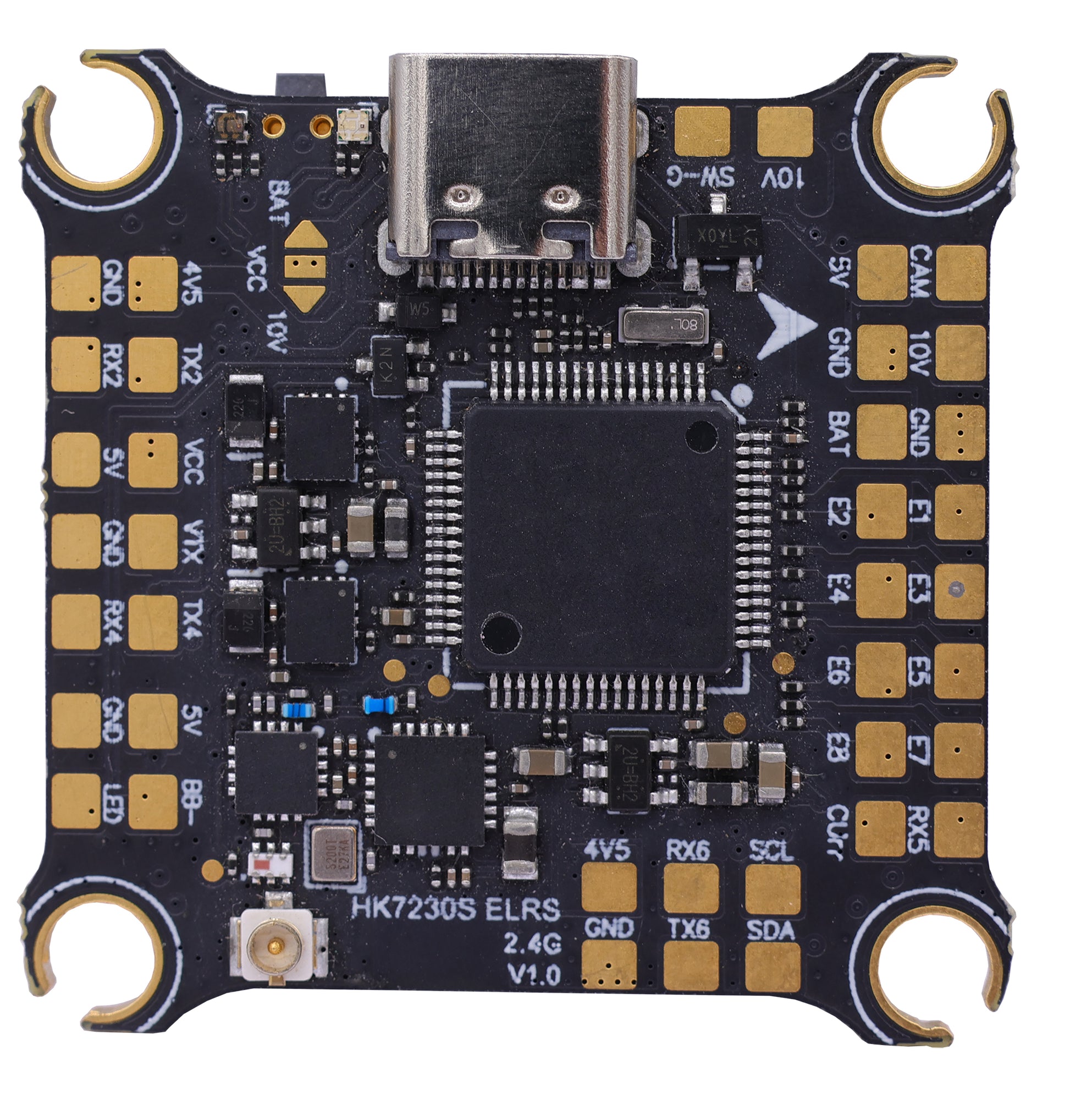

The HAKRC F7230S Flight Controller is an advanced 30.5x30.5mm FC built for high-performance FPV drones and multirotors. Powered by the reliable STM32F722RET6 MCU, it features a dual-gyroscope system (ICM42688) that enhances flight accuracy by reducing IMU error. With an onboard 2.4G receiver, this FC streamlines receiver setup and provides broad compatibility with FrSky, Futaba, Flysky, TBS Crossfire, and DSMX/DSM2 systems.

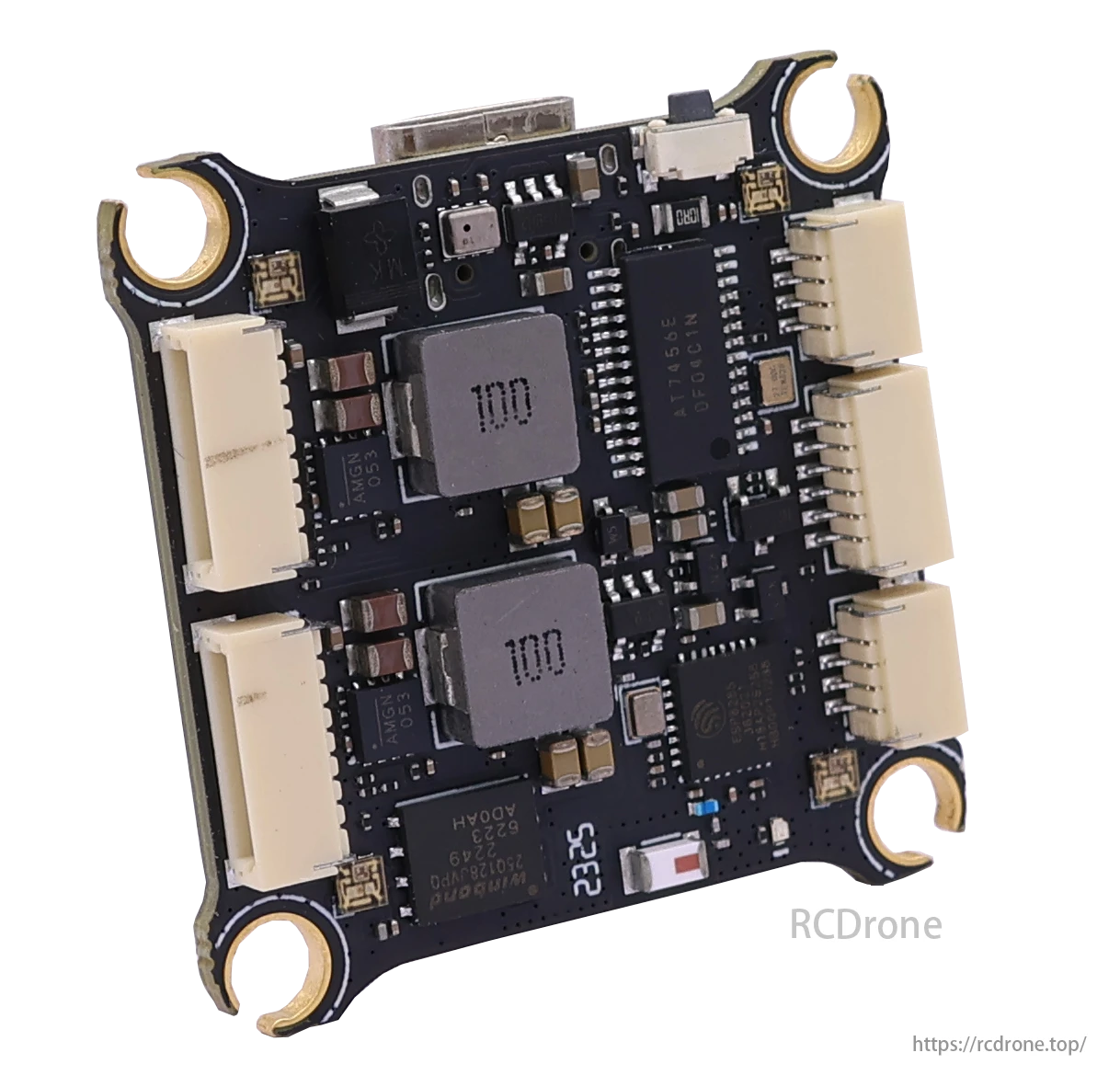

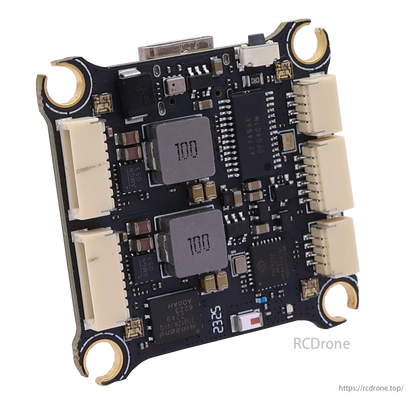

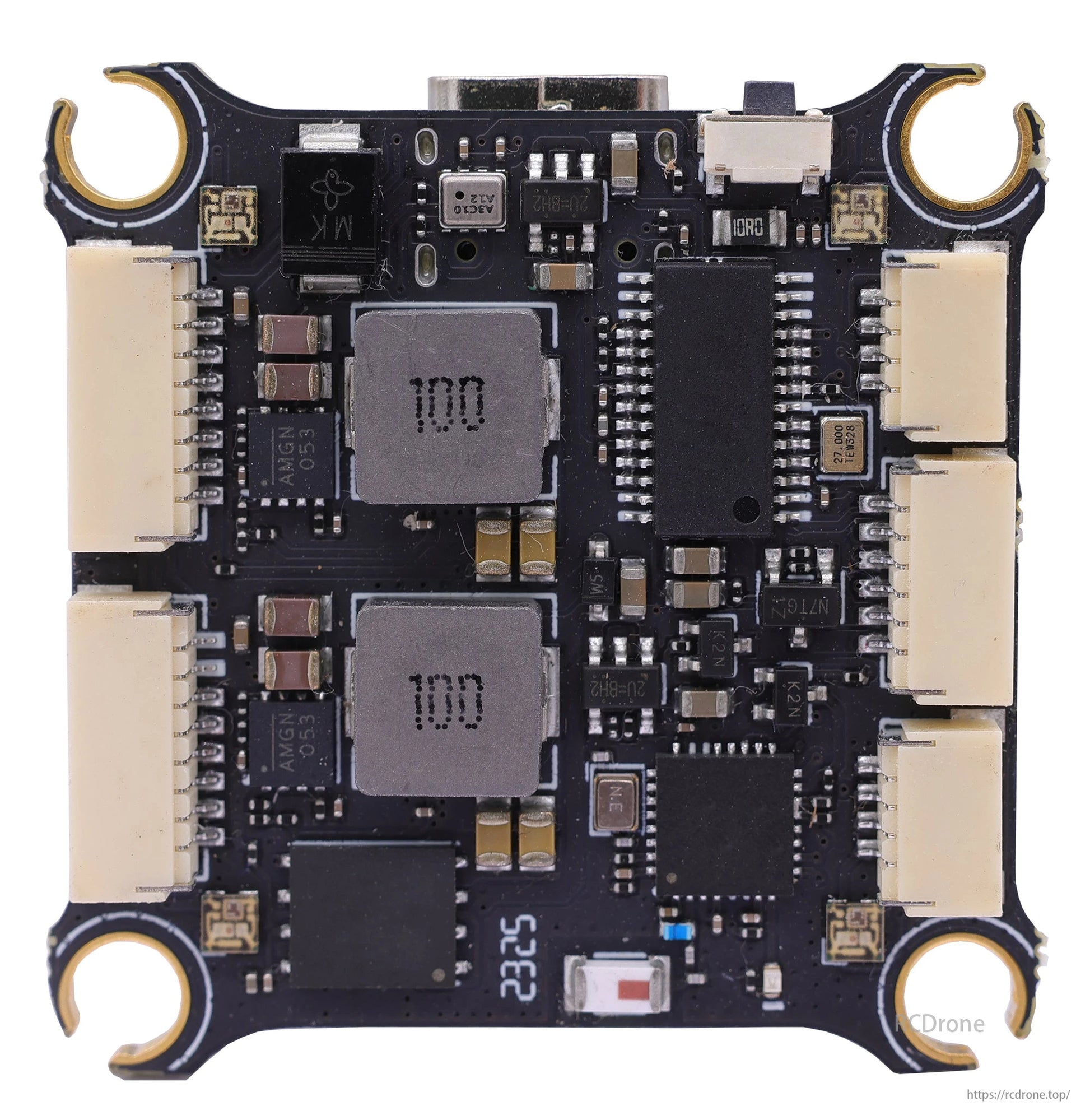

Designed with a 6-layer 1oz thickened copper PCB and industrial-grade LDOs, the board offers superior anti-interference performance and heat resistance. Integrated 16MB blackbox, adjustable AT7456E OSD, and built-in current sensor make it ideal for tuning and monitoring. Programmable 4-channel LED system and 10V external LED strip support give pilots full control over lighting effects via remote.

This flight controller also supports remote ground-station toggling of VTX power supply—convenient for parameter tuning without manual replugging.

Key Features

• Powerful STM32F722RET6 MCU for fast processing and reliable control

• Dual-gyroscope design with ICM42688 to reduce sensor deviation

• Integrated 2.4G receiver supports multiple RC systems

• Programmable 4-channel LED lighting with 10V output for strip control

• Remote VTX power switching via ground station

• Onboard AT7456E OSD for real-time flight data

• 16MB blackbox for in-depth flight analysis

• Built-in current sensor for accurate power monitoring

• Dual BEC outputs: 5V/3A and 10V/2.5A

• Murata capacitors for strong signal filtering

• Solder-free inline connectors for simple installation
