Overview

The HAMO HOBBY 2407 1750KV Brushless Motor is built for FPV enthusiasts seeking extreme speed, responsive control, and high durability. Engineered with a large 2407 stator, high-temperature-resistant windings, and a sturdy 5mm shaft, this motor delivers exceptional thrust performance, making it ideal for 5 to 6 inch racing drones using 6S LiPo power.

Whether you're chasing top-end speed or executing high-G freestyle maneuvers, this motor is tuned to give you the edge in both racing and acrobatics.

Key Features

  • Powerful 1750KV Output optimized for 6S LiPo setups

  • Large 2407 Stator Size for extreme thrust and responsiveness

  • Φ5mm Shaft for higher durability in crashes and hard landings

  • High-efficiency Load Performance: Up to 1512g thrust @ 869W

  • Durable Construction: CNC-machined aluminum body with reinforced base

  • Long 160mm 18AWG Wires for easy installation

  • Minimal Shaft Gap (0mm) ensures precision alignment and reduced vibration

  • Matte Black Design for sleek aesthetics

Specifications

Parameter Value
Model 2407 1750KV
Input Voltage 6S (24V nominal)
Shaft Diameter Φ5mm
Stator Size 24mm × 7mm
Motor Dimensions Φ30mm × 20.5mm
Shaft Length 13.5mm
Wire Length 160mm (18AWG)
Color Black
Weight (with wire) 38.6g
Mounting Pattern 16×16mm
Connector None

Load Testing Data (with 51499 Propeller)

Throttle (%) Current (A) Thrust (g) Power (W) Efficiency (g/W)
50% 8.81 661 219 3.1
60% 12.74 874 312 2.4
70% 21.63 1031 516 1.95
80% 30.15 1343 721 1.72
90% 32.56 1423 785 1.64
100% 35.78 1512 869 1.48

Applications

Ideal for 5-6 inch FPV Racing Drones, high-speed freestyle builds, and aerial acrobatic drones requiring massive thrust and crash resilience.

HAMO HOBBY 2407 1750KV 6S Brushless Motor, HAMO HOBBY 2407-1750KV motor features new design, high efficiency, durability, robust performance, and enhanced reliability. Detailed parameters follow.

HAMO HOBBY 2407-1750KV brushless motor offers a new design, high efficiency, durability, and robust performance. Enhanced structure for reliability. Detailed parameters below.

HAMO HOBBY 2407 1750KV 6S Brushless Motor, Model 2407 1750KV motor performance at various throttle levels: efficiency decreases from 3.1 g/W at 50% to 1.48 g/W at 100%.

Model 2407 1750KV with propeller 51499 operates at 24V. At 50% throttle, current is 8.81A, pull force 661g, power 219W, efficiency 3.1 g/W. At 60%, current 12.74A, pull 874g, power 312W, efficiency 2.4 g/W. At 70%, current 21.63A, pull 1031g, power 516W, efficiency 1.95 g/W. At 80%, current 30.15A, pull 1343g, power 721W, efficiency 1.72 g/W. At 90%, current 32.56A, pull 1423g, power 785W, efficiency 1.64 g/W. At 100%, current 35.78A, pull 1512g, power 869W, efficiency 1.48 g/W.

HAMO HOBBY 2407 1750KV 6S Brushless Motor, The HAMO HOBBY 2407 motor is designed for FPV enthusiasts seeking speed, responsive control, and high durability. HAMO HOBBY 2407 1750KV 6S Brushless Motor, Motor provides edge for racing and acrobatics. HAMO HOBBY 2407 1750KV 6S Brushless Motor, The HAMO HOBBY 2407 1750KV Brushless Motor is designed for FPV enthusiasts seeking speed, control, and durability. HAMO HOBBY 2407 1750KV 6S Brushless Motor, Motor is tuned for racing and acrobatics, providing an edge in both. HAMO HOBBY 2407 1750KV 6S Brushless Motor, HAMO HOBBY 2407-1750KV brushless motor: new design, high efficiency, durable, robust performance, ideal for advanced users.

HAMO HOBBY 2407-1750KV brushless motor. New design, high efficiency, durability. Enhanced structure for robust performance. Parameters listed below. Ideal for advanced hobbyists and professionals.

HAMO HOBBY 2407 1750KV 6S Brushless Motor, Motor specs: 30mm diameter, 20.5mm length, 5mm shaft, 13.5mm extension, 160mm black wire, 38.6g weight. Load data at 24V includes current, pull force, power, and efficiency for various throttles.

Motor specs: 30mm diameter, 20.5mm length, 5mm shaft, 13.5mm shaft extension, 160mm wire, black wire, 38.6g weight. Load data at 24V includes current, pull force, power, and efficiency values for various throttle percentages.

HAMO HOBBY 2407 1750KV 6S Brushless Motor is 30mm long, 34mm in diameter, with 18AWG wires (160mm long) and a 16mm shaft.

HAMO HOBBY 2407 1750KV 6S Brushless Motor dimensions: 30mm length, 34mm diameter. Wires: 18AWG, 160mm long. Shaft: 16mm diameter.

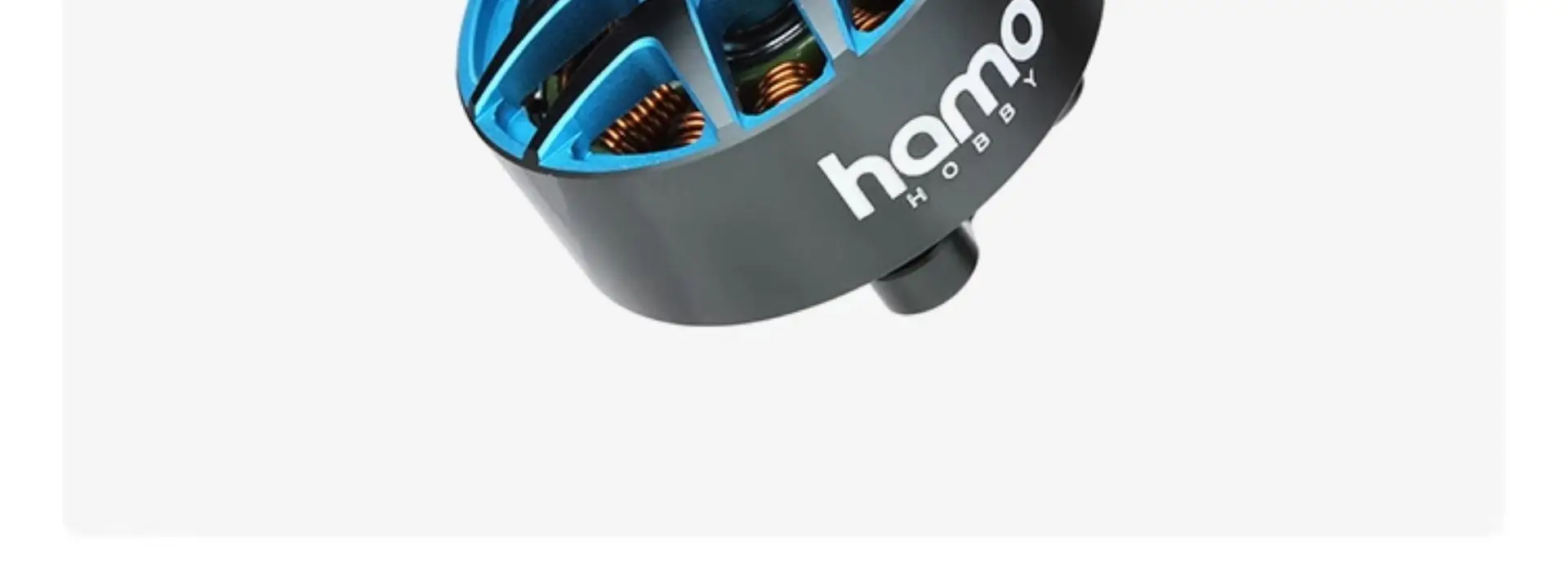

HAMO HOBBY 2407 1750KV 6S Brushless Motor, Motor is designed for high-performance racing and acrobatic maneuvers, providing an edge in both speed and agility. HAMO HOBBY 2407 1750KV 6S Brushless Motor, Motor is tuned for high-performance driving, providing an edge in racing and acrobatics. 产品图片
