HappyModel Bassline SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Tool Supplies: Assembled class

Size: 2inch

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Toothpick Drone

Origin: Mainland China

Model Number: HappyModel Bassline

Material: Composite Material

For Vehicle Type: Airplanes

----------

Related Article:

HappyModel Bassline Review

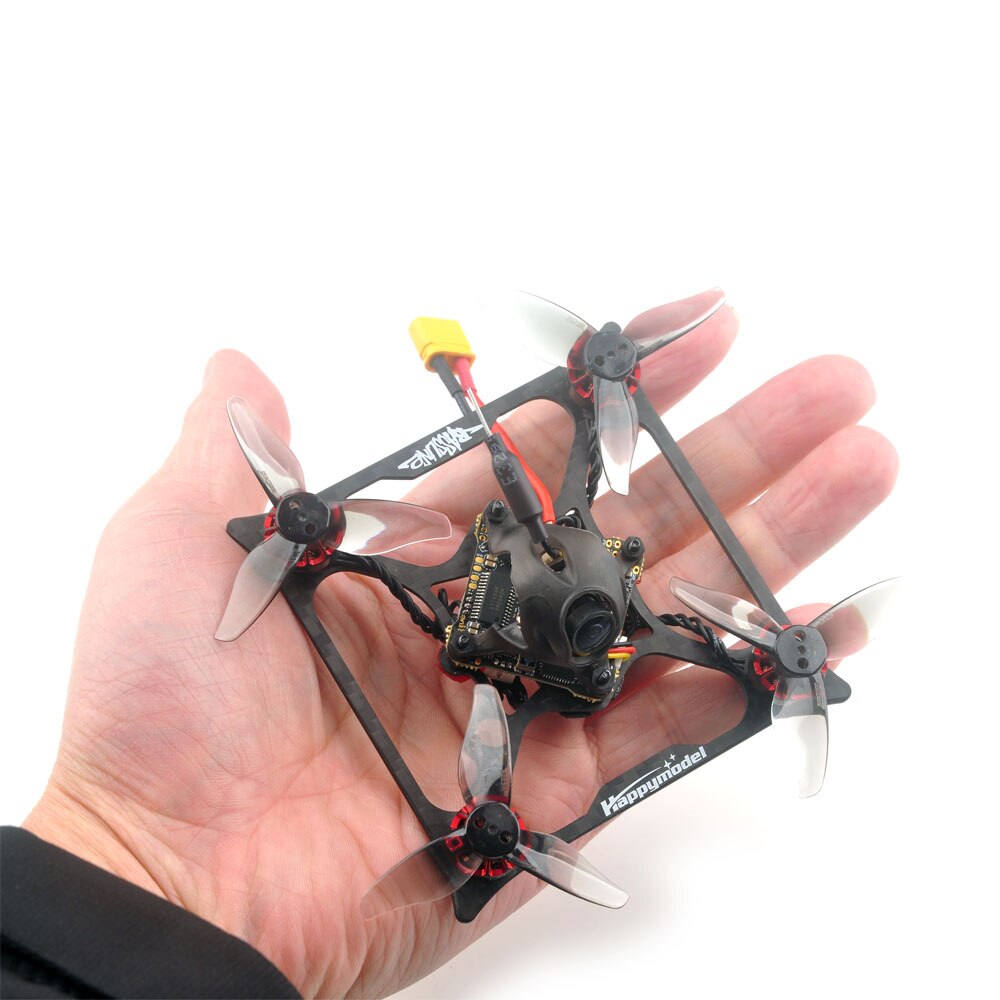

 Title: HappyModel Bassline - A Powerful 2S 2-inch Micro FPV Toothpick Drone

Introduction:
The HappyModel Bassline is an impressive 2S 2-inch micro FPV toothpick drone that offers outstanding performance and versatility. With its powerful components, advanced features, and compact design, the Bassline delivers an exhilarating flying experience. In this evaluation article, we will explore its composition, specifications, advantages, how to choose the right version, operation guide, and frequently asked questions.

Composition and Specifications:
The HappyModel Bassline incorporates high-quality components to ensure exceptional performance. Let's take a closer look at its key features:

1. X12 5-in-1 AIO Flight Controller: The Bassline features the X12 5-in-1 AIO flight controller, which includes the 2.4G ELRS V2.0 and OPENVTX. This combination provides seamless integration and advanced control capabilities.

2. VTX Power: The onboard VTX (Video Transmitter) offers a power output of up to 400mW, allowing for reliable and long-range video transmission during flights.

3. Powerful EX1103 KV11000 Motors: The Bassline is equipped with four EX1103 KV11000 brushless motors, which deliver impressive thrust and speed for dynamic flying experiences.

4. CaddxFPV Ant FPV Camera: This drone features a CaddxFPV Ant FPV camera with a 1200TVL resolution. The camera delivers high-quality video feed for an immersive FPV experience.

5. Battery Compatibility: The Bassline is compatible with 2S LiPo batteries. Recommended options include 2S 350mAh, 450mAh, 550mAh, or 650mAh batteries (not included). The battery tray can accommodate batteries with a width of approximately 17mm and a height of approximately 13mm.

Advantages:
1. Powerful Performance: The combination of the EX1103 KV11000 motors, 5-in-1 flight controller, and high-power VTX ensures powerful performance, enabling fast and agile flights.

2. Versatile Options: The Bassline offers different versions with built-in receivers, including 2.4G ELRS SPI, SPI Frsky D8/D16, SPI Flysky, and a PNP version without an onboard receiver. Choose the version that is compatible with your transmitter system.

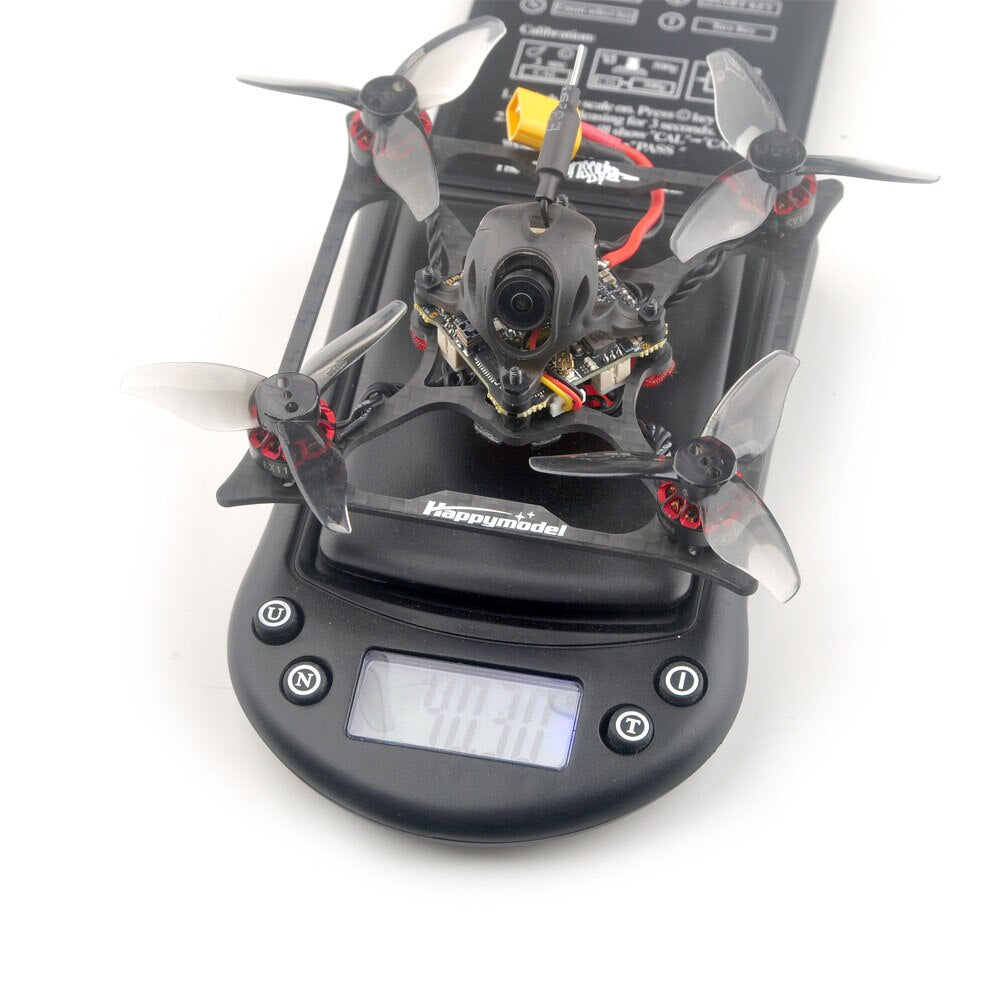

3. Compact and Lightweight: With a wheelbase of 90mm and an analog version weight of 40g, the Bassline is compact and lightweight. This design allows for nimble and acrobatic maneuvers, even in tight spaces.

4. Advanced Features: The Bassline incorporates advanced features such as voltage detection, current sensing, Betaflight OSD, Smartaudio v2.1, PIT Mode support, and telemetry output power control.

How to Choose:
When selecting the HappyModel Bassline, consider the receiver version that matches your transmitter system. Choose between the 2.4G ELRS SPI, SPI Frsky D8/D16, SPI Flysky, or PNP version based on your requirements and compatibility.

Operation Guide:
1. Assembly: Follow the provided instructions to assemble the Bassline drone, ensuring all components are securely attached.

2. Receiver Binding: If you have a receiver version, bind the drone with your compatible transmitter system using the appropriate binding procedure.

3. Battery Connection: Connect a fully charged 2S LiPo battery to the Bassline, ensuring proper polarity. Confirm the battery voltage before each flight.

4. Pre-flight Check: Perform a thorough pre-flight check, including propeller tightness, camera angle adjustment, and video transmission quality. Verify that all components are functioning correctly.

5. Flight: Arm the Bassline and take off to enjoy its powerful and

agile flight characteristics. Experiment with different flight modes, explore its capabilities, and adhere to safety guidelines.

FAQs:
1. What is the range of the HappyModel Bassline?
The range of the Bassline can vary depending on environmental factors and transmitter power. With its 2.4G ELRS V2.0 and other receiver options, it offers reliable control and video transmission up to a considerable distance.

2. Does the Bassline support firmware upgrades?
Yes, the Bassline can support firmware upgrades for both the flight controller and the receiver module, allowing you to take advantage of future enhancements and features.

3. Can I use different propellers with the Bassline?
While the Bassline comes with Gemfan toothpick 2023 tri-blade propellers, you may be able to use other compatible 2-inch propellers if desired. Ensure they have the correct specifications and match the drone's motor capabilities.

Conclusion:
The HappyModel Bassline is a powerful and feature-packed 2S 2-inch micro FPV toothpick drone. With its advanced flight controller, high-power VTX, and robust motor configuration, it delivers an exhilarating flying experience. The Bassline's versatility, compact design, and compatibility with different receiver options make it an excellent choice for both beginners and experienced FPV enthusiasts. Enjoy the thrill of flying with the HappyModel Bassline and explore the possibilities of micro FPV drones.
