Happymodel Crazybee F3 Flight Controller - BLHELI_S 5A 4in1 ESC OSD Current Meter FRSKY FLYSKY Receiver for FPV 1S Tinywhoops

Happymodel Crazybee F3 Flight Controller - BLHELI_S 5A 4in1 ESC OSD Current Meter FRSKY FLYSKY Receiver for FPV 1S Tinywhoops

HappyModel

Regular price $34.99 USD
Regular price Sale price $34.99 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

180 orders in last 90 days

Color

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

SPECIFICATIONS

Upgrade Parts/Accessories: Other

Tool Supplies: Other

Technical parameters: Value 3

Size: 30.5*30.5mm

Remote Control Peripherals/Devices: Other

Recommend Age: 12+y

RC Parts & Accs: Speed Controllers

Plastic Type: PC

Origin: Mainland China

Model Number: Flight Controller

Material: Plastic

Four-wheel Drive Attributes: Other

For Vehicle Type: Helicopters

Brand Name: happymodel




Happymodel Crazybee F3 Flight Controller, Built-in 5A(each) Blheli_S 4in1 ESC


Crazybee F3 flight controller is a Ultimate version for 1S Whoop brushless racing drone, it's the world first Tiny whoop size brushless flight controller with Receiver/4in1 ESC/OSD/Current Meter all in one design, include all your needs .

Specifications:
Firmware: Betaflight_3.3.0_Crazybee
MCU: STM32F303CCT6 (72MHZ, 256K FLASH)
Sensor: MPU-6000(SPI connection)
Power supply: 1S battery input (DC 3.5-4.35V)

Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready

Frsky version Built-in SPI control Frsky receiver with telemetry(D8/D16 switchable)

Flysky version Built-in SPI control Flysky receiver with telemetry(AFHDS/AFHDS-2A switchable)

DS M2/X version Built-in Serial-based Spek trum compatible DS M2/DS MX satellite receiver

Built-in Betaflight OSD(SPI Controll)

Built-in Current meter (Max 14A,could be modified to 28A by replace resistor)

Built-in 5V 0.8A BEC with LC filter

Built-in voltage detection
BLHELI_S pass-through Ready

Heading LED Ready
Board size: 28.5 * 28.5MM
Board weight: 3.5 g

ESC parameters:
Power supply: 1S LiPo/LiPo HV (4.2v/4.35v)
Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_L_5_REV16_6.HEX
Signal Support: Dshot150/Dshot300/Dshot600/Oneshot125/Multishot/PWM

Happymodel Crazybee F3 Flight Controller, Crazybee F3 flight controller is a Ultimate version for 1S Whoop brush

Happymodel Crazybee F3 Flight Controller, ea Oactor Icppu Mobbt Drotesbioral

Happymodel Crazybee F3 Flight Controller, Built-in 5A(each) Blheli_S 4in1 ESC

Happymodel Crazybee F3 Flight Controller, Built-in 5A(each) Blheli_S 4in1 ESC



Happymodel Crazybee F3 Flight Controller, Built-in 5A(each) Blheli_S 4in1 ESCHappymodel Crazybee F3 Flight Controller, Built-in 5A(each) Blheli_S 4in1 ESC

Happymodel Crazybee F3 Flight Controller, not all combinations are valid When the flignt controller firmware dletect

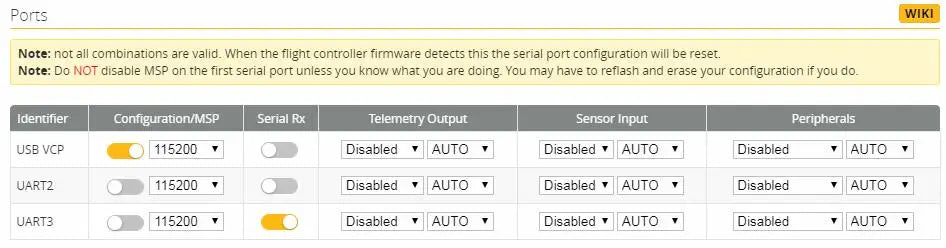

Not all configuration combinations are valid when the flight controller's firmware detects this issue; in such cases, the serial port configuration will be automatically reset.

Happymodel Crazybee F3 Flight Controller, Receiver SPI RX support only if the required or conneczed

Note that SPI RX (receiver) support is only available if the required SPI bus is connected and configured correctly.

Happymodel Crazybee F3 Flight Controller, Receiver SPI RX support only available if the required nardware j

Note that Receiver SPI RX (receiver) support will only function if either the required J5 hardware is present onboard or it is connected to an SPI bus.



Happymodel Crazybee F3 Flight Controller

Bottom view of the FRSKY (FlySky) receiver, featuring connections such as GND, 5V, VOUT, VIN, RX3M2, LED Strip, M4 PWM, TX3, M1, M3, BOOT Button, and USB Port.

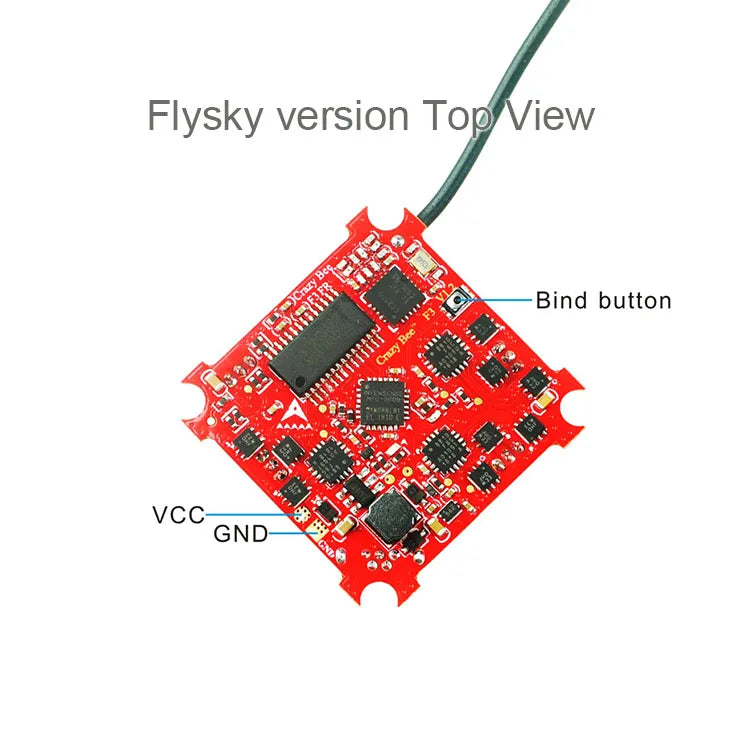

Happymodel Crazybee F3 Flight Controller, Flysky version TopNiew Bind button 42 VCC GND JnI

Happymodel Crazybee F3 Flight Controller, not all combinations are valid When the flignt controller firmware dletect

Not all settings combinations are valid. If the flight controller's firmware detects an invalid setup, the serial port configuration will be automatically reset.

Happymodel Crazybee F3 Flight Controller, SPI RX provider will only work if the required nardware i5

Note that the SPI RX provider will only function if either the required J5 hardware is present on-board or it is connected to an SPI bus.

Happymodel Crazybee F3 Flight Controller, Receiver SPI RX support Receiver Mode Note: SPI bus_ '"

Note that the Receiver SPI RX support is available in Receiver Mode. However, please note that the FLYSKY SPI Bus Receiver Provider can only be connected to an SPI bus.

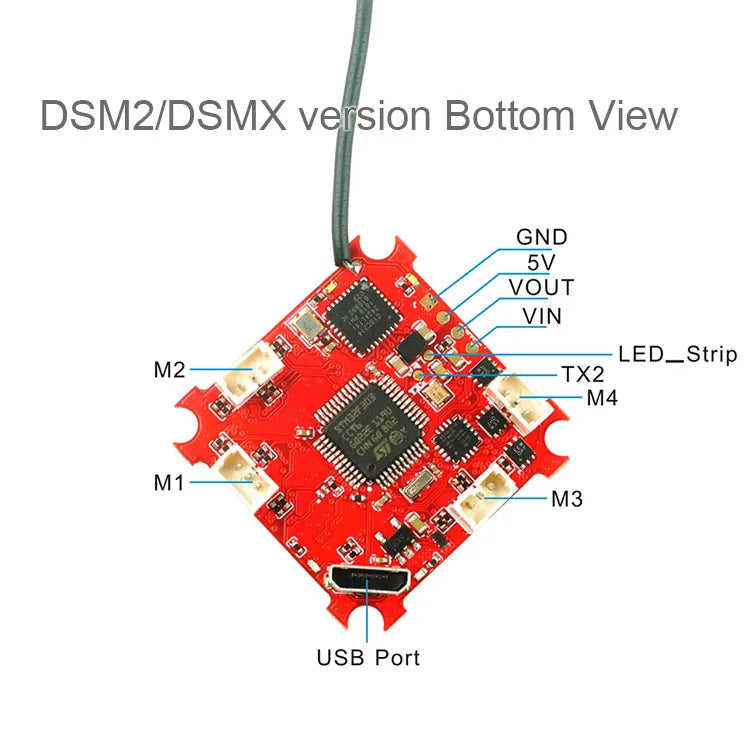

DSM2/DSMX接收机版本接线定义以及接收机配置:

Happymodel Crazybee F3 Flight Controller, Built-in 5A(each) Blheli_S 4in1 ESC

Happymodel Crazybee F3 Flight Controller, Flysky version TopNiew Bind button 42 VCC GND JnI

Happymodel Crazybee F3 Flight Controller

Happymodel Crazybee F3 Flight Controller, remember to configure Serial Port (via Ports tab) and cnoose

Remember to configure the Serial Port (via the Ports tab) and select the Serial Receiver Provider when using RX_SERIA feature, DSMXIEJz #141 SPEKTRUM20-8 Serial Receiver. Note that this requires a serial-based receiver in Receiver Mode.

Happymodel Crazybee F3 Flight Controller, Remember to configure Serial Port (via Ports tab and cnoose

Remember to configure the Serial Port (via the Ports tab) and select the Serial Receiver Provider when using the RX_SERIA feature with the SPEKTRUM 1024 serial receiver provider.
