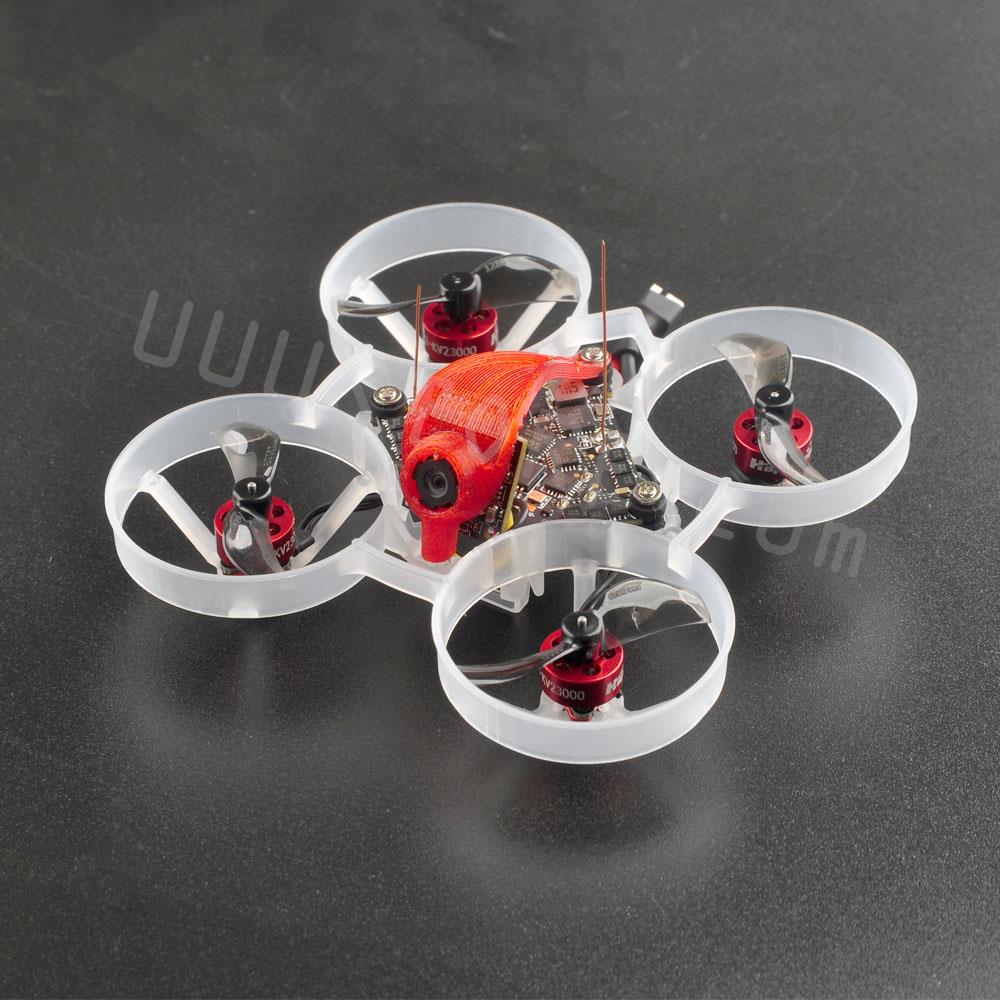

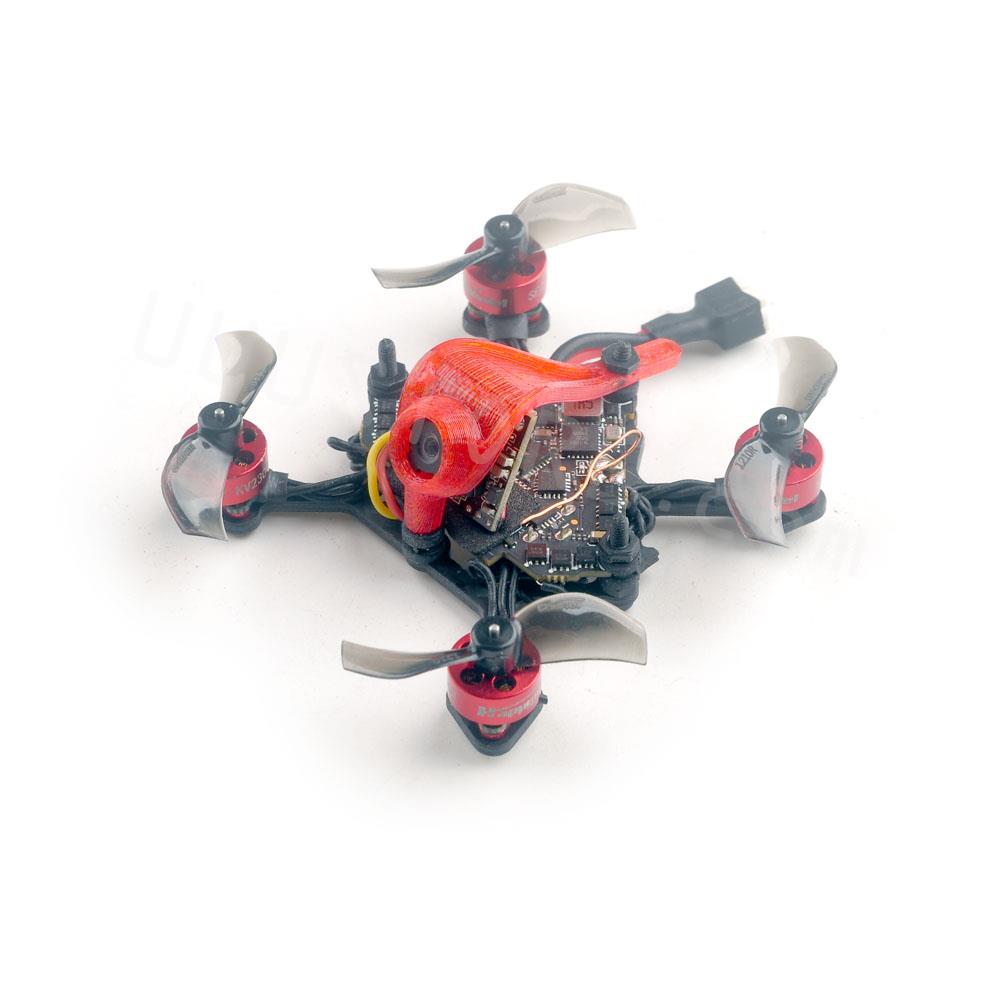

Happymodel Mobeetle6 - DiamondF4 400mW OPENVTX Runcam Nano3 SE0702 KV23000 1S 65mm Tinywhoop Toothpick 2in1 FPV Drone

Happymodel Mobeetle6 - DiamondF4 400mW OPENVTX Runcam Nano3 SE0702 KV23000 1S 65mm Tinywhoop Toothpick 2in1 FPV Drone

HappyModel

Regular price $134.15 USD
Regular price $187.82 USD Sale price $134.15 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

15 orders in last 90 days

Color

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

Happymodel Mobeetle6 SPECIFICATIONS

Video Capture Resolution: Other

State of Assembly: Almost Ready

Remote Distance: as show

Remote Control: Yes

Recommend Age: 12+y

Package Includes: Original Box

Origin: Mainland China

Operator Skill Level: Beginner

Motor: Brushless Motor

Model Number: Mobeetle6

Material: Plastic

Indoor/Outdoor Use: Indoor-Outdoor

Controller Mode: MODE1,MODE2

Controller Battery: NO

Control Channels: 6 Channel

Camera Mount Type: Fixed Camera Mount

Aerial Photography: Yes

The DiamondF4 Flight controller and The Mobeetle6 were inspired from Angry Don FPV, we really appreciated for his help to Happymodel and to this hobby. We also very expecting to the performance of this BNF with the new Diamond F4 ELRS flight controller.



Specifications:
Brand Name: Happymodel
Item Name: Mobeetle6 whoop and toothpick 2-IN-1 FPV Racer Drone

Wheelbase: 65mm
Size: 80mm*80mm*30mm

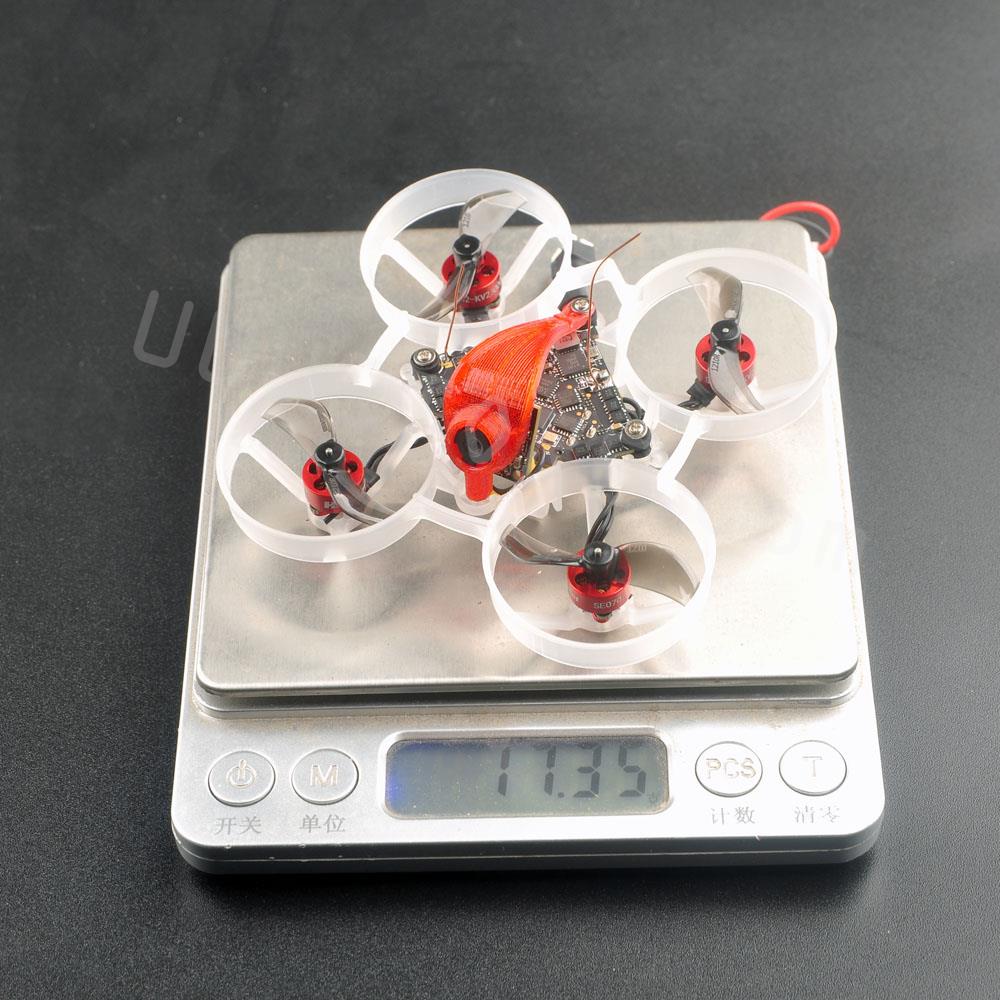

Weight: 17.5g (without battery)



Features:
The lightest 1S Whoop and Toothpick 2-IN-1 fpv drone

Comes with tooth pick frame for convert

Powerful and efficiency
The lightest 1s AIO 5IN1 F4 flight controller

New Unibell SE0702 brushless motors with pcb wire board

Built-in OPENVTX up to 400mw

Low profile Canopy design


Motor

Mode:SE0702 KV23000
Configu-ration:9N12P
Stator Diamter:7mm
Stator Length:2mm
Shaft Diameter:Φ1mm
Motor Dimension(Dia.*Len):Φ9.5mm*14mm
Weight(g):1.5g
No.of Cells(Lipo):1S only

Propeller

Weight:0.19g
Material:PC
Pitch:1 inch

Props Dia:30mm
Center Hole Dia:1mm

Flight controller

(ELRS SPI RX version)DiamondF4 ELRS FC Firmware target: CrazybeeF4SX1280

(Frsky SPI RX version) DiamondF4 FR FC Firmware target: CrazybeeF4FR
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000 or ICM20689 or BMI270(SPI connection)
Original whoop size compatible
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G OPEN VTX
Built-in SPI ELRS V2.0/Frsky receiver
Built-in 5V 1A BEC

Onboard 4in1 ESC

MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HV

Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_50_REV16_8.HEX
Default protocol: DSHOT600

Onboard SPI ExpressLRS 2.4GHz Receiver

Packet Rate option: 50Hz/150Hz/250Hz/500Hz
ExpressLRS Firmware version: V2.0
RF Frequency: 2.4GHz
Antenna : Enameled copper wire antenna
Telemetry output Power: <12dBm
Receiver protocol:  SPI ExpressLRS
Compatible with ExpressLRS V2.0 TX Module
Couldn’t flash separately ExpressLRS firmware

Onboard Frsky SPI D8 receiver Version

SPI BUS receiver Frsky D8 compatible

Compatible Non EU transmitter D8 model

Channels: 8ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 200m~300m


Onboard 5.8g OPENVTX

Firmware version: OPENVTX
Smartaudio v2.1
PIT Mode support
RCE Mode support
Channels:48ch
Transmitting Power: 0/RCE/25mw/100mw/400mw
Power supply: DC 5V
Current (5v): <650ma (400mw)

Runcam Nano3

Model: RunCam Nano 3

Image Sensor: 1/3" CMOS

Horizontal Resolution: 800TVL

Lens : 2.3mm(M6.5) FOV 140°

Signal System: NTSC

S/N Ratio: >50dB

Electronic Shutter Speed: Auto

Auto Gain Control (AGC): Auto

Min. Illumination: 0.01Lux@1.2F

D-WDR: Auto

Day/Night: Color

Power:DC 3-5.5V

Current: 110mA@5V  120mA@3.3V

Housing Material: ABS

Net Weight: 1.2g

Dimensions: L14mm*W14mm*H9mm

Lipo Battery

Capacity:300mAh
Voltage:3.8v
Continuous Discharge Rate: 30C
Size: 57mmx12mmx7mm
Weight: 7.5g

Connector: PH2.0


Package Included:

1x65mm whoop Frame (Mobula6 frame)
1x 65mm toothpick frame(Mobeetle6 frame)
Option1: DiamondF4 ELRS built-in SPI ELRS receiver
Option2: DiamondF4 FR built-in SPI FRSKY receiver
4x SE0702 KV23000 Unibell brushless motor
1xGemfan 1210 31mm propeller(4cw+4ccw)
1x Runcam Nano3
1x Built-in 5.8G 48ch 25mw-400mw OPENVTX
2x 1s 300mah Lipo battery
1x Mobula6 canopy
1x Propeller disassemble tool
1x Screwdriver

Happymodel Mobeetle6 - DiamondF4 400mW OPENVT

Happymodel Mobeetle6 - DiamondF4 400mW OPENVT

Happymodel Mobeetle6, Experiment with different flight modes and explore its capabilities while adhering to safety guidelines

Happymodel Mobeetle6, consider the receiver option that aligns with your existing transmitter system .

Happymodel Mobeetle6, the drone itself weighs only 17.5g (without a battery

Happymodel Mobeetle6 - DiamondF4 400mW OPENVT

Happymodel Mobeetle6 - DiamondF4 400mW OPENVT

Happymodel Mobeetle6, model FPV Kappyr UUUS Mobeetle6 TINY





----------------

Related Article:

Happymodel Mobeetle6 Review

 Happymodel Mobeetle6: The Lightweight 1S Whoop and Toothpick 2-in-1 FPV Drone

Introduction:
The Happymodel Mobeetle6 is an exceptional 2-in-1 FPV drone that combines the best features of a whoop and a toothpick. With its lightweight design, powerful components, and advanced technology, the Mobeetle6 offers an impressive flying experience. In this evaluation article, we will delve into its composition, parameters, advantages, how to choose, operation guide, and frequently asked questions.

Composition and Parameters:
The Mobeetle6 boasts a compact frame with a wheelbase of 65mm, measuring 80mm x 80mm x 30mm. The drone itself weighs only 17.5g (without a battery). Let's explore its key components:

1. Brushless Motors: The Mobeetle6 utilizes the Unibell SE0702 KV23000 brushless motors with a configuration of 9N12P. These motors deliver outstanding power and efficiency for an exhilarating flight experience.

2. DiamondF4 Flight Controller: Equipped with the DiamondF4 FC, the Mobeetle6 offers a powerful and responsive control system. The flight controller features an STM32F411CEU6 MCU, MPU-6000/ICM20689/BMI270 sensor options, and built-in Betaflight OSD. It also incorporates a 5A Blheli_S 4in1 ESC and supports Dshot600.

3. Onboard SPI ExpressLRS 2.4GHz Receiver: The Mobeetle6 provides reliable and long-range control with its SPI ExpressLRS receiver. It operates on a 2.4GHz frequency and offers a telemetry output power of less than 12dBm.

4. Onboard 5.8G OPENVTX: The drone features a 5.8G OPENVTX with 48 channels, supporting different transmitting power options ranging from 0mW to 400mW. It includes Smartaudio v2.1 and PIT Mode support.

5. Runcam Nano3 Camera: The Mobeetle6 is equipped with the RunCam Nano 3, which offers an 800TVL resolution and a 140° field of view. This compact camera ensures excellent image quality during flights.

6. Lipo Battery: The package includes two 1S 300mAh Lipo batteries, which provide sufficient power for thrilling flights. These batteries have a continuous discharge rate of 30C and utilize a PH2.0 connector.

Advantages:
1. Lightweight and Compact: Weighing only 17.5g, the Mobeetle6 is incredibly lightweight, enabling agile and acrobatic flights in small spaces.

2. 2-in-1 Design: With both whoop and toothpick frames included in the package, the Mobeetle6 offers versatility, allowing pilots to switch between different flying styles.

3. Powerful Performance: The combination of the brushless motors, DiamondF4 flight controller, and 5A Blheli_S 4in1 ESC ensures powerful and efficient performance, delivering exceptional speed and maneuverability.

4. Long-Range Control: The onboard SPI ExpressLRS receiver provides reliable long-range control, allowing pilots to explore vast distances without the risk of signal loss.

5. Integrated Components: The Mobeetle6 incorporates essential components, including the flight controller, ESC, VTX, and receiver, reducing weight and simplifying the build process.

How to Choose:
When choosing the Mobeetle6, consider the receiver option that aligns with your existing transmitter system. Select between the DiamondF4 ELRS built-in SPI EL

RS receiver or the DiamondF4 FR built-in SPI FRSKY receiver based on your preference and compatibility.

Operation Guide:
1. Assembly: Begin by selecting either the whoop or toothpick frame and assembling the drone according to the provided instructions. Ensure all components are securely attached.

2. Binding: Bind the drone with your compatible transmitter system using the appropriate receiver option (ELRS or FRSKY).

3. Battery Connection: Connect the 1S Lipo battery to the Mobeetle6 using the included PH2.0 connector. Verify the battery voltage before each flight.

4. Pre-flight Check: Conduct a comprehensive pre-flight check, including propeller tightness, camera angle adjustment, and video transmission quality. Confirm that all components are functioning correctly.

5. Flight: With the Mobeetle6 armed and ready, take off and enjoy its lightweight and nimble flight characteristics. Experiment with different flight modes and explore its capabilities while adhering to safety guidelines.

FAQs:
1. What is the flight time of the Mobeetle6?
The flight time of the Mobeetle6 will vary depending on the flying style and battery capacity. With the included 1S 300mAh Lipo battery, you can expect flight times ranging from 2 to 4 minutes.

2. Can I use different propellers with the Mobeetle6?
While the Mobeetle6 comes with Gemfan 1210 31mm propellers, you can potentially use other compatible 1-inch propellers if desired.

3. Is the FPV goggles included with the package?
No, the package does not include FPV goggles. You will need to purchase goggles separately to enjoy the FPV experience with the Mobeetle6.

Conclusion:
The Happymodel Mobeetle6 is an impressive 2-in-1 FPV drone that combines the best features of a whoop and a toothpick. With its lightweight design, powerful components, and versatile options, it offers an exhilarating flying experience. Whether you prefer indoor whooping or outdoor toothpick flying, the Mobeetle6 delivers outstanding performance and control. Embrace the freedom of flight with this exceptional drone from Happymodel.
