Happymodel Moblite7 - Diamond F4 5A AIO 200mW VTX Runcam Nano4 Lite EX0802 19000KV 1S 75mm Ultra Light Brushless Tinywhoop

Happymodel Moblite7 - Diamond F4 5A AIO 200mW VTX Runcam Nano4 Lite EX0802 19000KV 1S 75mm Ultra Light Brushless Tinywhoop

HappyModel

Regular price $129.87 USD
Regular price $194.80 USD Sale price $129.87 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

48 orders in last 90 days

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

Happymodel Moblite7 SPECIFICATIONS

Warranty: as show

Warning: as show

Video Capture Resolution: 1080p FHD

Type: HELICOPTER

State of Assembly: Unassembled Kit

Remote Distance: 10km

Remote Control: Yes

Recommend Age: 12+y

Power Source: Electric

Plugs Type: as show

Package Includes: Original Box

Origin: Mainland China

Operator Skill Level: Beginner

Motor: Brushless Motor

Model Number: Moblite7

Material: Plastic

Indoor/Outdoor Use: Indoor-Outdoor

Flight Time: as show

Features: App-Controlled

Dimensions: as show

Controller Mode: MODE1,MODE2

Controller Battery: as show

Control Channels: 12 Channel & Up

Charging Voltage: as show

Charging Time: as show

Camera Mount Type: Fixed Camera Mount

Aerial Photography: Yes

Specification:

Brand: Happymodel

Item Name: Moblite7 1S 75mm ultra light brushless whoop
Wheelbase: 75mm
Size: 97x97x25mm

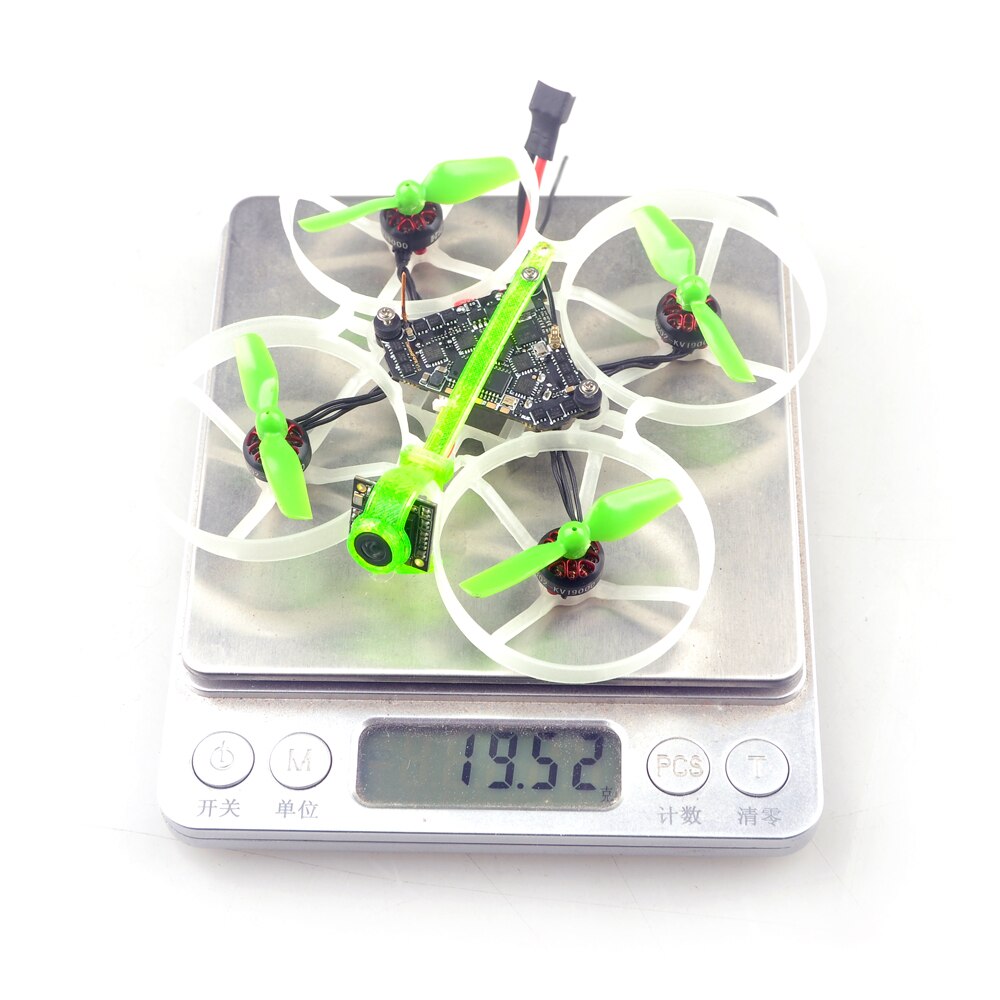

Weight: 19.5g (without battery)
Weight: 36g (with Original 1s 650mah Lipo battery )

Motor

 Model: EX 0802 19000KV ( New Unibell Version)

 Configuration: 9N12P
 Stator Diameter: 8mm
 Stator Length: 2mm
 Shaft Diameter:Φ1mm
 Motor Dimension(Dia.*Len): Φ10.5mm*14.9mm
 Weight(g): 1.7g
 No.of Cells(Lipo): 1S only

 Flight Controller

 (Frsky SPI RX Version) DiamondF4 FR FC Firmware   Target: CrazybeeF4FR

 MCU: STM32F411CEU6 (100MHZ, 512K FLASH)
 Sensor: MPU-6000(SPI connection)
 Original whoop size compatible
 Power supply: 1Sbattery input (DC 2.9V-4.35V)
 Built-in5A(each) Blheli_S 4in1 ESC Dshot600 ready
 Built-in Betaflight OSD(SPI Control)
 Built-in 5.8G VTX
 Built-in SPI Frsky/Flysky receiver
 Built-in 5V 1A BEC

Onboard 4in1 ESC

 MCU Upgraded to EFM8BB21

 Power Supply: 1S LiPo/LiPo HV
 Current: 5A continuous, peak 6A (3 seconds)
 Support BLHeliSuite programmable
 Factory Firmware: O_H_50_REV16_8.HEX
 Default Protocol: DSHOT600

Onboard Frsky SPI D8 receiver Version

 SPI BUS Receiver Frsky D8 Compatible

 Compatible Non EU transmitter D8 model
 Channels: 8CH
 Failsafe Support
 No ground interference ( Transmitter and receiver 1 m from the   ground): 200m~300m

 Onboard Flysky Receiver Version

 SPI BUS Receiver
 Protocol: AFHDS and AFHDS-2A Switchable
 Channels: 8CH (AFHDS) or 14CH (AFHDS-2A)
 No ground interference ( Transmitter and receiver 1 m from the   ground): 100~200m
 Failsafe Support

Onboard 5.8G 40CH 25-200mW VTX

Output Power: 25mw~200mw switchable

 Frequency: 40CH
 Input Voltage: 3.3V 5.5V
 Current Consumption: 300mA (type)
 Frequency: 5.8GHz 5bands 40 channels (include Race band)
 Smartaudio Ready

Runcam Nano 3 FPV Camera

Model: RunCam Nano 3

Image Sensor: 1/3" CMOS
Horizontal Resolution: 800TVL
Lens : 2.1mm(M8) FOV 160°
Signal System: PAL/NTSC Non Switchable
S/N Ratio: >50dB
Electronic Shutter Speed: Auto
Auto Gain Control (AGC): Auto
Min. Illumination: 0.01Lux@1.2F
D-WDR: Auto
Day/Night: Color
Power:DC 3-5.5V
Current: 110mA@5V  120mA@3.3V
Housing Material: ABS
Net Weight: 1.2g
Dimensions: L14mm*W14mm*H9mm

Lipo Battery


Capacity: 650mAh

 Voltage: 3.8V
 Continuous Discharge Rate: 30C
 Instantaneous Discharge Rate: 60C
 Size: 60mmx18mmx8mm
 Weight: 16g
 Connector: PH2.0


 Quantity: 2 PCS


Features:
- The lightest 1s 75mm brushless whoop
- Powerful and efficiency
- The lightest 1s AIO 5IN1 F4 flight controller
- New Unibell EX0802 brushless motors
- Low profile Canopy design
- VTX power switchable 25mw~200mw

Package Included:

1 xHappymodel Moblite7 75mm Whoop RC FPV Racing Drone
Option1:1 xDiamondF4 FR built-in SPI Frsky Receiver
Option2:1 xDiamondF4 FS built-in SPI Flysky Receiver
4 xEX0802 KV19000 Unibell Brushless Motor
1 xHQPROP 40MMX2 Propeller(4cw+4ccw)
1 xRuncam Nano 3 FPV Camera
1 xBuilt-in 5.8G 40ch 25mw-200mw VTX
2 x1S 650mah Lipo Battery
1 xPropeller Disassemble Tool
1 xScrewdriver

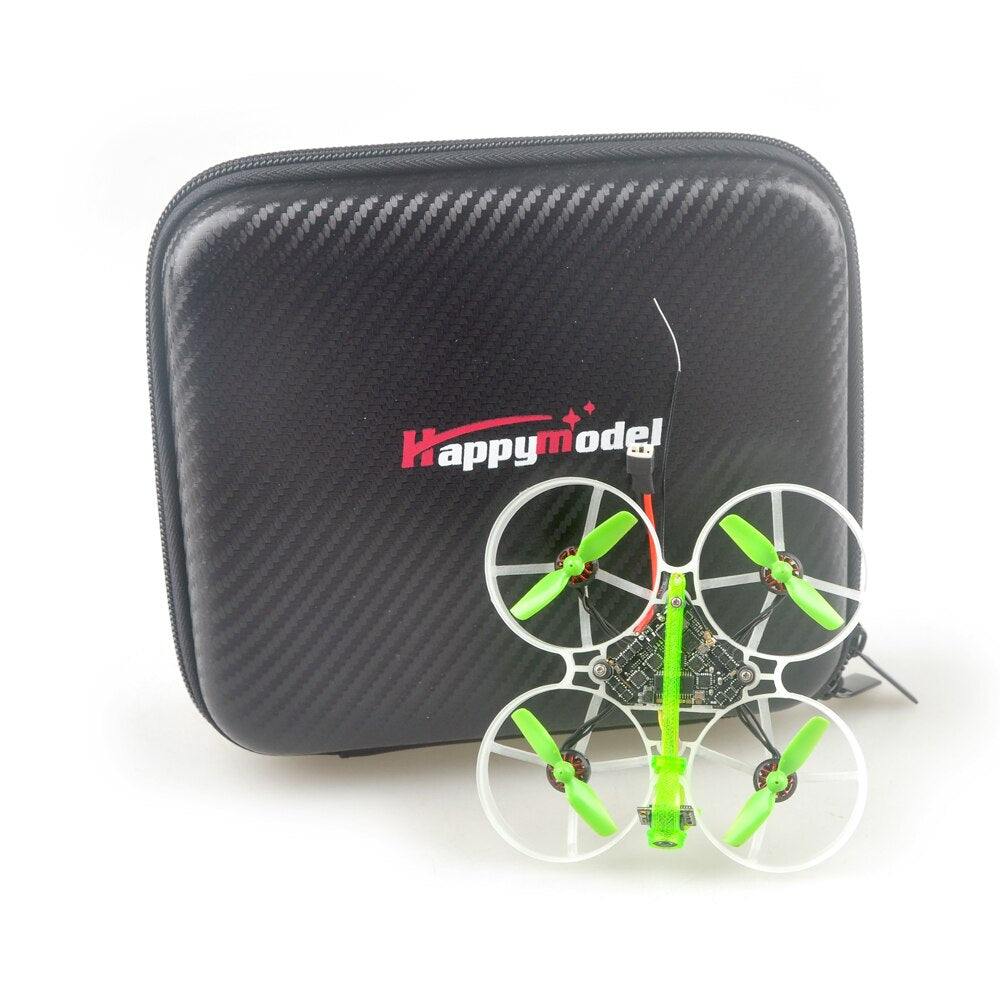

1 xHappymodel Carry Case

Happymodel Moblite7, Moblite7 offers excellent value for money with reliable flight control and high-quality components

Happymodel Moblite7, it supports various flight modes and offers easy configuration options

Happymodel Moblite7, built-in 5.8G 40ch 25mW-200mW VTX,

Happymodel Moblite7, the VTX (Video Transmitter) is switchable between 25mW and 200

Happymodel Moblite7, the Moblite7 boasts an impressive array of components that contribute to its exceptional performance

Happymodel Moblite7, are spare parts readily available for the Moblite7

Happymodel Moblite7, Happymodel offers a range of spare parts and accessories for the Moblite7 .Happymodel Moblite7 - Diamond F4 5A AIO 200mW


--------------
Related Article:

Happymodel Moblite7 Review

**Review: Happymodel Moblite7 - The Ultimate Ultra-Light Brushless Tinywhoop**

Introduction:
The Happymodel Moblite7 is a remarkable 1S 75mm brushless whoop drone designed for FPV racing and freestyle enthusiasts. It offers an unbeatable combination of lightweight design, powerful performance, and advanced features. In this review article, we will delve into the composition, parameters, advantages, how to choose, operation guide, and frequently asked questions about the Happymodel Moblite7.

Composition and Parameters:
The Moblite7 boasts an impressive array of components that contribute to its exceptional performance. It features the lightest 1S AIO 5IN1 F4 flight controller, providing reliable and responsive flight control. The Unibell EX0802 brushless motors are specifically designed for optimal efficiency and power, ensuring smooth and agile flight maneuvers. The low-profile canopy design not only adds to the aesthetics but also offers protection to the drone during flights. The VTX (Video Transmitter) is switchable between 25mW and 200mW, allowing you to adjust the power output based on your needs. The package includes the Happymodel Moblite7 75mm Whoop RC FPV Racing Drone, with options for either the DiamondF4 FR built-in SPI Frsky Receiver or the DiamondF4 FS built-in SPI Flysky Receiver. It also includes EX0802 KV19000 Unibell Brushless Motors, HQPROP 40MMX2 Propellers, Runcam Nano 3 FPV Camera, built-in 5.8G 40ch 25mW-200mW VTX, 1S 650mAh Lipo Batteries (2x), a Propeller Disassemble Tool, a Screwdriver, and a Happymodel Carry Case.

Advantages:
1. Ultra-Lightweight Design: The Moblite7 is one of the lightest 1S 75mm brushless whoop drones available, making it incredibly nimble and agile in the air. Its lightweight construction allows for impressive acrobatic maneuvers and tight indoor flying.

2. Powerful and Efficient Performance: With the new Unibell EX0802 brushless motors, the Moblite7 delivers a perfect balance of power and efficiency. It can achieve high speeds, rapid acceleration, and impressive maneuverability while maintaining longer flight times.

3. Advanced Flight Controller: The lightest 1S AIO 5IN1 F4 flight controller provides reliable and precise flight control, ensuring stability and responsiveness during flights. It supports various flight modes and offers easy configuration options.

4. High-Quality FPV Camera: The included Runcam Nano 3 FPV Camera offers excellent image quality and low latency for an immersive FPV experience. It captures clear and vibrant footage, allowing you to enjoy the thrill of flying in real-time.

5. Convenient Package: The Moblite7 package includes everything you need to get started, including spare propellers, batteries, and a carry case. It offers great value for money and ensures a hassle-free experience.

How to Choose:
When choosing the Happymodel Moblite7, consider the following factors:

1. Receiver Compatibility: Choose the DiamondF4 FR built-in SPI Frsky Receiver or the DiamondF4 FS built-in SPI Flysky Receiver based on your transmitter system preference or compatibility.

2. Flying Environment: Consider whether you'll primarily be flying indoors or outdoors. The Moblite7's lightweight design makes it ideal for indoor flights, while outdoor flying may require additional precautions and adjustments.

Operation Guide:
1. Battery Installation: Connect the 1S 650mAh Lipo battery to the drone by securely plugging it into the battery connector.

2. Powering On: Press and hold

the power button on the flight controller until the drone powers on. Ensure that all LED indicators are functioning correctly.

3. Flight Control Configuration: Connect the drone to a computer and use Betaflight Configurator to configure flight control settings, adjust PID values, and customize other parameters to suit your flying style.

4. FPV Setup: Adjust the VTX settings, including channel selection and power output, to comply with local regulations and optimize video transmission quality.

FAQs (Frequently Asked Questions):
1. Can I upgrade the camera on the Moblite7?
Yes, the Moblite7 is compatible with various FPV cameras, allowing you to upgrade to your preferred camera model.

2. Can I use different propellers with the Moblite7?
While the package includes HQPROP 40MMX2 propellers, you can experiment with other propeller options of the same size to achieve different flight characteristics.

3. Are spare parts readily available for the Moblite7?
Yes, Happymodel offers a range of spare parts and accessories for the Moblite7, including motors, propellers, batteries, and replacement frames, ensuring easy maintenance and repairs.

Conclusion:
The Happymodel Moblite7 is an exceptional ultra-light brushless tinywhoop that combines powerful performance, lightweight design, and advanced features. It provides an exhilarating FPV flying experience for both racing and freestyle enthusiasts. With its reliable flight control, high-quality components, and convenient package, the Moblite7 offers excellent value for money. Whether you're a beginner or an experienced pilot, the Moblite7 is sure to impress with its agility, speed, and versatility.
