Features:

1.Drone 4k Camera: The FPV camera make smooth FPV video like R/S. More than gimbal ,Hawkeye 4K cam can save gyro data while recording.The sampling rate is up to 1000HZ/ second. That provides the most accurate data for Gyroflow stabilization.Auto Generate Gyro data, 170 degree 6p lens ,4K/2.5K 4:3 16:9/1080P, DC5-23V input,Video damage repair

2.FPV Camera Gyroflow Software: An advanced open-source gyro-assisted video stabilization for cinematography , drone videography , and much more ! Bring your cinematic FPV footage to the next level !Windows . Mac . Linux are all available !

3.Light weight : Light weight 6G optical lens and high performance ABS shell make it lighter than other naked cam.

4.Remote Recording Drone Parts: There are two ways to remote recording

A. With the RC trigger design , you could remotely record or capture photo . You just need a Hawkeye RC cable and RC 3 ways switch

B. Connect to FC directly . Please check our video tutorials

5.3D DIY Drone Camera: We provide a lot of 3D anti shake designs ! It's not only a camera as a FPV drone parts , but also a DIY camera ! You can make it as a FPV camera for RC car DVR , a security DVR , or any thing you want

Remark: Compared with V3.0 Version,

1.cancel the HDMI interface

2.Strengthen the anti-shake,

3.You can use gyroflow

Description:

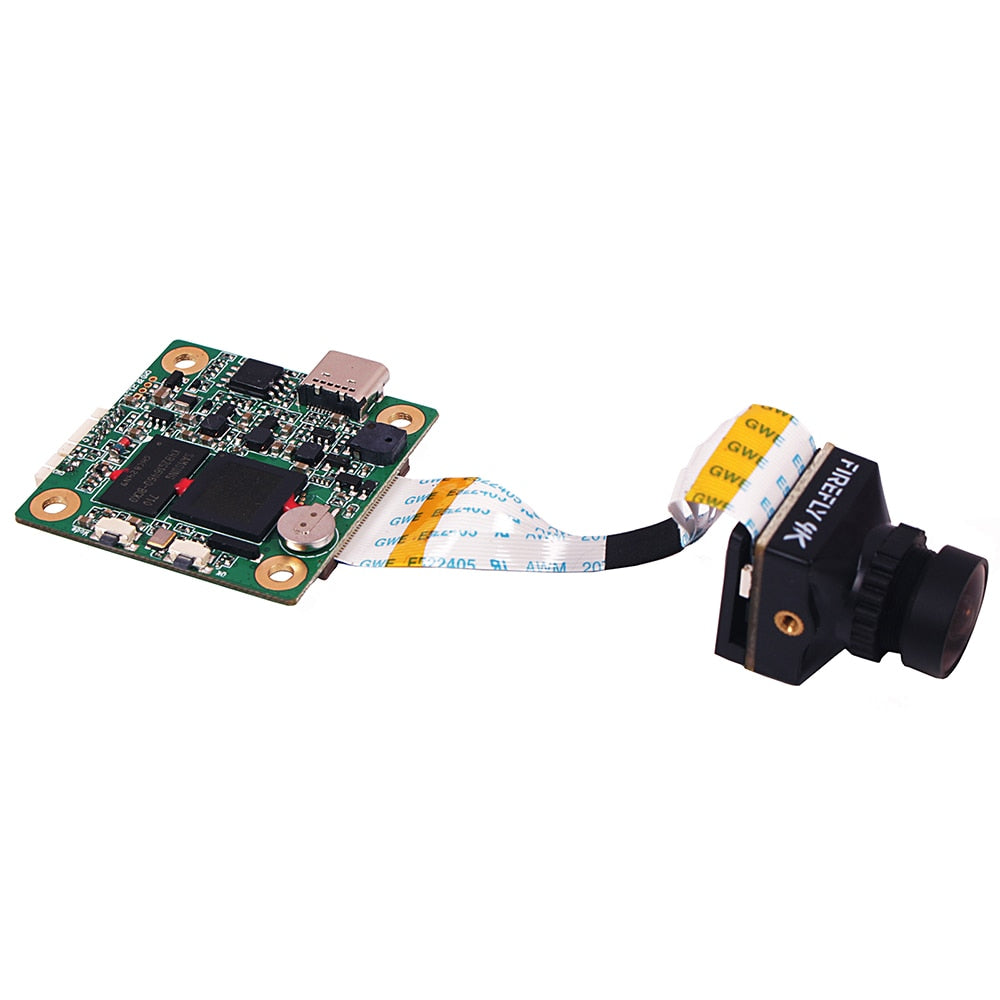

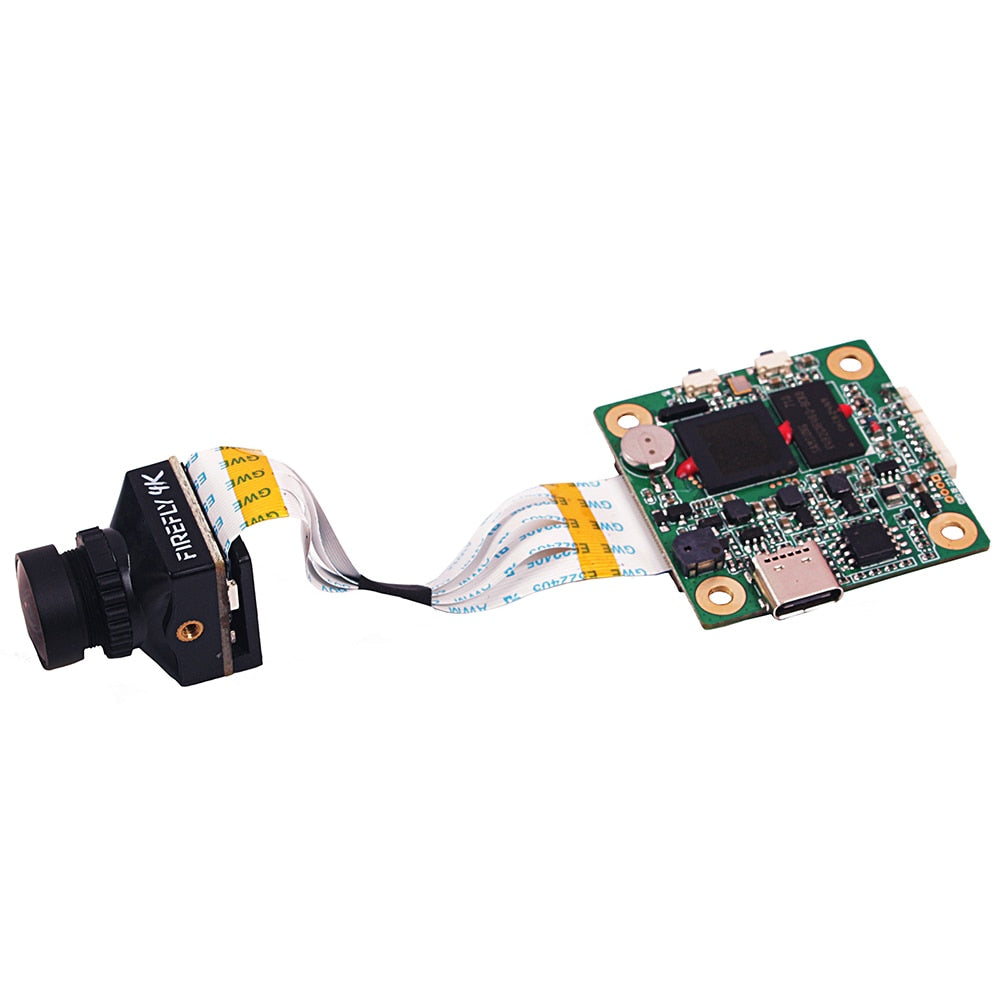

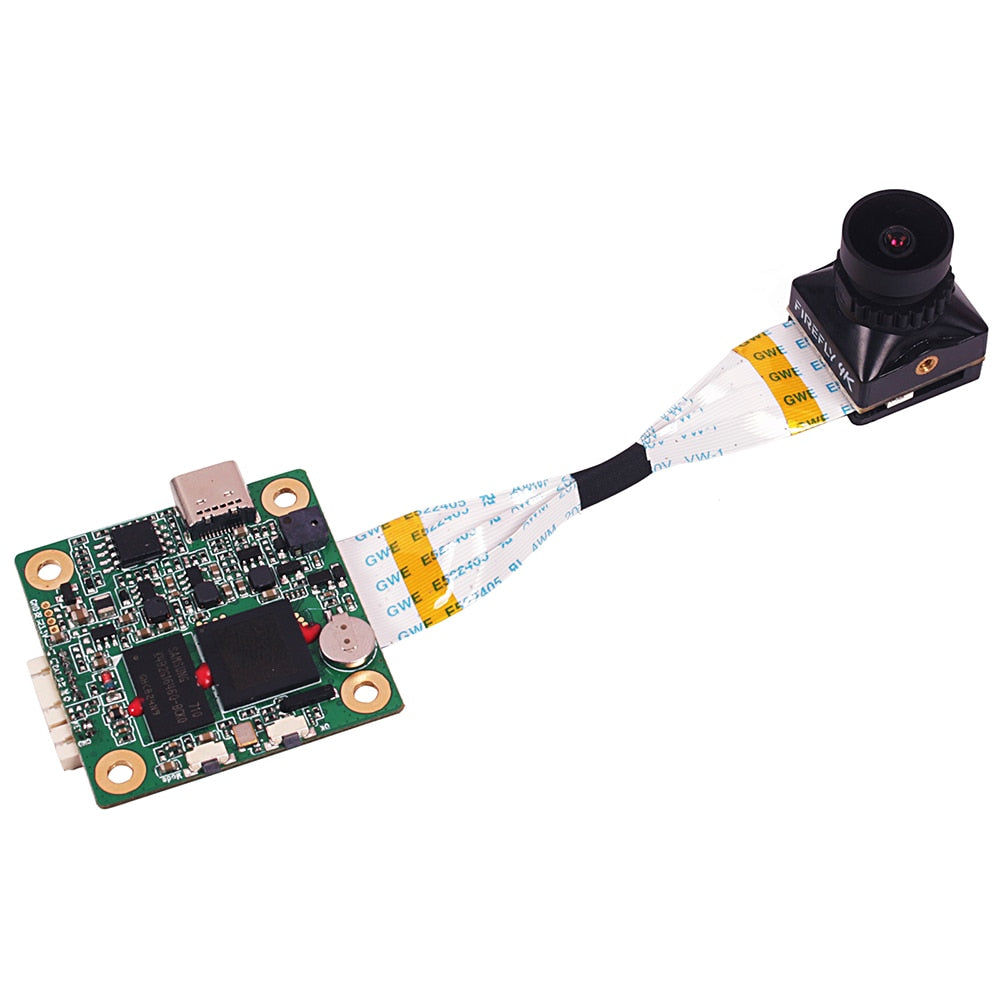

Hawkeye Nakedcam/Splite V4.0 FPV Racing Drone 4k Camera ,Smooth FPV video like R/S. More than gimbal ,Hawkeye 4K cam DIY drone camera can save gyro data while recording.Light weight ,3D DIY anti shake camera. We provide a lot of 3D designs ! It’s not only a camera as a FPV drone parts , but also a DIY camera ! You can make it as a RC Car DVR , a security DVR , or any thing you want



Hawkeye 4K cam can save gyro data while recording . the sampling rate is up to 1OOOHZ second .

Gyroflow is an advanced open-source gyro-assisted video stabilization for cinematography, drone videography, and much more . Windows, Mac; Linux are all availablel 8GyRoflw O Dot Oe Hawkeye 4K Naked V4 .

4.3 image sensor mode provides more pixels than 16.9 sensor mode . at 2.5K resolution, the 4.3 mode provides 36% more pixels . you can weld on the FC' s SV output or the battery directly.

Light weight 6G optical Lens and high performance ABS shell make it lighter than other naked cams .

the hawkeye 4K naked adopt low wind resistance design, the windward area is greatly reduced . the optical center is centered, so your footage will not offset to one side .

manual shutter can make more stable videos . the faster the SD card, the greater the chance of repair .

you just need a Hawkeye RC cable and a RC 3 way switch . you could remotely record or capture photo .

SD card protect design with thoughtful design, sd card won't eject easily because of crashing . lens hood not only protect the lens, but also blocks side light: Take a better videol

Hawkeye Hawkeye was founded in 2012 and produces FPV cameras . the humanized design allows consumers to operate more easily and can enjoy more fun and aerial flight .

Features SD card holder Type €C USB Trigger Trigger 2 Battery voltage measure Video GND- Power+ port Red, Blue LED Power/OK Mode button PJt Power/video Cable Converting Mount SD Protection Cover board (19 to 28mm) Key

cnn.com's ireport.com/sdprotection . a videoltrigger port should never be connected to power+III 1111)

Hawkeye 4K 5.8G Split 3D TX Hawkeye Remote control Board 5-23V GN Red Cable: Power+ Black Cable: GND White Cable Voltage Output Yellow Cable: Video White Cable: Battery Detect To 3 ways POWER BOARD Blue/Green Cable: Trigger Battery in(SV-5S) PWM Receiver To Battery Note: You can only connect Red(Power) and Black (GND) wires to battery+ (= 5S) or FC's SV output to use this

3.5mm hole: Yellow wire(video) change to the next point (Red point) Video NakedCam: 3MM hole: Mode button OK Button SMM Hole: 3mm .

AV output PALINTSC PAL has lower latencyl Micro SD card U1 Sandisk recommend SD card supported 8-64G Size 38 x38 MM 30.5x30.5 M4 holes Weight 19G split cam/ 26.8g nakedcam File format MP4IH.265 Lens F/2.0 7 glasses Angle Diagonal 170 degrees Voltage 7-25V Current 500mA Buttons: Name Functions Description Powerl Power ONIOFF; Press Once to power on; OK Button StartIStop

Specification:

Brand Name: Hawkeye

Model: NakedCam/Splite V4.0

Sensor: SONY 12MP

Field of View: FOV 170

Video Resolution: 4K 50/30FPS,2.5K 4:3 48/30FPS,2.5K 16:9 50FPS, 1080P 50/30FPS

Video with gyro data: 4K 30FPS,2.5K 4:3 48/30FPS,2.5K 16:9 50FPS, 1080P 50/30FPS

Video format: mp4/H.265

TV out: PAL/NTSC,latency 0.04 sec

USB port: Type C

SD Card: 8-64G（U1 or above ,not included,You need to purchase it separately.）

Power supply: DC 5-23V

Main board hole: 43×45mm(Nakedcam)  30.5x30.5mm(Splite)

Main board size: 38x38(Splite)

Current: MAX 300mA@5V

Weight: 26.8g/Nakedcam  18.5g/Splite
