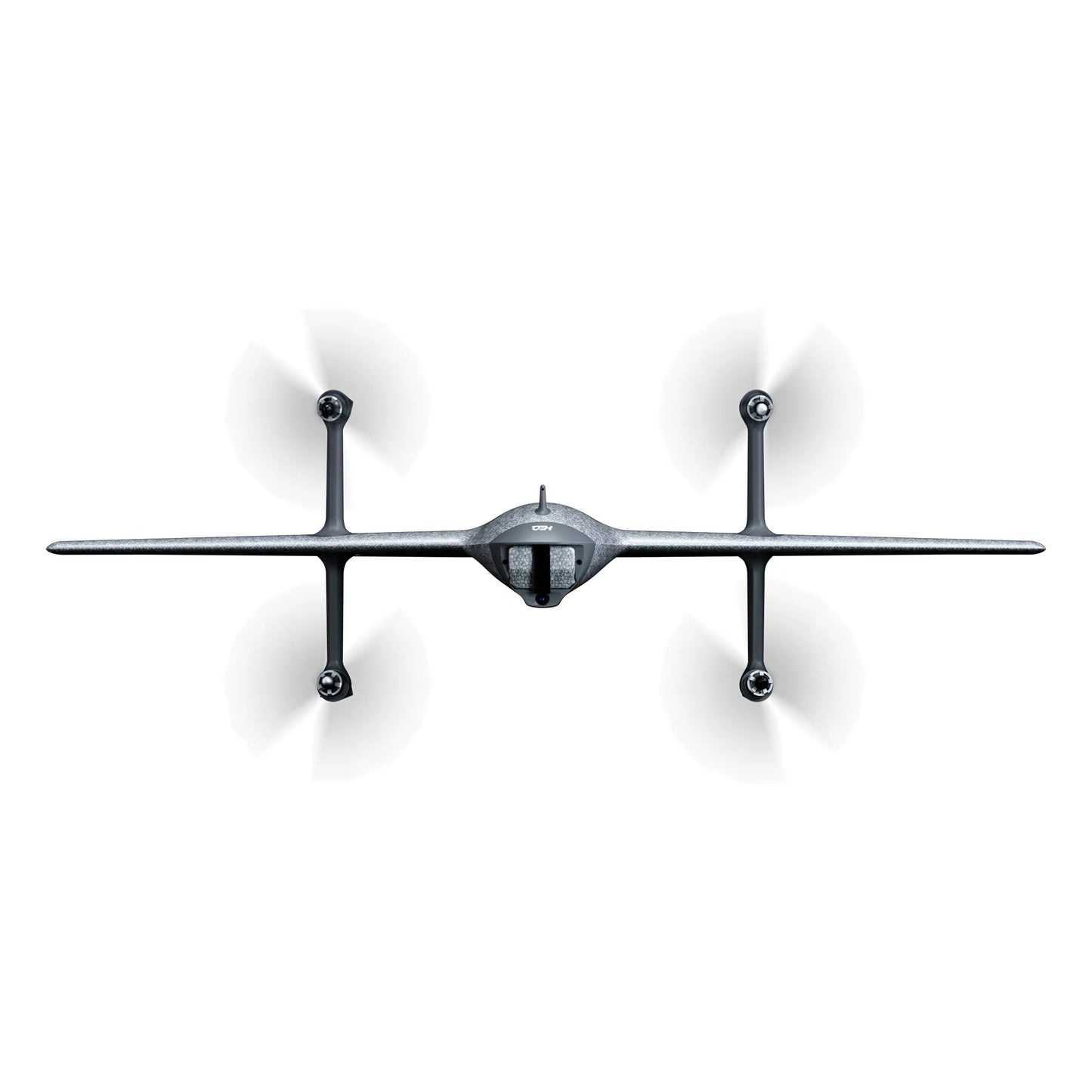

HEQ Swan-K1 PRO Fixed-wing Aircraft - 0.5KG Payload 60 Minutes 40KM Range VTOL Airplane Drone

Product Description for HEQ Swan-K1 PRO Fixed-wing Aircraft

Product Overview:

The HEQ Swan-K1 PRO is a state-of-the-art VTOL (Vertical Take-Off and Landing) fixed-wing aircraft, engineered for exceptional performance and versatility. With an impressive flight time of up to 60 minutes, a range of 40 kilometers, and the ability to carry multiple sports cameras, this drone is ideal for a wide range of applications, including aerial photography, surveying, and recreational flying.

HEQ Swan-K1 PRO Features:

1. Long Flight Time: Capable of staying airborne for up to 60 minutes.
2. Extended Range: Operational range of up to 40 kilometers.
3. Payload Capability: Designed to carry multiple sports cameras, such as GoPro and DJI Action.
4. One-Key Takeoff and Return: Simplified operation with intelligent return-to-home functionality.
5. Vertical Takeoff and Landing: No site limitations, making it versatile for different terrains.

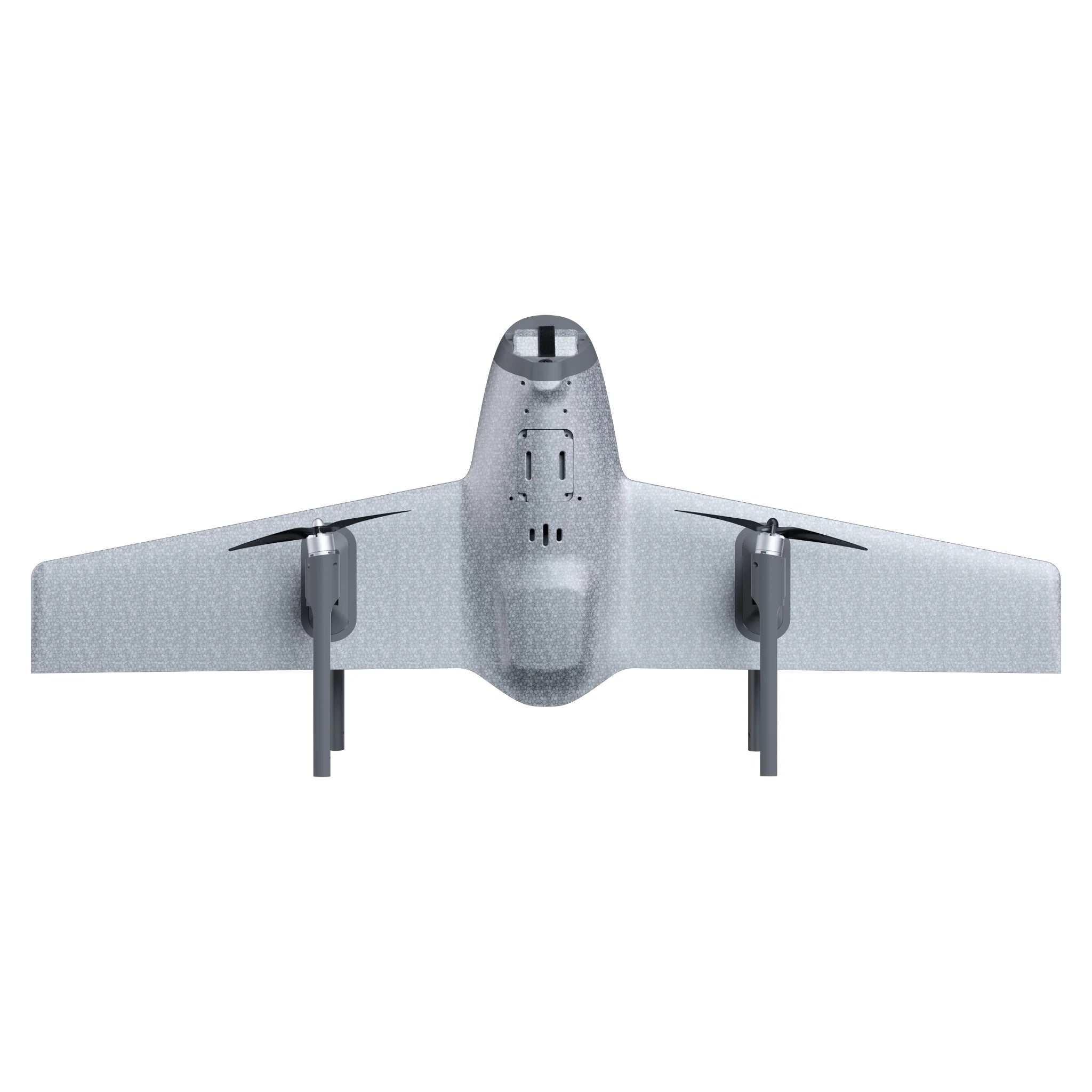

6. High Wind Resistance: Can withstand wind speeds up to Level 5.
7. Dangerous Attitude Protection: Ensures safe operation even in challenging conditions.

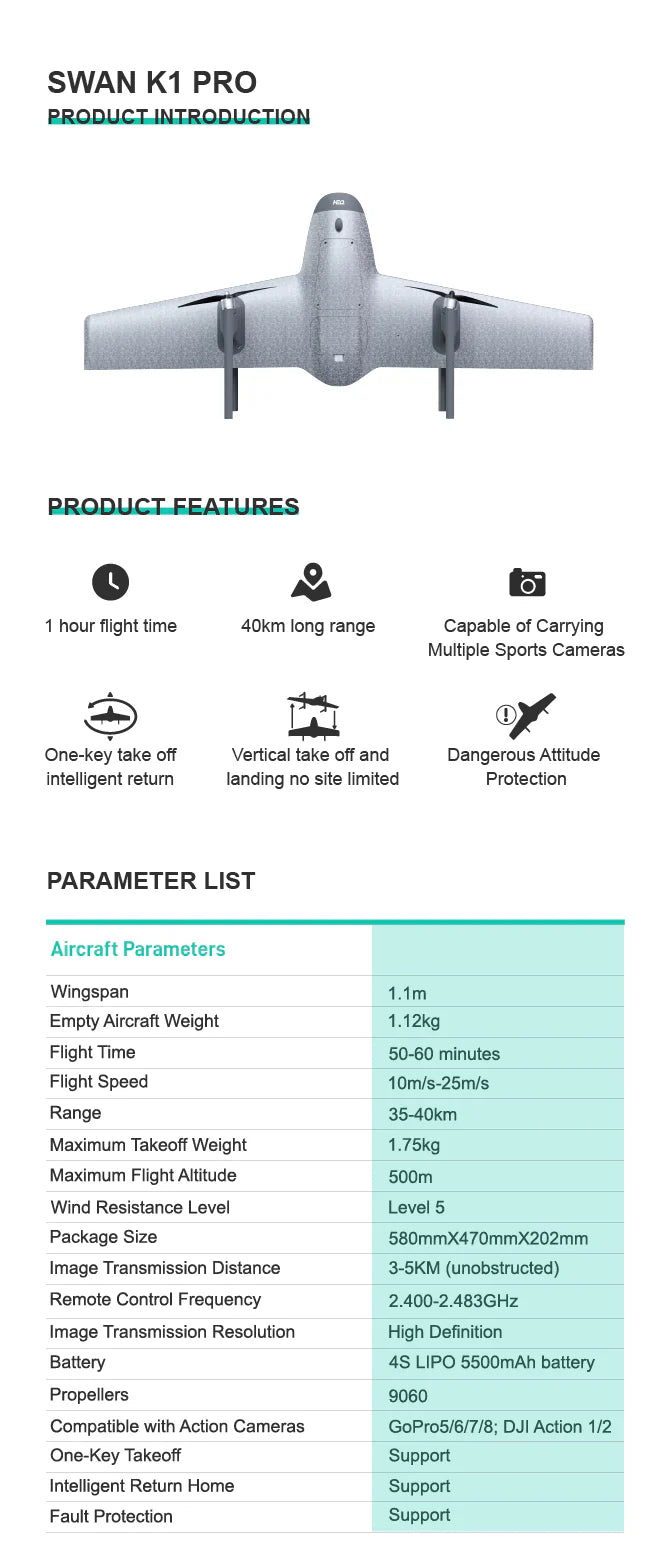

HEQ Swan-K1 PRO Specifications:

Applications:

The HEQ Swan-K1 PRO is perfect for various tasks, including:

• Aerial Photography and Videography
• Environmental Monitoring
• Agricultural Surveying
• Recreational Flying
• Surveillance and Security

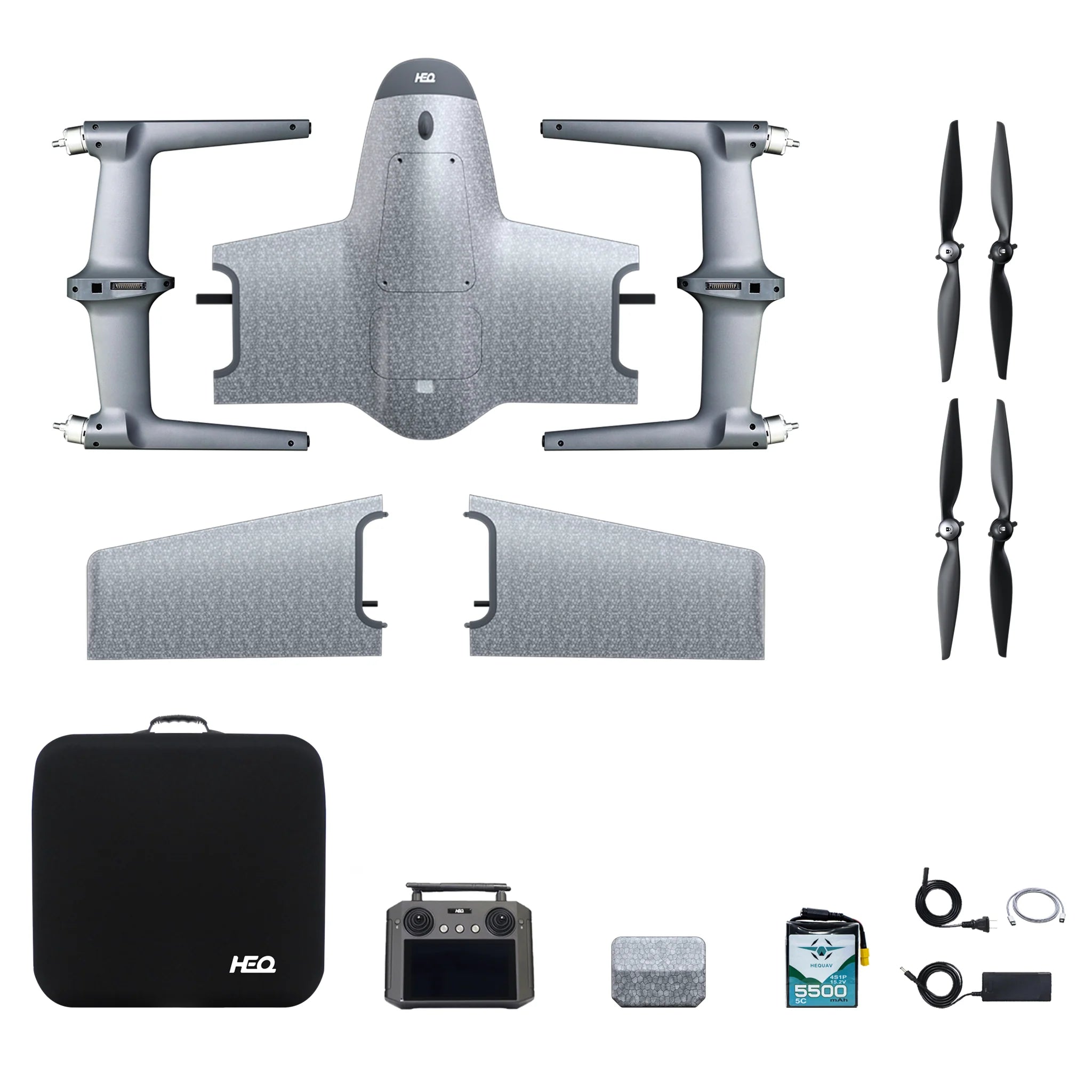

Package Included:

Base Platform Version

• 1x Swan-K1 pro aircraft ;
• 1x set of quick detachable nylon propellers ;
• 1x Radio controller(with HD touch screen);

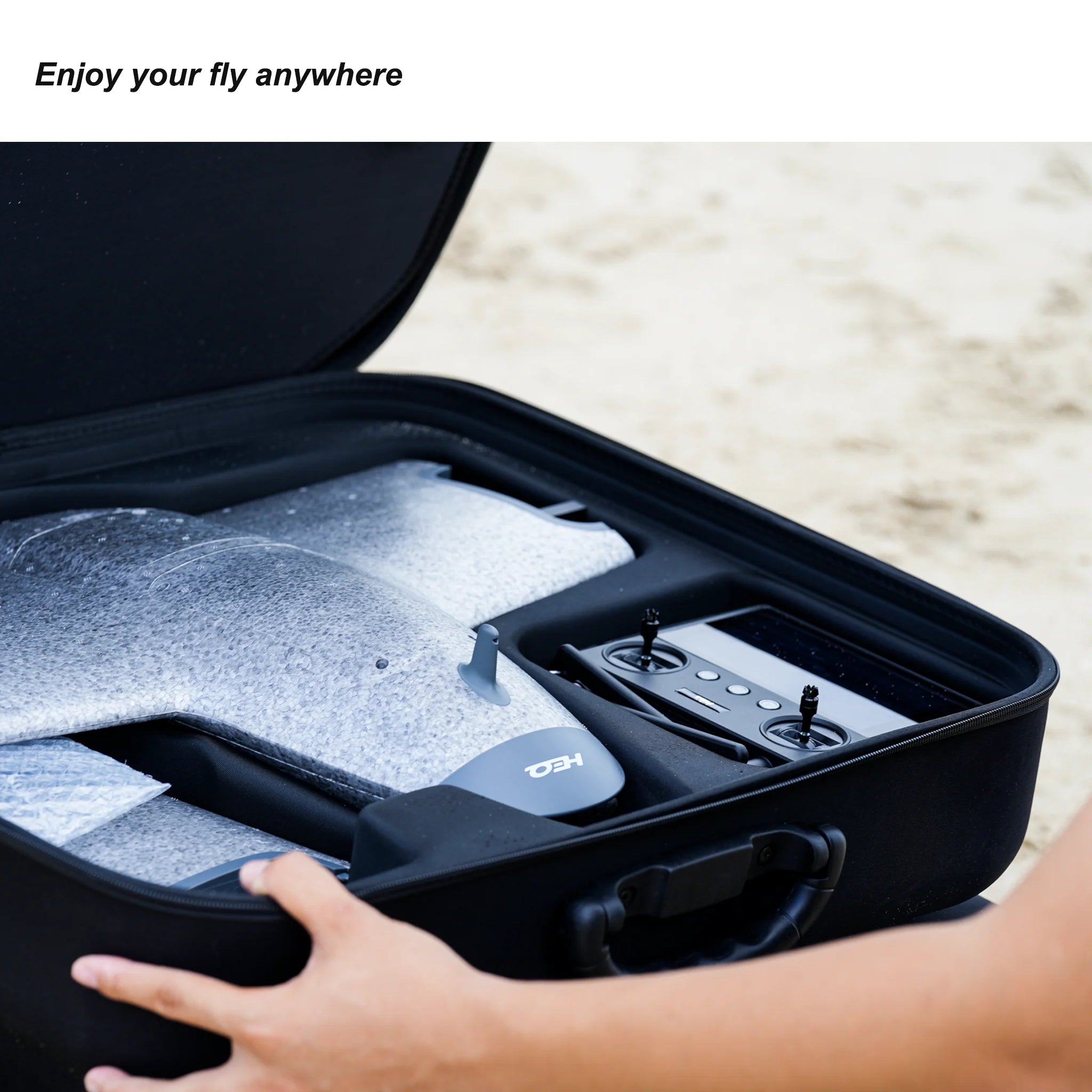

• 1x Carry case;
• 1x 5500mAh 15.2V Lipo Battery;
• 1x Power charger;
• 1x Swan-K1 pro head counterweight；
• 1x Aircraft User Manual and Disclaimer

PNP Version

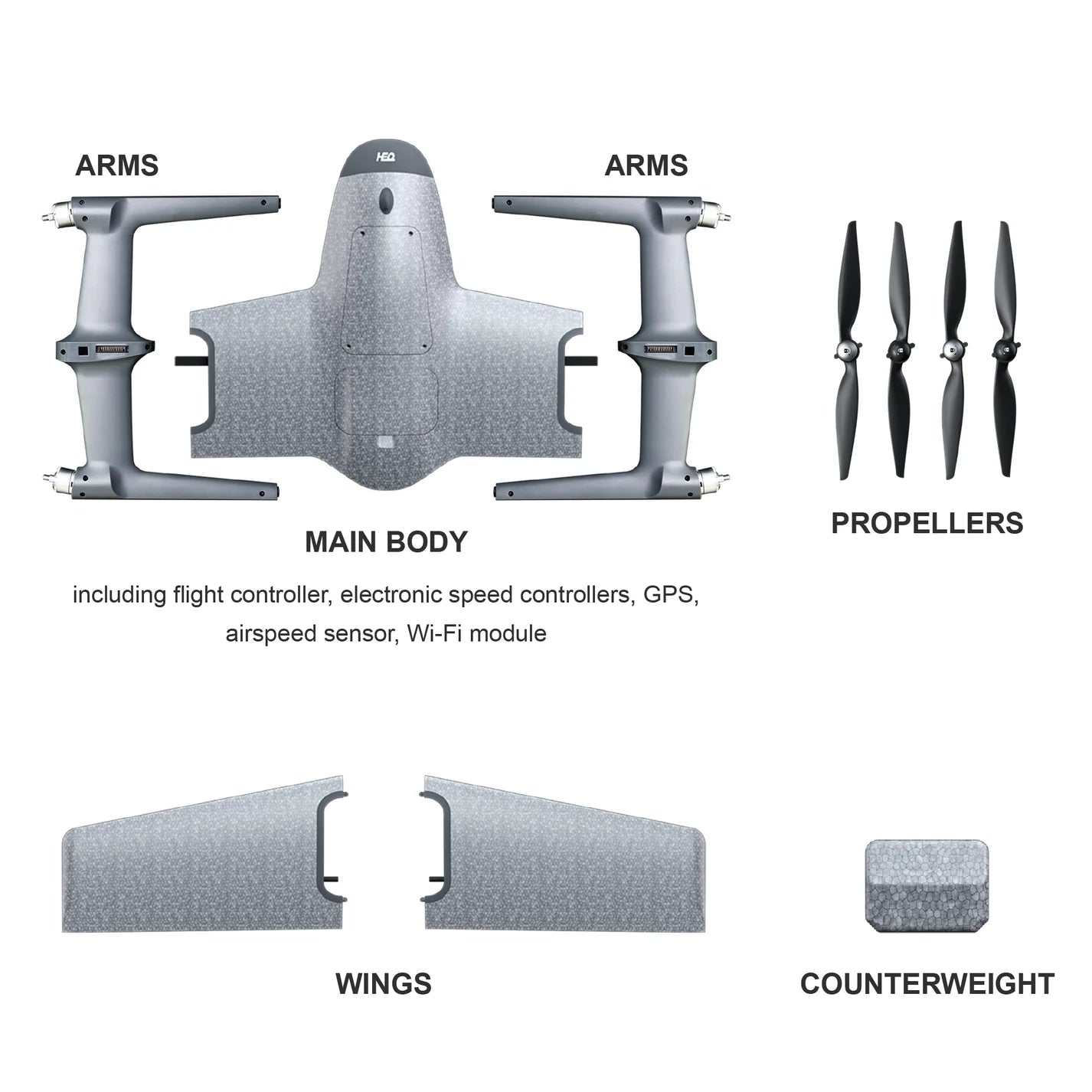

• 1 x Main body (including flight controller, electronic speed controllers, GPS, airspeed sensor, WiFi module)
• 1 x Pair of arms
• 1 x Pair of wings
• 1 x Counterweight
• 1 x Set of propellers

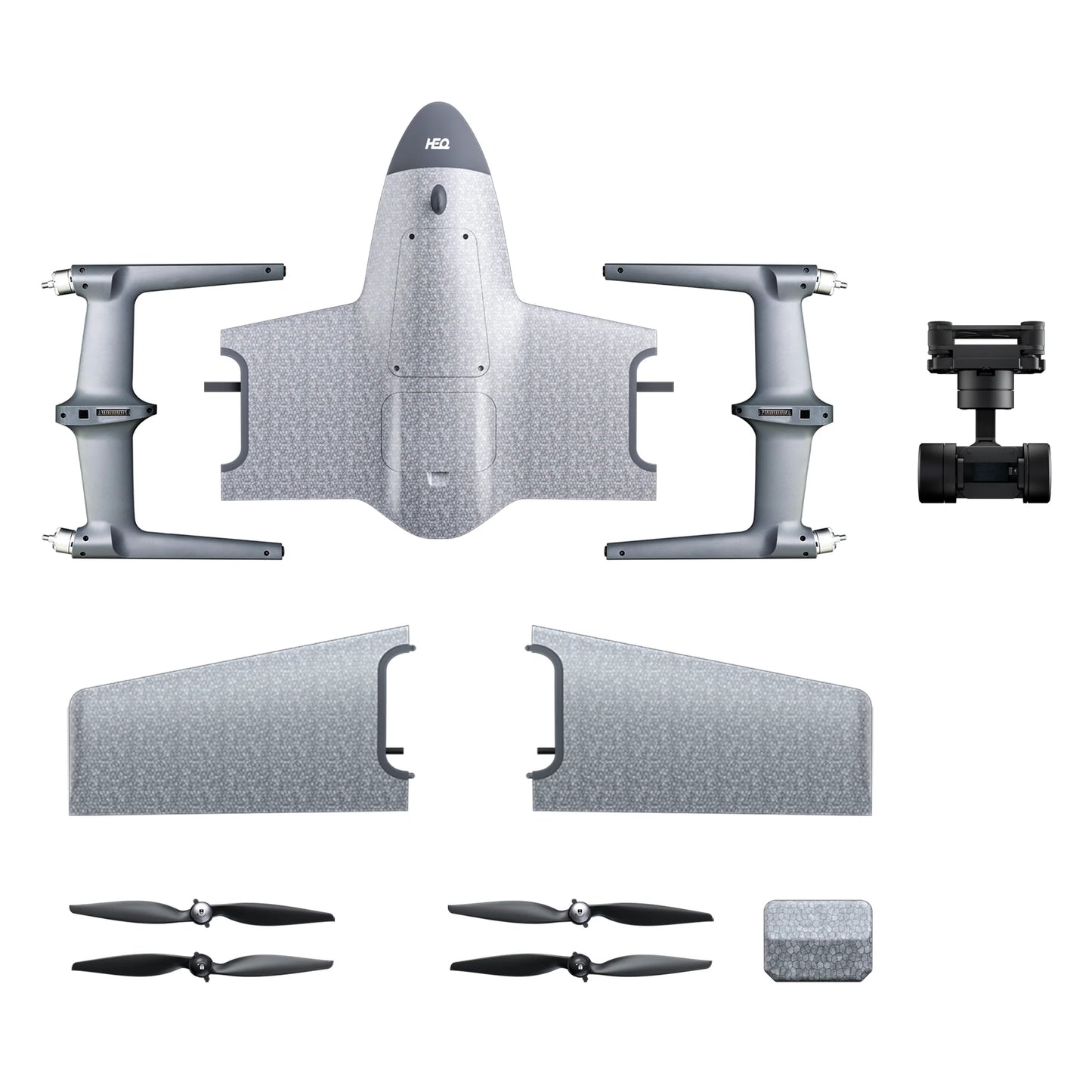

PNP With G-Port Gimbal

• 1 x PNP Combo
• 1 x G-Port Gimbal

HEQ Swan-K1 PRO Description

Introducing the Swan-K1 PRO, a VTOL airplane drone featuring a fixed-wing design, 0.5kg payload capacity, and up to 60 minutes of flight time with a range of 40km. It can carry multiple sports cameras and includes one-key takeoff, vertical takeoff, and intelligent return landing capabilities. The drone also features protection parameters such as empty aircraft weight 1.12kg, maximum takeoff weight 1.75kg, and maximum flight altitude 500m.

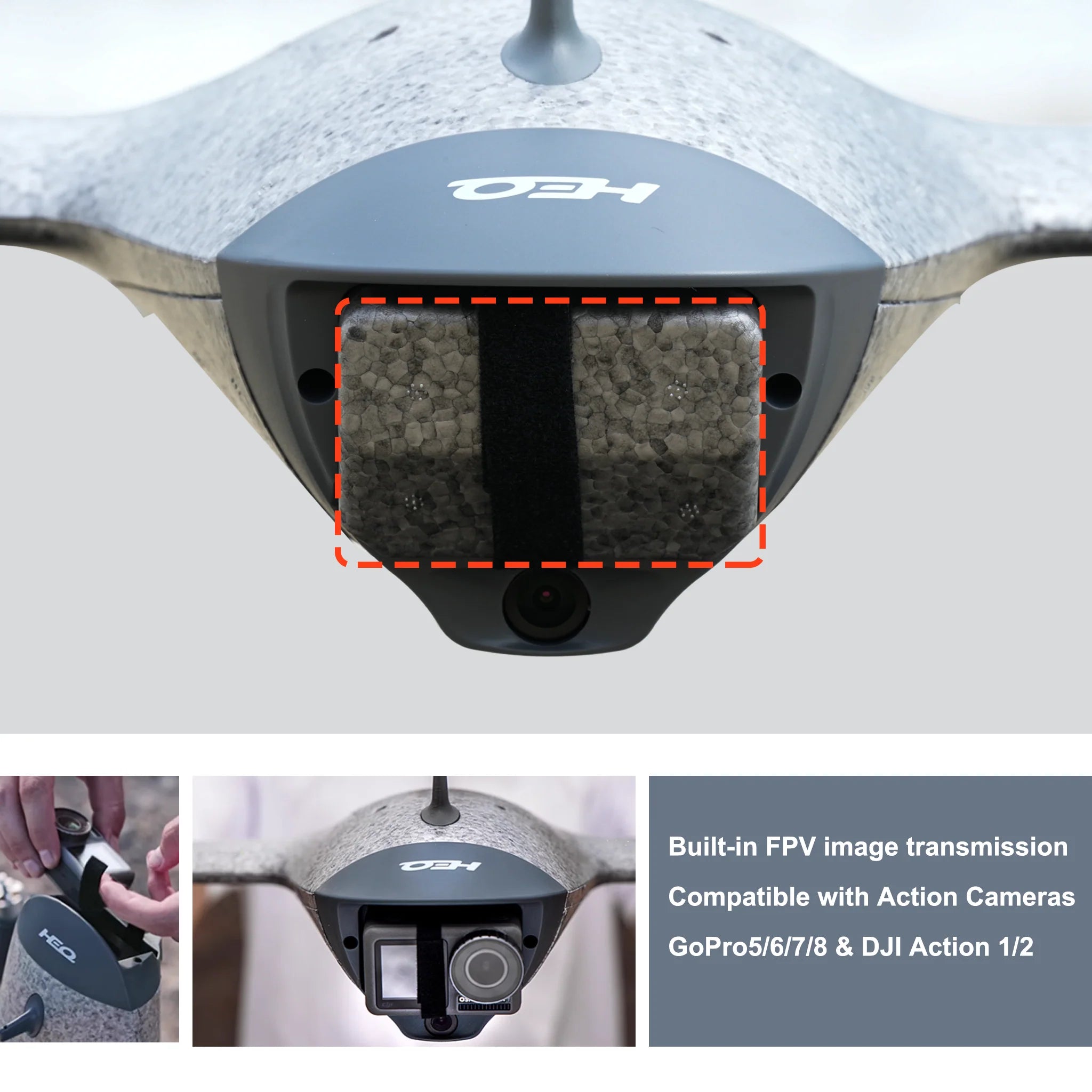

Features built-in FPV image transmission, compatible with popular action cameras including GoPro 5/6/7/8 and DJI Action 1/2.

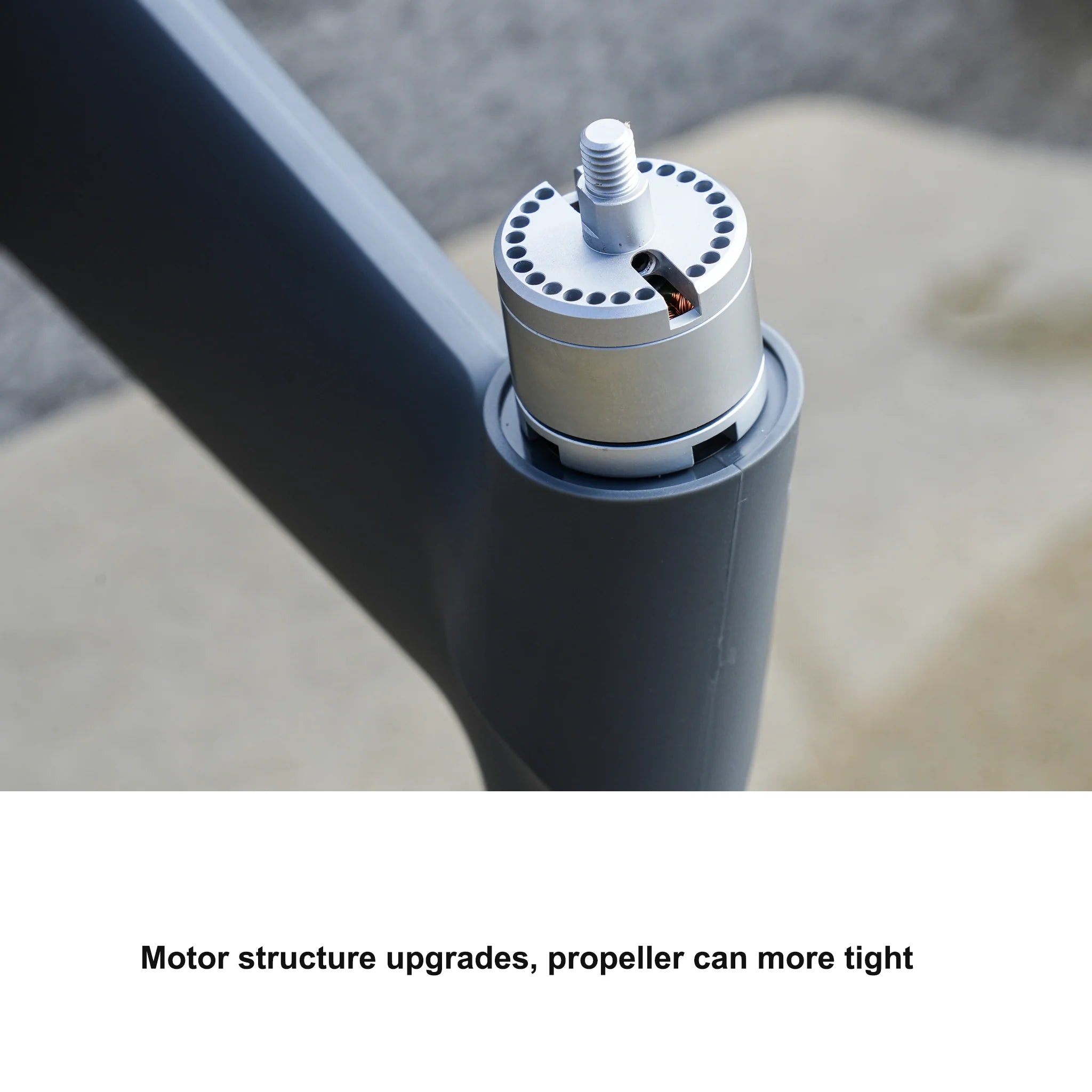

Upgraded motor design enables tighter propeller control for improved performance.

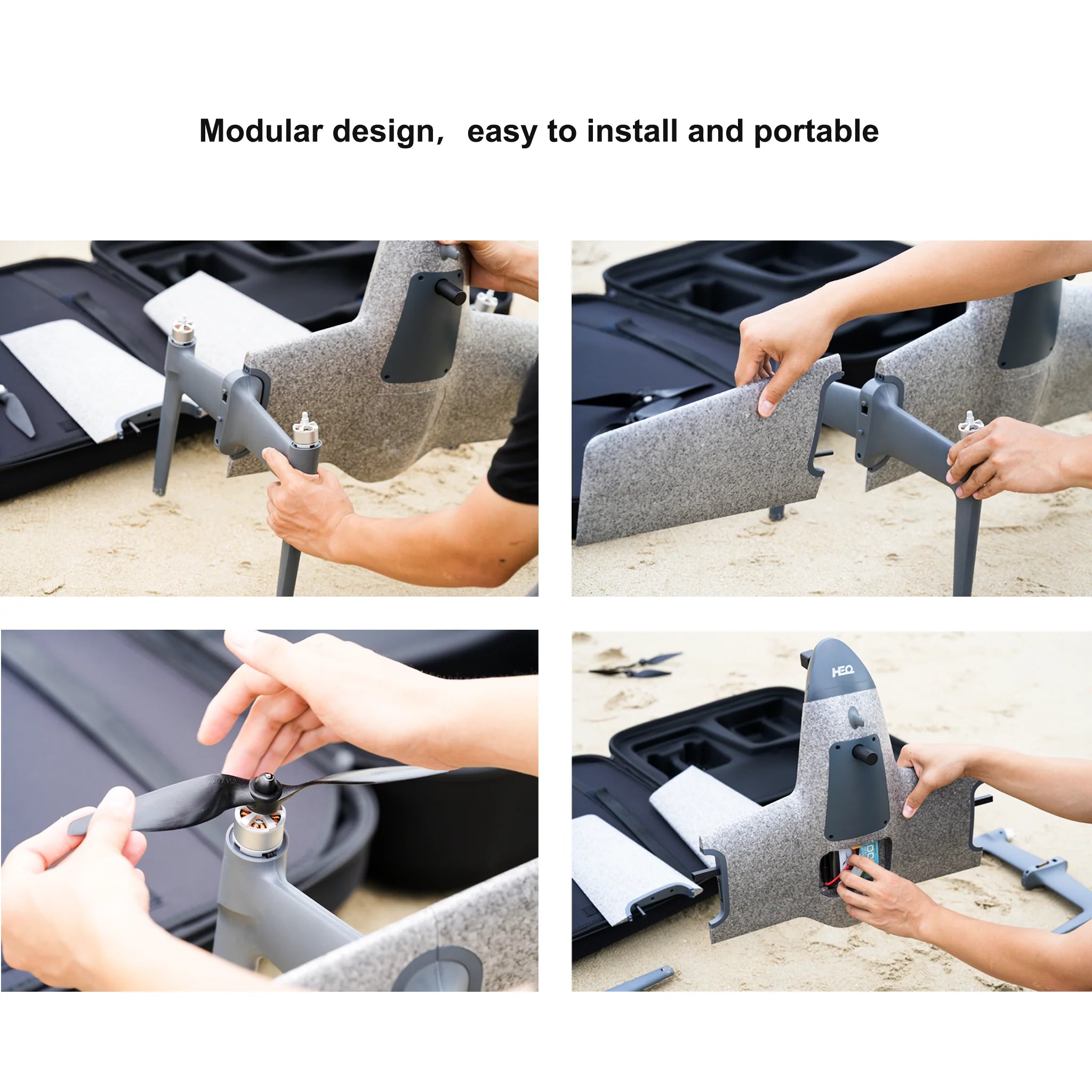

Easy-to-install, portable design for quick setup and transportation.

Introducing the HEQ Swan-K1 PRO, a fixed-wing aircraft drone with a 0.5kg payload, capable of flying for 60 minutes and reaching a range of 40km. The VTOL (vertical takeoff and landing) design allows for efficient operations.

HEQ Swan-K1 PRO PNP Version

The SWAN K1 PRO PNP version is tailored for drone DIY enthusiasts, offering extensive creative freedom to customize and enhance their drone experience. Users can pair the SWAN K1 PRO PNP with various analog or digital video transmission systems and remote controllers, utilizing their available modules to create a unique drone.

Key Features:

• Customization: Designed for DIY enthusiasts to integrate their own modules and systems.
• Vertical Takeoff and Landing: Capable of VTOL, allowing unrestricted flight locations.
• Modular Design: Easy disassembly and reassembly without tools, enhancing reliability.
• GPS Functionality: Includes onboard GPS for fixed-point hovering and one-key return-to-home in both rotor and fixed-wing modes.

PNP With G-Port Gimbal

G-Port Gimbal Parameters

Swan-K1 PRO is a fixed-wing aircraft with a 0.5KG payload, featuring a VTOL design and offering 60 minutes of flight time, 40KM range, and equipped with a flight controller, electronic speed controllers, GPS, airspeed sensor, Wi-Fi module, and counterweight.

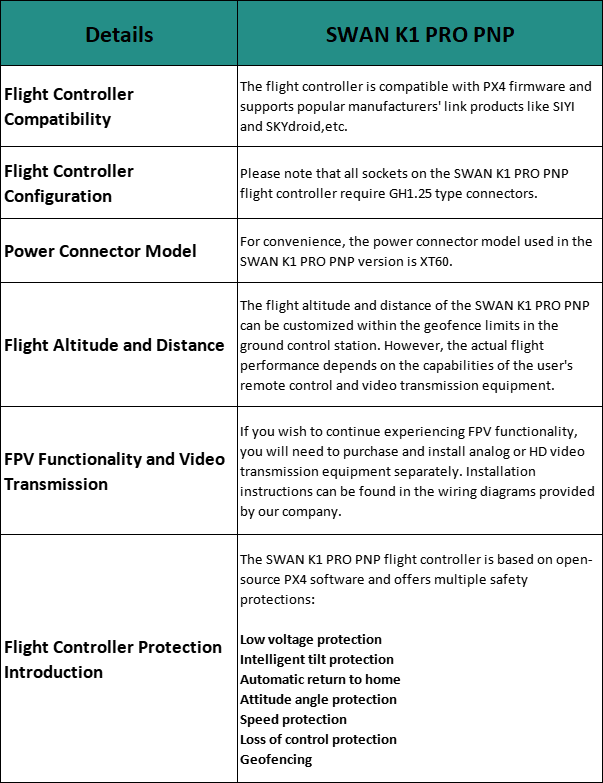

The SWAN K1 PRO PNP flight controller, compatible with PX4 firmware, supports popular link products like SIYI and Skydroid. It requires GH1.25 type connectors for all sockets. The power connector model used is XT60.
