HEQ Swan-K1 Trio 640 Fixed-wing Aircraft VTOL With 3-in-1 Camera Gimbal 640x512 Infrared Camera 600M LRF 12MP Camera

Product Description for HEQ Swan-K1 Trio 640 Fixed-wing Aircraft

Product Overview:

The HEQ Swan-K1 Trio 640 is an advanced VTOL (Vertical Take-Off and Landing) fixed-wing aircraft designed for precision and versatility. Equipped with the HEQ G640 3-in-1 gimbal camera, this drone integrates thermal imaging, a visible light camera, and a long-range laser rangefinder, making it ideal for a wide range of professional applications, including surveillance, inspection, and mapping. This advanced integration sets the stage for remarkable capabilities in various complex scenarios and lighting conditions. The visible light camera captures sharp, true-color images in real-time, while the thermal imaging function excels in low-light environments, revealing details imperceptible to the naked eye. The long-range laser rangefinder module enhances the camera’s functionalities with target coordinate calculation and tracking, crucial for positioning and surveillance tasks. Weighing only 220g, the G640 gimbal camera does not compromise performance and is ideal for public safety, firefighting, power line inspections, military reconnaissance, and outdoor searches.

HEQ Swan-K1 Trio 640 Features:

• 1 Hour Flight Time: Provides extended flight duration for comprehensive missions.
• Flight Path Missions: Supports pre-programmed flight paths for automated missions.
• High-Precision Positioning: Ensures accurate navigation and stability.
• 600m Laser Rangefinder: Equipped with a precise laser rangefinder for distance measurements.
• Three-axis Gimbal Stabilization: Ensures smooth and stable video footage.
• 640 x 512 Infrared Camera: Features a 13mm lens for high-resolution infrared imaging.
• Visible Light Camera: 12.53 million pixels for high-quality visible light imaging.
• Thermal Imaging and Visible Light Integration: Captures comprehensive visual insights in various lighting conditions.
• Advanced Functionalities: Includes target coordinate calculation and tracking.
• Modular Quick-Detach Design: Allows for easy assembly in just three minutes.

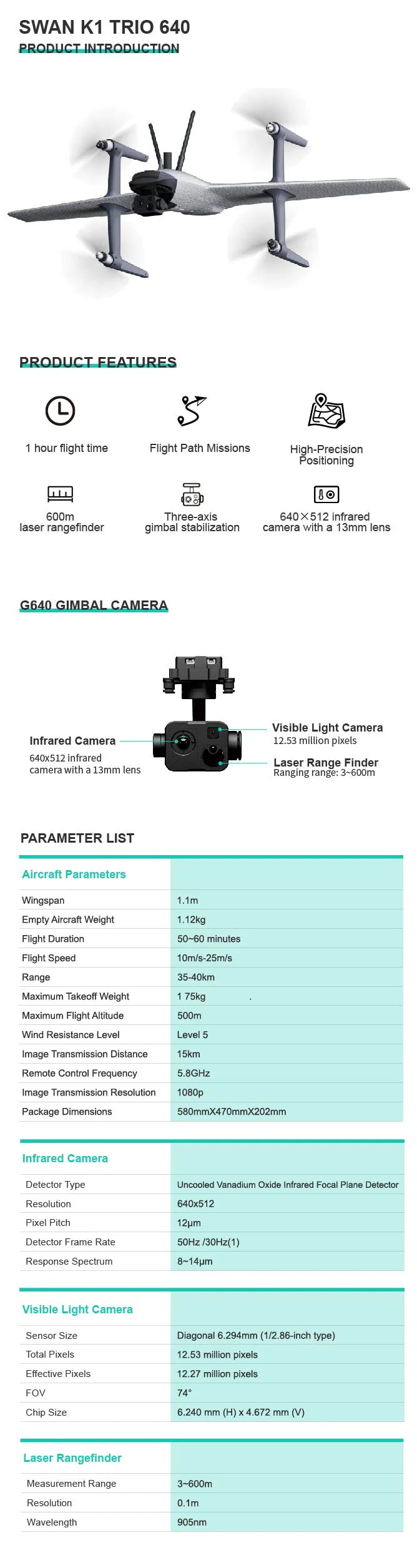

HEQ Swan-K1 Trio 640  Specifications:

Aircraft Parameters

G640 Gimbal Camera Parameters

• Infrared Camera

  • Detector Type: Uncooled Vanadium Oxide Infrared Focal Plane Detector
  • Resolution: 640x512
  • Pixel Pitch: 12μm
  • Detector Frame Rate: 50Hz / 30Hz(1)
  • Response Spectrum: 8~14μm

• Visible Light Camera

  • Sensor Size: Diagonal 6.294mm (1/2.86-inch type)
  • Total Pixels: 12.53 million pixels
  • Effective Pixels: 12.27 million pixels
  • FOV: 74°
  • Chip Size: 6.240 mm (H) x 4.672 mm (V)

• Laser Rangefinder

  • Measurement Range: 3-600m
  • Resolution: 0.1m
  • Wavelength: 905nm

Applications:

The HEQ Swan-K1 Trio 640 is ideal for a variety of professional applications, including:

• Surveillance and Security
• Infrastructure Inspection
• Environmental Monitoring
• Agricultural Surveying
• Urban Planning
• Search and Rescue Operations
• Firefighting
• Power Line Inspections
• Military Reconnaissance
• Outdoor Searches

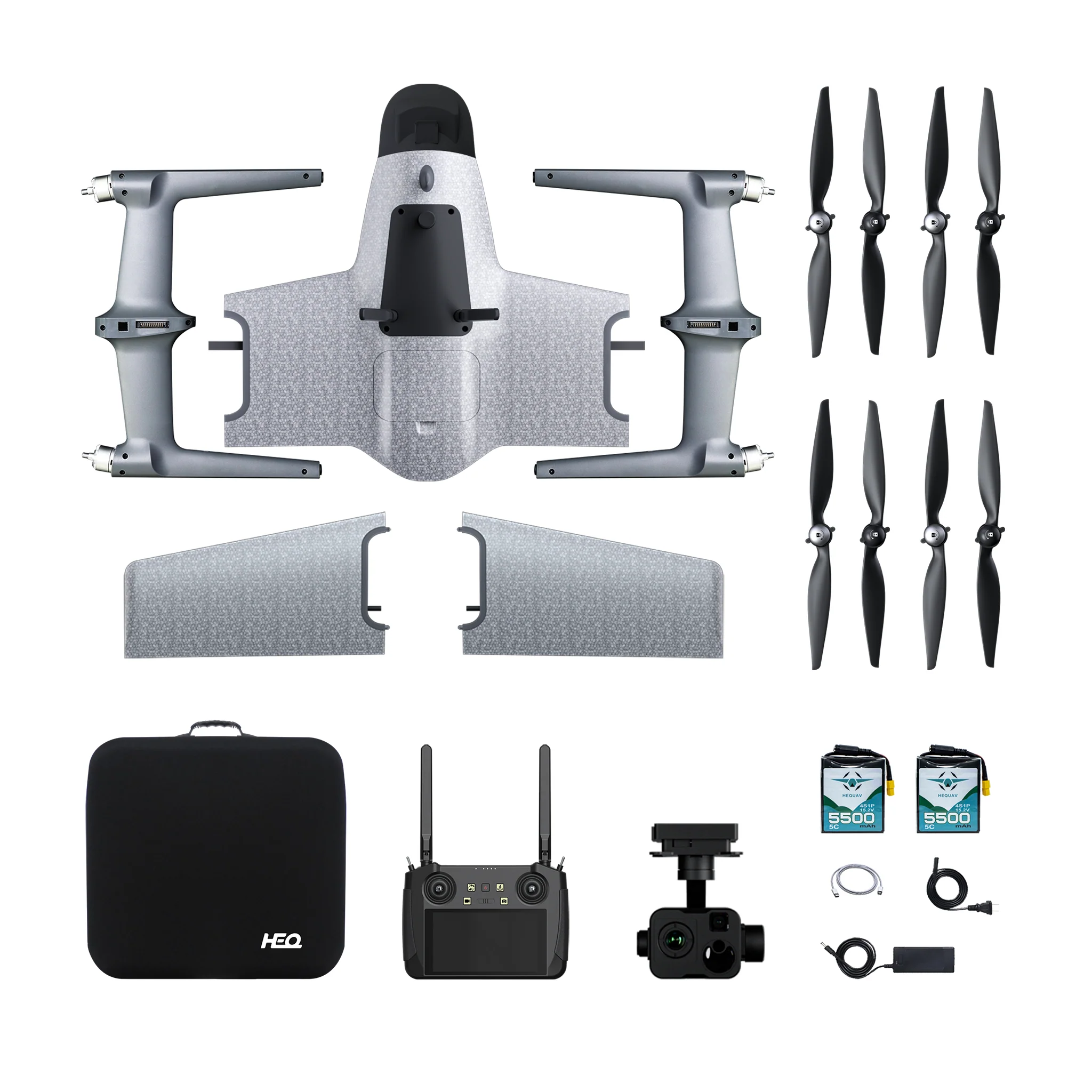

Packing List:

• 1 x Swan-K1 Trio 640 aircraft
• 1 x G640 Triple-Sensor gimbal camera
• 2 x set of quick detachable nylon propellers
• 1 x radio controller (15km image transmission)
• 1 x Carry case
• 2 x 5500mAh 15.2V Lipo Battery
• 1 x Power charger
• 1 x Aircraft User Manual and Disclaimer

Summary:

The HEQ Swan-K1 Trio 640 Fixed-wing Aircraft combines advanced technology with ease of use, making it an excellent choice for both professional and recreational users. With features like a long flight time, high-precision positioning, and a versatile gimbal camera system, this drone ensures reliable and precise operations across a variety of aerial applications. The quick-disassembly design and user-friendly features make it a practical and efficient tool for surveillance, inspection, and mapping tasks.

Introducing SWAN K1 TRIO 640, a fixed-wing aircraft with VTOL capabilities, featuring a 3-in-1 camera gimbal with a 640x512 infrared camera, 600m laser rangefinder, and 12MP visible light camera. Key features include: hour-long flight time, high-precision positioning, and advanced stabilization technology.

HEQ Swan-K1 Trio fixed-wing aircraft with VTOL capabilities, featuring a 3-in-1 camera gimbal, 640x512 infrared camera, 600m LRF, and 12MP camera for high-resolution imaging.
