The Herelink HD Digital Video Transmission System V1.1 is an all-in-one solution for long-range HD video transmission. Brought to you by Hex and ProfiCNC, the team who brought you Pixhawk and The Cube GPS system.

The Herelink Air Unit 1.1 Integrates a data link unit, remote control link, and video display unit into a single device, making a complex device system integrated and miniaturized. This VTX unit features a signal transmission range up to 20KM,  minimum latency of 110ms, two HDMI inputs, and supports 720p 30fps, 1080p 30fps / 60fps video format. The Air Unit uses between 5-12v input power and has a single UART for connection to the flight controller or other Mavlink accessories. Now updated with Sd Card Slot and Ethernet port.

The Herelink Controller 1.1 is a  2.4GHz radio controller with a built-in screen that allows users to get long-range HD video, telemetry, and control link up to a whopping 20km. It uses the 2.4GHz band on LTE over WIFI. This allows maximum transmission distance. Purported to have a range of 20km in FCC and 12km in CE. The large 5.5" screen displays a multitude of control options such as live images, autopilot configuration through the native QGround control, or other GCS applications based on the Mavlink system. Both the Air Unit and the Radio Controller are equipped with powerful Pinecone S1 processors with 4 cores at 2.2GHz and 4 more additional cores at 1.4GHz. This allows for tons of possibilities for app usage and future development. Now updated with a brighter screen at 1000 nit.

V1.1 CHANGELOG

• Controller Screen brightness updated to 10000 nit.
• Ethernet port added to Air Unit
• SD card slot added to Air Unit

• Data Link, Remote Control Link, and Video Display
• PineSync Technology based on S1 Processor
• 720p@30fps or 1080p@30/60fps Resolution
• 1000 Nit Screen Brightness
• CubePilot Hex Technology
• 2.4GHz Frequency Band
• 4W Power Consumption
• MMCX antenna jacks
• 110ms Video Delay
• 7-12V Power Input
• Indicator lights
• A7 + DSP SDR
• ETH Interface
• Micro USB
• SD Slot

The Herelink system integrates three essential components - data link, remote control, and video display units - into a single, compact device, simplifying its design and functionality.

• Size: 217×106.5×31mm (not include external antennas and joy-sticks)
• Transmission Distance: FCC 20km | CE / SRRC / MIC 12km
• Memory: Air unit LPDDR3 1GB | Controller LPDDR3 2GB
• SOC: 4 *Cortex A53, 2.2GHz / 4 * Cortex A53, 1.4GHz
• Storage: Air unit EMMC: 4GB|Controller EMMC：8G
• Image resolution: 720p-30fps | 1080p-30/60fps
• Receive sensitivity: -99dBm@20MHz BW
• Processor: SoC – Pinecone S1
• Frequency Band: 2.4GHz ISM
• GPU: 4 Core, Mali-T860
• Video Delay: 110 ms
• SDR: A7 + DSP
• Recovery: < 1s
• Weight: 536g

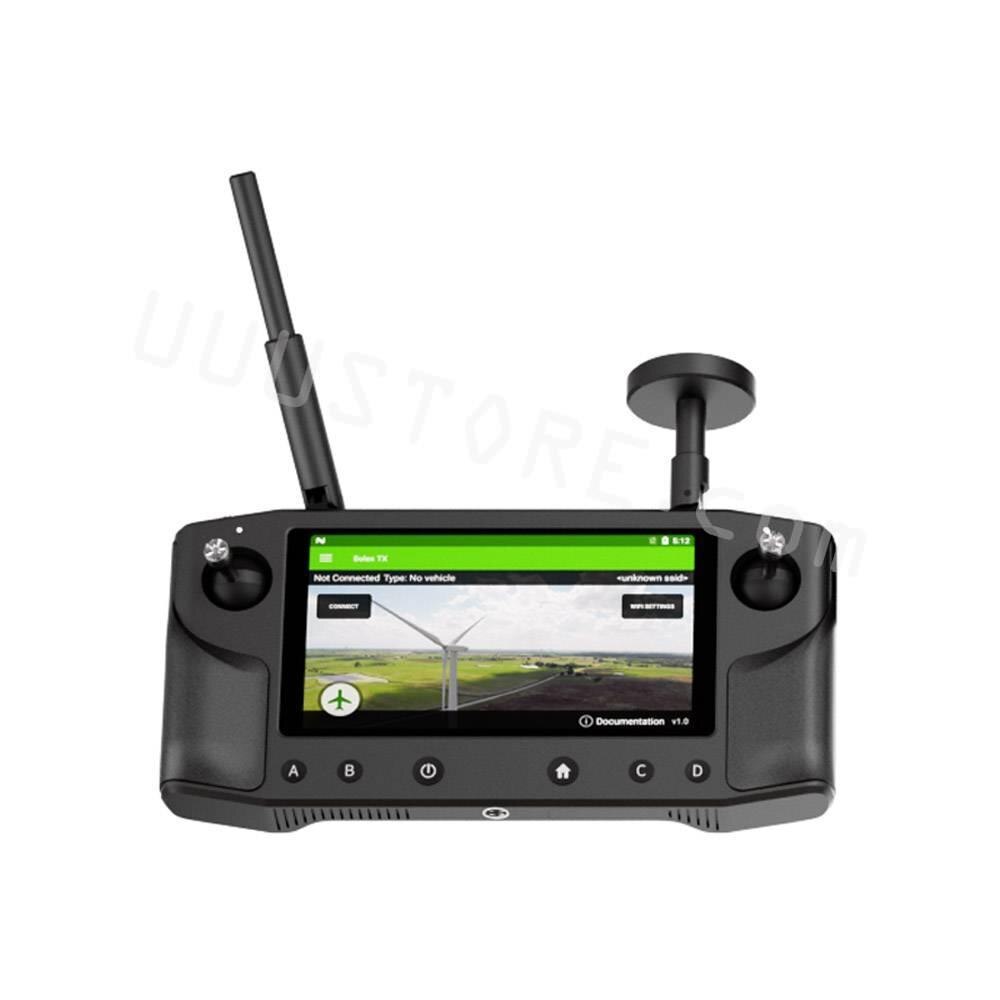

HERELINK CONTROLLER 1.1

• Power Consumption: The average power consumption does not exceed 4W (only picture transmission work, medium screen brightness, WiFi off, GPS off)
• Remote: Hall effect gimbals with removable sticks x 2, scroll wheel × 1, bottom button × 6 with backlight, top button × 1 (right)
• External Antenna: Directional antenna (5dBi) *1 detachable ，omnidirectional antenna(2dBi) *1 detachable
• Build-in Antenna: built-in wifi antenna, built-in GPS antenna, external GPS antenna interface
• Wireless Communication: Bluetooth / WIFI / GPS / 2.4G map transmission ground
• Screen: 5.46 inch，1080P，16 million colors, capacitive touch screen
• Interface: MicroUSB × 1, Micro SD × 1 (supports maximum 64GB)
• Charging: Support micro USB port 5v 2A current charging
• Indicator light: tricolor LED *2 (Upright and left corner)
• Audio: Built-in speaker × 1, built-in microphone × 2
• Power: Build-in 4950 mAh Lipo Battery
• Screen brightness: 1000nit

HERELINK AIR UNIT 1.1

• Micro USB: Used for debugging and upgrading, support OTG mode**（no need for external power for USB device）**
• Power Input: Recommended supply voltage ~7V: minimum 6V, maximum 12V, and avoid sharing BEC with servos
• MMCX antenna jack 1, 2: Used for signal transmission and ground communication
• ETH Interface（only supported by Air unit 1.1: Network protocol device access
• Indicator light 1，2: Used to indicate state for pairing and video transmission
• Power Consumption: The average power consumption does not exceed 4W
• Manufacturer: HEXAERO PTE LTD. / HEX TECHNOLOGY LIMITED
• SD Slot（only supported by Air unit 1.1: For future usage

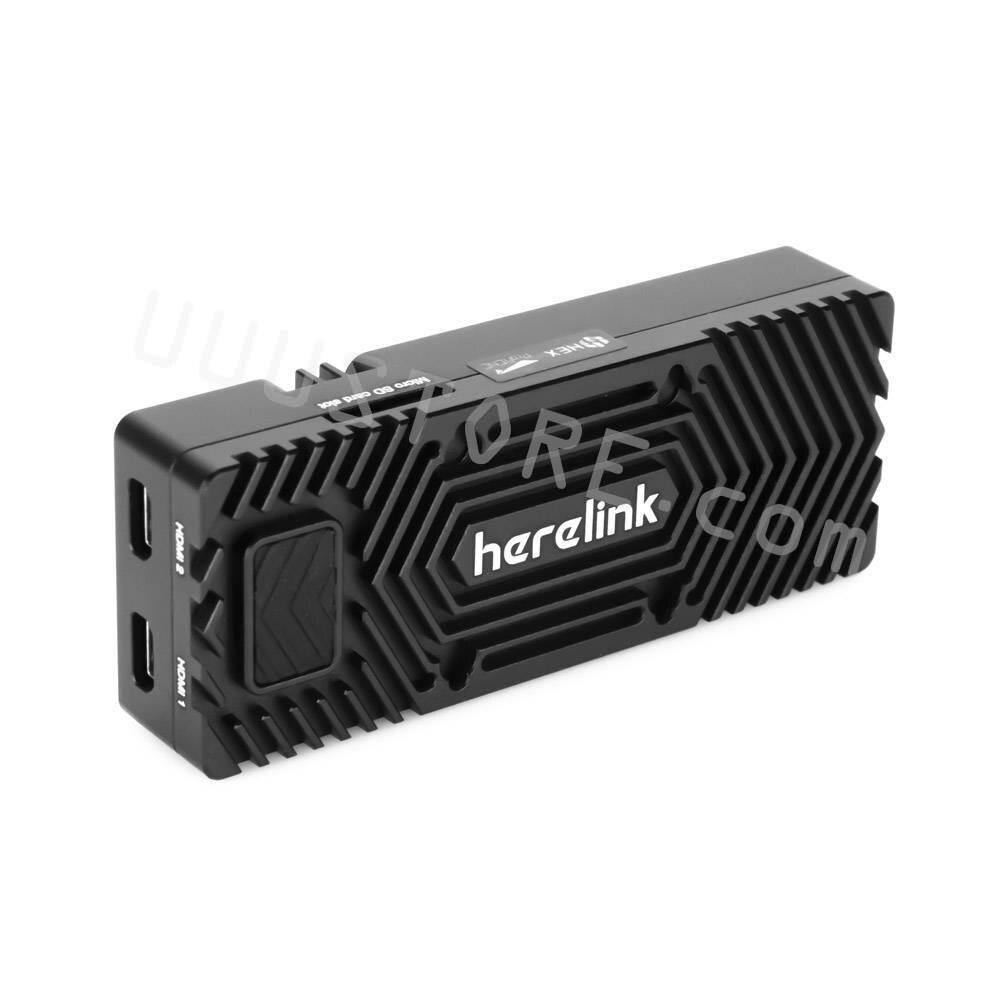

• Micro HDMI 1: Camera video signal input (Recommend)
• S.bus Interface: Dual RCout, S.bus1, and S.bus2
• Micro HDMI 2: Camera video signal input
• Button: Used for pairing and state reset
• Signal Bandwidth 20MHz / 10MHz

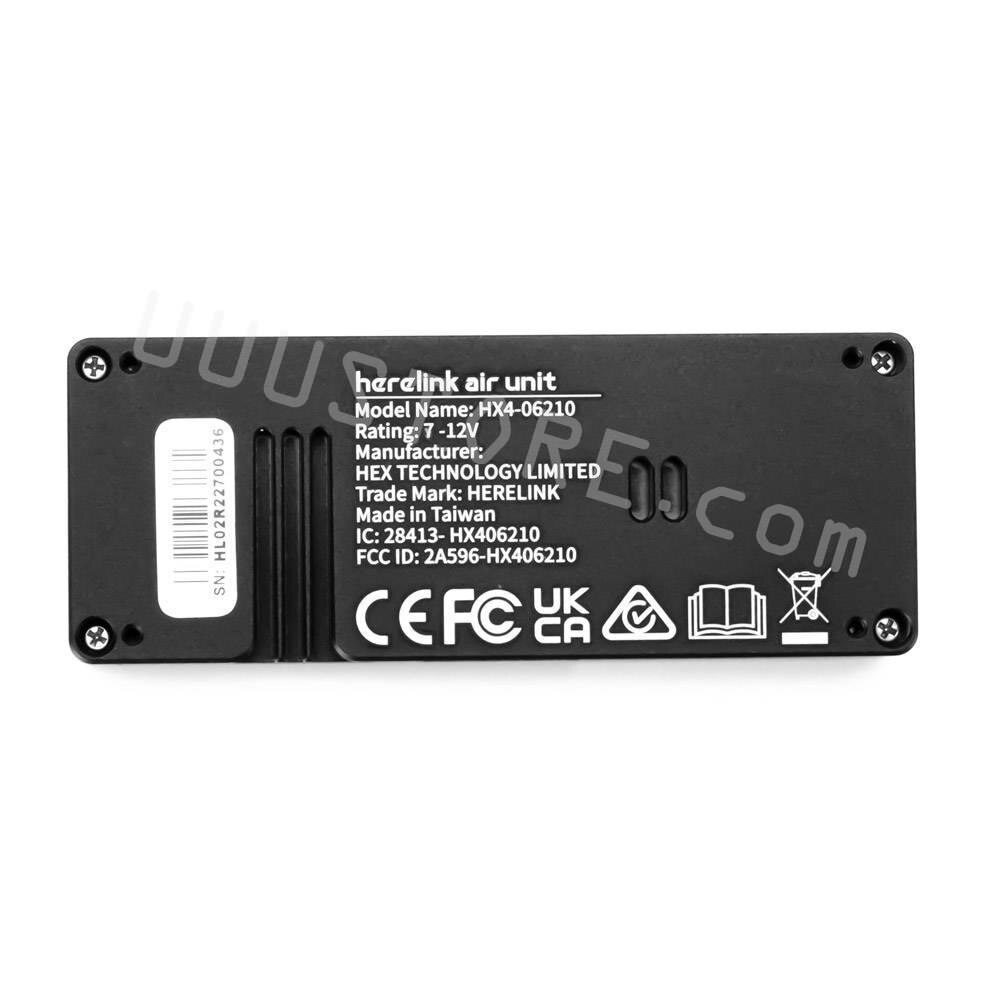

• Model: Herelink Air Unit 1.1
• UART Interface: 3.3V UART
• FCC ID: 2A596-HX406210
• Size: 78.5×30×15mm
• Voltage Rating: 7-12V
• IC: 28413-HX406210
• SKU: HX4-06210
• Weight: 98g

• Quick Start Guide
• User Guides
• Overview

HERELINK CONTROLLER 1.1

• 1x Herelink Controller Unit V1.1
• 1x Herelink Omni-directional Antenna
• 1x Herelink Directional Antenna
• 2x Herelink Controller Joystick
• 1x Herelink Set up tips card

HERELINK AIR UNIT 1.1

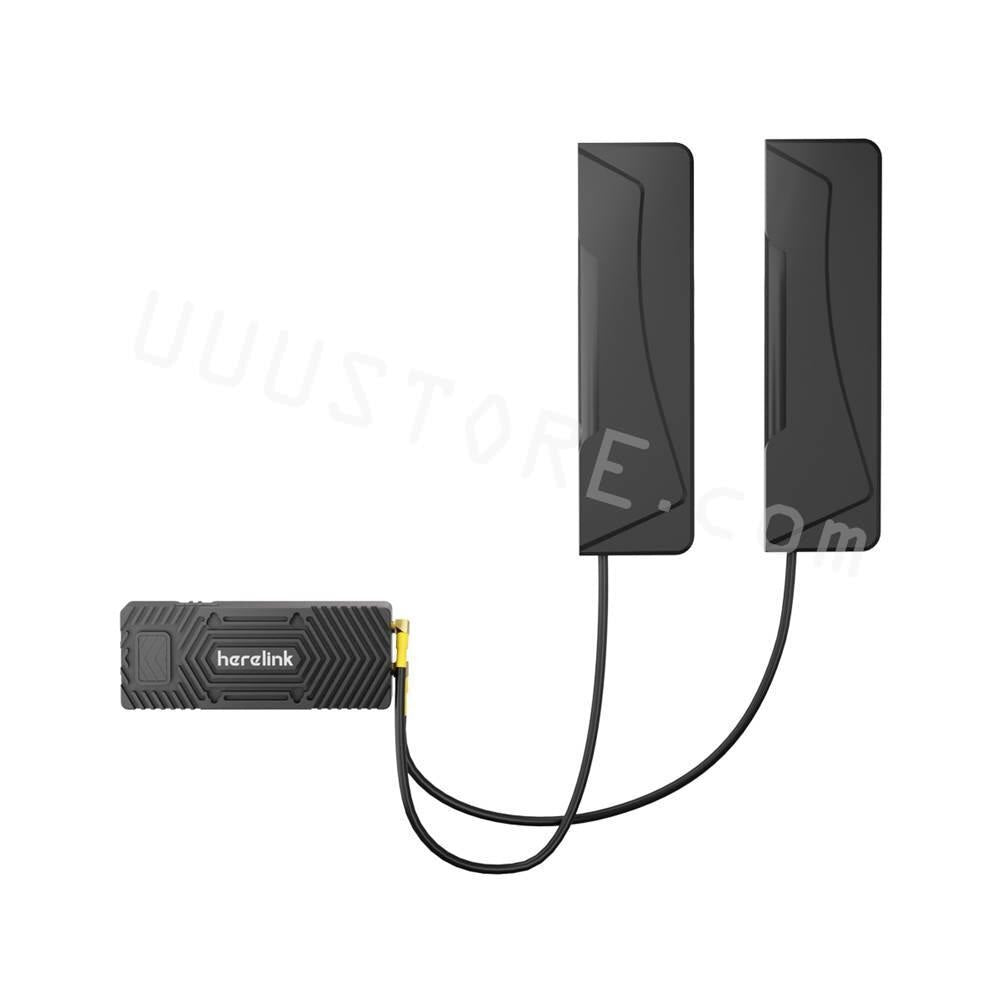

• 1x Herelink HD Air Unit V1.1
• 1x Herelink Silicone Ring Set
• 2x Herelink Taoglas Antenna
• 1x Herelink Set up tips card
• 1x Herelink Mounting Plate
• 1x Herelink HDMI Cable
• 1x Herelink Screw Set
• 1x Herelink Cable Set

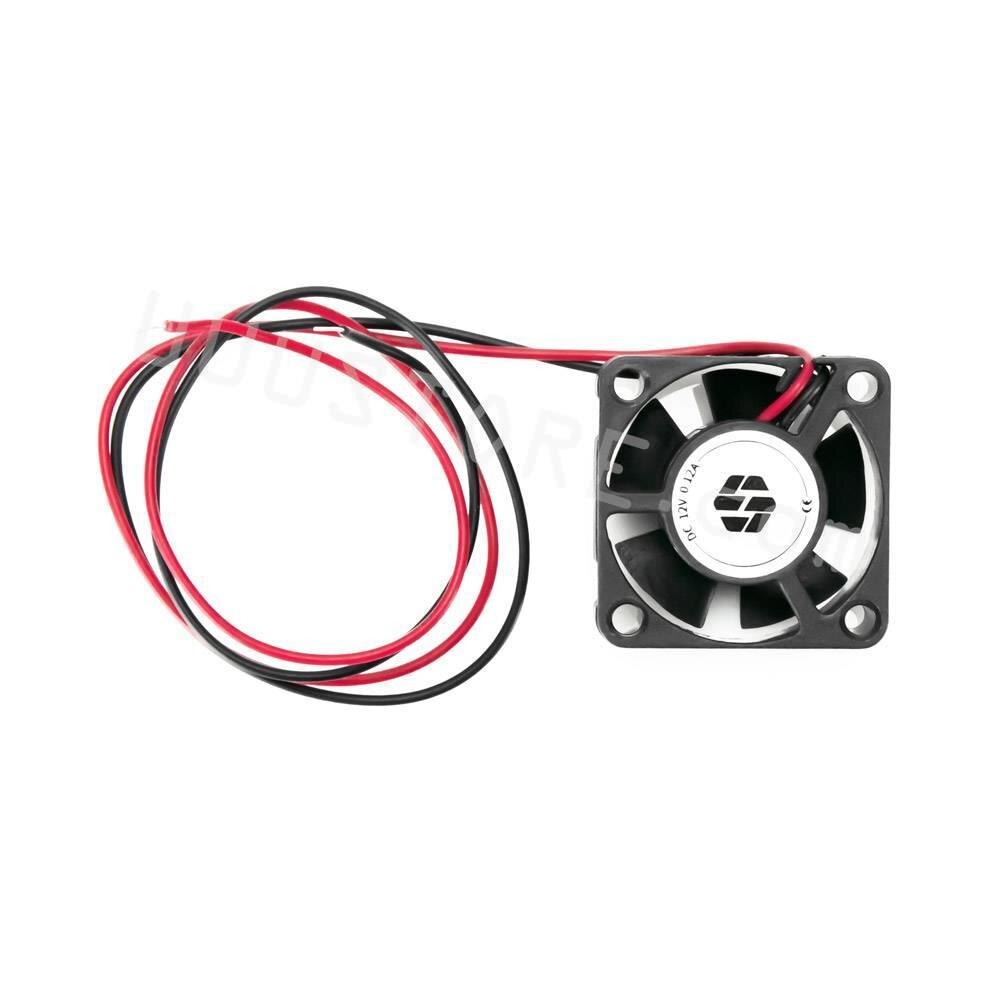

• 1x Herelink Fan
