• HEX drone kit contains propellers, motors, arms, ESCs, and mounting hardware for assembly.
  • Hex EDU-450 Education Drone Frame Package for Beginner Training
  • Hex EDU-450 Education Drone Frame Package for Beginner Training
  • Hex EDU-450 Education Drone Frame Package for Beginner Training
  • Hex EDU-450 Education Drone Frame Package for Beginner Training
  • HEX drone with four rotors, GPS module, and orange accents.
  • A HEX drone featuring six rotors, with a black and orange design, shown from a top-down perspective.
  • HEXSOON's 450mm multi-rotor UAV, weighing 1.5kg, features 10-inch blades for prototype development and education.
  • HEX drone features six rotors, black/orange design, includes battery and sensor.
  • HEX drone with four propellers and central control panel.
  • A quadcopter drone featuring four rotors, landing gear, and a central payload holder for versatile functionality.
  • Hex EDU-450 Education Drone Frame Package for Beginner Training
  • All components for drone assembly are included, such as propellers, motors, arms, electronics, screws, LED packages, brackets, covers, landing gear, and more.
1 13

Hex EDU-450 Education Drone Frame Package for Beginner Training

Hex EDU-450 Education Drone Frame Package for Beginner Training

HEX

$729.00 USD
$729.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Hex EDU-450 Overview

Hex EDU-450 is an educational drone kit designed for teaching, testing, and experimentation with drones.
It supports a wide range of learning scenarios, including drone hardware assembly, hardware/software debugging, flight training, drone system learning, and secondary development applications.
It comes with comprehensive learning materials, technical support, official tutorials, community forums, and a complete development environment.

Main Features

  • Supports stable autonomous flight, waypoint navigation, ground station parameter tuning, data transmission, obstacle avoidance, swarm flight, key point patrol, target tracking, FollowMe, autonomous mission execution, and more.

  • Equipped with rich sensor interfaces to support different types of sensor devices under various application scenarios, enabling both standard and custom development.

  • Optional modules: optical flow positioning, digital transmission, precision landing modules, indoor positioning, data and image transmission, precision landing, and other extended functions.

Kit Advantages

  • The drone frame features a new aerodynamic raindrop-shaped arm design for better airflow and improved flight control.
  • Carbon fiber arms make the frame lighter, stronger, and more crash-resistant.
  • Newly designed power mount lowers the drone's center of gravity, enhancing flight stability and safety.
  • Official hardware design and manufacturing.
  • Comes with official support, GitHub source code, and enables secondary development.
  • Includes various matching components, technical support, community forum, and after-sales service.

Hex EDU-450 education Frame Features

  1. Brand new design on copter arms. Better aerodynamics provided by the drop-shaped structure.
  2. Carbon fibre material provides light weight, high strength.
  3. New designed holders help lower the centre of gravity, providing safer and stabler flights.
  4. Patented drop-shaped arms with less drag and more reliability.



 Specifications


Item Specification
Wheelbase 450MM/17.7 inch
Dimensions 360x360x260MM
Motor HS2216 KV:920
RPM 6000-7000 RPM/Min
ESC Hexsoon 20A
Propeller T-MOTOR T1045 II
Weight 870g (excluding battery)
Max Payload 960g (excluding battery)
Recommended Battery 3S–4S 5300mAh (not include)

Package Listing

EDU-450 Drone Frame

Propellers
  x2 clockwise + x2 counterclockwise

Motors
  x2 (clockwise) + x2 (counterclockwise)

ESC (Electronic Speed Controller)
  x2 (20A HEXSOON)

Motor Mount Top Parts
  x2 (black) + x2 (orange)

Arm Tubes
  x4 (carbon fiber)

Upper Joint Covers
  x2 (black) + x2 (orange)

Lower Joint Covers
  x2 (black) + x2 (orange)

Accessories Pack
  x1 (includes wires, connectors, screws, etc.)

Landing Gear
  x2 (black) + x2 (orange)

Power Distribution Board (PDB)
  x1 (HEXSOON brand)

Upper Frame Plate
  x1

Bottom Frame Plate
  x1

Screw Set
  - M348 Screws: x17
  - M320 Screws: x17
  - M3*5 Screws: x17
  - M3 Lock Nuts: x33

Battery Straps
  x3 (with HEXSOON branding)

LED Kit
  x1 set (includes x4 LED strips or modules)

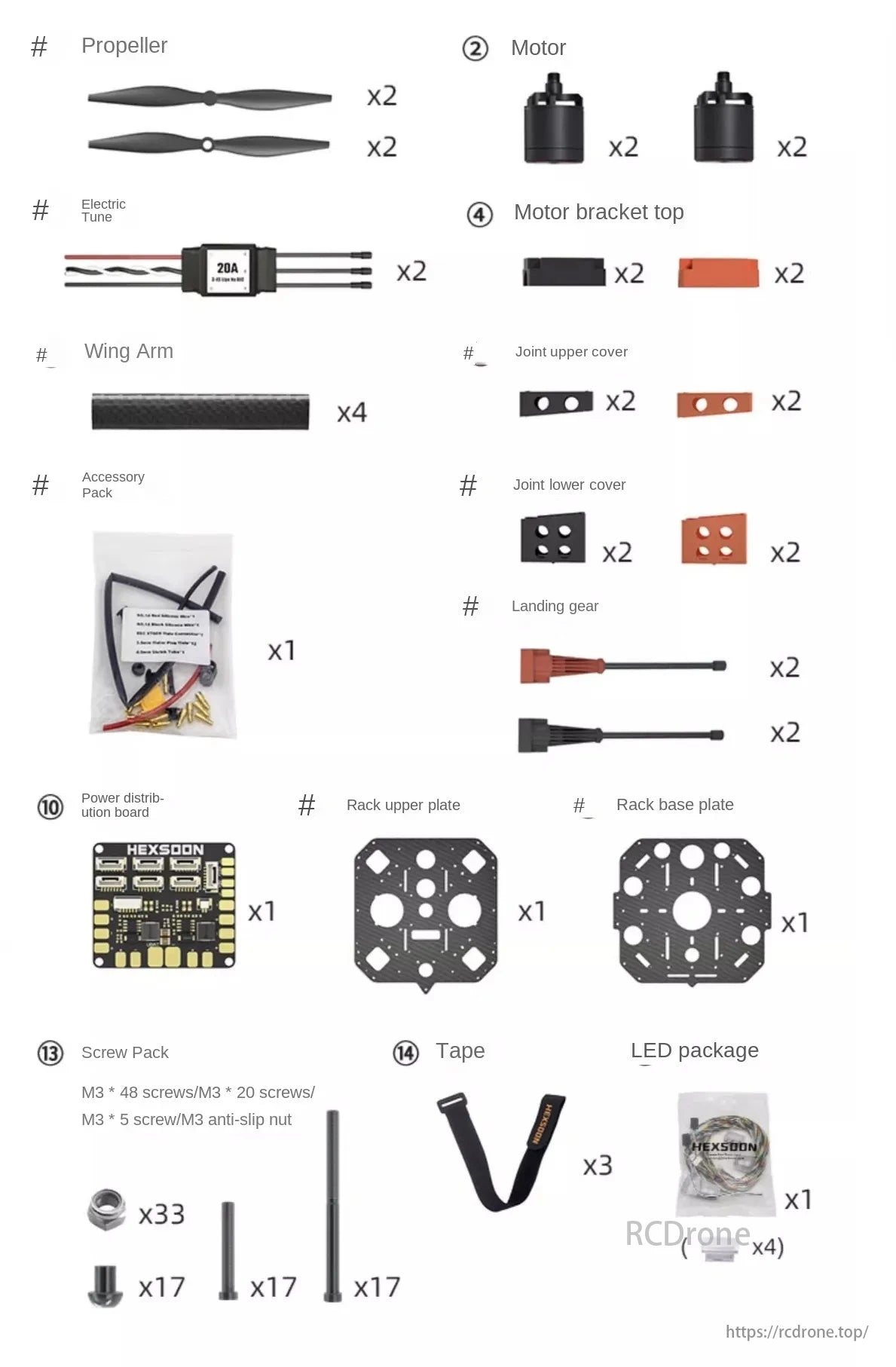

All components for drone assembly are included, such as propellers, motors, arms, electronics, screws, LED packages, brackets, covers, landing gear, and more.
EDU 450 Drone, Carbon fiber arms lighten, strengthen, and resist crashes.

EDU-450 RTF Combo

EDU-450 V2 Frame ×1

HOTRC-B3 (20W) Balanced Charger ×1

Benewake TFmini-S LiDAR ×1

1–8S Voltage Indicator ×1

Here3+ GNSS Module with iStand ×1

FS-i6S Controller with IA10B System ×1

XROCK 915MHz 1000mW Telemetry Module with PIX4 Cable ×1 set

ACE 5300mAh 30C 3S1P XT60 Battery ×1

Cube Orange Set+ (Autopilot System) ×1

Hexsoon EDU-450 V2 drone kit comprises a charger, LiDAR, navigation module, controller, transmitter, and battery for precise flight control and extended operations.




Application Scenarios

  • Aimed at providing college students with a drone learning platform, including technical documentation, official tutorials, and open-source code.

  • Covers drone assembly and debugging, flight training, system theory, and secondary development.

  • Helps students understand drone flight operation, structural design, sensor workflows, ground station data adjustment, flight control system architecture, and source code.





IR-Lock #39 hcrclink REHBEI #

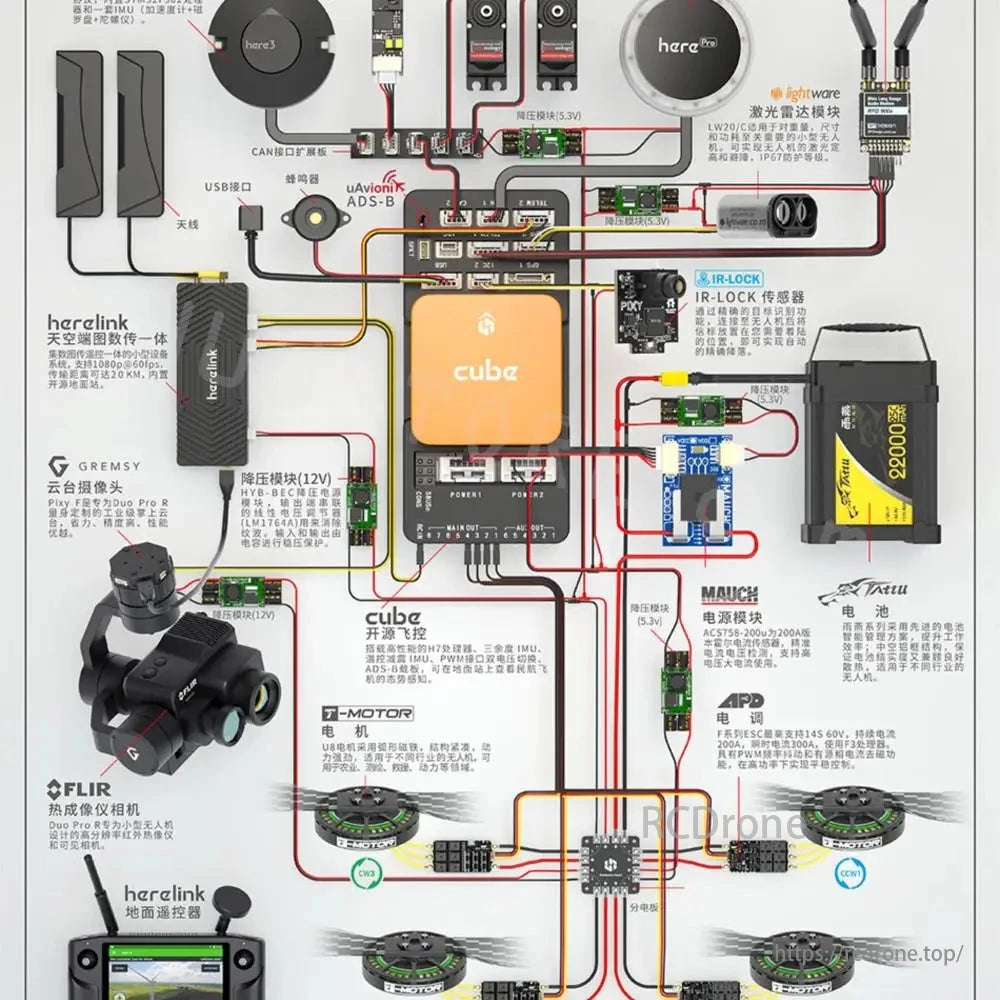

A diagram illustrates a drone's electronic components and connections. It includes a Cube flight controller, motors, ESCs, a battery, telemetry modules, cameras, and sensors. The setup supports advanced features like thermal imaging, GPS, and IR-lock for precise landing. Wiring details ensure efficient power distribution and data transmission.

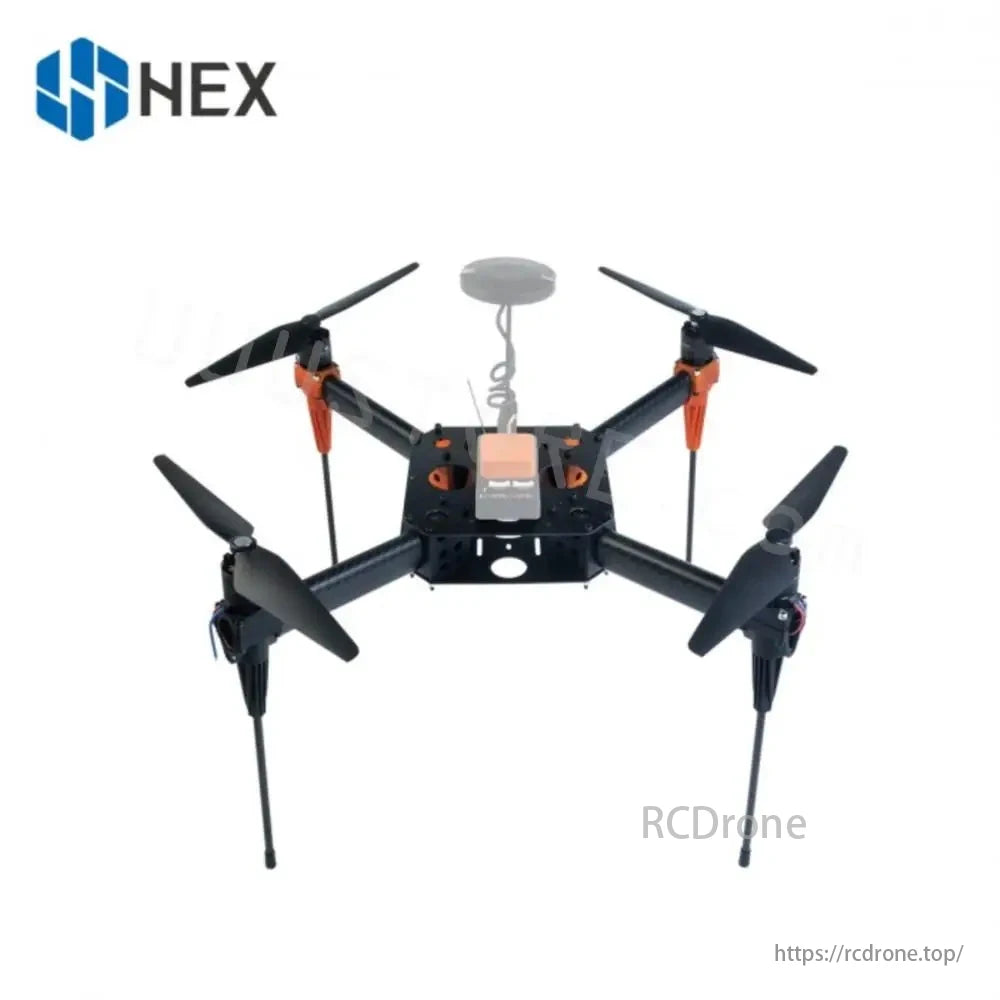

drop-shaped structure provides better aerodynamics .

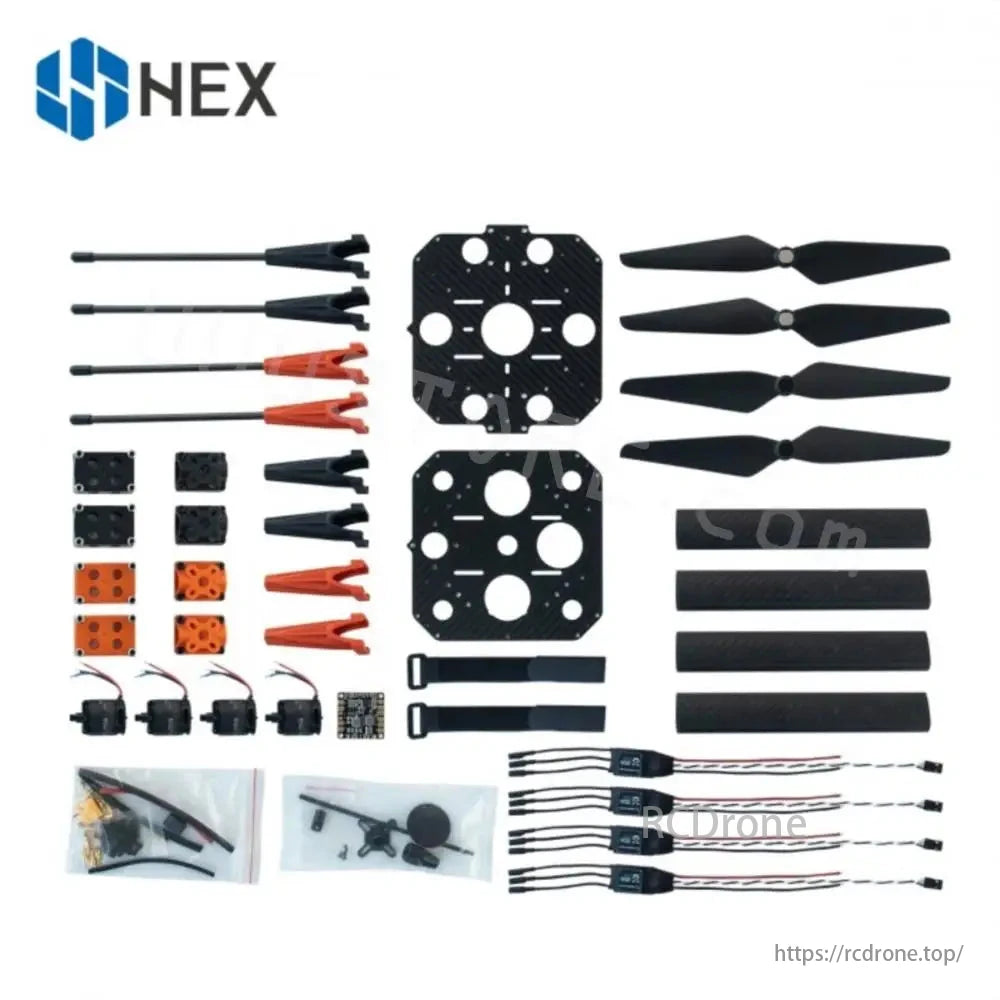

Patented drop-shaped arms with less drag and more reliabilityNEX win HexSOON UAV aant-fotor b

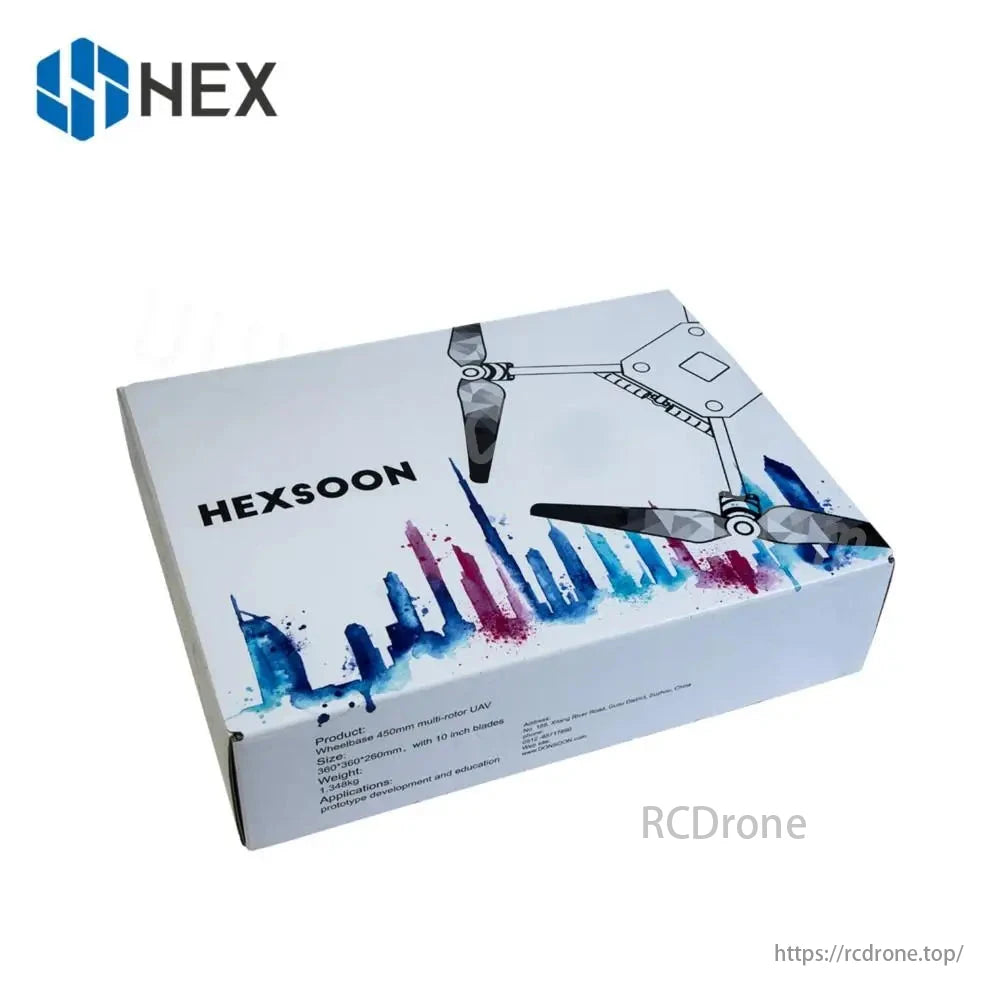

HEXSOON product: 450mm multi-rotor UAV. Size: 360*360*260mm, with 10 inch blades. Weight: 1.5kg. Applications: prototype development and education.

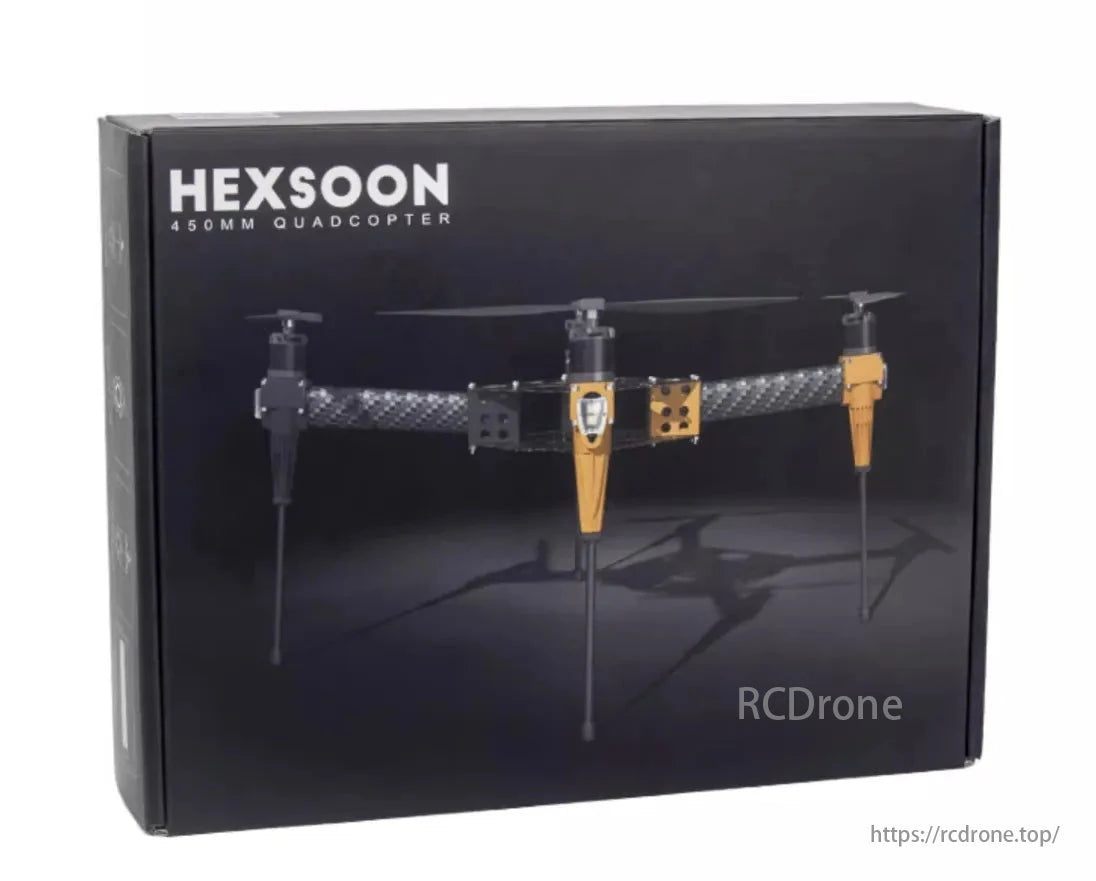

EDU 450 Drone, Supports various learning scenarios for drones, including assembly, debugging, training, and software development.
