HEX Herelink 5.5inch Screen Displays SPECIFICATIONS

Brand Name: NoEnName_Null

Origin: Mainland China

Material: Composite Material

RC Parts & Accs: Radio Systems

Size: 217X106.5X31mm

For Vehicle Type: Airplanes

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Video telemetry

Remote Control Peripherals/Devices: Receivers

Tool Supplies: Assembled class

Technical parameters: Value 2

Model Number: Herelink

Four-wheel Drive Attributes: Assemblage

Wheelbase: Screws

Signal bandwidth: 20MHz / 10MHz



HEX Herelink 5.5inch Screen Displays 2.4GHz 20KM Long Range HD Digital Video telemetry Transmission System HDMI 1080P 30/60fps



From Hex and ProfiCNC, the team who brought you Pixhawk and The Cube GPS system, comes an all-in-one solution for long-range HD video transmission. The Herelink HD Digital Video Transmission System.



This 2.4GHz radio controller with built-in screen allows users to get long range HD video, telemetry, and control link up to a whopping 20km. It uses the 2.4GHz band on LTE over WIFI. This allows maximum transmission distance. Purported to have a range of 20km in FCC and 12km in CE.



The large 5.5" screen displays a multitude of control options such as live images, autopilot configuration through the native QGround control or other GCS applications based on the Mavlink system.



The Air Unit uses between 5-12v input power and has a single UART for connection to the flight controller or other Mavlink accessories. Both the Air Unit and the Radio Controller are equipped with powerful Pinecone S1 processors with 4 cores at 2.2GHz and 4 more additional cores at 1.4GHz. This allows for tons of possibilities for app usage and future development.



Features

   *All in one: Telemetry, Video, and control

   *Up to 20KM in FCC mode and 12KM in CE mode

   *2.4Ghz frequency

   *UART Telemetry

   *RC Protocol: SBUS, iBUS, ETC.

   *Mavlink compatible

   *Touch screen

   *HDMI input x2 for 1080P video transmission @ 60fps

   *APP QGround control, and API for development.

   *WIFI, Bluetooth and USB to connect with other devices



Recommended camera：

Hawkeye Firefly Split 4K 160 Degree FOV Camera with HD Recording Mini DVR WDR Single Board Built-in Mic Low Latency AV Output USD 124.62 / piece /lot 1

Hawkeye Firefly Q6 4K HD FPV Camcorder 120 Wide Angle 12M Pixel HD Action Camera for ZMR250 QAV250 Drone USD 58.5 / piece /lot 1

10X Zoom 1080P WDR Camera with HDMI/AV Output,OSD,DVR, Snapshot and Playback For FPV UAV Aerial Photography USD 269.9 / bag /lot 1

FPV 1/4 CMOS 18X WDR Zoom 1080P HD Wide Angle Camera PAL NTSC With HDMI DVR USD 338 / piece /lot 1

TSHD10T3 three-axis stabilized Gimbal 10x optical zoom Infrared thermal imaging + visible HDMI camera double vision for UAV USD 2689.28 / piece /lot 1

Specifications

Air Unit and Controller



Processor: SoC - Pinecone S1 AP: 4 x large core, Cortex A53, 2.2GHz 4 x small core, Cortex A53, 1.4GHz GPU: 4 core, Mali-

T860 SDR: A7 + DSP Storage: Sky: LPDDR3: 1GB Ground: LPDDR3: 2GB Sky / Ground: EMMC: 4GB

Transmission Distance: FCC 20km CE / SRRC 12km Image transmission delay: ≤ 110ms Image transmission: 720p@30fps 1080p@30 / 60fps transmission

Frequency Band: 2.4GHz ISM Receive sensitivity: -99dBm@20MHz BW Interference recovery: < 1s

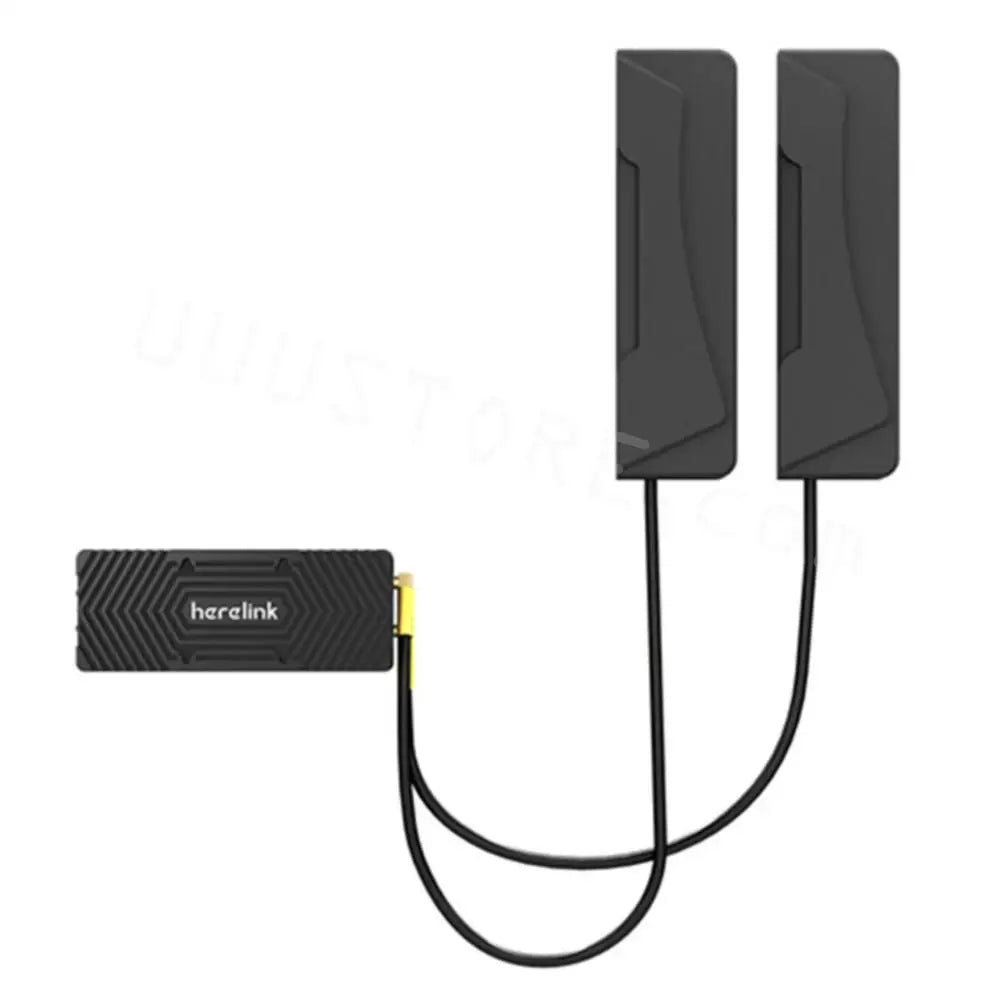

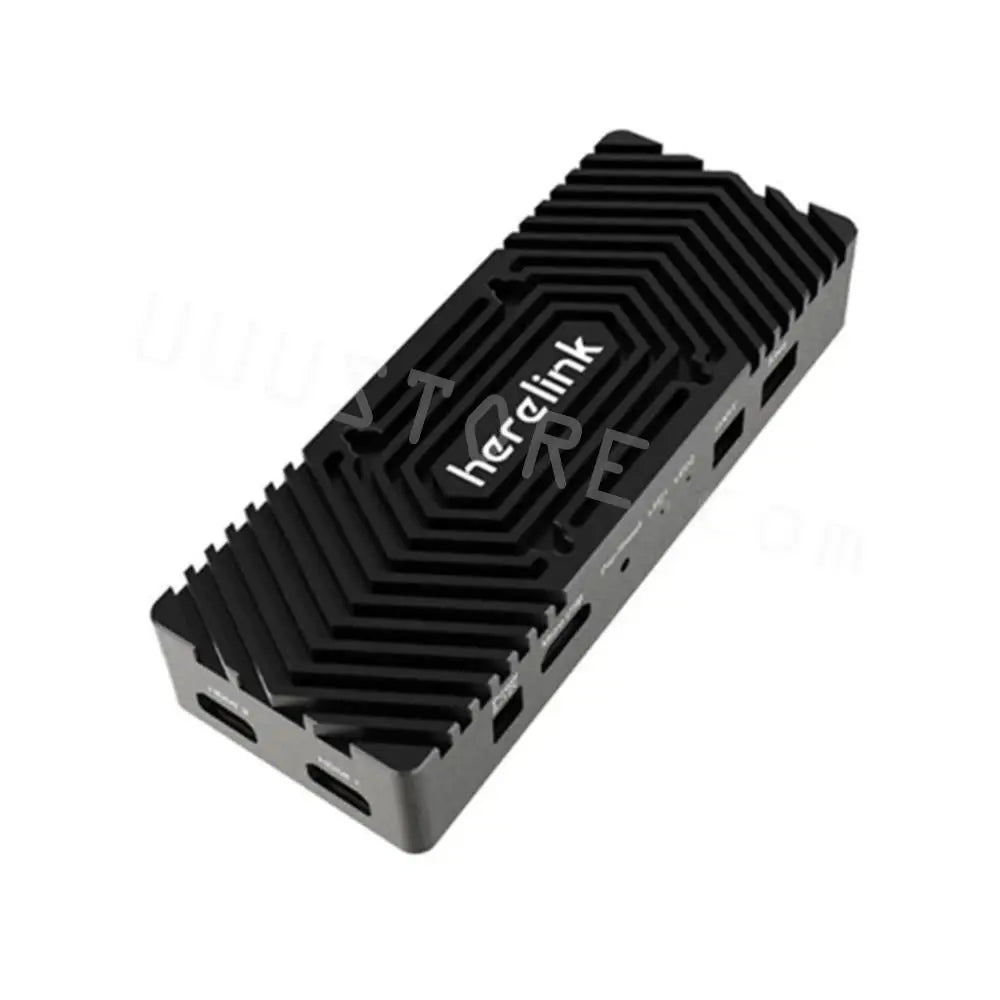

Air Unit



Appearance: core board + video daughter board + structure of RF daughter board

Among them, the video daughter board completes the input bridge function of theHDMI signal.

The RF daughter board completes the function of transmitting and receiving signals

M2 (E) connector connection between daughter board and core

Size: 78.5x30x13mm

Micro HDMI x 2: Input for external camera video signals

2 Pin interface x 1:5V-12V power input interface

3 Pin interface x 1:3.3V / 5V level UART interface

4 Pin interface x 1: Two 3.3V level RC output connectors (S.bus in phase, S.bus inverting or PPM signal output, ground terminal control)

Micro USB x 1: for debugging upgrades, support OTG mode

Keyhole x 1: for frequency and status reset

Indicator x 2: used to indicate the frequency and picture status

MMCX antenna jack x 2: used for signal transmission and ground communication

Signal bandwidth: 20MHz / 10MHz

Power consumption: the average power consumption of the single-sided module is less than 4W

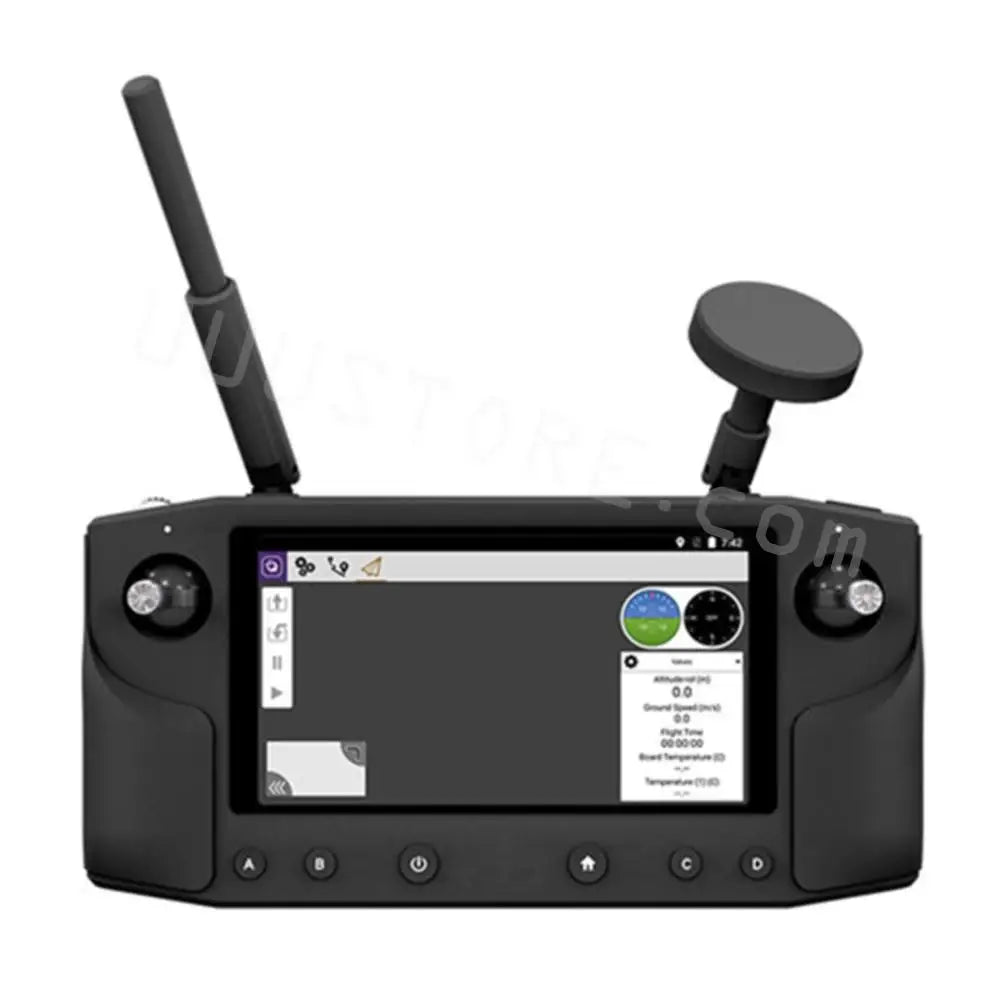

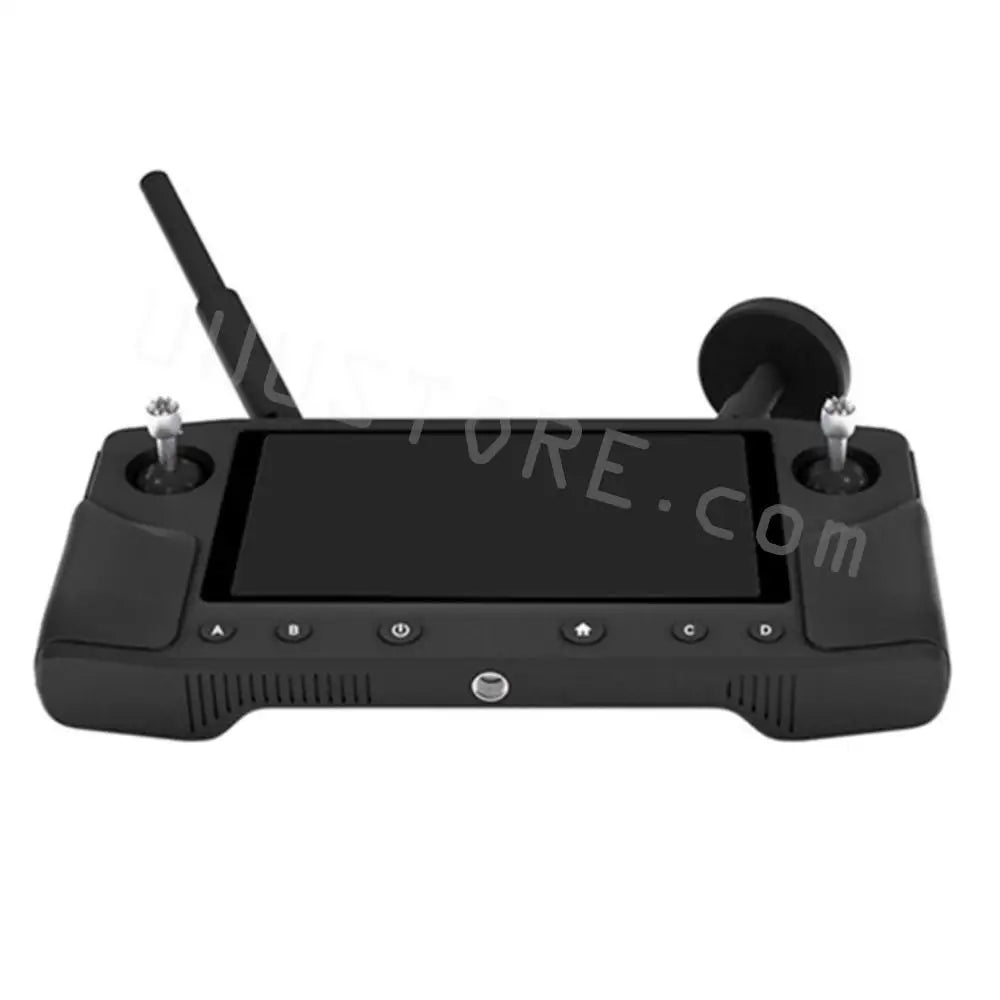

Controller



Housing: plastic

Dimensions: 217 × 106.5 × 31mm (the whole machine does not contain external antenna and rocker)

Screen: 5.46 inch, 1080P, 16 million colors, capacitive touch screen

Audio: Built-in speaker × 1, built-in microphone × 2

Remote control: rocker × 2, scroll wheel × 1, bottom button × 6, with backlight, top button × 1 (right)

Communication : BT / WIFI / GPS 2.4G map transmission ground

Indicator light: Top tri-color lamp × 2 (left, right)

Interface: MicroUSB×1, TFlash×1 (supports maximum 64G expansion)

Antenna: Orientation (5dBi) × 1 detachable, omnidirectional (2dBi) × 1 detachable

Built-in wifi antenna, built-in GPS antenna, external GPS antenna interface

Power: Built-in 4950 mAh Lipo Battery

Charging: Support micro USB port 5v 2A current charging

Power consumption: The average power consumption does not exceed 4W (only picture transmission work, medium screen brightness, WiFi off, GPS off)
