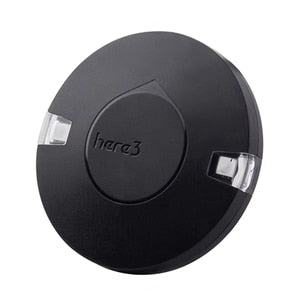

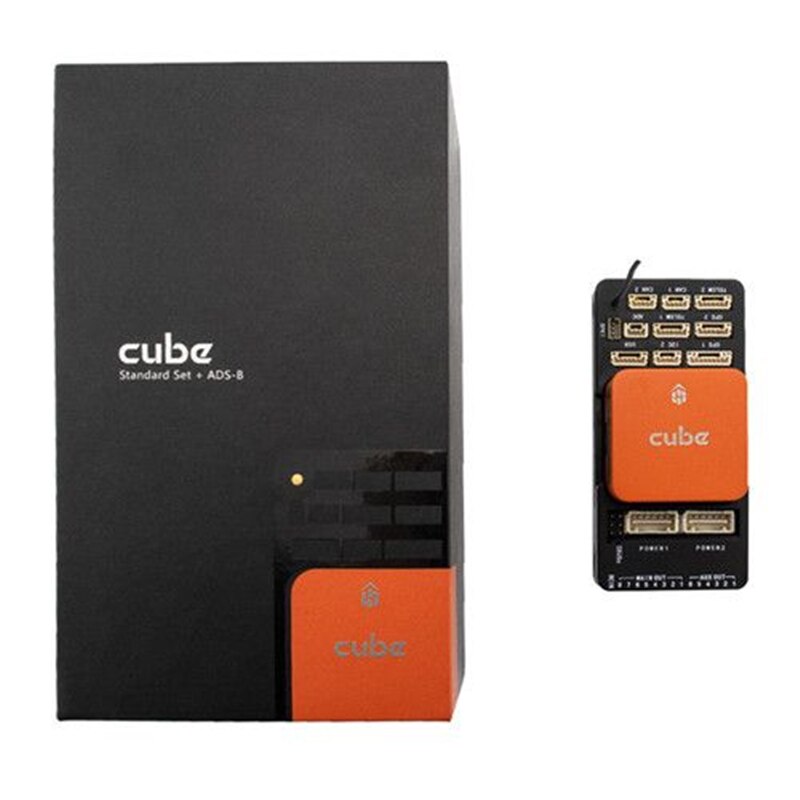

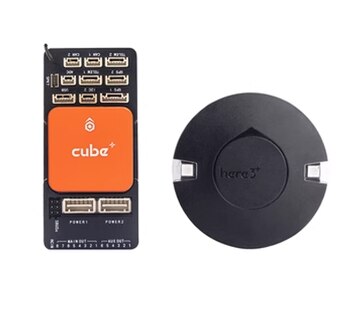

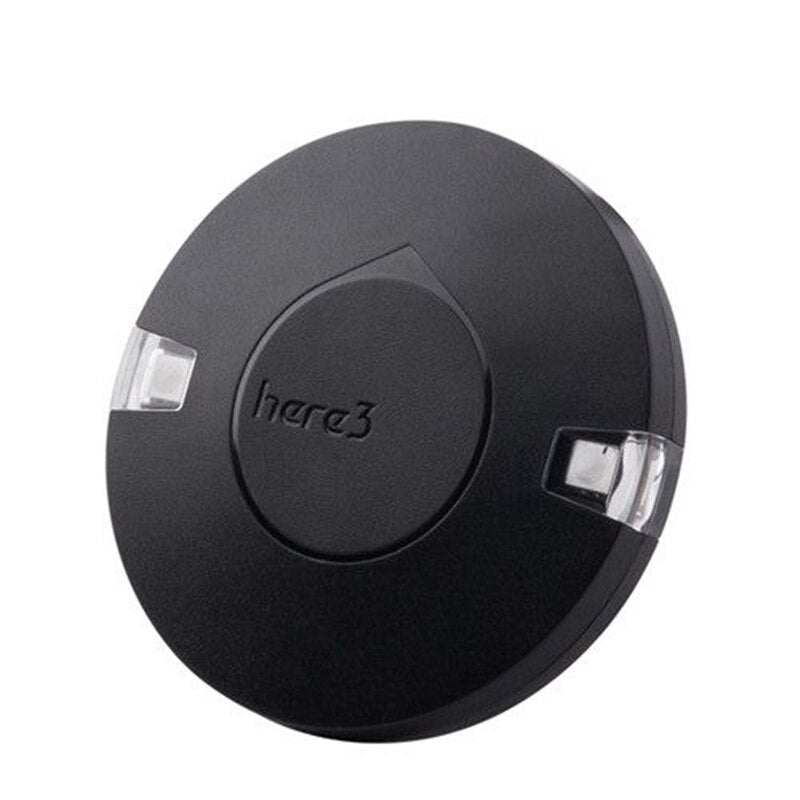

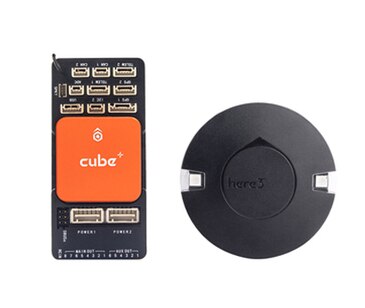

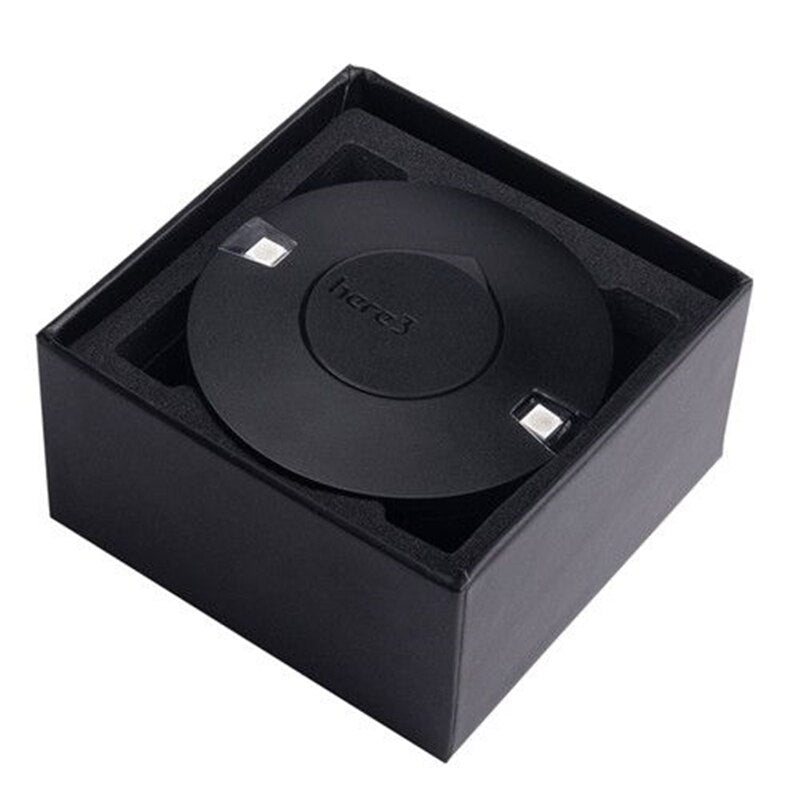

HEX Pixhawk 2.1 Cube Orange Standard Set - W/ Here 3 GPS & ADS-B Carrier Flight Control Board
HEX Pixhawk 2.1 Cube Orange Standard Set - W/ Here 3 GPS & ADS-B Carrier Flight Control Board
HEX
Couldn't load pickup availability
HEX Pixhawk 2.1 Cube Orange Standard Set SPECIFICATIONS
Cube Orange + ADS-B basic parameters
Processor
| STM32H753VIT6 (32 Bit ARM® Cortex®-M7, 400 MHz, 2 MB flash, 1 MB RAM | |
| 400 MHz | |
| 1MB RAM | |
| 2MB Flash | |
| STM32F100 (32 Bit ARM® Cortex®-M3, 24 MHz, 8 KB SRAM) |
Sensors
| Accelerometer | ICM20948 / ICM20649 / ICM20602 |
| Gyroscope | ICM20948 / ICM20649 / ICM20602 |
| Compass | ICM20948 |
| Barometric Pressure Sensor | MS5611×2 |
Operating Conditions and Performance
| POWER input voltage / rated input current | 4.1 - 5.7 V / 2.5 A |
| POWER rated output / input power | 14 W |
| USB port input voltage / rated input current | 4 - 5.7 V / 250 mA |
| Servo rail input voltage | 3.3 V / 5 V |
| Waterproof performance | Not waterproof. External waterproof protection is needed |
| Operation Temperature | -10°C / 55°C |
Size and Specifications
| Cube Orange Size / Housing Material | 38.25×38.25×22.3 (mm) / CNC Aluminum Alloy |
| Cube Orange Standard Carrier Board Size / Housing Material | 94.5×44.3×17.3 (mm) / ABS Molding |
ADS-B Introduction
A 1090MHz ADS-B receiver from uAvionix has been integrated into the new ADS-B carrier board.
Autopilot equipped with the new unmanned system can receive information about the location of manned aircraft in the area.
Information from aircraft including position, altitude, speed, id, etc can be viewed in Mission Planner.
Through parameter setting, you can optionally set up your cube to allow the vehicle to automatically avoid aircraft that are detected in an exclusion zone set by you.
Features
Built-in IMU Heating system, allowing flights at extreme temperature (below freezing)
Robust DF17 Interface connectors give enhanced drop and shock resistance
Airframes: VTOL, Plane, Multicopter, Traditional Heli, Rover, Boat, Sub, General Robotics

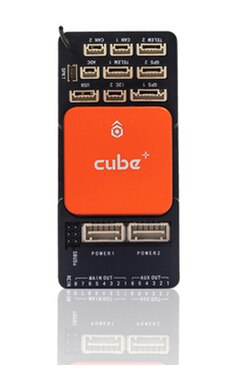

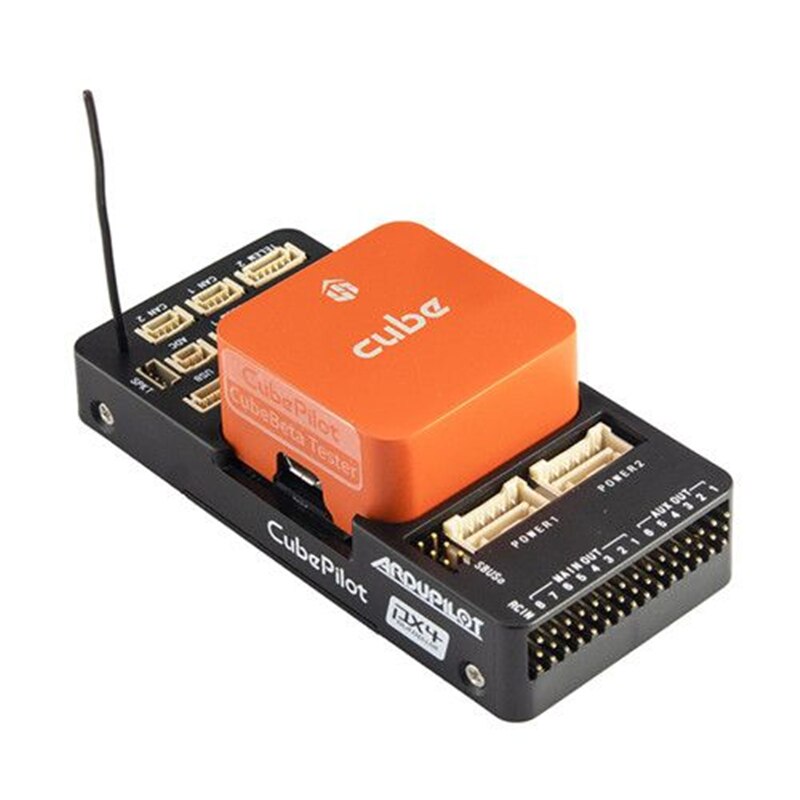

The Cube Orange
Cube Orange targets education, amateur drones lovers, and professionals with cost-effective flight control hardware.
Includes new generation of more powerful H7 processor, with stronger performance, faster processing, increased security with
built-in
triple-redundant sensors, temperature control shock absorption IMU.
With the help of flight software, Cube Orange can completely fly any remotely controlled aircraft, helicopter
or multi-rotor vehicle and turn it into a more professional UAV platform.

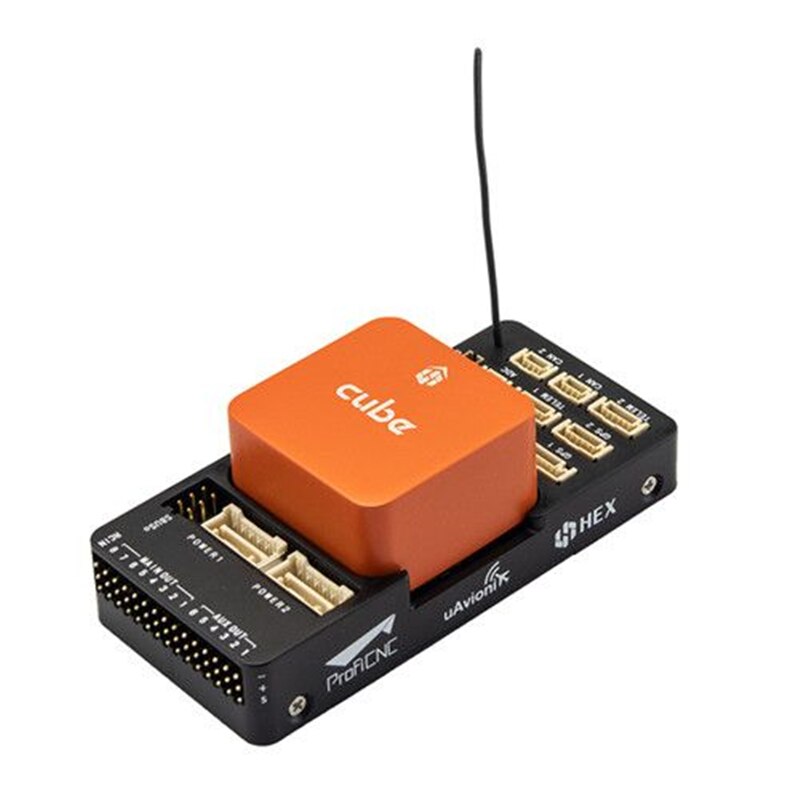

ADS-B Carrier Board
A standard carrier board with an integrated 1090MHz ADS-B receiver allowing the software to receive information about the location
of manned aircraft in the area.
Receives information such as position, altitude, speed, etc, which can all be viewed in Mission Planner.
Through settings, you can optionally set up your cube to allow the vehicle to automatically avoid aircraft that are within an
exclusion zone set by you
Specifications
Sensors: Accelerometer, Gyroscope, Compass, Barometric Pressure Sensor
Power input voltage/rated input current: 4.1-5.7 V / 2.5 A
Power rated output/input power: 14 W
USB port input voltage/rated input current: 4-5.7 V / 250 mA
Servo rail input voltage: 3.3 V / 5 V
Not waterproof. External waterproof protection is needed
Operation Temperature: -10 °C / 55 °C
Cube Orange Housing Material: CNC Aluminum Alloy
Standard Carrier Board Housing Material: ABS Molding
