HEX Pixhawk 2.1 PX4 PIX 32 Bit Autopilot Flight Controller SPECIFICATIONS
Wheelbase: Screws
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Arm
Tool Supplies: Assembled class
Technical parameters: Value 2
Size: 1
Remote Control Peripherals/Devices: Servos
Recommend Age: 12+y
RC Parts & Accs: Servos
Quantity: 1 pcs
Origin: Mainland China
Model Number: HEX-CUBE+
Material: Metal
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Cars
Certification: CE
Brand Name: Feetech
Please note: The difference between Cube Orange and Cube Orange+is that Cube Orange can be upgraded to PX4 firmware, while Cube Orange+does not support PX4 firmware upgrade
For more information, please visit the official website:https://docs.cubepilot.org/user-guides/autopilot/the-cube-module-overview
Features
- Supports multiple modes such as Loitering, Altitude Hold, mode (with Waypoints), following mode, etc
- Supports Mission Planner and QGroundControl ground control stations
- Built-in flight logging
- Real-time flight data transmission
- Supports 360-degrees object avoidance
- Equipped with High Performance H7 Processor
H7 has double-precision (DP) FPU, 1MB RAM, and 400MHz CPU processor provides high performance, extremely fast operation, and stable solution for flight.
- Situational Awareness by Integrated ADS-B
A 1090MHz customized ADS-B receiver from uAvionix has been integrated into the new ADS-B carrier board. This provides new function without size increment. UAVs equipped with the new carrier board can receive attitude of commercial manned aircrafts within the range of ADS-B out. This effectively informs the UAS operator to enable them to assess the risks on their current operation.
Easy switching of PWM output signal voltage
PWM output supports switching between 3.3V and 5V signal levels. Voltage switching can be done by ground control station software. This improves compatibility with various external peripherals.
Support for multiple vehicle types:Icluding Helicopter, multicopter, fixed wing, VTOL, Rover, Boat, Submarine, etc.
Product Details
Main Processor:STM32H757(The new chip has good performance)
Coprocessor:STM32F1
Supported RC signals:PPM/SBUS/DSM
Power redundancy:Triple redundancy
Sensors:Triple IMU System
Sensors details:ICM20649(integrated accelerometer+gyroscope)
ICM20602(integrated accelerometer+gyroscope)
ICM20948(integrated accelerometer+gyro+magnetometer)
MS5611 x 2(Baro)
Firmware :Not supported PX4 open source flight controller firmware
Supported vehicle types:Fixed-wing planes、Copters with 3-8 motors、Helicopters、VTOL-planes、Rovers/boats/submarines
Weight:73g
Chassis Material:CNC Aluminum Alloy(cube)+ABS Molding(Carrier Board)

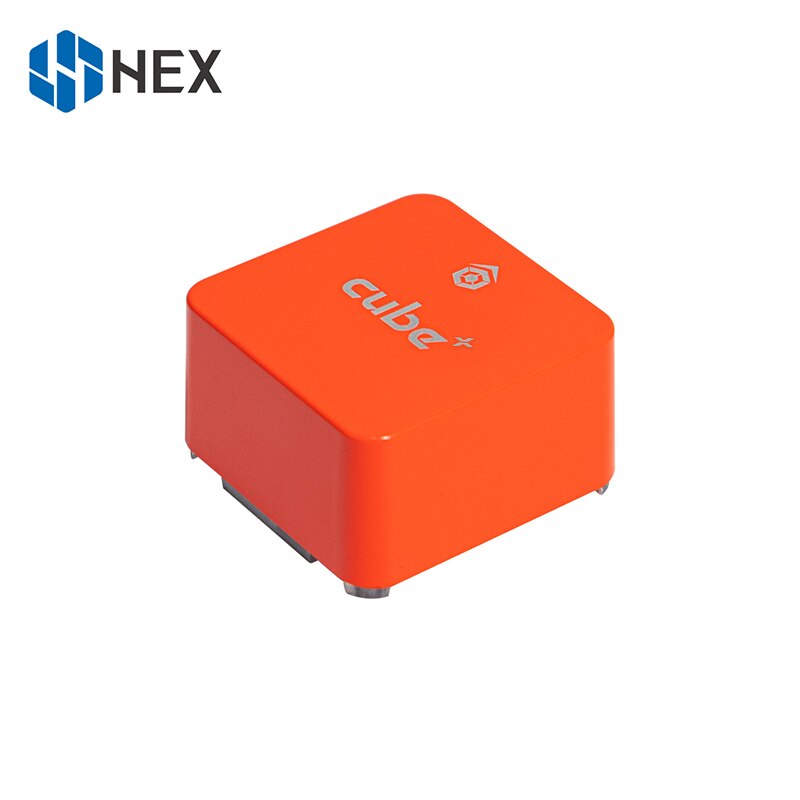

Size cube:38.4x38.4x22mm
Carrier Board:94.5x44.3x17.3mm
Operating temperature:-10~+55° IMU with temperature control
PWM I/Os:14
Mavlink serial interface:2
Number of GPS supported:2
Debug interface:1
I2C interface:1
CAN interface:2

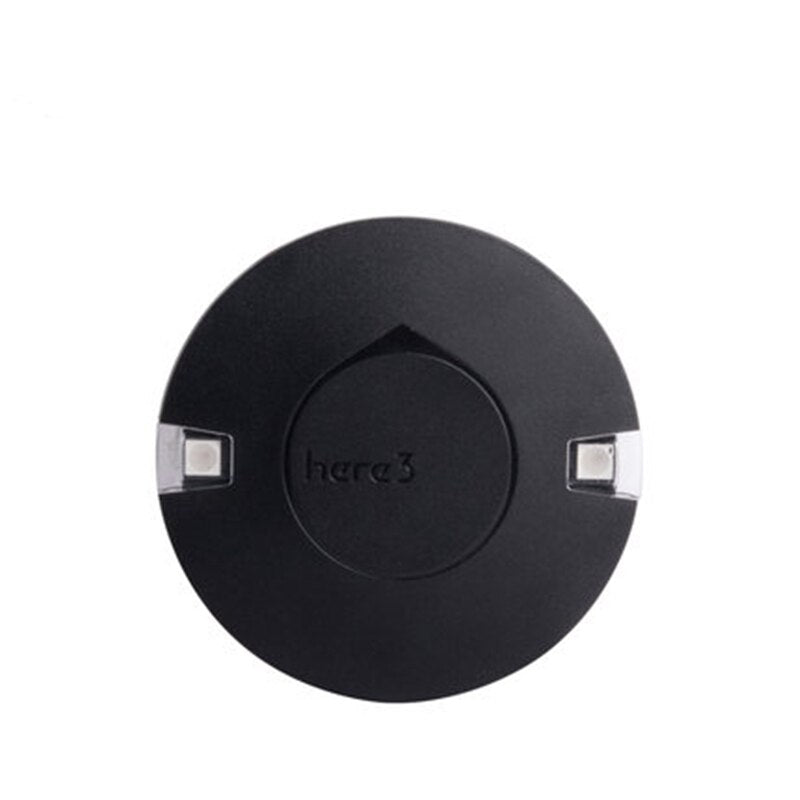

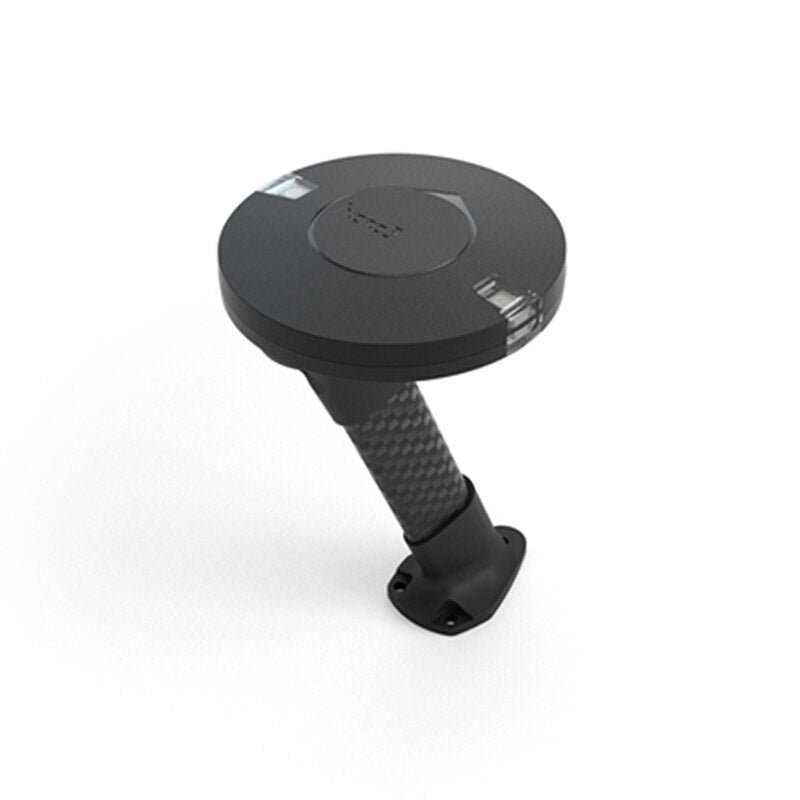

Here3
GNSS:Yes
Compass:Yes
Protocol:CAN
Real-time Operating System:Yes
Firmware Update:Yes
RTK:Yes
Dustproof,waterproof splash:Yes
Receiver Type:u-blox M8 high precision GNSS modules (M8P)
Satellite Constellation:GPS L1C/A, GLONASS L1OF, BeiDou B1I
Positioning accuracy:3D FIX: 2.5m / RTK: 0.025m
Processor:STM32F302
IMU snesor:ICM20948
Navigation Update Rate:Max 8Hz
Communication Protocol:CAN
Operating Temperature:-40°C to 85°C
Dimension:76mm x 76mm x 16.6mm
Weight:48.8g
![Voltage switching can be done by ground control station software](https://rcdrone.top/cdn/shop/files/S3a94ca1dd0684fa1a3e1fc78bcc382bdH.webp?v=1714886560)
![HEX Pixhawk 2.1 P](https://rcdrone.top/cdn/shop/files/Sba13ca6d8d63496cbe75a3d71b5e108eY.webp?v=1714886575)
![This provides new function without size increment](https://rcdrone.top/cdn/shop/files/S384e9b8085934ce4afbeb8e2a3be8f8dS.webp?v=1714886586)
![commercial manned aircrafts can receive attitude within the range of ADS-B out .](https://rcdrone.top/cdn/shop/files/Sb4d8d87333b9428bb5d6f150183229fa1.webp?v=1714886597)
![GUb Most Advanced Cube vetl The world's most advanced autopilot for open](https://rcdrone.top/cdn/shop/files/Sbe403637d17a4fef8f49d6bdf371e124k.webp?v=1714886613)

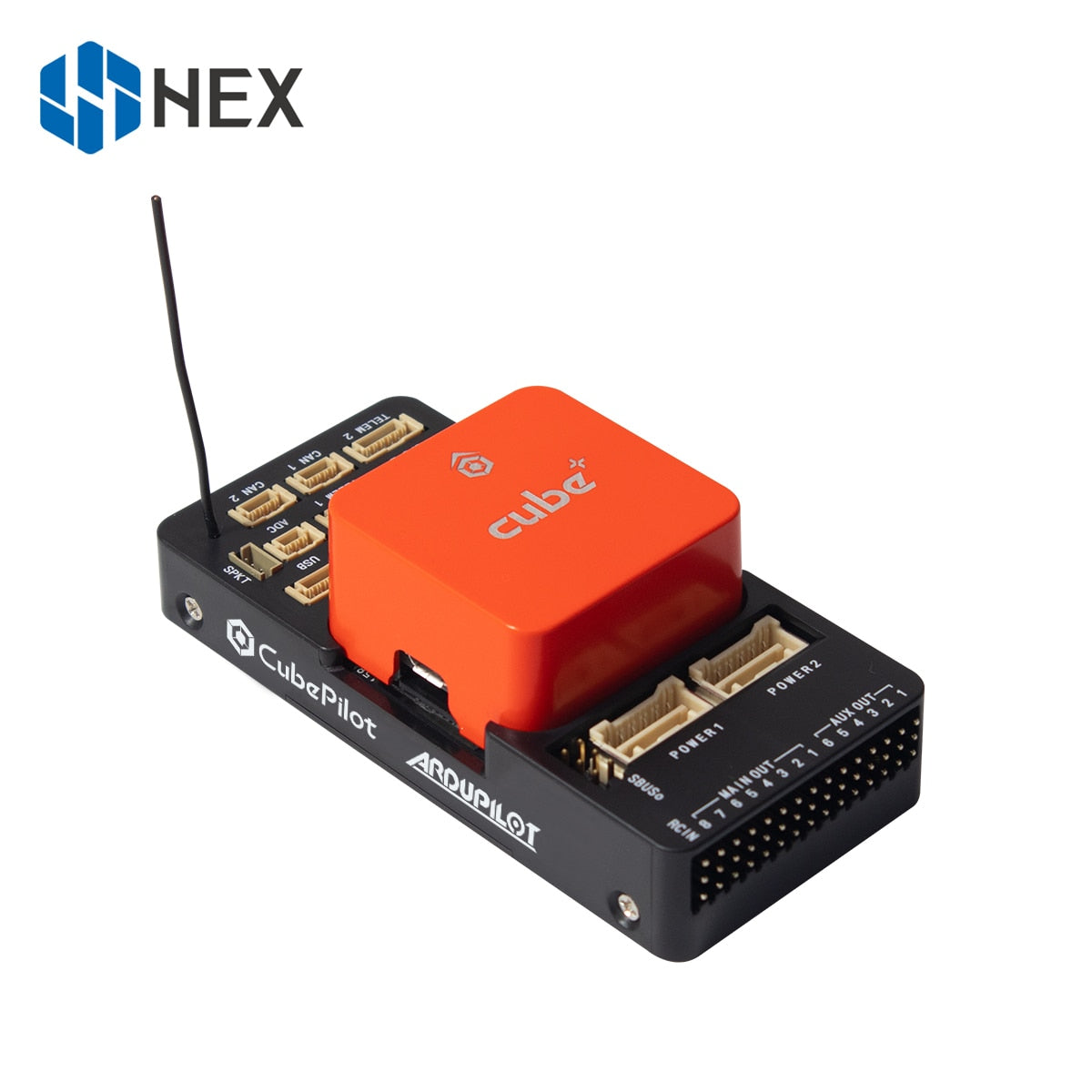

The HEX Pixhawk 2.1 from PX4 is the world's most advanced autopilot for open autonomous unmanned vehicles. This cube-shaped controller features redundant, temperature-controlled, and isolated components.
![A 1O9OMHz customized ADS-B receiver uAvionix has](https://rcdrone.top/cdn/shop/files/S13d03d7c74d44f3f9475db6133abea3e4.webp?v=1714886631)
The carrier board features a customized ADS-B receiver from uAvionix, operating at 1090 MHz, which enables UAS operators to assess potential risks in their current operations.
![PWM output supports switching between 3.3V and SV signal levels . ground control station](https://rcdrone.top/cdn/shop/files/S42c640b1b0324639a15aa25cbabc1b42C.webp?v=1714886650)

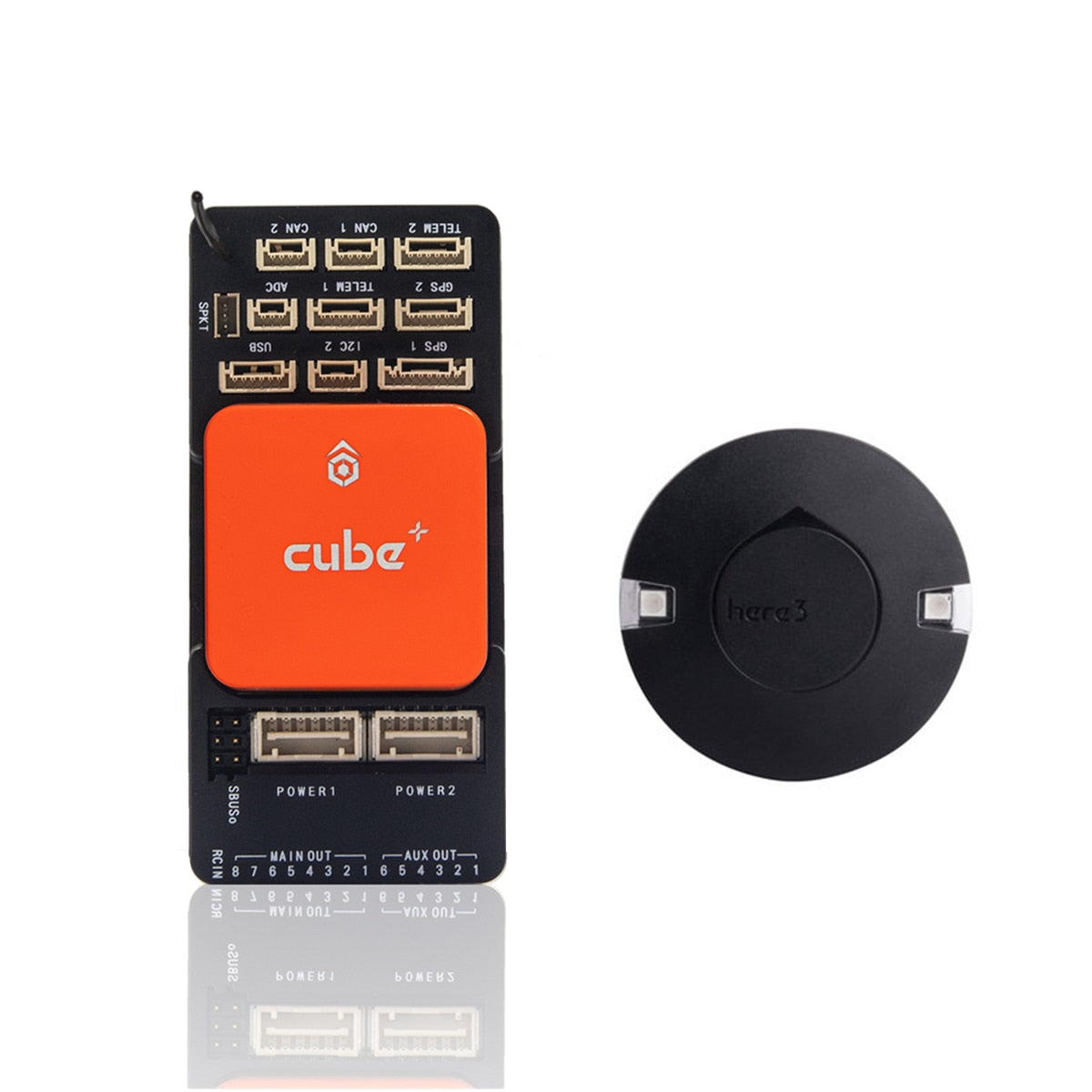

The PWM output supports switching between 3.3V and 5V signal levels, allowing you to use the ground control station software to switch between these two voltage levels.
![AOM AUTOPILOT-ON-MODULE@ Customised carrier boards can be optimise](https://rcdrone.top/cdn/shop/files/S76109a1a531d444f864685c573dd45d0c.webp?v=1714886669)
The APM (Autopilot-on-Module) offers customized carrier boards that can be optimized for specific applications, supporting multiple vehicle types including helicopters, multi-copters, fixed-wing aircraft, VTOLs, rovers, boats, submarines, and many others.
![support CAN GPS,CAN optical flow sensor,and CAN pitot ADS-](https://rcdrone.top/cdn/shop/files/Sfabc8686a1f84fa0a80b57ffc306c4f6K.webp?v=1714886689)
This flight controller supports various peripherals, including: * CAN bus for GPS, optical flow sensor, and pitot data * ADS-B antenna for enhanced navigation * Telemetry features with SD9 analog-to-digital conversion * I2C expansion capabilities for additional sensors or devices * Dual power supply options for redundancy * Up to 8 auxiliary outputs that can be used to control various devices, such as: + 6 cameras or gimbals via S-Bus protocol
![new upgrade, Water resistant design Cost-effective high-precision positioning RTK supported GN](https://rcdrone.top/cdn/shop/files/S622d722aba2941a697d1be382b6c1587K.webp?v=1714886708)
This flight controller features an upgraded design with water resistance, making it suitable for use in various environments. Additionally, it incorporates a cost-effective high-precision GNSS chip that enables precise positioning capabilities (note: a base station is required for Real-Time Kinematic (RTK) mode).
