HGLRC Ares DS200 Drone Soccer Standard Version SPECIFICATIONS
Warranty: Not include
Warning: Minors please use under the supervision of an adult
Video Capture Resolution: 720P HD
Type: Airplane
State of Assembly: Ready-to-Go
Remote Distance: 100 meters
Remote Control: Yes
Recommend Age: 12+y,14+y
Power Source: Electric
Plugs Type: SH1.0
Package Includes: Original Box,Batteries,Charger,Camera
Origin: Mainland China
Operator Skill Level: Beginner,Intermediate,Expert
Model Number: HGLRC Ares DS200 Drone Soccer Standard Version
Material: Metal,Plastic,Carbon Fiber
Indoor/Outdoor Use: Indoor-Outdoor
Flight Time: 5 minutes
Features: App-Controlled,FPV Capable,Integrated Camera,Other
Dimensions: 2inch
Controller Mode: MODE2,MODE1
Controller Battery: Not include
Control Channels: 8 Channels
Charging Voltage: 14.8V
Charging Time: 20 minutes
Certification: CE
Camera Mount Type: Fixed Camera Mount
CE: Certificate
Brand Name: HGLRC
Features:
1.With the protective cover on the outer surface, not easy to break even if it is hit or rolled
2.Ultra-low center of gravity design, like a tumbler effect
3.Impact-resistant PP material for low-cost maintenance
4.Multi-color LED adjustment supported to quickly identify team members and the opponent in multiplayer mode

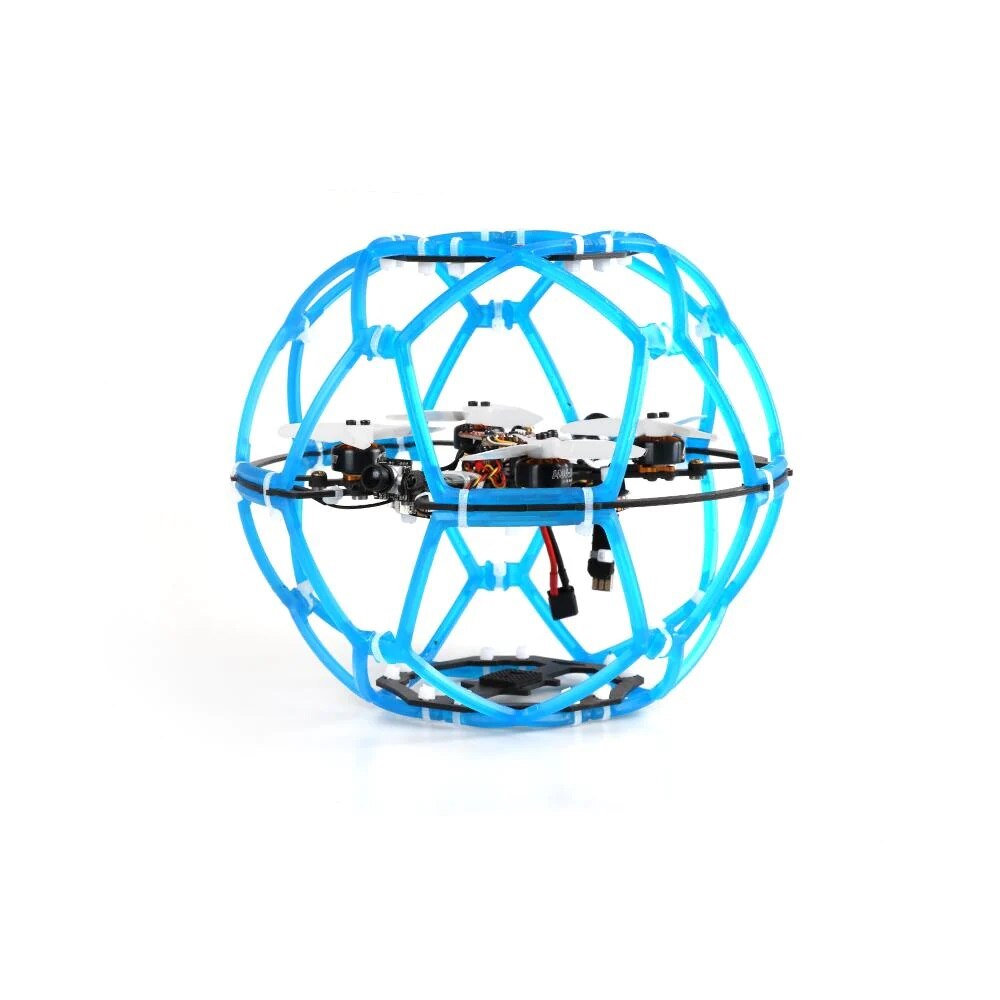

5.There are red, blue and white options for the protective cover, easy to distinguish.
Specification:

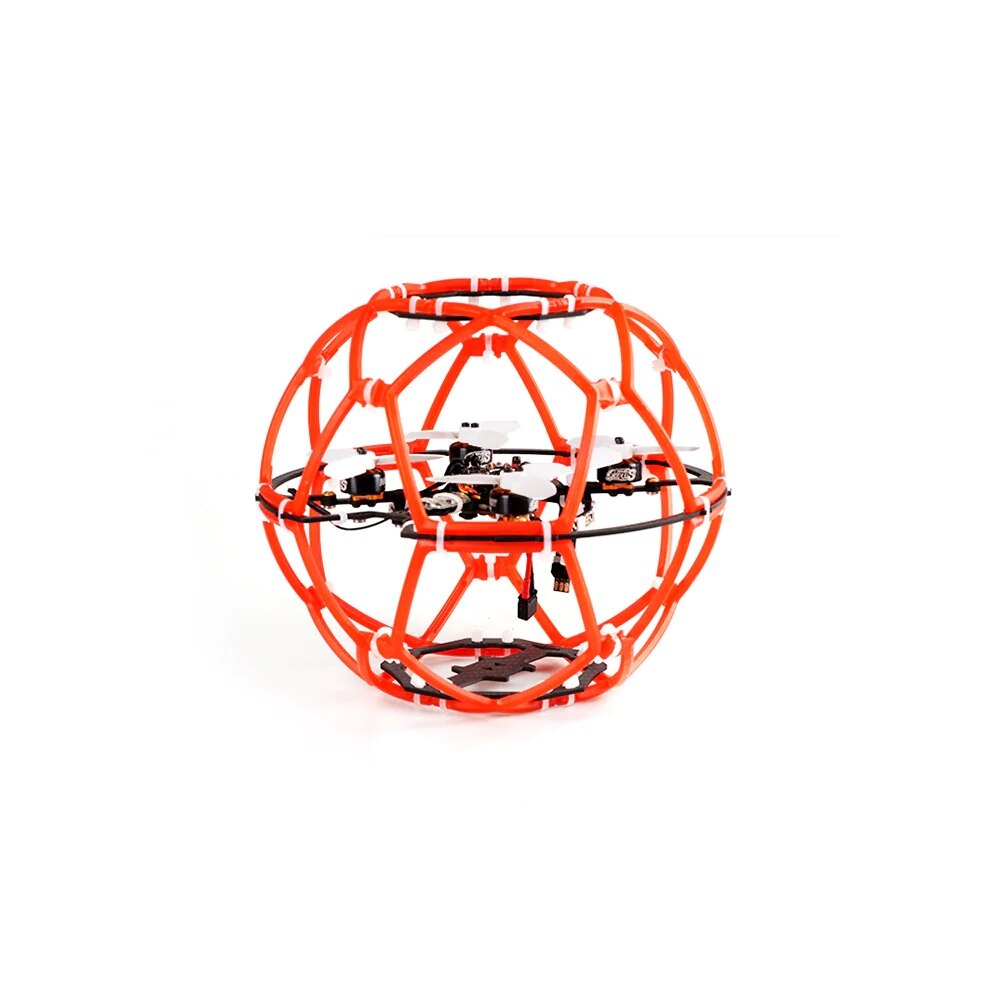

Product name: HGLRC Ares DS200 Drone Soccer

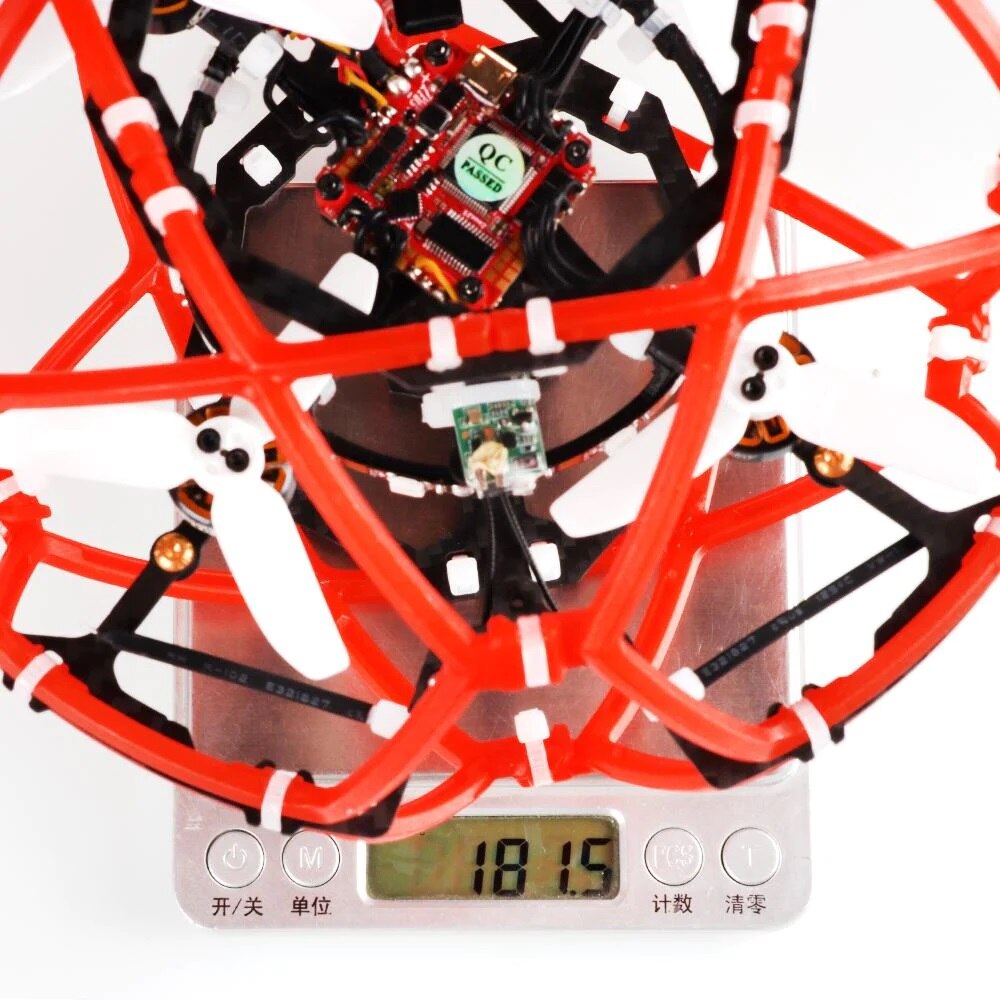

Weight:181.5g
Ares DS200 frame
Model: DS200
Wheelbase: 110mm
Size: Diameter 200mm
ZEUS25 V2 AIO 3-6S flight controller
Input voltage:3-6S
FC firmware:ZEUSF722 AIO
Size:34.5x34.5mm
AEOLUS 1404 3600KV brushless motor
Motor: 3600KV
Input Voltage: 3-4S
2840 2.8-inch 3-blade propeller
Quantity: 4 CW & 4 CCW
Shipping list:
1x Zeus25 V2 AIO 3-6S flight controller
4x AEOLUS 1404 3600KV brushless motor
1x Ares DS200 Drone Soccer Frame (Red / Blue / White)
2x Spare Bumper for Outer Protective Cover
8x 2840 2.8-inch 3-blade propeller
1x receiver (optional)
Recommended battery:
4S:850mah (3.5-4min)
The drone features multiplayer mode, which enables quick identification of your own drone and the opponent's after a crash. Its crash-resistant design is made from durable PP material, making it low-maintenance and less prone to breakage. Even if it takes a tumble or gets knocked around, it's not easily damaged.
