Features:

1.Using the new 10th generation UBLOX chip design, fast and accurate positioning..

2.Small size, compatible with 2-7 inch traversal Drone on the market

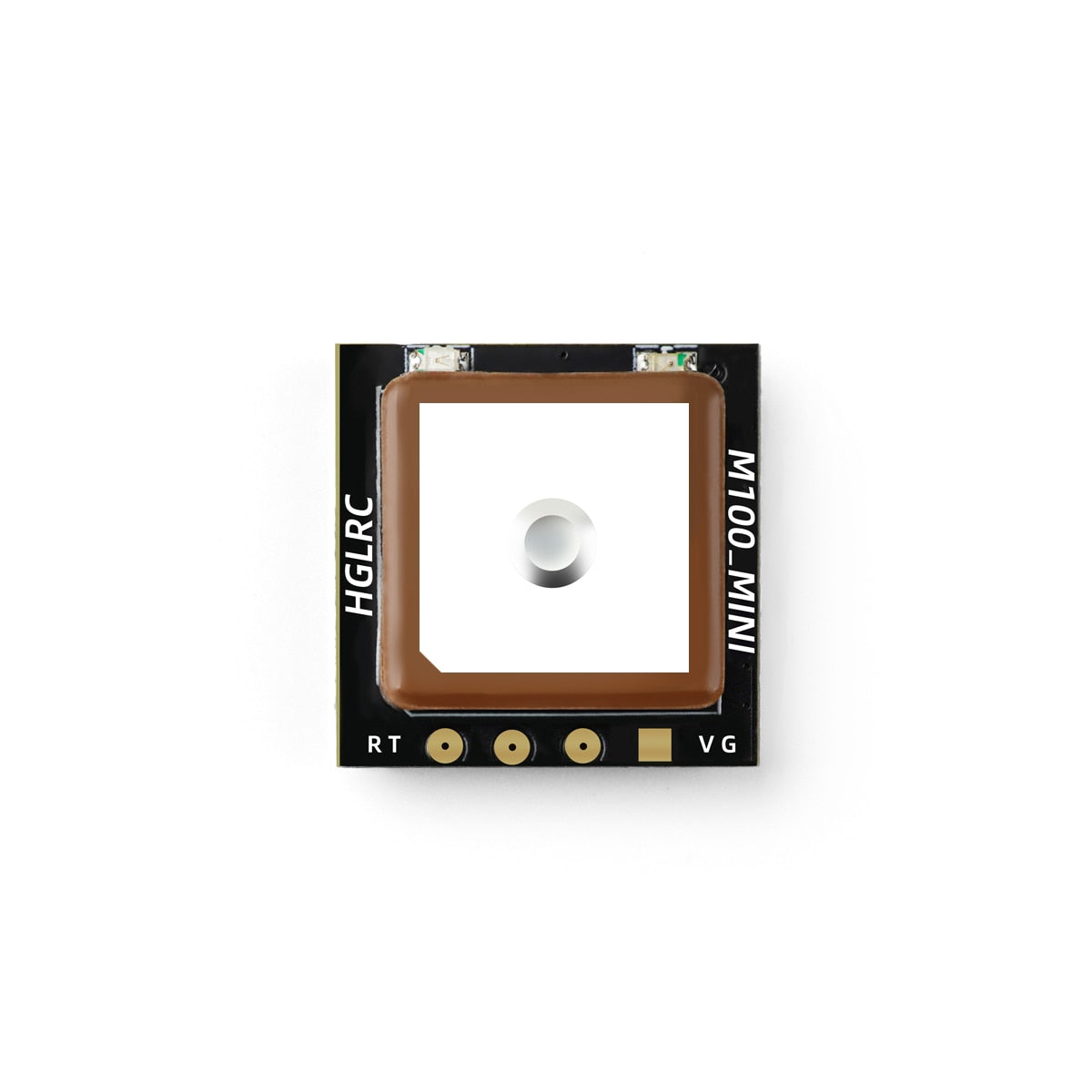

3.Selected ceramic antenna and externally expanded PCB design to effectively receive satellite signals

4.Support GPS, Galileo, BDS three-mode positioning, fast positioning in any area

5.Onboard POWER and PPS indicator lights, the working status is clear at a glance

6.Compatible power supply, support 3.3V-5V DC power input

7.Using UBLOX output protocol and 10Hz output frequency

Specification:

Chip: M10(10th Generation Chip)

Antenna: Ceramic Antenna

Frequency: GPS L1,GLONASS L1,BDS B1,GALILEO E1,SBAS L1,OZSS L1

Receive Channel: 72ch

Baud Rate: 115200bps

Output Protocol: UBLOX

Output Frequency: 10Hz

Input: 3.3V-5V

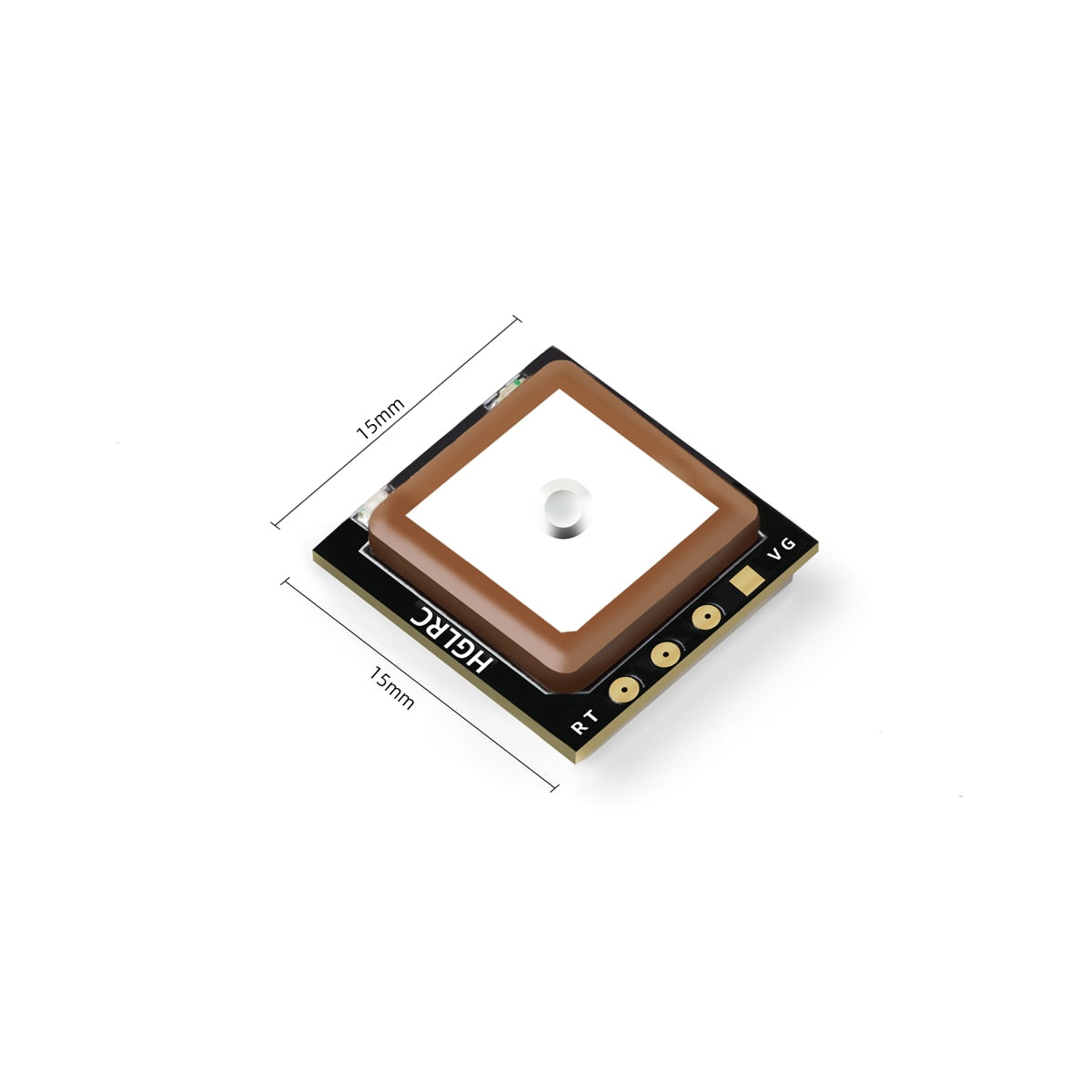

Size: 15x15x5.2mm

Weight: 2.6g

Speed Accuracy: 0.05m/s

Horizontal positioning accuracy: 2D
ACC2.0m(Outdoor)

Receiver Sensitivity: Trace -166dBm

Capture -160dBm

Characteristics: High:50000m,

            Speed: 500m/s,

            acceleration 4G

Operating temperature: -40°C - +85°C

Storage temperature: -40°C - +105°C

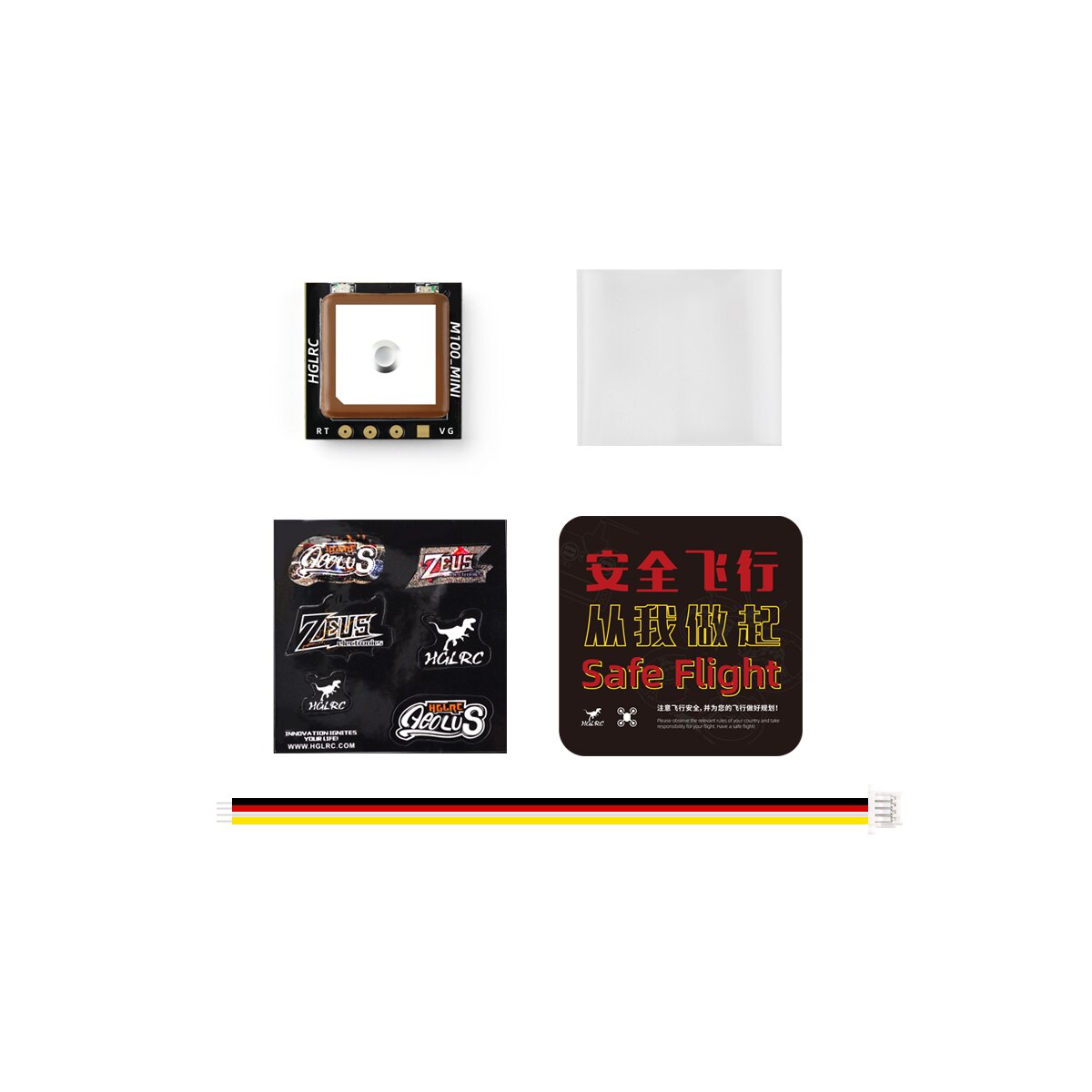

Include:

HGLRC M100_MINI GPSX 1

Heat Shrink Tube (Φ12mm x 20mm) X 1

HGLRC sticker X1

HGLRC Manual X1

SH1.0-4Pin Cable X1

MGLRC M1OO MINI GPS 1Smm Rapid positioning Stable signal Small and exquisite Accurate positioning 1 8 1 RT

Features rapid positioning with 10th generation U-blox's fast and accurate chipset, enabling triple-mode positioning for precise navigation.

The stable signal, elaborate modulation, and ceramic antenna on the expanded printed circuit board (PCB) can effectively receive satellite signals.

Accurate three-mode positioning using GPS, Galileo, and BDS signals for precise location tracking in various flying environments, including forested mountainous regions and nearby landing sites.

Product Specifications: * Chip: HGLRC M100 Mini GPS, featuring a 10th generation UBLOX chip * Output Protocol: UBLOX * Antenna: Ceramic antenna * Frequency: Supports multiple frequencies including GPS L1, GLONASS L1, BDS BI, GALILEO EI, SBAS L1, and QZSS LI * Power Input: 3.3V-5V * Size: 15mm x 15mm

Product List BLU 54 Et Ialneiet Ns HI HXl #z MGLRC Saie Flight HULRC 4071rr,#Az0thahrni Qeows Uoet Wanaisater .

This side up. Power indicator lights: red for PPS (Power On) and blue for power status. RX, TX, SV, and GND indicators are present. The LED lights may flicker during normal start-up or when in real-time position mode.

Connect the GPS module to any available serial port on your flight control board, following the provided wiring diagram. Specifically, you can connect it to either the spare serial port or the dedicated GPS serial port. Once connected, turn on the GPS module and configure it to use the UBLOX protocol.

Please use firmware version BF4.3.0 or higher, as lower versions will not recognize this 10th-generation chip.
