Summary:

Hello everyone, our M80 PRO has been well-received and loved by everyone in the past two years. Beginning in the new 2023, HGLRC will bring you the newly developed M100_MINI GPS. Using the new 10th generation UBLOX chip design, the positioning is fast and accurate. In the test of our HGLRC laboratory, it takes less than 1 minute for GPS to reach the 8 satellites required for take-off. The small and exquisite 15mmx15mm Size can be loaded on 2-7 inch traversing Drone. Selected ceramic antenna and externally expanded PCB design allow M100_MINI GPS to receive satellite signals effectively. At the same time, it supports receiving GPS, Galileo, and BDS three satellite signals, allowing you to quickly locate in any area. For the convenience of everyone, we have designed onboard LED indicators, including power indicator and positioning PPS indicator, so that you can know the working status of GPS well.

Features:

1.Using the new 10th generation UBLOX chip design, fast and accurate positioning.。

2.Small size, compatible with 2-7 inch traversal Drone on the market

3.Selected ceramic antenna and externally expanded PCB design to effectively receive satellite signals

4.Support GPS, Galileo, BDS three-mode positioning, fast positioning in any area

5.Onboard POWER and PPS indicator lights, the working status is clear at a glance

6.Compatible power supply, support 3.3V-5V DC power input

7.Using UBLOX output protocol and 10Hz output frequency

Specification:

Chip: M10(10th Generation Chip)

Antenna: Ceramic Antenna

Frequency: GPS L1，GLONASS L1，BDS B1，GALILEO E1，SBAS L1，OZSS L1

Receive Channel: 72ch

Baud Rate: 115200bps

Output Protocol: UBLOX

Output Frequency: 10Hz

Input: 3.3V-5V

Size: 15x15x5.2mm

Weight: 2.6g

Speed Accuracy: 0.05m/s

Horizontal positioning accuracy: 2D
ACC2.0m(Outdoor)

Receiver Sensitivity: Trace -166dBm

Capture -160dBm

Characteristics: High:50000m，

            Speed: 500m/s，

            acceleration 4G

Operating temperature: -40°C - +85°C

Storage temperature: -40°C - +105°C

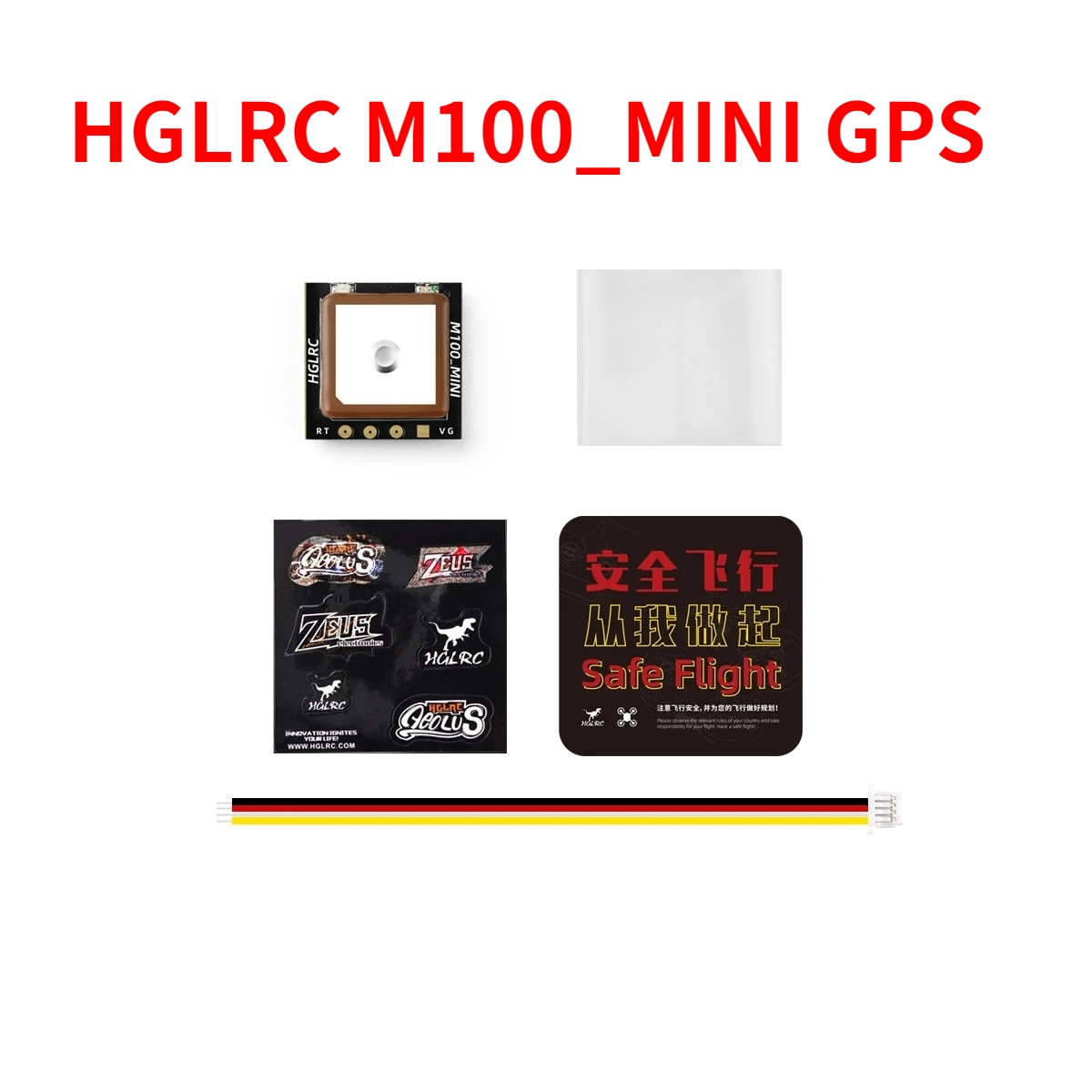

Include:

HGLRC M100_MINI GPSX 1

Heat Shrink Tube (Φ12mm x 20mm) X 1

HGLRC sticker X1

HGLRC Manual X1

SH1.0-4Pin Cable X1

MGLRC M1OO MINI GPS Rt 1Smm Rapid positioning Stable signal Small and exquisite Accurate positioning 1 8 1

Features rapid positioning using the 10th generation Ublox chip for fast and accurate location tracking.

Featuring a stable signal, elaborate modulation, and a high-gain ceramic antenna, this module can effectively receive satellite signals, ensuring reliable positioning for applications such as FPV racing and freestyle drone flying.

Three-mode positioning technology combines GPS, Galileo, and BDS for accurate location tracking, making it suitable for demanding applications such as forest mountain flying or nearby landing.

This product is the HGLRC M100 Mini GPS, which features an advanced 10th generation UBLOX chip. The device supports three positioning modes: GPS L1, GLONASS L1, and BDS BI. It has a ceramic antenna and outputs at a frequency of 10Hz. The power input range is 3.3V to 5V. Key specifications include: * Chip: 10th generation UBLOX chip * Output protocol: UBLOX * Antenna: Ceramic antenna * Output frequency: 10Hz * Frequency: GPS L1, GLONASS L1, BDS BI, GALILEO EI, SBAS L1, QZSS LI * Power input range: 3.3V to 5V * Size: 15x15x5.2mm

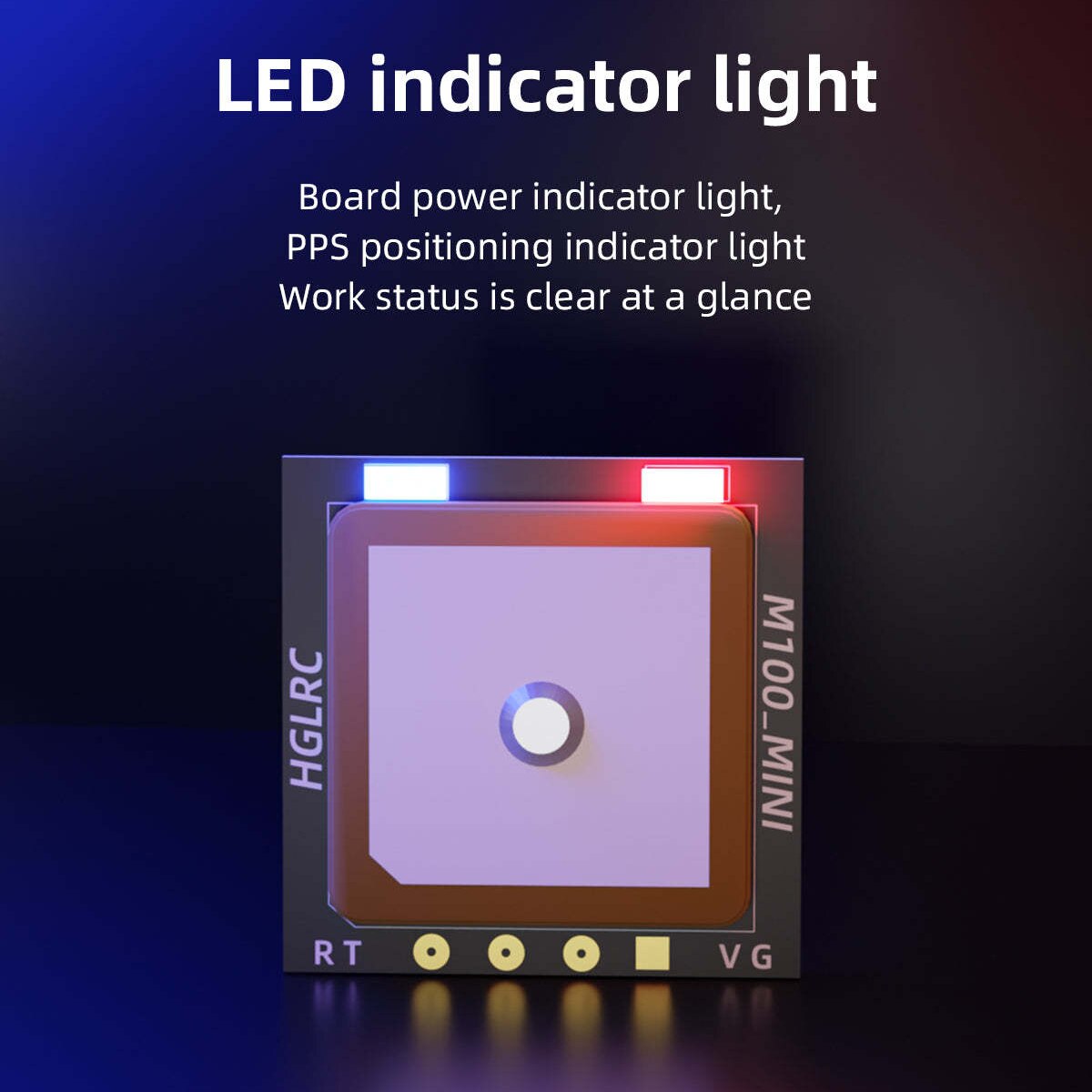

This side up. The device indicator lights include: 'RT' (receiver), 'RX' (transmitter), 'SV' (signal voltage), and 'GND' (ground). There is also an indicator light for Power (blue) and Positioning (red). Normal startup conditions are indicated by a steady blue light, while the red light flickers to indicate real-time positioning accuracy.

The GPS indicator on the top of Betaflight will illuminate when the GPS module is functioning properly. Additionally, the GPS logo located at the bottom of the quadcopter will also be lit.

Please ensure you are using firmware version BF4.3.0 or higher, as lower versions may not be compatible with the 10th generation UBLOX chip and may fail to recognize it.

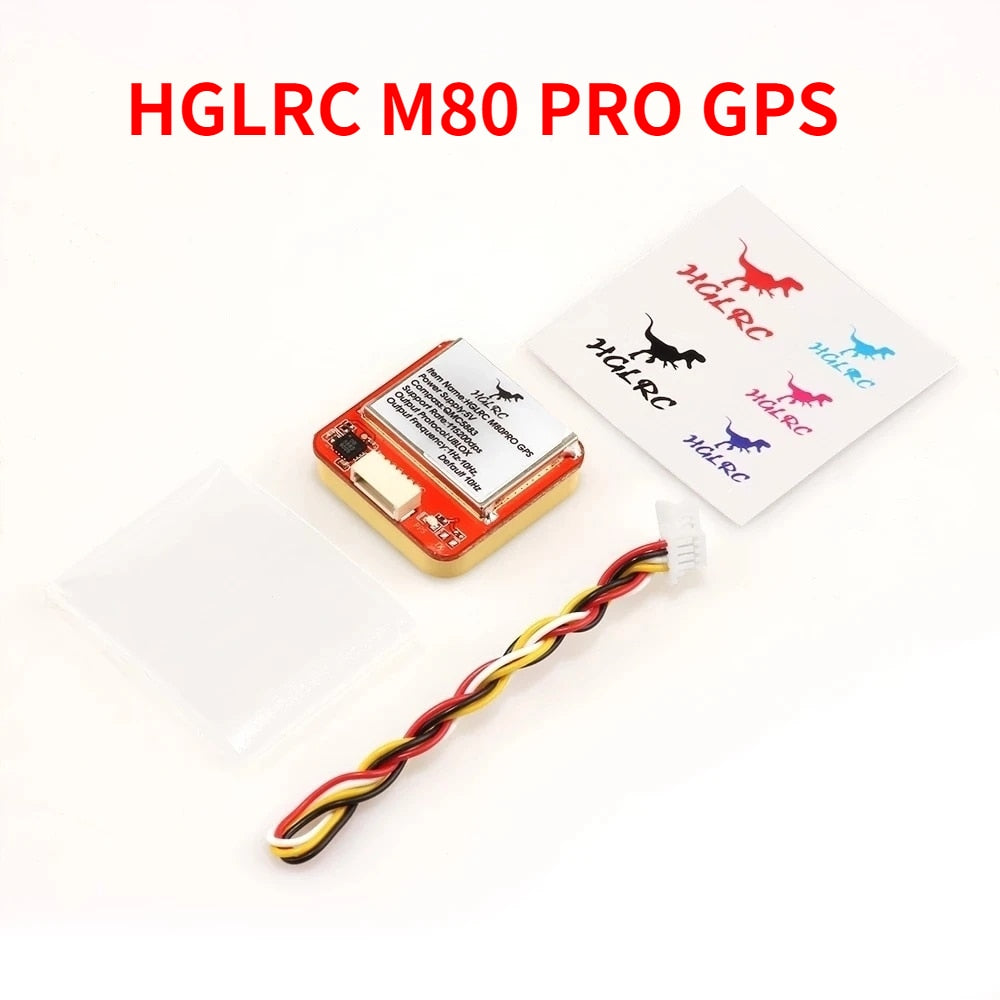

HGLRC M80 PRO GLONASS GALILEO QZSS SBAS BDS GPS Module QMC5883 Compass Gain Antenna for RC Airplane FPV Long Range Drones

Item Name:HGLRC M80PRO GPS
Chip:M8030
Power Supply:5V
Antenna: Ceramic Antenna
Receiving Format:GPS,GLONASS,GALILEO,QZSS,SBAS,BDS
Receiving Channel:72 Searching Channel
Compass:QMC5883
Support Rate:115200dps
Output Protocol:UBLOX
Output Frequency:1Hz-10Hz,Default 10Hz
Speed Precison:0.05 m/s
Level Positioning Precison:2D ACC1.5m(ln Open Sky)
Receiving Sensitivity:Trace -162dBm
Capture-160dBm
Dynamic Characteristics:Max Height:50000m
Max Speed:500m/s
Max Acceleration:4G
Working Temperature:-40℃-+85℃
Storage Temperature:-40℃-+105℃
Size:25mm x 25mm x 8.3mm
Weight:12.5g

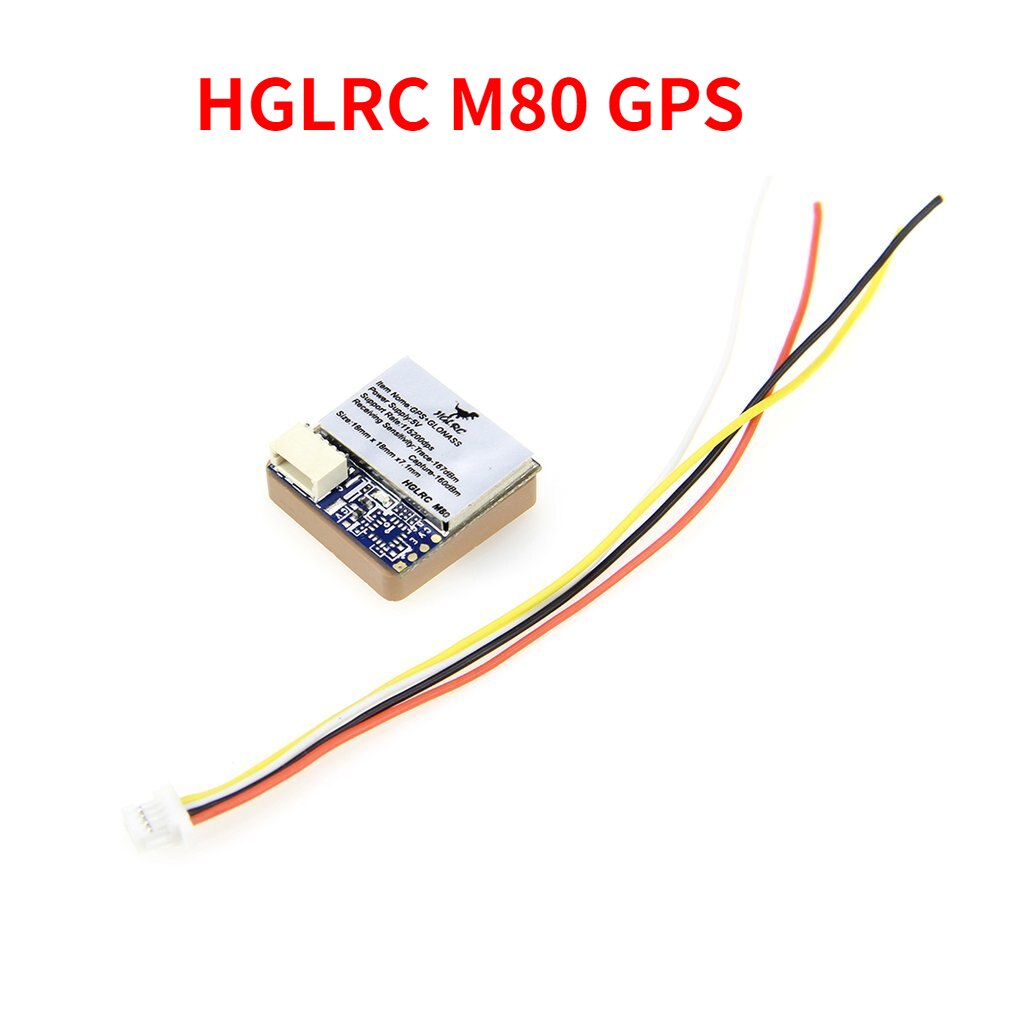

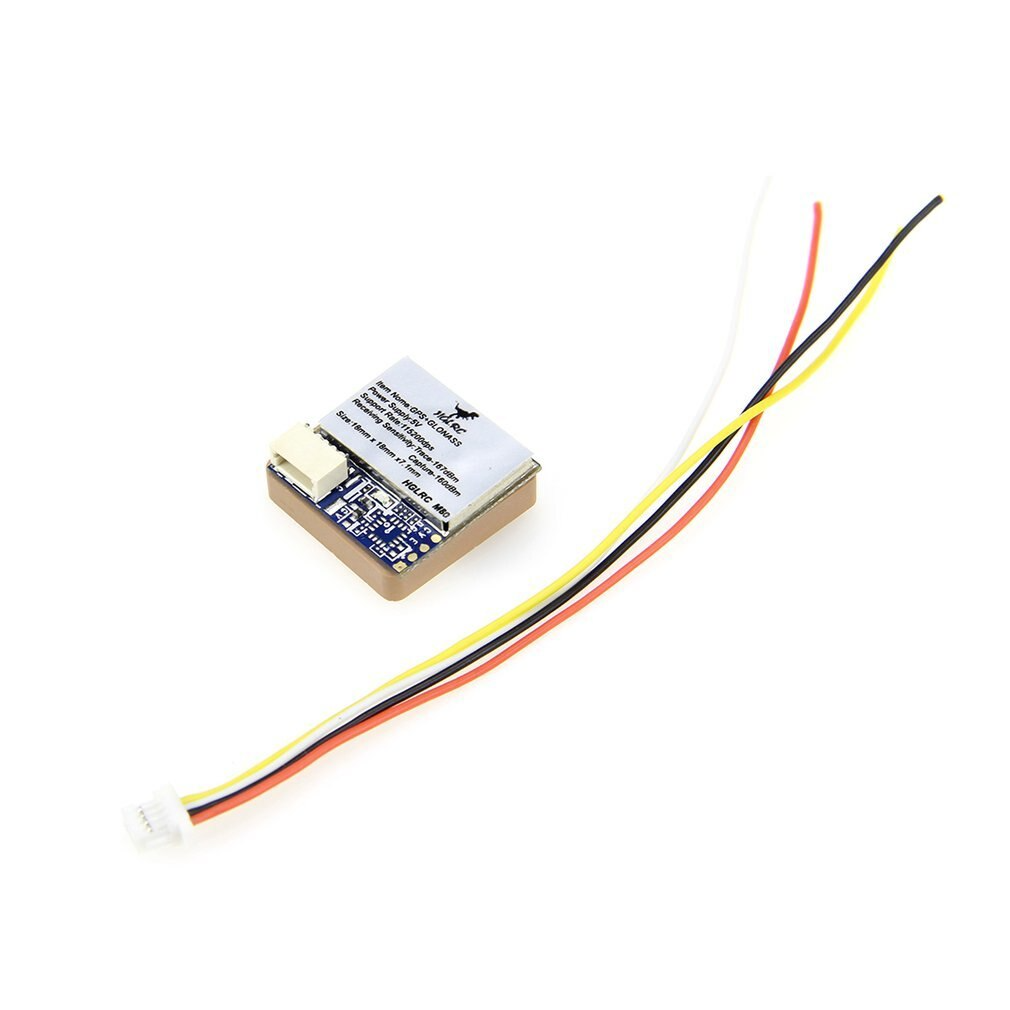

HGLRC M80 GPS Mini GPS Module Supports GPS,GLONASS,GALILEO,QZSS,SBAS,BDS for RC Drone FPV Racing Models Part  Accessories

Features:
1.Receiving Format: GPS,GLONASS,GALILEO,QZSS,SBAS,BDS.
2.Receiving Channel: 72 Searching Channel.
3.Level Positioning Precison: 2D Acc1.5m(ln Open Sky).
4.Receiving Sensitivity: Trace -167dBm, Capture -160dBm.
5.Dynamic Characteristics: Max Height:50000m, Max Speed:500m/s, Max Acceleration:4G.

descriptions:
1.This HGLRC M80 GPS module supports GPS,GLONASS,GALILEO,QZSS,SBAS,BDS.
2.It comes with high sensitive and good quality.
3.It is a good choice for RC fans!

Specifications:
Brand: HGLRC
Last Name: M80 GPS
Chip: M8030
material: metal
Color: Brown
Power supply: 5V
Antenna: Ceramic Antenna
Receiving Format: GPS,GLONASS,GALILEO,QZSS,SBAS,BDS
Receiving Channel: 72 Searching Channel
Support Rate: 115200dps
Output Protocol: UBLOX （or UBX）
Output Frequency: 1Hz-10Hz,Default 10Hz
Speed Precison: 0.05 m/s
Level Positioning Precison: 2D Acc1.5m(ln Open Sky)
Receiving Sensitivity: Trace -167dBm, Capture -160dBm
Dynamic Characteristics: Max Height:50000m, Max Speed:500m/s, Max Acceleration:4G
Working Temperature: -40℃-+85℃
Storage Temperature: -40℃-+105℃
Size: 18.5x18.5x7.1mm/0.72x0.72x0.28in
Weight: 9.4g/0.33oz

Package information:
Package Size: 80x60x50mm/3.12x2.34x1.95in
Package Weight: 10.9g/0.38oz
Polybag Package

Packaged included:
1 x M80 Compass

HGLRC M8O GPS for FPV Racing Drone Item Name:HGLRC GPS Chip M8030 Power Supply:5V Antenna Ceramic Antena Receiving Format:GPS,GLONASS, GALILEO,QZSS,SBAS,BDS Receiving Channel:72 Searching Channel Support Rate:115200dps Output Protocol:UBLOX Output Frequency:1Hz-1OHz,Default 10HZ Speed Precison.0.05 m

18mm 18mm JRc GPS+GLONASS A167dBm Mbo '115200dps Capture HGLRC Imm Sonsitivity: !

YGLRC Item Nome:GPS+GLONASS Power Supply:SV Support Rate:11520dps Receiving Sensitivity: Trace-167dBm Capture-160dbm Size:18mm X 18mm x7.Imm
