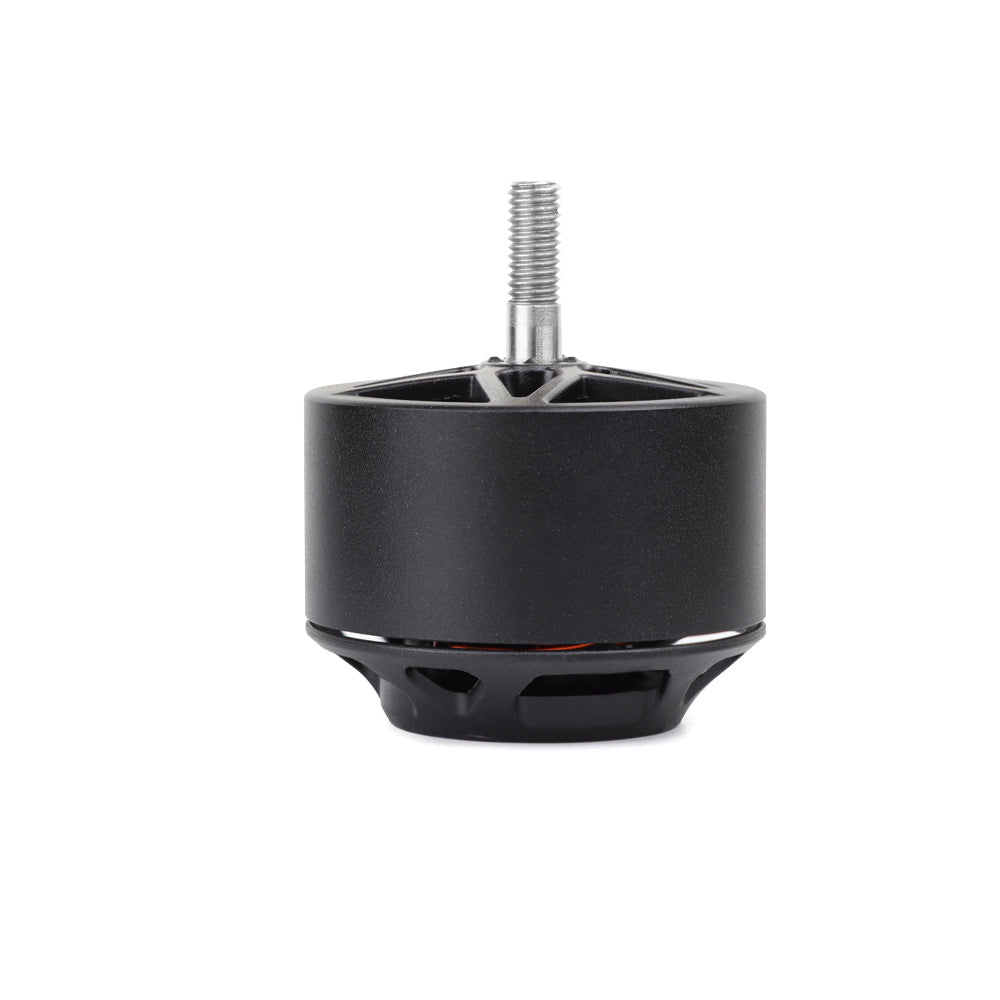

• HGLRC MY 3215 900KV brushless FPV motor side profile with threaded shaft
  • Top view of motor bell showing internal copper windings and prop shaft

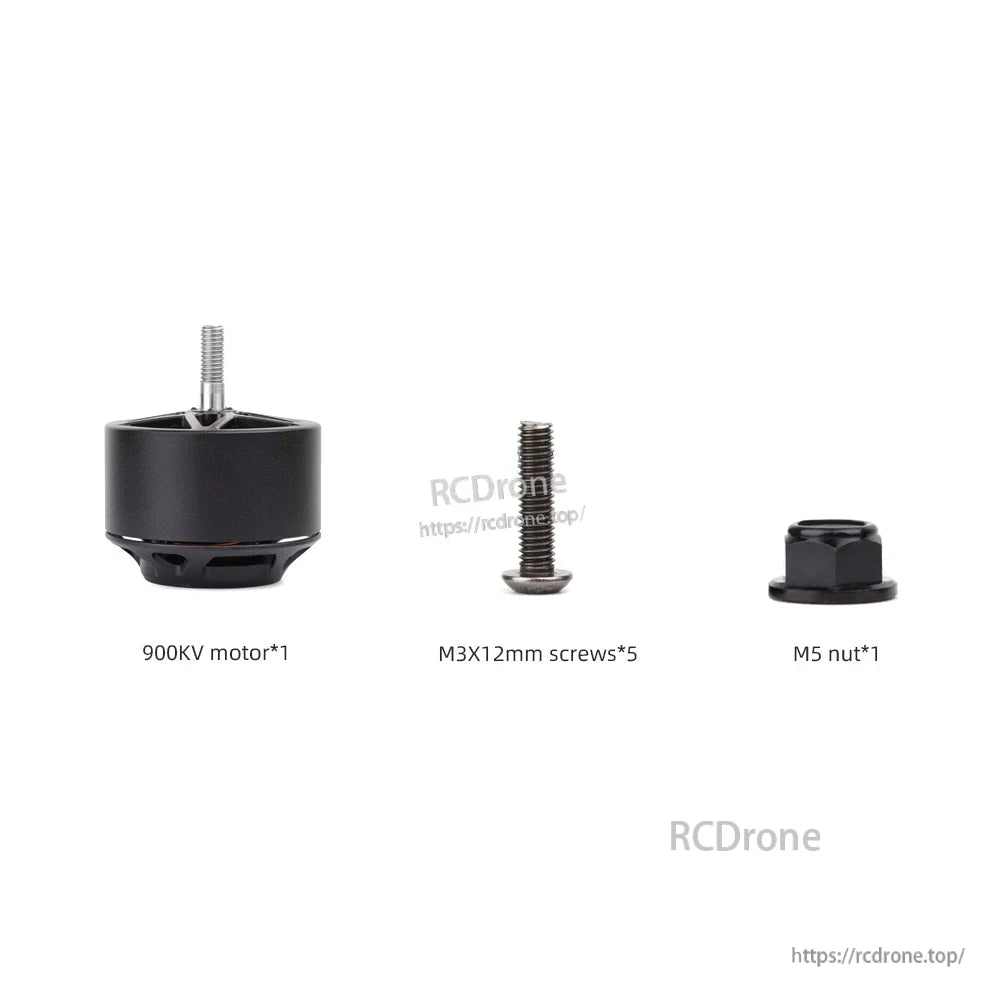

  • Package contents: 900KV motor, five M3x12mm screws, and one M5 nut

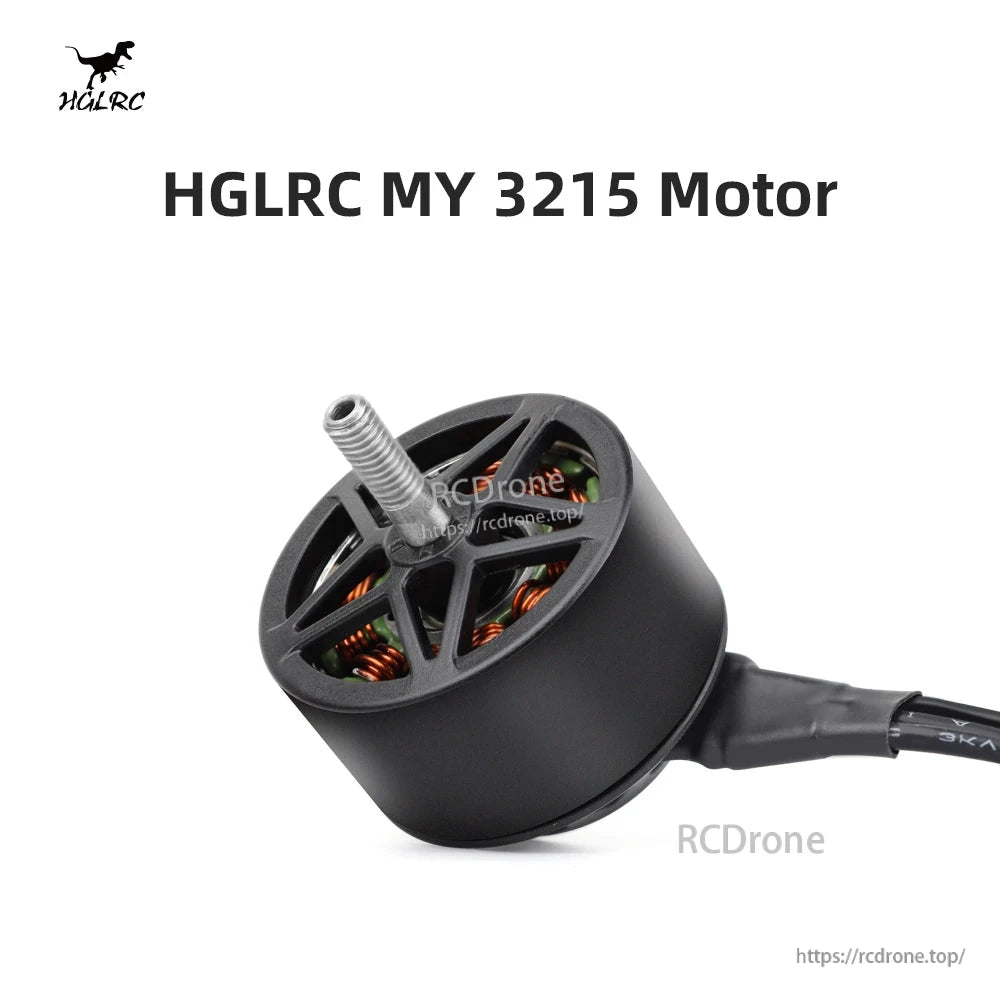

  • HGLRC MY 3215 motor angled view showing open top frame and wire lead
  • HGLRC MY 3215 900KV motor specification chart with voltage, current, weight and dimensions

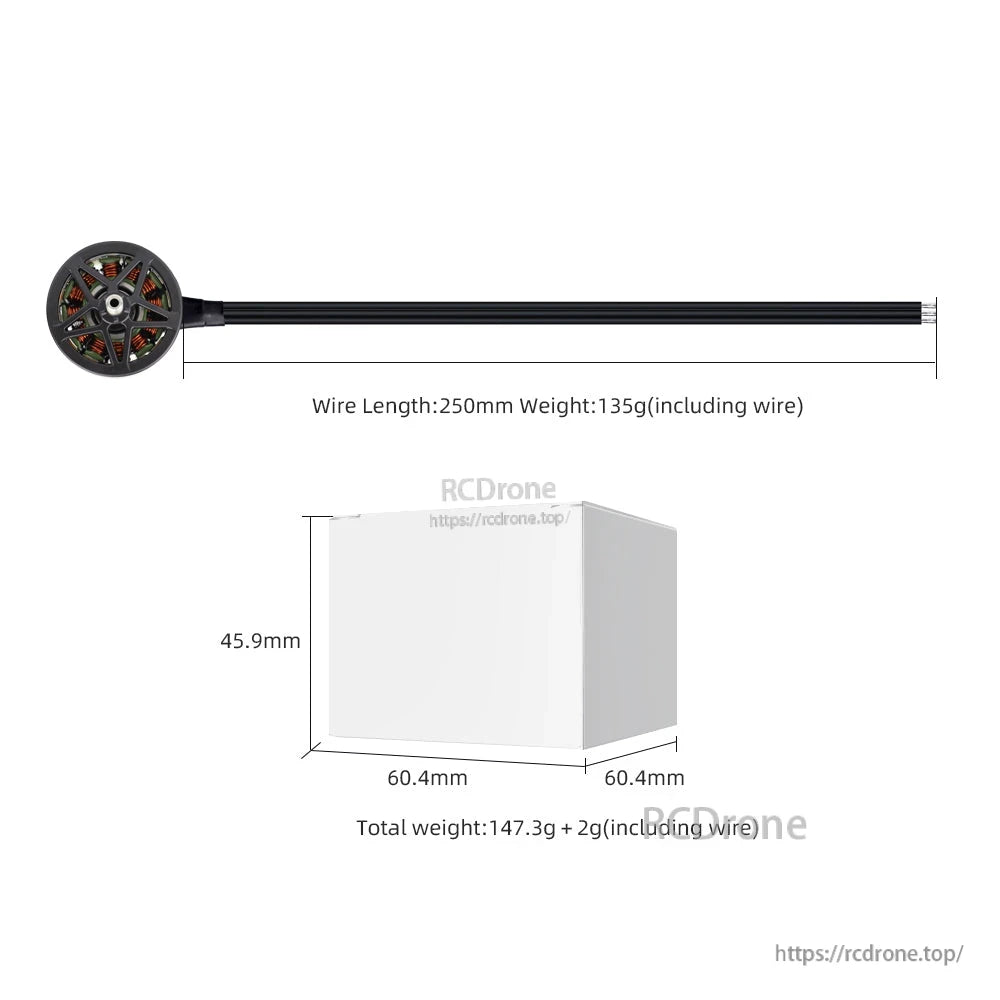

  • Wire length and package size diagram showing 250mm lead and box dimensions

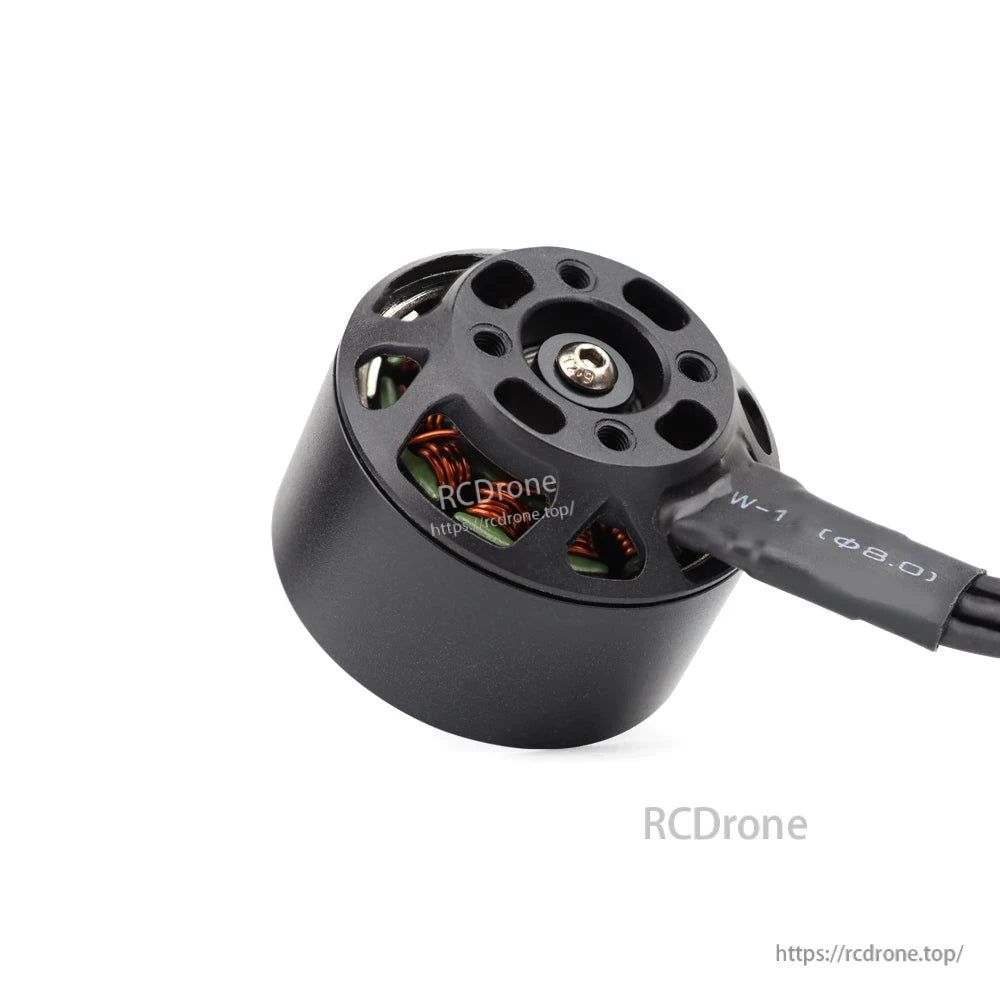

  • Bottom mounting base view with screw holes and center shaft, wire exit detail

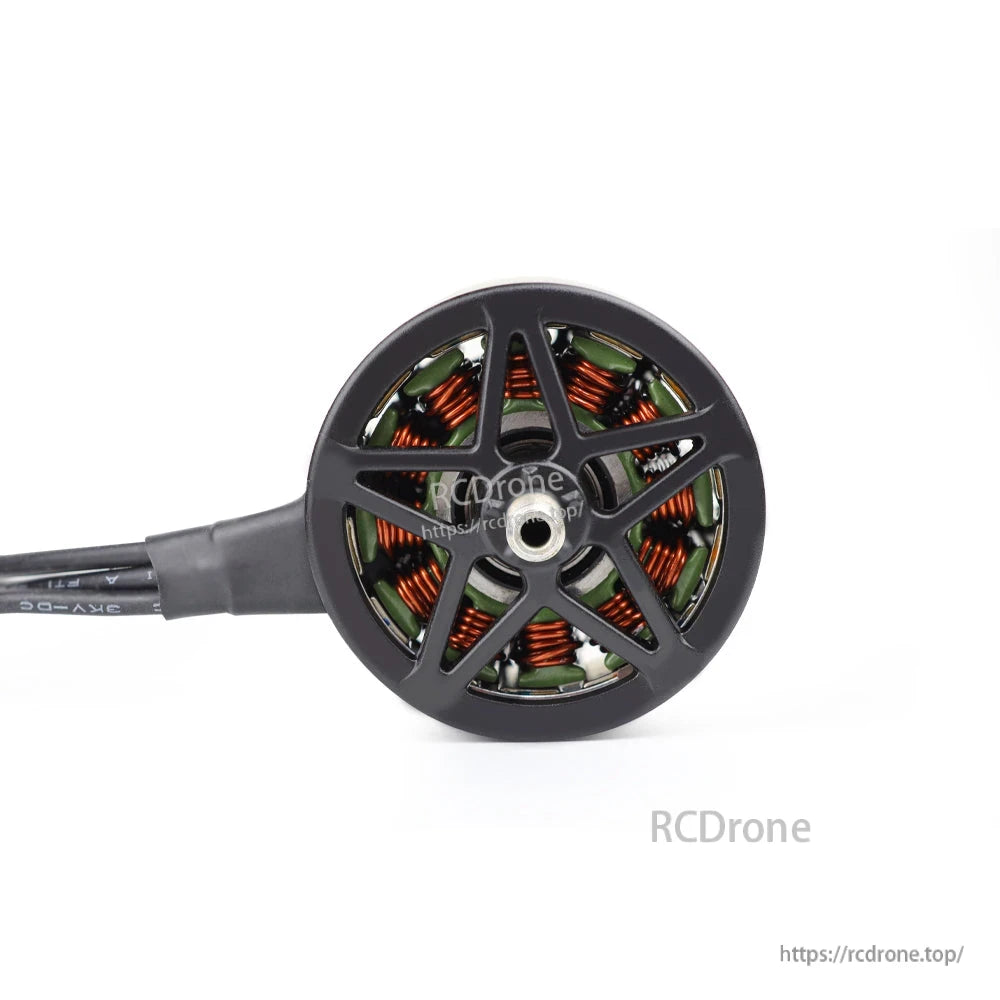

  • Front face view of motor showing spoke design, center shaft, and copper windings
1 8

HGLRC MY 3215 900KV Brushless FPV Motor for 5-6S High Load 10-inch Props, M5 Shaft, 69.6A

HGLRC MY 3215 900KV Brushless FPV Motor for 5-6S High Load 10-inch Props, M5 Shaft, 69.6A

HGLRC

$31.59 USD
$31.59 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The HGLRC MY 3215 900KV is a brushless FPV motor designed for high-load setups on 5–6S (21V–25.2V) power systems and 10-inch propeller builds.

Key Features

  • 900KV MY 3215 brushless motor
  • 5–6S compatible voltage range (21V–25.2V)
  • 12N14P magnetic pole configuration
  • M5 output shaft
  • 16AWG motor leads, 250mm length

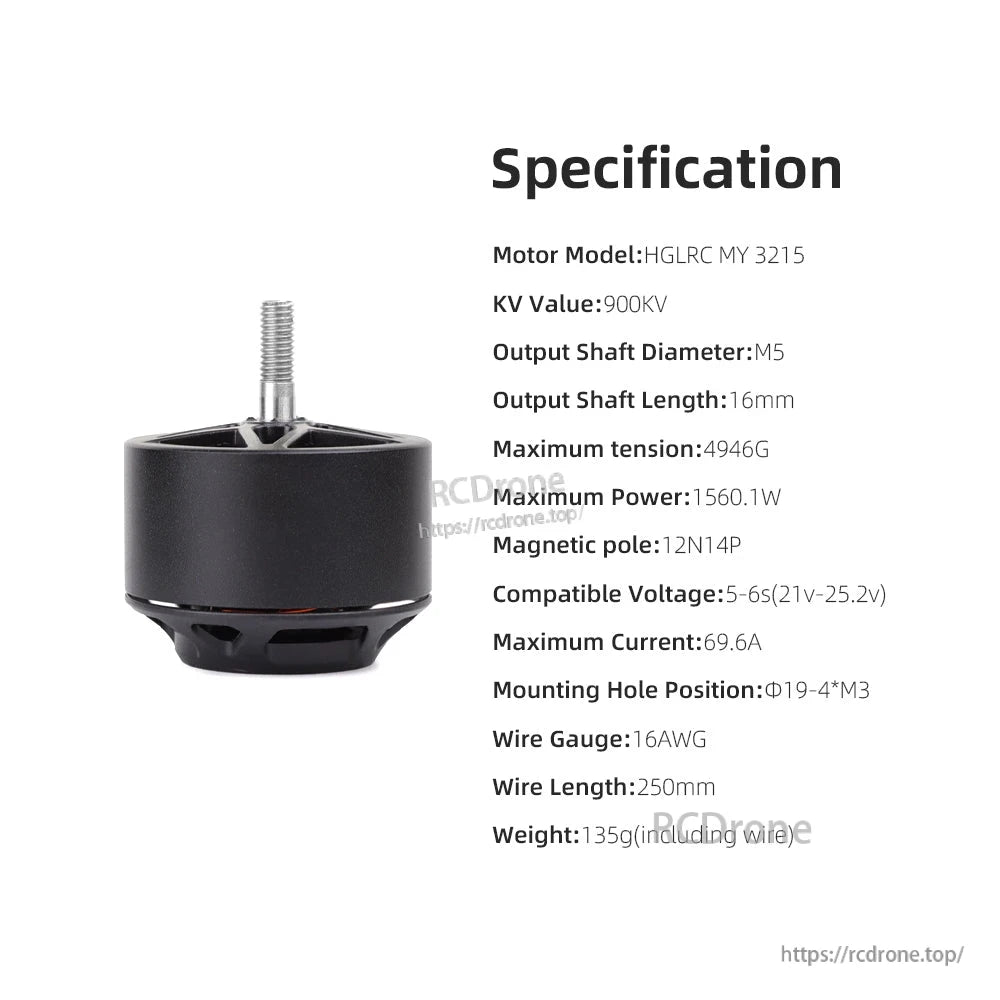

Specifications

Motor model HGLRC MY 3215
KV value 900KV
Output shaft diameter M5
Output shaft length 16mm
Magnetic pole 12N14P
Compatible voltage 5-6s (21v-25.2v)
Maximum current 69.6A
Maximum tension 4946G
Maximum power 1560.1W
Mounting hole position Φ19-4*M3
Wire gauge 16AWG
Wire length 250mm
Weight 135g (including wire)

Mechanical Drawing (Selected Dimensions)

Overall height 48 ±0.5
Dimension 15.9 ±0.5
Dimension 10.8
Wire length (drawing) 250 ±10
Mounting pattern Φ19.1, 4-M3
Diameter Φ40.7

Performance Data (Efficacy Table)

Propeller Throttle% Voltage Current Tension Power Efficiency
1050-3R 30% 24V 7.65 832 146.1 4.61
1050-3R 40% 24V 9.26 956 163.3 4.95
1050-3R 50% 24V 11.9 1565 280.4 5.12
1050-3R 60% 24V 18.6 2206 470.3 4.6
1050-3R 70% 24V 18.2 2829 693.1 3.75
1050-3R 80% 24V 40.6 3546 965.9 3.32
1050-3R 90% 24V 56.5 4326 1207.6 3.16
1050-3R 100% 24V 69.6 4946 1560.1 2.89

What’s Included

  • 1x MY 3215 900KV motor
  • 1x M5 nut
  • 5x M3x12mm screws

For compatibility questions or build support, contact support@rcdrone.top or visit https://rcdrone.top/.

Details

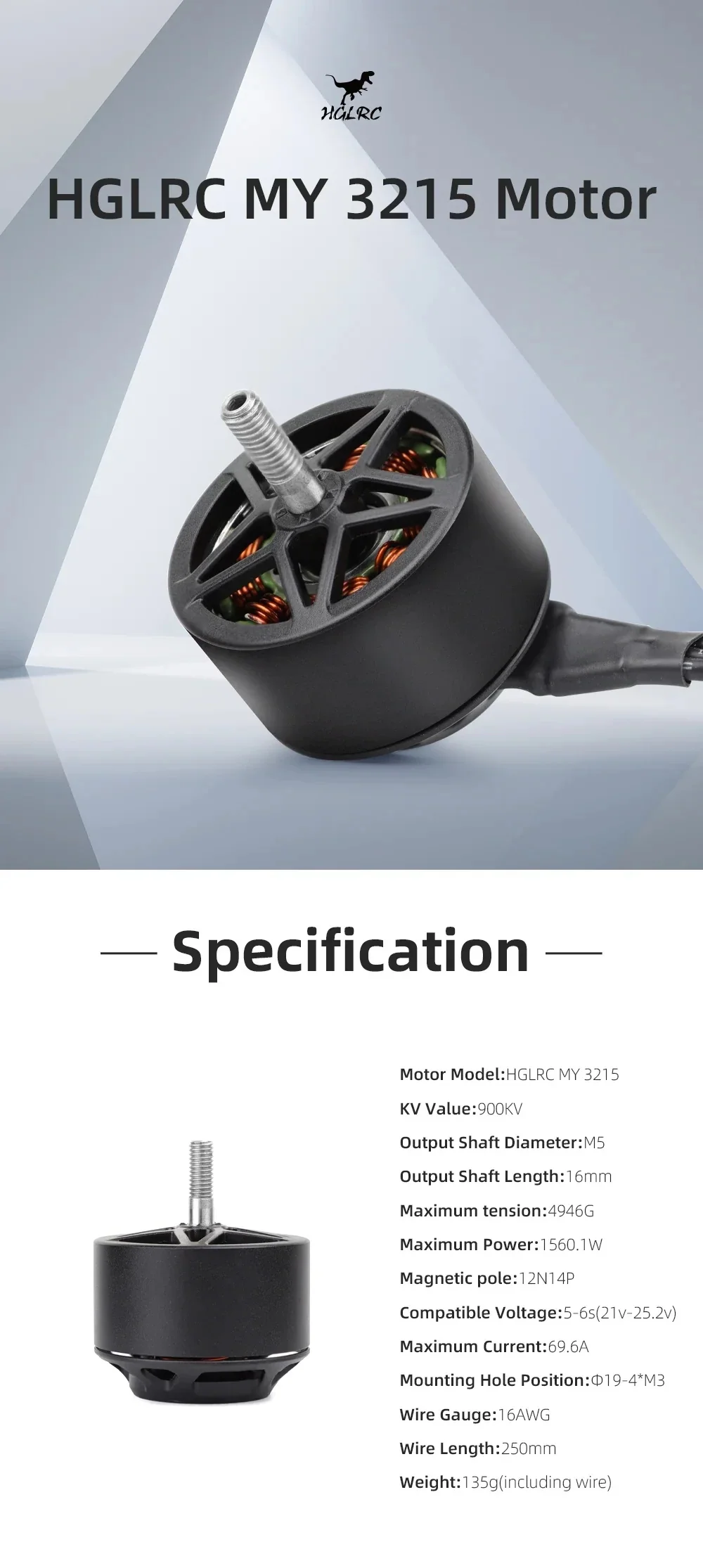

HGLRC MY 3215 900KV brushless FPV motor with M5 output shaft for 5–6S, 10-inch prop builds

Built for high-load 5–6S setups, the MY 3215 900KV pairs an M5 shaft with a compact motor body for 10-inch prop builds.

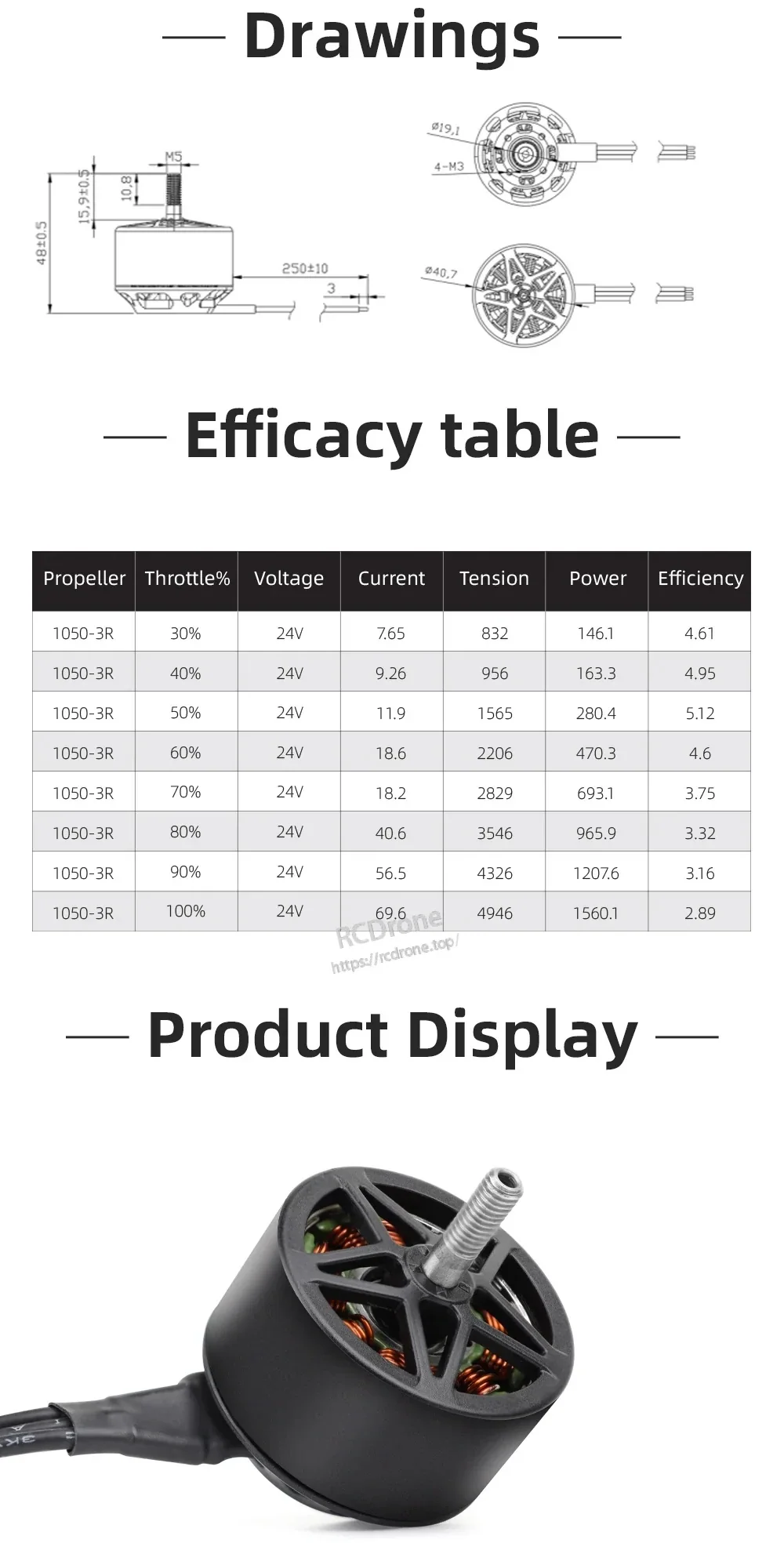

HGLRC MY 3215 900KV motor mechanical drawings and 24V efficacy table for 1050-3R prop performance

Mechanical dimensions and a 24V efficacy table help confirm fitment and expected performance with a 1050-3R prop.

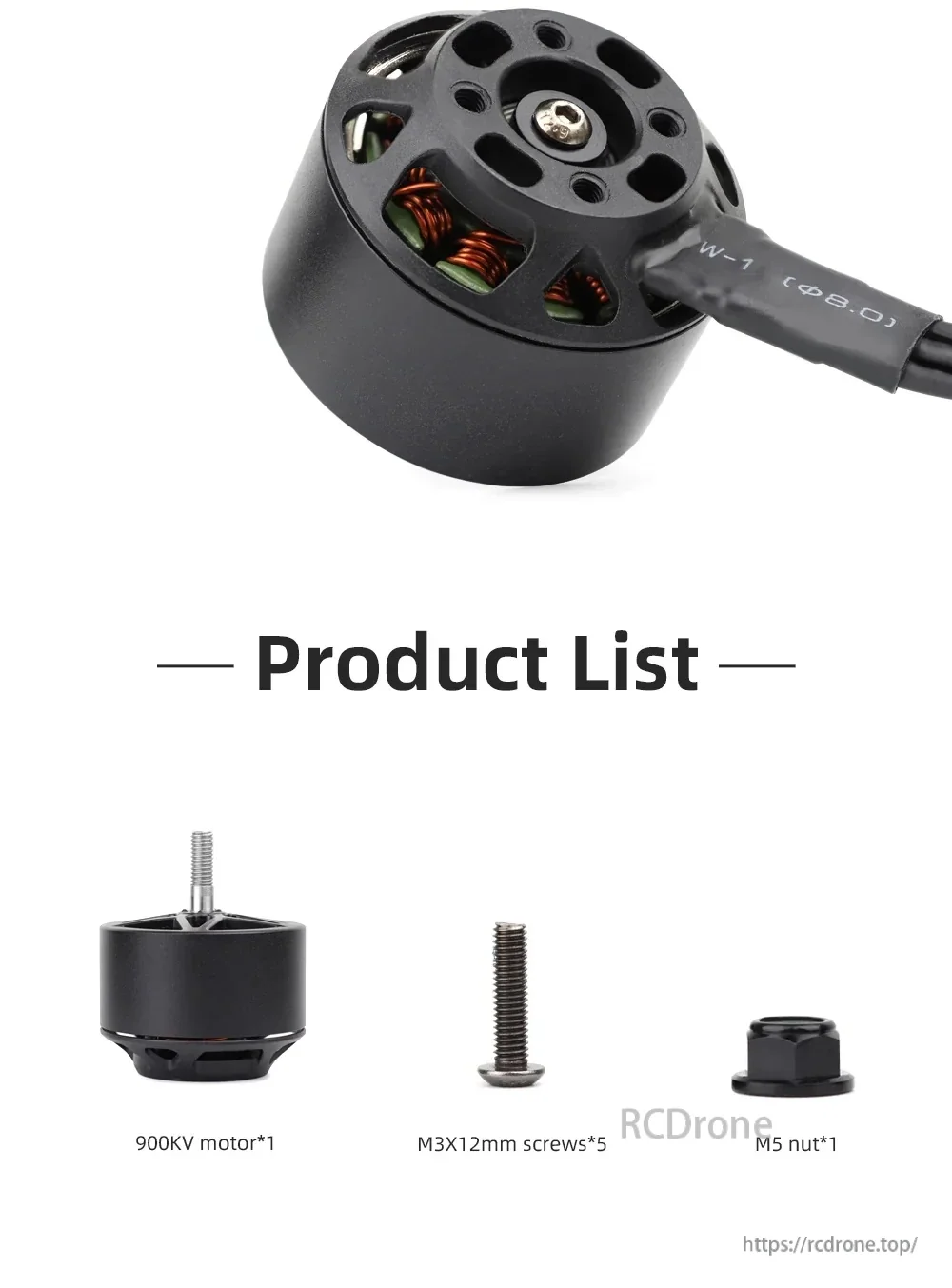

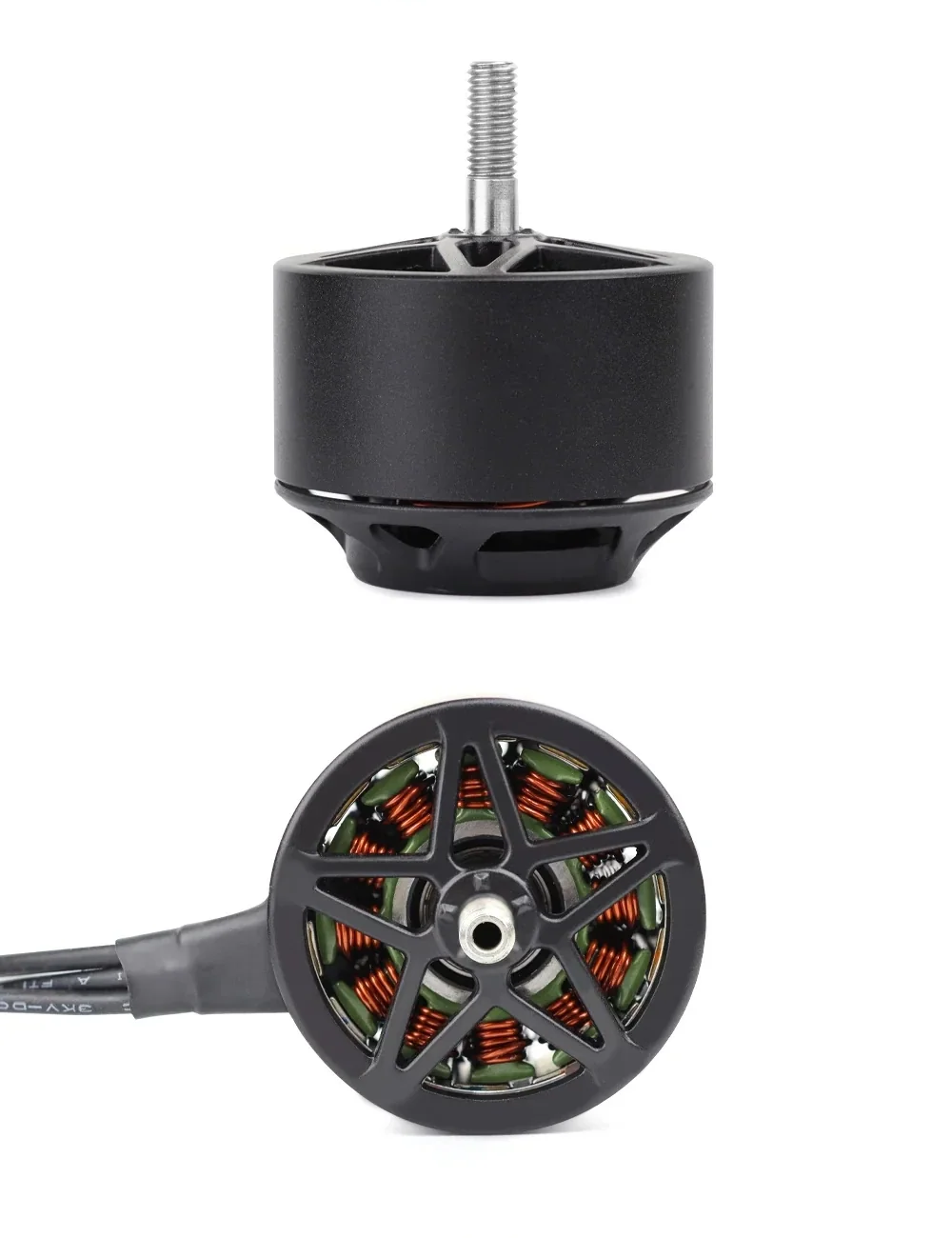

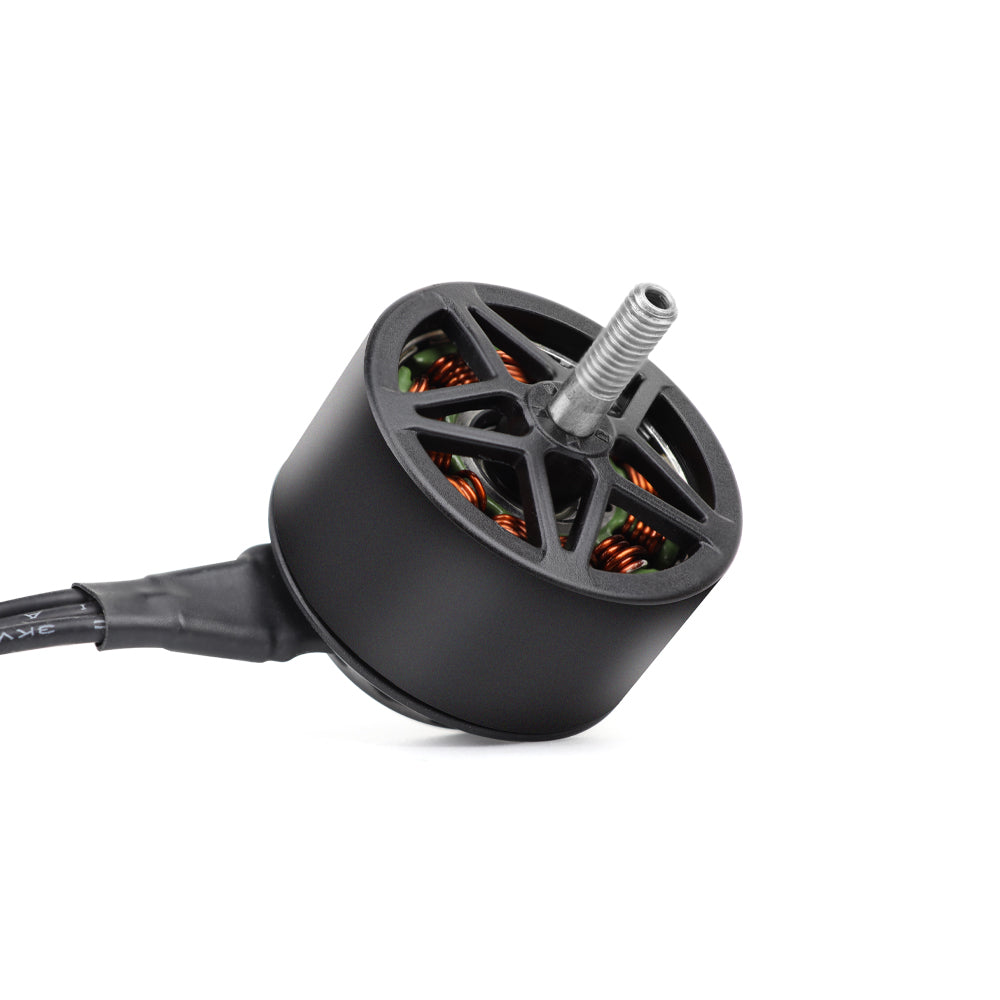

Close-up views of the MY 3215 motor housing and open bell design with visible windings and center hubMotor base and included accessories: five M3x12mm screws and one M5 nut for the HGLRC MY 3215

Hardware is included for a clean install: five M3x12mm mounting screws and an M5 shaft nut.
