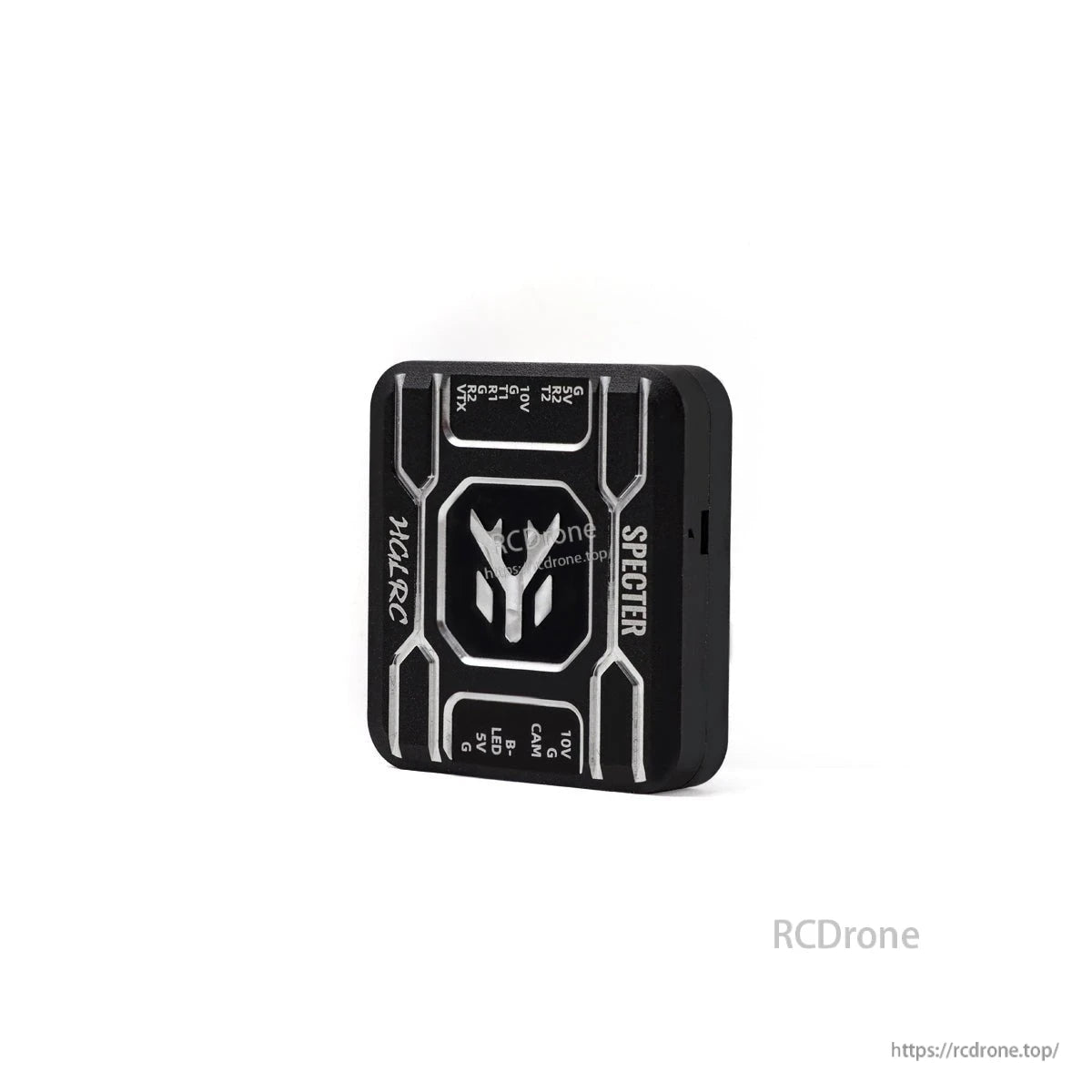

HGLRC SPECTER F722 Mini FPV Flight Controller FC | STM32F722 216MHz MPU6000 16MB Blackbox DJI HD/VTX

Overview

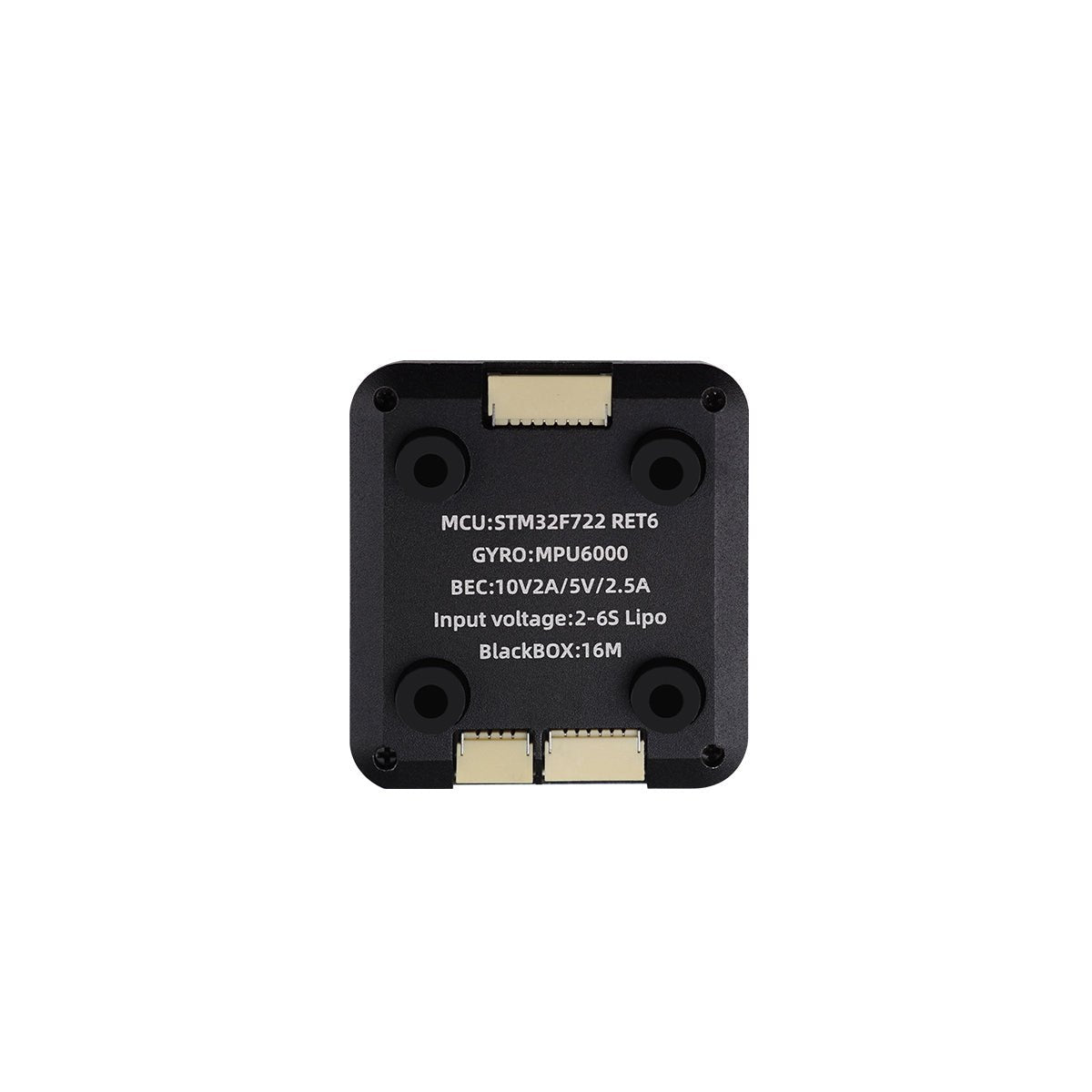

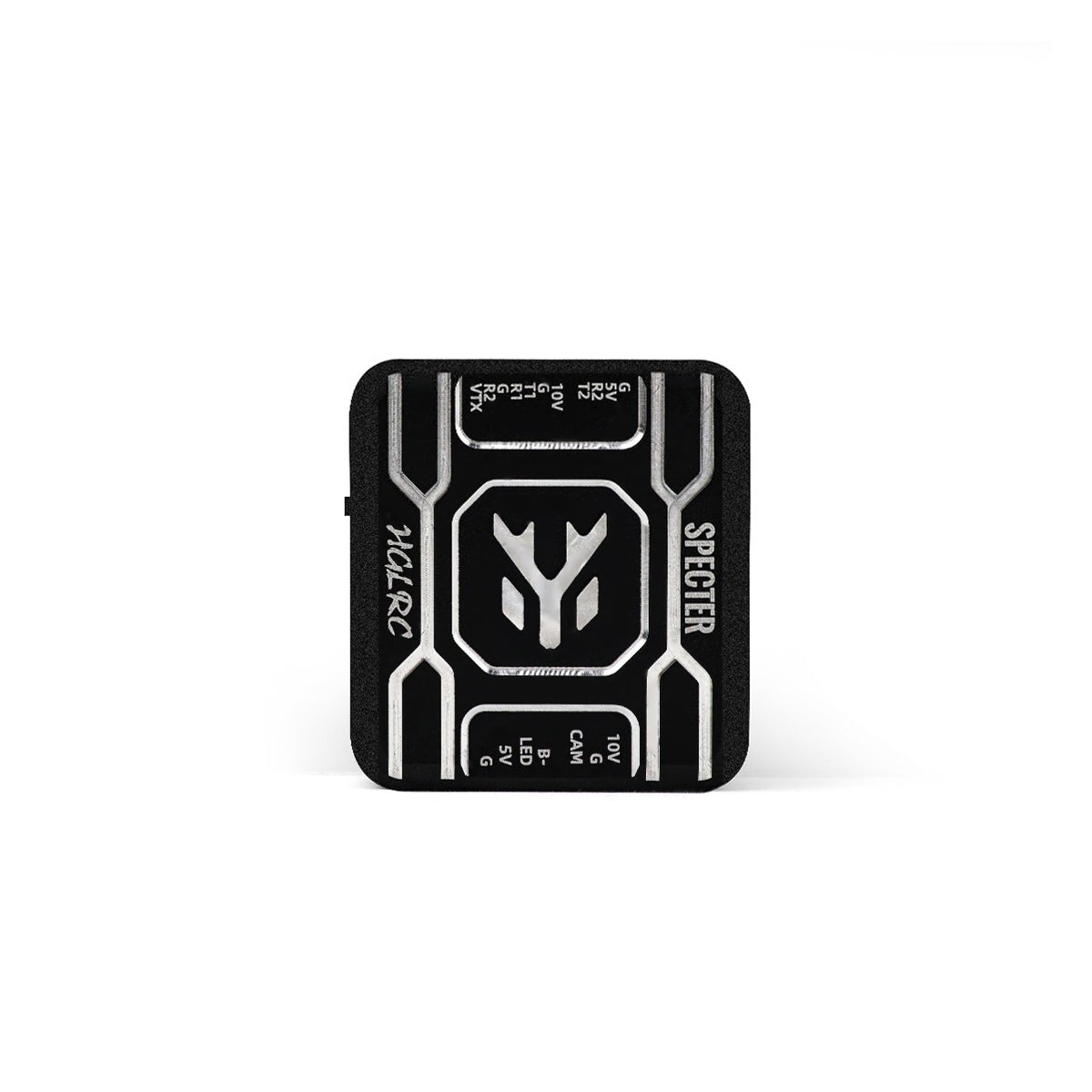

The HGLRC SPECTER F722 mini is an FPV flight controller (FPV FC) built around an STM32F722 MCU with an MPU6000 gyro. It is designed for modular, plug-in wiring and supports DJI HD/VTX and analog VTX connections via included cables. The board also integrates a CNC heat sink shell to help prevent debris ingress, plus nano-scale coating on both sides for waterproof, moisture-proof, and corrosion-proof protection.

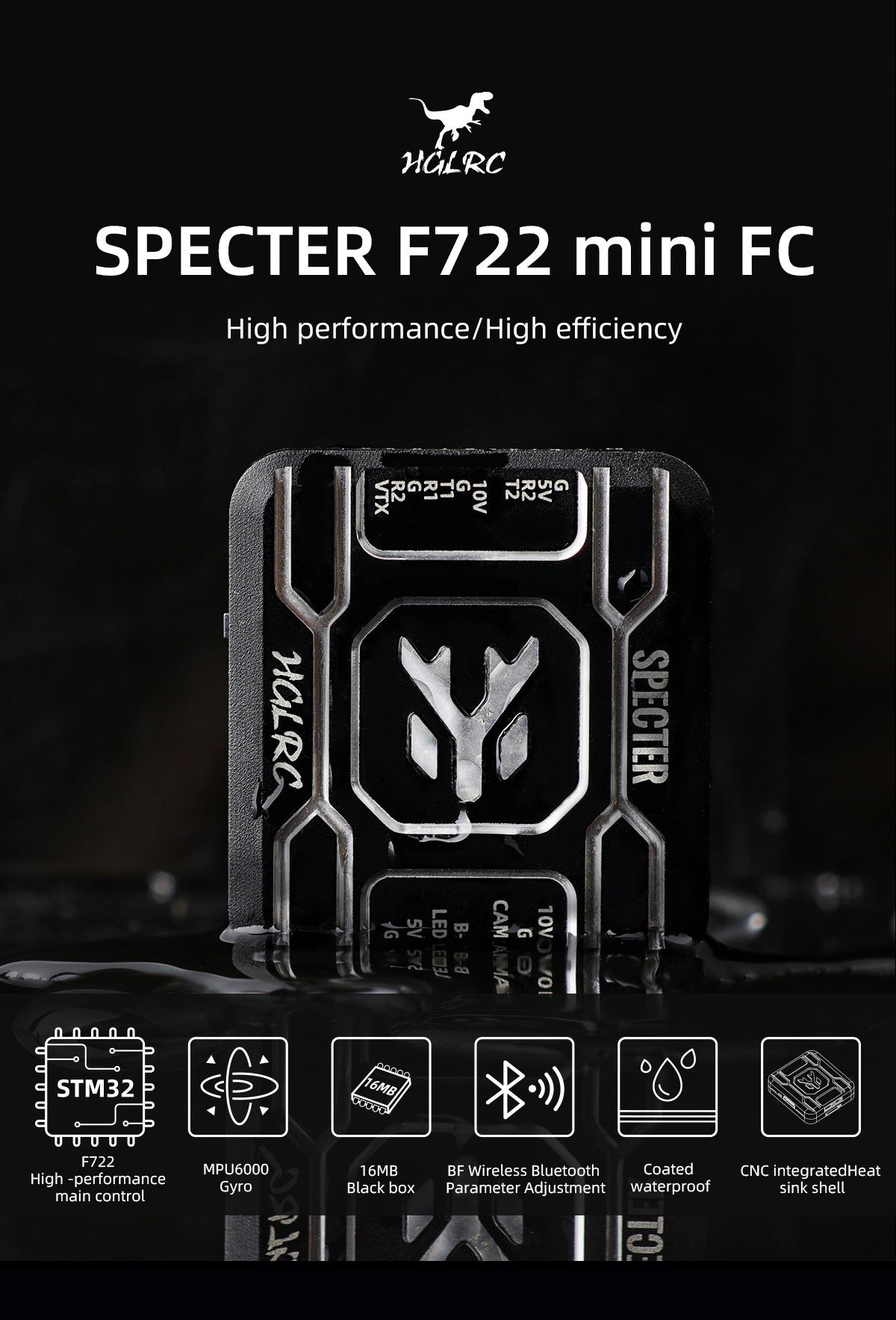

Key Features

• STM32F722 high-performance processor, computing speed up to 216 MHz for smoother control and faster response
• MPU6000 gyro; also reserves ICM42688 gyro pads

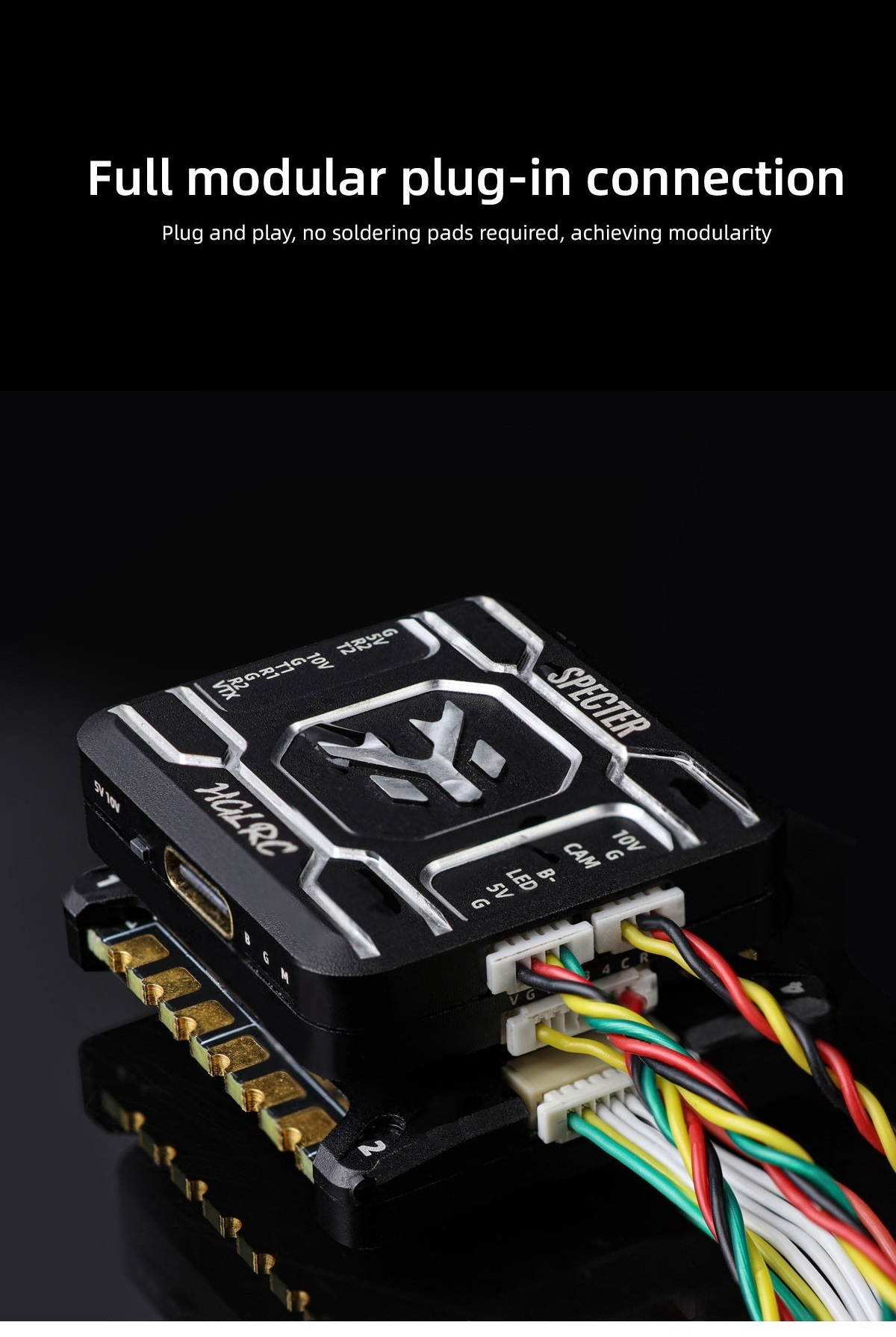

• Full modular plug-in connection: plug and play, no soldering pads required (modular design)

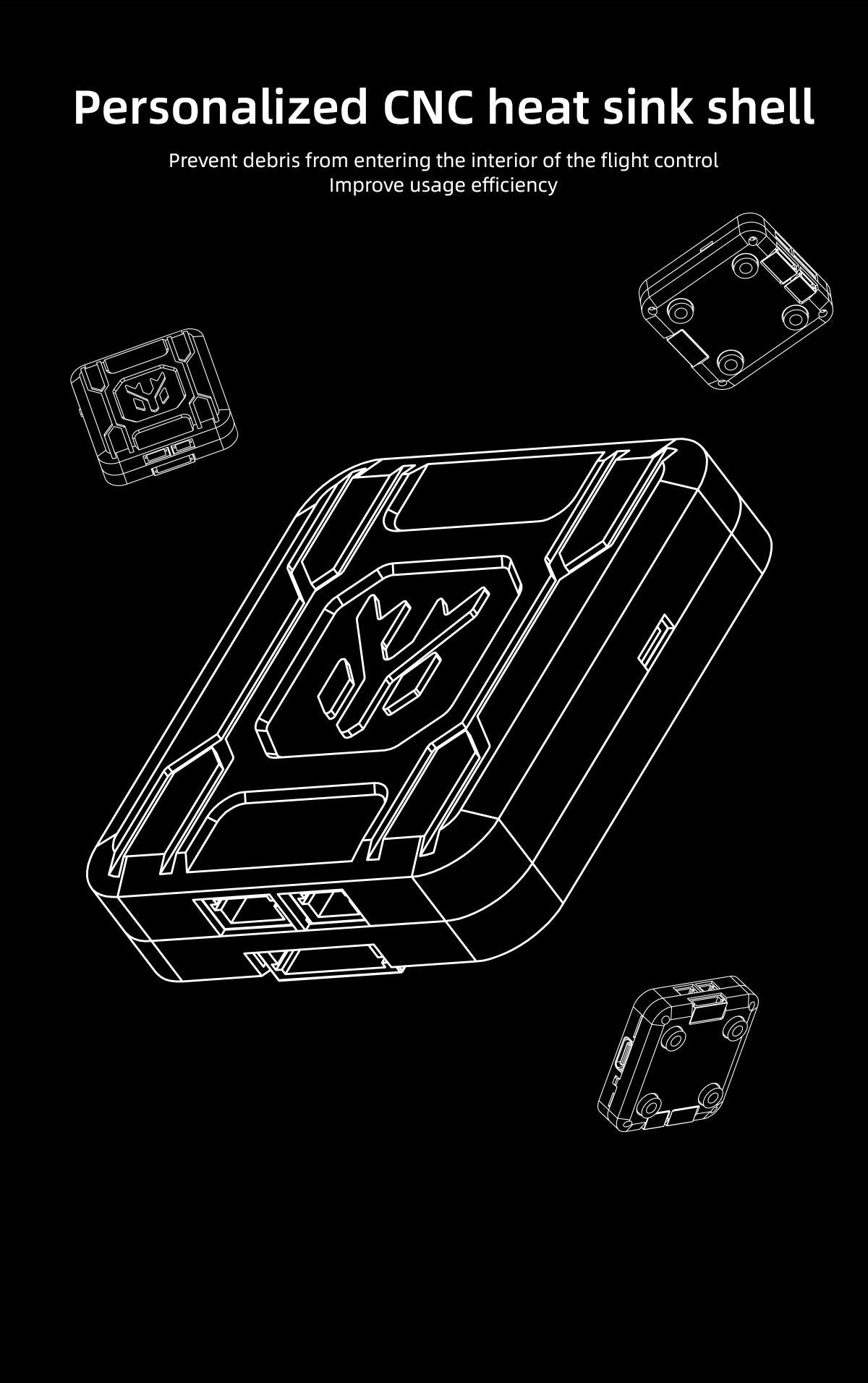

• CNC integrated heat sink shell to help prevent debris entering the flight controller and improve usage efficiency
• 16MB black box for flight data recording
• Integrated Betaflight (BF) wireless Bluetooth parameter adjustment; connect to SpeedyBee APP to adjust serial ports, PID, and other parameters
• 10V electronic switch; on/off mode can be set through BF to help with long-term power-on heating (enabled by default)
• Nano-scale coating on both sides of the board: waterproof, moisture-proof, corrosion-proof

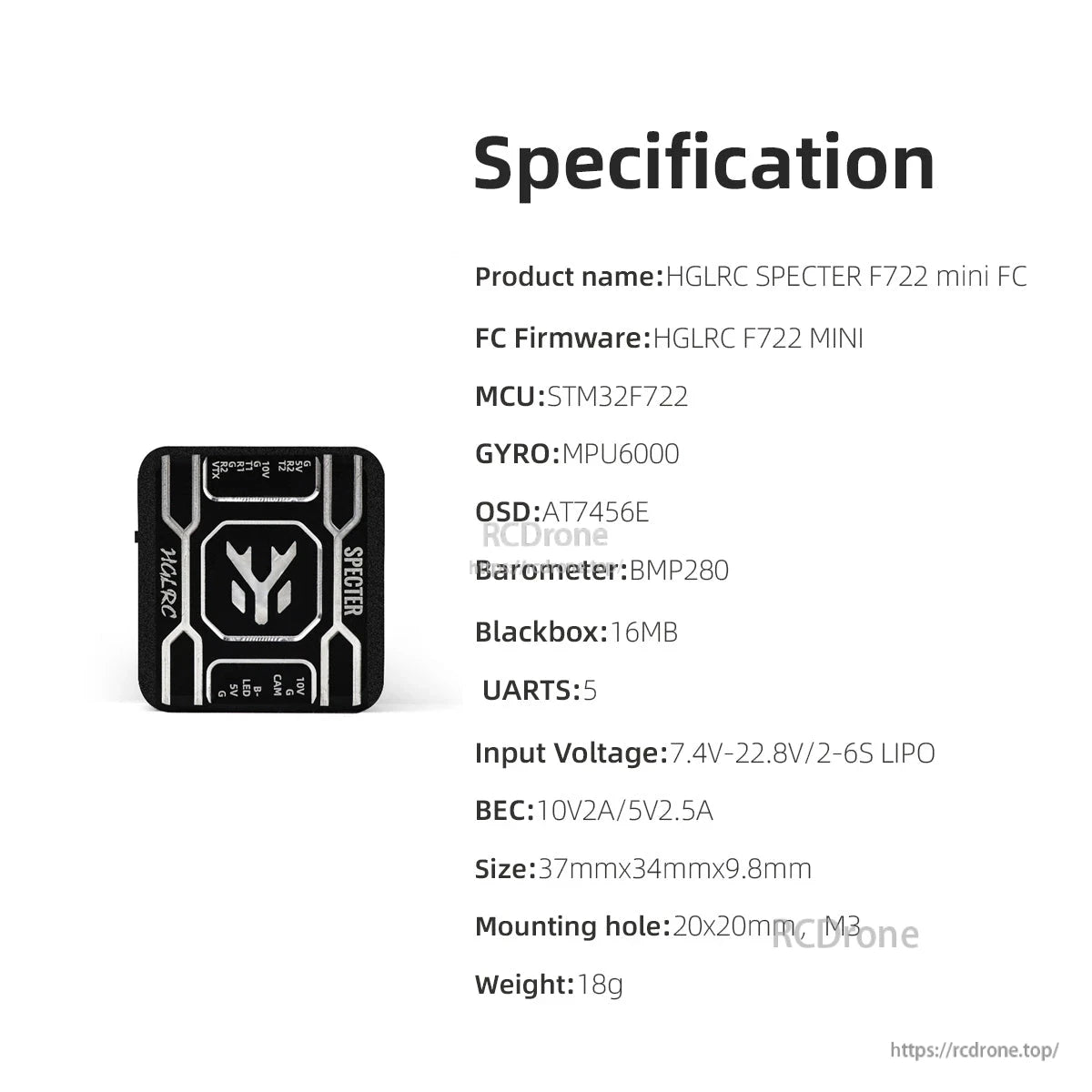

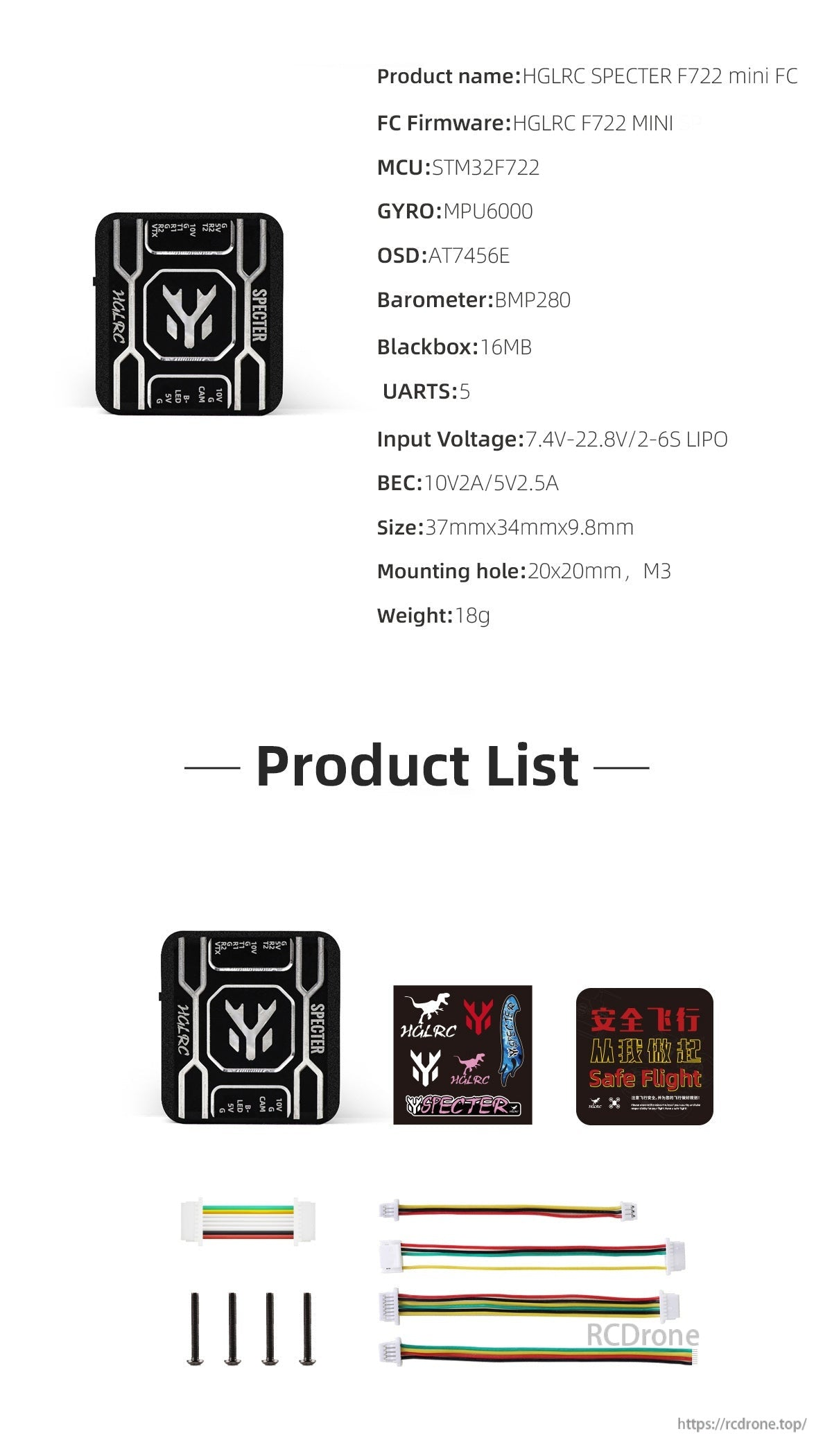

Specifications

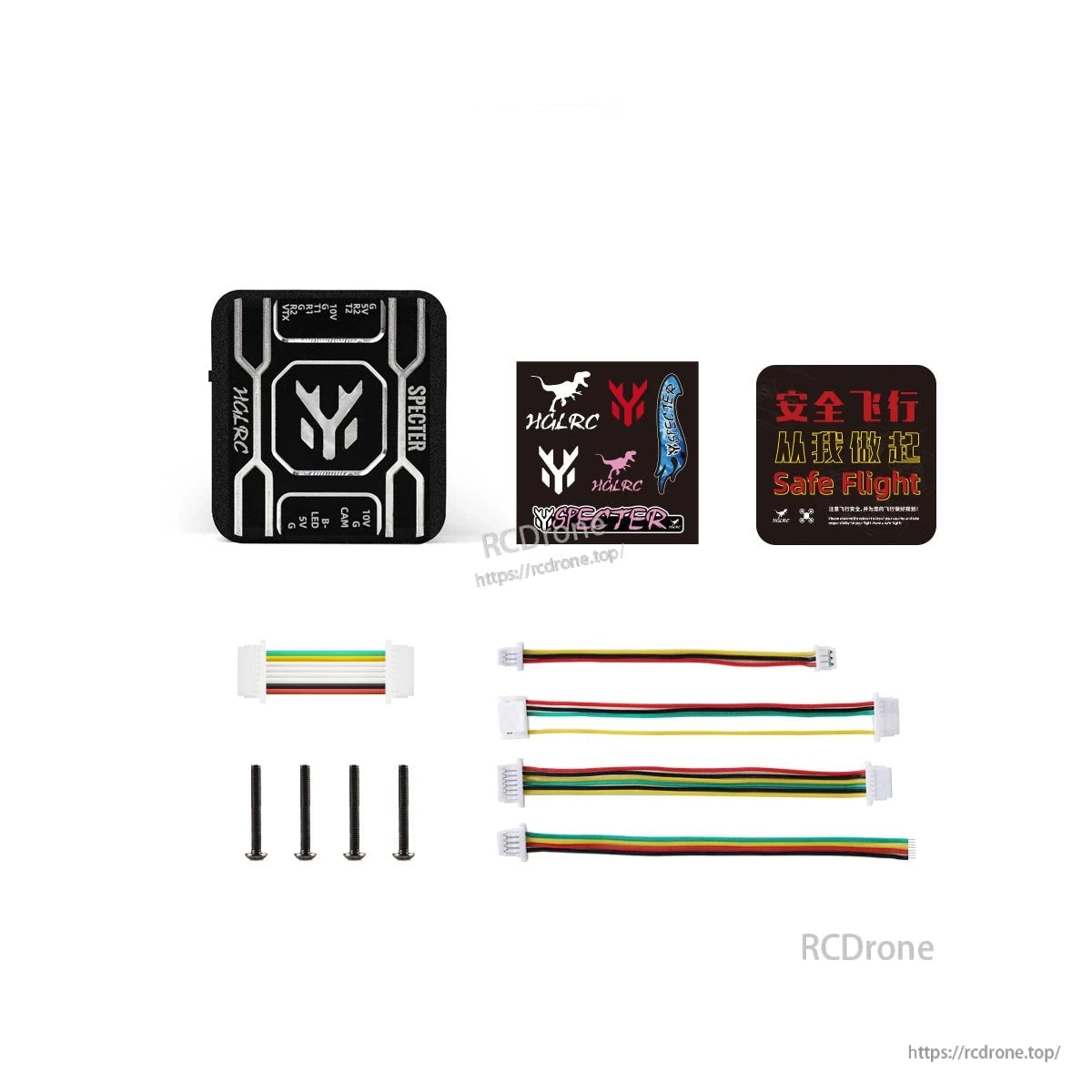

What’s Included

• 1x HGLRC SPECTER F722 mini flight controller
• 1x 30AWG 25mm double-ended SH1.0-8P cable
• 1x 30AWG 70mm single-head SH1.0-7P / single-head SH1.0-6P DJI cable
• 1x 30AWG 70mm single-head SH1.0-7P / single-head GH1.25-6P VTX cable
• 1x 30AWG 60mm single-head SH1.0-3P / single-head 1.25-3P camera cable
• 1x 30AWG 100mm single-head SH1.0-4P receiver cable
• 4x M3*20 hexagon socket screws

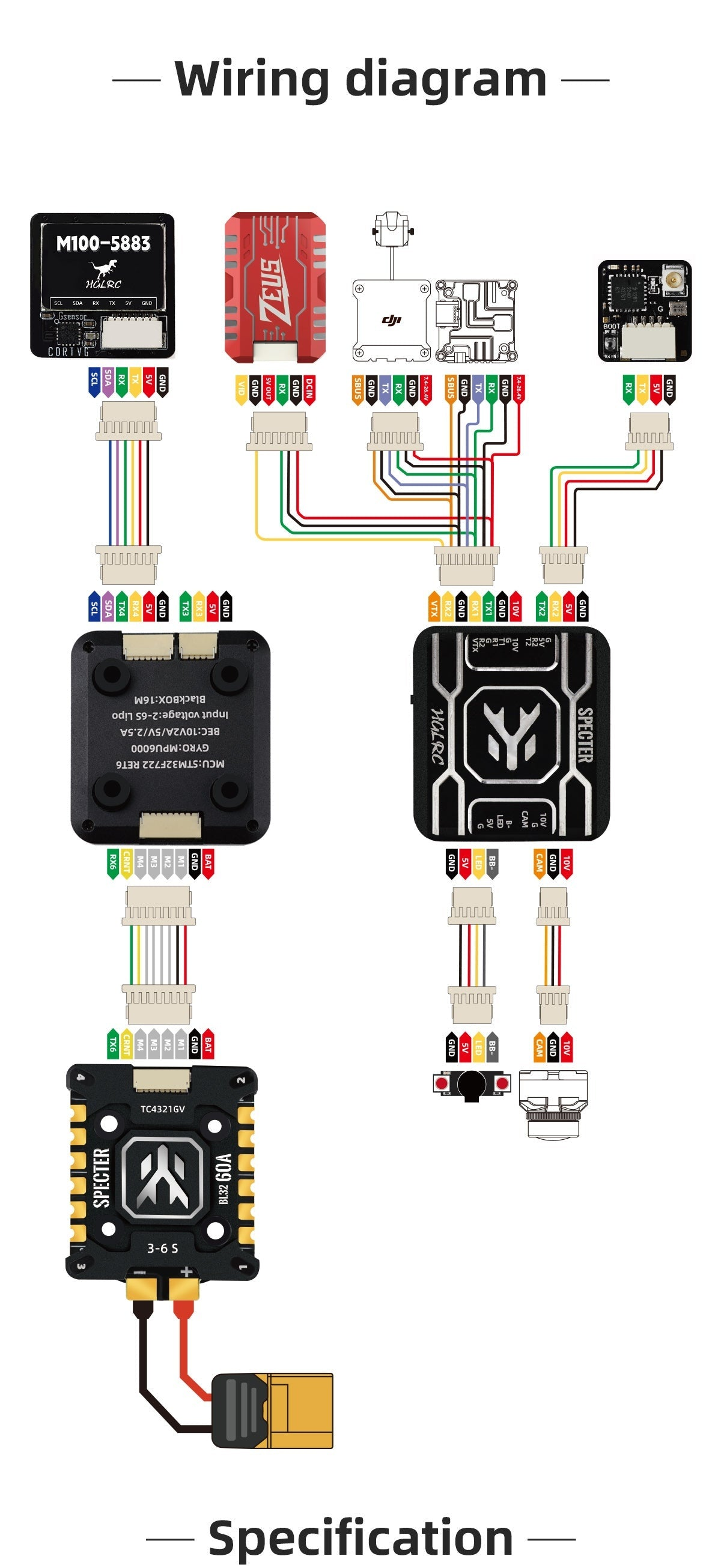

Wiring / Connector Notes (from wiring diagram)

• Example wiring diagram shows connections for modules labeled M100-5883, ZEUS, and DJI.
• M100-5883 signal labels shown: SCL, SDA, RX, TX, 5V, GND.
• ZEUS signal labels shown: VTX, GND, 9V, TX3, RX3, GND, DCIN.

For installation help or pre-sales compatibility questions, contact support at https://rcdrone.top/ or email support@rcdrone.top.

Details

Built around an STM32F722 MCU and MPU6000 gyro, the SPECTER F722 mini focuses on fast response, clean wiring, and durable protection.

The STM32F722 processor (up to 216MHz) helps deliver smoother control and quicker stick response for racing and freestyle builds.

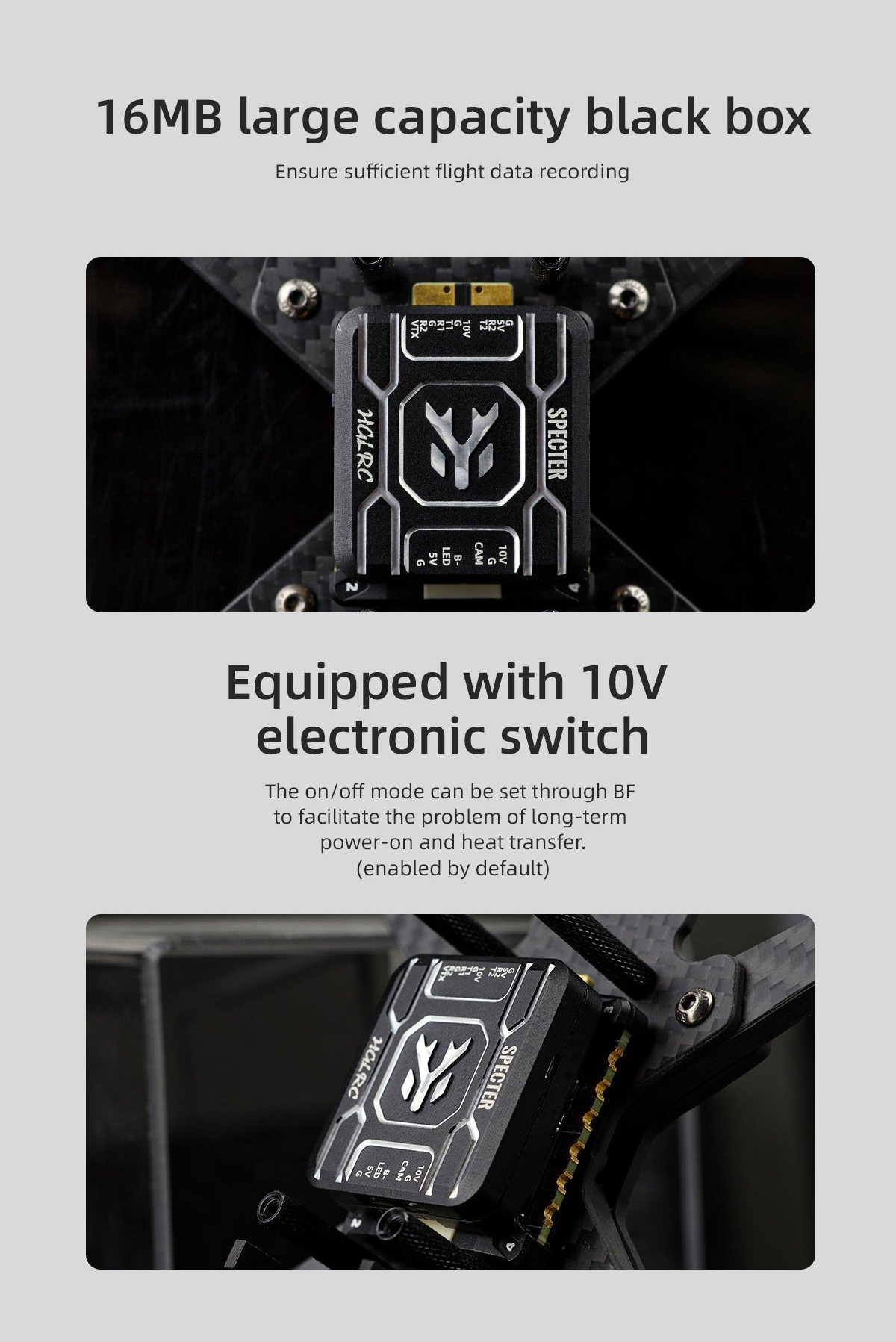

Onboard 16MB blackbox logging and a configurable 10V electronic switch support tuning, troubleshooting, and managed power to peripherals.

A CNC integrated heat-sink shell adds physical protection and helps reduce debris getting into the flight controller stack.

Nano-scale coating on both sides improves moisture and corrosion resistance, while BF wireless Bluetooth lets you adjust settings in the SpeedyBee app.

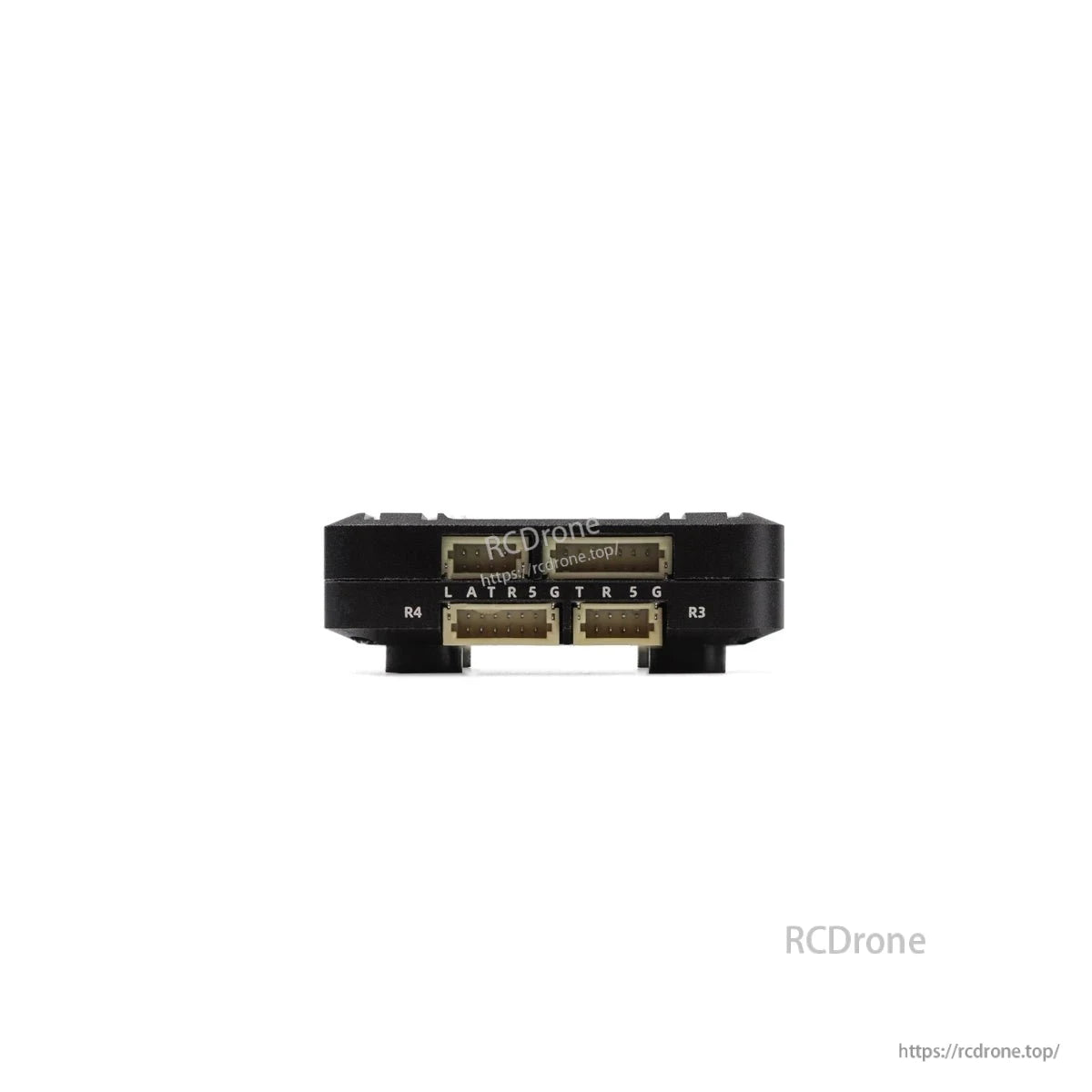

Modular plug-in ports keep builds tidy and make it easy to connect DJI/analog VTX, camera, and receiver cables without soldering pads.
