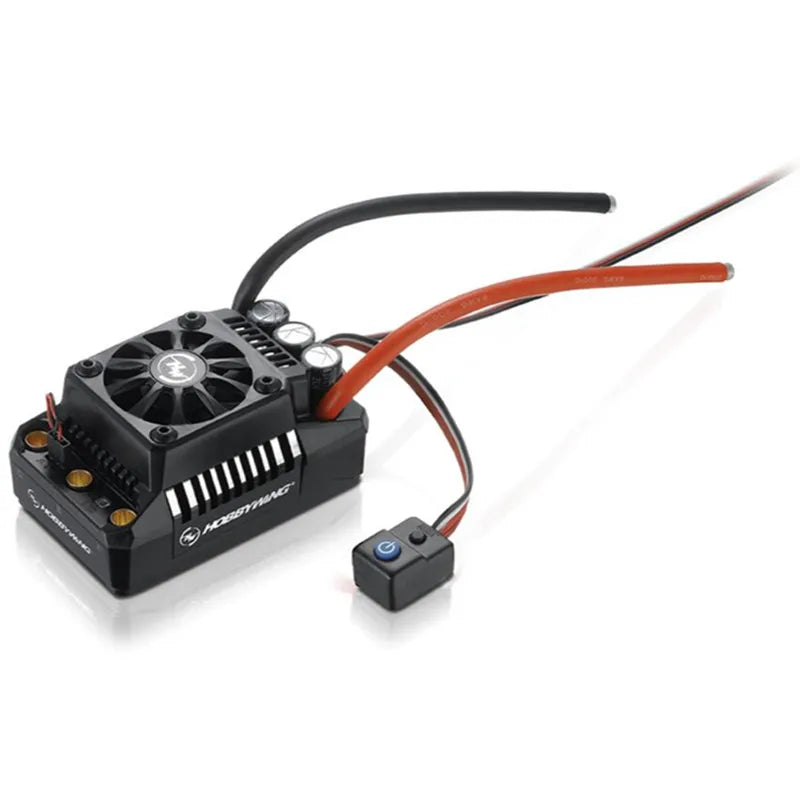

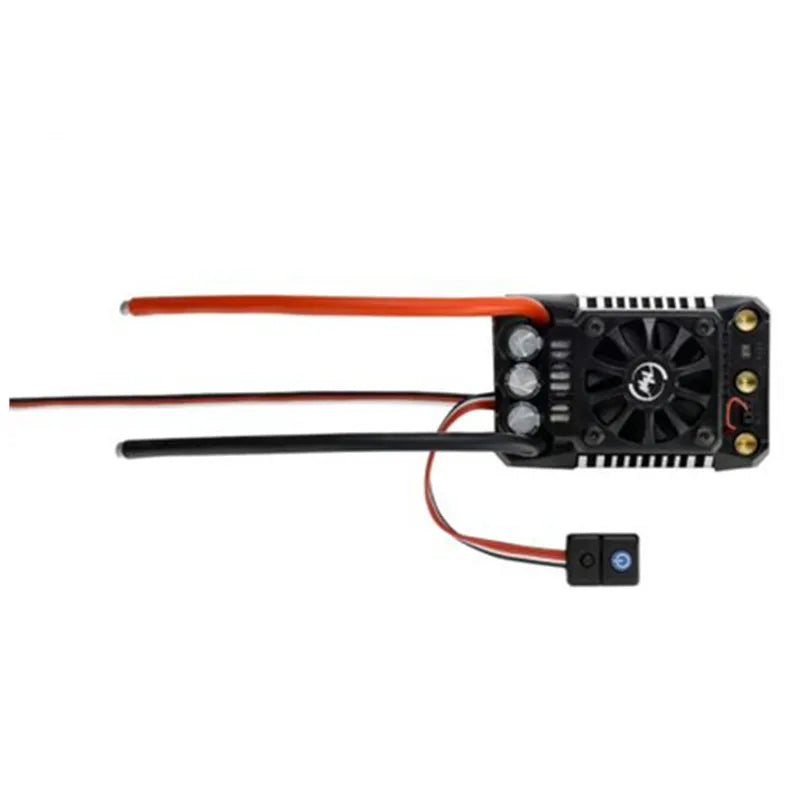

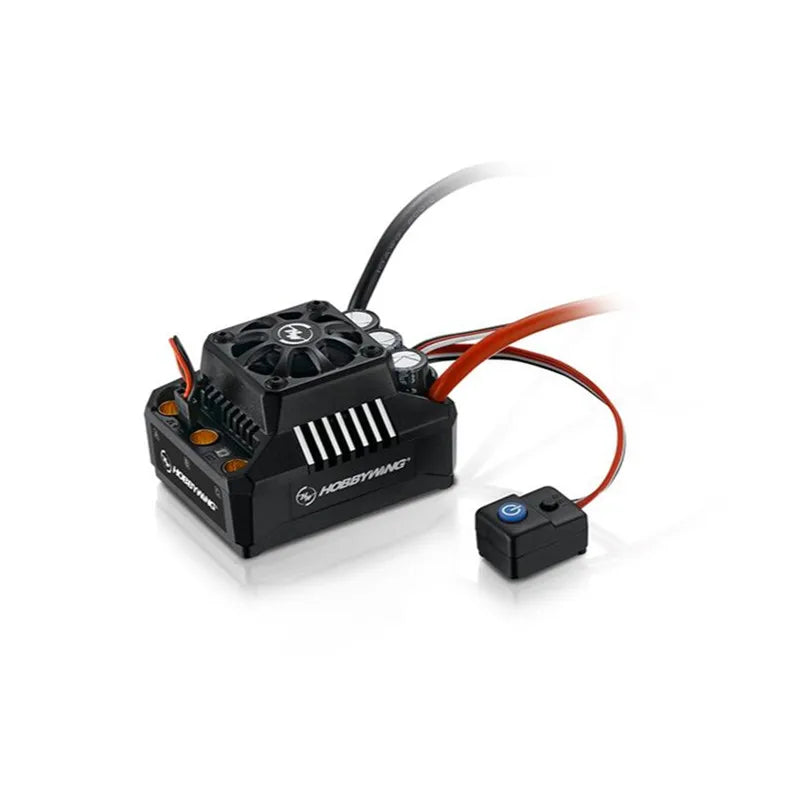

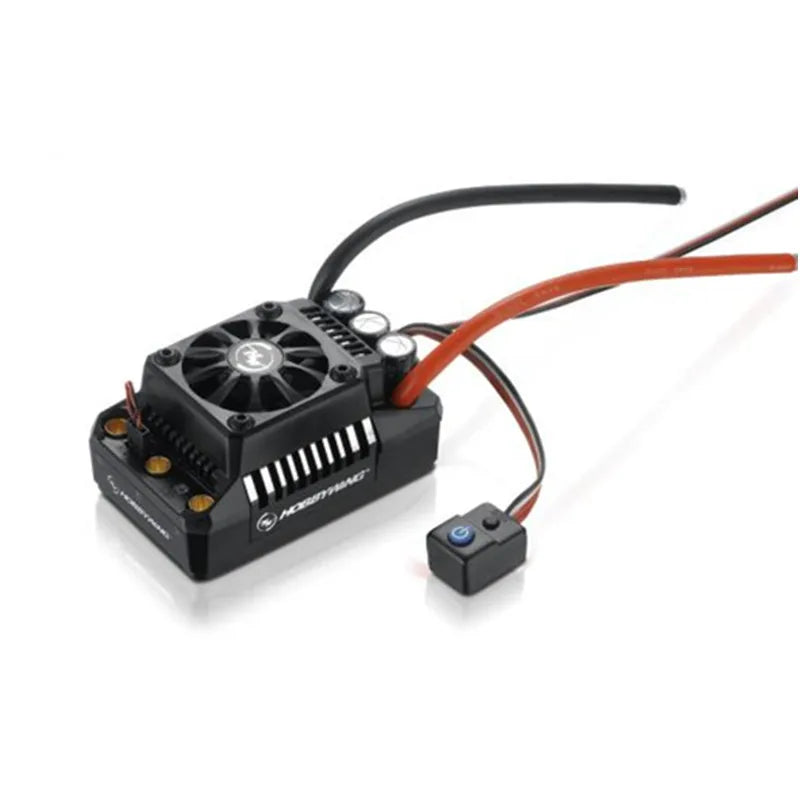

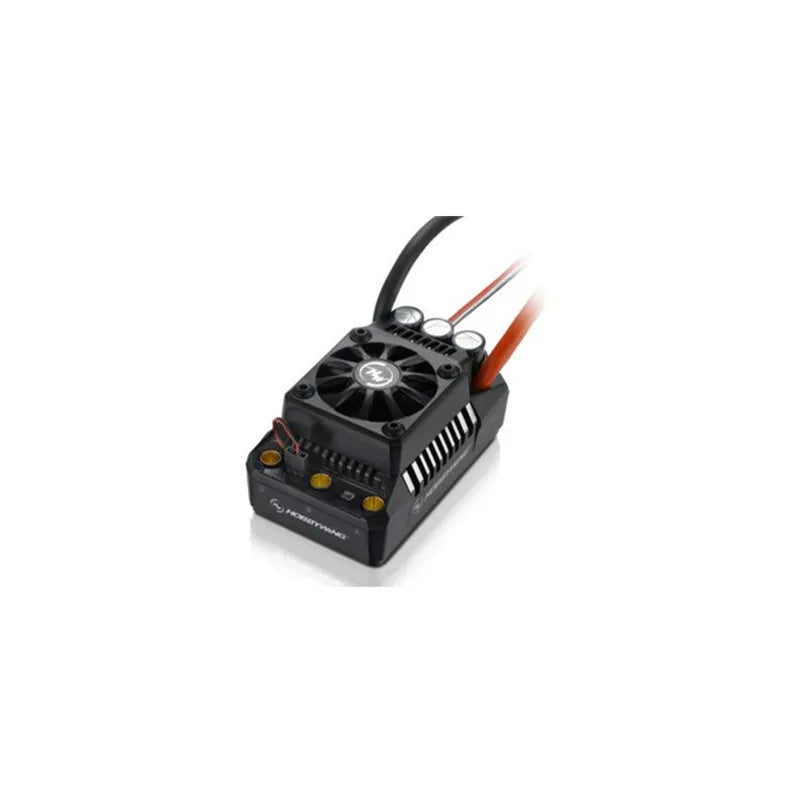

Hobbywing EzRun Max6 V3/ Max5 V3/MAX10 SCT 160A / 200A /120A Speed Controller Waterproof Brushless ESC for 1/6 1/5 RC Car

1) extremely sophisticated materials, combined with overcurrent protection and patented capacitive temperature real-time monitoring and protection features to ensure power transfer ultra-high reliability and durability;





2) extremely strong power output, firmness and flexibility, and acting freely;



3) Excellent waterproof and dustproof performance, all-weather road running.



4) the industry's first built-in maximum output current up to 25A, the output voltage can be switched (6V / 7.2V) Super BEC, easy to drive high torque servos, so that control more arbitrary;



5) advanced electronic switch, the service life of up to 50,000 times, to avoid the traditional mechanical switches rust and malfunction;



6) Built-in ignition circuit, when using a higher voltage (5-8S) effective protection of the battery free of spark plug erosion;



7) broad applicability. MAX6 ESC can be used for a variety of 1 / 6th of models and 1 / 7th (such as the Traxxas XO-1) and other ultra-high-speed racing car, but also for heavy load 1 / 8th vehicles (such as CEN GST-E), is a high-end violent ideal configuration of power; MAX5 power transfer for the HPI BAJA, Losi 5IVE  1 / 5th vehicles CEN Matrix5 to provide the best power (ESC) upgrade program.



8) ESC firmware can be updated online, always enjoy the latest features;



9) minimal routine maintenance work, in addition to the fan, the basic maintenance of the product.

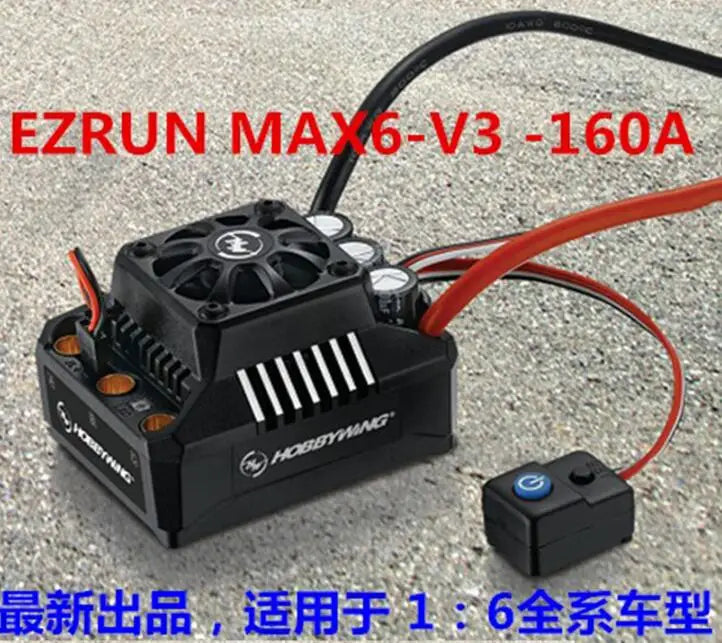

MAX6-V3 -160A ( Not include Battery  Plug)



Specification :



1. for 1/6 RC Car   Truck





2.suit for Motor KV : 6S Lipo 5892 size Motor ,KV ≤ 1500 ; 8S Lipo 5892 Size Motor ,KV ≤ 1200

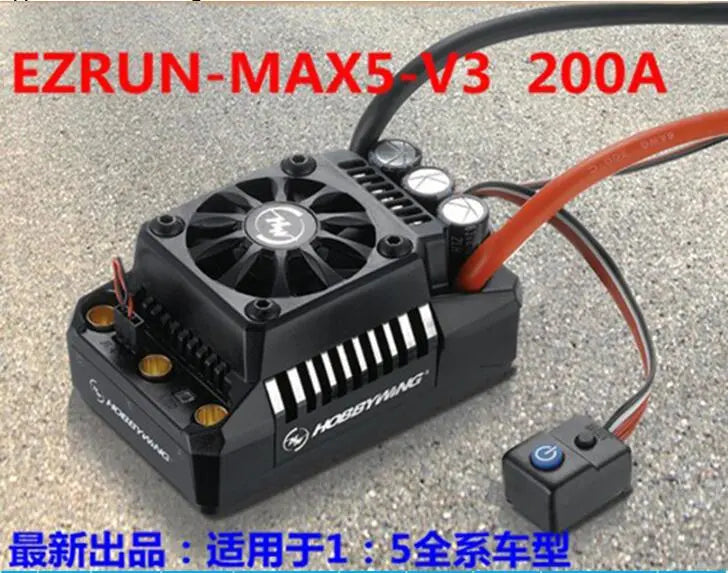

MAX 5A- V3  200A

Specification :

Continuous / peak current ; 200A / 1300A

Brushless motor types :  without a sense of support / Thoughts brushless motor (work only in non-inductive mode)

Support the number of cells : 9-24 Cells NiMH, 3-8S Lipo

Adaptation of the motor  KV :  8S: 58110 Motor Size KV≤1000

BEC output :  6V / 7.2V adjustable, 6A

Parameter setting fan connector port

Size : (93.35 * 58.12 * 47.81mm)

Weight : 342g

Programmatically Set button, LED settings box, LCD programming box

Programmable item 11

Switch type  : electronic switch

Capacitance over temperature protection support

Applicable models : high-end entertainment models 1/5

Cont./Peak Current: 120A/830A
Motor Type: Sensored/Sensorless Brushless Motor
Applications: 1/10th Touring Car, Buggy, Truggy and Monster Truck
LiPo/NiMH Cells: 2-4S LiPo/6-12S NiMH
BEC Output: 6V/7.4V Switchable, Continuous Current of 4A (Switch-mode)
Cooling Fan: Powered by the stable BEC voltage of 6V/7.4V
Size/Weight: 49 x 39.5 x 34.7mm/105g
Programming Port: FAN/PRG Port
Motor Limit:
Brushless Motor Limit with 2S LiPo / 6 Cell NiMH: KV less than or equal to 6000 (3656 size motor)
Brushless Motor Limit with 3S LiPo / 9 Cell NiMH: KV less than or equal to 4000 (3656 size motor)
Brushless Motor Limit with 45 LiPo / 12 Cell NiMH: KV less than or equal to 3000 (3656 size motor)
Connectors:
Input End: No Connectors
Output End: 4.0mm Female Gold Connectors (pre-soldered onto the PCB of the ESC)
