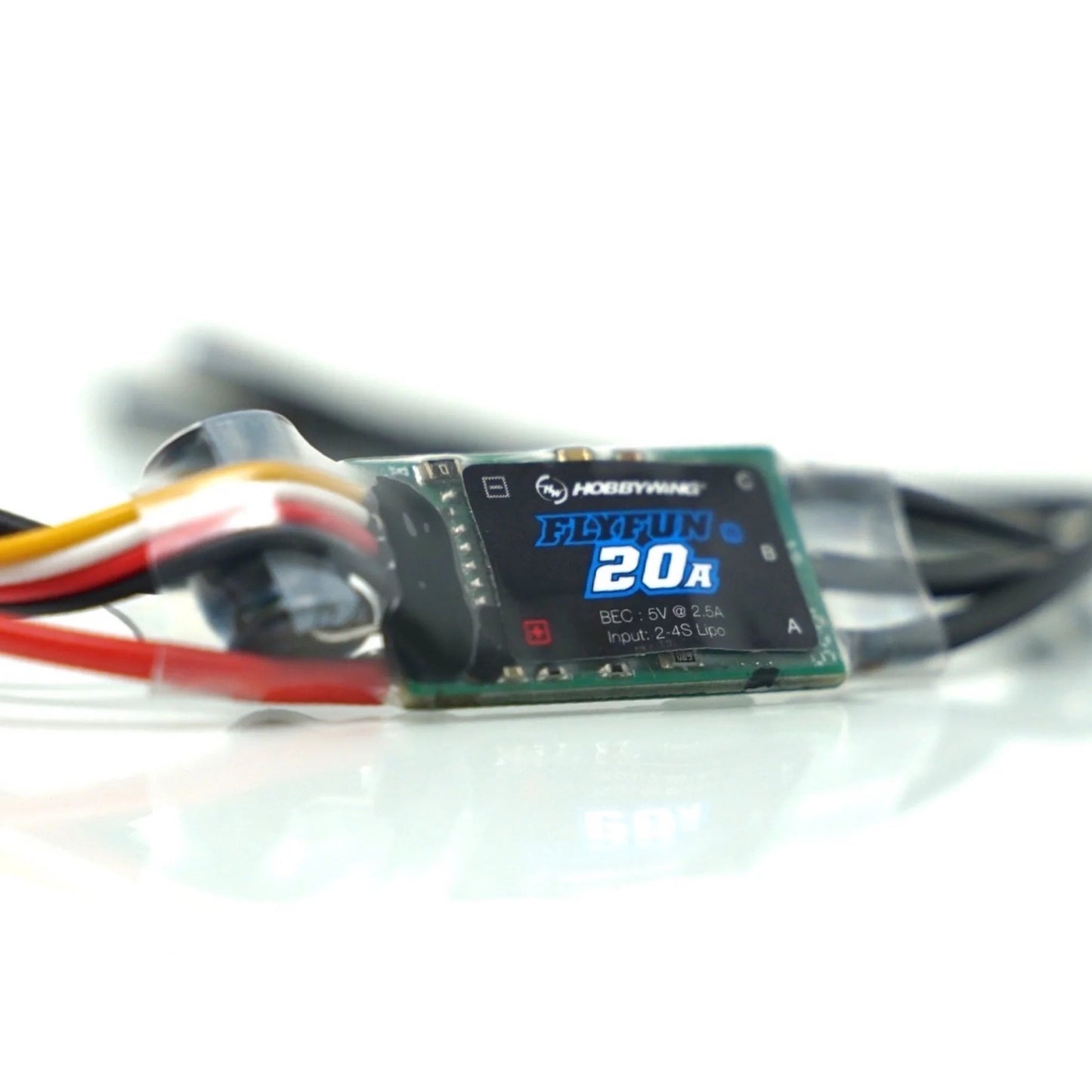

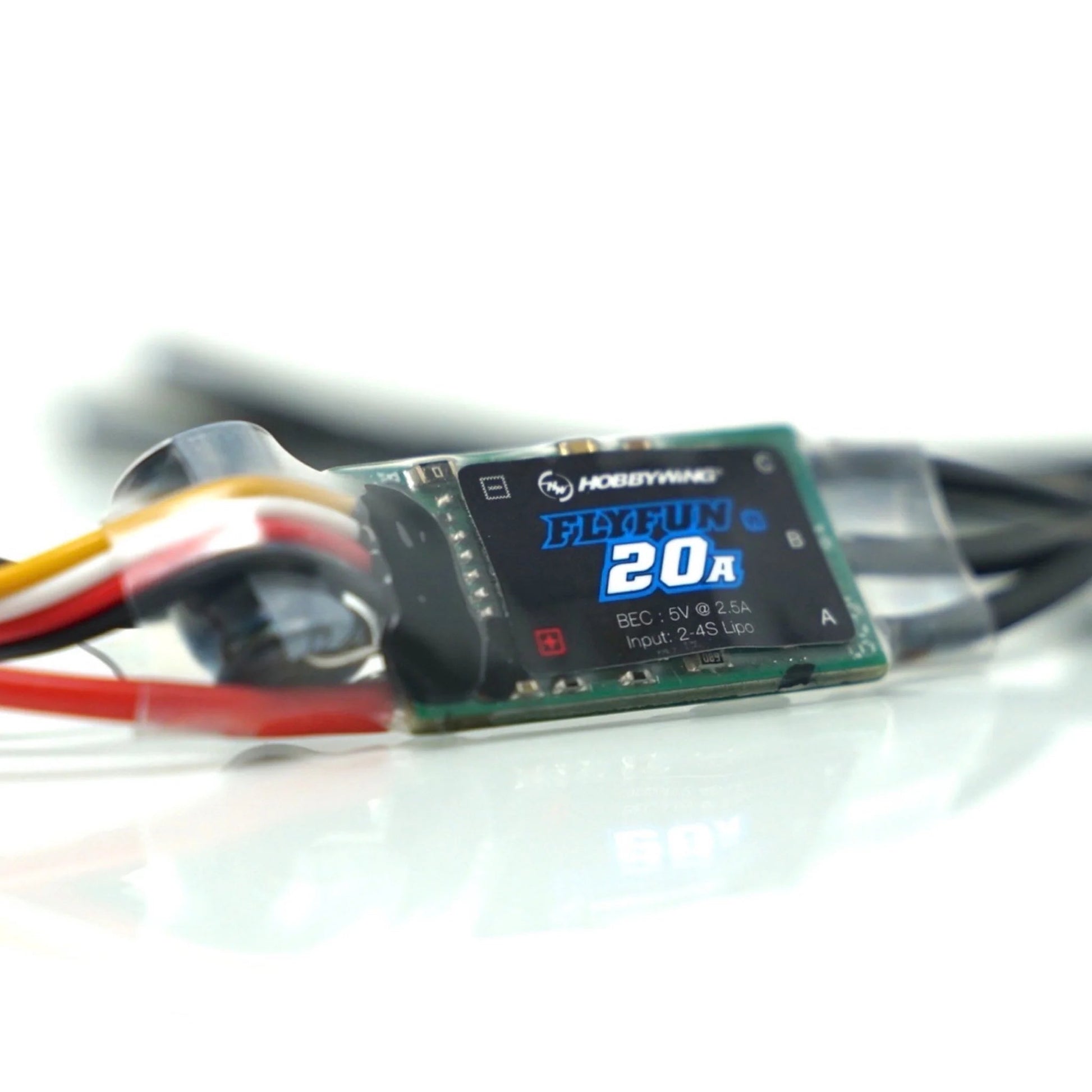

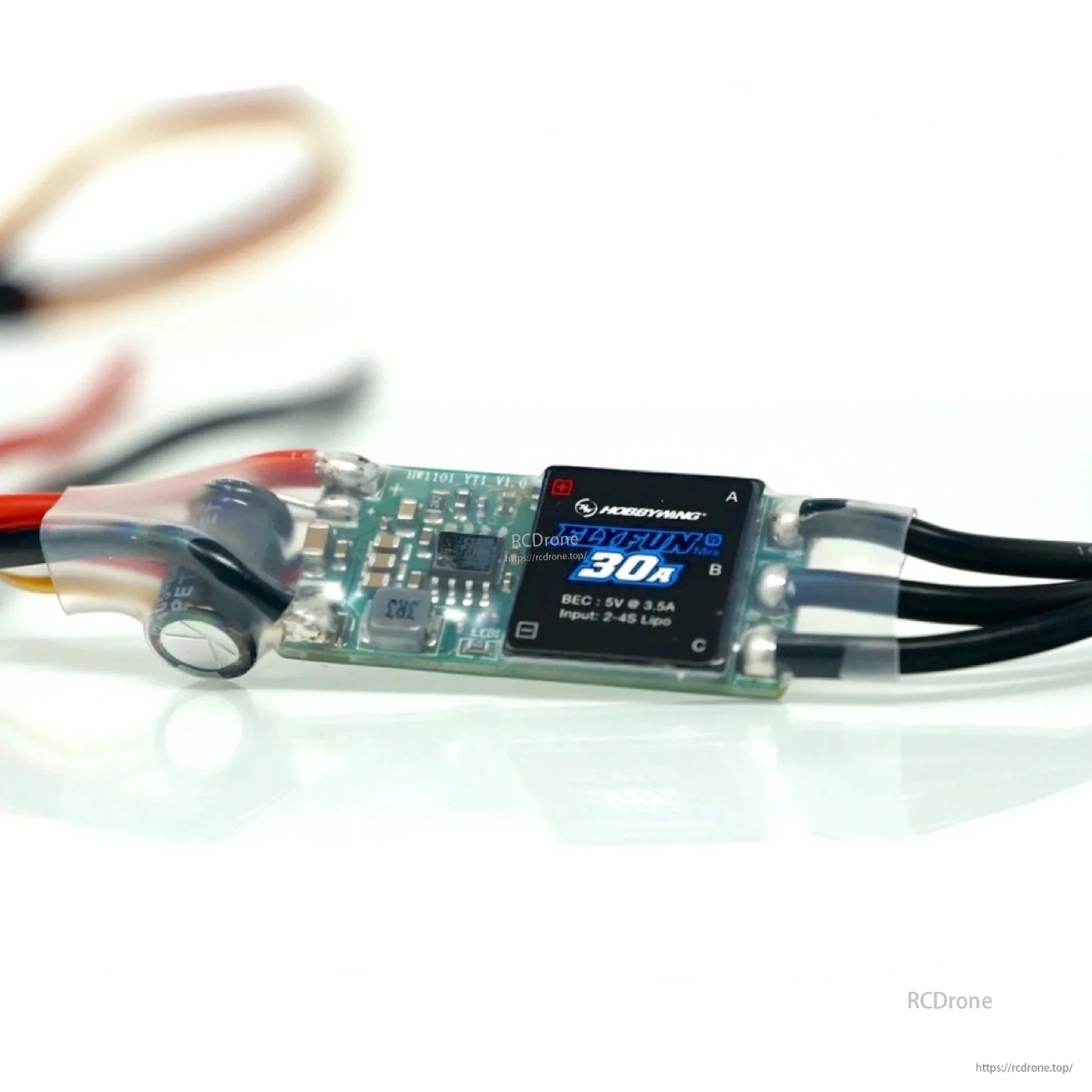

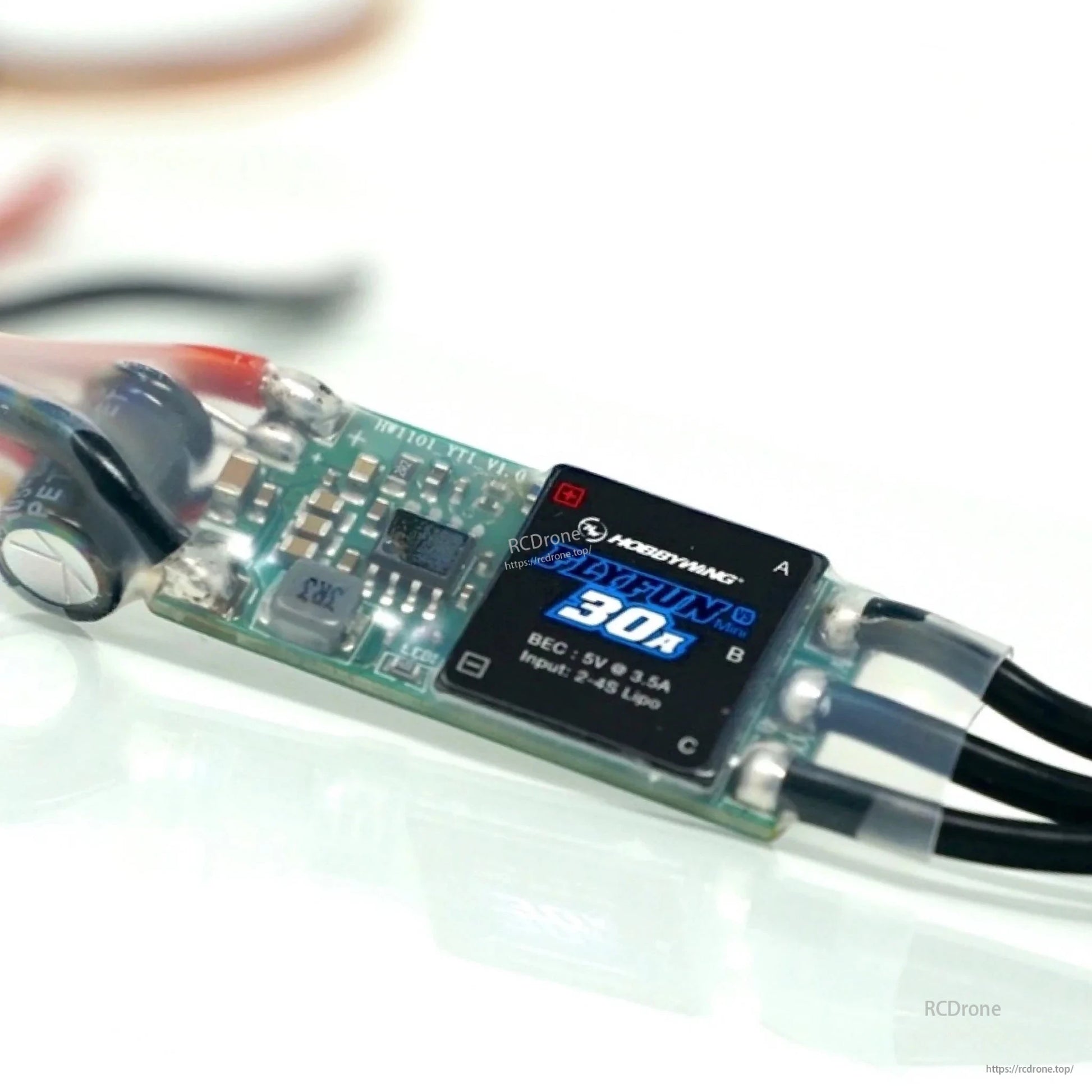

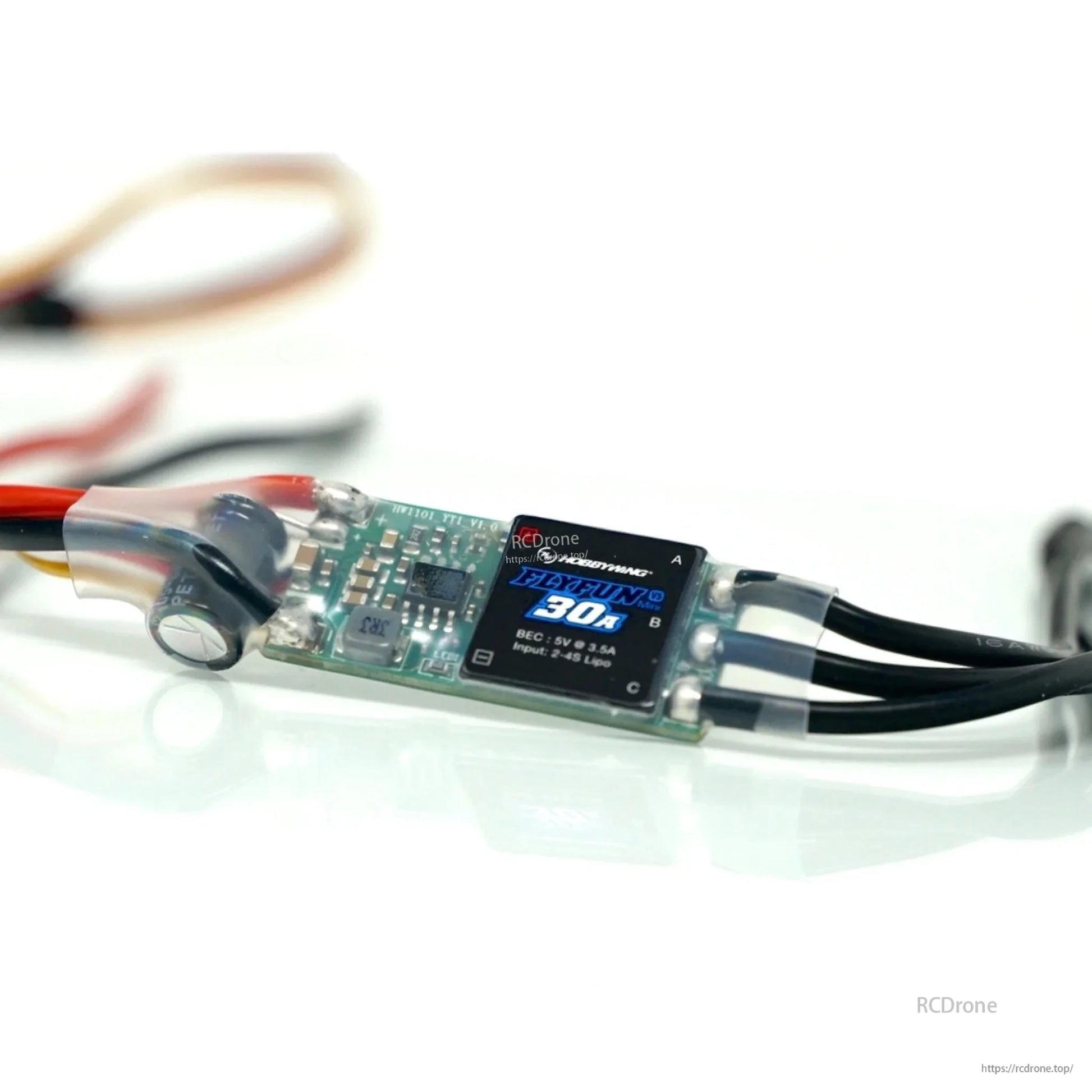

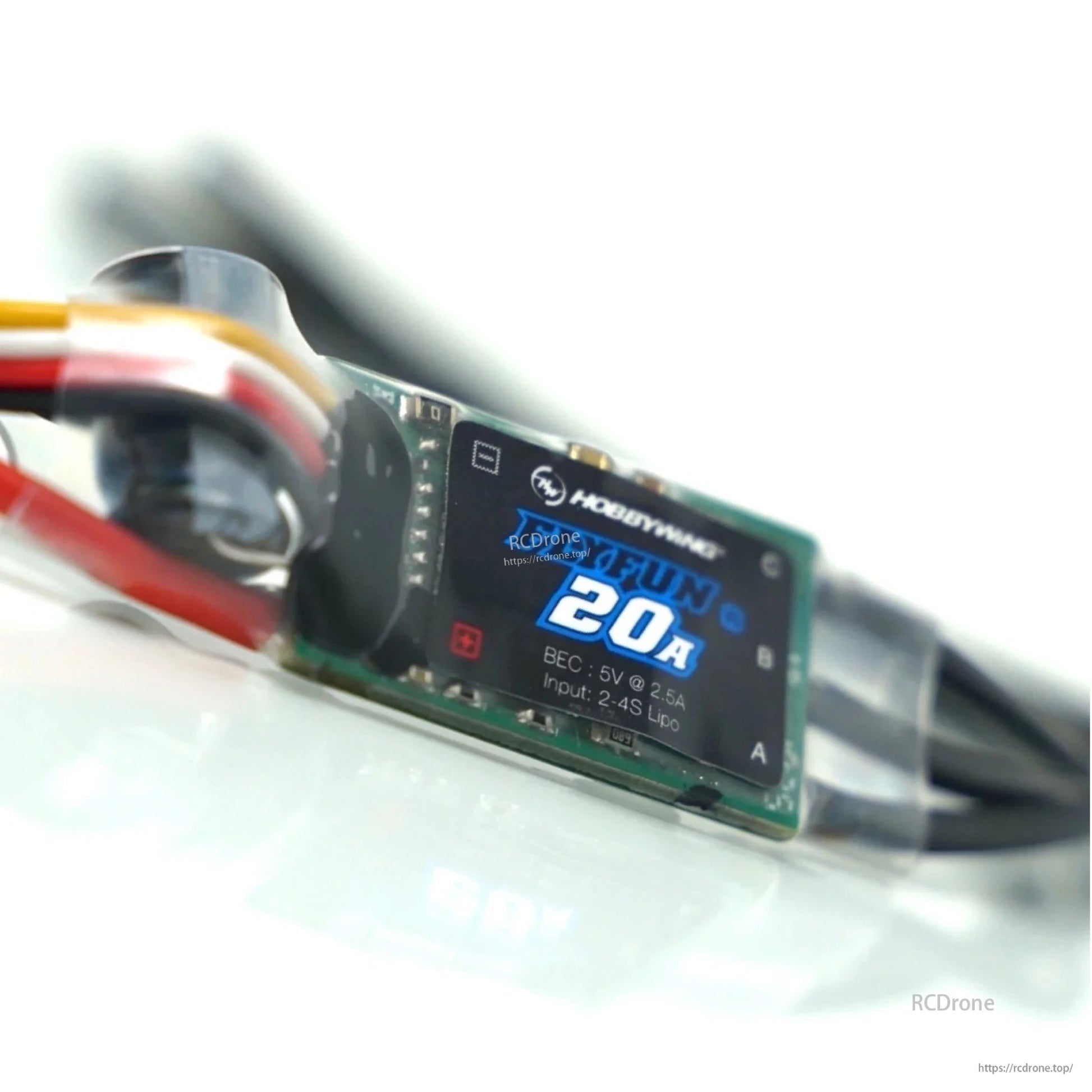

Hobbywing FlyFun V5 ESC 20A/30A Mini (2-4S LiPo) 5.2V BEC 32-bit ARM M4 for Brushless Motors Airplanes

Overview

The Hobbywing FlyFun V5 ESC is an electronic speed controller (ESC) for brushless motors, rated 20A continuous and 30A peak, and designed for 2-4s LiPo input. It uses a 32-bit ARM M4 microprocessor with a running frequency up to 72MHz and supports transmitter programming and Hobbywing LED Program Box programming.

Key Features

• High-performance 32-bit ARM M4 microprocessor (up to 72MHz) for compatibility with various brushless motors.
• Separate DC regulator power supply for the microprocessor to improve anti-interference performance and reduce the risk of signal loss.
• DEO (Driving Efficiency Optimization) Technology to improve throttle response and driving efficiency, and reduce ESC temperature.
• Built-in high-power BEC with 5.2V output; the BEC module is separate from other ESC circuits to help maintain BEC output if other circuits fail.
• Normal/Soft/Very Soft start-up modes (select “Very Soft Start-up” mode when using EDF jet airplanes).
• Separate programming cable connection for use with a Hobbywing LED Program Box (supported).
• Brake modes: Normal/Proportional (to help shorten landing distance).
• Protection features: start-up, ESC thermal, capacitor thermal, over-current, over-load, abnormal input voltage, throttle signal loss.

For customer service, contact support@rcdrone.top or visit https://rcdrone.top/.

Specifications

Programming

• Transmitter: Supported
• LED Program Card: Not Supported
• LED Program Box: Supported
• LCD Program Box: Not Supported
• WiFi Module: Not Supported

Applications

• Regular propeller airplanes
• EDF jet airplanes (use “Very Soft Start-up” mode)

Manuals

User Manual (PDF) - Flyfun V5 ESC
