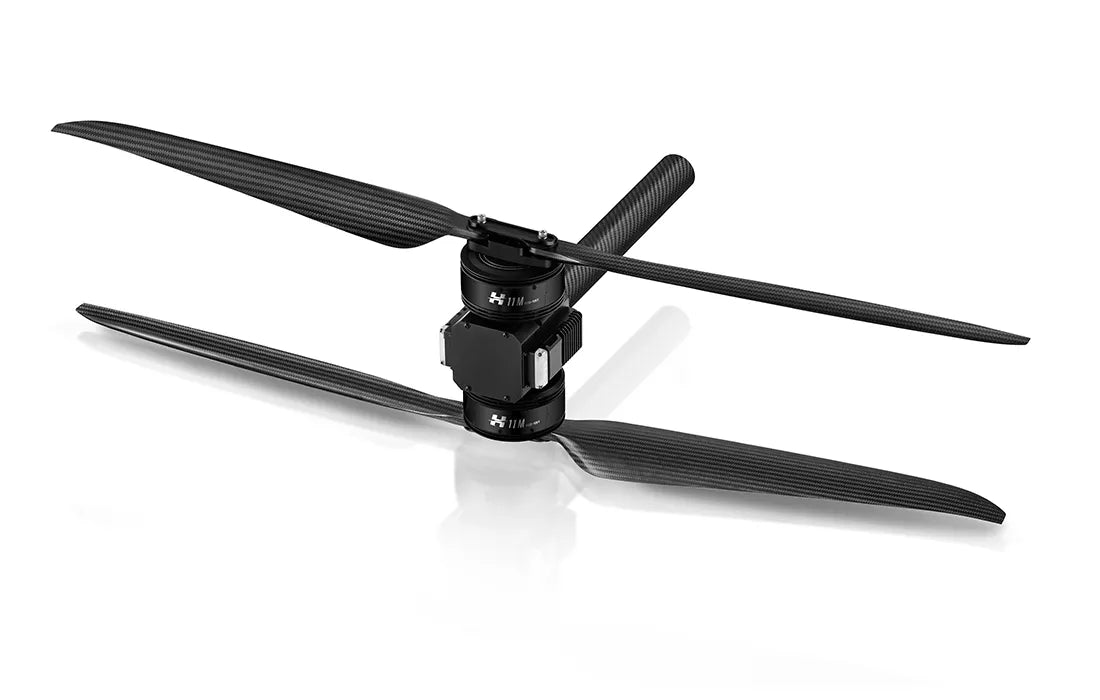

  • Hobbywing H11M Coaxial Motor, A black drone with four propellers and a central body marked "H11M" is showcased.

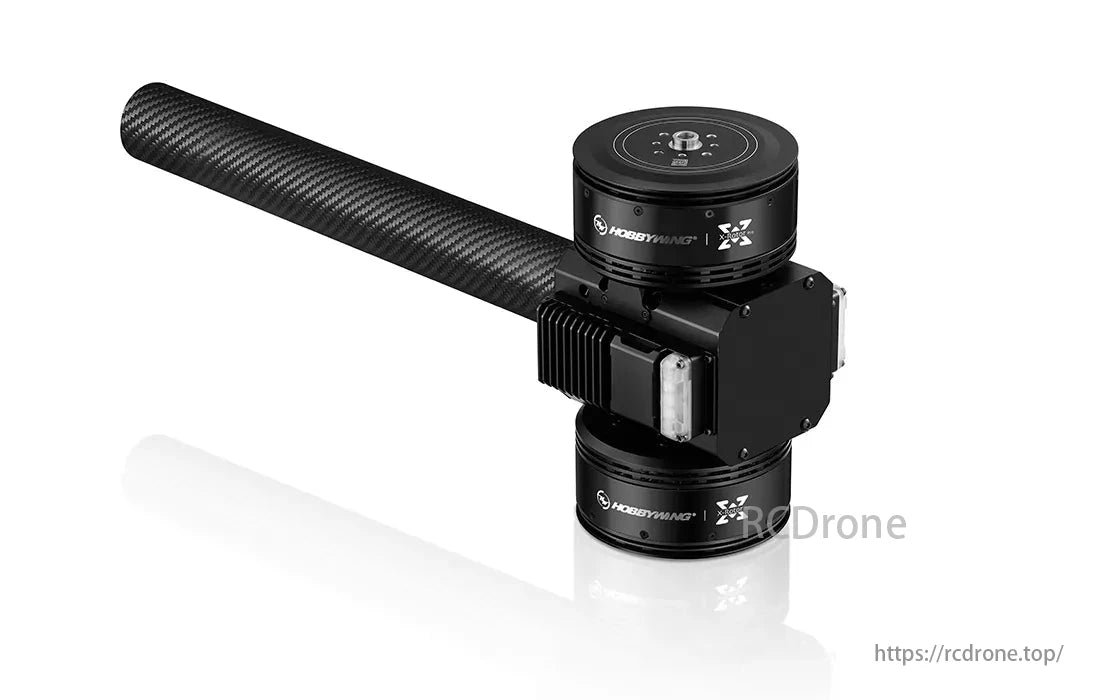

  • Hobbywing H11M Coaxial Motor, The "H 11M" motor is a black, compact, carbon fiber shaft-mounted unit with cooling fins for efficient performance.

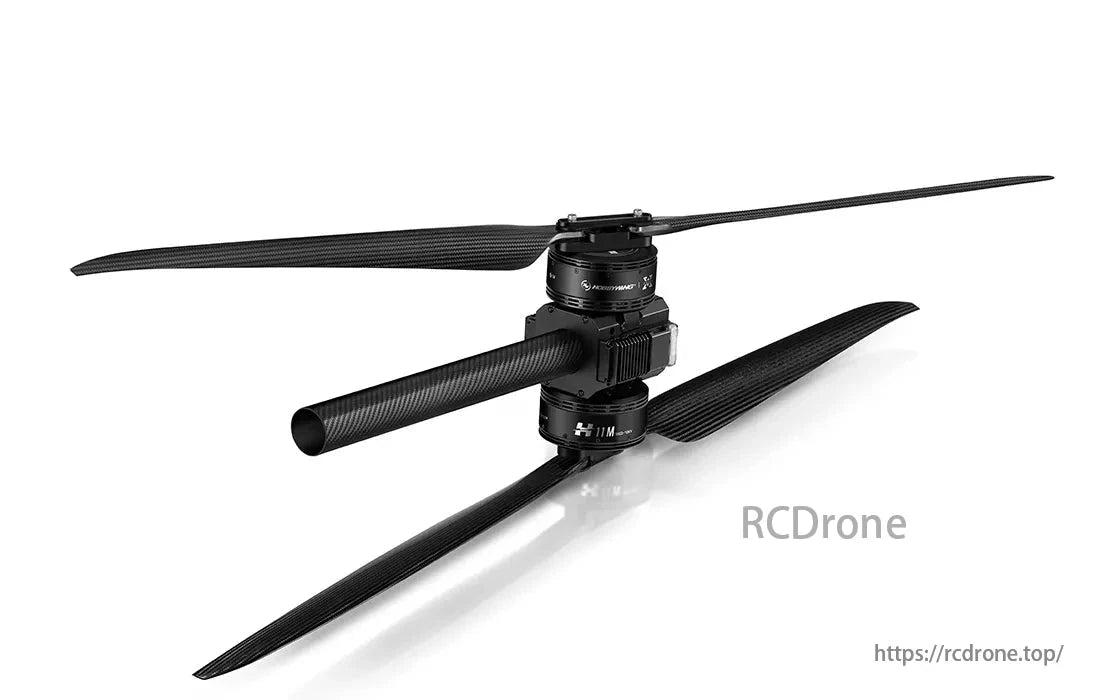

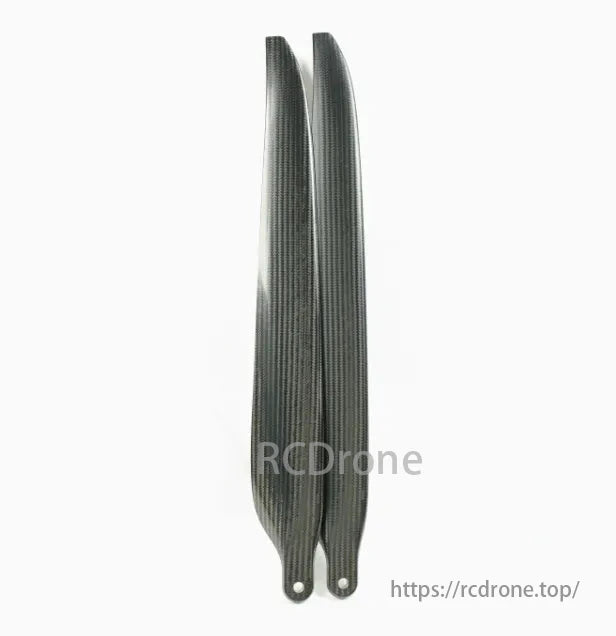

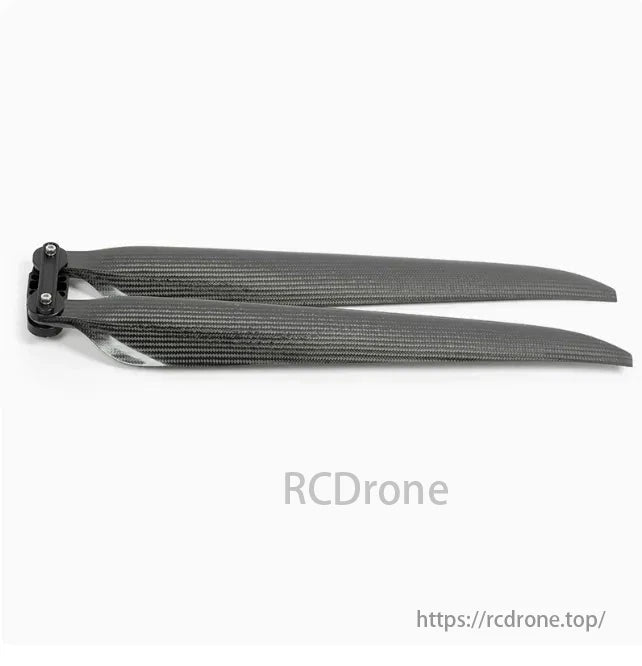

  • Hobbywing H11M Coaxial Motor, A black carbon fiber propeller is attached to a Hobbywing motor for high-performance drones.

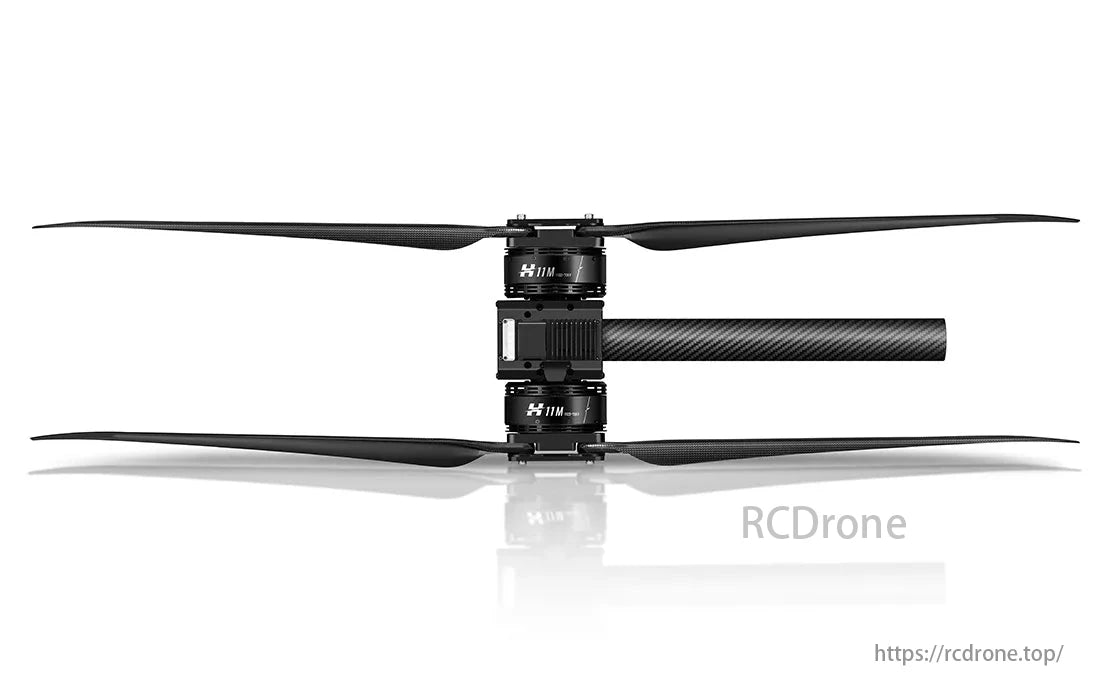

  • Hobbywing H11M Coaxial Motor, A black drone with four propellers and a central body is displayed.

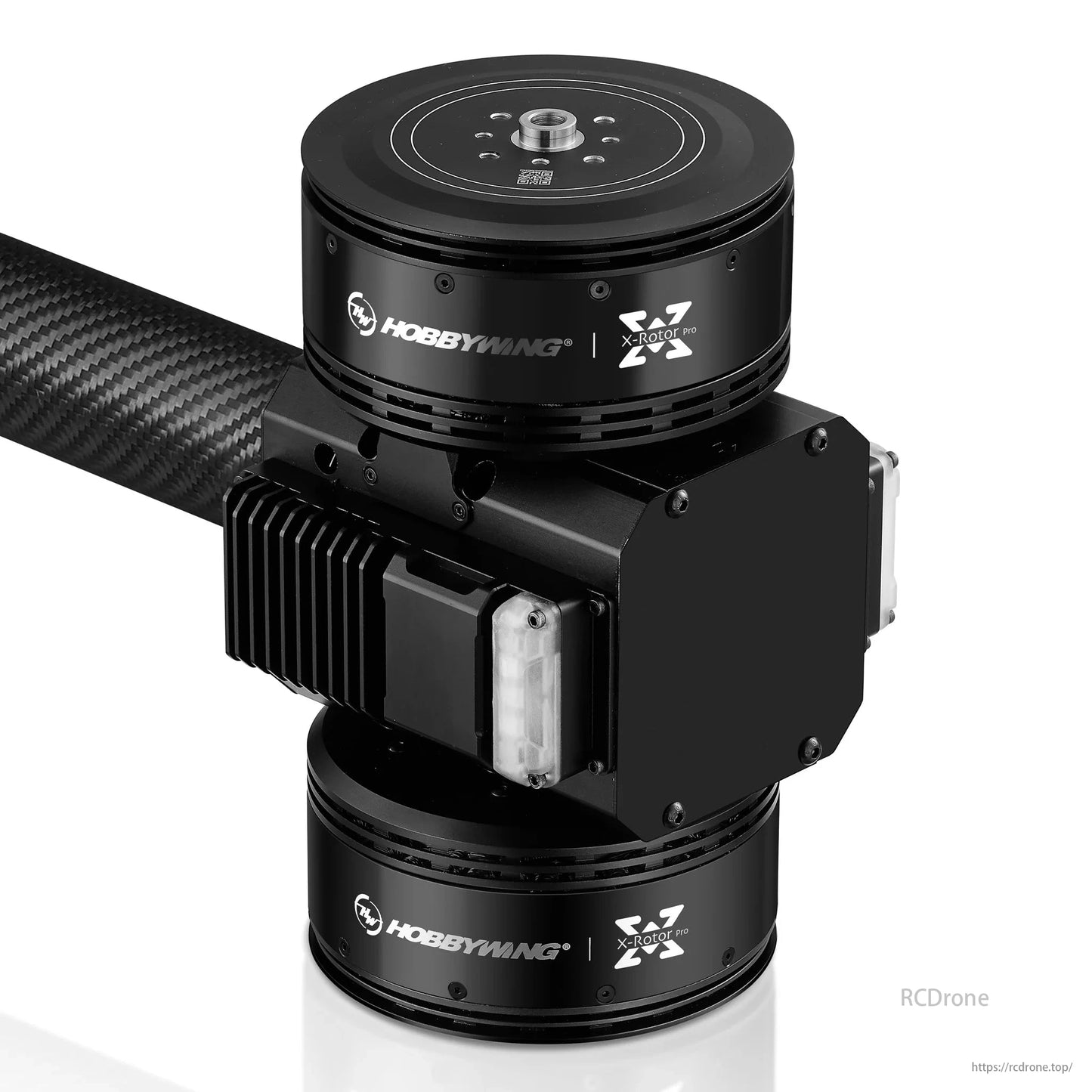

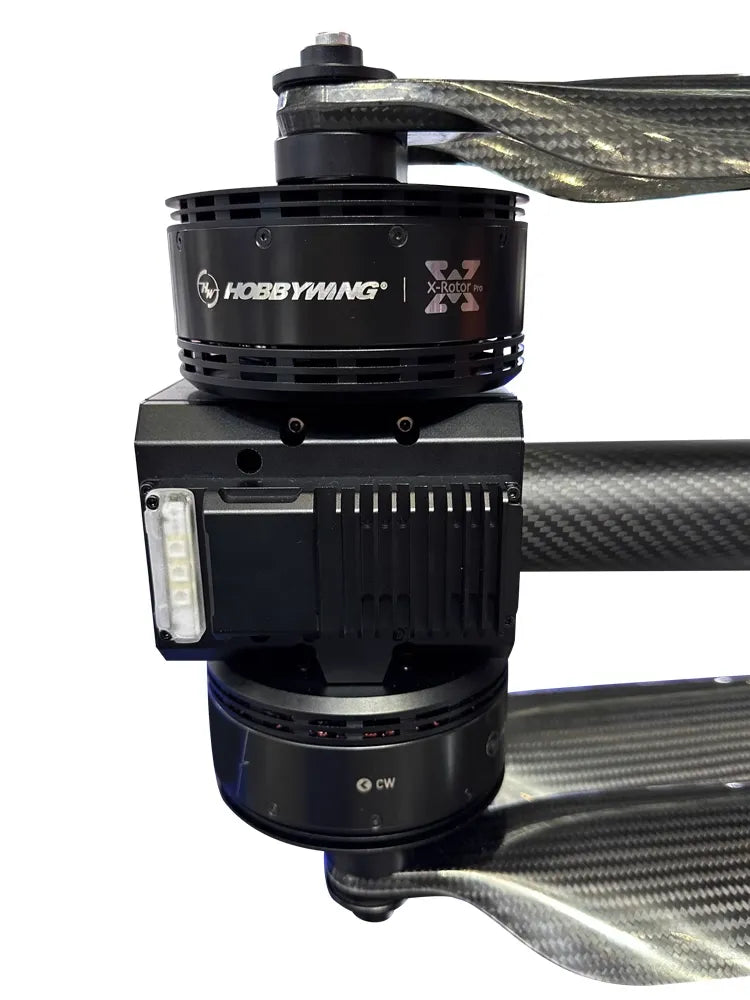

  • Hobbywing H11M Coaxial Motor, Hobbywing X-Rotor Pro motor features a carbon fiber shaft for high-performance applications.

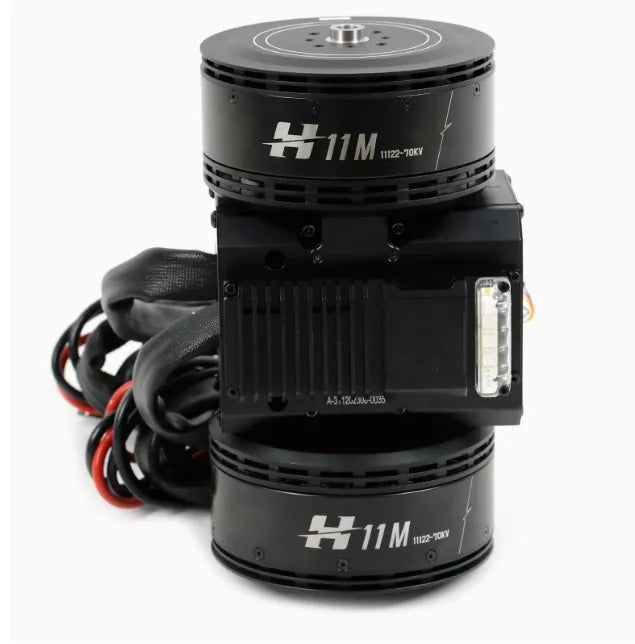

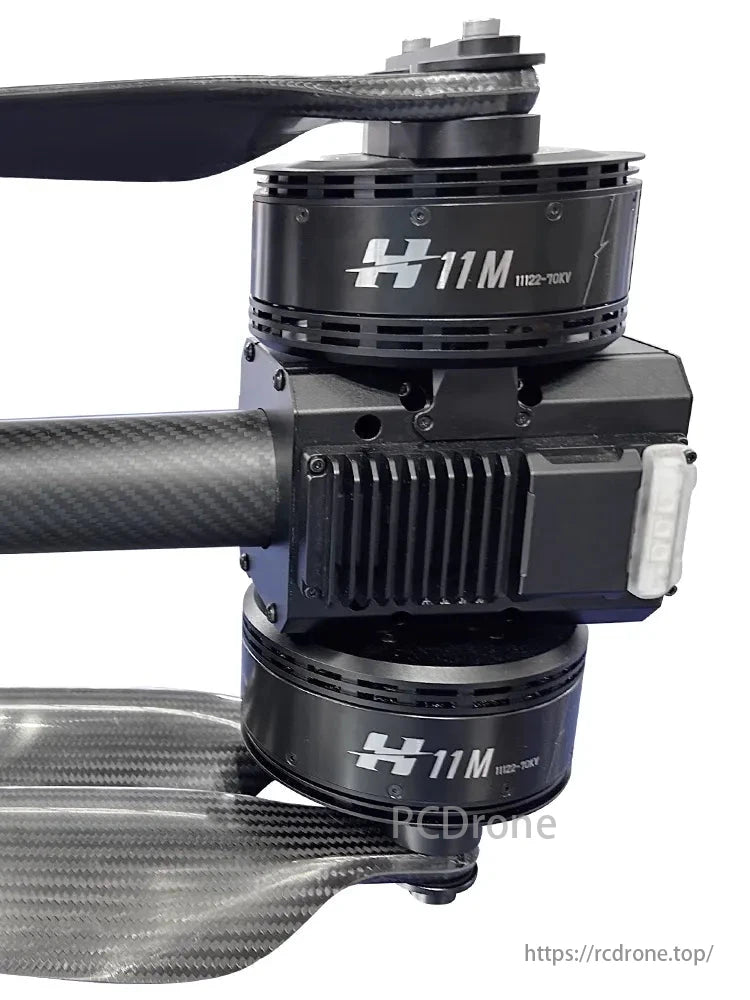

  • Hobbywing H11M Coaxial Motor, H11M motor with 1122-70KV specifications, black design.

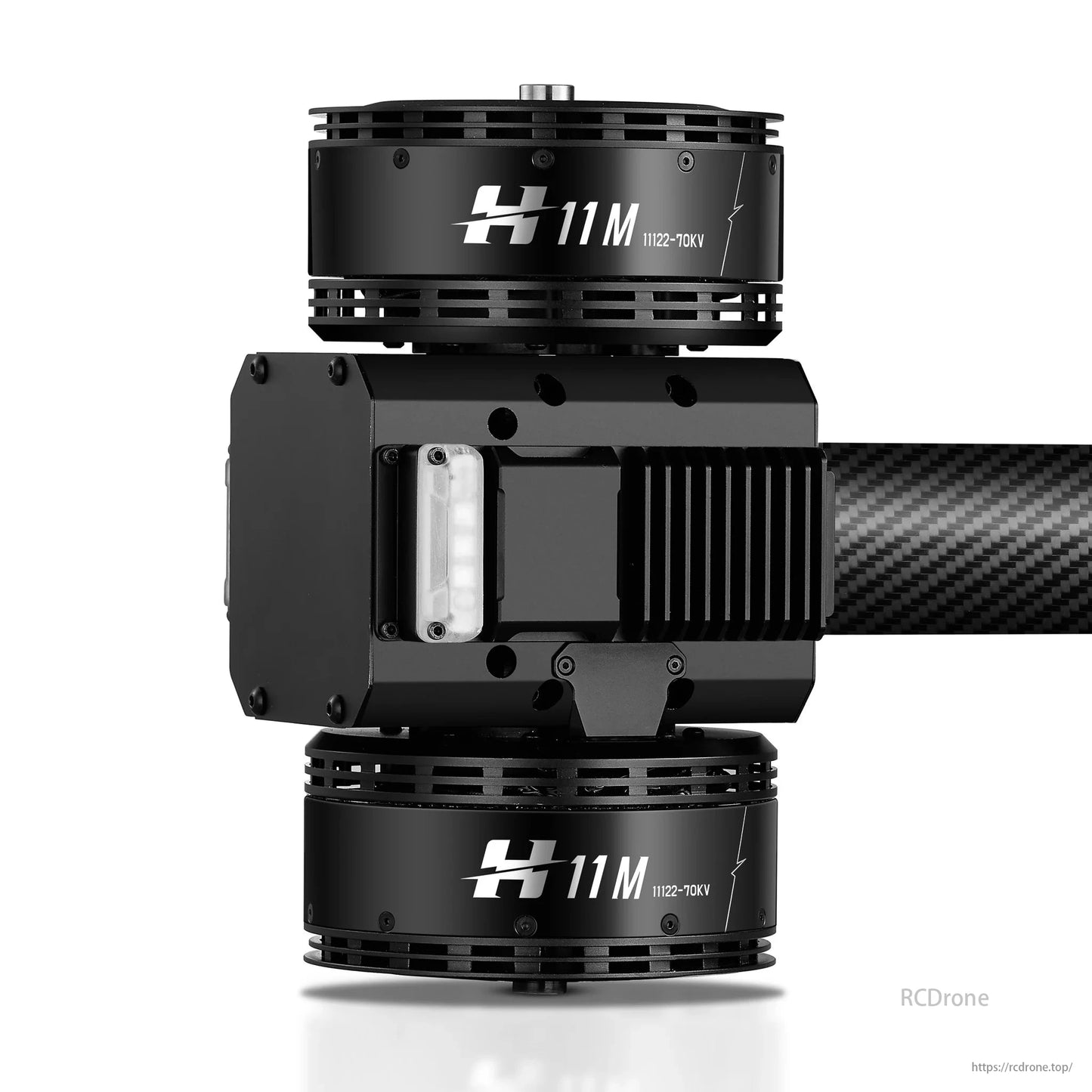

  • Hobbywing H11M Coaxial Motor, H11M 1122-70KV motor features cooling fins and a mounting bracket for high performance.
  • Hobbywing H11M Coaxial Motor - 14S 57.5KG Thrust 70KV Integrated Propulsion System 150A FOC ESC 48*17.5 Inch Propeller
  • Hobbywing H11M Coaxial Motor - 14S 57.5KG Thrust 70KV Integrated Propulsion System 150A FOC ESC 48*17.5 Inch Propeller
  • Hobbywing H11M Coaxial Motor - 14S 57.5KG Thrust 70KV Integrated Propulsion System 150A FOC ESC 48*17.5 Inch Propeller
  • Hobbywing H11M Coaxial Motor - 14S 57.5KG Thrust 70KV Integrated Propulsion System 150A FOC ESC 48*17.5 Inch Propeller
1 16

Hobbywing H11M Coaxial Motor - 14S 57.5KG Thrust 70KV Integrated Propulsion System 150A FOC ESC 48*17.5 Inch Propeller

Hobbywing H11M Coaxial Motor - 14S 57.5KG Thrust 70KV Integrated Propulsion System 150A FOC ESC 48*17.5 Inch Propeller

Hobbywing

$1,599.00 USD
$1,599.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Type
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details



Hobbywing H11M Specifications

Specifications
Brand Hobbywing
Max Thrust 57.5kg
Recommended Battery 14S
Thrust/rotor 25-28kg/Rotor
Total Weight（without propellers） 4350g
Powertrain Arm Tube Outer Diameter φ50mm
Operating Temperature -20℃~50℃
Ingress Protection IP45
Motor
Stator Size φ111*22mm
KV Rating 70rpm/V
Motor Size Φ120.1*55.2mm
ESC
ESC 150A-FOC
PWM Input Signal Level 3.3V/5V
Throttle Pulse Width 1100-1940μs
Signal frequency 50-500HZ
Max. Input Voltage 65V
Continuous Current( Non-hermetic Ambient Temperature ≤60℃） 60A
Maximum Current( Non-hermetic Ambient Temperature ≤60℃） 150A
Communication Port CAN
Firmware Upgrade Support
Digital Throttle CAN

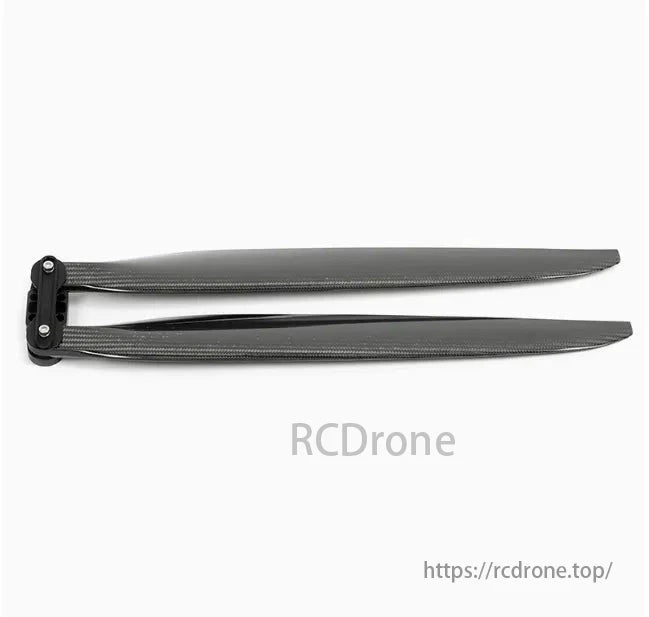

Propeller
Diameter X Thread Pitch 48*17.5"
Total weight( inc. adapter) 415g
Single propeller weight 117g





Details

H11M Motor CAD


Hobbywing H11M Coaxial Motor, The motor has a 120.1mm diameter, 90mm width, 136mm length, 220mm height, with various EQS specifications and a 50mm tube diameter.

H11M Coaxial Motor dimensions: 120.1mm diameter, 4-M5-6H EQS, 36mm, 4-M4-6H-EQS, 31mm, tube out diameter 50mm, 90mm width, 136mm length, 220mm height.

H11M Techenical Parameters

Voltage(V)

Propeller(Inch)

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Efficiency(%)

Efficiency(g/W)

54V (14S LiPo)

48*17.5"

32%

7464

12.2

659.1

68

11.3

34%

8465

13.8

747.2

70

11.3

36%

9379

14.2

769.1

75

12.2

38%

10406

15.1

813.8

79

12.8

40%

11633

17.0

920.7

81

12.6

42%

13072

20.3

1097.7

80

11.9

44%

14692

24.7

1334.8

80

11.0

46%

16448

29.9

1614.2

80

10.2

48%

18295

35.5

1918.2

80

9.5

50%

20200

41.3

2234.0

82

9.0

52%

22146

47.3

2556.1

84

8.7

54%

24139

53.4

2887.0

85

8.4

56%

26198

59.9

3236.8

87

8.1

58%

28354

67.0

3621.0

88

7.8

60%

30642

75.1

4057.4

88

7.6

63%

34388

89.6

4845.9

87

7.1

66%

38536

107.8

5824.7

86

6.6

69%

43007

129.2

6983.7

84

6.2

72%

47563

152.7

8251.9

83

5.8

75%

51814

175.7

9496.8

82

5.5

78%

55276

195.1

10543.1

82

5.2

100%

57481

207.0

11183.7

82

5.1
The above data is measured by changing the throttle input to adjust the tension under the environment of 25°C and sea level.



Hobbywing H11M Coaxial Motor, Easy to use with wide applications, integrated power sets fill power gaps for multi-rotor UAVs suitable for heavy-duty and long-endurance operations.

Easy to use; wide applications Integrated power set; ready to fly fills the power gap of multi-rotor UAV, suitable for heavy-duty and long-endurance operations.

Hobbywing H11M Coaxial Motor, ESC has fault storage function. Power failure stores code for fault analysis.

ESC has fault storage function. Power failure stores code for fault analysis.

Hobbywing H11M Coaxial Motor, Dual throttle redundancy with PWM and CAN backup ensures reliable flight, switching in milliseconds.

Dual throttle redundancy: PWM and CAN mutually backup, switchable in milliseconds for flight reliability.

Hobbywing H11M Coaxial Motor, Self-developed sine wave (FOC) ESC and 48-inch carbon fiber propellers ensure precise, safe, and reliable flight control with real-time monitoring of voltage, current, temperature, and ESC status.

Precise control, safe, and reliable. Self-developed sine wave (FOC) ESC and 48-inch carbon fiber propellers ensure precision flight control and increased efficiency. Captures voltage, current, temperature, and ESC status in real time.

Hobbywing H11M Coaxial Motor, Lifetime maintenance reminder offers custom intervals, regular alerts, and thoughtful care for busy users.

Lifetime maintenance reminder offers custom intervals, regular alerts, and thoughtful care for busy users.

Hobbywing H11M Coaxial Motor, A dual-motor design with a centrifugal fan provides efficient heat dissipation and improved performance.

The new appearance features a dual-motor centrifugal fan with a CD pattern for efficient heat dissipation.

Hobbywing H11M Coaxial Motor, High-quality drone motors with temperature-resistant wire, waterproof bearings, strong magnets, and a lightweight, rust-proof core.

Built with the best materials and well-developed technology. Features include enameled wire with high temperature resistance, waterproof ball bearings, UH-grade NdFeB magnets, and a lightweight iron core with anti-rust treatment passing 48-hour salt spray tests.
