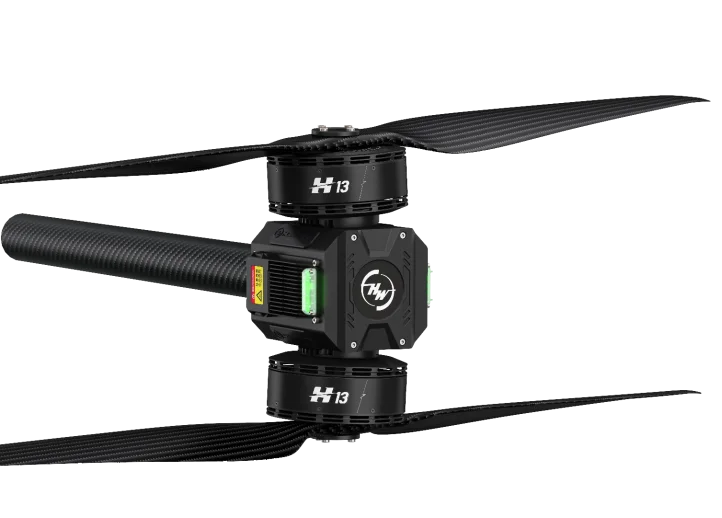

Hobbywing H13 Motor Specifications
Key Parameters

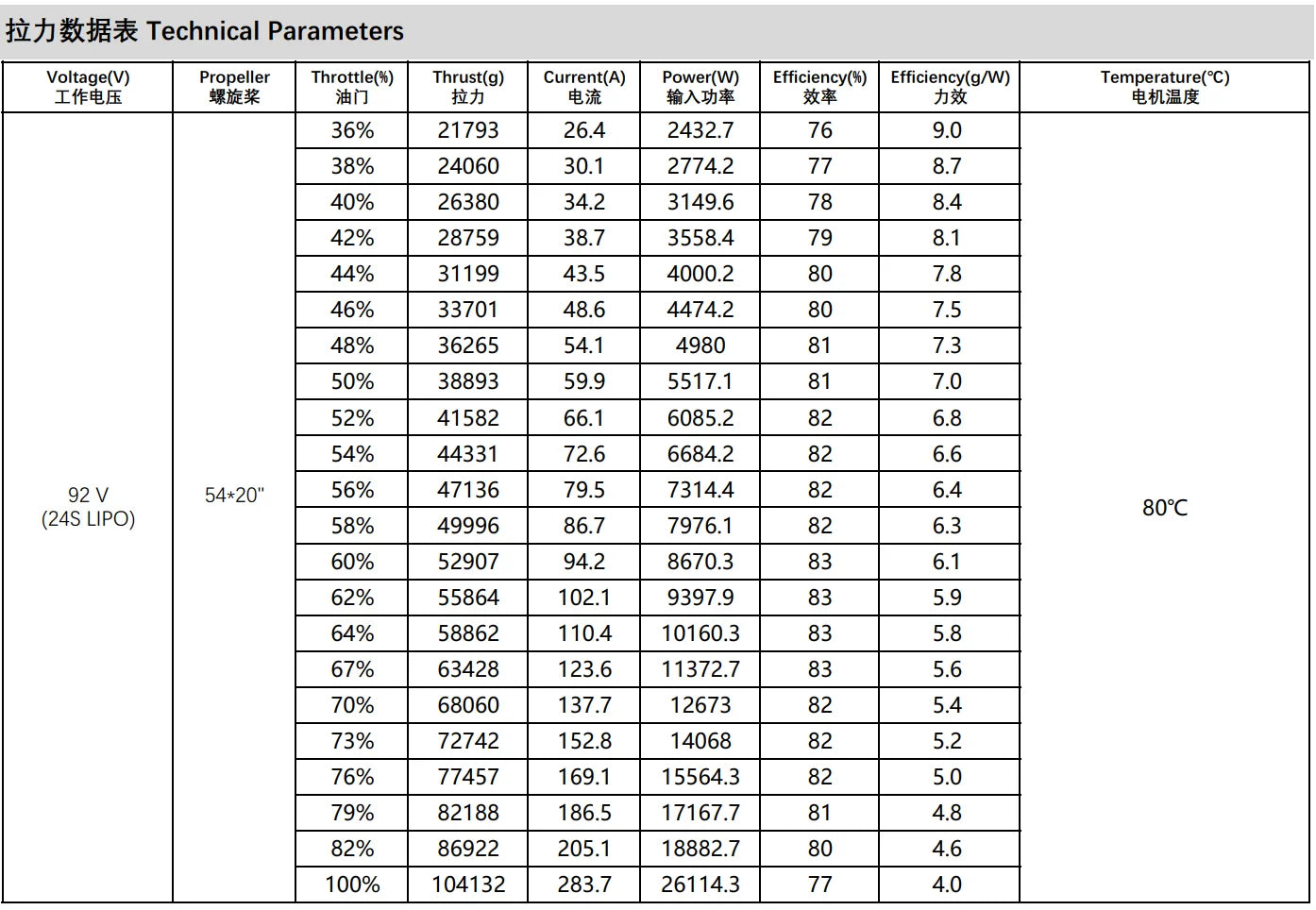

Parameter | Specification |
---|---|
Max Thrust | 96 kg |
Rated Thrust | 45 kg |
System Weight | 7.8 kg |
Recommended Battery | 24S LiPo |
Compatible Tube Diameter | 60 mm |
Additional Specifications
Parameter | Specification |
---|---|
Lift Capacity | 180 kg (4 motors with 8 rotors) |
Endurance Time | 20+ minutes |
Control System | CAN+PWM dual-mode control |
Operating Temperature | -40 to 65°C |
Protection Class | IP35 |
Recommended Propeller Size | 54 x 20 inches |
Motor Type | Twin-motor power unit |
System Weight (including cables) | 7800 g |
Features
- Enhanced Durability: Designed with robust materials to withstand harsh conditions.
- High Efficiency: Optimized for high efficiency, providing reliable and sustained performance.
- Dual Motor Design: Incorporates dual motors for enhanced power and redundancy.
- CAN Communication Interface: Integrated CAN communication for intelligent management and compatibility with mainstream flight controllers including APM, Pixhawk, and DJI.
Applications
- Material Handling: Suitable for transporting heavy materials.
- Logistics and Transportation: Ideal for logistics applications requiring reliable and powerful thrust.
- Emergency Rescue: Capable of being deployed in emergency rescue operations.
- Long-Endurance Missions: Suitable for missions requiring long flight times and high payload capacities.
Hobbywing H13 motors are designed to meet the demanding needs of various industrial and commercial applications, offering exceptional performance, reliability, and versatility.
Note: This product is in the pre-sale stage, the price is not the actual price
If you need to purchase, please send us a message.
Hobbywing H13 motor: an industry-standard coaxial power kit for firefighting and cargo drones, featuring up to 96kg max thrust, 24S LiPo battery compatibility, and dimensions of 60mm. This kit offers reliable performance with an impressive 85% efficiency rate.
![Hobbywing H13 Motor - 96KG Max Thrust Industry Coaxial Power Kit for Fire Fighting / Cargo Drone](http://rcdrone.top/cdn/shop/files/20240526132242.jpg?v=1716701368&width=1445)
![Hobbywing H13 Motor Kit for fire fighting/cargo drones with 96kg thrust and CAN/PWM control.](http://rcdrone.top/cdn/shop/files/20240526132304.jpg?v=1716701369&width=1445)
