Hobbywing P65M High Voltage Heavy Lift Drone Motor – 400V / 355V 130kg Thrust, 72-Inch Propeller, UAVCAN/RS485 ESC

Overview

The Hobbywing P65M is a high-performance heavy-lift drone power system designed for industrial UAVs requiring ultra-high thrust, efficiency, and reliability. This P-series high-voltage power kit delivers up to 130 kg of maximum thrust with a recommended single-axis thrust of 65 kg, making it ideal for large-scale logistics, firefighting drones, or heavy-lift VTOL platforms.

Key Features

Max Thrust: 130 kg

Rated Voltage: 355V (operating range: 280V–450V DC)

Compatible Battery: 96–107S LiPo

Recommended Thrust Efficiency: 72-inch propeller, 7.5 g/W

Integrated Motor, ESC, and 72x25” Carbon Fiber Propeller

Total System Weight: 7.43 kg (including cables and prop)

Motor Specifications

Model: 15645

KV Rating: 9.5 KV

Size: Ø167.1mm x H110.5mm

Stator/Pole Count: 36N42P

Weight: 5115g ± 50g (including wires)

Ingress Protection: IPX5 – Dust-protected and water-jet resistant

ESC Specifications

Model: 100A-FOC

Communication Protocols: UAVCAN / RS485

Dimensions: 225.6 x 98 x 60 mm (with connectors)

Weight: 1200g (including wires)

Max Current: 100A (3 seconds)

Continuous Current: 40A

Ingress Protection: IP67 – Fully dust-tight and water immersion protected

Dual Throttle Support: CAN+RS485 / CAN+PWM / RS485+PWM

PWM Range: 1100–1940 μs

Black Box Logging: 2 to 48 hours of real-time data

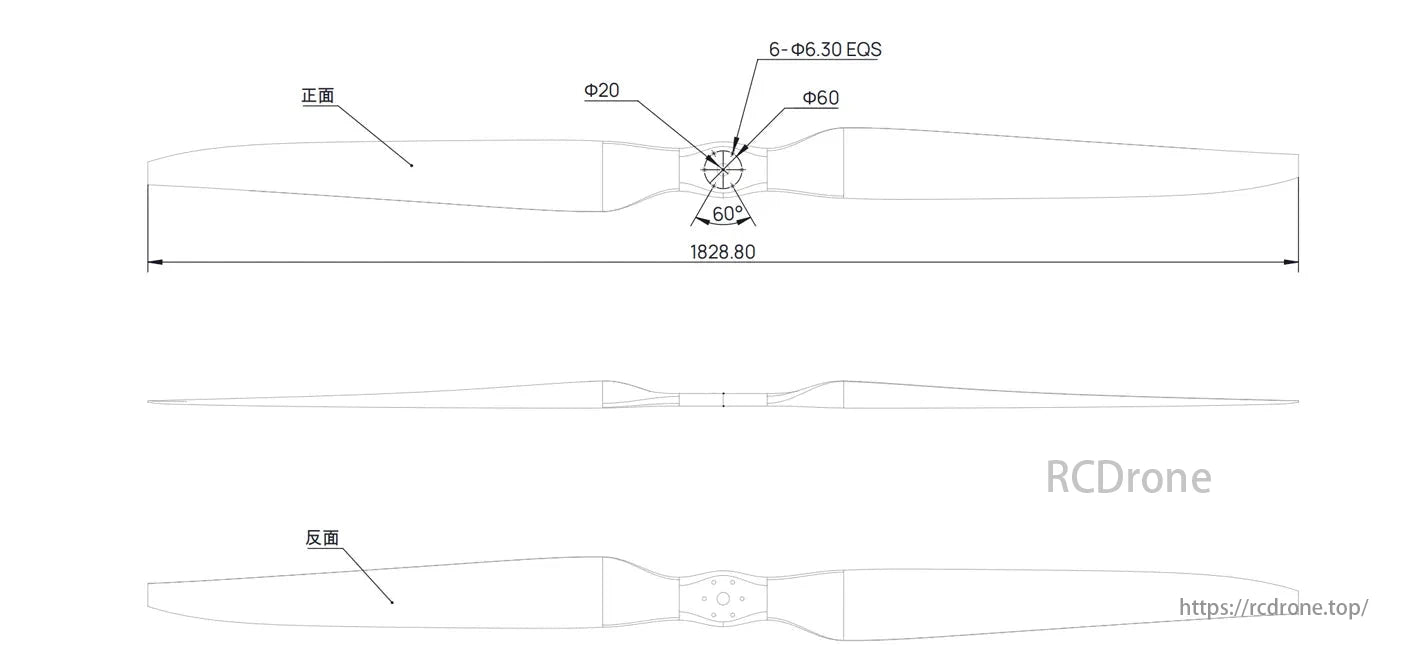

Propeller Specifications

Size: 72 x 25 inches

Material: High-strength carbon fiber (fixed-pitch)

Weight: 1150g ± 20g per blade

Mounting Dimensions: D60–6*M6, center hole D20

Mechanical & Environmental Specs

Tube Mount Compatibility: φ60mm

Operating Temperature Range: -35°C to +55°C

System Protection: IP35 rating for motor unit

This powerhouse system combines precision-engineered FOC ESC, large-diameter high-efficiency motor, and 72-inch carbon fiber props for seamless heavy lift operations under high-voltage scenarios. Whether it's used in logistics delivery drones, industrial transport UAVs, or powerline inspection platforms, the Hobbywing P65M delivers exceptional stability, power, and performance.

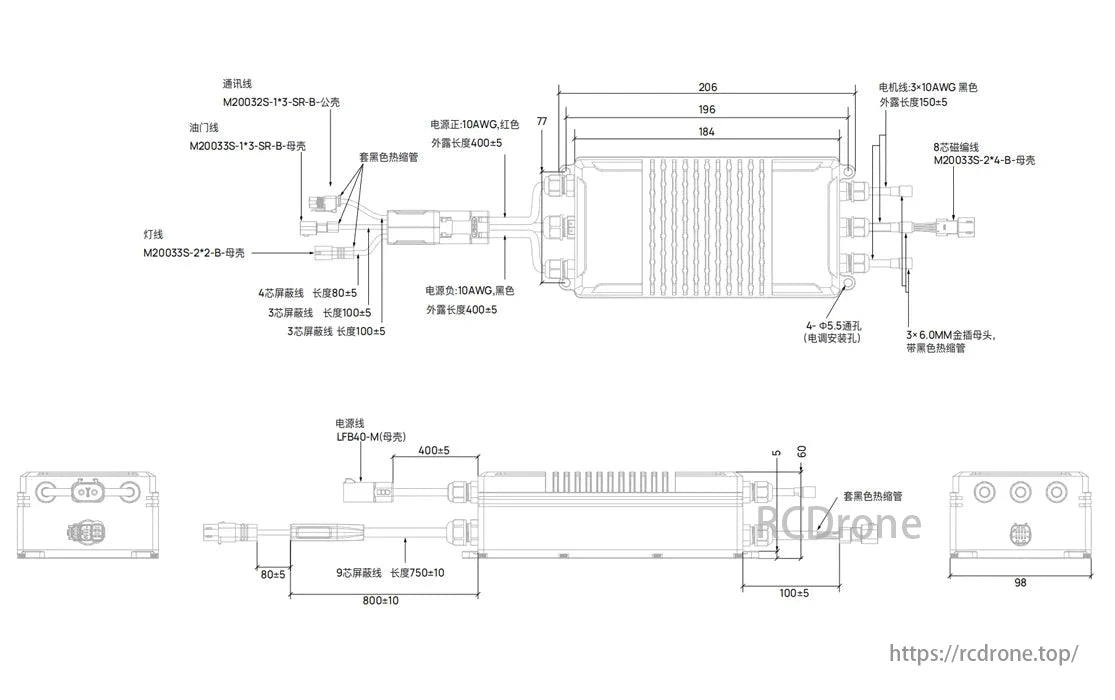

Hobbywing P65M Motor: Dimensions, wiring details include communication, throttle, light lines, power cables with AWG ratings, lengths, connectors. Mounting holes, cooling fins included.

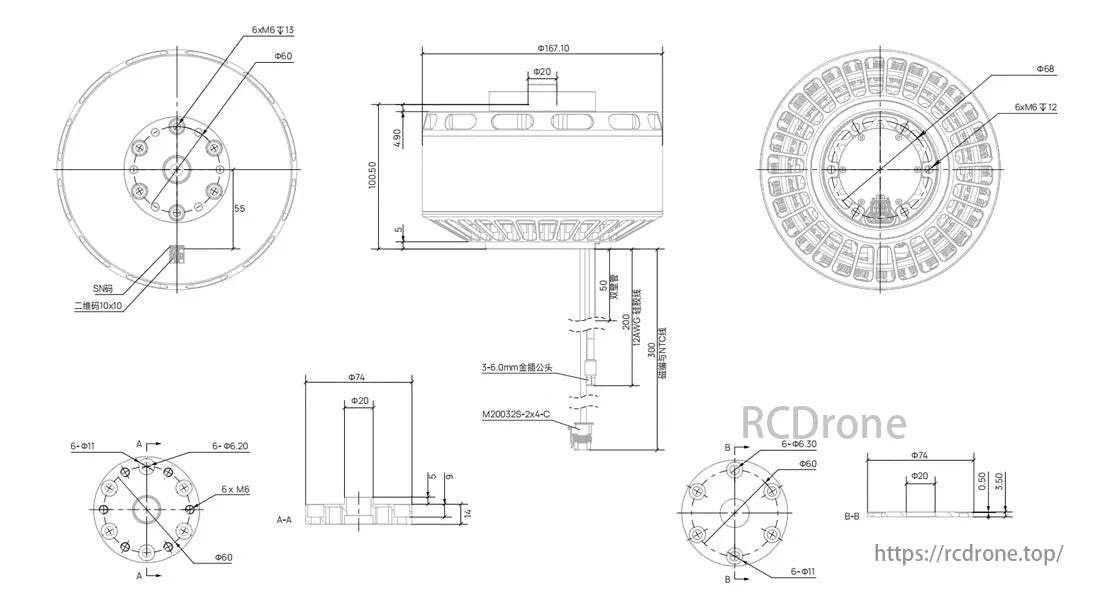

P65M Motor dimensions: 100.50mm length, 68mm diameter, mounting holes, shaft details.
