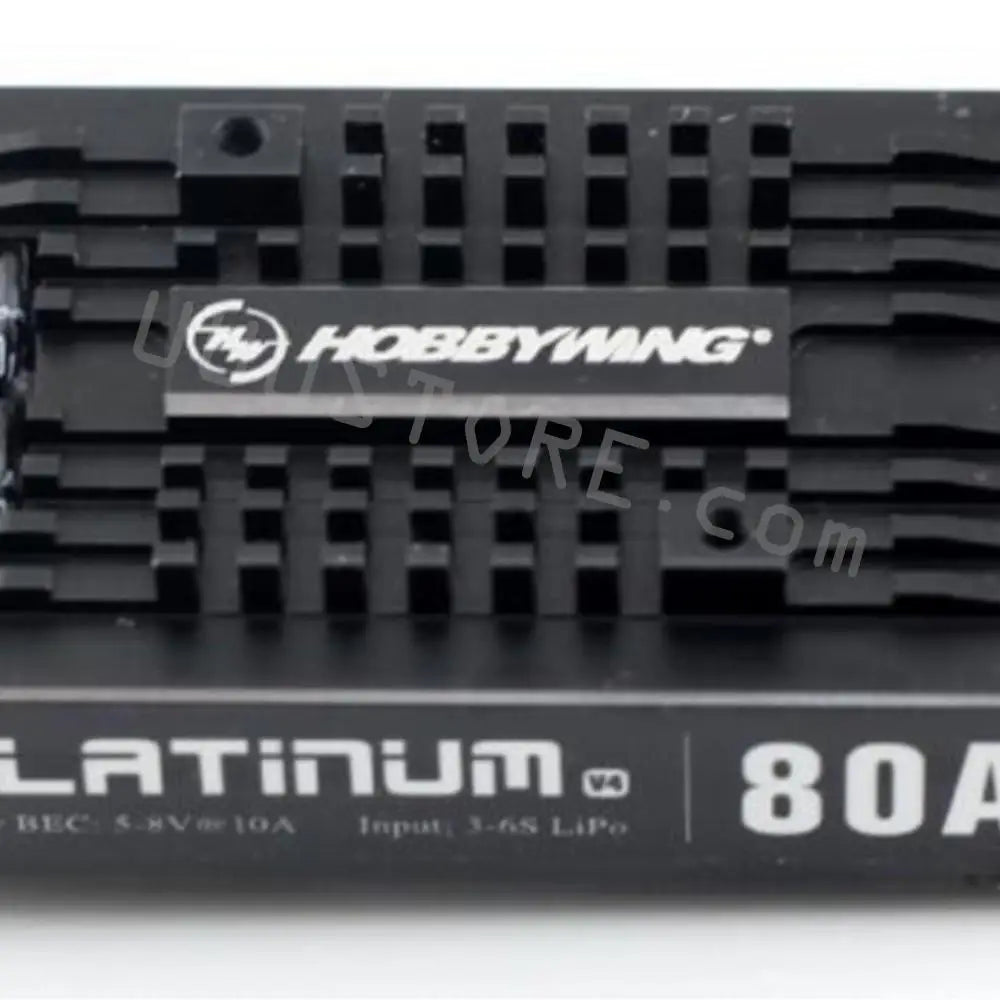

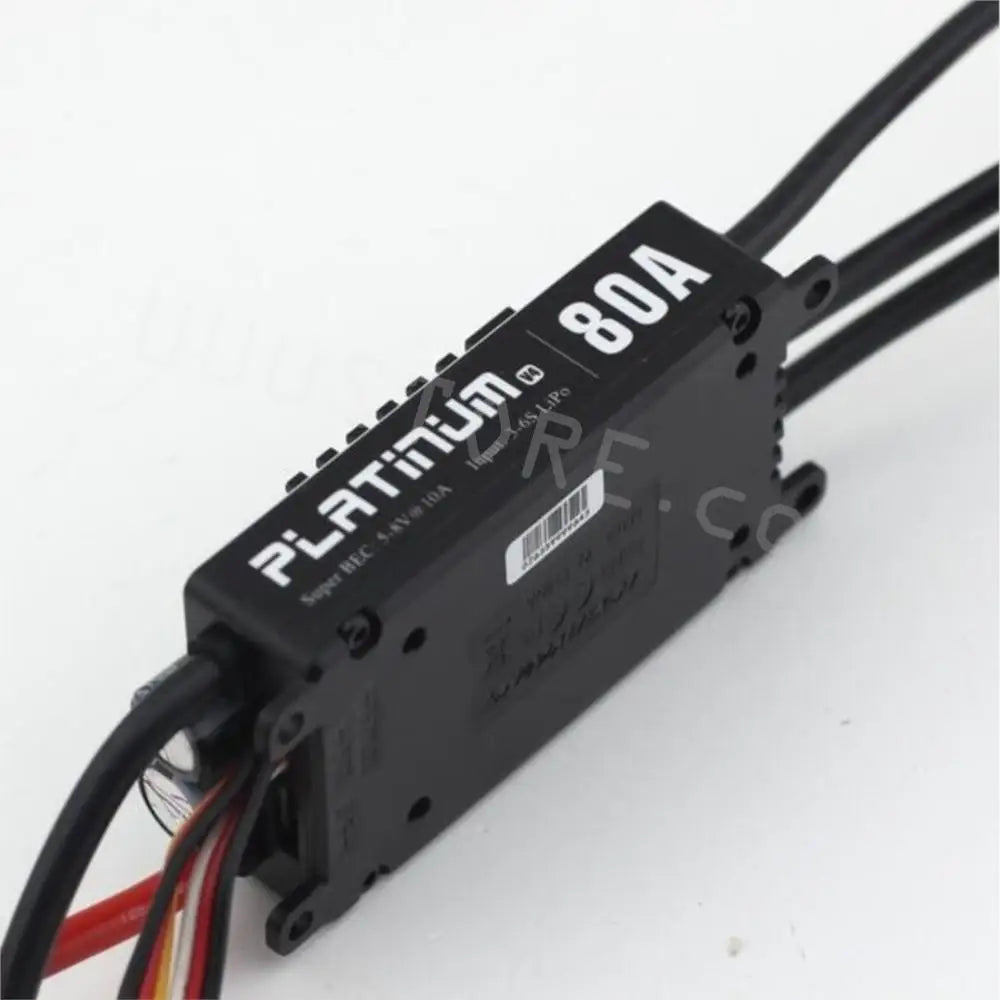

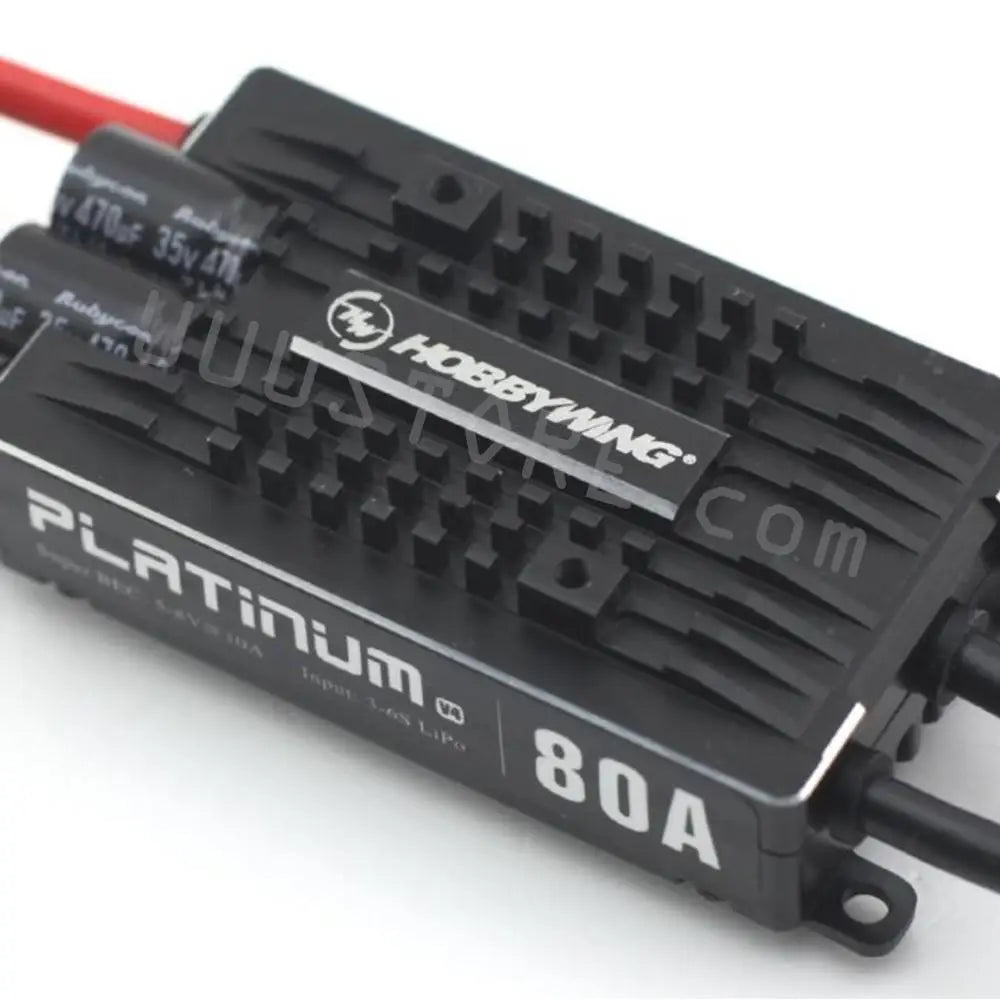

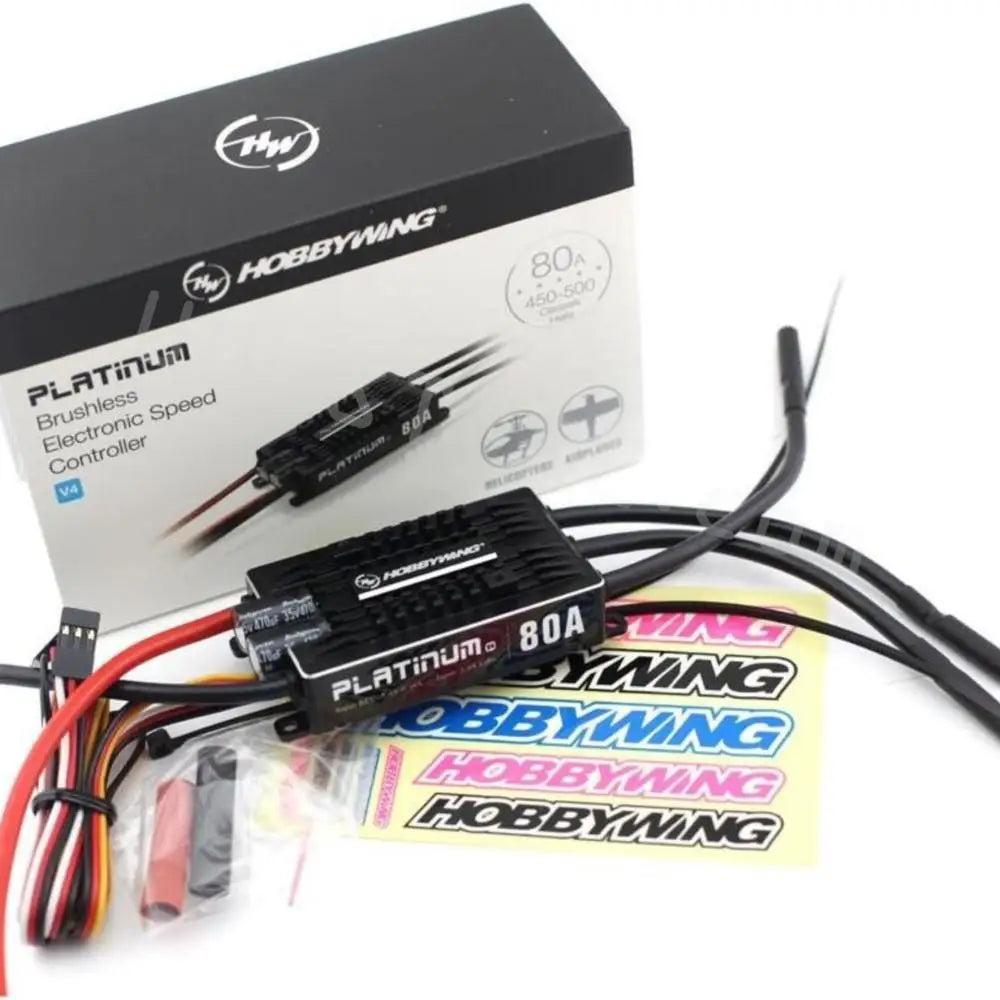

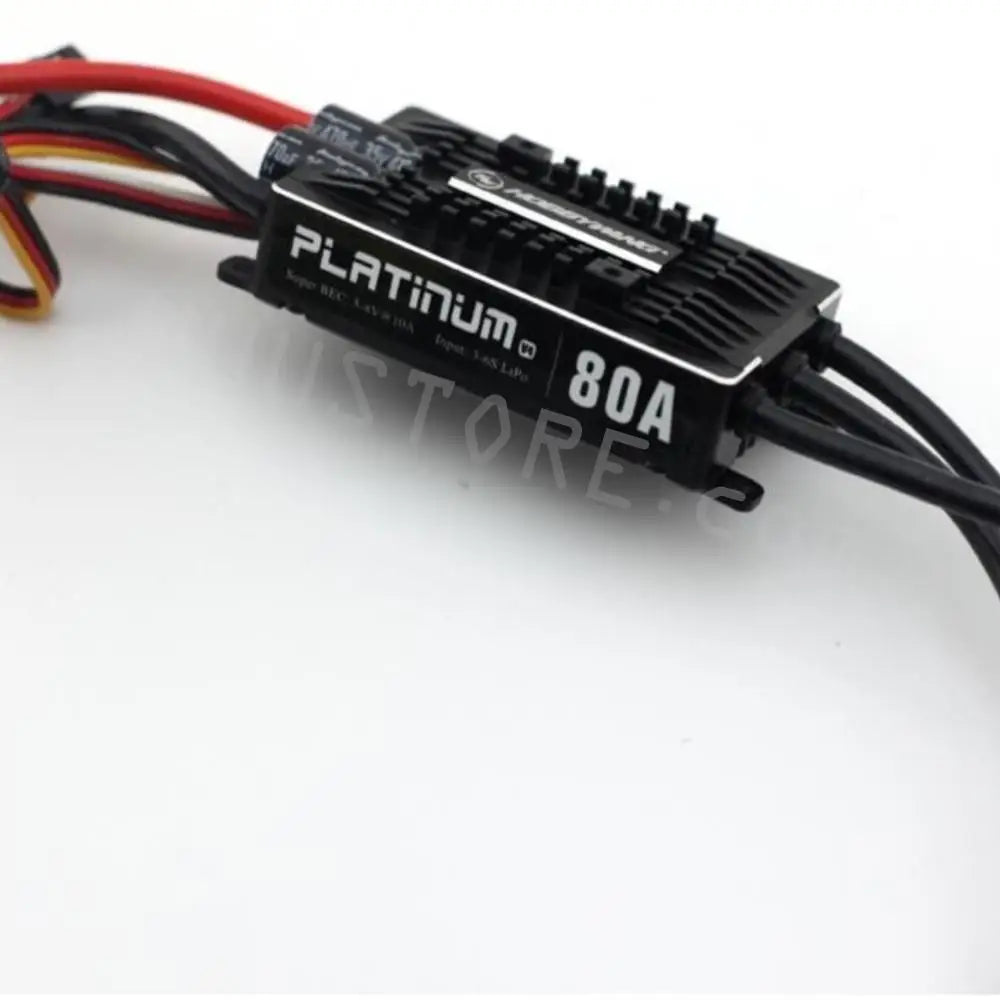

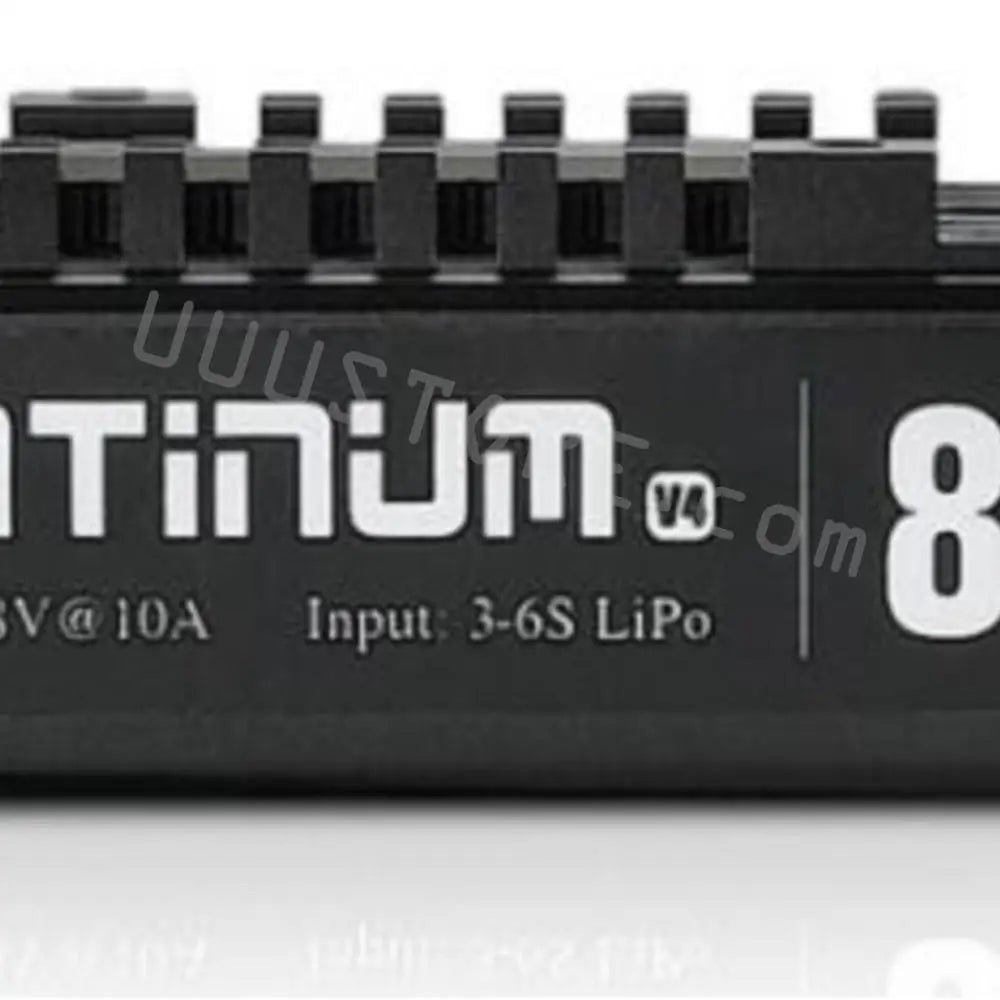

HobbyWing Platinum 80A V4 ESC 3S-6S BEC 5-8V 10A for 450L-500 Class Heli (Main Blade: 380-470mm )

Specifications:

Brushless ESC

Current: 80A
Input Voltage: 3-6S LiPo

Applications:
450L-500 Class Heli (Main Blade: 380-470mm)/.70 Class Fixed-wing Airplane 3D/EDF (with Diameter less than 75mm)

Scale: 1/10th, Brushless, Sensored

Cont./Peak Current: 160A/1200A

Input: 2-3S LiPo/4-9 Cell NiMH

BEC Output: Swich Mode: 6V/7.4V,4A

Input Wires: Black-12AWG-200mm*2

Output Wires: Black-12AWG-200mm*3

Input Connectors: No

Output Connecotors: No

Size: 25.0x25.0x10.0mm

Voltage Range: 5-7.4V

Powered by: Powered by BEC

SET Button on ESC: Not Supported

LED Program Box: Not Supported

LCD Program Box: Supported

WiFi Module: Supported

Program Port: Separate Program Port

Firmware Upgrade: Supported

Size: 37.5x30.9x31.6mm(w/Fan & Fan Shroud)

Weight: 95g(w/ Wires)

Applications:Motors: SL BL Motors / SD BL Motors

                       Vehicles: 1/10th Touring Car & Buggy & Drift Car & F1; 1/8th,1/10th Rock Crawler

                       KV Rating/T Count: 2S LiPo/6S NiMH: (Touring Car) T≥3.5T, (Buggy) T≥4.5T.

                                                          3S LiPo/9S NiMH: (Touring Car) T≥6.5T, (Buggy) T≥8.5T.
