HobbyWing QuicRun 1060 RTR 60A ESC SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Size: 30*36*16mm

Remote Control Peripherals/Devices: ESC

Recommend Age: 12+y

Origin: Mainland China

Material: nylon

For Vehicle Type: Cars

Brand Name: hobbywing

Features:

1.1 One-piece design (built-in electrolytic capacitor), completely waterproof and dustproof, adapt to various climates;
1.2 With "one-way / two-way / two modes of operation, for a variety of models
1.3 High quality materials with strong current withstand capability;
1.4 Strong BEC output capability, surpassing other competitive products;
1.5 Automatic throttle stroke calibration, easy to use, especially suitable for novices;
1.6 Using the jumper cap to set the ESC parameters, it is simple and clear;
1.7 With multiple protection functions such as lithium voltage protection, over temperature protection, and throttle signal loss protection;

Specifications：

1060 60A Brushed ESC

Cont./Burst Current:  ①Forward：60A/360A  ②Backward：30A/180A

Input：2-3s Lipo，5-9 Cells NiMH

Cars Applicable：1/0  on-road，off-road Buggy，Truggy，SCT，Crawler，Tank&Boat

Motor Limit：   ①2s lipo or 5-6cells NiMH ：540 or 550 size motor RPM＜45000@7.2V

②3s lipo or 7-9cells NiMH ：540 or 550 size motor RPM＜30000@7.2V

Resistance：Forward-0.0008Ω    Backward-0.0016Ω

Built-in BEC:3A/6V(Switch mode BEC)

Dimension&Weight:36*30*18mm/40g

Run mode：①forward & brake & reverse mode

② forward &reverse mode

③  forward & brake

Package List:

1 * ESC

1 * Adhesive Label Paper

1 * Cable Binding Tape

1 * Manual (English)

NO Logo!

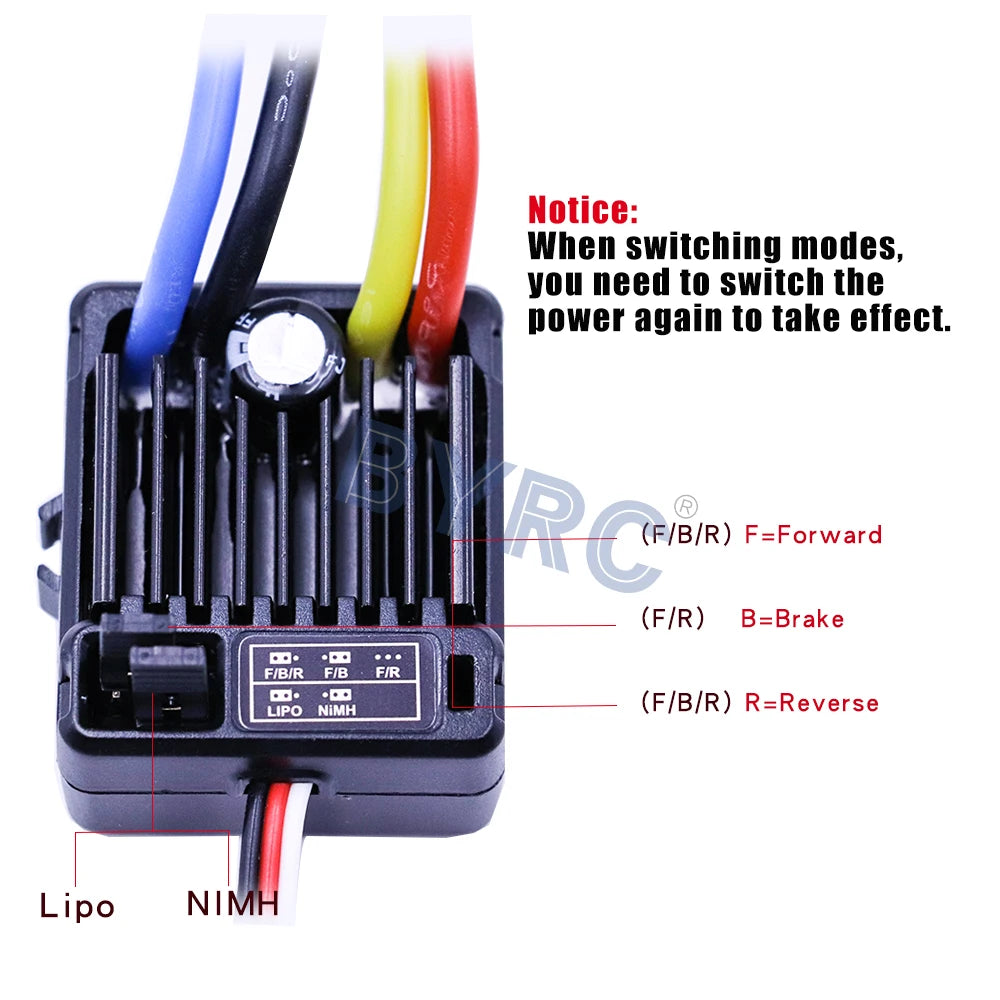

when switching modes, vou need to switch the power again t0 take effect: F=Forward (FIR) B=Brake A' D FIBIR (FIB FIR 4o LIPO NiMH) R-Reverse NIMH R tiei)

Swtc Ballety Holo Receiver 8 Sa 1 1 2 Connecting battery Flectromic Speed € ontroller.
