Features:

Specifications:

• Brush / brushless: brush

• LED programming box adjustment: support

• WiFi Express wireless module: not supported

• Weight: 58.5g (including wire weight)

• Size: 36.2x31.6x17.0mm

• LCD programming box tuning: not supported

• Power cord: red -14AWG-200mm × 1 / black -14AWG-200mm × 1

• Output plug: no plug
  (Note: All the above wire lengths are the length of the raw material wire, not the length of the wire actually exposed outside the ESC. The actual ESC exposure length will be slightly shorter than the value.)

• ESC SET button: support

• Support motor type: brush motor (540/550/775)

• Continuous / peak current: 80A/400A

• Output line: blue -14AWG-200mm × 1 / yellow -14AWG-200mm × 1

• Ratio: 1/8th & 1/10th

• Waterproof effect: full waterproof

• Programming interface: independent programming port

• Number of battery segments: 2-3S Lipo/5-9 Cell NiMH

• Power plug: XT60 plug

• BEC output: Switch mode: 6V/7.4V 3A

• Product ID: 30112750

• Product Name: QuicRun WP Crawler Brushed

• Applicable models: 1/8th & 1/10th climbing car

• Applicable motor KV value / T number: 2 lithium batteries or 6 nickel-metal hydride: ≥10T or RPM lower than 30000 7.4V
                                                          3-cell lithium or 9-cell NiMH: ≥16T or RPM below 20000 7.4V

• Parameter programming

Package list:

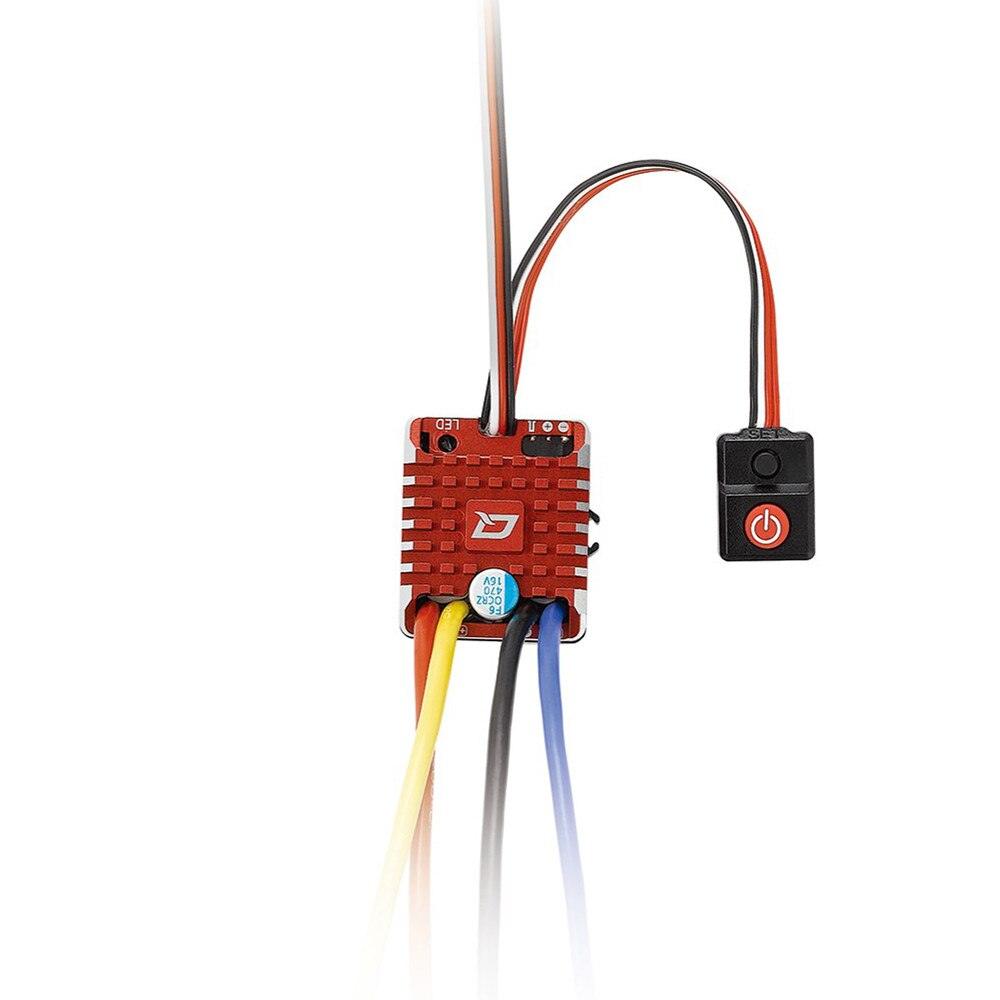

• 1×Hobbywing QuicRun Waterproof Brushed 80A ESC

• 1×Program Card for Crawler



  Features a built-in BEC (Battery Eliminator Circuit) with adjustable PWM frequency, powerful rectification technology, and portability for easy use.

Designed ior climbing cars A solid hardware foundation combined with powerful software . ideal for 1/10, 1/8 climbing car power (electrical)

advanced synchronous rectification technology provides a better control experience . driver's requirements for precise adjustment of motor's forward power are met .

Exceptional 24/7 operability, combined with excellent waterproof and dustproof performance, enables seamless navigation on complex roads with varied terrain, including sediment, ice, water, and more - ideal for applications requiring non-stop operation in various climatic conditions.

the vehicle's drag brake effect is greatly improved, and the perfect braking performance is highlighted . the car's maximum brake force adjustment function is 9-stage .

Equipped with a built-in powerful BEC (Battery Eliminator Circuit), this ESC features a maximum output current of 6 amps, with an adjustable output voltage range of 6V to 7.4V.

ESC is enriched with 15 richly adjustable parameters to suit the needs of different drivers and different models in different venues . ESC

The interface can also be used to power external fans, or other powered devices.

Package built-in programming box included in the standard, easy to use package . ProcRMC Ae O Du 83 D Aneer 833 Cl5o AE; F4o6em 928 G87 5 Mlneb Masrm Onmw 95'

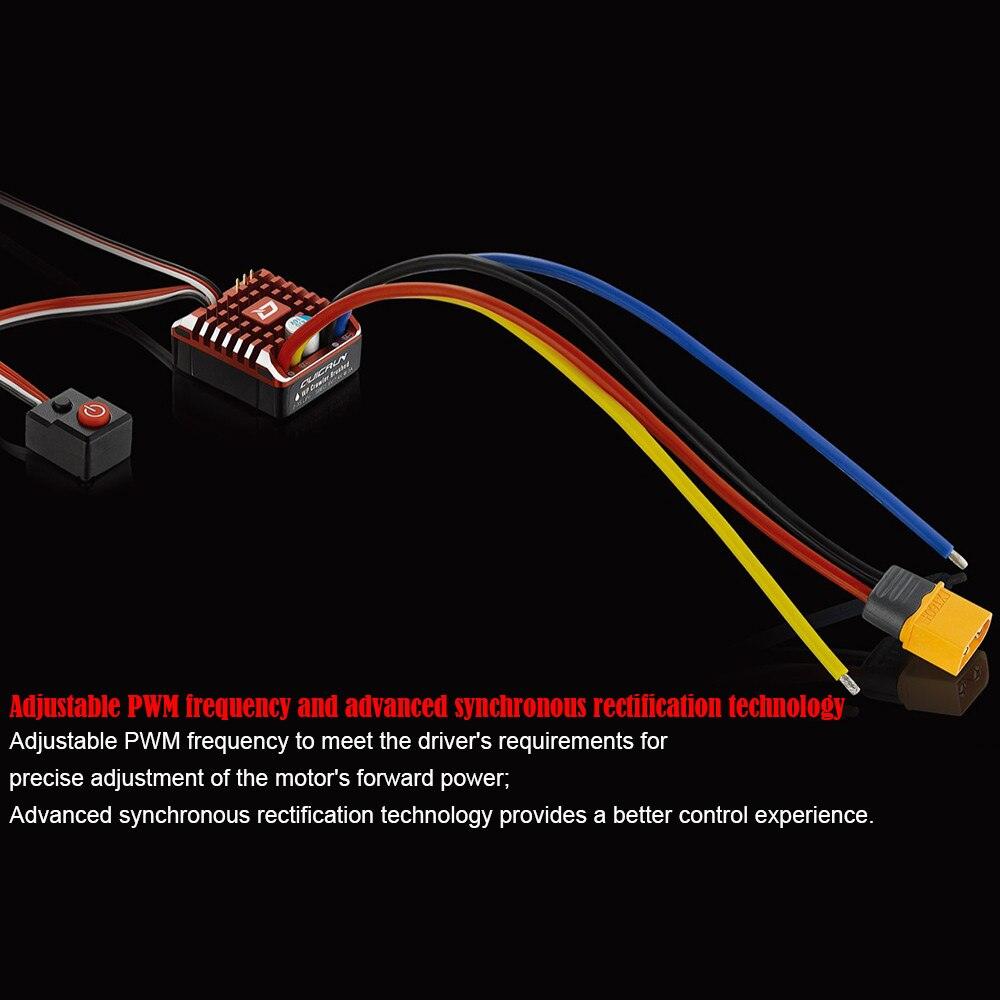

• Adjustable PWM frequency and rectification technology: to meet the driver's precise adjustment of motor power; synchronous rectification technology provides excellent control experience.

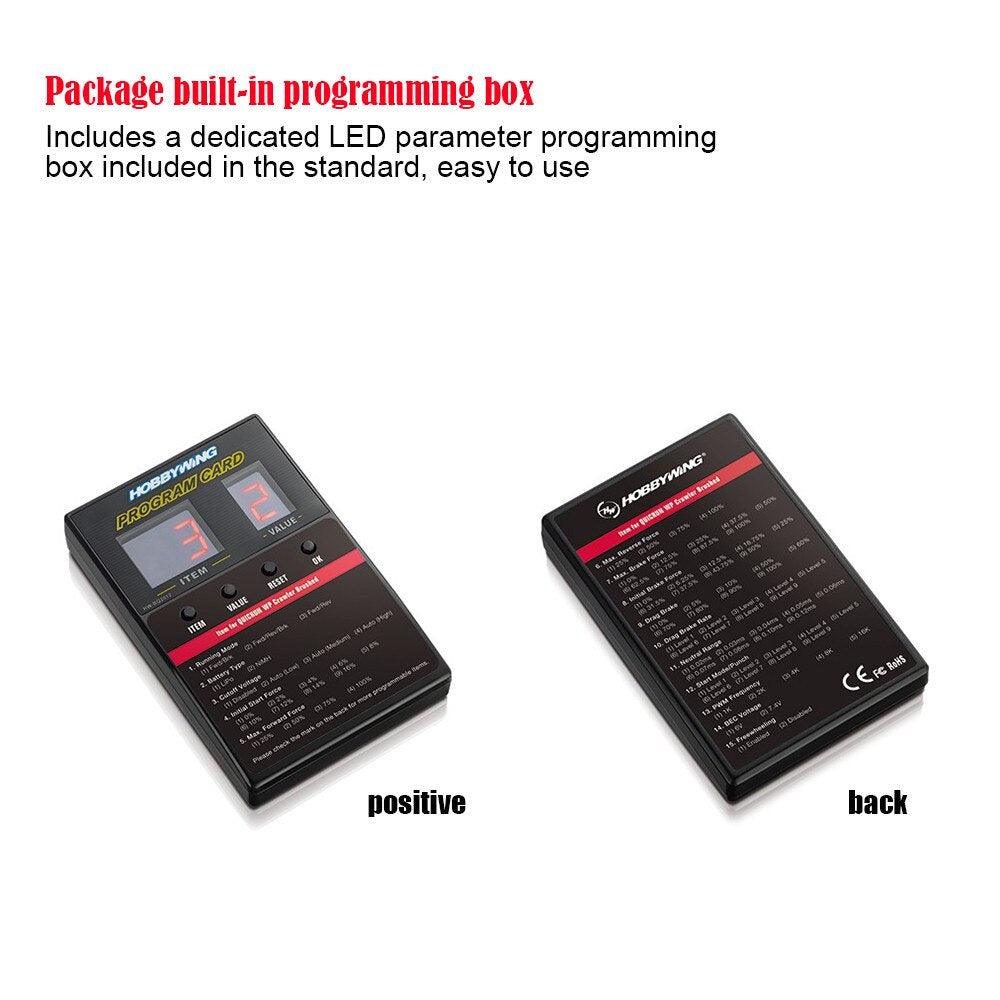

• Package built-in programming box: contains a dedicated LED parameter programming box inside, easy to use

• Perfect braking function: innovative 9-stage drag brake acceleration adjustment, 9-stage drag brake force adjustment and 9-stage maximum brake force adjustment function, which highlights perfect braking performance.

• Rich and applicable parameter items: The ESC is rich in 15 rich adjustable parameters to meet the needs of different drivers and different models in different venues.

• Powerful built-in BEC: Built-in powerful BEC with a maximum output current of 6A and an output voltage of 6V/7.4V.

• All-weather operation capability: Excellent waterproof and dustproof performance, easy to deal with complex roads containing sediment, ice, water and water in various climatic conditions.

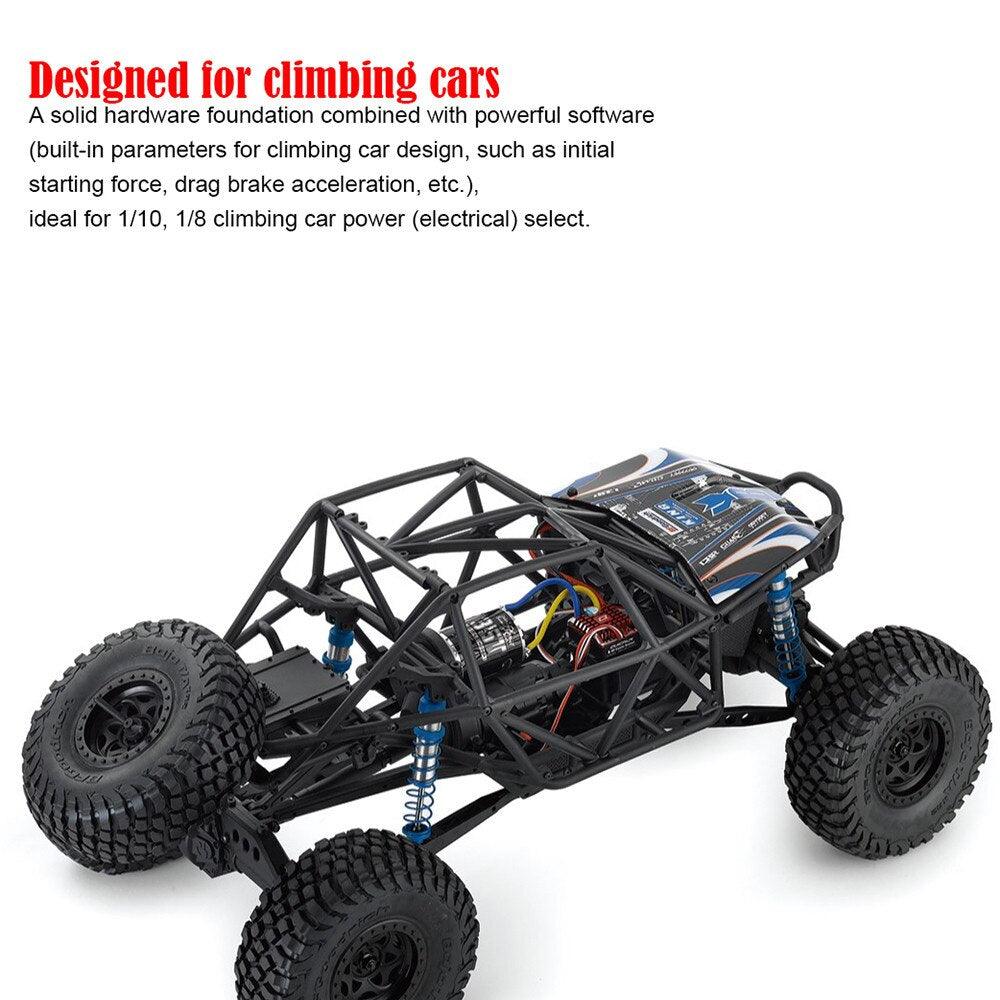

• Designed for climbing cars: A solid hardware foundation combined with powerful software is ideal for 1/10, 1/8 climbing car power (electrical).

• Portable and easy to use independent programming port: independent programming interface, easy to use.
