Hobbywing SkyWalker 2312 2316 2320 Brushless Motor SPECIFICATIONS
Brand Name: hobbywing
Origin: Mainland China
Material: Composite Material
Recommend Age: 14+y
RC Parts & Accs: Motors
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Remote Control Peripherals/Devices: Motor
Quantity: 1 pcs
Model Number: 2312 2316 2320
2312:
Skywalker 2312 SL 980KV
Recommended Battery:3-4S LIPO
KV Rating:980KV
No-load Current:1.3A/14.8V
Resistance:75.6mΩ
Number of slot poles:12N14P
Maximum continuous current:24A/180s
Maximum continuous power:340W/10min
Motor Size:Φ28.8 *46mm
Motor Weight:65g
Shaft Diameter:4mm
Bearing model:684ZZ(D9*d4*4)
Phase cable:18AWG
Cable length:100mm
Recommend ESC:Skywalker-V2 30A
propeller:
3S:10x6E,11x5.5E
4S:8x6E,9x4.5E
Clip mounting hole thread:Φ12mm-3*M2.5
Base thread:Φ16mm-2*M3/Φ19mm-2*M3
Skywalker 2312 SL 1250KV
Recommended Battery:3-4S LIPO
KV Rating:1250KV
No-load Current:1.5A/14.8V
Resistance:51.6mΩ
Number of slot poles:12N14P
Maximum continuous current:38A/35s
Maximum continuous power:563W/35s
Motor Size:Φ28.8 *46mm
Motor Weight:65g
Shaft Diameter:4mm
Bearing model:684ZZ(D9*d4*4)
Phase cable:18AWG
Cable length:100mm
Recommend ESC:Skywalker-V2 30A-40A
propeller:
3S:8x6E,9x4.5E,10X6E
4S:8x4E,8x6E
Clip mounting hole thread:Φ12mm-3*M2.5
Base thread:Φ16mm-2*M3/Φ19mm-2*M3
Skywalker 2312 SL 1400KV
Recommended Battery:3-4S LIPO
KV Rating:1400KV
No-load Current:1.8A/14.8V
Resistance:39.9mΩ
Number of slot poles:12N14P
Maximum continuous current:37A/65s
Maximum continuous power:550W/65s
Motor Size:Φ28.8 *46mm
Motor Weight:65g
Shaft Diameter:4mm
Bearing model:684ZZ(D9*d4*4)
Phase cable:18AWG
Cable length:100mm
Recommend ESC:Skywalker-V2 30A-40A
propeller:
3S:7x6E,8x6E
4S:7x5E,8x4E
Clip mounting hole thread:Φ12mm-3*M2.5
Base thread:Φ16mm-2*M3/Φ19mm-2*M3

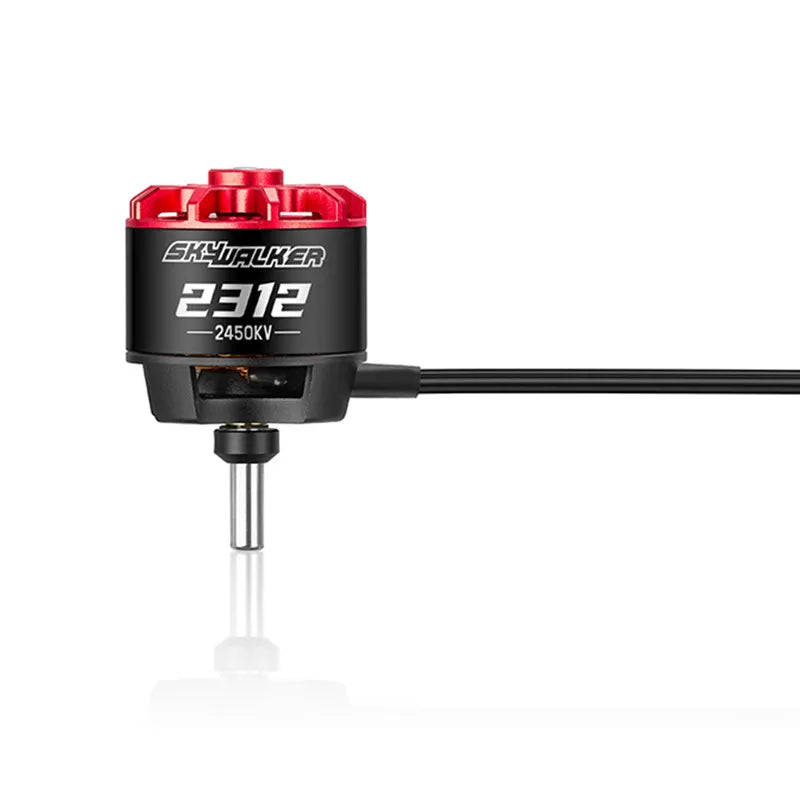

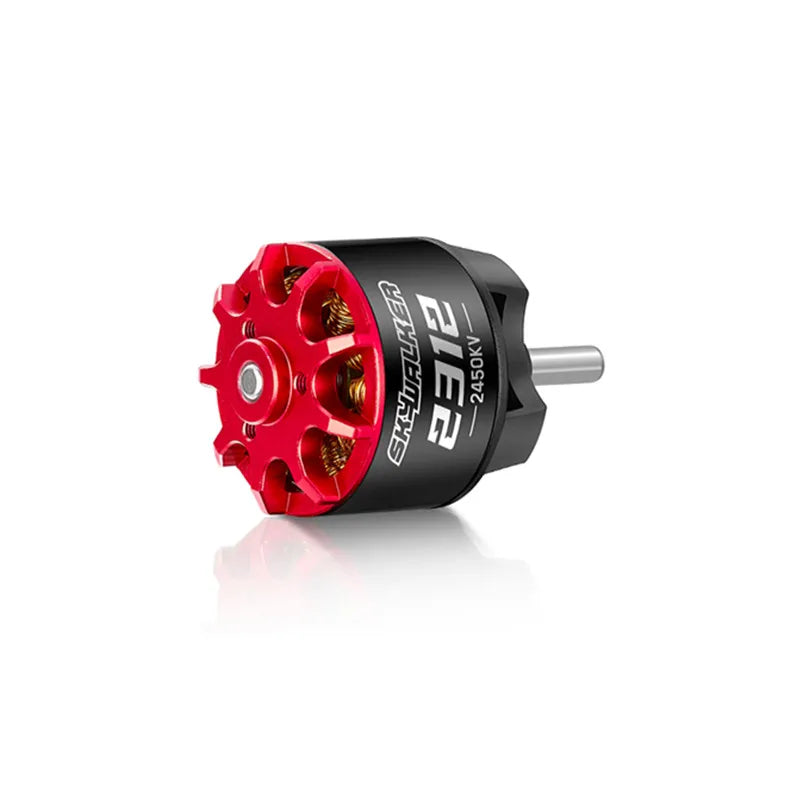

Skywalker 2312 SL 2450KV
Recommended Battery:3S LIPO
KV Rating:2450KV
No-load Current:4.1A/11.1V
Resistance:19.3mΩ
Number of slot poles:12N14P
Maximum continuous current:47A/10min
Maximum continuous power:520W/10min
Motor Size:Φ28.8 *46mm
Motor Weight:65g
Shaft Diameter:4mm
Bearing model:684ZZ(D9*d4*4)
Phase cable:18AWG
Cable length:100mm
Recommend ESC:Skywalker-V2 20A-50A
propeller:
3S:5x3E,6x6E
Clip mounting hole thread:Φ12mm-3*M2.5
Base thread:Φ16mm-2*M3/Φ19mm-2*M3
2316
Skywalker 2316 SL 980KV
Recommended Battery:3-4S LIPO
KV Rating: 980KV
No-load Current:1.5A/14.8V
Resistance:53.6mΩ
Number of slot poles:12N14P
Maximum continuous current:31A/240s
Maximum continuous power:455W/240s
Motor Size:Φ28.8 *50mm
Motor Weight:79g
Shaft Diameter:4mm
Bearing model:684ZZ(D9*d4*4)
Phase cable:18AWG
Cable length:100mm
Recommend ESC:Skywalker-V2 30A-40A
propeller:
3S:10x6E,11x5.5E
4S:9x4.5E,9x6E,10x5E
Clip mounting hole thread:Φ12mm-3*M2.5
Base thread:Φ16mm-2*M3/Φ19mm-2*M3
Skywalker 2316 SL 1400KV
Recommended Battery:3-4S LIPO
KV Rating: 1400KV
No-load Current:2.3A/14.8V
Resistance:28.4mΩ
Number of slot poles:12N14P
Maximum continuous current:42A/135s
Maximum continuous power:618W/135s
Motor Size:Φ28.8 *50mm
Motor Weight:79g
Shaft Diameter:4mm
Bearing model:684ZZ(D9*d4*4)
Phase cable:18AWG
Cable length:100mm
Recommend ESC:Skywalker-V2 40A-50A
propeller:
3S:7x6E,8x6E
4S:7x5E,8x4E
Clip mounting hole thread:Φ12mm-3*M2.5
Base thread:Φ16mm-2*M3/Φ19mm-2*M3
2320
Skywalker 2320 SL 860KV
Recommended Battery:3-4S LIPO
KV Rating: 860KV
No-load Current:1.5A/14.8V
Resistance:48.4mΩ
Number of slot poles:12N14P
Maximum continuous current:36A/90s
Maximum continuous power:540W/90s
Motor Size:Φ28.8 *54mm
Motor Weight:93g
Shaft Diameter:4mm
Bearing model:684ZZ(D9*d4*4)
Phase cable:18AWG
Cable length:100mm
Recommend ESC:Skywalker-V2 30A-40A
propeller:
3S:12x6E,13x6.5E
4S:10x5E,10x6E,11x5.5E
Clip mounting hole thread:Φ12mm-3*M2.5
Base thread:Φ16mm-2*M3/Φ19mm-2*M3

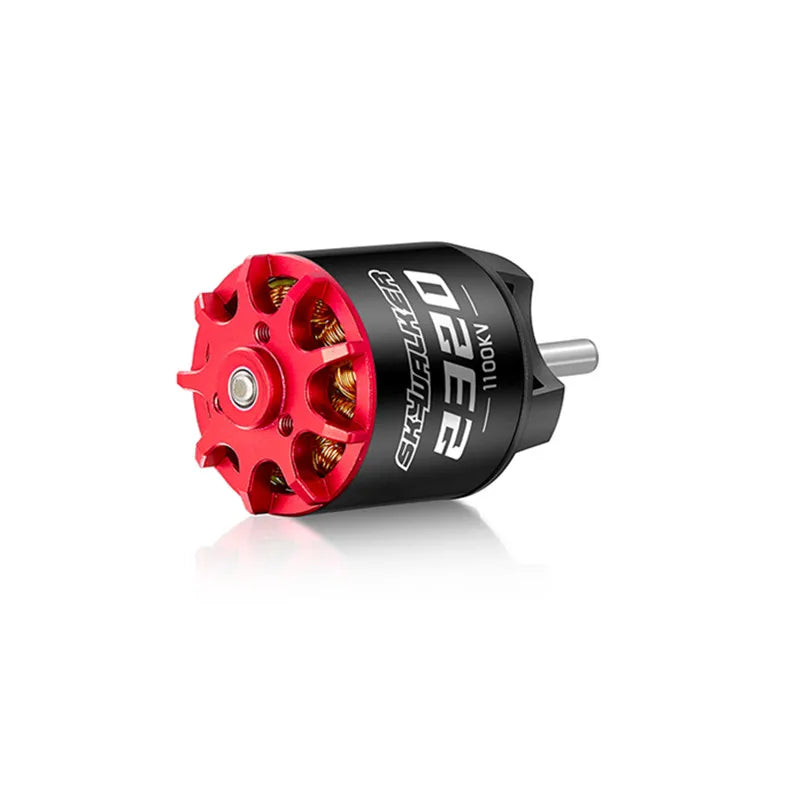

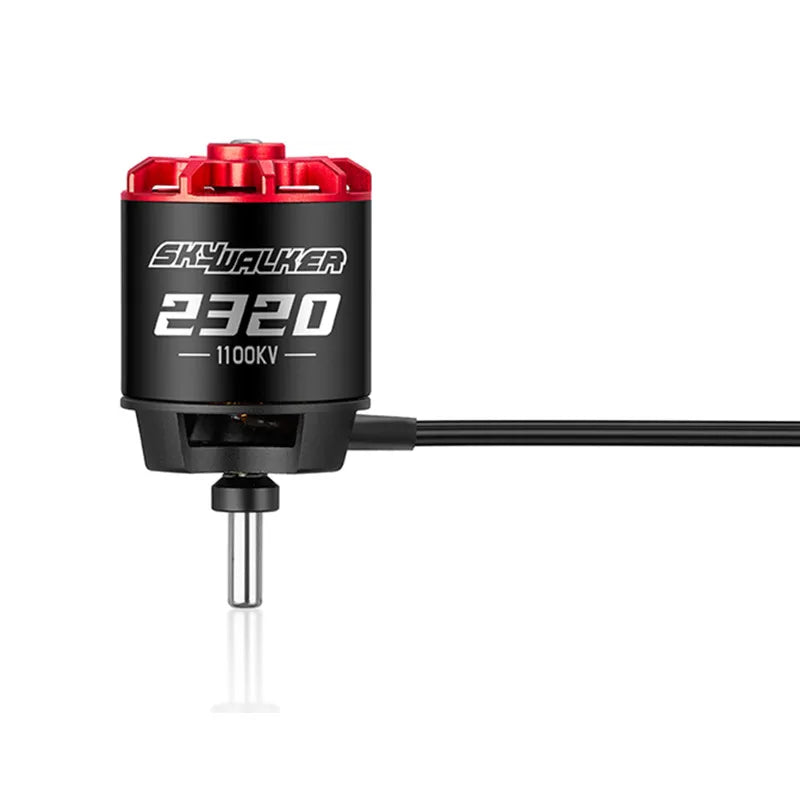

Skywalker 2320 SL 1100KV
Recommended Battery:3-4S LIPO
KV Rating: 1100KV
No-load Current:1.8A/14.8V
Resistance:33mΩ
Number of slot poles:12N14P
Maximum continuous current:41A/180s
Maximum continuous power:580W/194s
Motor Size:Φ28.8 *54mm
Motor Weight:92g
Shaft Diameter:4mm
Bearing model:684ZZ(D9*d4*4)
Phase cable:18AWG
Cable length:100mm
Recommend ESC:Skywalker-V2 40A-50A
propeller:
3S:10x5E,10x6E,11x5.5E
4S:8x6E,9x4.5E
Clip mounting hole thread:Φ12mm-3*M2.5
Skywalker 2320 SL 1250KV
Recommended Battery:3-4S LIPO
KV Rating: 1250KV
No-load Current:2.3A/14.8V
Resistance:28.9mΩ
Number of slot poles:12N14P
Maximum continuous current:50A/94s
Maximum continuous power:740W/94s
Motor Size:Φ28.8 *54mm
Motor Weight:92g
Shaft Diameter:4mm
Bearing model:684ZZ(D9*d4*4)
Phase cable:18AWG
Cable length:100mm
Recommend ESC:Skywalker-V2 40A-50A
propeller:
3S:9x4.5E,9x6E,10x6E
4S:8x4E,9x4.5E
Clip mounting hole thread:Φ12mm-3*M2.5
Base thread:Φ16mm-2*M3/Φ19mm-2*M3
Sky Walkor 2312 #8oKv brand of motor 2212 98okV High performancee PouttW) 350,00 The newly designed 2312, 2316, and 2320 fixed-wing motors have increased output poweroo
the large hollow design enhances the cooling capacity of the motor . the self-dissipating structure of the top cover prolongs the Iifespan .
high-quality bearing and high-precision CNC machining provide an extremely low dynamic balance of the rotor to reduce motor vibration and provide smoother operation . Jic ET 2320 IOOKV is a high-tech dynamic balance technology .
copper pad and retainer spring on the core of the rotor shalf; the bushing and set screw help secure the shaft and improving the reliability of the motor . Stator asscmbly Copper Retaining ring for shaft Bushing Set Screw SKAa 0 @ 1 pad .
top branded JNEHIZOO enameled wire; silicon steel sheet; enhances the high 0.Zmm thick material . magnetic steel design which is softer and easier provides maximum torque to route than the traditional output for the motor .
